switel M100 Operating Instructions Manual

Mobile Phone M100

Operating Instructions

English

2

3

1 Intended use 4......................

2 Product safety Information 4............

3 Your Mobile Phone 7.................

4Keys 8...........................

5 Menu Icons/ Screen Icons 9............

6 Battery 9..........................

7 Menu tree 12........................

8WriteText 13........................

9 SMS Remote Control Function 16.........

10 Shortcut Key 18......................

11 Care and Maintenance 22...............

12 Troubleshooting 24...................

13 Technical Data 26....................

14 Declaration of Conformity 26.............

15 Guarantee 27.......................

4

1 Intended use

This mobile phone is designed for use to a mobile phone network. Any other use is considered
unintended use. Unauthorised modification or reconstruction is not permitted. Under no circum­stances open the device or complete any repair work yourself.

2 Product safety Information

Please read these simple guidelines. Not following them may be dangerous or illegal.

Switch off the phone in the vicinity of chemical plants, gas stations and other loca­tions containing explosive objects.

Keep the phone far away from children.

When driving, please use the hands free calling device (purchased separately) to
ensure safety . Please park the car at roadside for communication unless in emer­gency .

Switch off the phone when boarding an airplane and do not switch the phone on
during the flight.

Be careful when using the mobile phone in the vicinity of such devices as pacema­kers, hearing aids and other electro-medical equipment, which may be interfered by
the mobile phone.

No guarantee for the accessories and parts not produced by the original factory.

Never attempt to disassemble the phone by yourself. Contact the supplier in case of
any trouble with your mobile phone.

5

Do not recharge the phone without battery being installed.

Charge the phone in well-ventilated environment and keep away from inflammable
and high explosive articles.

To avoid demagnetization, keep the handset away from magnetic substances, such
as magnetic discs or credit cards.

Keep the phone away from liquid. If soaking or erosion occurs, take the battery out
and contact the supplier.

Avoid using the phone in too high or too low temperature environments. Never leave
the phone exposed under direct sunlight, in high humidity or in a dusty environment.

Do not use liquid or a damp cloth with strong detergents to clean the handset.

Packing list

Check all the components according to the packing list when you open the package. Please
contact with the dealer or seller in time when you find some missing or destroyed.

1 Handset

1 Adaptor

1 Battery 1 Earplug

1 Manual 1 Desktop charging unit

6

Disposal

In order to dispose of your device, take it to a collection point provided by your local
public waste authorities (e.g. recycling centre). According to laws on the disposal of
electronic and electrical devices, owners are obliged to dispose of old electronic and
electrical devices in a separate waste container. The symbol indicates that the de­vice must not be disposed of in normal domestic waste!

Batteries represent a hazard to health and the environment!

Never open, damage or swallow batteries or allow them to pollute
the environment. They may contain toxic, ecologically hazardous
heavy metals.

You are legally obliged to dispose of power packs and batteries at the point of sale or in the
corresponding containers at collection points provided by local public waste authorities. Dis­posal is free of charge. The symbols indicate that the batteries must not be disposed of in nor­mal domestic waste and that they must be brought to collection points provided by local public
waste authorities.

Packaging materials must be disposed of according to local regulations.

7

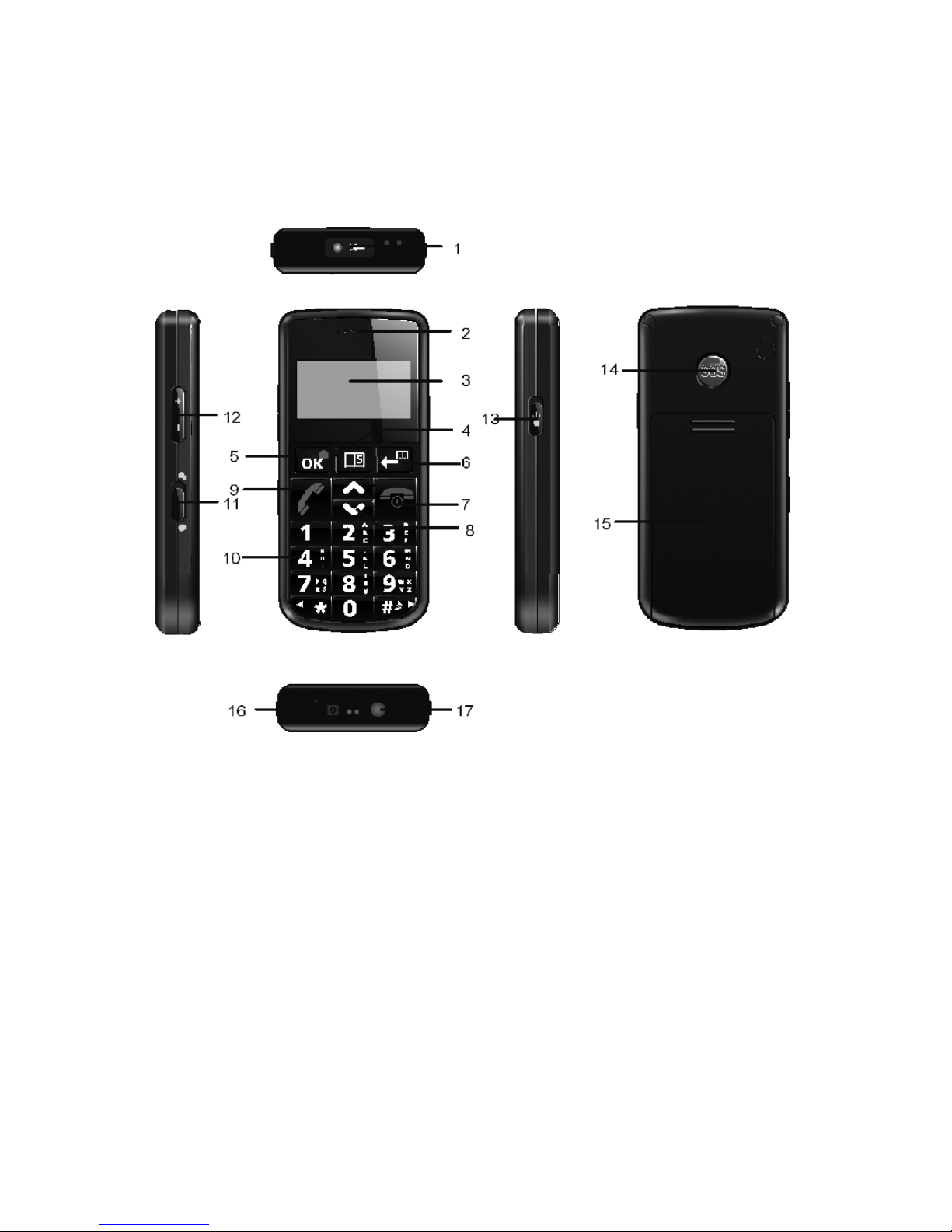

3 Your Mobile Phone

1 Torch 2 Earpiece 3 Main Screen
4 Love Key 5 Menu key 6 ESC key
7 End Key 8 Up/Down key 9 Send key
10 Keypad 11 Keylock Slide button 12 + / - key
13 Torch Slide button 14 SOS key 15 Battery Cover
16 Charging Interface 17 Headset interface

8

4 Keys

Menu Key Dial or answer a call.

In the standby mode, press the key to enter main menu. At the
menu state, enter sub-menu or the interface of menu.

ESC Key In the standby state, press the key to enter inbox. In the Functions

list status, return to previous menu.

Send key Dial or answer a call. In the standby state, press the key to enter

outgoing call list.
End key End a call. Long press this key to turn on or off the phone.
Love key Press the key to enter love number list.
Up/Down Key Used to scroll the functions list in main menu. In Edit mode, move

the cursor. In the standby mode, press up or down key to enter

profiles menu or tools menu.
Keypad Used to input numbers, letters and some characters. In standby

mode, press and hold # key to open vibrant profiles; Press and hold

the Key ”0” to switch on/off the Hearing aid function. In the Edit

screen, press # to change the input method; press * to switch to the

Symbol interface.
TorchslideButton Push Upward or Downward to turn on or off the T orch light.

Up/Down side button Press it to adjust the volume.
Keylockslidebutton Push Upward or Downward to turn on or off locked the key
SOS Key Press and hold the SOS Shortcut Key for 3s to dial SOS number.

9

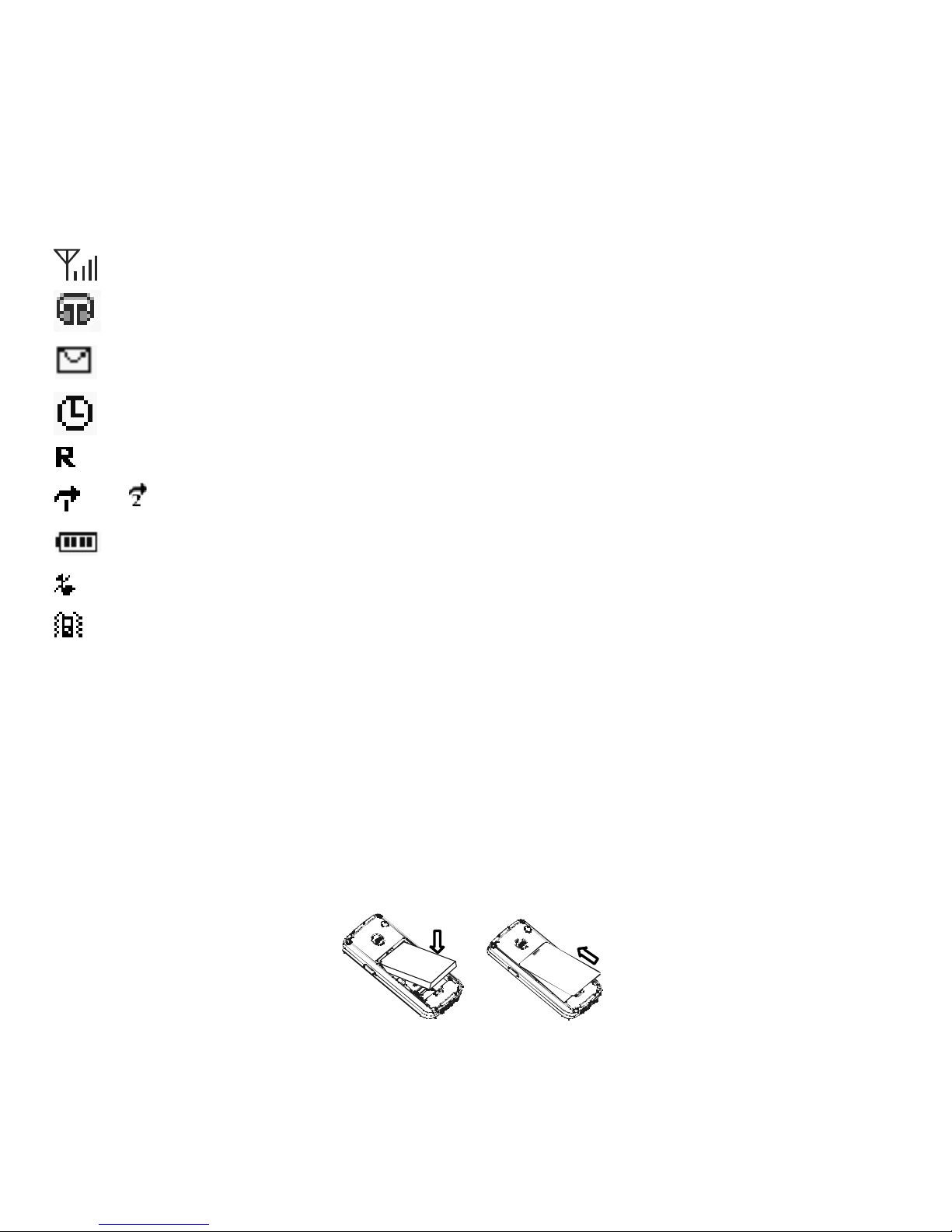

5 Menu Icons/ Screen Icons

Received signal strength

Earphone

New Short Message

Alarm on

International Roam

or

Call divert (Changing by line)

Battery power level

Silence

Vibration

6 Battery

The lithium battery of the mobile phone can be immediately used after unpacking. A new bat­tery performs best after performing a full charge/discharge 3 times.

Installing the battery

1. Insert the battery by aligning the gold contacts in the battery compartment on
the phone.

2. Push down on the upper section of the battery until it clicks into place.

10

Removing the b attery

1. Ensure that your mobile phone is switched off.

2. Remove the battery cover.

3. Pull the battery up and remove it from the mobile phone.

Charging the battery

Your phone is powered by a rechargeable battery. Connect your travel adapter to the bottom of
your mobile phone. Connect the other end of the travel adapter to the mains socket. If you are
charging the battery when the mobile phone is switched off, the display will show the battery
icon with the bars moving from right to left. If charging the battery when the mobile is switched
on, the display will show the battery icon with a lightning strike. When the battery is fully
charge, disconnect the charger.

Insert the SIM card

Insert the SIM card as following steps.

1. Switch off the phone and disconnect it from the charger.

2. Remove the battery cover and checkout the battery.

3. Hold your SIM card with the chamfer oriented as following picture and slide it
into the card holder with metal interface down.

4. Replace the battery and its cover.

11

SIM card

Every mobile phone has a SIM card (Subscriber Identity Module). This is a micro-chip that
holds your personal information such as names and phone numbers. Your phone won’t work
without it. If you already have contacts on your SIM card, they can be transferred in most
cases.

Power ON/OFF

Hold End key to Power on/off the phone. Note: Make sure the SIM card and the battery have
been inserted before booting.

12

7Menutree

1. Phone Book

S Phone Book
S Love Number

2. Message

S Write message
S Inbox
S Outbox
S Drafts
S Voice Mail
S Broadcast

Message

S Delete All
S Check Storage
S Message Counter
S Message Setup
S SIM Tool Kit

3. Call Records

S Incoming Calls
S Outgoing Calls
S Missed Calls
S Delete
S Call Duration

4. FM Radio

5. Alarm

6. Tools

S Calendar
S To Do List
S Calculator
S Convertor
S World Clock

7. Profiles

S Standard
S Conference
S Outdoor
S Indoor
S Headset

8. Settings

S Clock Settings

S SOS Settings
S Phone Setting

S Call Settings
S Network Settings
S Security

S Factory Default

13

8 Write Text

Change input mode: press # key to change the input mode (Eng, Abc, abc, ABC, 123) ABC,
Abc and abc input: press the number keys 2-9 to input letters. Input the characters followed the
order of letters on the keys. Press the key once to input the first letter, press it twice to input
the second one and so on.

In the Eng input, When entering a word, you only need to enter the target key once, the phone
will present those possible matches by use of the association function; you can press the Up/
Down key to select your desired word, and press Menu key or * key to confirm to select the
cursor character.

123 input: Press the keys to input the corresponding numbers.
Input Symbol: Press the * key to select the symbol.
Input Space: Press key 0 to input space, it does not input space in 123 mode.
Delete Character: Press End key to clear a character in the front of cursor. Press and hold

End key to delete all characters in the front of cursor.
Move cursor: Press the Up or Down key to move the cursor left or right.

Adding phone book

S Menu > Phone Book > Phone Book.
S Press MENU key and select Create.
S Select Save to SI M or Save to Phone.
S Enter the contact’s phone name and press MENU key to confirm.
S Enter the number and confirm it by MENU key.

14

Making and receiving call

Dialing a Number

S In standby mode, enter the telephone number and press the Send Key to dial.
S Press End key to end the call.

Dialing a Number stored in Phonebook

Searching desired number in Phonebook List: Input character contained in the initial letter of
the desired name, and then press Up/Down Key to find out the desired.

Press Send Key to dial.

Dialing a Number stored in Call Records

Menu > Call Records > Incoming Calls > Incoming Calls > Outgoing Calls.
Press Up/Down Key to select your desired number, Press the Menu Key to select dial to dial

the number.

Speed Dial

Edit the speed dial numbers in Menu > Settings > Phone Setting > Speed Dial.
In Standby state, hold on press the numerals (2 - 9), you can dial out the number when you set

in the Speed Dial submenu.

Adjusting Volume
Press the Up and Down key to adjust the volume directly during a call.

Answering a Call

The phone will ring or vibrate when call coming.

S Press Send Key to answer it.
S Press End key directly t o refuse it.
S Press End key to end it during calling.

15

Sending text message

1. Menu > Message > Write message

2. Write text message. For more information on writing, refer to section “Writing text”.

3. Send: press Menu key to do as follow.

S Select Send to send the message to one person;
S Select Send and Save to send and save it into Outbox;
S Select Send to Many to send it to more than one person, and select the names from

the phone book list;

S Select Save to save it to drafts.

Receiving text message

Once receiving a message, the mobile phone will ring, prompt, and show off a new message
icon.

1. Press Send key to enter receiver message list, Use Up or Down key t o select one
message, press Menu key again to read the message.

2. Use Up or Down key to read the message.

3. Press Menu key for Text Reply, Delete, Extract Number , Foward, Edit or Dial Back.

16

9 SMS Remote Control Function

One may through another handset SMS remote control another mobile phone, be possible the
remote control set Dial Love Number, remote control to establish one to seek help the number,
the remote control increase the telephone number, the remote control establishment alarm
clock which saves on the handset.

Setting Love Number

Edit: AT+L: name: num: password
[For example:] AT+L: Jack: 13333333333:1234
Jack’s Love Number is 13333333333.
The maximum storage is 5 Love Number.IfaLove Number set by remote SMS and this entry

has the same name but with different number, the old Love Number will be replaced by the new
one.

Note: when the phone had saved up to 5 Love Number, If user want to add another Love
Number with the same name but different number, then the old Love Number will be replaced
by the new one, but if the Love Number is new, the care phone would prompt you that whether
to replace exist one.

Setting SOS Number

Edit: AT+S: name: num: password
[For example:] AT+S: Jack: 13333333333:1234
Jack’ SOS Number is 13333333333.
Note: when the phone had saved up to 5 SOS numbers, If user want to add another SOS

number with the same name but different number, then the old SOS number will be replaced by
the new one, but if the SOS number is new, the care phone would prompt you that whether to
replace exist one.

Adding New Entry

Edit: AT+P: name: num: password
[For example:] AT+P: Jack: 13333333333:1234

17

Jack’ new entry is 13333333333.

Setting Alarm

Edit: AT+A:hh: mm: content: password
[For example:] AT+A:06:30: Good Morning :1234
The alarm time is 6:30. The content is ”Good Morning”.

1. Time Format must be 24-hour.

2. The content: The character’s limit is 70.

Note:

S The password default 1234, it can change in Menu > Settings > Security > Change

verified Code.

S Above letters (A TL, ATS, ATP, ATA) need input Capital characters.
S Name: if the character of name exceed to 30 characters, it will cut the character

from 31th.

S Number: if the character of number exceed to 40 characters, it will cut from 41th.
S After care phone had receive remote control message, it would send a report about

successfully or unsuccessfully to controlling side.

18

10 Shortcut Key

Electric Torch Shortcut Key
Press the Torch slide button up/down to switch on/off the electric torch.

Key lock Shortcut Key
Press the Keylockslidebuttonup/down to switch on/off the lock key.

Hearing aid Shortcut Key

Press and hold the Key ”0” to switch on/off the Hearing aid function. The Hearing aid can be
activated until you plug into headset.

Shortcut Key Love Number

Press Love Key to get the Love Number lists in standby mode and press the Up or Down key
to select the desired one. When you view Love Number, you can press Menu key to do as fol­low:

Dial: Dial out the Love Number.
Edit: Edit Love Number. You can Input the number and then Input the name.
Press the Menu Key preservation, presses the ESC key not to preserve the establishment.
Delete: You can press the Menu key to delete the current Love Number when select Delete,

press the ESC key to return to the previous.

SOS Shortcut Key

Press and hold the SOS Shortcut Key for 3s to dial the SOS number under any condition,
even the phone locked.

Attention:

1. The SOS holds a maximum of five SOS number.

2. The phone will dial out automatically and sound a note of warning last 3 seconds by
pressing the SOS key without release. If the press is a misoperation, press the End key
to cancel the misoperation.

19

3. If the SOS number is dialed out, the phone will send message firstly . It will turn into
calling link state after the message being sent out successfully or fail. The phone will
turn into hand free mode if the call connected.

4. If the SOS number. Can’t be connected, the phone will dial next SOS number out until
the call connected. If no SOS number answers, the phone will dial out last 2 times.

5. The SOS operation can be cancelled by pressing the ESC key.

6. If the number is empty or you want to edit the SOS number, you can go to Menu >
Settings > SOS Settings tosetitasfollows.

SOS Settings SOS Settings

It can be set On or Off.

SOS Number
In SOS Number list, total 5. You can press the Menu key to select Edit or Delete.

SOS Light

It can be set On or Off.

SMS Reminder

It can be set On or Off.

SOS Message:

The message can be edited. The default message is ”Help!”

20

Function Description Selection

Add new

Phone Book

Add the new contacts to
phone book

Menu→Phone Book→Phone

Book→Create

Edit Phone Book Edit phone book Menu→Phone Book→Phone

Book→Search→Option→Edit

Send Message Send text message to

mobile phone

Menu→Message→Write

message→Option→Send

Read Message View the received, sent,

save message

Menu→Message→In-

box√Outbox√Drafts

Voice Mail Receive and listen to voice

message

Menu→Message→Voice Mail

Message Setup The settings about message Menu→Message Setup
Recent calls View all recent calls Menu→Call Records→Incoming

Calls√Outgoing Calls√Missed Calls
Call Duration View call duration Menu→Call Records→Call Duration
Alarm Set alarm alert time Menu→Alarm
Calendar View Calendar Menu→Tools→Calendar
To Do List To record and view to do list Menu→Tools→To Do List
Calculator Acalculator Menu→Tools→Calculator
Convertor By use of this function, you

can convert Currency , Land
measure, Energy , Length,
Quality, Power, Pressure,
Temperature, Time, Velocity,
Volume, etc.

Menu→Tools→Convertor

World Clock Only for you view the world

clock.

Menu→Tools→World Clock

21

Profiles Ring Tone, SMS Alert Tone,

Alarm Tone, Alert Type, Ring
Tone Volume, SMS T one
Volume, Power On Volume,
Power Off Volume, Volume
of Voice Calling Report, Key
Volume, Vibration about
different Personalize profiles

Menu→Profiles

Time and date

Date & Time Set­tings

Set date and time Menu→Settings→Clock Settings

→Date & Time Settings

Language Set the phone language Menu→Settings→Phone Setting

→Language

Speed Dial Set speed dial numbers that

you can dial the number of
setting by long pressing
number key in the standby
state.

Menu→Settings→Phone

Setting→Speed Dial

Call Waiting Hold the first call and

answer the second call
(need network support)

Menu→Settings→Call Settings→Call

Waiting

Call Divert Divert the incoming calls to

other preset numbers(need
network support)

Menu→Settings→Call Settings→Call

Divert

22

11 Care and Maintenance

Battery and Charger Safety

S Only use batteries approved by the phone manufacturer.
S Your device is powered by a rechargeable battery. The full performance of a new

battery is achieved only after two or three complete charge and discharge cycles.

S The charging time depends on the charger and the battery used.
S The battery can be charged and discharged hundreds of times, but it will eventually

wear out. When the talk and standby times are noticeably shorter than normal,
replace the battery .

S If unused, a fully charged battery will lose its charge.
S When the charger is not disconnecting it from the power source. Do not leave the

battery connected to the charger and power source for longer then necessary as
overcharging it will shorten its life.

S Leaving the battery in hot or cold place, such as in a closed car in summer or winter

conditions, will reduce the capacity and lifetime of the battery . A device with a hot or
cold battery may not work temporarily, even when the battery is fully charged.
Battery performance is particularly limited in temperatures well below freezing.

S Do not short-circuit the battery. Accidental short-circuiting can occur when a metallic

object such as a coin, clip, or pen causes direct connection of the positive (+) and
negative (-) terminals of the battery. (These look like metal strips on the battery.)
This might happen, for example, when you carry a spare battery in your pocket or
purse. Short-circuiting the terminals may damage the battery or the connecting
object.

S Do not dispose of the battery in a fire.

23

Phone Maintenance

Your device is a product of superior design and chairmanship and should be treated with care.
The suggestions below will help you protect your warranty coverage.

1. Keep the phone and all the parts and accessories (for example, SIM card) out of the

reach of small children.

2. Do not use or store the phone in dusty or dirty locations. Its moving parts and electronic

components can be damaged.

3. Do not use or store the phone in excessively hot places. High temperatures will shorten

the life-span of the phone, damage the battery, and warp or melt the plastic used in the
phone’s manufacture.

4. Do not store the phone in excessively cold places. When the phone returns to its normal

temperature, moisture can form inside the phone, causing damage to the electronic
circuits.

5. Do not mishandle or abuse the phone. Dropping, knocking or shaking it can damage the

internal circuits.

6. Do not use harsh chemicals, strong detergents, or cleaning solvents to clean the phone.

If you must clean it, then use a soft, clean and dry cloth.

7. Do not paint the phone. Paint can clog the moving parts and prevent proper operation.

8. Use only the supplied or an approved replacement antenna. Unauthorized antennas,

modifications, or attachments could damage the device and may violate regulations
governing radio devices.

9. If the phone or any of the accessories are not working as they should, please consult

your dealer who can provide you with the expert assistance required.

All of the above suggestions apply equally to your device, battery, charger, or any
enhancement. If any device is not working properly, take it to the nearest authorized service
facility for service.

24

12 Troubleshooting

Should problems arise with the telephone, please refer to the following information first. In the
case of technical problems, you can contact our hotline service, Tel. [phone] within
Switzerland (Swisscom fees, via landline, at time of going to print: CHF 2.60/min). In the case
of claims under the terms of guarantee, please contact your sales outlet. There is a 2 year
period of guarantee.

Trouble Possible reasons

The phone cannot be switched on 1. Is there any power in the battery?

2. Is the battery installed properly?

Battery cannot be charged 1. Check if the charger is connected with the phone

correctly.

2. Is the battery usable? The performance of the
battery will be reduced after used for several years.

3. Is the battery completely discharged? The phone
needs to be connected to the charger for a while
before it can be charged.

Fails to register to the network 1. The signal is too weak, or there may be some radio

interference around. Check the signal strength meter
on the screen to see whether vertical lines are
displayed.

2. Is the SIM card installed properly, poorly contacted
or damaged? If the SIM card is damaged, please ask
your network operator for replacement.

Cannot call out 1. Is the SIM card registered in the network?

2. Is call barring enabled?

3. Calling prohibited due to call charges not paid?

4. Have you enabled the function of FDN?

5. Have you selected line 2 though your network
operator doesn’t provide this service?

25

Cannot call in 1. Is the SIM card registered in the network?

2. Incoming call prohibited due to call charges not
paid?

3. Is call diverting enabled?

4. Is the ”Bar incoming call” function in call barring
enabled?

PIN locked Input the PUK code supplied with the SIM card to

unlock or contact the network operator.

Call charge meter invalid No metering pulse is transmitted. Please contact your

network operator.

SIM error 1. SIM card is dirty. Clean it.

2. Reinstall the SIM card.

3. SIM card is damaged. Replace it.

Abbreciations and explanations

GSM Global System of Mobile Communication.
SIM Subscriber Identity Module.
PIN Personal Identification Number. Usually refers to PIN1.

Supplied with SIM card. Used to unlock the SIM card.

PUK Personal Unlock Code. Supplied with SIM card. It is

used to unlock the SIM card if you input wrong PIN
code three times consecutively and the SIM card is
locked.

FDN Fixed diales numbers.

Our company will not take any responsibility for results caused by not following the
suggestions or by improper use.

26

13 Technical Data

Frequenz: GSM 900MHz / DCS1800 MHz Dual Band

Power Adapter: 100 V - 240 VAC, 50 Hz/60 Hz,

DC 5.25 V, 0.6 A

Battery: 600 mAh

Waiting time: about 150 - 150 hours*

Talk t im e: about 3 - 4 hours*

Operation T emperature: -10°C-+40°C

Ambient Humidity: 10 - 95 %

Storage Temperature: -30°C+60°C

Circumstance noise:

≤60 dB(A)

Pressure: 86 - 106 Kpa

Dimension: 108 mm x 50,6 mm x 14,8 mm

*Variation in operation times may occur depending on SIM card, network, aand usage settimgs,
usage style and environments.

14 Declaration of Conformity

This product complies with standards including Low Voltage Device Directive
73/23/EEC; EMC Directive 89/336/EEC and R&TTE Directive 1999/5/EC. It passed
the subject tests by the authority concerned and is authorized to bear CE mark.

To view the complete Declaration of Conformity, please refer to the free download
available on our web site www.switel.com

.

27

15 Guarantee

SWITEL equipment is produced and tested according to the latest production methods. The

implementation of carefully chosen materials and highly developed technologies ensure
trouble-free functioning and a long service life. The terms of guarantee do not apply where the
cause of equipment malfunction is the fault of the telephone network operator or any interposed
private branch extension system. The terms of guarantee do not apply to the batteries or power
packs used in the products. The period of guarantee is 24 months from the date of purchase.

All deficiencies related to material or manufacturing errors within the period of guarantee will be
redressed free of charge. Rights to claims under the terms of guarantee are annulled following
tampering by the purchaser or third parties. Damage caused as the result of improper handling
or operation, normal wear and tear, incorrect positioning or storage, improper connection or
installation or Acts of God and other external influences are excluded from the terms of guaran­tee. In the case of complaints, we reserve the right to repair defect parts, replace them or
replace the entire device. Replaced parts or devices become our property. Rights to
compensation in the case of damage are excluded where there is no evidence of intent or
gross negligence by the manufacturer.

If your device does show signs of a defect within the period of guarantee, please contact the
sales outlet where you purchased the

SWITEL device, producing the purchase receipt as

evidence. All claims under the terms of guarantee in accordance with this agreement can only
be asserted at the sales outlet. No claims under the terms of guarantee can be asserted after a
period of two years from the date of purchase and hand-over of the product.

Important note

Your phone’s base station is supplied with an energy-efficient switching power supply
(Input 100-240 V

AC

, Output 5,25 VDC, 600 mA). The adaptor input power without load is ap­prox. 0.3 W. The average efficiency is approx. 69.43 %.
The electrical consumption of the base is:

- in operation mode (idle/call): approx. 0.42 W / 1.7 W

- during charging of the handset: approx. 2.15 W

Declaration of conformity

WE TELGO AG
OF Route d’Englisberg 11

CH-1763 Granges-Paccot
Declare under our own responsibility that the product
MODEL: M100
DESCRIPTION: Cordless DECT telephone
Is in conformity with directives: R&TTE Directive (1999/5/EC)
COMPLIANCE IS ACHIEVED BY CONFORMITY TO THE FOLLOWING:
EN 60950-1, EN 301489-1, EN 301489-6, EN 301406

AUTHORISED BY:

Signed:

Name (printed): Selim Dusi
Position in company: Managing Director
Date of issue: 08.07.2010
Copies of this document will be held on file for a period of 10 years after the last production.

Supplier: TELGO AG, Route d’Englisberg 11

CH-1763 Granges-Paccot

Product: M100
