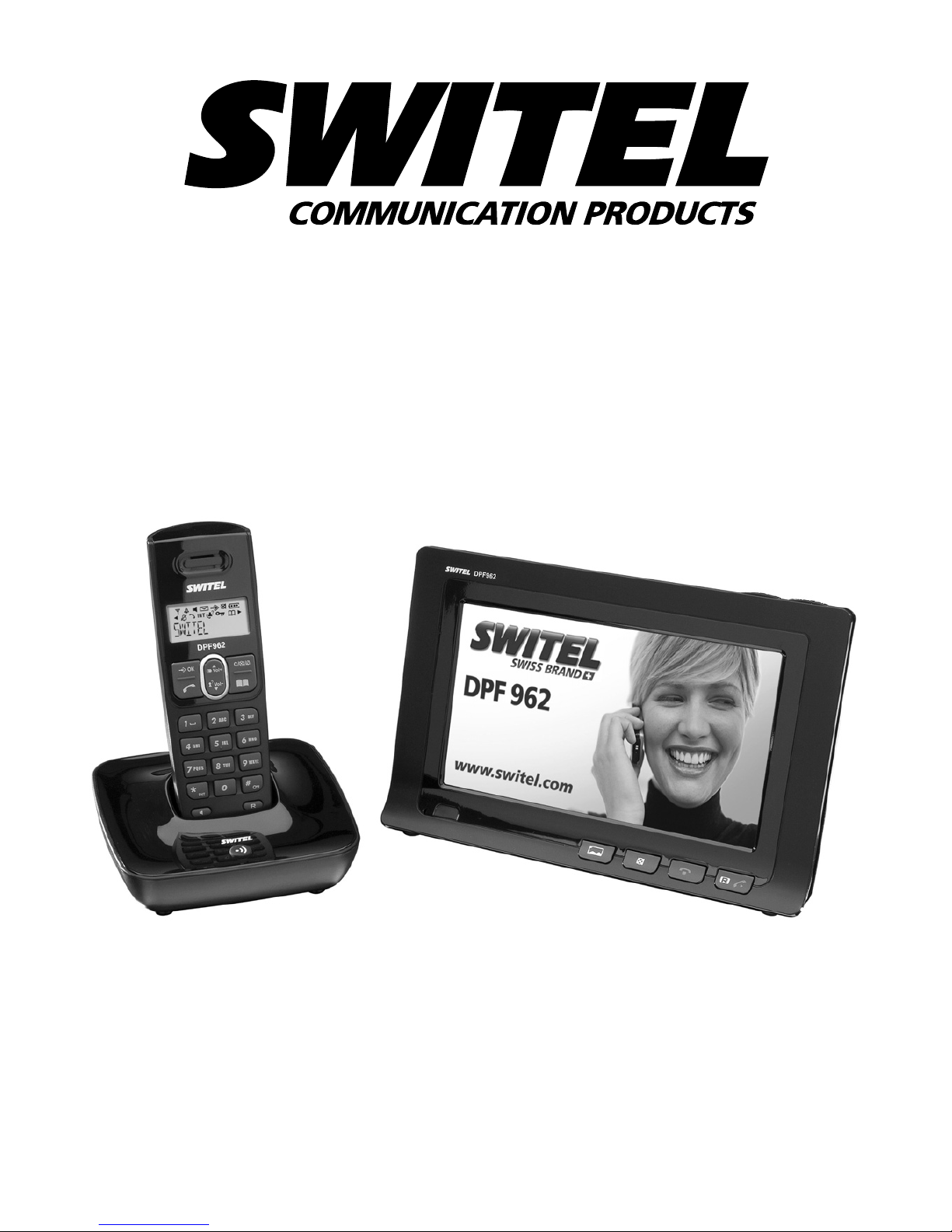

Page 1
DECT telephone set with
7" photoframe
Operating Instructions
DPF962
Page 2
2
2
Operating Instructions 3. . . . . . . . . . . . . . . .
Declaration of Conformity 48. . . . . . . . . . . . .
Page 3
1
Contents
3
1 Safety Information 4. . . . . . . . . . . . . .
2 Preparing the Telephone 6. . . . . . . . .
3 Operating Elements 9. . . . . . . . . . . . .
4 Preliminary Information 10. . . . . . . . . .
5 Menu Structure 13. . . . . . . . . . . . . . . .
6 Phone Book 15. . . . . . . . . . . . . . . . . .
7 Call Log 17. . . . . . . . . . . . . . . . . . . . .
8 Telephoning 19. . . . . . . . . . . . . . . . . .
9 Extending the Telephone System 24. . .
10 Special Functions 26. . . . . . . . . . . . . .
11 PABX / Supplementary Services 26. . . .
12 Starting the Picture Frame 28. . . . . . . .
13 Operating Elements 29. . . . . . . . . . . . .
14 Preliminary Information 32. . . . . . . . . .
15 Menu Structure 35. . . . . . . . . . . . . . . .
16 Telephoning 38. . . . . . . . . . . . . . . . . .
17 Call Log 39. . . . . . . . . . . . . . . . . . . . .
18 In Case of Problems 40. . . . . . . . . . . .
19 Technical Properties 43. . . . . . . . . . . .
20 Maintenance / Guarantee 45. . . . . . . . .
21 Index 46. . . . . . . . . . . . . . . . . . . . . . .
Page 4
Safety Information
4
1 Safety Information
Please read this operating instruction manual thoroughly.
Intended use
The phone is suitable for telephoning within a public telephone
network system.
Only use the picture frame as described in this manual.
Any other use is considered unintended use. Unauthorised modifi-
cation or reconstruction is not permitted. Under no circumstances
open the devices or complete any repair work yourself.
Installation location
Prevent excessive exposure to smoke, dust, vibration, chemicals,
moisture, heat and direct sunlight.
Do not use the handset in potentially explosive areas.
Power adapter plugs
Attention: Only use the power adapter plugs supplied
because other power adapter plugs could damage the
devices. Ensure access to the power adapter plugs is
not obstructed by furniture or such.
Rechargeable batteries
Attention: Never throw batteries into a fire. Only use
batteries of the same type. Pay attention to correct polarity. Incorrect polarity of the batteries represents a risk of
explosion during charging.
Power failure
The telephone cannot be used to make calls in the event of a
power failure. Always keep a cord connected telephone which operates without an external power supply available in case of
emergency situations.
Page 5
Safety Information
5
Medical equipment
Attention: Never use the telephone in the vicinity of me-
dical equipment. Effects on such equipment cannot be
fully ruled out.
DECT1 telephones can cause an unpleasant humming sound in
hearing aids.

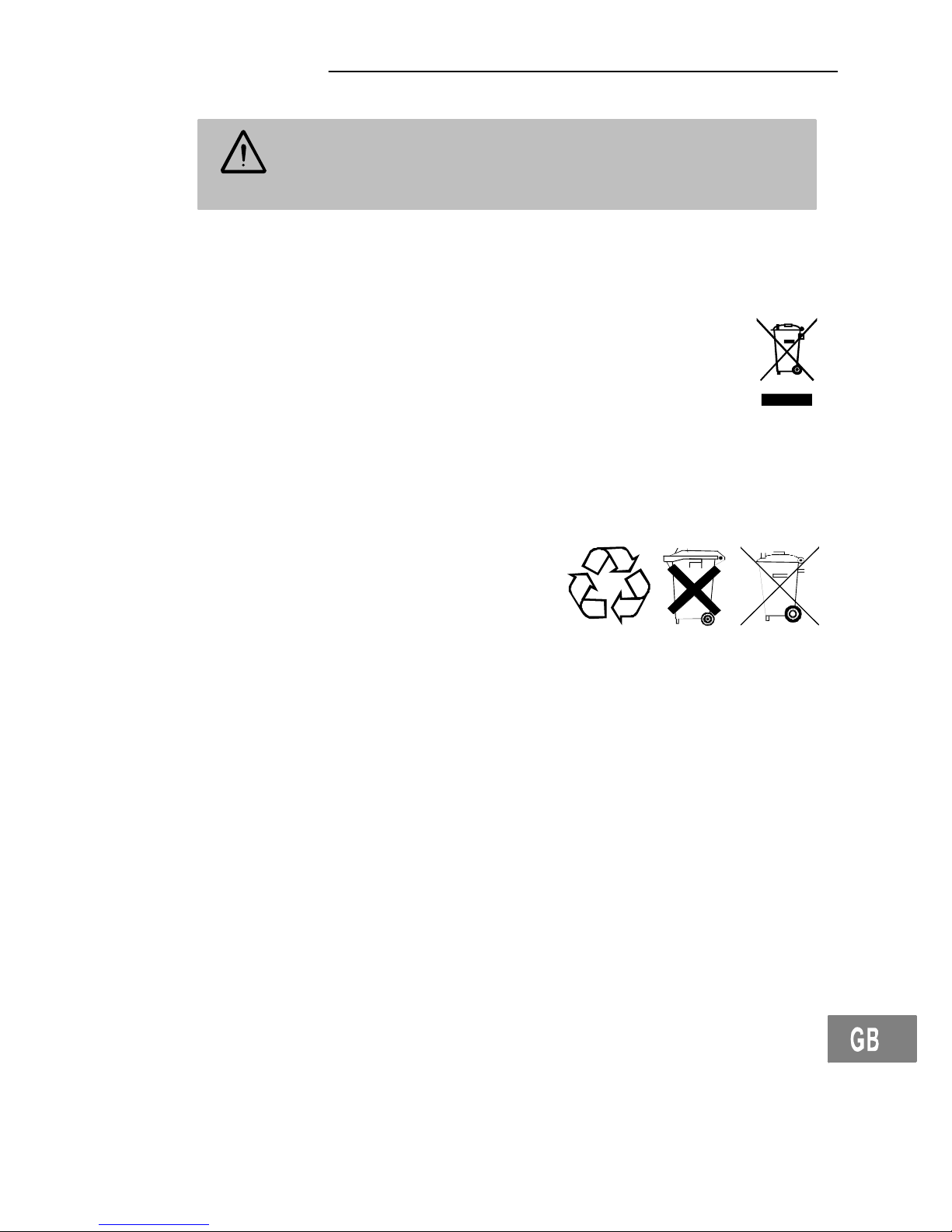

Disposal
In order to dispose of your device, take it to a collection
point provided by your local public waste authorities (e.g.
recycling centre). The adjacent symbol indicates that the
device must not be disposed of in normal domestic
waste! According to laws on the disposal of electronic
and electrical devices, owners are obliged to dispose of
old electronic and electrical devices in a separate
waste container.
Batteries must be disposed of at
the point of sale or at the appropriate collection points provided by
the public waste authorities.
Packaging materials must be disposed of according to local regulations.
1
DECT: Digital Enhanced Cordless Telecommunication = Stan-
dard for cordless telephones.
Page 6
2
Preparing the Telephone
6
2 Preparing the Telephone
Safety information
Attention: It is essential to read the Safety Information
in Chapter 1 before starting up.
Checking the package contents
The package contains:
Content
DPF96x Model
1
962 963 964 965
Base station with power
adapter plug
1 1 1 1
Charging station with power
adapter plug
− 1 2 3
Handset 1 2 3 4
Telephone connection cable 1 1 1 1
Batteries 2 4 6 8
Picture frame 1 1 1 1
Remote control with battery 1 1 1 1
Operating instructions 1 1 1 1
Connecting the base station
Attention: Position the base station at least 1 m away
from other electronic devices, otherwise there is a risk of
mutual disturbance.

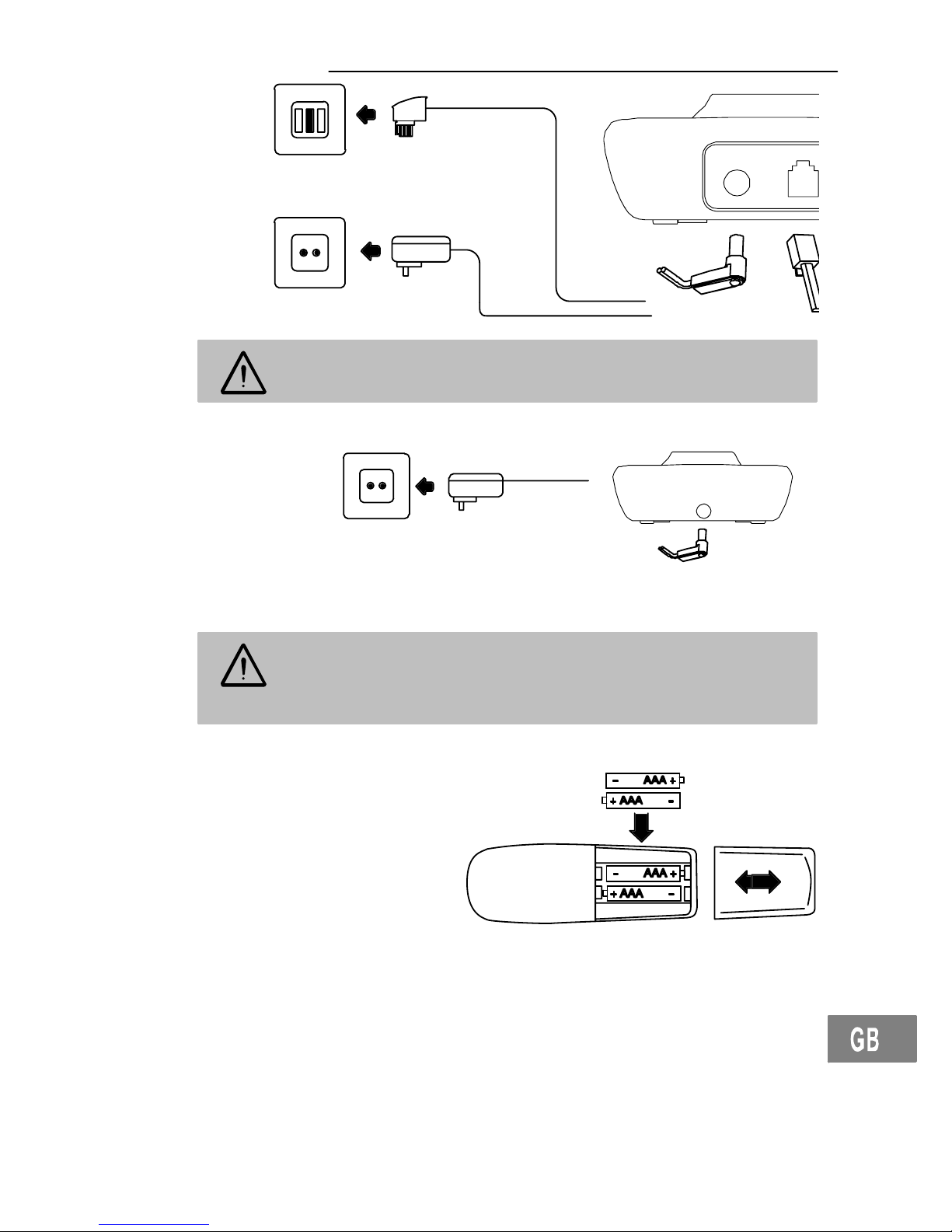

Connect the base station as illustrated in the diagram. For reasons of safety, only use the power adapter plug and telephone
connection line supplied.
1
Visit www.switel.com to find out whether the telephone/tele-
phone set is already available.
Page 7
Preparing the Telephone
7
Mains power outlet
Telephone line socket
For the base station, use the power adapter plug label-
led with No. VD060025J and output data 6 V, 250 mA.

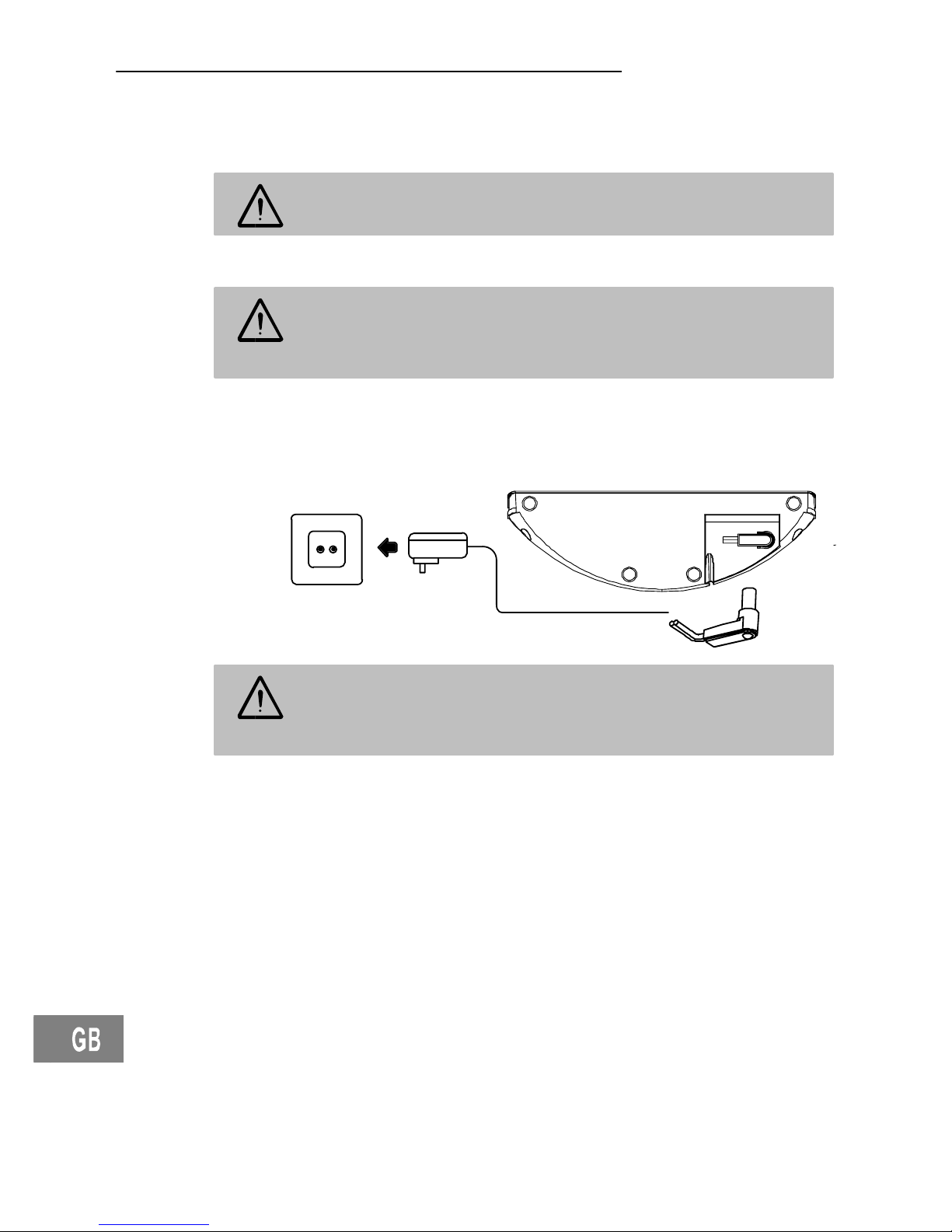

Connecting the charging station
1
Connect the
charging station as illustrated in the
diagram.
For safety reasons, only use the power adapter plug supplied.
For the charging station, use the power adapter plug la-
belled with No. VD060015D and output data 6 V,
150 mA.
Inserting the batteries
Insert the batteries in
the open battery compartment. Only use
batteries of the type
AAA NiMH 1.2 V. Pay
attention to correct
polarity. Close the
battery compartment
cover.
1
Only applies to telephone sets with at least two handsets
Checking the package contents" ( Chapter 2).
Mains power outlet
Page 8
3
Preparing the Telephone
8
Charging the batteries
Before the handset is used for the first time, insert it in the
base station/charging station for at least 16 hours.
When the handset is properly inserted in the base station / charging station, you will hear an acoustic signal. The handset warms
up during the charging process. This is normal and does not
represent a risk. Do not charge the handset with charging units
from other manufacturers. The current battery charge status is
indicated in the display:
Full Half empty Low Empty
Setting the display language
Select the language required (also refer to Menu Structure"):
> SETUP MT > SPRACHE >...
( > SETUP HS > LANGUAGE >...)
Setting the time and date on the handset
The date and time are set using the menu ( Chapter 5).
Automatic answering
When the AUTO TALK function is activated, a call is automatically
taken on removing the handset from the base station. The Auto
Talk function is activated and deactivated using the menu
( Chapter 5).
Private branch exchanges
The information in Chapter 11 explains how to install your telephone in a private branch exchange.
Low−radiation operation (ECO mode)
In talk mode, radiation is reduced depending on the
distance between the handset and base station.
Page 9
Operating Elements
9
3 Operating Elements
The buttons in this operating manual are subsequently depicted
with a uniform contour. Therefore, slight deviations in the appearance of the symbols on the telephone buttons compared to those
depicted here are possible.

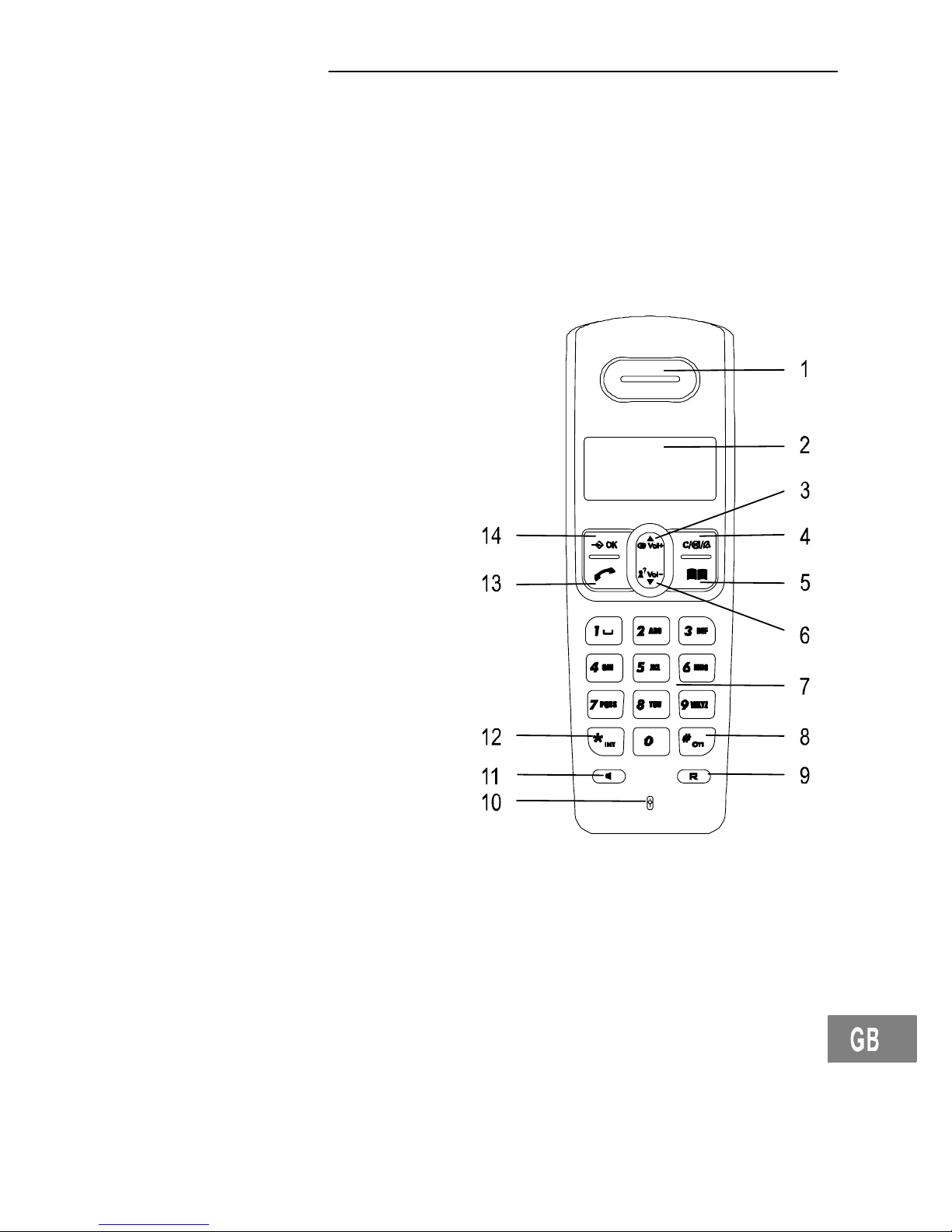

Handset
1 Loudspeaker
2 LC display
(liquid crystal display)
3 Arrow button, upwards
Redialling
Increase receiver volume
4 Delete entries
Muting function
Ringing tone on/off
5 Phone book
6 Arrow button, downwards
Call log
Lower receiver volume
7 Digit keys
8 #−button
Key lock
9 R−button
10 Microphone
11 Handsfree button
12 *−button
Internal call
13 Call/On−hook button
14 Save/Confirmation/Menu button
Page 10
Preliminary Information
10

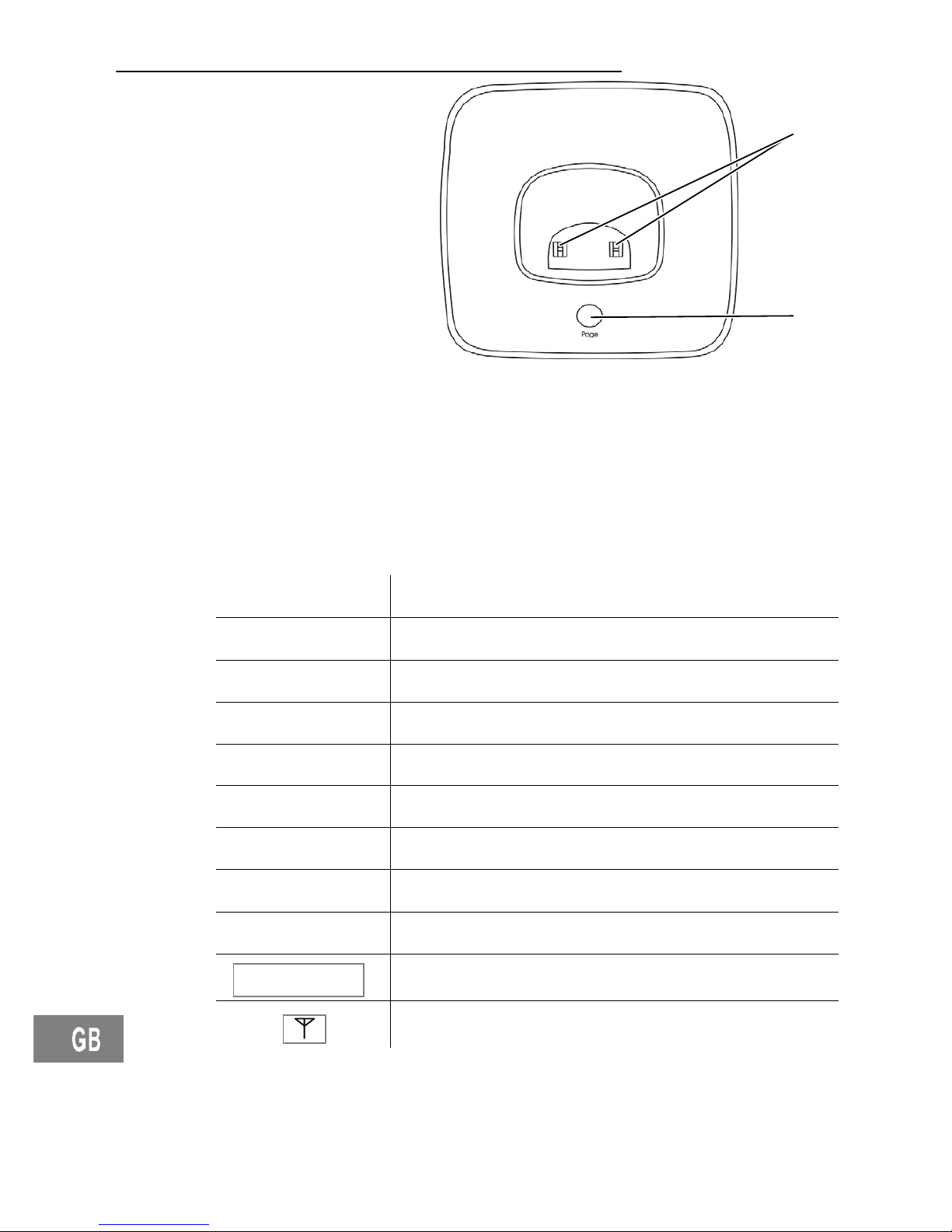

Base station
1 Charging contacts
2 Paging button
4 Preliminary Information
This chapter provides basic information on using the operating instruction manual and the telephone.
Description of operating sequences in the manual
Display Description
Displays the contour of buttons
Press the button depicted briefly
2 sec. Press the button depicted for 2 seconds
Press any button briefly
Enter digits or letters
{} Handset rings
Remove the handset from the base station
Place the handset in the base station
DELETE?
Depicts text in the display
Depicts icons in the display
1
2
Page 11
Preliminary Information
11
Icons and texts in the handset display
Icon Description
On: Indicates the battery charge status.
Flashing: The batteries must be charged.
Run−through segments: The batteries are
being charged.
Internally assigned call number of the
handset.
Display of date and time.
On: An external call is currently being made.
Flashing: An external call has been received.
INT On: An internal call is currently being made.
Flashing: An internal call has been received.
On: The call log is open.
There are more digits to the left or right of the
phone number displayed. Press the or
button to show them.
The ringing tone has been switched off.
The alarm function is enabled.
The key lock is activated.
You have accessed the menu.
The phone book is open.
Answering machine provided in the telephone network. VMWI
1
− Supplementary service of your telephone network provider
( Chapter 11).
1
VMWI: Visual Message Waiting Indication = Visual indicator
that new messages have been recorded.
Page 12
4
5
Preliminary Information
12
The microphone has been muted.
On: The connection to the base station is
good.
Flashing: The connection to the base station
is interrupted. Move nearer to the base station.
Standby mode
All descriptions in this operating manual assume that the handset
is in Standby mode, which is the case when you are not talking on
the phone and if a menu is not open. Press the or
button to enable Standby mode.
Navigating in the menu
All the functions can be accessed via the various menus. Refer to
the menu structure to find how to access the respective functions.
Open the main menu
or Select a submenu
Open the submenu
or Select a function
Open the function
or Select a setting
Use the digit keys to enter
numbers or letters
Confirm the input
Move one level back
Cancels all programming and
saving and returns the handset to
Standby mode
Every process is automatically cancelled if there is no in-
put within 30 seconds.
Page 13
Menu Structure
13
5 Menu Structure
Main menu
Press the button to access the main menu. Then use the
or button to select an entry and confirm it by pressing the
button.
SETUP HS RING MELODY MELODY 1...10
RING VOLUME 1...5
TONES LOW BATTERY ON
OFF
NO COVERAGE ON
OFF
KEY TONE ON
OFF
AUTO TALK ON
OFF
ALARM ON TIME
OFF
NAME
LANGUAGE DEUTSCH,
FRANCAIS, ITALIANO, ENGLISH
RESET
RESET?
Page 14
6
Menu Structure
14
SETUP BS
CHANGE PIN
1
ENTER PIN NEW PIN
REPEAT PIN
RING MELODY MELODY 1...5
RING VOL. 1...5
OFF
DIAL MODE TONE
PULSE
RECALL TIME 100MS ... 800MS
VMWI VMWI OFF?
RESET ENTER PIN RESET?
DATE/TIME YEAR
DATE TIME
REGISTRATION REGISTER BASE 1...4
2
ENTER PIN
SEL BASE AUTO
BASE 1...4
REMOVE HS ENTER PIN HANDSET 1...6
1
The default PIN code is 0000".
2
There are 4 memory locations available for registering base
stations. Memory locations which flash have already been assigned. If a memory location is selected which is already assigned, the old registration in this memory location is overwritten.
Page 15
7
Phone Book
15
6 Phone Book
You can use the phone book to store up to 25 phone numbers together with the associated names.
Always enter the area access code with the phone numbers
so that incoming local calls can also be assigned to a phone
book entry.
When the memory capacity is used up, the message
MEMORY FULL
appears when an attempt is made to
store another number. To create space, an existing entry must
first be deleted.
The phone book entries are arranged alphabetically. To
access the required phone book entry directly, press the first
letters of the corresponding name.
Entering names
Letters are also imprinted on the digit keys. Letters, digits and
special characters are entered by pressing the relevant key the
respective number of times.
Enter a space
Delete characters
or Moves the cursor
To enter the same letter twice, press the button to enter
the letter. Wait until the cursor skips one position forwards. Enter the letter again.
Creating phone book entries
Open the phone book
Open the menu
or
ADD NEW
,
Select the submenu and confirm it
Page 16
8
Phone Book
16
, Enter the phone number
(max. 20 digits) and confirm it
, Enter the name
(max. 20 characters) and confirm it
Editing phone book entries
Open the phone book
or Select an entry
Open the menu
or EDIT , Select the submenu and confirm it
, Change the phone number and
confirm it
, Change the name and confirm it
Deleting phone book entries
Deleting an entry
Open the phone book
or Select an entry
Open the menu
or DELETE? ,
Select the submenu and confirm it
CONFIRM?
or Confirm the deleting process or
cancel it
Deleting all entries
Open the phone book
Open the menu
or
DELETE ALL? ,
Select the submenu and confirm it
CONFIRM?
or Confirm the deleting process or
cancel it
Page 17
Call Log
17
7 Call Log
A total of 20 calls are stored in the call log.
The caller number display (CLIP1) is a supplementary
service offered by your telephone network provider. The
caller’s number appears in the display if the service is offered by your telephone network provider. Contact your
network provider for further information.
Messages in the display:
UNAVAILABLE The phone number is received only par-
tially or with errors.
Information related to the phone number
is not available. This could signify an international call.
WITHHELD The caller has suppressed the trans-
mission of their phone number.
Displaying numbers in the call log
, or Display the call log and select an
entry
Press the button, several times if necessary, to switch between the Name", Number" and Received time" displays.
1
CLIP: Calling Line Identification Presentation = Displays the
caller’s phone number.
Page 18
Call Log
18
Storing a phone number in the call log in the phone book
A phone number in the call log can be stored in the phone book
directly.
, or Display the call log and select an
entry
Open the menu
or
SAVE NUMBER ,
Select the submenu and confirm it
, Change the phone number, if
necessary, and confirm it
, Enter the name (max. 20
characters) and confirm it
As soon as the phone number in the phone book has
been saved together with a name, the name entered appears in the call log.
Deleting phone numbers from the call log
Deleting individual phone numbers
, or Display the call log and select an
entry
Open the menu
or
DELETE? ,
Select the submenu and confirm it
CONFIRM?
or Confirm the deleting process or
cancel it
Page 19
Telephoning
19
Deleting all phone numbers
Open the call log
Open the menu
or
DELETE ALL?
,
Select the submenu and confirm it
CONFIRM?
or Confirm the deleting process or
cancel it
8 Telephoning
Taking a call
{}, , or Take the call
Ending a call
or End a call
Making a call
Enter the phone number
(max. 20 digits)
Delete the last digit if incorrect
or Dial the phone number
It is also possible to press the Call button first to
obtain the dialling tone for an outside line. The digits
then entered are dialled immediately. It is not possible to
correct wrong digits individually using this dialling procedure.
Page 20
Telephoning
20
Redialling
The telephone stores the last 10 numbers dialled in a redialling
list.
, or Open the redialling list and select
an entry
Dial the number
Editing phone numbers in the redialling list is identical to editing
phone numbers in the call log ( Chapter 7).
Calling back calls received
Your telephone stores the last 20 calls received in a call log.
, or Display the call log and select an
entry
Dial the number
Dialling numbers from the phone book
Phone numbers must have been stored in the phone book for this
function ( Chapter 6).
Open the phone book
or Select an entry
Dial the number
Chain dialling
Chain dialling is used to link and transmit numbers to make use of
telephone services such as telephone banking, call−by−call or calling card procedures.
Open the phone book, call log or redialling list and select the
numbers required in succession or link them with manually entered numbers. Any number of numbers can be transmitted from
the lists when a connection has already been established and
they can also be combined with manually entered numbers. An
example of transmitting the predialling code of a call−by−call
number is described below.
Page 21
9
Telephoning
21
Open the phone book
or , Select the call−by−call−number and
transfer it
or
SELECT
Select the menu option and
confirm it
then
Open the phone book again
or , , Select the entry and dial the
number
or
, Enter the phone number manually
and dial it
Internal calls
1
Making internal calls
There must be two or more handsets (HS1, HS2, ...) registered
on your base station in order to make internal calls free of charge.
HS1: 2 sec. Activate the internal call function
e.g. Dial the internal call number of the
handset required
HS2: Other handset answers the call
HS1/HS2: End the internal call
1
Internal calls are only possible when at least two handsets are
registered in the system;
Checking the contents of the package" ( Chapter 2).
Page 22
Telephoning
22
Forwarding external calls internally
HS1: 2 sec. Dial the internal handset number
e.g. while making the external call
HS2: Other handset answers the call
HS1: Forward the call
If the handset called does not answer, the external call
is returned to the calling handset after 30 seconds.
Making conference calls
An external call can be transferred to another internal handset for
a conference call.
HS1: 2 sec. Dial the internal handset number
e.g. while making the external call
HS2: Other handset answers the call
HS1: Open the menu
or
CONFERENCE
,
Start the conference call
HS1 / HS2: End the conference
Setting the receiver volume
The volume can be adjusted to one of 5 settings during a call.
or Select a volume level
Displaying the duration of a call
The duration of a call is displayed in hours, minutes and seconds
during the call.
Page 23
10
11
12
Telephoning
23
Muting the microphone in the handset
The microphone in the handset can be activated and deactivated
during a telephone conversation.
Deactivate the microphone
(muting on)
Activate the microphone
Key lock
The key lock feature prevents functions assigned to buttons being
activated accidentally.
2 sec. Lock the keys
Incoming calls can still be taken in the normal way even
when the key lock function is activated.
2 sec. Unlock the keys
Handset ringing tone
The handset’s ringing tone can be switched off.
2 sec. Switch the ringer melody off
2 sec. Switch on the ringer melody on
Searching for the handset (Paging)
If you have mislaid your handset, you can sound a paging tone to
find it.
Base station , Sound the paging tone
or Stop the paging tone
Page 24
Extending the Telephone System
24
9 Extending the Telephone System
The internationally approved GAP1 standard regulates the compatibility of handsets and base stations from different manufacturers. As a result, it is possible to integrate SWITEL devices and
devices from other manufacturers together in one telephone system. It is possible, however, that some functions are not available.
Multiple handsets
Up to 6 handsets can be registered on the base station.
Registering handsets
Before starting to register a handset, switch the base station to
Registration mode.
15 sec. Activate Registration mode
Now register the handset ( Chapter 5). Use the current PIN
code ( Chapter 5) to register the handset.
The handset is automatically assigned an internal call number fol-
lowing registration. The internal call number appears in the display.
To register handsets from other manufacturers, please
refer to the operating manual supplied with them.
Deregistering handsets
A handset can only be deregistered from a base station
by using another handset registered to the same base
station.
Handsets are deregistered via the menu. Chapter 5 indicates the
position in the menu.
1
GAP: Generic Access Profile = Standard for the interoperation of handsets and base stations from different manufacturers.
Page 25
Extending the Telephone System
25
Multiple base stations
You can increase the range of your handset by registering it on
several base stations. The handset can be registered on up to 4
different base stations simultaneously. Each base station requires
its own telephone line socket. Connections can be used with the
same call number or with different ones.
Calls in progress cannot be transferred from one base
station to another.
Increasing the range
Position the base stations so that the ranges of the individual
base stations overlap. Test the ranges of the handsets because
obstructions in buildings restrict the range. Register the handset
on all the base stations. Activate the AUTO function on the base
station ( Chapter 5). The handset then automatically searches
for the nearest base station with the best connection.
Mobility through registration at various locations
Register the handset on various base stations at different locations. Activate the AUTO function on the base station
( Chapter 5). Regardless of your current location, the handset
automatically searches for a base station within range.
Page 26
Special Functions
26
10 Special Functions
Dialling mode
The telephone can be operated in analogue exchanges (PULSE
mode) as well as new, digital exchanges (TONE/DTMF mode).
The dialling mode is controlled via the menu. Chapter 5 indicates
the position in the menu.
11 PABX / Supplementary Services
R−button on private branch exchanges
If the telephone is connected to a private branch exchange, functions such as transferring calls and automatic call back can be
used via the R button. Refer to the operating manual provided
with your private branch exchange as to which Recall (Flash) time
must be set in order to use these functions. The sales outlet
where you purchased the exchange can provide information as to
whether the telephone will work properly with the exchange. The
Flash time is set using the menu. Chapter 5 indicates the position
in the menu.
Dialling pause
When using private branch exchanges, it is necessary to dial an
access code to obtain the dialling tone for an outside line. When
using some older private branch exchanges, it takes a little time
before the dialling tone becomes audible. In the case of such private branch exchanges, a dialling pause can be inserted after the
number for an outside line in order to continue dialling directly
without having to wait for the dialling tone. Insert the dialling
pause by pressing and holding the button.
The actual phone number is dialled a certain time after the
number for an outside line.
The dialling pause can also be entered with the phone
numbers in the phone book [phone number memory].
Page 27
13
PABX / Supplementary Services
27
R−button and supplementary services
Your telephone supports supplementary services provided by your
telephone network provider, such as brokering, call waiting and
conference facilities. These supplementary services can be used
by implementing the R button. Please contact your telephone
network provider regarding which Flash time must be set to use
the supplementary services. Contact your telephone network provider with regard to enabling supplementary services. The Flash
time is set using the menu. Chapter 5 indicates the position in the
menu.
Caller number display (CLIP1)
The caller number display (CLIP) is a supplementary
service offered by your telephone network provider.
Contact your network provider for further information.
If this function is available with your telephone line, the number of
the caller appears in the display when the phone rings. If the
caller has suppressed transmission of his phone number, the
corresponding message appears in the display. The phone
number is not displayed and, as a result, is not stored in the call
log.
Answering machine in the telephone network
An answering machine in the telephone network is a supplementary service offered by many telephone network providers. If your
telephone network provider offers an answering machine in the
telephone network for you, an icon on the display informs you of
new messages received (VMWI
2
). This function can only be used
when your telephone network provider actually offers the service.
Contact your network provider for further information.
1
CLIP: Calling Line Identification Presentation = Displays the
caller’s phone number.
2
VMWI: Visual Message Waiting Indication = Visual indicator
that new messages have been recorded.
Page 28
Starting the Picture Frame
28
12 Starting the Picture Frame
Safety information
Attention: It is essential to read the Safety Information
in Chapter 1 before starting up.
Connecting the picture frame
Attention: Position the picture frame at least 1 m away
from other electronic devices, otherwise there is a risk of
mutual disturbance.
Connect the picture frame as illustrated in the diagram. For safety
reasons, only use the power adapter plug supplied.
Mains power outlet
When connecting the picture frame, use the power
adapter plug labelled with output data 6 V, 1500 mA and
No. KSS12_060_1500G, SSA−12W−05 EU 060150F.
Inserting the battery in the remote control
Open the battery compartment in the remote control. Follow the
information imprinted on the rear side of the remote control. Insert
the battery in the holder. Only use batteries of the type CR2025.
Pay attention to correct polarity. Close the battery compartment.
Setting the picture frame language
Select the language required (refer to Page 32).
Page 29
Operating Elements
29
13 Operating Elements
The picture frame buttons illustrated in this operating manual are
subsequently depicted with a uniform contour. Therefore, slight
deviations in the appearance of the symbols on the picture frame
buttons compared to those depicted here are possible.

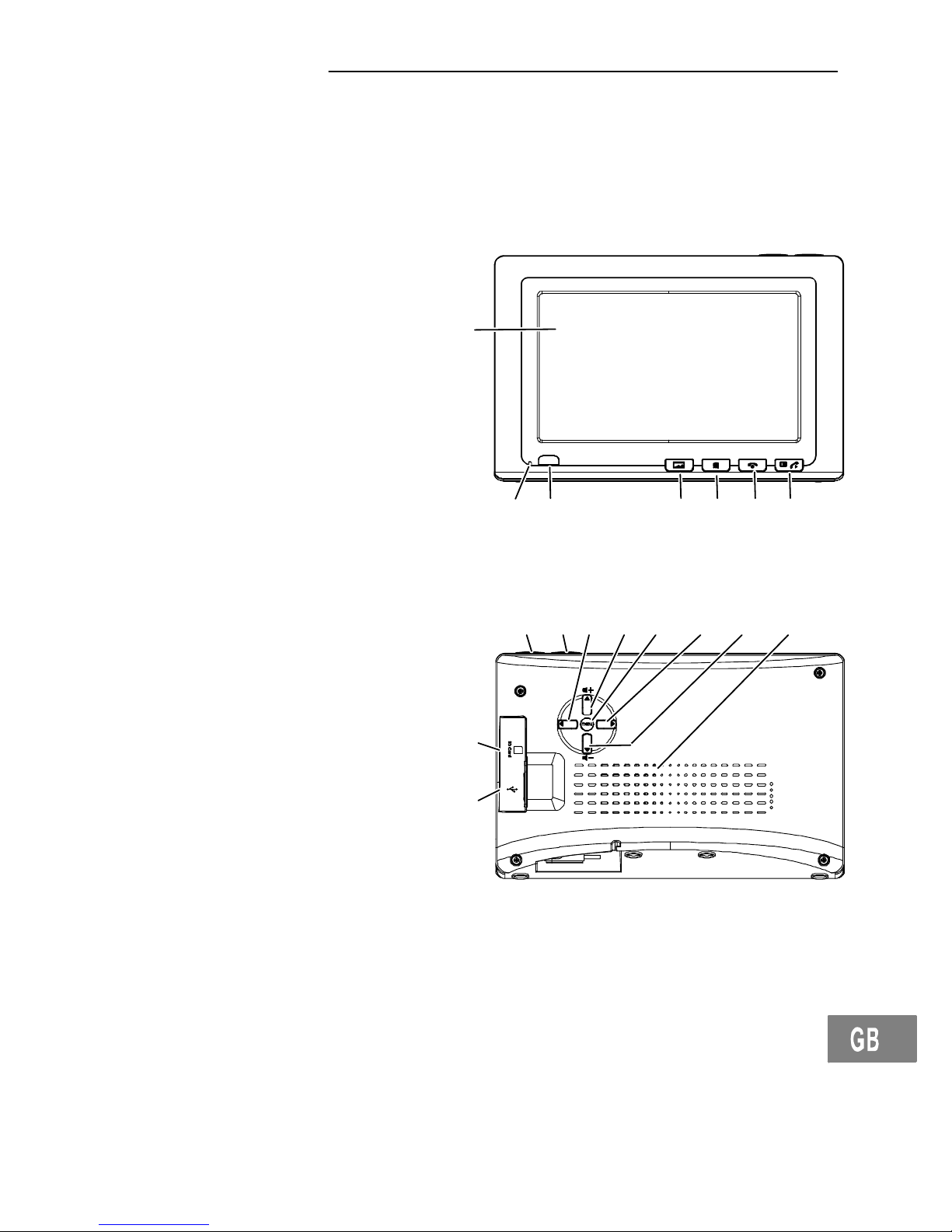

Picture frame
1 LCD display
2 Microphone
3 Infrared sensor
4 Quick access photo
5 Microphone
muting function
6 On−hook button
7 Call button / R button
8 OK/Pause button
9 Stop/Back
10 Arrow button, right
11 Arrow button, upwards
Increase receiver
volume
12 Menu button
13 Arrow button, left
14 Arrow button,
downwards
Lower receiver volume
15 Loudspeaker
16 USB port
17 Memory card slot
1
3
4567
8
9
10 11 12 13
16
17
14 15
2
Page 30
Operating Elements
30

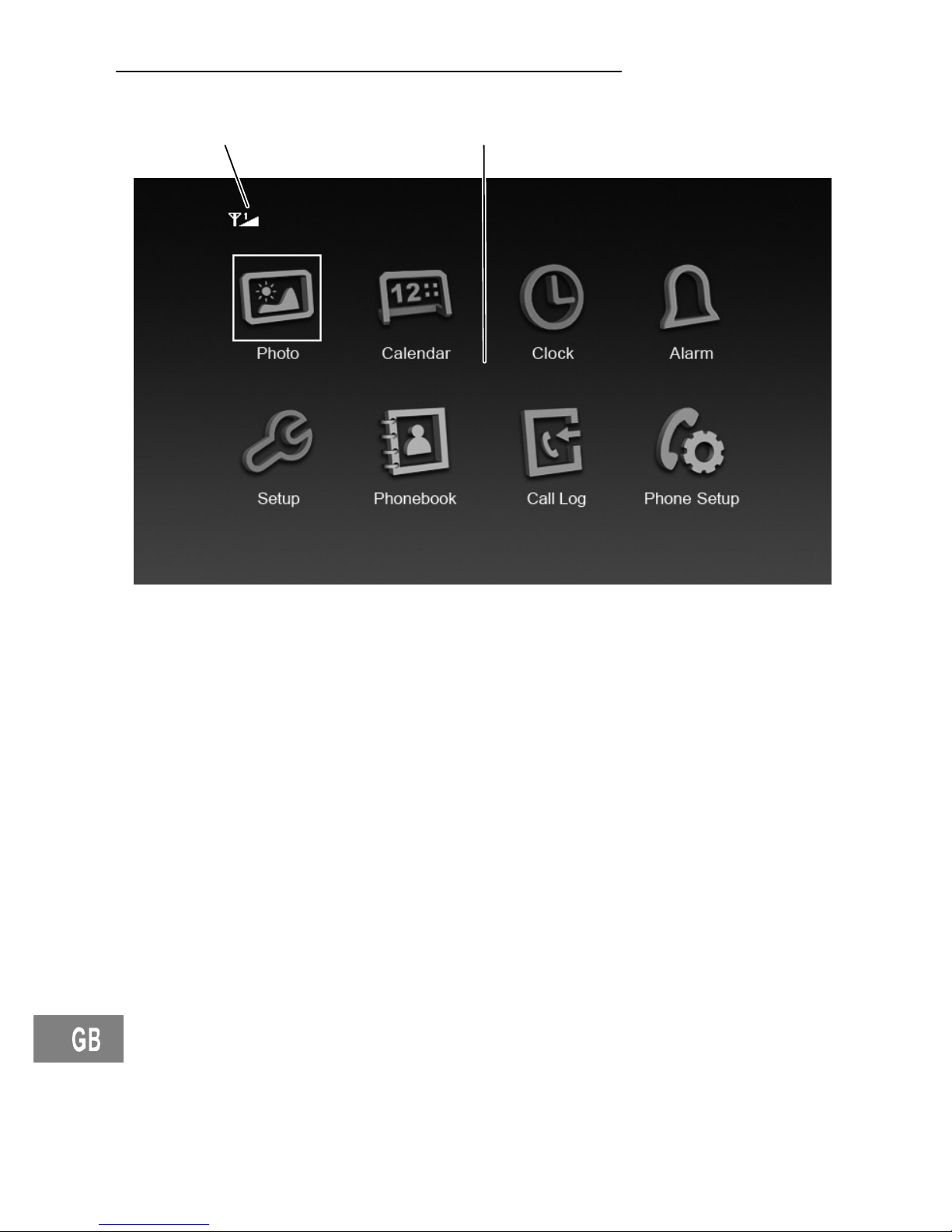

Display
1 2
1 Displays the signal strength and the internally assigned
number (handset number)
2 Main menu
Page 31
Operating Elements
31

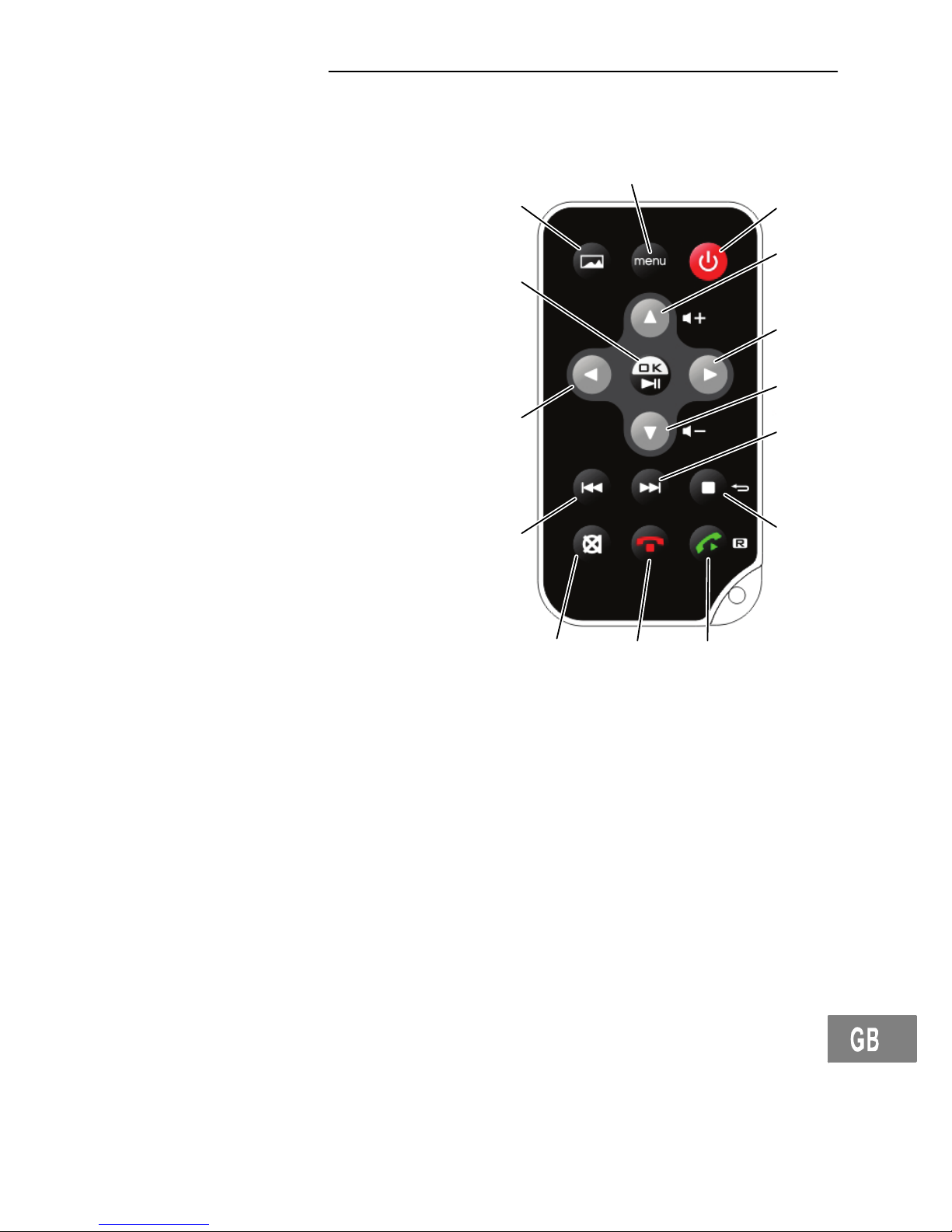

Remote control
1 On/Off button
2 Arrow button, upwards
Increase receiver
volume
3 Arrow button, right
4 Arrow button,
downwards
Lower receiver volume
5 Skip to end
6 Stop/Back
7 Call button / R button
8 On−hook button
9 Microphone
muting function
10 Skip to start
11 Arrow button, left
12 OK/Pause/Resume
13 Quick access photo
14 Menu button
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Page 32
14
15
Preliminary Information
32
14 Preliminary Information
Navigating in the menu
All the functions can be accessed via the various menus. Refer to
Menu Structure, Page 35, for information on how to access
each respective function.
Displays the main menu
/// Select the required menu and
open it
/ Select the submenu
or Open the submenu
/// or Change the setting
and confirm, if necessary
! Move one level back
Return to the main menu
Press the button to cancel the programming pro-
cess and return to Standby mode.
Examples
Setting the language
1
Displays the main menu
///
Setup
Select the required menu and
open it
/
Custom Setup
Select the submenu and open it
Language Activate the list
/
English
Select the language and save it
Return to the main menu
1
The following languages are available for selection English,
Francais, Deutsch, Italiano, Espanol, Portugues and Nederlands.
Page 33
16
Preliminary Information
33
Creating a phone book entry with picture
To create a phone book entry, a storage medium (refer
to Page 34) must be available containing the pictures/
photos to be used.
Displays the main menu
///
Phonebook
Select the required menu and
open it
/
Add
Select the submenu and open it
/
Select the digits
/
for the number
/
and confirm them
Access name input
/
Select the characters
/
for the name and
/
confirm
///
Save
Save the entry
The memory card is read
/// Select the picture, from a subfolder
if necessary
Save
Save the link from picture to entry
Return to the main menu
Only JPEG1 files (*.jpg) can be added into the
phonebook.
1
JPEG = Joint Photographic Experts Group
Page 34
17
18
19
Preliminary Information
34
Setting the transition effect for the slide show
Displays the main menu
///
Setup
Select the required menu and
open it
/
Transition Effect
Select the submenu and open it
/
No Effect
/
Blind Vertical ... Fade in Fade out /
Random Select the effect required and
apply it
Return to the main menu
Starting the slide show
Displays the main menu
///
Photo Pictures are displayed
Using the storage medium
In order to exploit the device fully, use USB sticks or memory
cards.
Secure Digital Memory Card (SD)
Multimedia Card (MMC)
Memory Stick (MS)
Save the pictures you want to use on a the relevant storage medium. Pay attention to the information provided by the storage medium manufacturers and the PC manual/guide.
The pictures/photos must have been saved in JPEG
1
(*.jpg) or BMP2 format (*.bmp).
Insert the storage medium containing the required data in the
memory card slot/USB port. Pay attention the storage medium is
inserted and aligned properly. Refer to the illustration imprinted.
1
JPEG = Joint Photographic Experts Group
2
BMP = Bitmap
Page 35
20
Menu Structure
35
15 Menu Structure
Main menu
Press the button to access the main menu. Then use the
, , or buttons to select an entry and confirm your
selection according to the situation, e.g.by pressing , or
Save
.
Calendar
Display
Set Date
Exit
Clock Setting Display Clock
Clock & Calendar
Set Time
Alarm Setting Enable On
Off
Set Time
Exit
Setup Photo Setting Interval Time 5 Sec. ...3 Min.
Off
Transition Effect No Effect
Blind Vertical
Block 1 − 9
Random
Show Type Fit Screen
Full Screen
Page 36
Menu Structure
36
Browse Thumbnail
File Manager
Auto−play Photo On
Off
Display Setup Brightness −7 ... +7
Contrast −7 ... +7
Saturation −7 ... +7
Custom Setup Language Deutsch
...
1
Style Style1 ... 4
Repeat Mode Off
One
Folder
All
Factory Default Confirmed
Exit
Phonebook Review Edit
Delete
Delete All
Return
Add Number/Name
Exit
1
The following languages are available for selection: English, Francais,
Deutsch, Italiano, Espanol, Portugues and Nederlands.
Page 37
21
Menu Structure
37
Call log All Calls Add
Delete
Delete All
Return
Missed Calls Add
Delete
Delete All
Return
Received Calls Add
Delete
Delete All
Return
Exit
Phone Setup Registration PIN
Ring Pattern Ring Pattern 1 ... 10
Ring loudness 1 ... 9
Off
Exit
Page 38
22
Telephoning
38
16 Telephoning
When the picture frame is correctly registered on the base station,
incoming calls are also indicated on the picture frame.
The picture frame can only indicate incoming calls but
cannot
be used to make calls.
When the call number is transmitted, it appears in the display.
The caller number display (CLIP1) is a supplementary
service offered by your telephone network provider. The
caller’s number appears in the picture frame if the service is offered by your telephone network provider.
If there is a corresponding phone book entry associated with the
phone number, the name and linked picture/photo also appear.
Taking a call
{}, Take the call
When the picture frame is used, Handsfree mode is al-
ways active.
Muting the microphone
The microphone in the picture frame can be activated and deactivated during a telephone conversation.
Deactivate the microphone
Activate the microphone
Setting the receiver volume
The volume can be set to one of 9 different levels.
or Select a volume level
Ending a call
" End the call
1
CLIP: Calling Line Identification Presentation = Displays the
caller’s phone number.
Page 39
Call Log
39
17 Call Log
If calls are not taken on the picture frame, they are stored in the
call log. A corresponding message appears in the display.
Displaying the call log
Open the call log (press any key)
Messages in the display:
UNKNOWN The phone number is received only par-
tially or with errors.
INTERNATIONAL Information related to the phone number
is not available. This could signify an international call.
PRIVATE The caller has suppressed the trans-
mission of their phone number.
The procedure to save calls stored in the call log in the
phone book, to delete the call log and other function are
explained in the Menu Structure; Page 37.
Page 40
In Case of Problems
40
18 In Case of Problems
Service hotline
Should problems arise with the telephone, please refer to the following information first. In the case of technical problems, you can
contact our hotline service, Tel. 0900 00 1675 within Switzerland
(Swisscom fees at time of going to print: CHF 2.60/min). In the
case of claims under the terms of guarantee, please contact your
sales outlet. There is a 2 year period of guarantee.
Problems and solutions
Problems Solutions
No connection to base
station possible
− Check that the handset has
been registered on the base
station with the correct PIN
code; Chapter 5.
No telephone calls possible − The telephone is not con-
nected properly or is defective. Only use the telephone
connection cable supplied.
− Test whether the telephone
connection is in order by
using another telephone.
− The power adaptor plug is not
plugged in or there is a complete power failure.
− The rechargeable batteries
are empty or defective.
− The handset is too far from
the base station.
− The wrong dialling mode is
set; Chapter 5.
Page 41
In Case of Problems
41
Problems Solutions
Connection is disturbed or
cut off
− The handset is too far from
the base station.
− The base station is in an unsuitable location.
The system no longer
responds
− Reset all the functions to their
default settings; Chapter 5.
− Disconnect the power adapter
plug briefly from the power
socket.
The batteries are empty
within a short time
− The batteries are empty or
defective.
− Place the handset in the base
station properly. Clean the
contact surfaces on the
handset and base station with
a soft, dry cloth.
− Place the handset in the base
station for 16 hours.
Page 42
In Case of Problems
42
Problems Solutions
The caller number display
(CLIP
1
) does not function
− The caller number display
(CLIP) is a supplementary
service offered by your telephone network provider. Contact your network provider for
further information.
− The caller has suppressed
the transmission of their
phone number.
No photos/pictures displayed in the picture frame
− The storage medium is
defect.
− The storage medium is not installed.
− There are no pictures/photos
on the storage medium.
− The pictures/photos have an
invalid format.
1
CLIP: Calling Line Identification Presentation = Displays the
caller’s phone number.
Page 43
Technical Properties
43
19 Technical Properties
Technical data
Feature Value
Standard DECT1−GAP
2
Power supply (base station) Input: 220/230 V, 50 Hz
Output: 6 V, 250 mA
Power supply
(charging station)
Input: 220/230 V, 50 Hz
Output: 6 V, 150 mA
Power supply (picture frame) Input: 100/240 V, 50/60 Hz
Output: 6 V, 1500 mA
Range Outdoors: Approx. 300 m
Indoors: Approx. 50 m
Standby time Up to 100 h
Max. talk time Up to 10 h
Rechargeable batteries 2 x AAA NiMH 1.2 V
Dialling mode Tone dialling mode
Pulse dialling mode
Permissible ambient temperature
10°C to 30°C
Permissible relative humidity 20% to 75%
Recall (Flash) function 100 ms to 800 ms
1
DECT: Digital Enhanced Cordless Telecommunication = Stan-
dard for cordless telephones.
2
GAP: Generic Access Profile = Standard for the interoperation of handsets and base stations from different manufacturers.
Page 44
Technical Properties
44
Default settings
The default settings can be restored via the menu.
LANGUAGE
DEUTSCH
RECALL TIME 100 ms
DIAL MODE TONE
PIN 0000
MELODY 1
RING VOLUME 4
LOW BATTERY ON
NO COVERAGE ON
KEY TONE ON
AUTO TALK ON
ALARM OFF
Declaration of Conformity
This device fulfils the requirements stipulated in the EU
directive:
1999/5/EC directive on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. Conformity with the above
mentioned directive is confirmed by the CE symbol on
the device.
To view the complete Declaration of Conformity, please
refer to the free download available on our web site
www.switel.com
.
Page 45
Maintenance / Guarantee
45
20 Maintenance / Guarantee
Maintenance
Clean the housing surfaces with a soft, fluff−free cloth.
Do not use any cleaning agents or solvents.
Guarantee
SWITEL equipment is produced and tested according to the latest
production methods. The implementation of carefully chosen materials and highly developed technologies ensure trouble−free
functioning and a long service life. The terms of guarantee do not
apply where the cause of equipment malfunction is the fault of the
telephone network operator or any interposed private branch extension system. The terms of guarantee do not apply to the batteries or power packs used in the products. The period of guarantee is 24 months from the date of purchase.
All deficiencies related to material or manufacturing errors within
the period of guarantee will be redressed free of charge. Rights to
claims under the terms of guarantee are annulled following
tampering by the purchaser or third parties. Damage caused as
the result of improper handling or operation, normal wear and
tear, incorrect positioning or storage, improper connection or
installation or Acts of God and other external influences are excluded from the terms of guarantee. In the case of complaints, we
reserve the right to repair defect parts, replace them or replace
the entire device. Replaced parts or devices become our property.
Rights to compensation in the case of damage are excluded
where there is no evidence of intent or gross negligence by the
manufacturer.
If your device shows signs of defect during the period of guarantee, please return it to the sales outlet in which you purchased the
SWITEL device together with the purchase receipt. All claims
under the terms of guarantee in accordance with this agreement
can only be asserted at the sales outlet. No claims under the
terms of guarantee can be asserted after a period of two years
from the date of purchase and hand−over of the product.
Page 46
Index
46
21 Index
A
Alarm, 13, 44
Answering machine in
the telephone network, 27
B
Base station, 6, 25
Battery charge status, 8
C
Call back, 20
Call log, 17, 39
Caller number display, 17, 27
Chain dialling, 20
Charging, 8
Charging station, 7
CLIP, 27
Conference calls, 22
Creating, 15
D
Date, 8
Declaration of Conformity, 44
Default settings, 44
Deleting, 16, 18
Deregistering, 14
Deregistration, 24
Dialling, 20
Dialling mode, 14, 26
Dialling pause, 26
Display, 11
Display icons, 11
Display language, 8
Display messages, 17, 39
E
ECO mode, 8
Editing, 16
Ending a call, 19, 38
Entering names, 15
Entering text, 15
Examples, 32
Extending, 24
F
Forwarding calls, 22
Functions, 26
G
Guarantee, 45
H
Handset, 24
I
Icons, 11
Inserting the batteries, 7
Inserting the battery, 28
Internal calls, 21
K
Key lock, 23
L
Linking numbers, 20
Low−radiation, 8
Page 47
Index
47
M
Main menu, 13, 35
Maintenance , 45
Making a call, 19
Menu structure, 13, 35
Messages, 17, 39
Muting, 23, 38
Muting button, 23, 38
N
Notation, 10
O
Operating elements, 9, 29
Operation, 10, 32
P
Package contents, 6
Paging, 23
Phone book, 15, 20
Phone book entries, 15
Phone book entry, Picture, 33
Picture frame, 28
Picture frame language, 28
Private branch exchanges, 26
Problems, 40
Problems and solutions, 40
Pulse dialling mode, 14, 26
R
R−button, 26, 27
Range, 25
Receiver volume, 22, 38
Redialling, 20
Registering, 14, 24
Replace receiver, 19, 38
Reset, 13
Ringing melody, 13
Ringing tone, 23
S
Safety information, 4
Saving, 15
Searching for the handset, 23
Service−Hotline, 40
Standby mode, 12
Starting up, 6, 28
Storage medium, 34
Storing, 18
Supplementary services, 26
T
Taking a call, 8, 19, 38
Talk time, 22
Technical data, 43
Telephoning, 19, 38
Time, 8
Tone dialling mode, 14, 26
Troubleshooting, 40
V
VMWI, 27
Page 48
23
Version 1.0 − 27.10.2008
Declaration of Conformity
Diese Anlage entspricht der europäischen R&TTE Richtlinie.
Für die komplette Konformitätserklärung nutzen Sie bitte den kosten-
losen Download von unserer Website www.switel.com
.
Cet équipement est conforme à la directive européenne R&TTE.
Pour obtenir la déclaration de conformité intégrale, veuillez vous servir
du téléchargement gratuit de notre site Internet www.switel.com
.
Quest’apparecchiatura è conforme alla direttiva europea R&TTE.
Per la dichiarazione di conformità completa si prega di voler usufruire
del servizio gratuito di download dal nostro sito Internet www.switel.com
.
This equipment complies with the European R&TTE directive.
To view the complete Declaration of Conformity, please refer to the free
download available at our web site: www.switel.com
.
Service Hotline
Bei technischen Problemen können Sie sich an unsere Service−Hotline
unter Tel. 0900 00 1675 innerhalb der Schweiz (Kosten Swisscom bei
Drucklegung: CHF 2.60/min) wenden.
S’il s’agit de problèmes techniques, vous pouvez vous adresser à notre
hotline de service en Suisse en appelant le numéro 0900 00 1675 (frais
Swisscom à la date d’impression de ce manuel : CHF 2.60/min).
In caso di problemi tecnici è possibile rivolgersi alla nostra hotline di
assistenza tecnica chiamando al numero 0900 00 1675 valido per la
Svizzera (spese da rete Swisscom alla data di stampa: CHF 2.60 / min).
In the event of technical problems, you can contact our hotline service,
Tel. 0900 00 1675 within Switzerland (cost via Swisscom at time of
going to print: CHF 2.60/min).
Loading...
