Page 1

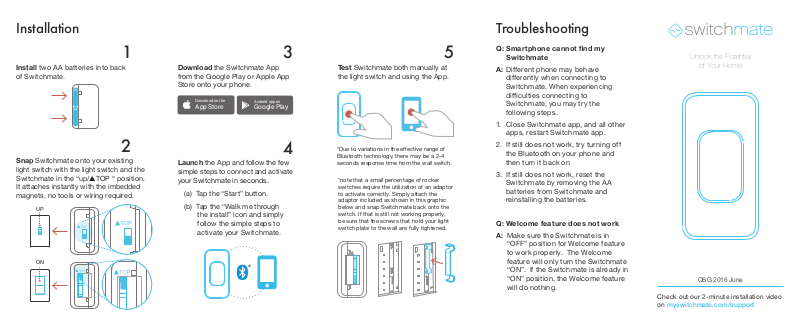

Installation
1 3 5
Install two AA batteries into back
of Switchmate.
2
Snap Switchmate onto your existing
light switch with the light switch and the
Switchmate in the “up/sTOP “ position.
It attaches instantly with the imbedded
magnets, no tools or wiring required.
UP
TOP
ON
TOP
Download the Switchmate App
from the Google Play or Apple App
Store onto your phone.
Download on the
App Store
Android app on
Google Play
4
Launch the App and follow the few
simple steps to connect and activate
your Switchmate in seconds.
(a) Tap the “Start” button.
(b) Tap the “Walk me through
the install” icon and simply
follow the simple steps to
activate your Switchmate.
Test Switchmate both manually at
the light switch and using the App.
*Due to variations in the effective range of
Bluetooth technology, there may be a 2-4
seconds response time from the wall switch.
*note that a small percentage of rocker
switches require the utilization of an adaptor
to activate correctly. Simply attach the
adaptor included as shown in this graphic
below and snap Switchmate back onto the
switch. If that is still not working properly,
be sure that the screws that hold your light
switch plate to the wall are fully tightened.
Troubleshooting
Q:Smart phonecan notn dmy
Switchmate
A: Di fferent phone may behave
differently when connecting to
Switchmate. When experiencing
difficulties connecting to
Switchm ate, you may try the
following steps.
1. Close Switchmate app, and all other
apps, restart Switchmate app.
2. If still does not wor k, try turning off
the Bluetooth on your phone and
then turn it back on
3. If still does not wor k, reset the
Switchm ate by removing the A A
batteries from Switchmate and
reinstalling the batteries.
Q: Welcome featu re doe s not work
A: Make sure the Sw itchma te is in
“OFF” position for Welcome feature
to work properly. The Welcome
feature will only turn the Switchmate
“ON”. If the Switchmate is already in
“ON” position, the Welcome feature
will do nothing.
Unlock the Potential
of Your Home
QSG 2016 June
Check out our 2-minute installation video
on myswitchmate.com/support
Page 2
150 ft
!
Package Contents
1x
Switchmate,
rocker or toggle version
2x
AA batteries
2x
Quick Start Guides
1 English
1 French and Spanish
*Only for rocker version
1x
Rocker Adapter,
one pre-installed
Switchmate Home, LLC
Model: TSM001
FCC ID: 21AICR-TSM001
This devic e complies w ith part 15 of the FCC
Rules. Ope ration is subje ct to the follow ing two
condition s: (1) This devic e may not cause harmfu l
interfere nce, and (2) th is device mus t accept any
interfere nce receive d, including i nte rfer ence that
may cause undesire d operation.
Switchmate ®
