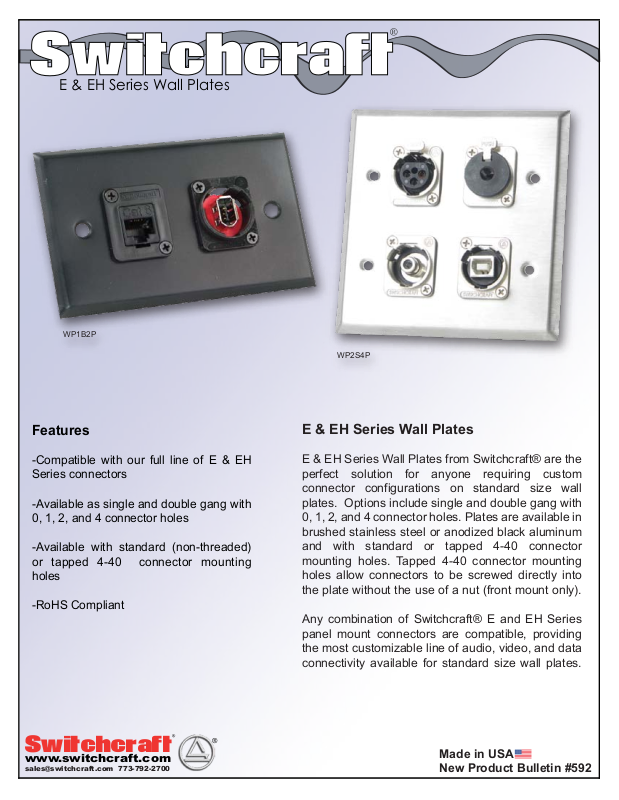

Switchcraft
E & EH Series Wall Plates
WP1B2P
®
Features
-Compatible with our full line of E & EH
Series connectors
-Available as single and double gang with
0, 1, 2, and 4 connector holes
-Available with standard (non-threaded)
or tapped 4-40 connector mounting
holes
-RoHS Compliant
WP2S4P
E & EH Series Wall Plates
E & EH Series Wall Plates from Switchcraft® are the
perfect solution for anyone requiring custom
connector configurations on standard size wall
plates. Options include single and double gang with
0, 1, 2, and 4 connector holes. Plates are available in
brushed stainless steel or anodized black aluminum
and with standard or tapped 4-40 connector
mounting holes. Tapped 4-40 connector mounting
holes allow connectors to be screwed directly into
the plate without the use of a nut (front mount only).
Any combination of Switchcraft® E and EH Series
panel mount connectors are compatible, providing
the most customizable line of audio, video, and data
connectivity available for standard size wall plates.
Switchcraft
www.switchcraft.com
sales@switchcraft.com 773-792-2700
®
®
Made in USA
New Product Bulletin #592
Switchcraft
E & EH Series Wall Plates
2.75
0.748
TYPICAL
0.945
TYPICAL
0.16
®
4.50
3.28
0.15
(SEE NOTE 1)
SINGLE GANG
1 CONNECTOR HOLE
2.75
4.50
3.28
0.15
(SEE NOTE 1)
SINGLE GANG
2 CONNECTOR HOLES
0.945
TYPICAL
(SEE NOTE 2)
0.16
1.50
PART NUMBER
(SEE NOTE 2)
4.56
1.81
0.16
WP1S
WP1S1
WP1S1P
WP1B1
WP1B1P
WP1S2
WP1S2P
WP1B2
WP1B2P
WP2S4
WP2S4P
WP2B4
WP2B4P
WP1B2
GANG
SIZE
1
1
1
1
1
1
1
1
1
2
2
2
2
FINISH
STAINLESS STEEL
STAINLESS STEEL
STAINLESS STEEL
BLACK ALUMINUM
BLACK ALUMINUM
STAINLESS STEEL
STAINLESS STEEL
BLACK ALUMINUM
BLACK ALUMINUM
STAINLESS STEEL
STAINLESS STEEL
BLACK ALUMINUM
BLACK ALUMINUM
EH CONNECTOR
HOLES
0
1
1
1
1
2
2
2 0.138
2
4 0.138
4
4
4
CONNECTOR
MOUNTING
HOLE
NONE
0.138
#4-40 THREAD
0.138
#4-40 THREAD
0.138
#4-40 THREAD
#4-40 THREAD
#4-40 THREAD
0.138
#4-40 THREAD
1.50
3.28
4.50
0.15
(SEE NOTE 1)
DOUBLE GANG
4 CONNECTOR HOLES
Switchcraft
www.switchcraft.com
sales@switchcraft.com 773-792-2700
NOTES:
1. WALL PLATES COME WITH #6-32 MOUNTING SCREWS.
2. WALL PLATES ARE AVAILABLE WITH STANDARD (NON-THREADED)
OR TAPPED #4-40 PEM CONNECTOR MOUNTING HOLES.
3. THIS PRODUCT IS RoHS COMPLIANT.
(SEE NOTE 2)
®
®
Made in USA
New Product Bulletin #592
