Switchcraft G3MS User Manual

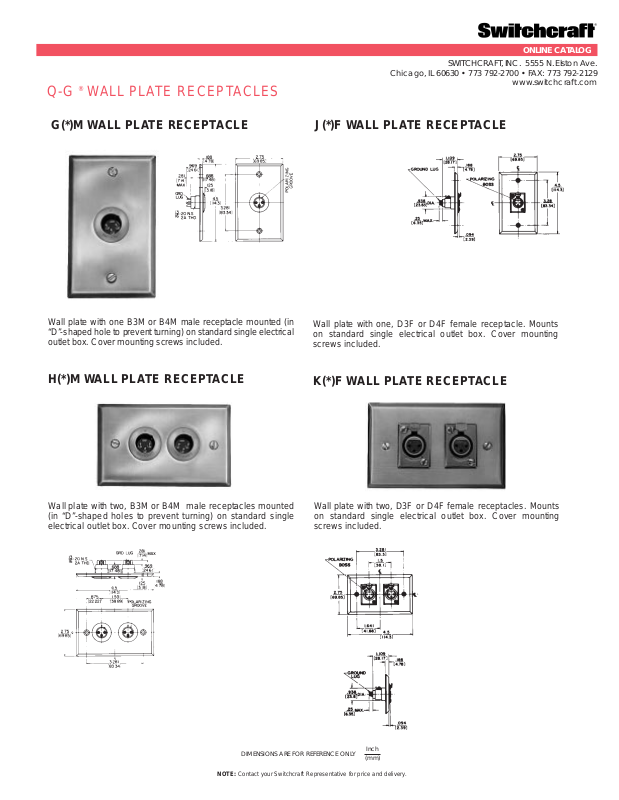

Q-G®WALL PLATE RECEPTACLES

ONLINE CATALOG

SWITCHCRAFT,INC. 5555 N.Elston Ave.

Chicago,IL 60630 • 773 792-2700 • FAX: [phone]

www.switchcraft.com

G(*)M WALL PLATE RECEPTACLE

Wall plate with one B3M or B4M male receptacle mounted (in
“D”-shaped hole to prevent turning) on standard single electrical
outlet box. Cover mounting screws included.

H(*)M WALL PLATE RECEPTACLE

J(*)F WALL PLATE RECEPTACLE

Wall plate with one, D3F or D4F female receptacle. Mounts
on standard single electrical outlet box. Cover mounting
screws included.

K(*)F WALL PLATE RECEPTACLE

Wall plate with two, B3M or B4M male receptacles mounted
(in “D”-shaped holes to prevent turning) on standard single
electrical outlet box. Cover mounting screws included.

DIMENSIONS ARE FOR REFERENCE ONLY

NOTE: Contact your Switchcraft Representative for price and delivery.

Wall plate with two, D3F or D4F female receptacles. Mounts
on standard single electrical outlet box. Cover mounting
screws included.

Inch

(mm)
