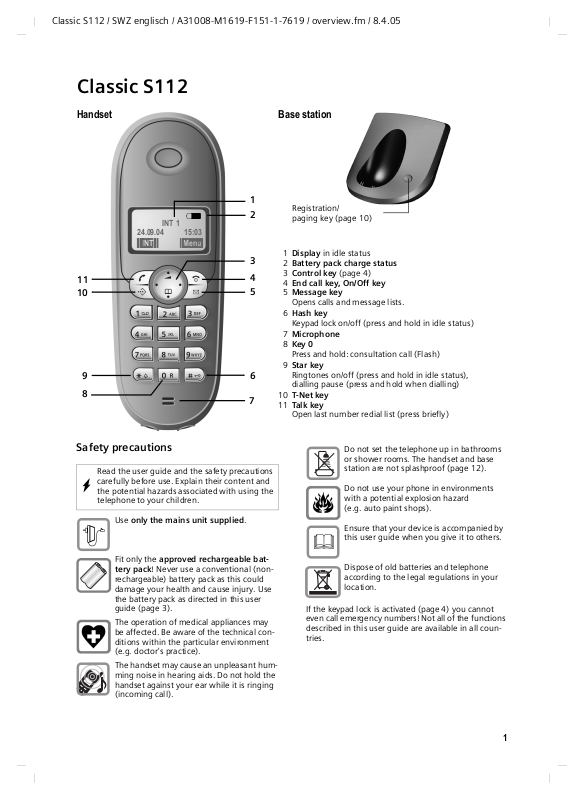

Classic S112
Handset
V
INT 1
24.09.04 15:03
§§§§INT§§§ §§Menu
11
10
9
8
Safety precautions
Read the user guide and the safety precautions
carefully before use. Explain their content and
W
the potential hazards associated with using the
telephone to your children.
Use only the mains unit supplied.
$
Fit only the approved rechargeable battery pack! Never use a conventional (non-
rechargeable) battery pack as this could
damage your health and cause injury. Use
the battery pack as directed in this user
guide (page 3).
The operation of medical appliances may
be affected. Be aware of the technical conditions within the particular environment
(e.g. doctor's practice).
The handset may cause an unpleasant humming noise in hearing aids. Do not hold the
handset against your ear while it is ringing
(incoming call).
ase station
1
2
3
4
5
6
7
Registration/
paging key (page 10)
1 Display in idle status
2 Battery pack charge status
3 Control key (page 4)
4 End call key, On/Off key
5 Message key
Opens calls and message lists.
6 Hash key
Keypad lock on/off (press and hold in idle status)
7 Microphone
8 Key 0
Press and hold: consultation call (Flash)
9 Star key
Ringtones on/off (press and hold in idle status),
dialling pause (press and hold when dialling)
10 T-Net key
11 Talk k ey
Open last number redial list (press briefly)
ƒ
If the keypad lock is activated (page 4) you cannot
even call emergency numbers! Not all of the functions
described in this user guide are available in all countries.
Do not set the telephone up in bathrooms
or shower rooms. The handset and base
station are not splashproof (page 12).
Do not use your phone in environments
with a potential explosion hazard
(e.g. auto paint shops).
Ensure that your device is accompanied by
this user guide when you give it to others.
Dispose of old batteries and telephone
according to the legal regulations in your
location.
1
Page 2
Contents
Contents
Setting up the telephone for use . . . 3
Step 1: Connecting the base station . . . . . . . 3
Step 2: Setting up the handset . . . . . . . . . . . 3
Step 3: Registering the handset
to the base station and
charging the battery pack . . . . . . . . . . . . . . . 3
Activating/deactivating the handset . . . . . . . 4
Activating/deactivating the keypad lock . . . . 4
Operating the handset . . . . . . . . . . . . 4
Control key on the handset . . . . . . . . . . . . . . 4
Returning to idle status . . . . . . . . . . . . . . . . . 4
Making calls . . . . . . . . . . . . . . . . . . . . 4
Making an external call . . . . . . . . . . . . . . . . . 4
Ending calls/cancelling dialling . . . . . . . . . . . 4
Answering a call . . . . . . . . . . . . . . . . . . . . . . . 4
Muting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Using the T-Net box* . . . . . . . . . . . . . 5
Using the directory and lists . . . . . . . 5
Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Using T-Net services* . . . . . . . . . . . . . . . . . . 6
Last number redial list . . . . . . . . . . . . . . . . . . 6
Opening lists . . . . . . . . . . . . . . . . . . . . . . . . . 6
SMS (text messages) . . . . . . . . . . . . . 7
Writing/sending SMS . . . . . . . . . . . . . . . . . . . 7
Receiving an SMS . . . . . . . . . . . . . . . . . . . . . . 8
Entering/changing the SMS centre . . . . . . . . 9
SMS to PABXs . . . . . . . . . . . . . . . . . . . . . . . . . 9
Activating/deactivating the SMS function . . . 9
SMS troubleshooting . . . . . . . . . . . . . . . . . . . 9
Registering handsets . . . . . . . . . . . . 10
Using several handsets . . . . . . . . . . 10
Looking for a handset ("paging") . . . . . . . . . 10
Making internal calls . . . . . . . . . . . . . . . . . . 10
Listening in on an external call . . . . . . . . . . 11
Changing the name of a handset . . . . . . . . 11
Base station settings . . . . . . . . . . . . 11
Appendix . . . . . . . . . . . . . . . . . . . . . . 12
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . 12
Specifications . . . . . . . . . . . . . . . . . . . . . . . . 12
Character set chart . . . . . . . . . . . . . . . . . . . . 13
Warranty/Maintenance/Repair/
Authorisation . . . . . . . . . . . . . . . . . . . . . . . . 13
Repair/Maintenance . . . . . . . . . . . . . . . . . . . 13
Authorisation and Conformity . . . . . . . . . . . 14
Menu tree . . . . . . . . . . . . . . . . . . . . . 15
2
Page 3
Setting up the telephone for use
Setting up the telephone
for use
Step 1: Connecting the base station
¤ First connect the mains adapter and then
the phone jack as shown below and place
the cable in the cable channels.
12
1 Mains adapter 230 V
2 Phone jack with phone cord
Please note:
u Keep the mains adapter plugged in at all
times for operation as the phone does not
work without mains connection.
u If you ever purchase another phone cord
from a store, ensure that the phone
conductors are correctly connected: 3-4 connection of the telephone conductors (EURO
CTR37).
Step 2: Setting up the handset
Fitting the battery pack
u To ope n the battery compartment, push the
tongue on the battery cover inwards (see
picture on left) and lift off the cover.
u Fit the right side of the battery pack under
the clips then press down on the left side so
that the pack snaps home.
u Plug the jack firmly into the socket
(see picture on right).
u To clos e the battery compartment, position
the cover and press until it snaps home.
Notes:
– Only insert the recommended rechargeable bat-
tery pack, i.e. never use a normal battery pack as
this could damage your health and cause injury.
– Never use non-Siemens battery chargers as this
could damage the battery pack.
– The handset should only be placed in the charg-
ing cradle/base station that is intended for it.
Step 3: Registering the handset to the base station and charging the battery pack
¤ Place the handset in the base station with its
display facing forward.
The handset registers automatically. For the
registration procedure see page 10.
Charging the battery pack
To charge the battery pack, leave the handset in
the base station/charging cradle for approx. ten
hours. The battery pack is now fully charged.
The charging display can only be displayed correctly if the battery pack is first fully charged
and discharged by use.
¤ To do this, leave the handset in the base sta-
tion/charging cradle without interruption
until the battery icon stops flashing in the
display. Your handset need not be switched
on for it to charge.
¤ Remove the handset from the base station/
charging cradle and do not put it back again
until the battery pack is fully discharged.
Please note:
Always repeat the charging and discharging
procedure if you remove the battery pack from
the handset and insert it again.
Charging is electronically controlled to prevent
overcharging. The battery pack heats up during
charging; this is normal and not dangerous.
After a time the charge capacity of the pack will
decrease for technical reasons.
¤ Set date and time (see Menu tree, page 15),
so that e.g. you have the correct time when
you receive a call.
Your phone is now ready to use!
3
Page 4
Operating the handset
Activating/deactivating the handset
a Press and hold the end call key
(confirmation beep).
Activating/deactivating the keypad lock
# Press and hold the hash key.
You will hear the confirmation beep. The
Ø
appears in the display when the
icon
keypad lock is activated.
The keypad lock deactivates automatically
when you receive a call and activates again
after the call.
Operating the handset
Control key on the handset
§§§§INT§§ §§Menu
1 Display functions
2 Control key
In this user guide, the side of the control key
that you must press in the given operating situation is shown in black (top, bottom, right, left).
Example:
key".
t for "press the top of the control
The control key has a number of different
functions:
When the handset is in idle status
s
Open the directory.
t Set the handset ringtone volume
(see also Menu tree, page 15).
In lists and menus
t
/ s Scroll up/down line by line.
In an input field
t
/ s Move the cursor left or right.
During an external call
s
Open the directory.
t Change loudspeaker volume.
1
2
Using display functions
The current display functions are shown reverse
highlighted in the bottom display line (e.g.
Edit).
u / v Launch left / right display func-
tion.
Returning to idle status
You wish to return to idle status from anywhere
in the menu:
¤ Press the end call key a and hold.
Or:
¤ Press no key: after 2 minutes the display will
return automatically to its idle status.
Making calls
Making an external call
External calls are calls using the public telephone network.
~c Enter the number and press the
Or:
c~ Press and hold the talk key c
Ending calls/cancelling dialling
a Press the end call key.
Answering a call
Press the talk key c.
When Auto Answer is activated (see Menu tree,
page 15), simply remove the handset from the
base station/charging cradle.
Calling Line Identification
When you get a call, you will see the caller's
number in the display. His name will also be displayed if it is saved in the directory.
Requirements:
1. You have asked your network provider for
the caller's number to be displayed on your
handset screen (CLIP).
2. The caller has asked the network provider
for his number to be identified (CLI).
* Depending on the network provider
talk key.
and then enter the number.
*
4
Page 5
Using the T-Net box*
In the display, you will see
not requested Calling Line Identification,
held, if the caller has withheld CLI or Withheld,
if CLI has not been requested.
®
, if you have
With-
Muting
You can deactivate the microphone in your
handset during an external call.
Muting the handset
§INT§ Press the control key. The other
party will hear hold music.
Cancelling muting
a
Using the T-Net box
The T-Net box is the answering machine in the
network. You cannot use the T-Net box unless
you have applied to your network provider.
By pressing and holding the key
be directly connected to the T-Net box. If no
number is stored yet, a window will open for
you to enter the number for the T-Net box.
Changing number, see Menu tree, page 15.
When a message arrives for you, you get a call
from the T-Net box. The number of the T-Net
box appears in the display if you have requested
Calling Line Identification. If you accept the call,
the new messages are played back. If you don't
accept the call, the number of the T-Net box is
saved in the missed calls list (page 6).
Briefly press the end call key.
*
1, you will
Using the directory and lists
The options are:
u Directory,
u T-Net services list,
u Last number redial list,
u SMS list
u Calls list
You can create a personalised directory for your
own individual handset. You can send the list or
individual entries to other handsets (page 6).
*
,
*
.
Directory
Store up to 50 numbers and their corresponding names.
Storing a number in the directory
s ¢ §Menu§ ¢ New Entry
~ Enter number and press §OK§.
~ Enter the name and press §OK§.
Selecting a directory entry
s Open the directory.
u Use q to scroll to the entry until the
required name is selected or
u Enter the first character of the name, or
scroll to the entry using
Managing directory entries
Dialling with the directory
s
¢ q (select entry)
c Press the talk key.
Editing an entry
§Menu§ ¢ Edit Entry
~ Edit the number if required,
~ Edit the name if required,
Using other functions
s
¢ s (select entry; page 5)
§Menu§ ¢ Use Number
Edit or add a stored number. Then dial or use
other functions with
§Menu§ ¢ Delete Entry
Delete a selected entry.
§Menu§ ¢ VIP Entry
Mark a directory entry as VIP (Very Important Person) and assign it a specific ringtone. You will then recognise VIP calls by
their ringtones.
Requirement: Calling Line Identification
(page 4).
§Menu§ ¢ Send Entry
Send a single entry to another handset
(page 6).
and press
and press
q.
§OK§.
§OK§.
§Menu§.
*
* Depending on the network provider
5
Page 6
Using the directory and lists
§Menu§ ¢ Delete List
Delete all the entries in the directory/call-bycall list.
§Menu§ ¢ Send List
Send complete list to another handset
(page 6).
§Menu§ ¢ Shortcut
Assign the current entry to a key for quick
dial (2–9).
Using quick dial keys
¤ Press and hold the required quick dial key.
Sending the directory to another handset Classic S112
Requirement:
The sending and receiving handsets must both
be registered to the same base station.
s ¢ q (select entry) ¢ §Menu§ ¢Send
Entry / Send List
~ Enter the internal number of the
A successful transfer is confirmed by a message
and the confirmation beep at the receiver handset.
Please note:
u Entries with identical numbers are not over-
written in the receiver handset.
u The transfer is cancelled if the phone rings
or if the memory of the receiving handset is
full.
Using T-Net services
By pressing the T-Net key g, you can use the
T-Net services stored in this list.
Last number redial list
The last number redial list contains the ten
numbers last dialled with the handset. If one of
the numbers is in the directory, the corresponding name will be displayed.
Manual last number redial
c Press the key briefly.
q Select an entry.
c Press the talk key again.
receiver handset and press
*
The number is dialled.
§OK§.
Managing entries
c Press the key briefly.
q Select an entry.
§Menu§ Press the control key.
The following functions can be selected with
q:
Use Number (as in the directory, page 5)
Copy to Directory
Copy an entry to the directory.
Delete Entry (as in the directory, page 5)
Delete List (as in the directory, page 6)
Opening lists
You can use the message key f to open the
following lists:
u SMS list
u T-Net box
u Calls list
An adviso ry tone sou nds as s oon as a new message arrives in a list. An icon appears in the dis-
play for the new message when in idle status:
Icon New message...
± ... in T-Net box
Á ... in calls list
À ... in SMS list
The number of new entries is shown beneath
the corresponding icon.
If you press the
that contain new messages. If only one list contains new messages, this will be opened automatically.
Calls list
Requirement: CLIP (page 4)
The numbers of the last 30 calls not accepted
are stored.
Several calls from the same number are only
stored once (the last call).
The calls list is displayed as follows:
Calls List: 01/02
Number of new entries/number of old, read entries
*
*
If your network provider supports this function and the T-Net box is set for fast access.
*
f key, you will see all lists
*
* Depending on the network provider
6
Page 7
SMS (text messages)
Open calls list
f ¢ Calls List: 01/02
q Select entry.
The last incoming call is displayed in the calls
list.
Call back caller: Press talk key
Delete an entry: Press
c.
§Delete§.
SMS (text messages)
Your unit is supplied pre-prepared for the sending of SMS.
When supplied, the access number
(062 210 00 0x) of the SMS centre from
Swisscom is pre-programmed. (The last digit
of the number (10th number) is automatically
set to 0!)
Requirements:
u Calling Line Identification is enabled for
your phone line.
u Your network provider supports SMS within
the fixed network (your network provider
can give you information about this).
u You are registered with your service provider
to send and receive SMS.
SMS are exchanged between SMS centres that
are operated by service providers. You have to
enter in your unit the SMS centre through
which you want to send and receive. You can
receive from any of the entered SMS centres
once you have registered with your service provider.
Your SMS are sent via Service Centr.1.
An SMS is received and sent via Service Centr.1.
Service Centr.1 is preconfigured with the service
number of your service provider. For Service
Centr.2, you can enter the SMS centre number of
an additional provider, via which you would
also like to receive SMS on the fixed network in
addition to your initial service provider. The first
time you send an SMS, you will be registered
with the SMS centre of the SMS Service Centre
and can then receive SMS.
Character set chart for text entry, see page 13.
An SMS may contain up to 160 characters.
Please note:
To receive SMS you must be registered with
your service provider.
After registering or cancelling a registration, reenter the number of the original SMS service
provider.
Writing/sending SMS
Writing/sending SMS
§Menu§ ¢ SMS ¢ Write Message
~ Write SMS.
§Menu§ Send Text
Select and press
§OK§.
s / ~ Select number with dialling code
(including the area code) from the
directory or enter it directly and
press
§OK§.
The SMS is sent.
Note:
If an external call interrupts you while writing an SMS,
the text is automatically stored in the outgoing message list.
Setting the input language
You are writing an SMS (page 7).
§Menu§ ¢ Predictive Text Language
q Select the input language and
press
§OK§.
a Press the end call key briefly twice
to return to the input field.
The setting of the input language only applies
to the current SMS.
Outgoing message list
You can store an SMS in the outgoing message
list and change and send it later.
Storing SMS in the outgoing message list
You are writing an SMS (page 7).
§Menu§ ¢ Save Text
Opening the outgoing message list
§Menu§ ¢ SMS ¢ Outgoing
You will see the first entry in the list, e.g.:
Saved 01/02
Maria
27.08.04 15:27
§Delete§ U §Read
01/02: Number/total number of SMS
Reading or deleting individual SMS
¤ Open the outgoing message list.
q Select SMS.
7
Page 8
SMS (text messages)
§Read Press to read the SMS. Scroll in the
Or:
§Delete Press to delete the SMS.
SMS using
q.
Writing/changing an SMS
You are reading an SMS in the outgoing message list.
§Menu§ ¢ Write Message
Write a new SMS and then send or store.
§Menu§ ¢ Use text
Change the text of the stored SMS and then
send it.
§Menu§ ¢ Character Set
The text is shown in the selected character
set.
Receiving an SMS
All entered SMS are stored in the incoming message list. Since an SMS remains in the list even
after it has been read, you should regularly
delete SMS from the list.
Incoming message list
The incoming message list contains:
u All received SMS, starting with the latest.
u SMS that could not be sent because of an
error.
New SMS are indicated on all Classic S112
handsets by the icon
advisory tone.
Open the incoming message list with the f
key
f Press.
The incoming message list is displayed as follows (example):
Incoming 01/05
01/05: Number of new/number of old read entries
An entry in the list is displayed e.g. as follows:
New 01/02
1234567890
28.08.04 17:53
§Delete§ U §Read
01/02: Total number of new SMS/number of the SMS
displayed
À on the display and an
Opening incoming message list via the SMS
menu
§Menu§ ¢ SMS ¢ Incoming 01/05
Reading or deleting individual SMS
¤ Open the incoming message list.
q Select SMS.
§Read Press to read the SMS. Scroll in the
Or:
§Delete Press to delete the SMS.
A new SMS that you have read acquires the status Old.
SMS using
q.
Replying to or forwarding SMS
You are reading an SMS (page 8).
§Menu§ ¢ Reply
Write and send a reply SMS directly (page 7).
§Menu§ ¢ Answer: Yes / Answer: No
Yes or no is added to the SMS. Then send
the SMS (page 7).
§Menu§ ¢ Use text
Change the text of the SMS and then send it.
Attachments (e.g. pictures, melodies) are
not sent.
§Menu§ ¢ Send
The SMS is forwarded.
Adding/selecting numbers from SMS text
You are reading an SMS.
Scroll to the place with the phone number.
The digits are shown reverse highlighted.
§Menu§ ¢ Copy to Directory
Or:
c Press the talk key to select the
After copying the number:
number.
¤ Complete the entry (page 5).
If you want to use the number for sending SMS
as well:
¤ Store the number with area code (prefix) in
the directory.
8
Page 9
SMS (text messages)
Entering/changing the SMS centre
¤ You should find out about the services and
special functions offered by your service
provider before you make a new applica-
tion and/or you delete preconfigured call
numbers.
§Menu§ ¢ SMS ¢ Service Centr.1
q Select an SMS centre (e.g. Service
~ Enter the number of the SMS cen-
Note:
When supplied, the access number
(062 210 00 0x) of the SMS centre from
Swisscom is pre-programmed. (The last digit
of the number (10th number) is automatically
set to 0!)
SMS to PABXs
u You can only receive an SMS if the Calling
Line Identification is forwarded to the
extension of the PABX (CLIP). The CLIP evaluation of the number of the SMS centre
takes place in your device.
u You may have to prefix the access code to
the number of the SMS centre (depending
on your PABX).
If in doubt, test your PABX by e.g. sending
an SMS to your own number: once with
access code and once without.
u When you send messages, your sender
number may be sent without your extension
number. The recipient cannot reply to you
directly in this case.
Sending and receiving SMS on ISDN PABXs is
only possible via the MSN number assigned to
your base station.
Activating/deactivating the SMS function
Delete the numbers of both SMS centres.
Note:
Make a note of the deleted number for later
usage.
Centr.1) and press
tre and press
§OK§.
§OK§.
SMS troubleshooting
Error codes when sending
If an SMS cannot be sent for a longer period of
time, it is moved to the incoming message list
and given the status Error XX.
E0 Permanent suppression of the number activated
(CLIR) or Calling Line Identification not enabled.
FE Error occurred during SMS transfer.
FD Error in connection set-up to SMS centre, see
Self-help.
Self-help for errors
The following table lists error situations and
possible causes and gives troubleshooting
hints.
You cannot send messages.
1. The "Calling Line Identification" (CLIP) feature is
not requested.
¥ Have your service provider enable the feature.
2. SMS transfer was interrupted (e.g. by a call).
¥ Re-send the SMS.
3. Network provider does not support this feature.
4. For Service Centr.1, there is no phone number or
an incorrect one entered.
¥ Enter phone number (page 9).
You have stopped receiving SMS.
The call diversion is activated with All Calls or the
call diversion All Calls is activated for the T-Net box.
¥ Change the call diversion.
The SMS is shown.
1. The feature "display number" is not set.
¥ Ask your service provider to enable this feature
(there is a charge for this).
2. Mobile phone operator and fixed network SMS
provider have no agreement to work together.
¥ Ask your fixed network SMS provider.
3. The terminal is stored with your SMS provider as
non-fixed network SMS-capable, i.e. you are no
longer registered there.
– Have the device (re-)registered to receive
SMS.
You cannot access the SMS functions on your handset.
Another handset that is registered at the same
base station is currently using the SMS functions.
¥ Wait until there is no other handset using the
SMS functions.
9
Page 10
Registering handsets
Registering handsets
You can register up to four handsets on your
base station.
A Classic S112 handset that is not yet registered
to a base station is registered automatically.
Other handsets must be registered manually.
Automatic registration: Classic S112 handset
Important: the handset must not already be
registered to a base station.
Place the handset in the base station with its
display facing forward. Automatic registration
lasts approximately one minute. During this
time, Registering appears in the display and the
name of the base station, e.g. Base 1, flashes.
The handset will automatically be assigned the
lowest unassigned internal number (1–4).
Once registration has been successfully completed, the number is shown in the display, e.g.
INT 1. If all internal numbers 1-4 have been
assigned (four handsets are registered to the
base station), number 4 is overwritten if the
handset with the internal number 4 is in idle
status.
Manual registration: Classic S112 handset
On the handset
§Menu§ ¢ Settings ¢ Handset ¢Register
Handset
~ Enter the system PIN of the base
On the base station
¤ Press the registration/paging key on the
base station (page 1) for approximately
3seconds.
The registration process starts.
Registering other handsets
Other handsets are registered as follows.
On the handset
¤ Start to register the handset as described in
its user guide.
On the base station
¤ Press the registration/paging key on the
base station (page 1) for approximately
3seconds.
station (the default is 0000) and
press
§OK§. You will see flashing on
the display e.g. Registering Base 1.
The registration process starts.
Using several handsets
Looking for a handset ("paging")
You can locate your handset using the base station.
¤ Press the registration/paging key on the
base station (page 1) briefly.
¤ All handsets will ring at the same time ("pag-
ing"), even if the ringtones are switched off.
Ending paging
¤ Press the registration/paging key on the
base station (page 1) briefly or press the
talk key on the handset.
Making internal calls
Internal calls to other handsets registered on
the same base station are free.
Calling handset(s)
§§INT Open list of internal users.
sc Select a handset and press the talk
Or:
~ Enter the number of the handset.
Or:
P Press the star key. All handsets are
End call
a
Int. consultation call/connecting a call
You are in conversation with an external caller.
You can consult an internal user or transfer the
call to an internal user.
§§INT Open list of internal users.
s Select a handset or Call All hand-
When the internal party answers:
¤ Hold consultation call, end with §End§. You are
reconnected with the external caller.
key.
called.
Press the end call key.
The external caller hears the hold
music.
sets and press
§OK§.
10
Page 11
Base station settings
Or:
¤ Announce external call if required.
a Press the end call key. The call is trans-
ferred.
If the internal party does not answer or is busy
the call will come back to you automatically.
Accept call waiting
If you receive an external call during an internal call, you will hear the call waiting tone
(short tone). The number or name of the caller
appears in the display with Calling Line Identification.
Cancel internal call, answer external call
Accept The internal call is ended. You are
Listening in on an external call
You are conducting an external call. An internal
party can listen in to this call and take part in
the conversation. All the parties are made
aware of the ‘listening in’ by a beep.
Requirement: the Listening in function is acti-
vated.
Activating/deactivating internal listening in
§Menu§ ¢ Settings ¢ Base ¢Listening In
Internal listening in
The line is occupied by an external call. Your display shows an appropriate message. You want
to listen in on the existing external call.
c Press and hold the talk key.
You are linked into the call. All parties hear a
beep.
Ending listening in
a
All parties hear a beep.
If the first internal participant presses the end
call key
remains connected to the external participant.
connected with the external caller.
Press the end call key.
a, the handset that is 'joined-in'
Changing the name of a handset
The names "INT 1", "INT 2" etc. are assigned
automatically at registration. You can change
these names. The name may have max. 10
characters. The changed name is displayed in
every handset's list.
§§INT Open list of internal users.
s Select handset.
§Edit§ Press.
~ Enter name.
§OK§ Press the control key.
Base station settings
Changing pause after line seizure
You can set the length of the pause inserted
between pressing the talk key
the phone number.
§Menu§ 54O 1L
~ Enter a number for the length of
the pause (1 =1 sec.; 2 =3sec.;
3 =7sec.; 4 =2.5sec.) and
press
§OK§.
Changing the pause after the recall key (dialling pause)
You can change the length of the pause if your
PABX requires this (see PABX User Guide).
§Menu§ 54O 12
~ Enter number for the pause length
Inserting a dialling pause: press and hold the
P key; you will see a "P" appear in the display.
(1 = 800 ms; 2 = 1,600 ms;
3 = 3,200 ms) and press
c and sending
§OK§.
11
Page 12
Appendix
Appendix
Care
Wipe the base station and handset with a damp
cloth or an antistatic cloth. Never use a dry
cloth! This can cause static!
Contact with liquid
If the handset has come into contact with liquid:
1. Switch off the handset and remove the
battery pack immediately.
2. Allow the liquid to drain from the handset.
3. Pat all parts dr y, then place the handset with
the battery compartment open and the keypad facing down in a dry, warm place for at
least 72 hours (not in a microwave, oven
etc.).
4. Do not switch on the handset again until
it is dry.
When it has fully dried out you will normally be
able to use it again.
Troubleshooting
Not every problem has to be a defect in your
telephone. In some cases, simply disconnecting
the power supply to the base station and plugging it in again or removing the battery from
the handset and installing it again is enough.
The following notes should help with your
specific problem.
Important: Problems or faults can only be
corrected, in most cases, if you bring in the
complete unit (base station, handset and
connecting cables) to the place of purchase.
The display is blank.
1. The handset is not switched on.
¥ Press and hold end call key a or place the
handset in the base station.
2. The battery pack is flat.
¥ Charge/replace the battery pack (page 3).
"Base station x" flashes on the display.
1. The handset is outside the range of the base station.
¥ Move the handset closer to the base station.
2. The handset has been de-registered.
¥ Register the handset (page 10).
!
3. The base station is not switched on.
¥ Check the base station's mains adapter
(page 3).
"Please Register" flashes on the display.
¥ Register the handset (page 10).
¥ Check the base station's mains adapter (page 3).
The other party cannot hear you.
¥ Cancel muting (page 5).
The number of the caller is not displayed despite
CLIP.
Calling Line Identification is not enabled.
¥ The caller should ask his network provider to ena-
ble Calling Line Identification (CLI).
Specifications
Range up to 250 m outdoors,
Mains adapter 230 V ~/50 Hz
Operating temperature
Dimensions/base station
Dimensions/handset 56 x 155 x 30 mm
Weight/handset approx. 110 g (including bat-
Weight/base approx. 91 g
Rechargeable battery
pack
Battery pack order
number
Battery pack capacity 550 mAh
Charging time approx. 10 hours in base sta-
Calling time approx. 10 hours
Standby time approx. 140 hours (6 days)
Power consumption
Approx. 2 watts
up to 40 m indoors
+5 °C to +45 °C
113 x 86 x 85 mm
(W x L x H)
(W × L × H)
tery pack)
NiMH, 2xAAA pack
SAP-Nr. 104762 (261.040.0)
tion,
approx. 5 hours in charging
cradle
12
Page 13
Appendix
Character set chart
Press the required key the number of times indicated.
1x 2x 3x 4x 5x 6x
See table of special characters
Q
See table of special characters
1
ABC2
2
DEF3
I
GH I4
4
JKL5
5
MNO6
L
PQRS7
M
TUV8
N
WXYZ9
O
See table of special characters
#
See table of special characters
P
Special characters
1 Q P #
*) **)
Space Space
1x .
2x 1
3x £ 1 ? * \
4x $
5x ¥ £ 0 ( §
6x ¤ $ + )
7x ¥ - <
8x ¤ : =
9x ¿ >
10x ¡ %
11x “
12x ‘
13x ;
14x _
*) Directory and other lists
**) When writing an SMS
 ,123 --> abc @
â
!/&
Abc--> 123
#
Warranty/Maintenance/Repair/
Authorisation
Warranty
The warranty period is 2 years as of the date of
purchase.
For warranty repair, the warranty card, filled
out and stamped by the place of purchase must
be included with the defective device.
Excluded from the warranty are damages due
to improper use, wear and tear, or tampering by
others. The warranty does not include consumed materials and deficiencies which only
affect the value or capability for use inconsiderably.
In case of an error, please contact your place of
purchase.
Repair/Maintenance
Rental devices
If your phone does not operate properly, notify
Technical Assistance (phone number 175).
The repair
charge.
Purchased devices
Repair services are performed free of charge
within the warranty period in accordance with
the regulation of the warranty certificate. If a
repair is necessary, the device must be returned
to the place of purchase.
If Technical Assistance is made available (during
the warranty period as well), the fault action is
charged (route lump sum price as well as time
expenses). The repair costs are additional
outside the warranty period.
*
and the fault action are free of
* Damage to worn areas (cable, labels, battery, etc.)
and damage caused by improper handling (dropping
damage, dampness, etc.) are excluded.
13
Page 14
Appendix
Batteries
Battery cells are considered consumed material, which is not covered by the warranty service. Defective batteries are not replaced free of
charge. This applies to rental and purchased
devices.
Help
If you have any general questions about
products, services, etc., please contact your
Swisscom Information Centre (toll-free number
0800 800 800).
Authorisation and Conformity
This device is intended to be operated on the
analogue Swiss network.
Country-specific conditions have been taken
into account. If you have any questions about
the differences between the public phone
networks, please contact your specialist dealer
or network provider.
The CE mark attests to the phone's compliance
with the essential requirements of the
R&TTE directive.
Excerpt from the original declaration
"We, the manufacturer, declare, that the handset
Classic S112 is manufactured according to our
Full Quality Assurance System certified by
CETECOM ICT Services GmbH with ANNEX V of the
R&TTE-Directive 99/5/EC. The presumption of conformity with the essential requirements regarding
Council Directive 99/5/EC is ensured"
Senior Approvals Manager
The Declaration of Conformity can be found on the
following web site:
www.swisscom.com under the rubric eShop,
Phone, Declaration of Conformity or can be ordered
from the following postal address:
Swisscom Fixnet AG
Retail Business
Customer Premises Equipments (CPE)
3050 Bern
14
Page 15
Menu tree
Menu tree
Your phone has an extensive range of features. These
are offered in the form of menus.
1 SMS
1-1 Write Message
1-2 Incoming 00+00
1-3 Outgoing
1-4 Service Centr.1
1-5 Service Centr.2
4 Audio Settings
4-1 Ringer Volume 5 settings + "Crescendo" selectable with
4-2 Ringer Melody 4-2-1 External Calls 10 melodies selectable with q
4-2-2 Internal Calls 10 melodies selectable with q
4-3 Advisory Tones 4-3-1 Key Tones (‰= on)
4-3-2 Battery Low Select with
4-3-3 Confirmation Tone (
5 Settings
5-1 Date/Time enter one after the other and confirm with §OK§:
5-3 Handset 5-3-1 Language Select with
5-4 Base 5-4-1 System-PIN Changing the system PIN
6 Voice Mail Store the number of the T-Net box for fast access (press and hold the
Date (format: DDMMYY), time (format: HHMM)
5-3-2 Auto Answer (‰= on)
5-3-3 Register Handset
5-3-4 Reset Handset Restore factory settings: directory entries, calls
5-4-2 Base Reset Restoring factory settings (system PIN remains
5-4-3 Dialling Mode Select with
5-4-4 TBR Select with
5-4-5 Listening In (
status for dialling).
T-Net box: your network provider's answering machine; must be ordered separately.
The T-Net box list can be displayed if your network provider supports this function
and the T-Net box has been defined for fast access.
With the telephone in idle status,press §Menu§
(open menu), scroll to the required function and confirm with §OK§.
To return to idle status: press and hold key
To access a function: scroll with key
the corresponding digit combination
(e.g.: §Menu§
51 = Setting the clock).
q
‰
q (
q (
q (
q (
‰
‰
‰
= on)
= on)
= on)
= on)
‰
= on)
list, speed dial list, SMS lists and registration on
the base station remain unchanged.
(Default: 0000)
unchanged, all handsets are de-registered, manual registration see page 10)
‰
= on)
a.
q or enter
1 key in idle
15
Loading...
