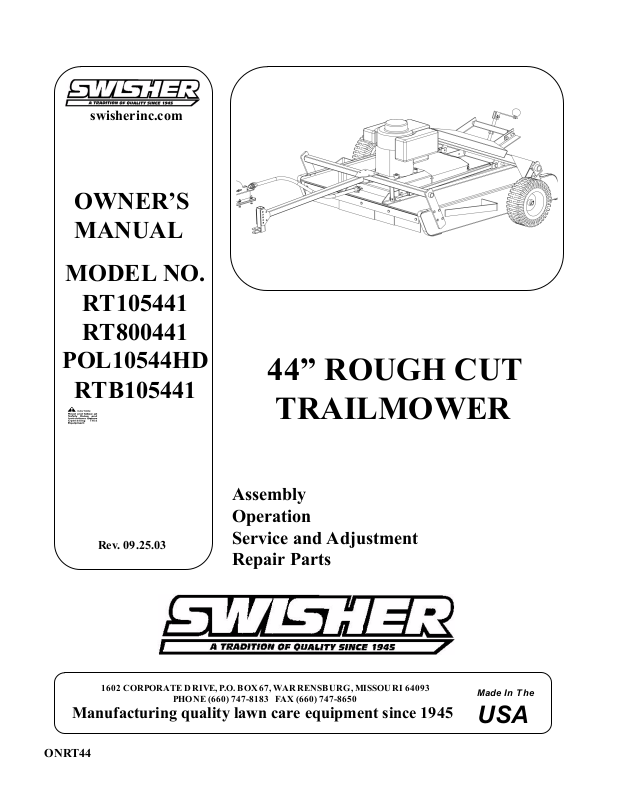

44” ROUGH CUT
TRAILMOWER
OWNER’S
MANUAL
1602 CORPORATE DRIVE, P.O. BOX 67, WARRENSB URG, MISSOURI 64093
PHONE (660) 747-8183 FAX (660) 747 -865 0
MODEL NO.
RT105441
RT800441
POL10544HD
RTB105441
Manufacturing quality lawn care equipment since 1945
Assembly
Operation
Service and Adjustment
Repair Parts
Made I n T he
USA
Rev. 09.25.03
ONRT44
swisherinc.com
LIMITED WARRANTY
The manufacturer’s warranty to the original consumer purchaser is: This product is free from
defects in materials and workmanship for a period of one (1) year from the date of purchase by
the original consumer purchaser. We will repair or replace, at our discretion, parts found to be
defective due to materials or workmanship. This warranty is subject to the following limitations
and exclusions:
1) Engine Warranty All engines utilized on our products have a separate warranty
extended to them by the individual engine manufacturer. Any
engine service difficulty is the responsibility of the engine
manufacturer and in no way is Swisher Mower Co., Inc. or its
agents responsible for the engine warranty. The Briggs & Stratton
Engine Service Hot-Line is 1-800-233-3723. The Tecumseh
Engine Service Hot-Line is 1-800-558-5402.
2) Commercial Use The warranty period for any product used for commercial or rental
is limited to ninety (90) days from the date of original purchase.
3) Limitations This warranty applies only to products which have been properly
assembled, adjusted, and operated in accordance with the
instructions contained within this manual. This warranty does not
apply to any product of Swisher Mower Co., Inc., that has been
subject to alteration, misuse, abuse, improper assembly or
installation, shipping damage, or to normal wear of the product.
4) Exclusions Excluded from this warranty are normal wear, normal adjustments,
and normal maintenance.
In the event you have a claim under this warranty, you must return the product to an authorized
service dealer. All transportation charges, damage, or loss incurred during transportation of parts
submitted for replacement or repair under this warranty shall be borne by the purchaser. Should
you have any questions concerning this warranty, please contact us toll-free at 1-800-748-7108.
The model number, serial number, date of purchase, and the name of the authorized Swisher
dealer from whom you purchased the mower will be needed before any warranty claim can be
processed.
THIS WARRANTY DOES NOT APPLY TO ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES AND ANY IMPLIED WARRANTIES ARE LIMITED TO THE SAME TIME
PERIODS STATED HEREIN FOR ALL EXPRESSED WARRANTIES. Some states do not
allow the limitation of consequential damages or limitations on how long an implied warranty
may last, so the above limitations or exclusions may not apply to you. This warranty gives you
specific legal rights and you may have other rights, which vary from state-to-state. This is a
limited warranty as defined by the Magnuson-Moss Act of 1975.
SAFETY PRECAUTIONS
•
Read the manual. Learn to operate this machine safely.
•
Always disconnect the spark plug wire and place the wire where it cannot contact
the spark plug, to prevent accidental starting the engine when setting up,
transporting, adjusting or making repairs.
•
Keep all shields and guards in place.
•
Understand the speed, steering and stability of this machine. Know the positions
and operations of all controls before you operate this machine. Check all of the
controls in a safe area before starting to work with this machine.
•
Allow only responsible adults who are familiar with these instructions to operate
this machine. Never allow children to operate this machine.
•
Clear the area of objects such as rocks, toys, wire, etc. that can be picked up and
thrown by the blade.
•
Be sure the area is clear of other people before mowing. Be aware of the mower
discharge direction and do not point at anyone. Stop the machine if anyone enters
the mowing area. Children are often attracted to the machine and the mowing
activity. Never assume that children will remain where you last saw them.
Keep children under the watchful care of another responsible adult.
•
No riders!
•
Do not put hands or feet near or under rotating parts. Keep clear of the discharge
opening at all times.
•
Do not mow in reverse. Always look down and behind before and while backing.
This Safety Alert Symbol indicates important messages in this
manual. When you see this symbol, carefully read the message that
follows and be alert to the possibility of personal injury.
Read this manual completely. This machine can amputate hands, feet, and throw
objects. Failure to observe the following safety instructions could result in serious
injury or death.
•
Turn off the blades when not mowing. Before leaving the machine, turn off
the blades and stop the engine.
•
Watch for traffic when operating near or crossing roadways.
•
Do not operate the mower if it has been dropped or damaged in any manner or
if the mower vibrates excessively. Excessive vibration is an indication of
damage. Repair mower as necessary.
•
Dress properly. Do not operate the mower when barefoot or wearing open
sandals. Wear only solid shoes with good traction when mowing.
•
Do not operate the machine while under the influence of alcohol or drugs.
•
Operate self-propelled machines up and down slopes. There is significant risk
of overturns when operating across slopes. Operate walk-behind machines
across slopes. There is a significant risk of slipping under a walk-behind
machine when operating up and down slopes. Do not operate on slopes greater
than 15 degrees.
•
Never tamper with safety devices. Check their proper operation regularly.
•
Stop and inspect the equipment if you strike an object. Repair, if necessary,
before restarting.
•
Never make adjustments or repairs with the engine running.
•
Mower blades are sharp and can cut. Wrap the blades or wear gloves, and use
extra caution when servicing them.
SAFETY AND OPERATIONAL DECALS
Replace decal immediately if damaged. Order by part number from
Swisher Mower and Machine Co. Inc.
OD55-DANGER DECAL
OD45-WARNING DECAL
OD20-CAUTION DECAL
OD28-OFF/ON DECAL
OD10-ENGAGE DECAL
OD99116-MED. SILVER LOGO DECAL
SAFETY AND OPERATIONAL DECALS
Replace decal immediately if damaged. Order by part number from
Swisher Mower and Machine Co. Inc.
0D82-44 RUGGED CUT DECAL
OD29- DANGER DECAL
•

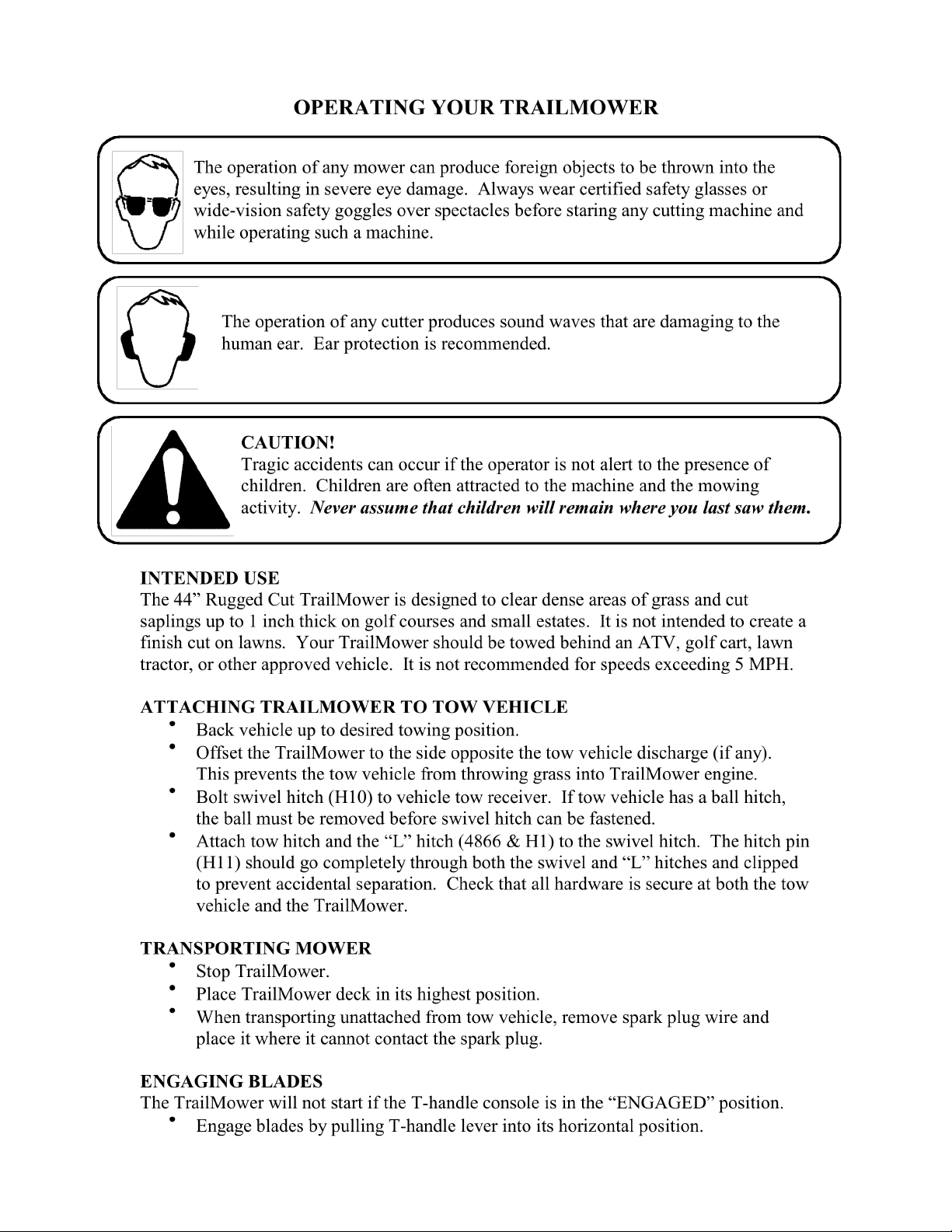

Return lever to its vertical position to disengage blades.
•
The braking system is applied when the blades become disengaged. It is designed
to bring the blades to quick stop (approximately 7 seconds). Each TrailMower
brake system has been tested and calibrated. For safety, the consumer should not
alter the braking system.
STARTING THE ENGINE
See engine manufacturer’s recommendations for the type and amount of oil and fuel
used.
•
Make sure the tow vehicle parking brake is set, mower is level, and blades are
disengaged. Engine must be level to accurately check and fill oil. Do not overfill.
•
Check spark plug wire, oil, and fuel.
•
Check all electrical connections for build-up of debris.
•
Set engine idle to “CHOKE” position.
•
Pull rope with a single fluid motion.
•
Set engine idle at maximum RPM for best performance.
•
Allow engine to run a few moments before engaging blades.
BREAKING IN YOUR MOWER
•
Set the vehicle parking brake and chock the wheels to prevent accidental rolling.
•
While the engine is running, slowly, engage blade control.
•
In a safe environment, i.e. no children or pets, allow blades to rotate and engine to
idle for 5 minutes, breaking-in the belt for a longer life.
•
Stop mower.
FRONT TO BACK ADJUSTMENT
For best cutting results, the mowing deck should be parallel to the ground. To check
parallel adjustment, measure the distance from the bottom edge of the deck in both the
front and rear of the deck. This adjustment is best done while the tow vehicle and
TrailMower are connected.
•
Remove bolts and nuts from the “L” hitch (H1).
•
Raise or lower hitch section to obtain proper front to back adjustment.
•
Connect bolts and nuts in “L” hitch securely.
MOWER HEIGHT ADJUSTMENT
•
There is approximately 3 inches of height adjustment.
•
Rotate height adjust crank handle in a clockwise direction to lift the mower deck.
A counter-clockwise direction is used to lower the mower deck.
•
Dense areas of grass should be cut twice.
•
Push handle down to lock height position.
CAUTION: SHUT OFF THE MOWER ENGINE AND REMOVE SPARK
PLUG WIRE FROM SPARK PLUG BEFORE MAKING ANY
ADJUSTMENTS TO THE MOWER.
TOW HITCH OFFSET
•
When offsetting the mower do so to the side opposite the discharge of the tow
vehicle.
•
Swisher recommends if the tow vehicle is equipped with a mid-mount mower to
overlap the cut approximately 6”. This may vary depending on mowing terrain,
obstacles, and/or tow vehicle. Always keep safety the first priority.
•
Always keep the tow vehicle cutter raised higher than the TrailMower.
•
If the tow vehicle is not equipped with a mid-mount mower, we still recommend
offsetting the mower so that the tow vehicle does not crush the grass.
STARTING TO MOW
•
Adjust the cutting height.
•
Double check vehicle to mower attachment.
•
Start mower engine and set throttle to “FAST” for best cutting performance.
•
Slowly engage T-handle lever.
•
Carefully mount vehicle and start mowing at a slow travel speed.
STOPPING THE MOWING SESSION
•
Bring tow vehicle to a complete stop, set the parking brake and disengage blades.
•
Turn engines “OFF”.
•
Always remember to remove keys to avoid irresponsible usage.
SUGGESTED MOWING PRACTICES
•
Operate mower engine at full throttle to assure the best cutting performance and
maximum material discharge.
•
Allow wet grass to dry. Wet grass will clump and collect under the mowing deck.
•
Mowing should be started with tow vehicle in low gear and increased only as safe
mowing conditions permit. Mowing speed should not exceed 5 MPH.
•
Better results occur when mowing areas with the least amount of growth.
Although your TrailMower will cut through dense areas of growth you will
experience increased horsepower while mowing areas of less growth.
•
For a healthier lawn and better aesthetics, your lawn should be mowed often and
after moderate growth.
•
Mowing conditions and the types of grass will vary from place to place. You may
find when mowing dense areas that the pressure of the wheel tracks may cause the
grass to be pushed down and not effectively mowed. If this happens you may
want to mow the area twice. Once with the mower raised and the second mowing
at the desired height. The second mowing should be at a right angle from the
previous for best results.
•
Reducing the travel speed will help mow dense growth. This allows the blades
the time necessary to make its initial cut, and regain momentum to continue
cutting and discharging debris properly. The engine may stall if you are mowing
too fast!
•
Do not attempt to mow areas that the tow vehicle cannot maneuver through and/or
slopes that you do not feel comfortable riding.
GENERAL TROUBLE SHOOTING
The mower is not cutting level.
•
Level deck, making sure the side crank-handles are equal.
•
Check air pressure of all tires; make sure they are equal. See tires for maximum
inflation.
•
Make certain blades are installed identical, without the engine running.
The engine will not start.
•
Disengage blades, turn toggle switch to “OFF” position, check battery and all
other electrical connections, and inspect spark plug and wire (FIGURE THREE).
•
Contact engine manufacturer or qualified mechanic.
Engine runs poorly.
•
See engine manual.
•
Check the throttle adjuster.
•
Replace fuel, clean fuel filter and fuel line.
•
Check spark plug and gap.
Mower bounces excessively while towing.
•
Lower tire pressure.
•
Tow at a slower speed.
IF PROBLEMS PERSIST HAVE A QUALIFIED MECHANIC SERVICE
THE MOWER. NEVER ATTEMPT TO MAKE AN ADJUSTMENT THAT
YOU ARE NOT SURE IS CORRECT. DOING SO CAN CAUSE OTHER
PROBLEMS.
NOTES:___________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
__________________________________________________________________________________________
CUTTER MAINTENANCE
GENERAL RECOMMENDATIONS
The warranty on this cutter does not cover items that have been subjected to operator
abuse or negligence. To receive full value from the warranty, operator must maintain
unit as instructed in this manual.
Some adjustments will need to be made periodically to maintain your unit properly.
All adjustments in the service and adjustments section of this manual should be checked
at least once each season.
BEFORE EACH SEASON
•
Replace the spark plug.
•
Clean or replace the air filter.
•
Check blades and belts for wear.
A new spark plug and clean air filter assure proper air-fuel mixture and help your engine
run better and last longer.
BEFORE EACH USE
•
Check engine oil level. (Do this twice to ensure an accurate reading.)
•
Check condition of air filter and clean or replace if necessary.
•
Check blade operation.
•
Check for loose fasteners.
DAILY MAINTENANCE
Make sure all nuts and bolts are tight and cotter pins and retainer springs are secure.
Keep blades sharp. Observe all safety precautions.
BLADE CARE AND SERVICE
For best results cutter blades must be kept sharp. The blades can be sharpened with a few
strokes of a file or grinding wheel. Do Not attempt to sharpen while on the cutter.
Important: Replace blades that have been damaged or deeply nicked.
Important: Check blade and spindle hardware on a regular basis to make sure nuts are tight.
CAUTION: DO NOTHANDLE MOWER BLADES WITH BARE HANDS.
CARELESS OR IMPROPER HANDLING MAY RESULT IN SERIOUS
INJURY.
SEE FIG. 4

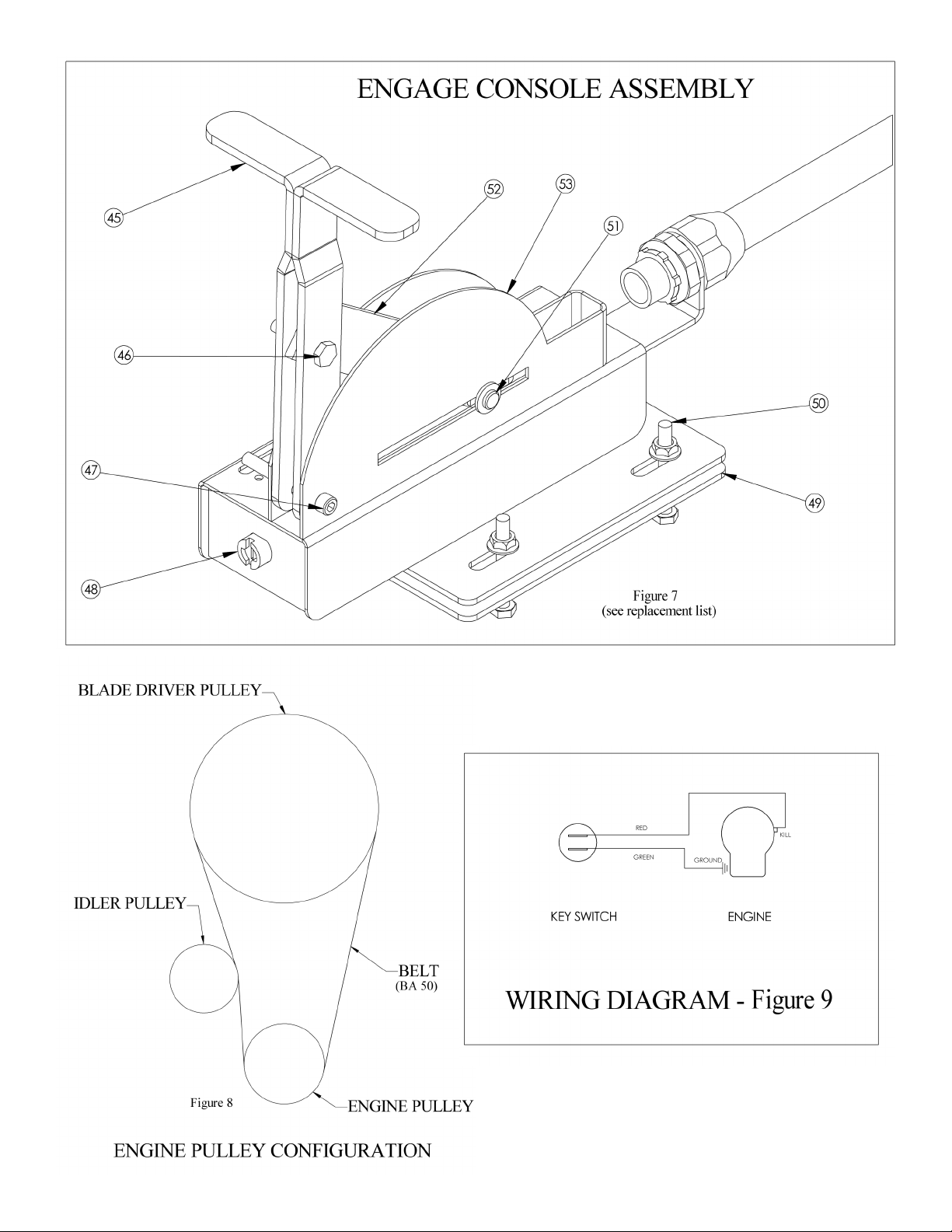

SEE FIG. 7
HEIGHT ADJUST ASSEMBLY
Figure 4
(see r eplacement list)
25
23
26
22
21
3
24
27
1
ITEM NO. QTY. P ART NO. DESCRIPTION
1 1 4859 STUMP JUMPER
2 2 NB-146 3/4 SAE Washer ZP
3 2 4855 18" BLADE
4 2 NB-611 3/4-10 X 2 1/2 GR8 BOLT
5 2 NB-609 3/4-10 NYLOC NUT
6 4 NB738 BELLVILLE WAS HER
7 1 NB-614 1 X 1 1/2 10GA W asher Hard
8 2 4845 BLADE BE ARING
9 2 4049 TUBE SPACER
10 1 4858 BLADE DRIVER HOUSING
11 4 NB-509 1/2-13 X 2 HCC GR5 ZP
12 4 NB-281 1/2-13 NYLOC NUT
13 1 BB 105SL SPACE LOW ER ENGINE
14 1 4846 BLADE PULLEY - 10.3125"
15 1 NB737 1-8 X 7 1/2" GR8 ZP
16 1 NB-612 1-8 NYLOC NUT ZP
2
3
4
5
7
8
10
11
14
12
6
6
8
9
13
15
16

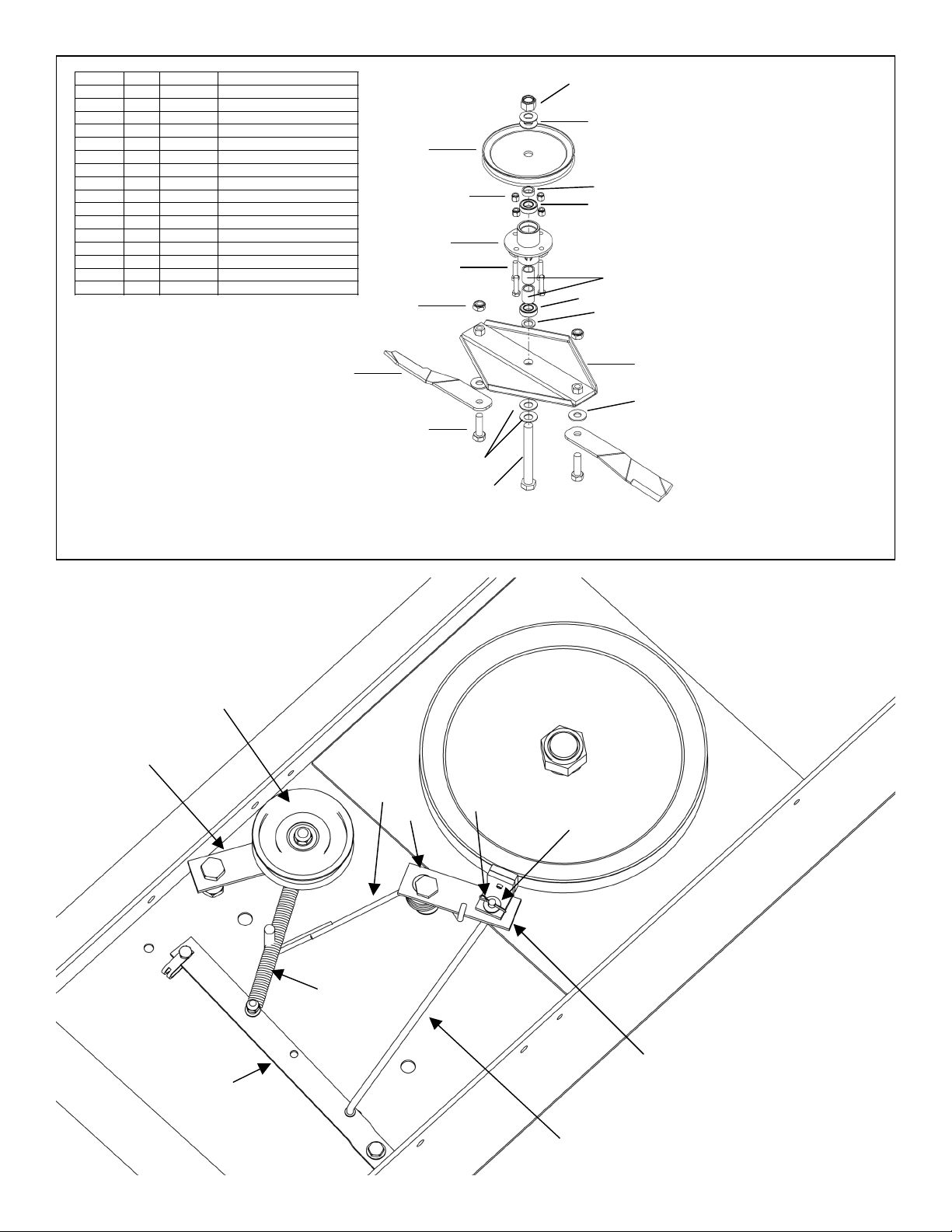

BLADE DRIVER ASSEMBLY
Figure 5
Note: Torque to
235 ft/lbs
BELT ENGAGE CONFIGURATION
Figure 6
(see r eplacement list)
37
41
40
43
30
34
42
35
39
44
B527
4846
BB105
REPLACEMENT PARTS
ITEM # PART # DESCRIPTION
1 4865 DECK WELDMENT
2 NB-501 5/16-18 X 1 1/4 FLN GE BOLT
NB-181 5/16-18 FLNGE NUT
3 4827 PIN LOCK
4 WHRT44TEC WIR HRNES-TEC
4 WHRT44BS WIR HRNES-BRIGGS&STRTON
5 NB-504 5/16-18 X 1 1/4 BOLT
NB-181 5/16-18 FLNGE NUT
6 4853 RUBBER FLAP STRAP
7 4843 RUBBER FLAP
8 NB-617 1/2-13 X 1 1/2 BOLT
NB-213 1/2-13 NUT
NB-281 1/2-13 NYLOC NUT
9 6599 LONG EYEBOLT
10 NB-114 1/2-20 X 1/2 SELF- TAPPING BOLT
11 NB-238 3/8-24 X 1 EN G BOLT
NB-216 3/8-24 TWO-WAY LOC NUT
12 4836 MOTOR BASE
13 NB-596 5/16-18 X 3/4 FLN GE BOLT
NB-170 5/16-18 FLNGE NUT
14 4834 TIRE/WHEEL ASSEMBLY
15 NB-195 13/16 X 1 1/4 X 1/8 WASHER
16 4844 PULLEY COVER
17 NB-126 1/8 X 1 CO TTER PIN
18 4864 HEIGHT ADJUSTMENT BAR
19 4860 REAR TORSION BAR
20 NB-107 3/8-16 X 1 1/2 BOLT
NB-182 3/8-16 NYLOC NUT
T2PB 3/8 PLASTIC BUSHING
21 NB-596 5/16-18 X 3/4 FLN GE BOLT
NB-170 5/16-18 FLNGE NUT
22 4850 TOP HEIGHT ADJUST SECTION
23 NB-618 3/8-16 X 1 1/4 BOLT
NB-280 3/8-16 TWO-WAY LOC NUT
24 NB-104Z 1/4-20 X 1 1/2 BOLT
NB-180 1/4-20 NYLOC NUT
25 4857 BLACK PLASTIC KNO B
26 4874 CRAN K HANDLE
27 4851 BOTTO M HEIGHT ADJUST SECTION
NB-252 5/16-18 X 1/2 FLN GE BOLT
28 4837 AUXILARY PULLEY COVER
29 NB-619 3/8-16 X 2 1/2 BOLT
NB-212 3/8-16 NUT
NB-182 3/8-16 NYLOC NUT
ITEM # PART # DESCRIPTION
30 6681 IDLER ARM
31 NB-588 1/2-13 X 2 1/2 BOLT
NB-121 1/2-13 TWO-WAY LOC NUT
NB-281 1/2-13 NYLOC NUT
32 NB-250 1/4-20 X 3/4 BOLT
NB-180 1/4-20 NYLOC NUT
33 9023 CLEVIS U-CLIP
34 4898 BELT ENGAGE ARM
35 682S IDLER SPRING
36 NB-102 1/4-20 X 1 BOLT
NB-139 1/4-20 NUT
NB-180 1/4-20 NYLOC NUT
37 4893 Brake Arm Assembly
38 3 LINK CHAIN
39 NB510 1/2-13 X 2 1/2 BOLT
3122 1 1/2 X 3/4 SPACER
NB121 1/2-13 2- WAY JAM LOCK NUT
40 4891 BRAKE ROD
41 NB274 1/4 SAE WASHER
42 NB519 5/64 X 3/4 COTTER PIN
43 9040 BRAKE SPRING
44 B527 IDLER PULLEY
45 4463 T-HANDLE
46 NB-560 1/4-20 X 1 1/4 BOLT
NB-180 1/4-20 NYLOC NUT
47 NB-591 5/16-18 X 1 1/2 TORX BOLT
NB-181 5/16-18 NYLOC NUT
48 KSM KEY SWITCH
49 4852 ENGAGE CONSOLE MOUNT PLATE
50 NB-141 1/4-20 X 2 1/2 BOLT
NB-274 1/4 SAE WASHER
NB-608 1/4-20 WING NUT
51 NB-597 3/32 X 3/4 COTTER PIN
NB-274 1/4 SAE WASHER
NB-518 1/4 X 1 1/2 CLEVIS PIN
52 4461 T HANDLE LINK
53 4847 ENGAGE CONSOLE
54 4805 FRONT TORSION BRACKETS
55 4809(L&R) REAR TORSION BRACKETS
NO T SHOWN
BR20CC ENGAGE CABLE
NO T SHOWN
BA50 BELT
When ordering p arts that are painted, please supp ly a paint code at the end of the part number.
C=Red
TK=Black
S=Silver
Example: 4836C, 4898TK, 4844S
OWNER’S
MANUAL
MODEL NO.
RT105441
RT800441
POL10544HD
RTB105441
44”ROUGH CUT
TRAILMOWER
Each mower has its own model number. Each engine has its
own model number. T he model number for the mower will be
found on the right hand side of the drive belt housing. T he
model number for the engine will be found on the top of the
blower fan housing.
All mower parts listed herein may be ordered directly from
Swisher Mower & Machine Co. Inc. or your nearest Swisher
dealer.
All engine parts may be ordered from the nearest dealer of the
engine supplied with your mower.
WHEN ORDERING PARTS, PLEASE HAVE T HE
FOLLOWING INORMATION AVAILABLE:
* PRODUCT - T RAILMOWER
* SERIAL NUMBER - _______________
* MODEL NUMBER - _______________
* ENGINE MODEL NUMBER - _______________
T YPE - _______________
* PART NUMBER
* PART DESCRIPT ION
TELEPHONE - 1-800-222-8183
FAX - 1-660-747-8650
SWIS HER MOWER & MACHINE CO. INC.
1602 CORPORATE DRIVE P.O. BOX 67
WARRENSBURG, M O 64093
www.swisherinc.com
SWISHER MOWER & MACHINE CO. INC.
PRINTED IN
swisherinc.com
Loading...
