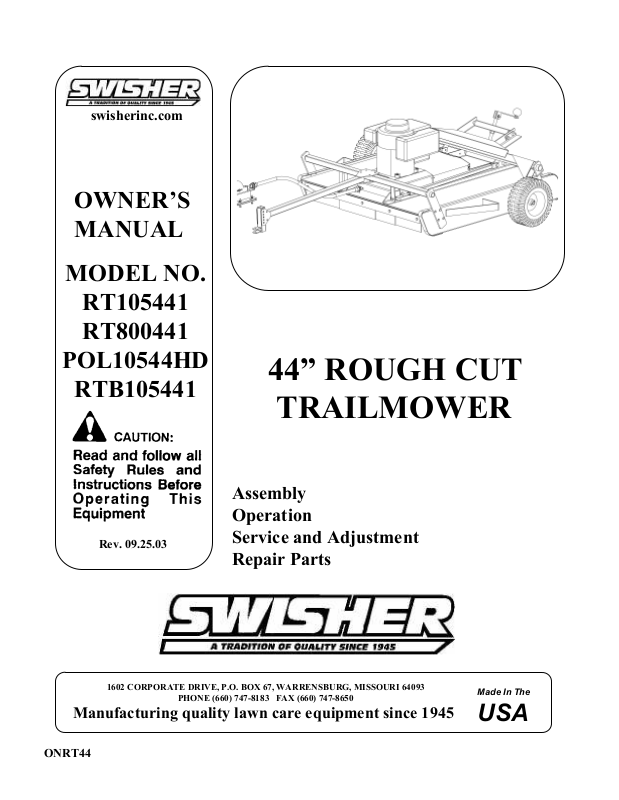

OWNER’S
MANUAL

MODEL NO.

RT105441
RT800441

POL10544HD

RTB105441

44” ROUGH CUT

TRAILMOWER

Assembly
Operation

Rev. 09.25.03

1602 CORPORATE DRIVE, P.O. BOX 67, WARRENSBURG, MISSOURI 64093

PHONE [phone] FAX [phone]

Manufacturing quality lawn care equipment since 1945

Service and Adjustment
Repair Parts

Made In The

USA

ONRT44

LIMITED WARRANTY

Excluded from this warranty are normal wear, normal adjustments,

this warranty, you must return the product to an authorized

service dealer. All transportation charges, damage, or loss incurred during transportation of parts

d

7108.

The model number, serial number, date of purchase, and the name of the authorized Swisher

warranty claim can be

THIS WARRANTY DOES NOT APPLY TO ANY INCIDENTAL OR CONSEQUENTIAL

DAMAGES AND ANY IMPLIED WARRANTIES ARE LIMITED TO THE SAME TIME

PERIODS STATED HEREIN FOR ALL EXPRESSED WARRANTIES. Some states do not

f consequential damages or limitations on how long an implied warranty

may last, so the above limitations or exclusions may not apply to you. This warranty gives you

is a

The manufacturer’s warranty to the original consumer purchaser is: This product is free from
defects in materials and workmanship for a period of one (1) year from the date of purchase by
the original consumer purchaser. We will repair or replace, at our discretion, parts found to be
defective due to materials or workmanship. This warranty is subject to the following limitations
and exclusions:

1) Engine Warranty All engines utilized on our products have a separate warranty
extended to them by the individual engine manufacturer. Any
engine service difficulty is the responsibility of the engine
manufacturer and in no way is Swisher Mower Co., Inc. or its
agents responsible for the engine warranty. The Briggs & Stratton
Engine Service Hot-Line is 1-800-233-3723. The Tecumseh
Engine Service Hot-Line is 1-800-558-5402.

2) Commercial Use The warranty period for any product used for commercial or rental
is limited to ninety (90) days from the date of original purchase.

3) Limitations This warranty applies only to products which have been properly
assembled, adjusted, and operated in accordance with the
instructions contained within this manual. This warranty does not
apply to any product of Swisher Mower Co., Inc., that has been
subject to alteration, misuse, abuse, improper assembly or
installation, shipping damage, or to normal wear of the product.

4) Exclusions
and normal maintenance.

In the event you have a claim under

submitted for replacement or repair under this warranty shall be borne by the purchaser. Shoul
you have any questions concerning this warranty, please contact us toll-free at 1-800-748-

dealer from whom you purchased the mower will be needed before any
processed.

allow the limitation o

specific legal rights and you may have other rights, which vary from state-to-state. This
limited warranty as defined by the Magnuson-Moss Act of 1975.

SAFETY PRECAUTIONS

manual. When you see this symbol, carefully read the message that

This Safety Alert Symbol indicates important messages in this

follows and be alert to the possibility of personal injury.

Read this manual completely. This machine can amputate hands, feet, and throw
objects. Failure to observe the following safety instructions could result in serious
injury or death.

• Read the manual. Learn to operate this machine safely.

• Always disconnect the spark plug wire and place the wire where it cannot contact

the spark plug, to prevent accidental starting the engine when setting up,
transporting, adjusting or making repairs.

• Keep all shields and guards in place.

• Understand the speed, steering and stability of this machine. Know the positions

and operations of all controls before you operate this machine. Check all of the
controls in a safe area before starting to work with this machine.

• Allow only responsible adults who are familiar with these instructions to operate
this machine. Never allow children to operate this machine.

• Clear the area of objects such as rocks, toys, wire, etc. that can be picked up and
thrown by the blade.

• Be sure the area is clear of other people before mowing. Be aware of the mower
discharge direction and do not point at anyone. Stop the machine if anyone enters
the mowing area. Children are often attracted to the machine and the mowing
activity. Never assume that children will remain where you last saw them.
Keep children under the watchful care of another responsible adult.

• No riders!

• Do not put hands or feet near or under rotating parts. Keep clear of the discharge

opening at all times.

• Do not mow in reverse. Always look down and behind before and while backing.

•

Turn off the blades when not mowing. Before leaving the machine, turn off

machine when operating up and down slopes. Do not operate on slopes greater

the blades and stop the engine.

• Watch for traffic when operating near or crossing roadways.

• Do not operate the mower if it has been dropped or damaged in any manner or

if the mower vibrates excessively. Excessive vibration is an indication of
damage. Repair mower as necessary.

• Dress properly. Do not operate the mower when barefoot or wearing open
sandals. Wear only solid shoes with good traction when mowing.

• Do not operate the machine while under the influence of alcohol or drugs.

• Operate self-propelled machines up and down slopes. There is significant risk

of overturns when operating across slopes. Operate walk-behind machines
across slopes. There is a significant risk of slipping under a walk-behind

than 15 degrees.

• Never tamper with safety devices. Check their proper operation regularly.

• Stop and inspect the equipment if you strike an object. Repair, if necessary,

before restarting.

• Never make adjustments or repairs with the engine running.

• Mower blades are sharp and can cut. Wrap the blades or wear gloves, and use

extra caution when servicing them.

SAFETY AND OPERATIONAL DECALS

Replace decal immediately if damaged. Order by part number from

Swisher Mower and Machine Co. Inc.

OD55-DANGER DECAL

OD20-CAUTION DECAL

OD45-WARNING DECAL

OD28-OFF/ON DECAL

OD10-ENGAGE DECAL

OD99116-MED. SILVER LOGO DECAL

SAFETY AND OPERATIONAL DECALS

Replace decal immediately if damaged. Order by part number from

Swisher Mower and Machine Co. Inc.

0D82-44 RUGGED CUT DECAL

OD29- DANGER DECAL

OPERATING YOUR TRAILMOWER

The operation of any mower can produce foreign objects to be thrown into the
eyes, resulting in severe eye damage. Always wear certified safety glasses or
wide-vision safety goggles over spectacles before staring any cutting machine and
while operating such a machine.

The operation of any cutter produces sound waves that are damaging to the
human ear. Ear protection is recommended.

CAUTION!

Tragic accidents can occur if the operator is not alert to the presence of
children. Children are often attracted to the machine and the mowing
activity. Never assume that children will remain where you last saw them.

INTENDED USE

The 44” Rugged Cut TrailMower is designed to clear dense areas of grass and cut
saplings up to 1 inch thick on golf courses and small estates. It is not intended to create a
finish cut on lawns. Your TrailMower should be towed behind an ATV, golf cart, lawn
tractor, or other approved vehicle. It is not recommended for speeds exceeding 5 MPH.

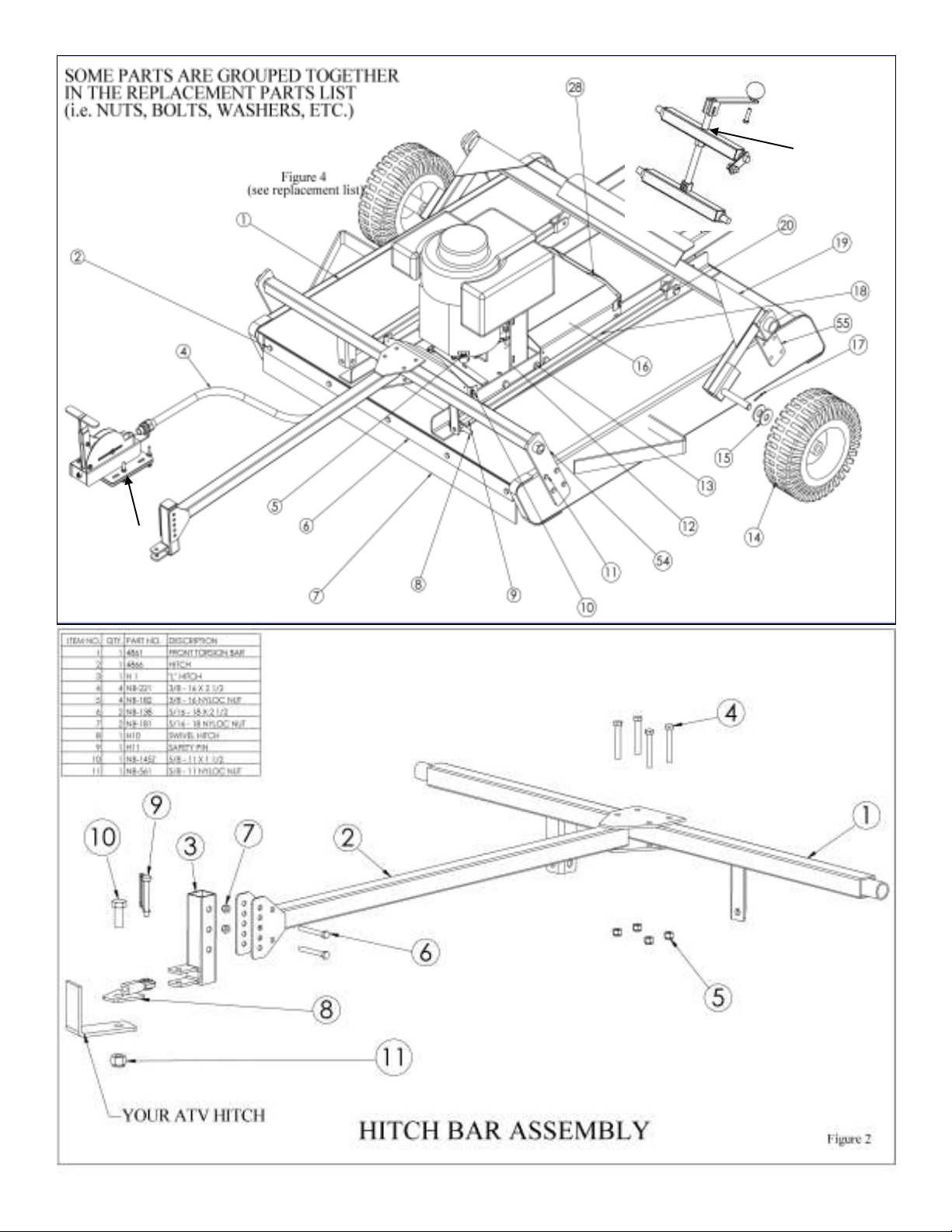

ATTACHING TRAILMOWER TO TOW VEHICLE

• Back vehicle up to desired towing position.

• Offset the TrailMower to the side opposite the tow vehicle discharge (if any).

This prevents the tow vehicle from throwing grass into TrailMower engine.

• Bolt swivel hitch (H10) to vehicle tow receiver. If tow vehicle has a ball hitch,
the ball must be removed before swivel hitch can be fastened.

• Attach tow hitch and the “L” hitch (4866 & H1) to the swivel hitch. The hitch pin
(H11) should go completely through both the swivel and “L” hitches and clipped
to prevent accidental separation. Check that all hardware is secure at both the tow
vehicle and the TrailMower.

TRANSPORTING MOWER

• Stop TrailMower.

• Place TrailMower deck in its highest position.

• When transporting unattached from tow vehicle, remove spark plug wire and

place it where it cannot contact the spark plug.

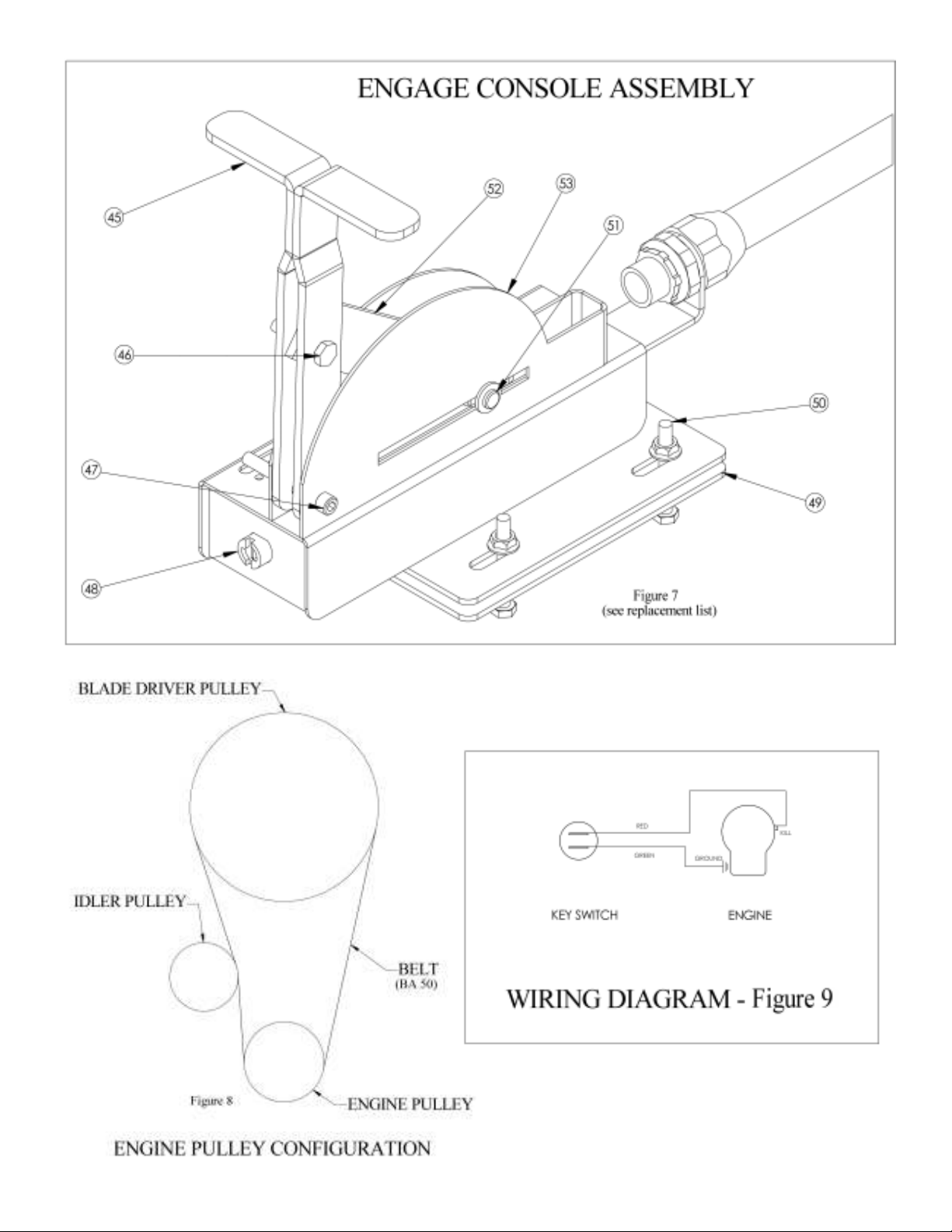

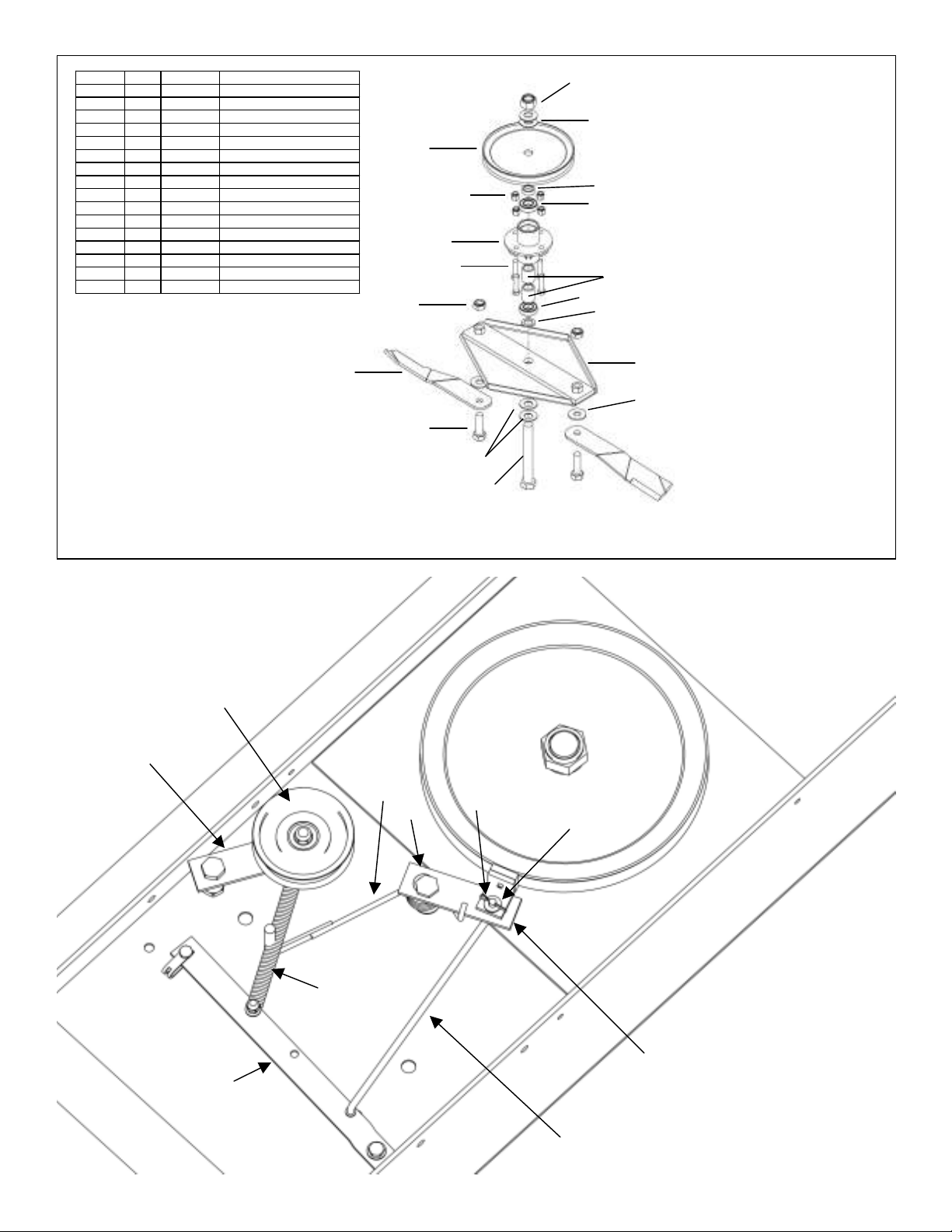

ENGAGING BLADES

The TrailMower will not start if the T-handle console is in the “ENGAGED” position.

• Engage blades by pulling T-handle lever into its horizontal position.

•

Return lever to its vertical position to disengage blades.

• The braking system is applied when the blades become disengaged. It is designed
to bring the blades to quick stop (approximately 7 seconds). Each TrailMower
brake system has been tested and calibrated. For safety, the consumer should not
alter the braking system.

STARTING THE ENGINE

See engine manufacturer’s recommendations for the type and amount of oil and fuel
used.

• Make sure the tow vehicle parking brake is set, mower is level, and blades are
disengaged. Engine must be level to accurately check and fill oil. Do not overfill.

• Check spark plug wire, oil, and fuel.

• Check all electrical connections for build-up of debris.

• Set engine idle to “CHOKE” position.

• Pull rope with a single fluid motion.

• Set engine idle at maximum RPM for best performance.

• Allow engine to run a few moments before engaging blades.

BREAKING IN YOUR MOWER

• Set the vehicle parking brake and chock the wheels to prevent accidental rolling.

• While the engine is running, slowly, engage blade control.

• In a safe environment, i.e. no children or pets, allow blades to rotate and engine to

idle for 5 minutes, breaking-in the belt for a longer life.

• Stop mower.

CAUTION: SHUT OFF THE MOWER ENGINE AND REMOVE SPARK
PLUG WIRE FROM SPARK PLUG BEFORE MAKING ANY
ADJUSTMENTS TO THE MOWER.

FRONT TO BACK ADJUSTMENT

For best cutting results, the mowing deck should be parallel to the ground. To check
parallel adjustment, measure the distance from the bottom edge of the deck in both the
front and rear of the deck. This adjustment is best done while the tow vehicle and
TrailMower are connected.

• Remove bolts and nuts from the “L” hitch (H1).

• Raise or lower hitch section to obtain proper front to back adjustment.

• Connect bolts and nuts in “L” hitch securely.

MOWER HEIGHT ADJUSTMENT

• There is approximately 3 inches of height adjustment.

• Rotate height adjust crank handle in a clockwise direction to lift the mower deck.

A counter-clockwise direction is used to lower the mower deck.

• Dense areas of grass should be cut twice.

• Push handle down to lock height position.

TOW HITCH OFFSET

Mowing conditions and the types of grass will vary from place to place. You may

find when mowing dense areas that the pressure of the wheel tracks may cause the

Do not attempt to mow areas that the tow vehicle cannot maneuver through and/or

• When offsetting the mower do so to the side opposite the discharge of the tow
vehicle.

• Swisher recommends if the tow vehicle is equipped with a mid-mount mower to
overlap the cut approximately 6”. This may vary depending on mowing terrain,
obstacles, and/or tow vehicle. Always keep safety the first priority.

• Always keep the tow vehicle cutter raised higher than the TrailMower.

• If the tow vehicle is not equipped with a mid-mount mower, we still recommend

offsetting the mower so that the tow vehicle does not crush the grass.

STARTING TO MOW

• Adjust the cutting height.

• Double check vehicle to mower attachment.

• Start mower engine and set throttle to “FAST” for best cutting performance.

• Slowly engage T-handle lever.

• Carefully mount vehicle and start mowing at a slow travel speed.

STOPPING THE MOWING SESSION

• Bring tow vehicle to a complete stop, set the parking brake and disengage blades.

• Turn engines “OFF”.

• Always remember to remove keys to avoid irresponsible usage.

SUGGESTED MOWING PRACTICES

• Operate mower engine at full throttle to assure the best cutting performance and
maximum material discharge.

• Allow wet grass to dry. Wet grass will clump and collect under the mowing deck.

• Mowing should be started with tow vehicle in low gear and increased only as safe

mowing conditions permit. Mowing speed should not exceed 5 MPH.

• Better results occur when mowing areas with the least amount of growth.
Although your TrailMower will cut through dense areas of growth you will
experience increased horsepower while mowing areas of less growth.

• For a healthier lawn and better aesthetics, your lawn should be mowed often and
after moderate growth.

•

grass to be pushed down and not effectively mowed. If this happens you may
want to mow the area twice. Once with the mower raised and the second mowing
at the desired height. The second mowing should be at a right angle from the
previous for best results.

• Reducing the travel speed will help mow dense growth. This allows the blades
the time necessary to make its initial cut, and regain momentum to continue
cutting and discharging debris properly. The engine may stall if you are mowing
too fast!

•

slopes that you do not feel comfortable riding.

PROBLEMS.

NOTES:___________________________________________________________________________________

__________________________________________________________________________________________

______________________________

__________________________________________________________________________________________

__________________________________________________________________________________________

________________

__________________________________________________________________________________________

__________________________________________________________________________________________

__

__________________________________________________________________________________________

______________________________________________________________________________

__________________________________________________________________________________________

__________________________________________________________________________________________

________________________________________________________________

__________________________________________________________________________________________

__________________________________________________________________________________________

__________________________________________________

__________________________________________________________________________________________

__________________________________________________________________________________________

GENERAL TROUBLE SHOOTING

The mower is not cutting level.

Level deck, making sure the side crank-handles are equal.

•

• Check air pressure of all tires; make sure they are equal. See tires for maximum

inflation.
Make certain blades are installed identical, without the engine running.

•

The engine will not start.

Disengage blades, turn toggle switch to “OFF” position, check battery and all

•

other electrical connections, and inspect spark plug and wire (FIGURE THREE).
Contact engine manufacturer or qualified mechanic.

•

Engine runs poorly.

See engine manual.

•

Check the throttle adjuster.

•

• Replace fuel, clean fuel filter and fuel line.

Check spark plug and gap.

•

Mower bounces excessively while towing.

Lower tire pressure.

•

Tow at a slower speed.

•

IF PROBLEMS PERSIST HAVE A QUALIFIED MECHANIC SERVICE
THE MOWER. NEVER ATTEMPT TO MAKE AN ADJUSTMENT THAT
YOU ARE NOT SURE IS CORRECT. DOING SO CAN CAUSE OTHER

____________________________________________________________

__________________________________________________________________________

________________________________________________________________________________________

____________

__________________________

________________________________________

CUTTER MAINTENANCE

GENERAL RECOMMENDATIONS

The warranty on this cutter does not cover items that have been subjected to operator
abuse or negligence. To receive full value from the warranty, operator must maintain
unit as instructed in this manual.
Some adjustments will need to be made periodically to maintain your unit properly.
All adjustments in the service and adjustments section of this manual should be checked
at least once each season.

BEFORE EACH SEASON

• Replace the spark plug.

• Clean or replace the air filter.

• Check blades and belts for wear.

A new spark plug and clean air filter assure proper air-fuel mixture and help your engine
run better and last longer.

BEFORE EACH USE

• Check engine oil level. (Do this twice to ensure an accurate reading.)

• Check condition of air filter and clean or replace if necessary.

• Check blade operation.

Check for loose fasteners.

•

DAILY MAINTENANCE

Make sure all nuts and bolts are tight and cotter pins and retainer springs are secure.
Keep blades sharp. Observe all safety precautions.

BLADE CARE AND SERVICE

For best results cutter blades must be kept sharp. The blades can be sharpened with a few
strokes of a file or grinding wheel. Do Not attempt to sharpen while on the cutter.

Important: Replace blades that have been damaged or deeply nicked.

Important: Check blade and spindle hardware on a regular basis to make sure nuts are tight.

CAUTION: DO NOTHANDLE MOWER BLADES WITH BARE HANDS.
CARELESS OR IMPROPER HANDLING MAY RESULT IN SERIOUS
INJURY.

SEE FIG. 7

SEE FIG. 4

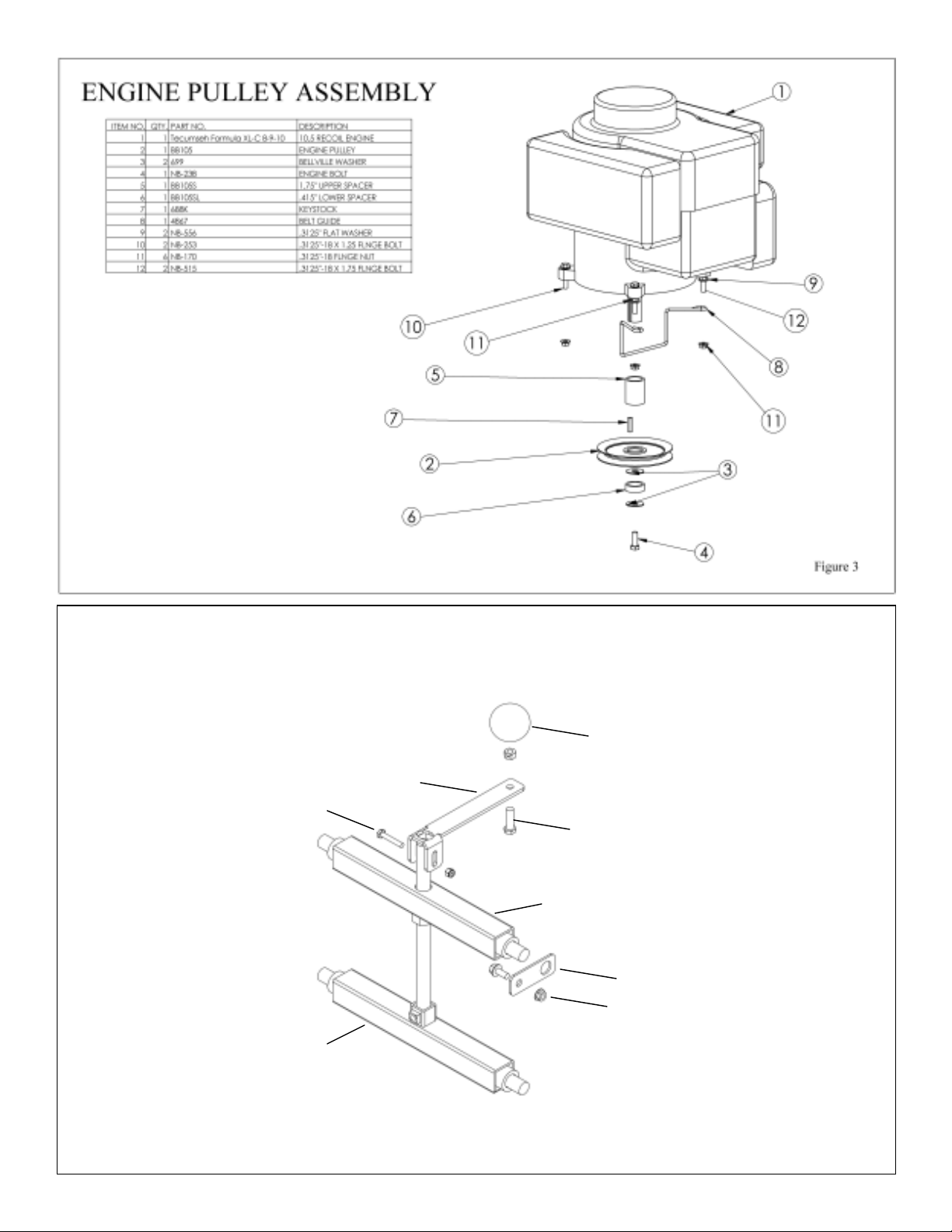

HEIGHT ADJUST ASSEMBLY

26

24

27

25

23

22

3

21

Figure 4

(see replacement list)

ITEM NO. QTY. PA RT NO. DESCRIPTION

1 1 4859 STUMP JUMPER
2 2 NB-146 3/4 SAE Washer ZP
3 2 4855 18" BLADE
4 2 NB-611 3/4-10 X 2 1/2 GR8 BOLT
5 2 NB-609 3/4-10 NYLOC NUT
6 4 NB738 BELLVILLE WAS HER
7 1 NB-614 1 X 1 1/2 10GA W asher Hard
8 2 4845 BLADE BE ARING

9 2 4049 TUBE SPACER
10 1 4858 BLADE DRIVER HOUSING
11 4 NB-509 1/2-13 X 2 HCC GR5 ZP
12 4 NB-281 1/2-13 NYLOC NUT
13 1 BB 105SL SPACE LOW ER ENGINE
14 1 4846 BLADE PULLEY - 10.3125"
15 1 NB737 1-8 X 7 1/2" GR8 ZP
16 1 NB-612 1-8 NYLOC NUT ZP

16

14

12

6

13

8

Note: Torque to

235 ft/lbs

10

11

5

9

8

7

3

4

BLADE DRIVER ASSEMBLY

BELT ENGAGE CONFIGURATION

Figure 6

(see replacement list)

44

30

43

39

1

2

6

15

Figure 5

42

41

34

35

37

40

4846

B527

BB105

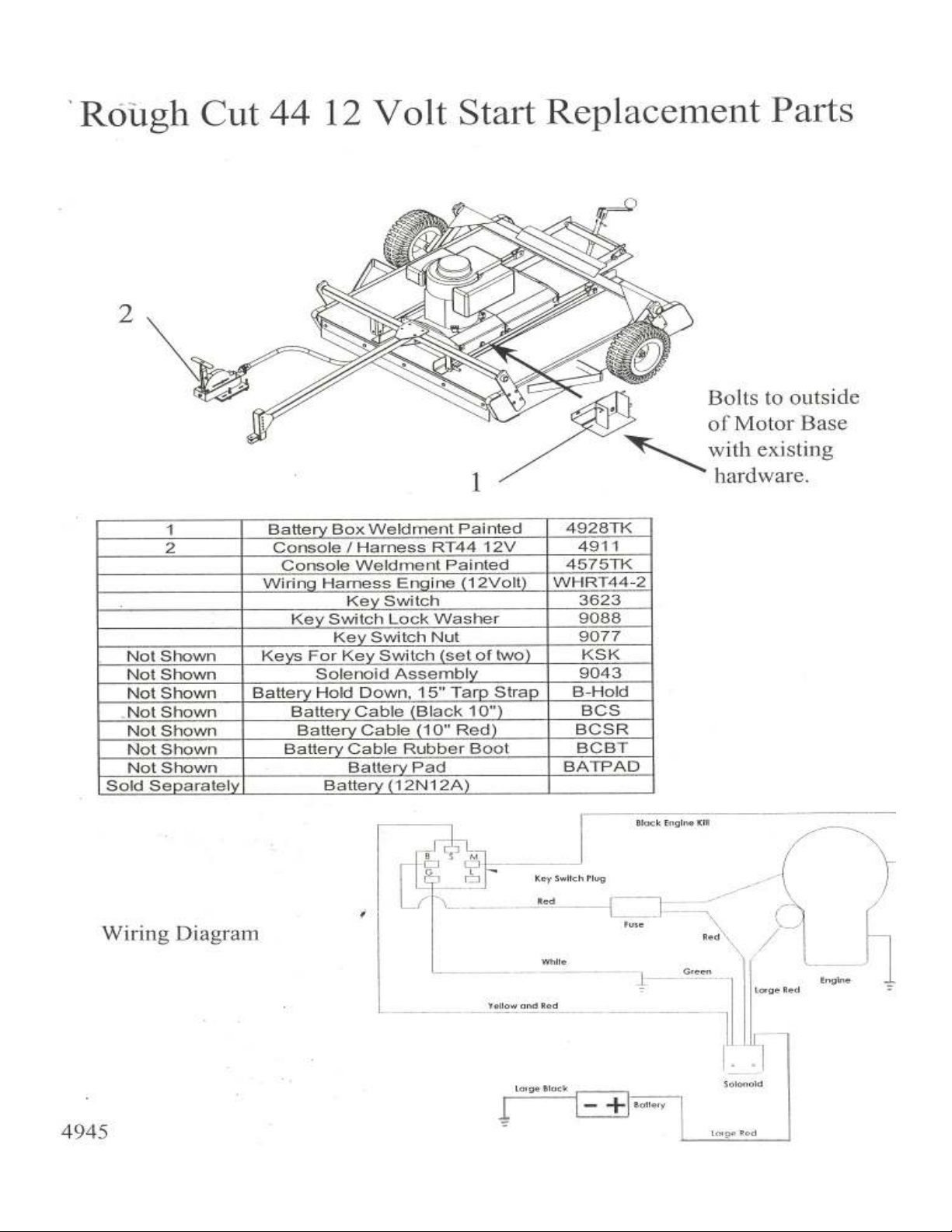

REPLACEMENT PARTS

When ordering parts that are painted, please supply a paint code at the end of the part number.
C=Red
TK=Black
S=Silver
Example: 4836C, 4898TK, 4844S

ITEM # PART # DESCRIPTION

1 4865 DECK WELDMENT
2 NB-501 5/16-18 X 1 1/4 FLNGE BOLT

NB-181 5/16-18 FLNGE NUT
3 4827 PIN LOCK
4 WHRT44TEC WIR HRNES-TEC
4 WHRT44BS WIR HRNES-BRIGGS&STRTON
5 NB-504 5/16-18 X 1 1/4 BOLT

NB-181 5/16-18 FLNGE NUT
6 4853 RUBBER FLAP STRAP
7 4843 RUBBER FLAP
8 NB-617 1/2-13 X 1 1/2 BOLT

NB-213 1/2-13 NUT

NB-281 1/2-13 NYLOC NUT
9 6599 LONG EYEBOLT

10 NB-114 1/2-20 X 1/2 SELF-TAPPING BOLT
11 NB-238 3/8-24 X 1 ENG BOLT

NB-216 3/8-24 TWO-WAY LOC NUT

12 4836 MOTOR BASE
13 NB-596 5/16-18 X 3/4 FLNGE BOLT

NB-170 5/16-18 FLNGE NUT

14 4834 TIRE/WHEEL ASSEMBLY
15 NB-195 13/16 X 1 1/4 X 1/8 WASHER
16 4844 PULLEY COVER
17 NB-126 1/8 X 1 COTTER PIN
18 4864 HEIGHT ADJUSTMENT BAR
19 4860 REAR TORSION BAR
20 NB-107 3/8-16 X 1 1/2 BOLT

NB-182 3/8-16 NYLOC NUT

T2PB 3/8 PLASTIC BUSHING

21 NB-596 5/16-18 X 3/4 FLNGE BOLT

NB-170 5/16-18 FLNGE NUT

22 4850 TOP HEIGHT ADJUST SECTION
23 NB-618 3/8-16 X 1 1/4 BOLT

NB-280 3/8-16 TWO-WAY LOC NUT

24 NB-104Z 1/4-20 X 1 1/2 BOLT

NB-180 1/4-20 NYLOC NUT

25 4857 BLACK PLASTIC KNOB
26 4874 CRANK HANDLE
27 4851 BOTTOM HEIGHT ADJUST SECTION

NB-252 5/16-18 X 1/2 FLNGE BOLT

28 4837 AUXILARY PULLEY COVER
29 NB-619 3/8-16 X 2 1/2 BOLT

NB-212 3/8-16 NUT

NB-182 3/8-16 NYLOC NUT

ITEM # PART # DESCRIPTION

30 6681 IDLER ARM
31 NB-588 1/2-13 X 2 1/2 BOLT

NB-121 1/2-13 TWO-WAY LOC NUT
NB-281 1/2-13 NYLOC NUT

32 NB-250 1/4-20 X 3/4 BOLT

NB-180 1/4-20 NYLOC NUT
33 9023 CLEVIS U-CLIP
34 4898 BELT ENGAGE ARM
35 682S IDLER SPRING
36 NB-102 1/4-20 X 1 BOLT

NB-139 1/4-20 NUT

NB-180 1/4-20 NYLOC NUT
37 4893 Brake Arm Assembly
38 3 LINK CHAIN
39 NB510 1/2-13 X 2 1/2 BOLT

3122 1 1/2 X 3/4 SPACER

NB121 1/2-13 2-WAY JAM LOCK NUT
40 4891 BRAKE ROD
41 NB274 1/4 SAE WASHER
42 NB519 5/64 X 3/4 COTTER PIN
43 9040 BRAKE SPRING
44 B527 IDLER PULLEY
45 4463 T-HANDLE
46 NB-560 1/4-20 X 1 1/4 BOLT

NB-180 1/4-20 NYLOC NUT

47 NB-591 5/16-18 X 1 1/2 TORX BOLT

NB-181 5/16-18 NYLOC NUT
48 KSM KEY SWITCH
49 4852 ENGAGE CONSOLE MOUNT PLATE
50 NB-141 1/4-20 X 2 1/2 BOLT

NB-274 1/4 SAE WASHER

NB-608 1/4-20 WING NUT
51 NB-597 3/32 X 3/4 COTTER PIN

NB-274 1/4 SAE WASHER

NB-518 1/4 X 1 1/2 CLEVIS PIN
52 4461 T HANDLE LINK
53 4847 ENGAGE CONSOLE
54 4805 FRONT TORSION BRACKETS
55 4809(L&R) REAR TORSION BRACKETS

NOT SHOWN

NOT SHOWN

BR20CC ENGAGE CABLE

BA50 BELT

swisherinc.com

OWNER’S
MANUAL

MODEL NO.

44”ROUGH CUT

TRAILMOWER

Each mower has its own model number. Each engine has its
own model number. The model number for the mower will be
found on the right hand side of the drive belt housing. The
model number for the engine will be found on the top of the
blower fan housing.
All mower parts listed herein may be ordered directly from
Swisher Mower & Machine Co. Inc. or your nearest Swisher
dealer.
All engine parts may be ordered from the nearest dealer of the

engine supplied with your mower

.

RT105441
RT800441

POL10544HD

RTB105441

WHEN ORDERING PARTS, PLEASE HAVE THE
FOLLOWING INORMATION AVAILABLE:

* PRODUCT - TRAILMOWER
* SERIAL NUMBER - _______________
* MODEL NUMBER - _______________
* ENGINE MODEL NUMBER - _______________

TYPE - _______________
* PART NUMBER
* PART DESCRIPTION

TELEPHONE - 1-800-222-8183
FAX - 1-660-747-8650

SWISHER MOWER & MACHINE CO. INC.

1602 CORPORATE DRIVE P.O. BOX 67
WARRENSBURG, MO 64093
www.swisherinc.com

SWISHER MOWER & MACHINE CO. INC.

PRINTED IN U.S.A.
