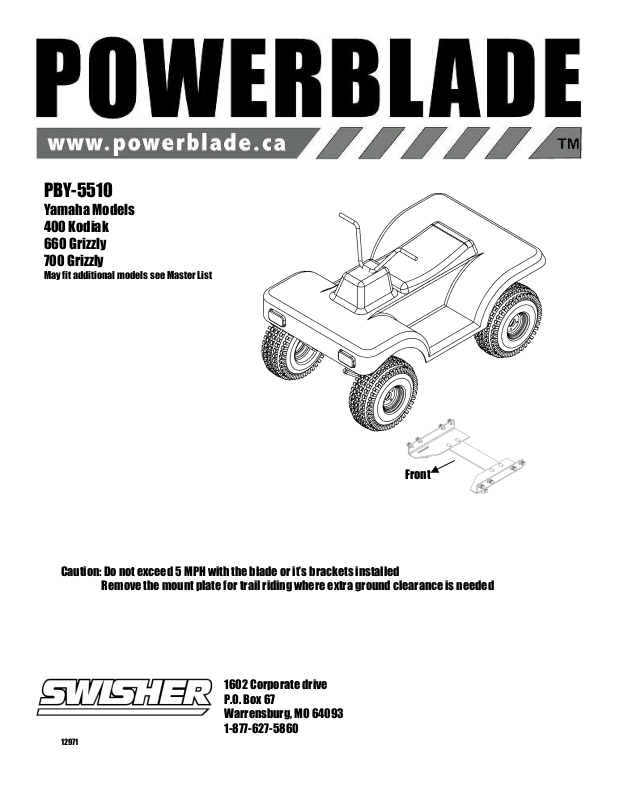

Swisher PBY-5510 User Manual

PBY-5510

Yamaha Models 400 Kodiak 660 Grizzly 700 Grizzly

May fit additional models see Master List

Front

Caution: Do not exceed 5 MPH with the blade or it’s brackets installed

Remove the mount plate for trail riding where extra ground clearance is needed

1602 Corporate drive P.O. Box 67 Warrensburg, MO 64093 1-877-627-5860

12971

Assembly Instructions Note. These plates fit between the foot rest mount plates and the frame. After removing the foot rest bolts ,

save them for replacement if you remove the Mount Plate.

1. Assemble the mount plate as shown. Attach the right side plate to the cross plate with the 5/16 Carriage bolts and nuts. Do not tighten at this time. Attach the left side mount plate.

2. Remove the foot rest mounting bolts. Place the assembled mount plate between the frame and the foot rest. Install the longer M8 bolts (4 Per Side) with the lock washer and the flat washer as shown. Do not tighten. Repeat on the other side.

3. Push the mount plate to the rear of the ATV and tighten the M8 Bolts. Repeat on the other side.

4. Tighten the cross plate locknuts.

Item # Description Part #

1 Right Side Mount Plate 10615TK 2 Cross Plate 10489TK 3 Left Side Mount Plate 10473TK 4 Carriage Bolt 5/16-18 X1 10216 5 Nylock Nut 5/16-18 NB181 6 Bolt M8-1.25 X25 NB723 7 Washer Flat NB275 8 Washed Split Lock NB159 9 Hair Pin #39 NB127

10 Clevis Pin 10305

Yamaha Footrest Support
