Swisher LS934, LS622, LS826, LS10534D User Manual
LOG
SPLITTER
OWNER’S
MANUAL
1602 CORPORATE DRIVE, WARRENSBURG, MISSOURI 64093 PHONE 660-747-8183
FAX 660-747-8650
MODEL NO.
LS622
LS826
LS934
LS10534D
Manufacturing quality lawn care equipment since 1945
Safety
Assembly
Operation
Service and Adjustment
Repair Parts
Made In The
USA
Rev.07.04.2001
Read and follow all Safety
Precautions and Instructions
before operating this
equipment.
IMPORTANT
swisherinc.com
OD12 – HYDRAULIC FILL PLUG
DECAL
OD09 – DANGER/POSITION LOCK
DECAL
OD08 – OPERATOR INSTRUCTION
DECAL
OD16 – FUEL SHUT OFF DECAL OD07 – COLD WEATHER DECAL
SAFETY DECALS
Replace decals immediately if damaged.

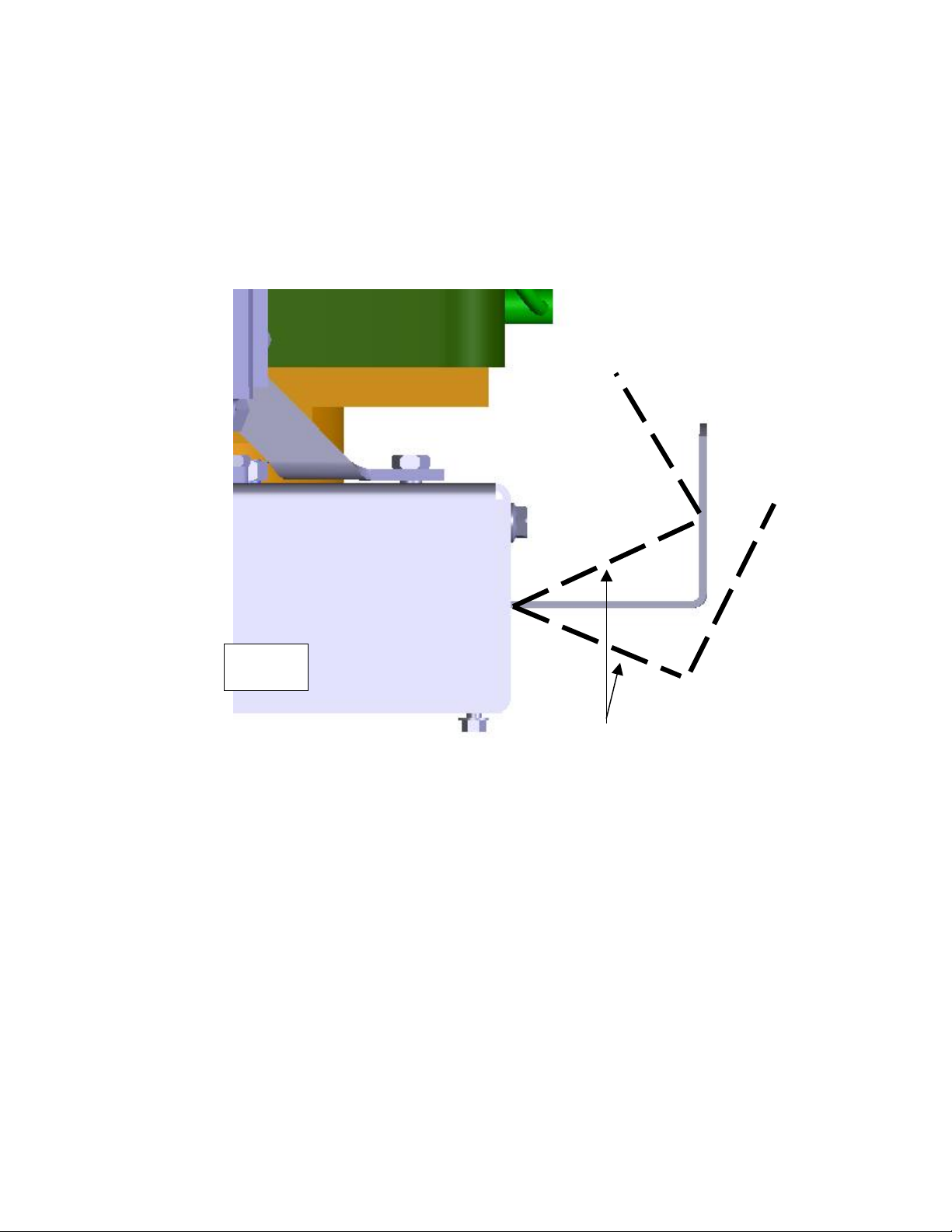

OD22 – POSITION LOCK DECAL
OD23 – TOW POSITION DECAL
ASSEMBLY DETAIL
LS622, LS826, LS934 MODELS
SEE DETAIL
1
2
3
B
4
5
6
7
8
9
10
A
A
11
16
15
14
13
12
18
17
8
20
25
21
23
24
2627
22
22
22
28
29
6
25
39
31
33
3432
35
35
36
30
42
41
40
38
37
43
44
45
46
47
48
49
50
42
16
51
55
18
52
54
53
52
58
57
56
49
6
5
SEE DETAIL
NOT ALL PARTS ARE ON ALL MODELS
57
B
FENDERS ONLY ON
LS934 MODEL
19
SERVICE PARTS
Please have Model and Serial Numbers ready when ordering parts.
Color cannot be guaranteed upon service parts.
ITEM NUMBER DESCRIPTION PART NUMBER
1 RETURN HOSE 54" 7290
2 PRESSURE HOSE 48" 7289
3 #12 HOSE CLAMP LS5001
4 HYDRAULIC RESERVOIR 7319
5 1/2-13 X 3 1/2 GR5 BOLT NB577
6 1/2-13 NYLOCK NUT NB281
7 RESERVOIR VENT PLUG 7379
8 3/8-16 X 1 GR5 BOLT NB604
9 1/2 X 3 1/2 HITCH PIN W/ HAIR PIN NB648
10 SUCTION HOSE 18" 7346
11 #16 HOSE CLAMP LS4999
12 RETURN LINE FITTING 7329
13 FILTER HEAD LS1112
14 FILTER ELEMENT LS1113
15 1/2-13 X 1 1/4 GR5 BOLT NB647
16 3/8-16 2-WAY LOCK NUT NB280
17 TANK BRACE 7352
18 3/8-16 NYLOCK NUT NB182
19 TRAILER JACK/ SNAP RING 7367/7367SR
20 HYDRAULIC PUMP - LS622 MODEL LS2001H
HYDRAULIC PUMP - LS826 & LS934 MODELS LS2002B
21 1/8 X 1/2 #3 WOODRUFF KEY 7440
22 5/16-18 2-WAY LOCK NUT NB558
23 PUMP PULLEY 7306
24 SET SCREW W/ NYLOCK NB312
25 5/16-18 X 3/4 GR2 BOLT NB143
26 FENDER BRACKET - RIGHT SIDE - LS934 ONLY 7417
FENDER BRACKET - LEFT SIDE - LS934 ONLY 7418
27 FENDER - LS934 ONLY 7401
28 KICKSTAND 7398
SERVICE PARTS
Pleas have Model and Serial Numbers ready when ordering parts.
ITEM NUMBER DESCRIPTION PART NUMBER
29 MOTOR BASE / AXLE 7297
30 TIRE / WHEEL 7296
31 COTTER PIN NB633
32 WHEEL DUST COVER 2203DC
33 CASTLE NUT 2203CN
34 WASHER 2203W
35 TAPERED BEARING 2203B
36 BEARING SEAL 2203S
37 BELT 644
38 IDLER ARM 6681TK
39 CLUTCH LEVER 7358
40 SPRING 682S
41 3/8-16 JAM NUT NB174
42 HARDENED WASHER NB196
43 3/8-16 X 2 1/2 GR5 BOLT NB221
44 5/16-18 FLANGE NUT NB170
45 IDLER SPRING MOUNT 2046
46 WIRE LINK FOR IDLER SPRING BRS6H
47 SHOULDER BOLT NB220
48 IDLER PULLEY B527
49 WASHER NB272
50 BELT COVER 7321
51 #14 x 3/4 SELF-TAPPING SCREW NB161
52 SAFETY CLIP PIN H11
53 TOWING TONUGE 7343
TOWING TONGUE - LS934 & LS10534D 7405
54 TRAVEL LOCK 7441
55 SAFETY CHAIN W/ HOOK 7366
56 2" BALL COUPLER 7365
57 3/8-16 X 3 GR5 BOLT NB164
58 3/8-16 X 3 1/2 GR5 BOLT NB649
Color cannot be guaranteed upon service parts.
