Swing-n-Slide SNS1304 Installation & Assembly

SWING BEAM SWING HANGERS - INSTALL

You may need to tap with hammer to get though holes.

Swing Hanger Bolt

Flat Washer

Spring Clip

Swing Hanger

Swing Hanger

Swing Beam

Flat Washer

Final position of each Spring Clip is

perpendicular to swing beam.

IMPORTANT!

2194

x4

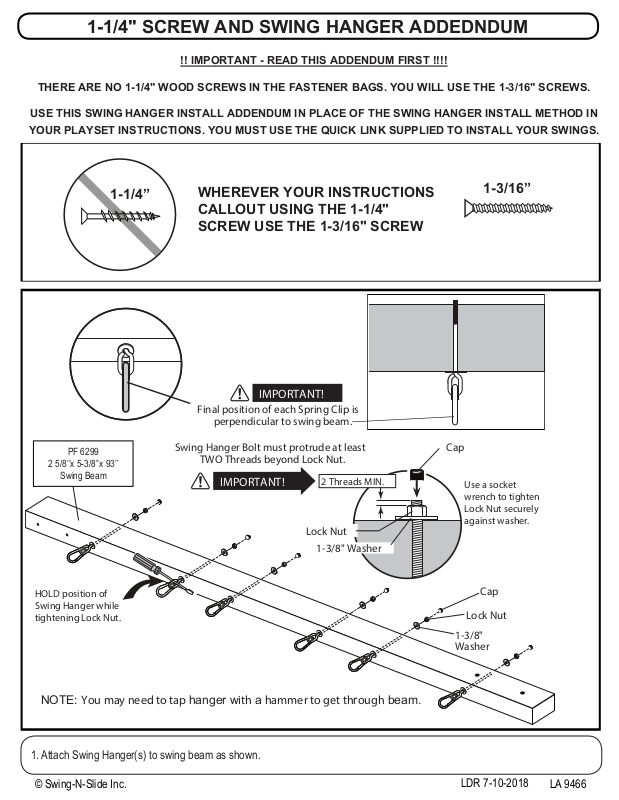

1-1/4" SCREW AND SWING HANGER ADDEDNDUM

!! IMPORTANT - READ THIS ADDENDUM FIRST !!!!

THERE ARE NO 1-1/4" WOOD SCREWS IN THE FASTENER BAGS. YOU WILL USE THE 1-3/16" SCREWS.

USE THIS SWING HANGER INSTALL ADDENDUM IN PLACE OF THE SWING HANGER INSTALL METHOD IN

YOUR PLAYSET INSTRUCTIONS. YOU MUST USE THE QUICK LINK SUPPLIED TO INSTALL YOUR SWINGS.

PF 6299

3-3/8 x 5-3/ x 95"

2 5/8’’x 5-3/8’’x 93’’

2502-CC

Swing Beam

1-1/4”

x1

WHEREVER YOUR INSTRUCTIONS
CALLOUT USING THE 1-1/4"
SCREW USE THE 1-3/16" SCREW

Final position of each Spring Clip is

perpendicular to swing beam.

Swing Hanger Bolt must protrude at least

TWO Threads beyond Lock Nut.

IMPORTANT!

IMPORTANT!

2 Threads MIN.

Lock Nut

Cap

1-3/16”

Use a socket
wrench to tighten
Lock Nut securely
against washer.

1-3/8" Washer

HOLD position of
Swing Hanger while
tightening Lock Nut.

NOTE: You may need to tap hanger with a hammer to get through beam.

1. Attach Swing Hanger(s) to swing beam as shown.

© Swing-N-Slide Inc.

Cap

Lock Nut

1-3/8"
Washer

LDR 7-10-2018

LA 9466

SWING CHAIN TO HANGER

Attach a Quick-Link at the end of each swing and trapeze chain. Then,
using the Quick-Links, attach the swings and trapeze to the Hanger
Spring Clips on the swing beam, as shown below.

Quick Link

x6

Always use a Quick Link between
chain and swing hanger for all chain
connections and adjustments.

Tighten all Quick Links using
hand tools.

Note: Your swing and trapeze may differ from the ones shown.

Questions?

Call our Customer Support Representatives

1.800.888.1232

Thank you
