PROJECT 611& 612
check out http://www.swing-n-slide.com/planupdates.htm
for updates to these instructions.
NE 5007
TM
ASSEMBLY INSTRUCTIONS
28.5'
30.5'
No. of Children: Up to 11
Min. Use Zone: 28-1/2' x 30-1/2'
Set Dim. 13'W x 18-1/2'L x 11'H
Est. Building Time: 4-8 hr.
Swing•N•Slide • 1212 Barberry Drive • Janesville, Wisconsin 53545
Visit our web site at: www.swing-n-slide.com or call us at 1-800-888-1232
Safety Checklist for Swing-N-Slide Accessories
R
Meijer.com
Observing the following statements and warnings reduces the likelihood of serious or fatal injury
Installation Safety – Have You:
Consulted the assembly instructions supplied with your particular model?
Noted this accessory is to be used only on Swing•N•Slide approved designs? (Do not alter its design or add/remove components.)
Made sure all hardware is tightened securely? (Supplied bolt covers must also be fastened securely.)
Using a hacksaw, cut off all protruding threaded ends of bolts and other fasteners and remove any sharp edges with
a metal file as needed?
Placed the equipment on level ground, not less than six feet (1.8 meters) from any structure or obstruction such as a fence, garage,
house, overhanging branches, laundry lines, or electrical wires?
Made sure home playground equipment is not installed over concrete, asphalt, packed earth or any other hard surface? (A fall onto
a hard surface can result in serious injury to the equipment user.)
Verified that suspended climbing ropes, chain,or cable are secured at both ends?
Consulted in assembly instructions of your particular model for minimum use zones?
Followed all anchoring and shock absorbing surfacing requirements later in this guide as they apply?
Made sure not to allow children to use equipment until it is properly installed?
Operating Safety – Have You:
Determined that on-site adult supervision is provided for children of all ages?
Warned children the following before allowing them to use the equipment?
Not to walk close to, in front of, behind or between moving items.
Not to twist swing or any other accessory chains or ropes or loop them over the top support bar since this will reduce the
strength of chain or rope.
Not to swing empty seats or other accessories.
Be sure to sit in the center of the swing seat and other accessories with full weight on the seat.
Not to attach items to the playground equipment that are not specifically designed for use with the equipment such as but not
limited to, jump ropes, clotheslines, pet leashes, cables and chain. They may cause a strangulation hazard.
Not to use equipment in a manner other than intended.
Not to get off equipment while it is in motion.
Not to climb on the equipment when it is wet.
Determined that only one child per planned occupant seat should be allowed on this set at one time.
Determined children must be dressed appropriately for play. Avoid clothing with draw strings and loose fitting clothes which
could become entangled or snagged on equipment.
Determined that suspended climbing ropes, chain, or cable cannot be looped back upon itself.
Read and understood the following warning regarding the use of two and four passenger lawn swings?
Warning: Lawn Swings are designed for use by children over two years of age. Use by children under the age of two can result
in entrapment between the seats and back areas. Never place children in a rearward facing position or with legs between the
seat and backrest because the child’s body may pass through the opening causing entrapment of the child’s head.
Safety Maintenance – Have You Determined to:
Check all nuts and bolts twice monthly during the usage season for tightness and tighten as required? (It is
particularly important that this procedure be followed at the beginning of each season.)
To prevent the deterioration of materials, remove plastic swing seats and other plastic accessories and take indoors? (Do not
use when the temperature drops below 0° F.)
Oil all metallic moving parts monthly during usage period?
Check all hardware and equipment for sharp edges twice monthly during usage season? (Replace when
necessary. It is especially important to do this at the beginning of each new season.)
Check swing seats, chains, ropes and cables monthly during usage season for evidence of deterioration? Severe rusting or excessive
wear, especially near the top swing hanger or at the seat connection are evidence of chain deterioration. Cracks in the protective plastic
sleeve or seat itself are also signs of deterioration. If any of these conditions exist, call 1-800-888-1232 to order replacement accessories.
Disposal Instructions
When the equipment is taken out of service, it must be disassembled and disposed of in such a way that no unreasonable hazards
will exist at the time the set is discarded.
Important!
Save this instruction sheet in the event the manufacturer needs to be contacted.
Additional Safety Instructions for all Swing-N-Slide Playground Equipment.
2
SAFETY INSTRUCTIONS
Meijer.com
INSTRUCCIONES DE SEGURIDAD
INSTRUCTIONS CONCERNANT LA SÉCURITÉ
IMPORTANT!
This product is intended for single family residential use only and not intended for use in any public
setting. Placement in any public setting constitutes a misuse of this product.
REQUIRED SAFETY INSTALLATION INSTRUCTIONS
• Once the unit is completely assembled and before children are allowed to play on it, proper shock-absorbing surfacing material
must be installed. This may be accomplished by using loose-fill materials at a sufficient depth. The Consumer Product Safety Commission
“Handbook for Public Playground Safety” lists the following materials and required depths that are sufficient for home/residential application.
For fall height protection up to 9 ft. (2.742m) [recommended for Swing•N•Slide kits]:
LOOSE FILL MATERIAL REQUIRED DEPTH 1INCH (mm)
Wood Mulch 9" (229mm)
Double Shredded Bark Mulch 9" (229mm)
Uniform Wood Chips 12" (305mm)
Fine Sand 12" (305mm)
Fine Gravel 12" (305mm)
1 These depths were derived from the CPSC Handbook. Swing•N•Slide
has not done independent tests to determine these required depths.
ŃIMPORTANTE!
(UNCOMPRESSED)
Este producto es para ser usado por una sola familia en uso residential y no para usarse en
When properly installed, shock absorbing material will completely
cover the horizontal baseboards on climbing units. This protective
surfacing must extend a
from the perimeter of the equipment or from the outermost edges of
any component. For example, a slide extending beyond the platform
must have protective surfacing at least 6 ft. (1.828m) out from both
sides as well as the end. For swings, the protective surface must
extend at least 14 ft.
when the swing is in its rest position.
minimum of 6 ft. (1.828m) in all directions
out from both the back and front of the swing
ningún lugar público. El ubicarlo en cualquier lugar público constituye mal uso de este producto.
INSTRUCCIONES REQUERIDAS PARA LA INSTALACIÓN CON SEGURIDAD
• Una vez que se haya armado la unidad completamente y antes que se permita a los niĖos que la usen, se debe instalar un material
que amortigüe para la superficie del suelo. Esto se puede conseguir usando materiales que llenen flojamente a una profundidad suficiente.
El “Folleto para la Seguridad Pública en Campos de Recreo” de la Comisión de Seguridad de Producto al Cliente, permite los siguientes
materiales y las profundidades requeridas que sean lo suficiente para una aplicación en situaciones de residencias. Para protección contra
caídas se necesita hasta 9 pies (2,742m) [recomendadas para los conjuntos Swing•N•Slide]:
MATERIAL DE APLICACIÓN FLOJA PROFUNDIDAD REQUERIDA1PULGADA
Viruta de madera 9" (229mm)
Viruta trizada de corteza de árbol 9" (229mm)
Trozos pequeĖos uniformes
de madera 12" (305mm)
Arena fina 12" (305mm)
Grava fina 12" (305mm)
1
Estas profundidades fueron derivadas del folleto CPSC. Swing•N•Slide no
ha hecho pruebas independientes para determinar las requeridas profundidas.
mm (SIN SER COMPRIMIDA)
Cuando se instale apropiadamente, el material que amortigüe
completamente cubrirá la base horizontal de las unidades de trepar.
Esta superficie protectora debe extenderse un mínimo de 6 pies
(1,828m) en todas las direcciones desde el perímetro del equipo, o de
los bordes más salientes de cualquier componente. Por ejemplo, un
tobogán que se extiende más allá de la plataforma debe tener una
superficie protectora de por lo menos 6 pies (1,828m) más allá de
ambos lados, al igual que desde el extremo. Para columpios, la
superficie protectora debe extenderse por lo menos 14 pies
de ambos,
el columpio esté en una posición neutra.
de la parte de atrás, y la parte frontal del columpio, cuando
más allá
IMPORTANT!
Ce produit est conću uniquement pour un usage résidentiel. Il ne saurait aucunement convenir aux
installations publiques.
LʼUTILISATION DANS UN ENDROIT PUBLIC CONSTITUE UN USAGE ABUSIF DU PRODUIT.
• Lorsque lʼunité est entiŹrement assemblée, un matériau de protection amortisseur doit źtre installé sur le sol avant de permettre aux
enfants de sʼamuser. Des matériaux particulaires dʼune épaisseur suffisante peuvent źtre utilisés ą cette fin. Le guide américain intitulé « Handbook
for Public Playground Safety » rédigé par la Consumer Product Safety Commission (CPSC) des États-Unis recommande une liste de matériaux et
spécifie lʼépaisseur requise pour un usage résidentiel. Protection contre les chutes dʼune hauteur de 9 pieds (2,742 m) [recommandation pour les
unités Swing•N•Slide] :
MATÉRIAUX PARTICULAIRES ÉPAISSEUR RECOMMANDÉE
Paillis de bois 9 po (229mm)
Paillis dʼécorce filamentée 9 po (229mm)
Copeaux de bois uniformes 12 po (305mm)
Sable fin 12 po (305mm)
Gravier fin 12 po (305mm)
1 Ces valeurs sont tirées du guide de la CPSC. Les unités Swing•N•Slide
nʼont pas fait lʼobjet dʼessais indépendants afin de déterminer lʼépaisseur
recommandée des matériaux.
EN PO (mm) (NON COMPRIMÉ)
1
Pour que lʼinstallation soit adéquate, le matériau amortisseur doit
recouvrir entiŹrement la base horizontale des unités dʼescalade. Un
matériau de protection doit entourer lʼinstallation sur une surface dʼau
moins 1,828 m (6 pieds) ą partir du pourtour de lʼunité ou des
composants les plus éloignés. Par exemple, une glissoire qui se
prolonge au-delą de la plate-forme doit źtre pourvue dʼune surface de
protection dʼau moins 1,828 m (6 pieds) de chaque côté ainsi quʼą
lʼextrémité. En ce qui concerne les balanćoires, la zone de protection doit
couvrir au moins 14 pi (6 m)
lorsque celle-ci est immobile.
autant devant que derriŹre la balanćoire
3
TOOLS REQUIRED
Meijer.com
CIRCULAR SAW
TAPE MEASURE
(2) 1-3/4'' panhead screws
(2) 1/2'' panhead screws
ELECTRIC DRILL
SAFETY GLASSES
& DUST MASK
1/2" SOCKET & WRENCH
3/8" DRILL BIT (6'' Min.)
(6) T- nuts
PHILLIPS BIT
HAMMER
CARPENTER'S SQUARE
(2) 5/16'' flat washers
(108) 2" lag screw
(6) 1-1/4'' screws
(4) 1'' Truss Screws
(2) 5-1/2'' Bolts
(4) 1/4'' flat washers
4
(6) Tarp Washers
(4) Bottom Beam Clamps
(slotted)
THIS PRODUCT IS
INTENDED FOR USE
BY CHILDREN FROM
AGES 2-10 YEARS
For Home / Residential
Use ONLY
1212 Barberry Drive
Janesville, WI 53545
1-800-888-1232
www.swing-n-slide.com
BLACK
R
(10) Cup-Loc
Meijer.com
(2) Shelf-Loc
(10) Step Brackets
Note: (5 Left, 5 Right)
(2) Split Beam bracket
(6) Wrap-Loc
(2) EZ Frame Brackets
(1) Multicolor Tarp
(2) Swing Seats
weight limit: 115 lbs.
(1) Instructional DVD
(2) Safety Handles
(1) T30 Torx® Bit
(4) Swing Hangers
Alpine
Plan
(1) Name Plate
5
(1) Plan
'
e
ALPINE
Meijer.com
REQUIRED HARDWARE
(Not Included)
(287) 2-1/2'' screws
(56) 2'' screws
(64) 1-1/4'' screws
6
ALPINE
Meijer.com
7
How to select the correct fastener
Meijer.com
Use these 3 pictorial guides to help select the correct fastener(s) for the
lumber attachment you are making. Each diagram will highlight the correct
number of fasteners to use, and where to attach them.
5/4'' x 6'' to 4'' x 4''
(4) 2-1/2'' screws or nails
Apply the 2-1/2" screws/nails to secure the 5/4" boards
to the 4"x4" uprights as shown.
Base of unit
(1) 2'' lag screw
After attaching the 2 1/2" screws, apply the center
(1) 2" lag screw as shown for additional support.
2'' x 4'' to 4'' x 4''
(3) 2-1/2'' screws or nails
Apply 2 1/2" screws/nails to the 2"x4" boards
when attaching to 4"x4" uprights.
5/4'' x 6'' to 2'' x 4''
(2) 2'' screws or nails
Use 2" screws/nails when mounting 5/4"
boards to 2"x4" boards.
8
-
Meijer.com
Understanding how the Bracket System Works
Shelf-Loc Bracket
Wrap-Loc
1
Example of a Shelf-Loc bracket connection.
2
3
WRONG!
brackets NOT
interlocked!
CORRECT!
Brackets
''clipped''
4
Look for ''TOP'' stamp on
bracket for correct orientation.
Introduction to the Bracket system
1. ALWAYS Use 2'' lag screws on all brackets.
2. Brackets ''clip'' to each other. NEVER position in
a non-interlocking position.
Example of a Cup-Loc bracket connection.
Wrap-Loc
Cup-Loc
TOP
GAP
Top of bracket
Bottom of bracket
(Hole locations close to bottom)
Brackets Clip Together
9
4'' x 4'' x 96''
Meijer.com
REMEMBER: Brackets are inter-locking. Cup-loc will clip
and secure into the Wrap-Loc as shown below.
Repeat 4x
Fig. 1
(4)
2'' lag screws
A. Frame Construction
1. Measure and position brackets on (4) 4'' x 4'' x 96’’ as shown in (Fig.1).
GAP
43-1/4''
2'' Lag screw
x 8 (4 each bracket)
10
Wrap-Loc opening must be positioned
Use a 2’’ lag screw
to hold bracket in
place for later use.
Look for ‘’TOP’’
stamp on brackets
while installing.
TOP
GAP on
this side
Meijer.com
as shown on in these locations below
for later use. (See page 24)
lag screw to
hold in place
(back)
Fig. 2a
lag screw to
hold in place
(back)
GAP (this side)
P (this side)
GA
82-1/2''
Fig. 2
82-1/2''
A. Frame Construction (cont.)
Frame 2
2. Install upper Wrap-Brackets to Frame 2 as shown in (Fig. 2a)
•WARNING•
Avoid splitting your
lumber by offsetting
your screws or nails
at least 3/4’’ from
the edge.
11
A. Frame Construction (cont.)
Meijer.com
3. Install upper 2'' x 4'' boards. Edges are to be flush
with 4'' x 4’’s.
2'' x 4'' x 55''
(3) 2-1/2''
screws/
nails
Fig. 3
2'' x 4'' x 55''
(3)
2-1/2'' screws/nails
Frame 2
5/4'' x 6'' x 55''
(4) 2-1/2'' screws/nails
(1) Lag Screw
Frame 1
5/4'' x 6'' x 55''
2-1/2'' or 10D
screw/nail
(4) 2-1/2'' screws/nails
(1) Lag Screw
A. Frame Construction (cont.)
4. Install lower 5/4'' boards. Edges are to be flush
with 4'' x 4’’s.
2'' Lag screw
12
(3) 2-1/2'' screws/nails
Meijer.com
Fig. 4
2'' x 4'' x 43''
A. Frame Construction (cont.)
2'' x 4'' x 43''
Frame 1
5. Attach upper 2'' x 4'' as shown in (Fig. 4). Edges
are to be flush with 4’’ x 4’’s.
5/4'' x 6'' x 43''
(4) 2-1/2'' screws/nails
(1) Lag Screw
5/4'' x 6'' x 43''
A. Frame Construction (cont.)
6. Attach lower 5/4'' boards as shown in (Fig. 4).
Edges are to be flush with 4’’ x 4’’s.
2'' Lag screw
2-1/2'' or 10D
screw/nail
13
A. Frame Construction (cont.)
Meijer.com
Fig. 5
(3) 2-1/2''
screws/nails
Frame 1
7. Secure upper 2'' x 4'' and lower 5/4''
boards to Frame 2 as shown in (Fig. 5).
Edges are to be flush with 4’
Double check to make
sure structure is square
’ x 4’
’
s.
Fig. 6
(4) 2-1/2'' screws/nails
(1) Lag Screw
Fig. 6a
Frame 2
(6)
2'' lag screws
(3 each Cup-Loc)
4'' x 4'' x 35-1/2''
4'' x 4'' x 47-1/2''
(4) 4'' x 4'' x 35-1/2''
4'' x 4'' x 35-1/2''
4'' x 4'' x 47-1/2''
A. Frame Construction (cont.)
8. Install 4'' x 4'' beams as shown in (Fig. 6).
9. Install lag screws at each corner location as
shown in (Fig. 6a)
2'' Lag screw
x 3
14
2'' x 4'' x 12''
Meijer.com

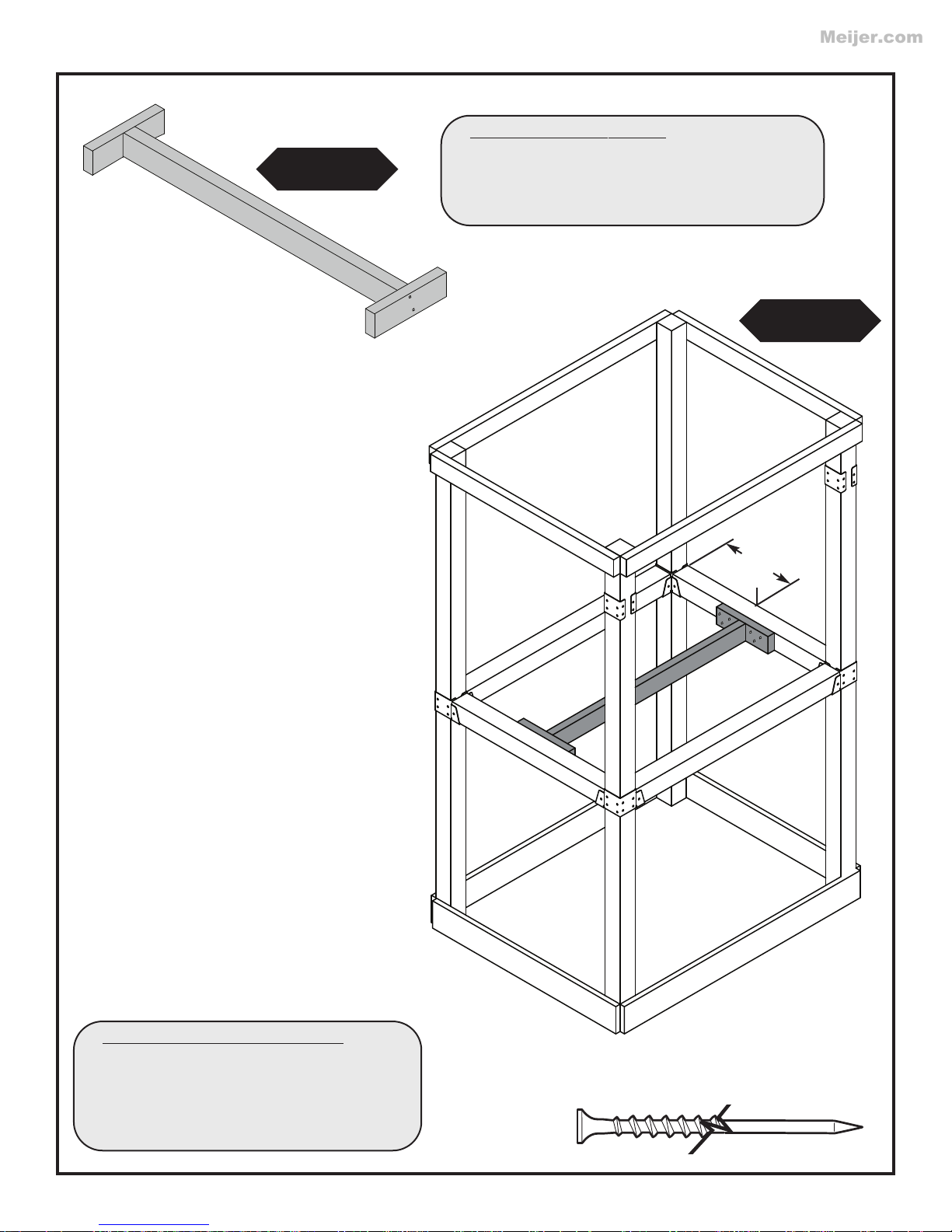

B. Center Support Beam
2'' x 4'' x 45''
Center Support Beam
(2) 2-1/2'' screws/nails
Fig. 7
(each side)
1. Construct center support beam following the
instructions in (Fig. 7).
Fig. 8
2'' x 4'' x 12''
17-1/4''
Center
2-1/2'' screws/nails
B. Center Support Beam cont.
2. Secure center support beam to structure as
shown in (Fig. 8).
(6)
(each side)
2-1/2'' or 10D
screw/nail
15
5/4'' x 6'' x 36''
Meijer.com
Fig. 9
5/4'' x 6'' x 36''
(7) 5/4'' x 6'' x 43''
2-1/2'' screws/nails
(2 per joint)
2-1/2'' or 10D
screw/nail
C. Install Deck Boards
1. Install 5/4'' deck boards to structure as shown (Fig. 9).
2. Use two 2-1/2'' screws/nails at center and each end of deck boards.
Note: Screws/Nails at center will attach to center support.
16
Fig. 10
Meijer.com
9-1/8'' to edge
Install Cup Loc using (4) 2'' lag screws
2'' Lag screw
D. Install 4x4 Rail Supports
1. Install (2) Cup Loc as shown in (Fig.10),
(Fig 10a).
2. Install (2) 4'' x 4'' x 29-3/4'' as shown
in (Fig. 11) and (Fig. 11a).
x 4
Fig. 11
4'' x 4'' x 29-3/4''
9-1/8'' from post
1/2'' from edge
(both sides)
4'' x 4'' x 29-3/4''
Fig. 10a
Fig. 11a
Secure 4''x4'' uprights with (3) 2'' lag screws
Bracket should be 1/2'' from edge
2'' Lag screw
17
x 3
30''
Meijer.com
2'' x 4'' x 55''
2'' x 4'' x 43''
Fig. 12
2'' x 4'' x 43''
2'' x 4'' x 55''
E. Install Upper Rail Boards
1. Install upper 2'' x 4'' rail boards as shown in
(Fig 12). 30’
N
ote: Measure from Top of 5/4'' board to top of
’ above the deck as shown in (
2'' x 4'' rail board.
(3)
2-1/2''
screws/nails
per joint
Fig. 13
Fig 12).
2-1/2''
screws/nails
per joint
. Install Lower Rail Boar
F
ds
1. Install lower 2’’ x 4’’ rail boards as shown in (Fig 13).
Flush with the top of 4’’ x 4’’ deck supports.
2'' x 4'' x 55''
(3)
2'' x 4'' x 16''
2'' x 4'' x 16''
2'' x 4'' x 55''
2-1/2'' or 10D
screw/nail
18
Fig. 14
Meijer.com
G. Install Pr
otective Barrier Board
1. Secure protective 5/4'' barrier board as shown in (Fig 14).
(4)
2-1/2'' screws/nails
19
31-3/4''
5/4'' x 6'' x 55''
bottom of base
2-1/2'' or 10D
screw/nail
Fig. 15
Meijer.com
Fig. 15a
H. Install Accessory Brackets
1. Secure Shelf-Loc brackets onto Wrap-Loc as shown in
(Fig. 15), (Fig. 15a), (Fig. 16).
20
2'' Lag screw
Tip: Flex brackets to make installation of
4'' x 4'' easier
x 2
Fig. 16
Approx. 1/4''
Fig. 17
Meijer.com
Fig. 17a
2'' Lag screw
I. Install Accessory 4x4
1. Work 4'' x 4'' into brackets as shown
in (Fig. 17).
2. Secure brackets (Fig. 17a).
x 4
4'' x 4'' x 55''
21
Fig. 18
Meijer.com
Optional Laminated Beam
Fig. 18a
NOTE:
Lay the lumber on a flat surface
before beginning laminated beam assembly.
NOTE:
Attach one end of the beam with three
2-1/2'' screws. Secure boards and attach the
other end with three 2-1/2'' screws. This will
insure that your boards will stay aligned
throughout the remainder of the beam assembly.
K. Laminated Beam Instructions
24"
Stagger screws to
insure a sturdy
bond between
boards
NOTE: It is highly recommended
that screws be used when
laminating the Swing Beam.
1. If 4" x 6" lumber is not available, you may
laminate two 2" x 6" x 144'' pieces of lumber
together to create the beam.
2. Lay the lumber on a flat surface and align all of
the edges. NOTE: Make sure each piece of
lumber is the same length. If it is not, trim board(s).
3. From the end of each board, measure and place a
mark at 24" intervals (Fig. 18).
4. Assemble the beam by attaching each end
together using three 2-1/2'' screws (Fig. 18a).
Note: Stagger the screws as shown in (Fig. 18a)
to insure a sturdy bond. Repeat every 24" along
the entire length of the beam.When beam is
complete, measure, drill holes, and attach beam
clamps and nylon bushing swing hangers
22
Fig. 19
3-1/2''
Meijer.com
J. Swing Beam Drill Locations
1. Use a 3/8'' drill bit to drill a 3/8’’ hole through
the beam at each location shown in (Fig. 19)
2. Tap T-nut into swing beam at locations shown.
Drill 3/8''
Hole
TOP VIEW
3-1/2''
Swing Beam
23
Fig. 19a
(4) 1-1/4'' screws
Swing Hanger
Use Screwdriver to aid in tightening
Bottom Beam Clamp
t-nut
Hammer
3/8'' hole
Meijer.com
T-nut
J. Swing Beam Drill Locations
1. Tap T-nut into 3/8’’ hole as shown in (Fig. 19a)
Note: If using Laminated Swing Beam, make sure t-nut teeth do not fall between seams of 2'' x 6''s.
2. Place a bottom beam clamp over the swing hanger as shown in (Fig. 19a)
3. Insert the swing hanger into the beam and thread it into the T-nut until it is flush or near flush with the top of the
T-nut. A screwdriver may be used to twist the hanger (Fig. 19a). Orient swing hanger as shown in (Fig 19a)
4. Use (4) 1-1/4'' screws/nails to secure beam clamp.
5. Check hanger to ensure it does not spin.
6. Repeat for all four hangers.
or 1-1/2'' nails
.
24
Fig. XX
Meijer.com
Fig. 20
L. A-Frame Assembly
Align the edges of the 4" x 4" legs
with the edges of EZ Frame Bracket
(8) 2-1/2ʼʼ Screws/nails
1. layout 4'' x 4''s as shown
in (Fig. 20)
2. Align EZ Frame Bracket with face of
4'' x 4''s.
3. Secure EZ Frame Bracket with (8)
2-1/2'' screws /nails to 4'' x 4''s
making sure they are flush with each
other
.
4. Secure 5/4'' x 6'' to 4'' x 4''s as
shown in (Fig. 21)
5. Flip over and add 2nd bracket.
Repeat steps 2 and 3.
EZ Frame
Bracket
(4)
2-1/2'' screws/nails
24-1/2"
4" x 4" x 96'''
5/4" x 6" x 72"
94-1/2"
Fig. 21
4" x 4" x 96''
(4)
2-1/2'' screws/nails
2-1/2'' or 10D
screw/nail
25
Cantilever beam
Fig. 23
Meijer.com
Washer
T-nut
86-1/2''
to ground
2-1/2'' or 10D
screw/nail
L. A-Frame Assembly cont.
1. Attach A-Frame beam to Swing Beam using (2) hex bolts and 4 screws/nails.
2. Tighten hex bolt to flush with top of T-nut. Repeat on other bracket.
Note: If using Laminated Swing Beam, make sure t-nut teeth do not fall between seams of 2'' x 6''s.
2-1/2''
screws/nails
Hex Bolt
26
L. A-Frame Assembly cont.
Meijer.com
1. Position Split-Brackets on 4'' x 4'' x 55'' (Fig 24).
2. With the help of others, lift A-Frame and
Swing Beam Assembly and center onto unit as
shown in (Fig. 24)
3. Secure as shown in (Fig 24a).
Fig. 24a
Fig. 24
Swing Beam
25-1/2''
View from Deck
Swing Beam
2'' Lag screw
x 8 (each bracket)
27
Use 2-1/2'' screws to
Meijer.com
secure to 5/4'' x 6'' to 4'' x 4''
5/4'' x 6'' x 30''
(2) 2'' screws/nails
2 per joint, top, bottom
(6) 5/4'' x 6'' x 48''
(2) 2'' screws/nails
2 per joint, top, bottom
Fig. 25
L. Barrier Boards
1. Install 5/4'' x 48'' barrier boards evenly
spaced in the opening.
(2) 2'' screws/nails
2 per joint, top, bottom
L. Barrier Boar
ds cont.
2. Install 5/4'' x 30'' barrier boards evenly
spaced in the opening.
5/4'' x 6'' x 30''
screw/nail
2-1/2'' or 10D
screw/nail
(2) 2'' screws/nails
(2 per joint, top and bottom)
(6) 5/4'' x 6'' x 30''
2'' or 8D
Fig. 26
2'' or 8D
screw/nail
28
(2)
Meijer.com
2-1/2'' screws/nails
M. Roof Support.
1. Install 2'' x 4'' boards as shown.
(2)
2-1/2'' screws/nails
16-1/4''
2'' x 4'' x 36''
2-1/2'' screws/nails
(4)
2'' x 4'' x 55''
2'' x 4'' x 36''
(4)
2-1/2'' screws/nails
Fig. 27
Fig. 28
2'' or 8D
screw/nail
Fig. 28a
1-1/4'' screw
N. Install Tarp.
1. Install tarp as shown in (Fig. 28a)
2. Secure tarp in six locations.
29
23 1/4
2 3/4
14 7/8
27
39 1/8
4 3/8
16 1/2
28 5/8
40 3/4
44
(Left Side Rail)
2'' x 4'' x 62-1/2''
2 3/4
14 7/8
27
4 3/8
16 1/2
28 5/8
40 3/4
39 1/8
44
2'' x 4'' x 62-1/2''
(Front)
(Right Side Rail)
• BOTTOM OF LADDER RAIL •
To p Corner of 2'' x 4''
Bottom Corner of 2'' x 4''
2- 3/4''
From Bottom
(6)
1-1/4''
screws
EXAMPLE OF LADDER RUNG INSTALLATION
STEP BRACKET
Front Opening Option #1
Meijer.com
Fig. 29
(see page 38 for Climbing Rock Wall Front Opening Option #2.)
(1) 2'' x 4'' x 23-1/4''
(4) 2'' x 4'' x 20-1/4''
(2) 2-1/2'' Screws/Nails
(2) 2-1/2'' Screws/Nails
(2) 2-1/2'' Screws/Nails
(2) 2-1/2''
Screws/Nails
(4) 2'' x 4'' x 20-1/4''
(1) 2'' x 4'' x 23-1/4''
(2) 2-1/2'' Screws/Nails
(2) 2-1/2'' Screws/Nails
(2) 2-1/2'' Screws/Nails
(2) 2-1/2''
Screws/Nails
Fig. 30
(6) 1-1/4'' screws or
4D nails
/nails
2-1/2'' screws/nails
2-1/2'' or 10D
screw/nail
(3)
each side
2-1/2'' screws/nails
Fig. 31
(2)
each side
O. Ladder Assembly.
1. On ladder rails, mark all measurement locations for
each side with a pencil. Draw an angle line
connecting measurements for each ladder rung
alignment. (Fig. 29)
2. Align top of step bracket with line and screw in
place. Install a ladder rung at each of the four
locations. (Fig. 29, 30) Repeat on other ladder
rail.
3. Attach 2'' x 4'' x 23-1/4 to siderails using
(2) 2-1/2'' screws/nails per side.
4. Secure ladder to unit. (Fig. 31) Note: The top step
should be 11" below the deck and all steps should
be level.
5. Screw (2) 2-1/2" screws/nails into the ends of each
ladder rung through the left and right side rails.
(Fig. 31)
30
Fig. 32
Meijer.com
P. Safety Handles.
1. Mount safety handles in the ladder opening
approximately 11'' above the deck surface (Fig. 32).
1/4'' washer
1 - 3/4 Panhead screw
11"
Deck Surface
Fig. 33
1'' Truss Screw
Use truss head screws to
to secure slide to deck.
Q. Slide Installation.
1. Install as shown in (Fig. 33)
Important:
Do not use hardware provided
with slide. Use Truss head screws
included with Kit.
31
Fig. 35
Meijer.com
Fig. 34
R. Final Assembly.
1. Hold the swing seat vertically and insert uncoated chains
through the channels on the bottom of the swing seat. Note: A
coat hanger may be used to help pull chain through the swing
seat. One full link should show at each end of the seat
(Fig. 34).
2. Place one covered chain onto each harness so that it fits at
the top of the V-hanger. Insert uncoated chains to bottom vinyl
hooks of V
CAUTION: It is important that you crimp harness ends
completely closed before using (see Fig. 36). Place end of
harness with hooks on a hard surface and force hooks closed
with a hammer or squeeze closed with a pliers until parts are
touching. WARNING: Open hooks can cause deep cuts.
3. Hang the chains from the nylon bushing swing hangers. Crimp
the hook opening closed with a pliers to secure the chains to
the swing hangers (Fig. 37). Make sure all connections are
tightly crimped and secure before using swing seat.
-hanger. (Fig. 36). Crimp harness end closed.
NEVER
hang a swing seat by a partial
link of chain! Remove and discard
partial links.
Fig. 36
Fig. 37
32
Anchor-It
Meijer.com
Fig. 38
(Purchased Separately)
Flat Washer
metal strap
1-1/2"
lag bolt
Anchor-It
stake
S. Anchor-It Installation (optional).
Instructions for Anchoring Swing•N•Slide Activity Centers
1. Determine the final location of your activity center.
2. Place the Anchor-It stakes adjacent to the base and near the corners of your activity center (at the bottom of the
legs on swing sets) and twist the auger-style stakes into the ground until only the loop is exposed.
3. Place the metal strap through the loop of the Anchor-It stake and secure it to the unit with a lag screw and
washer as illustrated to the right. Note: Attach the strap to the unit with as little play as possible using whatever
holes in the strap that work best.
33
Fig. 4
1’’
1’’
Cargo Net
Meijer.com
Cargo Net
SIDE MOUNTING
OPTION 1
LUMBER REQUIRED
(sold separately)
QTY DESCRIPTION
2 5/4" x 6" x 10'
INSTRUCTIONS
1. Cut one 5/4" x 6" x 72-3/4". Cut one 5/4" x 6" x 40" and 42-1/2". Cut
remaining 5/4" x 6" x 28-3/4".
2. Remove the existing base board from the unit. NOTE: Save the hardware as
they will be re-used.
3. Attach the 5/4" x 6" x 72-3/4" board to the base as indicated in Fig. 1
using four (4) 2-1/2" screws/nails and one (1) 2'' Lag Screw at each joint.
4. Attach remaining lumber to the unit as shown in Fig. 1 using three 3" screws
per joint.
5. Drill four 3/8" holes in the top board and four 3/8” holes in the bottom
board as indicated in Fig. 2. NOTE: Drill through the bottom of the 2" x 4"
board to the top. Inser
the top board and secure all of them using a beam clamp, washer and loc
nut (see Fig. 3).
NOTE: Using a hacksaw, remove excess threads of the eyebolt as close to
loc nut as possible.
6. Place bolt covers over the bolts as indicated in Fig. 3. Secure bolt covers
using 2" screws/nails.
7. Place two rope staples as indicated in Fig. 4. Thread the Cargo Net through
the holes of the base and loop through the staples as shown (Fig. 4).
Pull tight and secure by pounding staples tight against the base.
t the eye bolts of the Cargo Net through the holes of
Fig. 2
10”
10”
10”
6-1/2”
3/8'' Drill Holes
10”
10”
10”
6-1/2”
Fig. 3
Bolt Cover
Fig. 1
Washer and Loc Nut
5/4" x 6" x 72-3/4"
5/4" x 6" x 40"
5/4" x 6" x 28-3/4"
5/4" x 6" x 42-1/2"
3434
PROJECT 612 ONLY
Meijer.com
Front Opening Option # 2
Fig. 39
2'' x 4' x 23-1/4''
(4)
2-1/2'' screws/nails
(Underneath)
2'' x 4'' x 43-1/4''
(2)
2-1/2'' screws/nails
(Per joint)
(see page 32 for Ladder Assembly Front Opening Option #1.)
Fig. 39a
(9) 5/4'' x 6'' x 30''
3-3/8''
2'' x 4'' x 47-3/4
''
23-1/4''
2'' x 4'' x 47-3/4
''
(2)
2-1/2''
screws/nails
(Per joint)
(9) 5/4'' x 6'' x 30''
2-1/2'' screw or nail
(2) 2'' x 4'' x 47-3/4''
Fig. 39b
(3)
2-1/2'' screws/nails
(both sides)
NNOOTTEE::
4' Climbing Rock Wall will require
mmiinn.. 88 CClliimmbbiinngg RRoocckks
T. Climbing Wall.
(1) 2x4x8 --- (2) 2x4x47-3/4
(1) 2x4x8 --- (1) 2x4x43-1/4 (1) 2x4x23-1/4
(3) 5/4x6x10--(3) 5/4x6x30
1. Assemble and install Climbing Wall Frame and
body as shown in (Fig. 39), (Fig. 39a).
2. Attach (9) 5/4'' x6'' boards to (2) 2'' x 4'' boards
and install on unit as shown in (Fig. 39b).
3. Use a pencil to mark where you would like
the Climbing Rocks to be installed. Double check
your spacing and secure Rock at each location.
Note: Make sure the 2'' x 4'' supports do not
inter
fere with the mounting of the climbing
rocks.
s
35
Questions???...
Meijer.com
Call our Customer Service Department
at 1-800-888-1232
© PlayCore Inc. 2007 Printed In USA LA 5615
Loading...
