Swi Group Owner’s Handbook

Select Van Conversion

Issued August 2019 Part No.1436690

INTRODUCTION

Dear owner

Thank you for deciding to buy one of our new motorhomes.

We are sure you will enjoy many happy hours in it and we hope the information and hints in this handbook will heighten your enjoyment.

The handbook has been designed to give you a general guide to the care, use and maintenance of your motorhome. Whether you are a new or an experienced motorhomer the hints will help to protect your investment.

The information contained will answer most of your queries, but if there are any aspects which are not covered please consult your appointed dealer. We would suggest you make a note of your dealers name and contact information below.

Important - please quote the base VIN

(vehicle identication number) in all

correspondence with your dealer or Swift

Group Limited (Swift), this can be found on

the lower corner of the front windscreen or on the Fiat plate positioned on the front cross member within the engine compartment.

All the illustrations and descriptive matter in this handbook are intended to give a general idea of the motorhome. Changing market and supply situations may prevent us from

maintaining the exact specication details

in this handbook. We therefore reserve the

right to alter specications as materials and

conditions demand. Dealers are not agents of Swift Group Limited

and have absolutely no authorit y to bind Swift Group Limited by any express or implied undertaking or representation.

On-Line Handbooks

Throughout the season, specications and

equipment details contained within this handbook may change. Please refer to our online handbooks (www.swiftgroup.co.uk) for the most up-to-date version of your handbook.

Handbook Denitions

Customers should note that this handbook contains general information for the use and care of your product and the Technical Handbook, which contains technical information, weights and dimensions of your product.

Happy touring!

Dealer Name:

.........................................................................

Telephone Number:

.........................................................................

E-mail:

.........................................................................

VIN:

.........................................................................

Sales Tel:

.........................................................................

Service Centre Tel:

.........................................................................

Parts Tel:

.........................................................................

First Service Due:

.........................................................................

SWIFT TALK

SWIFT TALK / ECWVTA / NCC APPROVAL

Swift Talk

Swift Talk is the new central forum for the Swift community online. A place for all those united in their love of caravanning, motorhomes, holiday homes and touring in general, to share their

experiences, meet new friends and nd out

a world of information on how to enjoy their touring lifestyle.

The site is packed full of features that actively encourage members, not only to liaise with the Swift Group via the forums, but also interact with each other through publishing their own content, uploading and sharing photos and video, and even posting their own blogs for the community to follow.

Swift Talk is the rst place to learn about new

product launches, events and Swift Group

news, it’s also the rst place customers can

go to as a quick reference to frequently asked questions or to actively take part in the forums; providing valuable feedback on Swift Group products and customer service.

The new online community can even be used to create your own groups, perfect for Owners’ Clubs, dealers and exhibitors to attract new members, publicise and build awareness for upcoming events, rallies and shows.

Anyone who owns, uses, or is thinking of buying a Swift Group caravan, motorhome or holiday home, or would just like to be part of the growing Swift community is actively encouraged to sign up, create their own content, and start talking!

Just visit www.swift-talk.co.uk and become part of a unique online experience.

TAL K

CONTENTS

Warranty Information 11

The Motorhome Code 19

Preparing for the Road 23

En Route 31

Safety & Security 35

Arrival at Site 41

Connecting Services 43

Electrical Systems 65

Equipment Details 93

Motorhome Care 117

Technical Information 131

Useful Information 145

Index 148

CONTENTS

WARRANTY INFORMATION

Warranty 12

Supplier contacts 15

Service inspection 16

WARRANTY INFORMATION

WARRANTY

WARRANTY INFORMATION

Panel Van Conversion Motorhome Warranty

All the illustrations and descriptive matter in this handbook are intended to give a general idea of the motorhome. Changing market and supply situations and our policy of continuous product development may prevent us from

maintaining the exact specications detailed

in this handbook. We therefore reserve the

right to alter specications as materials and

conditions demand.

Dealers are not agents of Swift Group

Limited (“Swift”) and have absolutely no

authority to bind the manufacturer by any express or implied undertaking or representation.

Note: To register your warranty, please use

the Connect Direct Registration process, by doing so you are agreeing that you have had the details of the warranty and the annual service arrangements fully explained. This in

no way aects your statutory rights under the

Consumer Rights Act.

Your Coach-built motorhome has four warranties:

Base Vehicle Warranty – provided by Fiat

Your vehicle is a panel van conversion motorhome which utilises a Fiat base vehicle. For a panel van conversion motorhome, Swift

takes a panel van as supplied by Fiat and ts

out the interior of the van for habitation. Fiat provides a manufacturer’s warranty for the base vehicle as supplied to Swift by them. For any issues with the base vehicle warranty please contact your local Fiat dealer. This Motorhome Warranty does not cover any parts of your motorhome that are covered by the Fiat manufacturer’s warranty. Your base vehicle warranty is subject to the terms and conditions contained in the Fiat handbook supplied with the base vehicle and the vehicle must be serviced in accordance with Fiat requirements.

SuperSure Warranty – provided by Swift

For all parts or ttings of your panel van

conversion motorhome other than the Fiat base vehicle, Swift will repair (or at its option,

replace) any defective parts or ttings for

3 years from the date of purchase (or hire purchase) subject to conditions, terms and exclusions below.

Panel Van Conversion Body Shell Warranty

(“Body Shell Warranty”) – provided by Swift

Swift will repair (or at its option, replace) any defects with the panel van conversion to the body shell for 3 years from the date of purchase (or hire purchase), subject to the conditions, terms and exclusions below.

This Motorhome Warranty does not cover any parts of your motorhome that are covered by the Fiat manufacturer’s warranty.

Conditions for the SuperSure and Body Shell Warranties

1. You must ensure that the habitation part of your motorhome has an Annual Service (see clause 2 below) within 90 days before or 60 days after each anniversary of the original date of purchase. In order to preserve your SuperSure and Body Shell Warranties the third Annual Service must, however, be carried out before the expiry of the 36 month period from the original date of purchase. If you have not performed an Annual Service then Swift will not be obliged to perform any work under the applicable warranty. Original VAT invoices must be retained as proof that Annual Service have been carried out.

2. The Annual Service on the body shell and habitation area must be carried out in accordance with the requirements in this handbook. You will be responsible for any charges made for an Annual Service. If the Annual Service is performed by an authorised Swift Group Service Centre then Swift warrants that the Annual Service has been performed correctly. If the Annual Service is performed by an unauthorised repairer or service centre then if the Annual Service has not been performed in accordance with the requirements in this handbook and/or work has been performed on your motorhome that is defective or faulty, then Swift will not be obliged to perform any work under this Warranty (insofar as it relates to defective or faulty work or defective Annual Service

WARRANTY

WARRANTY INFORMATION

3. The benet of the SuperSure and Body 3. All new motorhomes must be registered with Swift within 6 weeks of purchase as new.

4. The benet of the SuperSure and Body Shell Warranties may be transferred to a new owner if the motorhome is resold, provided that the motorhome has been serviced in accordance with the requirements of this handbook, and details of the change of ownership have been supplied to Swift using the change of ownership form set out in this handbook as soon as reasonably practicable after the change.

5. If any repairs are identied as being necessary to the body shell or habitation areas during an Annual Service or otherwise, Swift will only pay for Warranty work performed by an authorised Swift Group Service Centre. The motorhome must be made available to an authorised Swift Group Service Centre within 6 weeks

of the date the repair need was identied

for the work to be carried out. The cost of transporting, towing or moving the motorhome by any means to or from the place of repair is the responsibility of the owner.

6. The SuperSure and Body Shell Warranties only apply to motorhomes purchased and used primarily within the UK. Please refer to the Fiat handbook for use of the base vehicle outside the UK.

Terms

7. The Body Shell Warranty covers any defect with the joints and seals of the panel van conversion. This includes body leaks,

delamination of oors, and water ingress

through any permanently sealed seam joints which relate to the conversion of the panel van. This Motorhome Warranty does not cover any parts of your motorhome that are covered by the Fiat manufacturer’s warranty.

8. In the rst 12 months the SuperSure Warranty will cover any defect other than

those specied in the Exclusions below.

9. In the years 2 and 3 the SuperSure Warranty will only cover any defect with the following components:

• Electrical System: PSU, battery charger,

Smart Command and interior lighting units (excluding bulbs).

• Water system: water heater, fresh water

tank, water pump, water gauges, taps and shower head.

• Cooker: the cooker unit including grill, oven,

burners, igniter, and ame failure device.

• Refrigerator: gas igniter, ame failure device,

door seal condenser, gas control valve, 12v and 230v heater elements, gas thermostat, 230v thermostat and 230v temperature control switch.

• Cassette Toilet: the cassette toilet (excluding

seals, valves and glands).

• Heating system: thermostat, motor,

switches, control unit, gas heater, ame

failure device and igniter (exluding ducting

and ttings).

• Windows: the functionality of the opening

and closing system (stays, handles and catches) and a warranty against the cracking

of the acrylic, Excludes fading.

• Upholstery: zips, seams and colour fastness.

In years 2 and 3, any defect specied in the Exclusions will not be covered. Exclusions

Exclusions

10. Swift shall not be liable under the SuperSure and Body Shell Warranties for any defect related to or arising from the following:

1. The failure of a component for reasons of fair wear and tear;

2. Damage resulting from freezing, re, over-heating or accidents (whether caused by the user or a third party);

3. Misuse of any component;

4. Normal deterioration, corrosion, intrusion of foreign or harmful bodies, lack of servicing or negligence of any person other than Swift which

WARRANTY & ASSISTANCE

WARRANTY INFORMATION

causes stoppage of or impairment to the function of any component of the motorhome;

5. Replacement of parts which have

reached the end of their eective

working life because of age and/or usage;

6. Cleaning or adjustment of any assemblies;

7. Damage caused by any abrasive cleaners

8. Cosmetic nishes to kitchen sinks, cooker tops, vanity units, shower trays; and/or

9. Routine maintenance items which are part of the annual service including lubricants, rubber gas hose, the cleaning

of the heater and fridge ues, the

replacement of gas jets, the resealing and/or replacement of shower room sealant, and the adjustment and lubrication of locks.

10. Should you have an enquiry or require assistance with a problem, we hope that this guide will be of assistance to you.

11. In addition to the exclusions above, in years 2 and 3 of the SuperSure Warranty Period, Swift Group Limited shall not be liable under this Warranty for any defects related to:

• Any microwave

• Factory tted leisure battery after 12 months

of date of purchase

12. Swift shall also not be liable under the SuperSure, and Body Shell Warranties if the motorhome has been neglected,

misused, modied or used for hire or reward or if the identication marks (chassis/VIN

numbers) have been removed or defaced. The motorhome will be deemed to have been neglected if it has not been serviced and maintained as stated in this handbook

or any repairs being identied as necessary

at an Annual Service or by a Swift Group Service Centre have not been carried out in a reasonable time.

You have legal rights under UK law governing the sale of consumer goods. This Warranty

does not aect your legal rights.

The name and address of the Warranty provider is:

Swift Group Limited, Dunswell Road,

Cottingham, East Yorkshire, HU16 4JX

To make a claim under this Warranty, contact the Swift Group Dealer which supplied your motorhome. Alternatively, details of your nearest authorised Swift Group Service Centre can be obtained by contacting the Swift Group Customer Service Department on 01482 875740, or enquiring on the website www. swiftgroup.co.uk

Change of Ownership

You can transfer the remainder of any three year ‘Supersure warranty’ and the three year ‘Body shell’ warranty, details of how to do this can be found at the rear of this handbook.

Swift Connect Direct

You have access to an online system which is for all Swift models. A password will be issued to you, to enable you to interact with us.

To access the system, called ‘Swift Connect Direct’, your initial log in details will be emailed to you once your supplying dealer has registered your ownership with us.

Please log in and create your own prole.

Should you have issues with accessing Swift Connect Direct, please contact our Customer Services Team.

What to do if you Require Assistance

Should you have an enquiry or require assistance with a problem, we hope that this guide will be of assistance to you.

Please follow these steps:

1. Check the Owners Handbook, paying

particular attention to the fault nding

advice at the back of the book.

2. Contact your supplying dealer for assistance.

SWIFT CONNECT / ASSISTANCE

WARRANTY INFORMATION

If you need to contact Swift Group Limited,

please be aware of the following:

1. When contacting Swift Group, please quote your name, postcode and VIN (Vehicle

Identication Number). This can be found at

the bottom of the front windscreen and on the side of the sliding door. Also within the engine bay.

2. In most instances, the Customer Service Team will involve your dealer in resolving the issue you are experiencing.

3. Check our website www.swiftgroup.co.uk and enter the help and advice section which provides answers to frequently asked questions and how to contact us.

Sargent Electrical Services

Unit 39, Tokenspire Business

Park,Beverley, East Yorkshire, HU17

0TB Phone: 01482 678981 Fax: 01482 678987

E-mail: support@sargentltd.co.uk

Truma UK Ltd.

Park lane, Dove Valley Park,

South Derbyshire, DE65 5BG

Phone: 01283 586020 Fax: 01283 586029

technical@trumauk.com

Thetford Ltd.

Unit 6, Brookelds Way, Manvers,

Dearne Valley, Rotherham, South Yorkshire, S63 5DL Phone - 0844 997 1960 Fax - 0844 997 1961

Email - infogb@thetford.eu

4. If you are contacting the company by email, letter or fax, the Customer Service

Team will respond to you within ve

working days from the date of receiving the correspondence.

5. Please be aware that Swift Group Limited cannot send parts direct from the factory. In all cases, without exception, your dealer must place the order for you.

Supplier contacts

A number of Swift Group suppliers manage their own Technical and Warranty related queries. Where a customer has a question relating to a product manufactured by a company listed below, we would advise that the

rst contact should be directly with them.

https://sargentltd.co.uk

https://www.truma.com/uk/en/home/ index.php

https://www.thetford-europe.com

Dometic (UK) Ltd

Dometic House, The Brewery, Blandford St Mary, Dorset, DT11 9LS Phone: 0844 626 0133

Email: technical@dometic.co.uk

https://www.dometic.com/en-gb/uk

SERVICE INSPECTION

WARRANTY INFORMATION

Annual service / inspection record

In order to comply with the warranty, you must have your motorhome inspected and serviced in accordance with the warranty.

We highly recommend that you have your Motorhome serviced by a Swift Group Approved Service Centre who have direct access to our online Customer Service system, Connect. This system provides them with the ability to order approved parts and ensure that any product upgrades which may be available for your Motorhome can be

oered to you and carried out as part of the

service. In the unfortunate event that an issue requires attention under warranty then a Swift Group Approved Service Centre are able to submit a warranty claim to the Swift Group for processing, and deal with the issue for

you from start to nish. All of our Swift Group

Approved Service Centres are provided with up to date technical information and have access to current repair methods giving you peace of mind that any defect has been repaired

eectively.

It is important that the owner’s handbook is stamped on the appropriate page by the authorised Swift Group Service Centre.

Failure to do this will invalidate the warranty and the transfer of the warranty on the change of ownership.

The inspection should take approximately two hours and will cover the areas dealt with in the annual service check list. Any areas requiring service and/or maintenance will be highlighted by your dealer and we recommend that you authorise any necessary work to be carried out.

Just as the engine/gearbox/roadwheels need

regular servicing by your chassis dealer, so there are components in your conversion that need regular maintenance by your motorhome dealer.

These include the gas and electrical systems and the seals in the bodywork. Your dealer will complete the record in this handbook to show that the work has been carried out.

1. Damp and lamination test.

2. Chassis and chassis to body security.

3. Motorhome step.

4. Road lights, wiring and reectors.

5. Internal lights and 12V DC system.

6. Water heater - gas and 230V AC.

7. Hob, grill and oven.

8. Refrigerator 230V AC, 12V DC and gas.

9. Gas system.

10. Water pump, taps and water system.

11. Mains 230V AC system.

12. Windows and ttings.

13. Roof lights.

14. Furniture hinges/stays etc.

15. Exterior locks and hinges.

16. All internal vents.

17. Seals.

18. Blinds and y screens.

19. Blown air heating systems.

20. Smoke alarm and battery

21. Carbon monoxide detector and battery

Annual service/inspection record

INSPECTION RECORD STAMPS

WARRANTY INFORMATION

Motorhome model:

Registration number

Chassis number

Registration date

2nd service

DAT E:

DEALER’S STAMP

We certify that an annual service has been carried out in accordance with the handbook.

4th service

Date:

Dealer’s Stamp

1st service

DAT E:

DEALER’S STAMP

We certify that an annual service has been carried out in accordance with the handbook.

3rd service

DAT E:

DEALER’S STAMP

We certify that an annual service has been carried out in accordance with the handbook.

5th service

Date:

Dealer’s Stamp

We certify that an annual service has been carried out in accordance with the handbook.

6th service

DAT E:

DEALER’S STAMP

We certify that an annual service has been carried out in accordance with the handbook.

7th service

DAT E:

DEALER’S STAMP

We certify that an annual service has been carried out in accordance with the handbook.

INSPECTION RECORD STAMPS

WARRANTY INFORMATION

8th service

DAT E:

DEALER’S STAMP

We certify that an annual service has been carried out in accordance with the handbook.

10th service

DAT E:

DEALER’S STAMP

We certify that an annual service has been carried out in accordance with the handbook.

12th service

DAT E:

DEALER’S STAMP

9th service

DAT E:

DEALER’S STAMP

We certify that an annual service has been carried out in accordance with the handbook.

11th service

DAT E:

DEALER’S STAMP

We certify that an annual service has been carried out in accordance with the handbook.

13th service

DAT E:

DEALER’S STAMP

We certify that an annual service has been carried out in accordance with the handbook.

MOTORHOME CODE

Code of conduct 20

The Country code 22

The Coastal code 22

MOTORHOME CODE

CODE OF CONDUCT

Camp sites

Arrivals

Report to reception immediately on arrival.

Vehicle Movement

Keep to roadways unless otherwise directed. Adhere to speed limits. Note that these are

MOTORHOME CODE

generally 10 mph. (Remember that the stopping distance on grass is considerably greater than on tarmac.)

Only a person in possession of a current driving licence may drive on the site.

Park correctly as advised on your pitch. Where possible leave 20 feet of free space around your vehicle.

Use of Site Appliances

Use the electrical mains hook-up in the correct

manner and with caution. Ensure that all fresh water taps/connections are turned o after

use. Have care and consideration when using all facilities (toilets and showers etc) and leave clean and tidy. Young children should be supervised.

Waste Disposal

If the vehicle is not tted with a waste water

tank, a suitable receptacle should be placed below all waste water outlet pipes. Do not let

these containers overow. Dispose of all waste water where instructed. Empty euent from

chemical toilets where instructed.

To avoid possible damage to sewage

purication works, only approved chemical uids must be used. Under no circumstances should coal tar, phenol or caustic-based uids

be used.

Disposable nappies and similar bulky items must not be put into chemical closet emptying points but should be wrapped in a polythene bag and placed in the container provided.

Place all litter in containers marked for the purpose.

Noise

Do not make excessive noise. Children should be restrained from making excessive noise.

Flying kites, drones and model aircraft, and the use of items like catapults or air-guns, as well as ball games, should not be permitted among, or close to other vehicles.

Musical instruments, record players, radios and televisions should not be used to the inconvenience of other people on the site.

Open and close doors quietly. Power generators must be adequately silenced and used with consideration.

Dogs and other Pets

All dogs and other pets should be kept under control. Unless permission has been granted, no animal should be allowed loose on the site and leads must not exceed 10ft.

No animals should be allowed in the shower/ toilet blocks.

Do not let dogs foul the site.

Fire Precautions

Adhere to and take note of re precautions noting the whereabouts of the re points.

WARNING: Provide one dry powder

re extinguisher of an approved type or complying with EN3-7 or ISO 7165, of at least

1kg capacity, by the main exterior door and

a re blanket next to the cooker. Familiarise

yourself with the operating instructions

on your re extinguisher and the local re

precaution arrangements.

When using a dry powder extinguisher it is suggested that the motorhome be evacuated until the powder has settled, to avoid inhalation. Code of conduct

Unless permission has been granted, barbecues should not be used. If permission is given, consideration should be given to the annoyance that can be caused to other users of the site.

Open res are not allowed.

Awnings and Tents

Awnings and tents should only be used when permission has been obtained. When on grass and staying for more than a few days,

the ground sheet and/or side aps of awnings

should be periodically raised in order to avoid damage to the ground.

CODE OF CONDUCT & THE COUNTRY CODE

MOTORHOME CODE

Departure

Leave the pitch clean and tidy.

On leaving, check out with reception paying the required fees.

Wild camping

Camping away from licensed sites, without the permission from the land owner or his agents, is not allowed in the United Kingdom.

When permission has been granted, all aspects of this Code should be adhered to.

On no account should:

a. Litter be disposed of other than in the

receptacles provided.

b. Water be allowed to escape from the

vehicle.

c. Chemical toilets be emptied except into the

disposal places agreed with the land owner.

d. Washing or similar be hung outside the

vehicle.

Parking

Motorhomes should only be parked in approved places.

When using the facilities of a motorhome, care and consideration should be given to those around them.

Driving

Before moving o, elevated rooights and

aerials should be lowered and correctly secured, and top hinged windows closed. Likewise all doors and access lockers for gas containers and chemical toilets must be properly secured.

Exterior steps should be properly retracted

and secured. When the vehicle is in motion it is compulsory for all front seat passengers and rear seat passengers to wear seat belts,

where tted. When using a motorhome on

either the public highway or private roads the Highway Code should be complied with and full consideration given to other road users.

In the event of a motorhome travelling slowly the driver of the motorhome should, where

possible, pull over in order to let other trac

pass.

WARNING: When travelling, refuelling or on a ferry ensure the gas system is fully isolated at source.

Handbooks (Chassis & Converter)

Before using a motorhome all aspects of the handbooks, produced by the chassis manufacturer and the converter, must be read and adhered to.

The separate chassis manufacturer handbook refers to your motorhome chassis and base vehicle including care and maintenance.

Link to Fiat handbook

THE COASTAL CODE

Environment

Care and consideration should be taken to protect the environment. Observe the Country and Coastal Codes.

The Country code

Enjoy the countryside but respect its life and

MOTORHOME CODE

work.

More people than ever before are exploring the countryside, interested in farming, plant life, bird watching or just observing the general wildlife. Whatever your interest, there is a lot to learn, but please observe the following code:

1. Guard against all risk of res. Hay and heathland catch alight easily and once

ablaze are very dicult to put out.

Remember: re spreads quickly.

2. Fasten all gates.

3. Keep your dog under proper control.

4. Keep to the paths across farm land.

5. Avoid damaging fences, hedges and walls.

6. Leave no litter.

7. Safeguard water supplies.

8. Protect wildlife, wild plants and trees.

9. Go carefully on country roads.

10. Respect the life of the countryside. The Coastal code

The coastal code

As our coastlines are increasingly used for

recreation and education, the following

suggestions are made to enable us to enjoy our inheritance and preserve it for posterity.

Do not trample about, or move rocks

unnecessarily.

Do not frighten seals or seabirds.

Do not spill detergents, solvents or fuel from

boats as these can kill marine life.

When sailing, moderate your speed - the wash from a fast boat can destroy banks and nests.

Live molluscs and crustaceans need not be collected as souvenirs - dead shells can usually be found.

Shellsh can take years to grow and nes

can be imposed for not observing national regulations.

Do not pull up seaweeds unnecessarily. Make your visit instructive - not destructive.

Look at material - don’t remove it. Take notes and photographs, not specimens.

Observe by-laws and be considerate to others.

National Trust property and Country Parks have regulations to protect the wildlife. Follow these and the Country and Coastal Codes.

PREPARING FOR THE ROAD

Before Moving O 24

Motorhome Terms 24

Loading of Vehicle 25

Large Storage Areas 25

Tyres 26

Dedicated Travelling Passenger Seats 26

Seat belts & legislation 27

Child seats 27

Airbag 28

Three Point Seat Belts 28

Driving Licence 28

Advice on towing 28

European touring 29

PREPARING FOR THE ROAD

BEFORE MOVING OFF & MOTORHOME TERMS

PREPARING FOR THE ROAD

Before moving o

Check:

• Gas cylinders are correctly positioned,

secured and turned o unless using en-route

heating.

• All gas operated appliances have been

isolated except en route heating where tted

and in use.

• Loose articles are stowed securely. Do not

stow tins, bottles or heavy items in overhead lockers.

• All lockers and cupboard doors are closed

and secured.

• Tables are stored or locked in their transit

position.

• Fridge is on 12V or auto operation and door

lock is set.

• 230V mains input socket ap is securely

closed.

• All drain valves are closed.

• Tyre pressures

• Exterior roof rack ladder / bike rack is

secured (where tted).

• All windows/doors/rooights are closed and

secured.

• Exterior step (where tted) is retracted /

folded in.

• Special attention must be taken to ensure

all top hinged windows as well as rooights

are closed when in transit. All units should be fully closed and latched to prevent damage. The motorhome rear and side sliding door should also be locked.

WAR NING: Large and/or voluminous items

should be stored securely before travelling.

Motorhome terms

Mass in Running Order:

The mass of the motorhome equipped to the motorhome manufacturers standard

specication, as stated by the manufacturer.

The MRO comprises the ex-works weight of the motorhome, including the driver, 90% fuel

capacity, 1 x LPG gas cylinder @10kg and standard xtures & ttings in compliance with European Regulation No. 1230/2012 (Masses & Dimensions)

Note: The mass of the motorhome in running order contains provision for the masses of liquids, gas etc. (see Mass in Running Order in the Technical Section). Part of this provision can also be utilised as additional payload, if for example, you wish to travel with no gas cylinders.

Note: If you travel with water in the fresh water tank or waste tank, the payload will be reduced accordingly.

Note: Quoted MRO is subject to tolerance, due to weight variation of materials used in Motorhome construction.

Maximum User Payload:

The maximum allowable weight to be put into the motorhome whilst it is being driven. This is made up of 4 sections:

Personal eects, conventional load, optional

equipment and essential habitation equipment.

The Maximum User Payload is the dierence

between the Maximum Technically Permissible Laden Mass and the Mass in Running Order.

Personal Eects:

Those items which a user can choose to carry in a motorhome and which are not included

as Essential Habitation Equipment or Optional

equipment.

Conventional Load:

A mass allowance for each designated passenger seat.

LOADING OF VEHICLE

PREPARING FOR THE ROAD

Optional Equipment:

Items made available by the manufacturer over

and above the standard specication of the

motorhome.

Essential Habitation:

A mass allowance for liquids in systems not accounted for within the MRO.

Maximum Technically Permissible Laden Mass:

The maximum weight for which the motorhome is designed for normal use when being driven on a road, laden.

This mass takes into account specic

operating conditions including factors such as the strength of materials, loading capacity of tyres etc.

Gross Train Weight:

The maximum combined weight of the motorhome and trailer.

WARNING: Under no circumstances should the Maximum Technically Permissible Laden Mass of this motorhome be exceeded

Nose weight on towed trailers:

The static mass of the trailer towing device on the rear of the towing vehicle.

When measuring the noseweight it is important that the trailer is loaded.

The trailer is intended to be towed slightly nose heavy. The nose weight can be adjusted by distribution of the load. The nose weight should be approximately 7% of the actual laden weight (but not greater than the hitch capacity) and at the same time suit the motorhome requirements. See ‘Advice on Towing’ page 28.

Loading of vehicle

WARNING: Loads must not be exceeded.

The driver is responsible for arranging the loads so that they comply with the technical

weight limits of the specic motorhome

model.

See Technical handbook.

Correct weight distribution is an important factor in ensuring your vehicle is well balanced and easy to drive. It is therefore necessary to load your motorhome carefully making sure all heavy articles are evenly distributed and are preferably placed in the lower lockers or bed boxes.

WARNING: Do not travel with televisions

or microwaves in overhead lockers unless

the appliance was supplied tted to your

motorhome by the manufacturer.

Although it is essential to ensure that the total weight of your motorhome does not exceed the stipulated Maximum Technically Permissible Laden Mass, (MTPLM), it is important to remember that the front and rear axles also have individual maximum weights which must not be exceeded.

To ensure adequate road holding the load on

the front axle, under all conditions, must not

be less than 40% or more than 70% of the total weight.

Ensure you distribute the payload equally on

each side of the vehicle to avoid an imbalance.

TYRES & PASSENGER SEATING

PREPARING FOR THE ROAD

These weights, together with the MTPLM, can

be found on the statutory plate axed to the

forward edge side sliding door.

WARNING: Turn o all gas appliances

while the vehicle is in motion. If a en-route

heating system is tted isolate all appliances

except the heater.

WARNING: Please take care to ensure you have allowed for the masses of all the items you intend to carry in your motorhome e.g. passengers, optional equipment, essential

habitational equipment and personal eects

such as clothing, food, pets, bicycles, sailboards and sports equipment etc.

Note: Care must be taken to ensure that exterior doors are closed, locked and that all possessions are properly stored and secured

before setting o on any journey.

Large storage areas

The large storage areas provided in some motorhome layouts are designed solely for the purpose of carrying personal possessions, these areas must not be used:

• As a habitation area (eg living, sleeping or cooking).

• To carry passengers, animals or livestock.

• For the installation (or use) of any LPG gas

operated appliances (unless supplied tted by

the manufacturer).

• For carrying LPG gas cylinders.

• To carry any ammable liquids, unless properly stored, sealed and secured.

• For the operation of an electrical generator.

• In such a way that the load exceeds the MTPLM, and/or minimum and maximum axle loads.

Care must be taken to ensure that exterior doors are closed, locked and that all possessions are properly stored and secured

before setting o on any journey.

Tyres

If a wheel or tyre is changed any replacement must be of the same type of construction and size.

The law requires that the tyres and pressures must be suitable for the use to which they are being put. The minimum tread depth must be 1.6mm throughout a continuous band comprising the centre three-quarters of the breadth of the tread and around the circumference of the tyre.

Please refer to the base vehicle manufacturer’s handbook for tyre pressure information. This may also be displayed in the driver’s or passenger’s door aperture.

The motorhome tyre pressure noted in the Technical book are the pressures stated by Fiat for your vehicle calculated in a fully laden condition. If you are not running fully laden, reduced pressures could be used but please

seek clarication from the tyre manufacturer.

Dedicated travelling passenger seating

Seat belts are tted to all travelling seats.

Travelling seats are designated by the manufacturer and vary according to the layout

you have purchased. Each seat is homologated

i.e. tested to all relevant safety requirements.

NEVER travel in or attempt to install a seatbelt

to a non-designated seat.

WARNING: Side facing seats are designed for habitational use only, not for when the vehicle is in motion.

THREE POINT SEAT BELT

VEHICLE CLASSIFICATIONS

& ADVICE ON TOWING

PREPARING FOR THE ROAD

Seat belts and legislation

Designated driver and passenger seats are

tted with seat belts and MUST be worn when

travelling.

All children up to 135cm (4’5”) in height, or 12

years of age, whichever is reached rst must

use a child car seat or booster seat suitable for their age and weight.

Children over 135cm (4’5”) in height or aged 12 years and over must wear a seat belt.

Note: It is the legal responsibility of the driver To ensure children aged up to 14 years old are suitably restrained.

For passengers aged 14 and over, it is their responsibility (not the driver) that a seat belt is worn.

Seat belts are tted for your safety and must be worn unless a ‘Certicate of Exemption from

Compulsory Seat Belt Wearing’ is held. This

Certicate must be produced if asked for by the Police – seat belt oences can result in a ne.

Child seats

Choosing/Buying

Go to a reputable retailer such as Halford’s,

Mothercare, John Lewis etc. Most reputable

retailers will have trained child seat advisers

on site and will oer a tting service. Ask the advisor to t various seats to the vehicle. Once a correctly tted seat has been installed, satisfy

yourself on it’s suitability for your child and the vehicle before buying as it is important to use a

correctly tting seat in your motorhome.

WARNING: The child seat you use in your car may not be suitable for mounting on a motorhome seat.

WARNING: Choose the right seat for your child’s height and weight.

Height-based seats

Height-based seats are known as ‘i-Size’ seats. They must be rear-facing until your child is over 15 months old. Your child can use a forwardfacing child car seat when they’re over 15 months old.

You must check the seat to make sure it’s suitable for the height of your child.

Only EU-approved height-based child car

seats can be used in the UK. These have a label

showing a capital ‘E’ in a circle and ‘R129’.

Weight-based seats

The seat your child can use (and the way they must be restrained in it) depends on their weight.

Only EU-approved weight-based child car

seats can be used in the UK. These have a label

showing a capital ‘E’ in a circle and ‘ECE R44’.

You may be able to choose from more than one type of seat in the group for your child’s weight.

For more information visit www.gov.uk

Never t or use a second hand car seat. It could

have been damaged and may not meet modern

standards. The tting instructions may also be

missing.

Positioning/Fitting

Dependant upon the child seat type, the most

suitable position for the child seat to be tted

may be the front passenger seat of the cab

(NOTE airbag advice on following page) or the

window seat of the forward facing rear seat. The isle seat in the rear is NOT a recommended position. Advice should always be taken from the retailer on the suitability and security of the seat in the motorhome. Read and follow the

child seat manufacturer’s instructions for tting

the seat.

All Swift motorhomes are tted with inertia reel

seat belts, however, the child seat must be tight in the adult seat. Push all your weight into the child seat as you tighten the belt.

Keep a copy of the child seat tting instruction

in the motorhome for easy reference.

Any doubts, ask an advisor to show you how to correctly install the seat.

THREE POINT SEAT BELT

VEHICLE CLASSIFICATIONS

& ADVICE ON TOWING

PREPARING FOR THE ROAD

Airbag

Never t a rear facing child restraint in a seat

with an active airbag in front of it.

Forward-facing child restraints should be positioned as far back from the airbag as possible. Check the base vehicle handbook.

Three point seat belts

This section refers to the seat belts located in the habitation area of your motorhome.

Fastening the seat belt:

Insert tongue into buckle; a positive ‘click’ indicates correct assembly.

Releasing the seat belt:

Press the red release button, the tongue will be ejected from the buckle.

• The belt is designed for use by one person and must not be put around a child seated on a person’s lap.

• The belt is suitable for restraining most child seats and boosters.

• The belt should at all times be adjusted and used in accordance with the instructions. No excessive slackness should be present.

• Once installed the diagonal should pass across the centre of the shoulder and the buckle should lie just on or below the hip.

• Avoid twisting the webbing during use. Webbing must not be allowed to chafe against sharp edges.

• Do not make alterations or additions to the belt.

• Belts that have been cut, frayed, damaged or stressed through impact should be replaced. After impact the motorhome anchorage points should also be checked.

• To clean use warm soapy water only.

• Periodic inspection of the installation will ensure reliability of the seat belt.

Driving licence

Licences issued to drivers who passed their

car driving test before 1st January 1997 include categories B+E and C1+E which gives

them entitlement to drive motor vehicles up to 7500kg MTPLM.

Drivers who passed their test on or after this date have category B entitlement only, which restricts the entitlement to motor vehicles with up to 8 passenger seats and an MTPLM of up to 3500kg with trailers up to 750kg MTPLM (4250kg gross train weight) or larger trailers providing the combination of the trailer and towing vehicle does not exceed 3500kg and the MTPLM of the trailer does not exceed the unladen weight of the towing vehicle.

Drivers who passed their test on or after the

1st January 1997 will need to take an additional test(s) to gain the C1+E entitlement.

Advice on towing

The towing capability of each motorhome

diers depending on the specic chassis and

engine types, (see ‘Towing Capabilities Table’ in

your specication section).

This table takes account of the maximum front and rear axle loadings as well as the minimum front axle loading in two conditions, MRO and MTPLM condition.

Towing in these, and any other condition requires sensible loading and distribution of payloads to ensure the requirements of the towing capability table are met.

When towing, the demands on both the vehicle and driver increase. A trailer reduces manoeuvrability, the ability to climb hills, acceleration and braking capacity and makes

the vehicle handle and corner dierently. It

will also increase the fuel consumption of the vehicle.

Always brake in good time. Special care must be taken when descending gradients. Change down before going down a steep hill so the

engine can act as a brake. Ensure that the

towing vehicle tyre pressures are correct and adjusted for full load conditions and that the trailer tyre pressures are as recommended by the trailer manufacturer. Regularly check the operation of trailer brakes and lights.

For maximum stability, when loading the trailer ensure that the loads are properly secured during transit. Position loads so that most of the

weight is placed close to the oor and, where

possible, immediately above or close to the axle(s). Where the load can be divided between

EUROPEAN TOURING

PREPARING FOR THE ROAD

trailer and tow vehicle, loading more weight into the vehicle will generally improve the stability of the combination.

After loading the trailer, check that the nose weight and axle loads are in accordance with the manufacturer’s recommendations, also check the rear and front axle loads on the motorhome. When calculating the laden weight of the trailer, remember to include the weight of

the trailer PLUS THE LOAD.

Note: Towing regulations vary from country to country. It is very important to ensure that national regulations governing towing weights and speed limits are observed (refer to the relevant national motoring organisation for information). The stated maximum permissible towing weights refer to the vehicle’s design limitations and NOT to any

specic territorial restrictions.

Notes:

1. Do not exceed the motorhome gross vehicle train weight.

2. Do not exceed the maximum front & rear axle loads on the motorhome.

3. Ensure the motorhome front axle load is never less than 40% or more than 70% of the total weight.

4. Motorhomes with an MTPLM up to 3500kg

which have European Type approval can only be tted with a type approved towbar complying to 94/20/EC or UN ECE R55.

5. The limit for towing an un-braked trailer is 750kg (based on VIN plate not actual weight), this applies to a towed car.

6. A car dolly with a car with a GVW over 750kg in place is considered as two trailers, these are legal for use for recovery but

under the Road Trac Regulations Act

1984 the combination is limited to 40 mph on motorways and dual carriageways and 20 mph elsewhere. A car dolly is not legal for transportation (there is a very

specic dierence between recovery and transportation. Recovery is dened as the

removal of a broken down vehicle to a place of safety).

7. The maximum permitted vehicle combination length is 18.75m, however any combination must ensure compliance with the turning circle requirements of

Construction and Use regulations 1986 & EU 1230/2012.

Note: Not all motorhomes are suitable for

towing and may not have sucient payload to permit towing. If in doubt, consult your dealer.

European Touring

Please note there are a number of requirements

placed on a driver when driving on European

roads. Carrying a warning triangle, high

visibility jacket, rst aid kit and spare bulb is now compulsory in many EU states but some EU countries are now introducing further

regulations such as carrying a breathalyser kit and not being able to use satellite navigation systems with speed camera warnings.

We would advise customers to check on the many web-sites available to ensure you are carrying the correct equipment when touring in

those EU countries

EN ROUTE

Fix & Go tyre repair kit 32

Cruise Control 34

Parking Sensors 34

EN ROUTE

FIX AND GO

Fix & Go Repair Kit (if tted)

CAUTION: Before use please read the user

EN ROUTE

instructions supplied with your Fit & Go repair

kit.

(For more details see Fiat user Manual)

If a spare wheel is not tted within the specication of your vehicle, then a Fix & Go kit

is supplied.

The Fix & Go automatic quick tyre repair kit is

positioned at the front of the vehicle passenger compartment and includes Fig. A:

CAUTION: If the wheel rim has been damaged (bent so as to cause air to leak), the wheel cannot be repaired. Do not remove the foreign body (screws or nails) from the tyre.

CAUTION: Punctures caused by foreign bodies can be repaired if the damage does not exceed 4 mm on the tread and on the shoulder of the tyre.

Fig.B

Important Information:

The sealing uid of the quick tyre repair kit is

Fig.A

• Bottle A containing sealer and tted with:

- a transparent ller pipe B;

- a black pressure restoring pipe E;

- sticker C bearing the notice “max. 80 km/h”, to be placed in a position visible to the driver

(on the instrument panel) after xing the tyre;

• Instruction brochure (see g. B), to be used for prompt and correct use of the quick tyre repair kit and then to be handed to the personnel charged with handling the tyre treated with the tyre repair kit;

• A compressor D complete with pressure gauge and connectors; a pair of protective gloves located in the side compartment of the compressor;

• Adaptors for inating dierent elements

CAUTION: Give the instruction booklet to the tyre repair workshop personnel.

eective at external temperatures of between

-20 °C and +50 °C. The sealant has an expiry date.

CAUTION:The bottle contains ethylene glycol. It contains latex that might cause allergic reactions. It is harmful if swallowed. It is irritant for the eyes. It may cause sensitisation if inhaled or on contact. Avoid contact with eyes, skin and clothes. In the event of contact, wash immediately with plenty of water. Do not induce vomiting if swallowed. Rinse your mouth and drink plenty of water. Call a doctor immediately. Keep out of the reach of children.

The product must not be used by asthmatics. Do not breathe in the vapours during insertion and suction. Call a doctor immediately if allergic reactions are noted. Store the bottle in its proper compartment, away from sources of heat. The sealant

CAUTION: Punctures on the sides of the tyre cannot be repaired. Do not use the quick tyre repair kit if the damage is due to running with

at tyre.

Ination Procedure

CAUTION: Wear the protective gloves provided together with the quick tyre repair kit.

CAUTION: Ax the adhesive label in an easy-

to-see position for the driver as a reminder that the tyre has been treated with the quick tyre repair kit. Drive carefully, particularly on bends. Do not exceed 80 km/h. Do not accelerate or brake suddenly.

CAUTION: If the pressure falls below 3

bars, do not drive any further: the Fix &

Go automatic quick tyre repair kit cannot guarantee proper hold because the tyre is too much damaged. Contact a Fiat Dealership.

CAUTION: You must inform the dealership that the tyre has been repaired using the quick tyre repair kit. Give the booklet to the personnel who will be handling the tyre treated with the repair kit.

INFLATION PROCEDURE

EN ROUTE

Fig C

Fig D

CAUTION: If dierent tyres from the ones

supplied with the vehicle are used, it may not be possible to carry out the repair. If the tyres are replaced, it is advisable to use those approved by the manufacturer. Consult a Fiat Dealership.

• Pull the handbrake. Unscrew the tyre valve

cap, take out the ller hose A (Fig. C) and

tighten the ring nut B on the tyre valve;

• Insert the plug E (Fig. E) in the nearest 12V power socket and start the engine. Turn the selector D (Fig. D) anti-clockwise to the repair position. Activate the kit by pressing

the on/o switch. Inate the tyre to the pressure specied in the “Ination pressure”

paragraph, in the “Technical Data” chapter;

For a more accurate reading, it is advisable to check the pressure reading on the pressure

gauge F (Fig. D) with the compressor o and

without moving the centre selector from the repair position

• If after 10 minutes it is still impossible to reach at least 3 bar, release the transparent

ller pipe from the valve and take out the

12 V plug, then move the vehicle forwards by about 10 metres in order to distribute

the sealing uid inside the tyre evenly, then repeat the ination operation;

• If after this operation you still cannot reach at least 3 bar after 10 minutes, do not resume driving because the tyre is too damaged and the quick tyre repair kit cannot guarantee suitable sealing. Contact a Fiat Dealership;

• If the tyre reaches the pressure specied

in “Ination pressure” paragraph in the

“Technical Data” section of the Fiat user manual start driving immediately;

CRUISE CONTROL / SPARE WHEEL

Cruise control

The driver of the vehicle should always remain

EN ROUTE

Fig E

• after having driven for about 10 minutes, stop and recheck the tyre pressure; remember to apply the handbrake;

• If a pressure value of at least 3 bar is

detected, inate to the correct pressure,

resume driving and drive with care to nearest Fiat Dealership.

Bottle Replacement Procedure

To replace the bottle, proceeds follows:

seated and in control of the vehicle when cruise control has been engaged. Never leave the driving seat for any reason when the vehicle is underway

Parking sensors

Parking sensors are tted to some vehicles.

Please use the information provided. Use the sensors as a guide only. It is the responsibility of the driver to ensure it is safe to reverse the vehicle.

Fig. F

• press button A (Fig. F) to release the part;

• t the new bottle and press until it is automatically engaged.

CAUTION: Punctures caused by foreign bodies can be repaired if the damage does not exceed 4 mm on the tread and on the shoulder of the tyre.

CAUTION: Replace the bottle containing the sealant after the expiry date. Dispose of the bottle and the sealant properly. Have

the sealing uid and the bottle disposed

of in compliance with national and local regulations.

SAFETY AND SECURITY

Fire 36

Smoke Alarm Operation 36

Fire extinguisher 36

Escape paths 36

Children 36

Ventilation 37

CO alarm 37

Security 38

Vehicle Identication Number 38

Swift Command Tracker by Sargent 38

VIN CHIP™ 39

SAFETY AND SECURITY

FIRE AND SMOKE ALARM

Fire

Note: Your attention is drawn to the notice

axed inside the wardrobe advising on re

precaution, ventilation and what to do in case

of re.

In case of re

1. Get everyone out of the motorhome as

quickly as possible using whichever exit is the quickest, including windows. Do not

SAFETY AND SECURITY

stop to collect any personal items.

2. Raise the Alarm. Call the Fire Brigade.

3. Turn o the gas supply valve if it is safe to

do so.

4. Turn o the electricity supply at supply

point.

Smoke Alarm Operation

WARNING: Never use portable cooking or

heating equipment other than electric heaters that are not of the direct radiant type, as it is a

re and asphyxiation hazard.

WARNING: Appliances such as cookers

must not be used for heating.

Fire Extinguisher

It is recommended that a dry powder re

extinguisher be carried inside your motorhome at all times.

When using a dry powder extinguisher it is suggested that the motorhome be evacuated until the powder has settled, to avoid inhalation.

A fat pan re should not have a re extinguisher aimed at it. It should be smothered with a re

blanket.

WARNING: Provide one dry powder

re extinguisher of an approved type or complying with EN3-7 or ISO 7165, of at least

1kg capacity, by the main exterior door and

a re blanket next to the cooker. Familiarise yourself with the instructions on your re extinguisher and the local re precaution

arrangements.

Escape paths

It is important that you do not block escape paths to emergency exits with obstructions or

Your motorhome is tted with a Fire Angel SB1

smoke alarm. Please read the user instructions for the smoke alarm, which are available at the following location:

https://www.reangel.co.uk/products/sb1-t

hazards.

Children

Do not leave children alone in the motorhome in any event. Keep potentially dangerous items out of reach, as at home e.g. matches, medicine etc.

If you are unable to view the documents on line, please contact the supplier, your dealer or Swift for an electronic or paper copy.

VENTILATION / CO ALARM /

SECURITY

SAFETY AND SECURITY

Ventilation

All motorhomes comply with BS EN 721. The ventilation points on your motorhome are xed

points of ventilation which are required by the

European Standards.

All motorhomes have ventilation at high level and low level which have been calculated to suit the individual needs of your motorhome.

High level ventilation is achieved by means of the roof lights and washroom roof ventilators (where applicable). The low level ventilators are positioned under sink units.

Under no circumstances must these vents be blocked or obstructed in any manner as this

could lead to insucient fresh air. In this case the conned atmosphere becomes depleted of

oxygen which could lead to dangerous levels of carbon dioxide (CO2) build up leading to the risk of asphyxiation.

The risks of carbon monoxide (CO) build up, which is a colourless, odourless and tasteless gas, will also be reduced with ventilation. Carbon monoxide is produced from incomplete combustion and should the CO detector be activated the cause of the incomplete combustion must be investigated prior to reusing the appliance in question.

It is advised that xed ventilation points are

checked and cleaned (if necessary) on a regular basis using a small brush and a domestic vacuum cleaner.

Additional night time ventilation is obtained by releasing the window catches and placing them in the second groove. Note the windows are not sealed from rain in this position.

As the ventilation levels are calculated to suit

each model requirements no modications

should be made which may result in reduced ventilation levels.

CO alarm

Your motorhome is tted with a Fireangel

CO- 9D Carbon Monoxide Alarm. To activate the alarm pull the disabling tab as shown in the above image. Please read the instructions for the alarm, which are available at the following location:

https://cdn2.hubspot.net/hubfs/2274469/ FireAngel/Manuals/CO-9D%20manual.pdf

If you are unable to view the documents on line, please contact the supplier, your dealer or Swift for an electronic or paper copy.

WARNING: Do not obstruct ventilation.

SWIFT COMMAND TRACKER

Security

Motorhome theft:

The theft of a motorhome can occur in the most unlikely circumstances; from a motorway service area or even an owner’s driveway. Secure all windows and doors when your motorhome is unoccupied even if only for a short length of time.

SAFETY AND SECURITY

VIN (Vehicle identication Number)

Record your motorhome VIN which can be found on the lower edge of the base vehicle front windscreen and the plate located on the front cross member under the bonnet.

Make a note of these numbers in the space provided at the front of this handbook and make a separate note of the numbers to keep safe at home.

Additional security

Consider tting any device which might deter

intrusion by thieves. Customers are advised to identify their motorhome with a method

for subsequent identication if other forms of identication have been altered or removed.

Free crime prevention advice about securing your motorhome, protecting your valuables, property marking either at home or whilst on site, can be obtained from the Crime Prevention

Ocer through your local Police station.

Swift Command Tracker by Sargent

A Swift Command Tracker is built in to your vehicle and forms part of the Swift Command system.

The unit is Thatcham Category 6 certied and

is monitored by an approved monitoring centre which operates 24 hours a day 7 days a week

and provides European coverage and direct

police liaison.

This system is ready for use, all you need to do is purchase a tracking subscription by visiting www.swiftcommand.co.uk or calling Sargent on 01482 881655.

The subscription cost is £95 per year including VAT.

For more information please visit www.swiftcommand.co.uk

Operation

The Swift Command Tracker is easy to operate as it is controlled by the vehicle systems.

In a motorhome the tracker is armed / disarmed by the ignition key.

When the ignition is turned o the tracker

is armed. When the ignition is turned on the tracker is disarmed.

Event of a Theft

If the vehicle is moved whilst the tracker is armed the geo-fence monitoring will trigger a theft event.

The monitoring station will now contact you

to conrm the theft or false alarm. You will be required to conrm your identity against the

information you provided when you subscribed.

If a genuine theft is conrmed the monitoring

station will liaise with the police and keep you informed of progress.

Note; during a theft event to comply with legislation you will not be able to manually locate your vehicle using the Swift Command locate feature.

Contact

Before contacting any of the following please ensure you know your caravan or motorhome serial number. For motorhomes this is the unique MH number (e.g. MH01234).

The Swift Command Tracker monitoring station can be contacted on 0345 6027302. The stations operates 24 yours a day 7 days a week.

Sargent customer support can be contacted on 01482 678981 or via

support@swiftcommand.co.uk

Telephone lines are manned during normal

oce hours.

Swift customer support can be contacted on

01482 875740 during normal oce hours.

VIN CHIP™

SAFETY AND SECURITY

Precautions

The Swift Command Tracker monitors the leisure battery supply and if the voltage falls below a set level or the battery is removed this will trigger a fault event.

If you plan to remove your battery for maintenance or external charging please

contact the monitoring station BEFORE

removing the battery.

If you lose an ignition key you will need to visit a Fiat dealer for key replacement and removal of the ‘lost’ key.

VIN CHIP™

Your motorhome has been securely marked and the VIN recorded with VIN CHIP™.

VIN CHIP™ is the industry standard security marking system for touring caravans and motorhomes.

Shortly after purchasing this motorhome. you will receive via email your VIN CHIP™ registration document. This document will

include the 17 digit VIN (vehicle identication

number) and other relevant details about your motorhome. If you sell your motorhome, please follow the instructions on the VIN CHIP motorhome document.

VIN CHIP identication

The motorhome’s unique 17 character VIN will be incorporated into VIN CHIP tamper evident labels;

The master VIN CHIP label is situated on the front near side window to aid police checking, another in the gas locker and a maximum of 10 placed on the inside of the windows (with the exception of opaque windows).

Three electronic RFID chips containing the individual identity of your caravan are concealed within the motorhome and can only be read by using a specially programmed RFID scanner.

Your local police can obtain the use of a VIN CHIP™ scanner by contacting VIN CHIP on tel: 0333 2124746.

For help, support and advice, contact: VIN CHIP PO Box 445 Aldershot GU11 9SF

Tel 0333 2124746 www.vinchip.co.uk

ARRIVAL AT SITE

Positioning the motorhome 42

ARRIVAL AT SITE

POSITIONING THE MOTORHOME

Positioning the motorhome

Note: Check and observe site regulations.

Keep to roadways unless otherwise directed. Adhere to speed limits. Note that these are

ARRIVAL AT SITE

generally 10mph.

(Remember that the stopping distance on grass is considerably greater than on tarmac.)

Only a person in possession of a current driving licence may drive on the site.

Selecting a pitch

Do not pitch in such a position that your motorhome will obstruct others coming in.

Try to choose an area which is dry, reasonably level and preferably with a hard base.

If you have no alternative but to pitch on a slope try to ensure that you are facing down the slope, for when you leave.

Levelling the motorhome

Levelling must be carried out in both directions for the refrigerator and other equipment to function correctly. Stepped levelling boards (Fig. A) or proprietary ramps are ideal for this purpose. Levelling pads or boards should be used under the steadies where the ground is soft or uneven.

Fig. A

Awnings and Tents

Awnings and tents should only be used when permission has been obtained. When on grass and staying for more than a few days

the ground sheet and/or side aps of awnings

should be periodically raised in order to avoid damage to the ground.

CONNECTING SERVICES

Water system 44

Pressure switch 48

Water level sensor and cleaning 50

Typical gas schematic drawing 53

Gas 54

Types of gas 55

En-route heating 56

Gas safety advice 57

The Electrical System 60

Overseas connection 60

230v mains electrical equipment power consumption 61

Typical appliance consumption gures 63

CONNECTING SERVICES

WATER SYSTEM

Water system - Introduction

All Swift Group motorhome water systems

have been designed around a pump tted

within the motorhome. This pump draws water

from an under oor or internal water tank,

to provide water pressure within the water system, whenever it is switched on and water is available.

The schematic below shows the basic

CONNECTING SERVICES

conguration of the water system:

WATER SYSTEM SCHEMATIC MOTORHOME WITH FITTED FRESH WATER TANK

When power is supplied to the pump, it will draw water from the water tank, and pump it to the motorhome taps, shower and water heater.

The pump is tted with its own pressure switch,

and will continue to pump water, until the pressure of water on the output of the pump reaches a pre-set level. For this pressure to be achieved, the taps must be closed.

When the taps are opened, water will leave the tap via the spout, and the pressure in the pipes between the pump and the taps will reduce. Because of this reduction in pressure, the pressure switch on the pump will switch back on and the pump will again run to pump more water.

Close to the pump, the water under pressure is split into two paths:

1. Through blue water pipes routed directly to the cold connection of each tap.

2. To the water heater.

Water from the pump enters the bottom of

the water heater. Once the water lls the water

heater (typically 10 litres), water then leaves the water heater via a connection at the top of that water heater. This water, which is still under pressure, then routes to the hot connection of each tap via the red pipes.

To winterise the system please see separate details later in this handbook.

PRIMING & CLEANING

WATER SYSTEM

CONNECTING SERVICES

Priming the Water System.

1. Close the water tank drain valve or re-t the

drain bung. (Model specic)

2. Fill the water tank with water.

3. Close the water heater drain valve (see

boiler instructions in the tted equipment

section)

4. Open all the taps except the shower tap. Mixer taps should be opened in the central position so that both the hot and cold pipes

are purged of air. Ensure the tap spouts are

over the sinks.

5. Turn on the pump using the button on the control panel (See pump button in

paragraph 2.5 of the Electrics section).

6. Turn each tap o in turn as and when the air is expelled and the water runs smoothly from each tap. Move the mixer taps to hot and then cold to check that the air is out of both the hot and cold pipes before turning

them o.

7. Whilst holding the shower head down towards the shower drain, open the shower tap and shower head tap until all the air is expelled and the water runs smoothly. Turn

the shower taps o.

8. Top up the fresh tank with water.

Please note that priming the system will

automatically ll the water heater with water.

Please ensure all taps are fully turned o when

not in use (except when winterising).

Note: All tanks are tted with a breather which acts as an overow. Overlling a tank

will result in water being expelled from the

overow.

Cleaning water system

Clean the water system at the start and end of

the season with sterilising uid.

Sterilising

When cleaning the water system at the start or the end of the season it is advisable to use

a suitable sterilising uid available from your motorhome dealer. The uid must be suitable

for use with stainless steel components

Flush the system thoroughly to remove the

eective uid traces.

When water is rst introduced, or the water

supply in the internal tank, runs out, air will be present in the pipework. It is important that every tap is run to remove any air in the system before, for instance, the shower is used. Air left in pipework local to a tap can act as an

accumlator and aect the ratio of hot and cold water owing from other taps or shower mixers

in the system.

System care

Allowing water to freeze in the system may result in damage to the pump and plumbing system.

Non-Toxic antifreeze for potable water may be used with Truma pumps. Follow manufacturers recommendations.

Do not use automotive antifreeze to winterize potable water systems.

These solutions are highly toxic and may cause serious injury or death if ingested.

Sanitising

The water systems, and in particular storage tanks, in motorhomes are susceptible to contamination by bacteria if care is not taken with their use and cleaning. The symptoms caused by bacterial contamination are not purely limited to gastro-intestinal diseases, but may also manifest themselves as ear, nose, throat, eye or skin infections. It is therefore important that you carry out the following procedure prior to using the motorhome each

time, even if you boil or lter all water you use

for drinking.

WATER SYSTEM

Separate Water Containers

1. All water remaining in the container should be disposed of so that the container is empty.

2. The outside of the container should be thoroughly cleansed and washed down to remove any dirt, dust or other contaminant. Water at a suitably hot temperature containing an appropriate detergent is

CONNECTING SERVICES47CONNECTING SERVICES

recommended for this purpose.

3. Water should be put in the container, swirled around, then emptied out.

4. The container should then be totally lled with water containing an appropriate sterilant solution and allowed to stand for the recommended contact time.

5. The solution should be emptied from the container.

6. The opening of the container should be cleaned thoroughly with an appropriate prepared wipe impregnated witha sterilant.

7. The container should be inverted whilst stored overnight (if possible).

8. The container must be lled with mains water only and mains water only should be used for the above cleaning procedure.

9. On no account should garden hoses be

used to ll water tanks.The container should

be inverted whilst stored overnight (if possible).

For Systems:

1. Drain down the system (open all taps to allow air in, enabling the system to drain quickly).

2. Remove any water lters tted, and replace

with a short length of hose or empty lter cartridge (this will ensure the lter is not aected by the disinfectant/ sterilant

solution).

3. Fill the water system with a disinfectant/ sterilant solution (check that the solution at full strength appears at all taps/showers). Allow to stand for the recommended period of time.

4. Drain the system completely.

5. Thoroughly clean the outside of all taps/

connectors with a cloth soaked in the disinfectant/sterilant.

6. Flush the system through with clean drinking water until no traces of disinfectant/ sterilant can be detected at any tap.

Suitable sterilising chemicals are available from your motorhome dealer, accessory shop, chemist or home-brew shops. It is not, however, recommended to use bleach or

sodium metabisulphite.

Sterilising

Do not use products that contain aggressive agents for sterlising the water system. Always use products designed for stainless steel tanks available from your motorhome dealer.

Note: Never use the water heating system

when disinfectant/sterilising uid is present.

Doing so may damage the system.

Waste water system

1. The waste water holding tank is secured

below the oor of the motorhome, and is

gravity fed.

2. In order to eliminate unpleasant odours as much as possible, only smooth bore pipes are used.

Should the waste water tank be overlled, it is possible that waste water will backll the pipes

until it eventually appears in the shower tray. In order to prevent this, please monitor the water level gauges on the motorhome control panel. It is also possible to to enable a ‘waste tank full’ alarm, on the control panel.

The waste water tank is tted with an

electrically operated valve, which when opened will drain the contents of the waste water tank. The valve is controlled using the control panel above the motorhome entrance door, please see futher details in the Swift Command section of this handbook.

Fresh water system

1. All ttings, including the holding tank, water pipes, taps and connections are of food quality material (to BS6920) and therefore,

should not aect the quality of the water

used. It is recommended however, that the

system is ushed through twice before it is used for the rst time, and always cleaned/ ushed after it has stood unused for a

period of time (eg over the winter period). Care has been taken (using smooth bore pipes etc) to eliminate as many water traps as possible.

2. When lling the fresh water system remember to check that the water source is suitable for use as drinking water and, if you are using a hose pipe or water carrier, that it is also made from nontoxic materials (preferably food quality material).

3. The fresh water tank is tted with an

electrically operated valve, which will drain the contents of the fresh water tank. The valve is controlled using the control panel above the motorhome entrance door, please see futher detail in the Swift Command section of this handbook.

Escape fresh water tank showing central

cleaning hatch

CLEANING WATER SYSTEM

CONNECTING SERVICES

Lockable water ller inlet

Fresh Water Tank

Your motorhome is tted with a water tank lled from the outside via a lockable water ller cap. When lling, use a hose manufactured from

non toxic material, to prevent tainting of the water. Remember, if the water heater has been drained it will require 10 litre (2.2 gal) of water

to ll it.

External 12v Fill Socket

Your motorhome is tted with an external 12v

socket which can be used to attach an external

12v tank lling pump.

WARNING: pressurised by a pump which will continue to operate until it senses a preset pressure in the system.

If the fresh water tank is completely empty the pump will be unable to pressurise the system and will operate continuously. In this situation it is essential that, in order to avoid

damage to the pump, it is switched o using

the pump isolator switch on the distribution panel until such time as the water tank has

been lled.

Tank heaters

Depending on specication, your motorhome may be tted with 12v tank heaters, designed

to prevent or reduce instances of freezing water

in tted water tanks.

If tank heaters are tted, they can be turned

on via the control panel feature of the Swift Command panel above the entrance door (see page 74). Turn this feature on when the external temperatures are low, and the tank heaters will

then turn on and o automatically.

Before heating each tank the system will check that the water level in each tank is at the 1/4

CLEANING WATER SYSTEM

level or higher (the heaters will not operate if the tank is ‘empty’). If the water level is appropriate, the heaters will then switch on and

o depending on temperature.

As the tank heaters check the water level in each tank, the fresh and waste water tank heaters can operate independently, for instance use of frost protect feature while the fresh tank is full, but waste tank is empty, would only result in the operation of the fresh tank

CONNECTING SERVICES

heater.

It is also possible to use the tank heaters enroute, i.e. while driving. With the control panel ON, turn on the tank heaters as described above. While the engine is running the control panel cannot be operated, however, the tank heater circuits will remain ON.

Please note that the heating elements use a

12V supply. With the engine o, and if used

without a mains hook up and charger operating, then leisure battery power consumption will be increased (see consumption table on page 63 for more information).

Pressure Switch

The purpose of a pressure switch is to monitor the pressure on the outlet side of the pump. When a tap is closed, and the pump continues to run, there is an increase of pressure in the system, and when that pressure reaches a pre-set limit, the pressure switch will turn the

pump o.

Pressure switch adjustment

Pressure Switch Adjustment, Truma/Flo-Jet

pump. (Normally Grey upper section with White lower section/valve housing)

• All of the Truma/Flo-Jet pumps used by Swift are pre-set at 25psi - 31psi.

• To further adjust the pressure switch setting,

a cover cap must be rst be removed from

the end of the pump to reveal a pressure adjusting screw, as shown in the photos. A maximum of 1/4 turn clockwise or anti-clockwise, from the factory setting, is advised. Turning the screw clockwise 1/4 turn will increase the pressure switch cut-out pressure, turning the screw anti-clockwise will reduce the pressure setting.

Please note a second screw mounted below the cover cap is set in position with threadlock, this should not be disturbed

Cover cap

Pressure switch adjusting screw

The pump may have to be removed to gain access to the adjusting screw. Drain the water

system before removing the pump. To remove the pump pull the blue taps at right angles to the pipe work and lift the pump out.

PRESSURE SWITCH TROUBLESHOOTING

CONNECTING SERVICES

Troubleshooting

Pump will not start, when the tap is opened:

• Check fuse(s).

• Check power source(s), and ensure there is

sucient voltage to run the pump.

• Ensure ‘pump’ LED is illuminated.

• Using a multi-meter, ensure there is power at the pump. If not, refer to your dealer as there maybe damaged cabling or a fault with the

CONNECTING SERVICES

fusebox.

• Is the pump hot? If so, allow to cool before retrying.

• Has the vehicle been stored over winter? was it correctly winterised? If no, the pump may have frozen, causing permanent damage.

• The pressure switch may need adjusting. (See pressure switch paragraph in this section for how to do this)

Pump runs, but will not pressurise system (i.e. no or little water being discharged from taps)

- Not Pulsing:

• Ensure that there is water in the fresh water tank.

• Check in-line lter is free from debris and

correctly tted.

• Ensure water system has been primed correctly, (see priming the water system page 45), and there are no air-locks present.

• Ensure there are no restrictions in the plumbing.

• Ensure the inlet side of the pump is watertight and not allowing air into the system.

• Using a multimeter check that the voltage is between 10 and 14.5 volts. If not, refer to your dealer.

Pump continues to run (for more than 5

seconds) after taps are closed or pump turns

on for no reason:

• Check for leaks on the high pressure side of the pump.

• Ensure water system has been primed correctly, as per the handbook, and there are no air-locks present.

• Ensure the pump is securely mounted.

• Ensure the piping on the high pressure side of the pump is in good condition (not blowing or deforming).

• The pressure switch may need adjusting. (See pressure switch paragraph in this section for how to do this)

Noisy or rough operation

• Check for leaks on the high pressure and low pressure side of the pump.

• Ensure that all pipes (especially those

• within 150mm of the pump) are not touching any furniture.

• Ensure the pump is securely mounted

Pump rapidly cycles (switches on or o) or water pulses from taps, including

temperature pulsing:

• Check for leaks on the high pressure and low pressure side of the pump.

• Ensure there are no restrictions in the plumbing

• The pressure switch may need adjusting. (See pressure switch paragraph in this section for how to do this)

WATER LEVEL SENSOR & CLEANING

CONNECTING SERVICES

Water level sensor & cleaning

Principle

The sensor, tted to Swift Group motorhomes are pre-tted to water tanks, and link to the control unit, via a pre-tted wiring harness. The

sensors, which consist of a number of stainless

steel rods or probes, at dierent lengths, are

immersed in the fresh or waste water, and use the conductivity of water, between the probes,

CONNECTING SERVICES

to provide a reading to the control unit.

The sensors are ‘digital’, in that while the conductivity (resistance) value can vary, the fusebox will register any conductivity between

the reference probe and the various dierent

length probes, indicating water present.

Normally, even if the rods are dirty, and providing the rods have not bridged by a foreign object, a circuit will still be delivered back to the control unit and a water level displayed.

Sensor cleaning

The rst step, in case of fault diagnosis, is

to clean the sensor rods. False water level readings at the control unit can be caused by calcium build-up or foreign objects within the

tank bridging the probes. (Especially with waste

tanks).

To clean sensor:

WARNING: Only use food safe plastic

mesh scourers, which are suitable for domestic use, for cleaning the sensor studs.

1. Remove the sensor from the tank

2. Check the probes for build up of contamination

3. Use clean soapy water

4. Place scourer in water to dampen

5. Apply scourer to the sensor probes withlimited pressure

6. Rub sensor probes removing contamination

7. Swill sensor probes with fresh clean water

8. Replace sensor into tank.

WATER SYSTEM FAULT FINDING

Water

Fault Cause Remedy

Water not owing from

any tap when operated but pump runs

Freshwater tank empty

Pump wired in reverse

Pipe inlet or outlet pipe disconnected

Check

Check wiring, refer to pump manufacturers instructions

Check connections

CONNECTING SERVICES

Pump pipes restricted by kinking

Blockage in pump inlet or outlet pipe

Blocked pump lter

Air leak in suction line to pump

Pump does not run Pump incorrectly wired

Pump fuse blown

Battery disconnected

Pump seized or overheated

Pressure pump sensing switch may have failed

Contacts may be faulty

Wiring connections may be faulty

Water ows from cold

tap but not from hot

Blockage in hot pipeline

Heater inlet or outlet pipes kinked

preventing ow

Hot tap failed or blocked

Check pipes run

Check, starting inside freshwater tank

Dismantle and clean lter. See pump

manufactures instructions.

Check condition of pipe and pipe joints between the water tank and the pump.

Refer to pump manufacturers instructions

Check wiring connection and then replace with fuse of correct rating

Check connections

Refer to pump manufacturers servicing instructions

Check contacts in plug and socket are clean and making contact

Check wiring connections

Disconnect pipes and inspect

Check and re-route if necessary.

Disconnect and inspect

Heater non-return valve jammed

Seek service attention

WATER SYSTEM FAULT FINDING

Water

Fault Cause Remedy

Water ows from hot

tap but has reduced

ow from cold

CONNECTING SERVICES

Reduced ow from

both hot and cold taps

Reduced ow from

either tap

If pump motor runs steadily and will not stop

Cold water pipe kinked preventing ow

Blockage in cold pipe line

Cold tap not connected

Cold tap failed or blocked

Battery condition low causing pump to run slowly

If new taps have been tted they may be restricting ow

Pump needs servicing

Partially blocked pump lter or in-line lter, if tted

Pump outlet pipe kinked restricting ow

Water leak

Pipe kinking restricting ow

Bore size dierence in taps

Battery voltage may be too low (below

10.5 volts)

Check and re-route if necessary

Disconnect pipes after 1st connector and check up to tap

Refer to installation instructions

Disconnect and inspect

Check battery state of charge, refer to electrical supply note

Disconnect and check that they have at least 1/4” (6.3mm) bore

Refer to pump servicing instructions

Dismantle and clean if necessary

Check and re-route if necessary

Check all water connections

Check and re-route if necessary

Use taps of equal bore size

Check that there is water in the container Adjust switch and/or re-charge battery. Check all connections in pipework

GAS SCHEMATIC

OR Triplex Oven

Gas Hob (with or without minigrill)

Fridge

CONNECTING SERVICES

Manifold

Typical gas schematic drawing with Combi Boiler

Gas Cylinder

Regulator

Truma heating Appliance

GAS

Gas

General information Gas Cylinders

Bottled Liqueed Petroleum Gas (LPG) is the

most convenient portable source of fuel for your vehicle.

The gas cylinder, cooking and heating appliances should be isolated when travelling

unless your motohome is tted with en-route

heating.

CONNECTING SERVICES

Regularly check exible gas hose, joints and

connections for tightness. Finally make sure

that each gas appliance is working eciently

to the recommendations of the appliance manufacturers.

The LPG system should be inspected annually by a competent person.

Only use gas cylinders that are located within their dedicated position within the gas bottle housing never extend the hose - hose lengths must not exceed 400mm.

Your vehicle is supplied with a wall mounted gas regulator plumbed inside the gas bottle compartment. The regulator and all appliances work at a harmonised 30mb pressure, which work with Butane and Propane gas.

Pressure regulation system in this vehicle

has a xed working pressure of 30 mbar with a ow rate of 1.5 kg/H and complies with the requirements of EN 12864 annex D.

We do not recommend the use of an inline LPG BBQ with the 1.5kg/H regulator when other LPG appliances are in use.

Gas Hoses

High-pressure hoses or pigtails as they are called must be used with the new style regulator.

High-pressure hoses incorporate a safety shut

o valve for the use of the en-route heating

system.

LPG cylinder i.e. Propane, Butane, BP and Camping Gaz cylinders all have unique bottle adaptor connections. It is important to check you have the correct hose and adaptor to suit your gas cylinders.

Push on hoses are no longer permitted under the latest regulations.

The high-pressure hoses have threaded connections and must be securely attached to the regulator and to the gas cylinder.

The hose connection to the pressure regulator relies upon a sealing washer(s) to maintain a gas tight joint, and it is essential to check that the washer is present, sound and correctly positioned prior to making the connection. The gas cylinder connection relies on a metal seating or bull nose connection to obtain a gas tight joint, therefore it is essential that the mating surfaces are clean and undamaged. In no case should a damaged valve or connection be used.

Ensure that there is a constant rise in the exible gas hose between the gas cylinder

outlet and the regulator elbow.

WARNING: Inspect exible gas hose(s)

regularly for deterioration and renew as necessary with the approved type, in any case no later than 5 years after the date of manufacture marked on the hose. When replacing the en-route hose ensure the new

hose incorporates a safety shut o valve

(Hose rupture protection)

WARNING: Ensure that the high pressure

hose is not excessively twisted or under stress when connected to the LPG cylinders and regulator.

WARNING: Always ensure the gas supply is isolated at the LPG cylinder (and not at the regulator) whilst the vehicle is in storage for any period. It is important to ensure that the high pressure gas hose has a continuous rise from the bottle cylinder to the regulator to allow any condensate to fall back into the gas bottle cylinder.

Cylinder compartment

Some cylinder compartments have four plastic

mouldings per cylinder position tted to the oor of the compartment that are designed to t both steel and BP Gas Light cylinders. Either

two straps are provided for retaining the

bodies of the cylinders at mid to high level or a single ‘holding ring’ strap is provided which secures the gas cylinder to the base of the compartment.

Types of gas

Propane

Propane is supplied in red, or partly red cylinders which have a female left hand threaded connector.

Scandinavian countries use the same connector.

Germany and Austria supply propane with a male connection.

Propane will work at temperatures as low as

-40°C and is therefore suitable for all winter motorhoming.

Note: Swift recommend that 6kg Calor propane gas bottles are used.

Butane

Butane is supplied in the U.K. in green or blue cylinders.

All these have a male left hand thread

EXCEPT for Camping Gaz which has a special

female right hand thread and Calor 7kg and 15kg and aluminium bottles which have a special clip-on connection.

Continental cylinders usually have a male left hand thread similar to but not identical with U.K. butane.

Butane is only suitable for use at temperatures down to 2°C but will not work below that.

TYPES OF GAS

& REGULATORS

CONNECTING SERVICES

Note: A hose suitable for use with propane has been supplied with your motorhome.

CHANGING GAS CYLINDER

Changing a gas cylinder

Please use the correct size spanner for the gas hose connectors as this will prevent damage to

the screw ttings and ensure that the tting is tightened suciently.

• Turn o gas appliances

• Close the empty gas cylinder’s valve

• Remove the high pressure hose from the gas

CONNECTING SERVICES

cylinder.

• Attach the high pressure hose to the full gas cylinder.

• Open the full cylinder’s valve.

• Press the hose-break safety device and the

gas-ow monitor.

Check the hose connection to the cylinder valve for leaks.

Operating instructions

Use of safety devices

1. Open cylinder valve

2. Firmly press the hose rupture protection (green button) on the high pressure hose for

about 5 seconds (g 1 item 1)

3. If the Yellow reset button (g 2, item 7) is not pressed (“not ready for operation” position), reset the crash sensor. To reset,

press the Yellow reset button (g 2, item 7) rmly, turning it slightly clock-wise, hold it

for 5 seconds and ensure that it stays in the

“ready for operation” position (gure 2).

If the re-set is not successful, use the Torx

(T20) screw aid (g 3, item 12) to support the

clockwise rotation.

En-route heating

An en-route heating system is installed with additional safety features.

WARNING: When re-fuelling your

motorhome, switch o the heater and close

the cylinder valve.

Safety features

• MonoControl CS regulator incorporating a

crash sensor which stops the gas ow in the

event of the motorhome being involved in a

trac collision.

• Gas ow monitor

• Hose rupture protection is installed.

The full system is homologated in compliance

with UN ECE Regulation 122

Fig. 1

Fig. 2

Fig. 3

GAS SAFETY ADVICE

CONNECTING SERVICES

Note: Modications, servicing and repairs must only be carried out by a competent service engineer.

Note: The regulator should be replaced no more than ten years after manufacture.

WARNING: To ensure the safe working of the en-route heating any replacement high pressure hoses must be of the same type as

originally tted. They must have the safety

valve to ensure that the gas does not leak out in the event of damage to the gas pipe work in

the event of a trac collision.

WARNING: When travelling using the en-route system all other LPG appliance shut

o valves must be in the closed position

including the cooker, water heater etc.

Note: It is dangerous and illegal to operate other LPG appliances whilst travelling. Service and repairs must only be carried out by a competent service engineer.

Gas safety advice

WARNING: If you smell gas or suspect a

leak or in the event of a re and if it is safe to do so, isolate the gas appliances and turn o the gas bottles at the regulator. Evacuate the

motorhome and ventilate. Seek professional advice as to the cause of the leak.

Facts about LPG

• LPG is not poisonous.

• Bi-products are harmless.

• There is danger if all air and oxygen were excluded.

• (Ventilation holes must be kept clear at all times).

• LPG has been given a smell by the manufacturers in order to identify leaks.

Awning Spaces LPG Appliance Exhaust

There is no danger of pollution of an enclosed awning space by the LPG exhaust from a refrigerator venting into it, as awning spaces are generally well ventilated.

Space heaters may produce sucient exhaust

to pollute the awning space, if it is totally enclosed, from a general comfort, smell and hygiene point of view. In the extreme case there could be a build up of carbon dioxide to a dangerous level.

Motorhome owners are advised to allow some fresh air circulation in the awning space when such appliances are in use.

General Safety Notes

In the event of leaks in the gas system or if there is a smell of gas:

• Extinguish all naked ames.

• Do not smoke.

• Switch o the appliance and gas cylinder.

• Open the windows.

• Do not operate any electrical switches.

• Have the entire system checked by an expert.

Precautions

a. Never look for a leak with a ame. Always

use a soap solution or its equivalent when testing connections. Do not operate any electrical apparatus whatsoever, especially light switches. If the leak is not obvious, the motorhome should be evacuated and

qualied personnel consulted.

b. Avoid naked lights when connecting or

changing a cylinder.

c. Check the exible hose frequently.

d. The gas is heavier than air and therefore

sinks to the lowest point.

e. Keep bottle gas containers outside (and

protected against frost). If they must be kept inside make sure they are well away from heat.

WARNING: Do not use appliances with a

dierent working pressure to 30mbar.

WARNING:Maintain adequate spacing of

combustible materials from sources of heat.

WARNING: Do not use independent portable gas appliances inside the vehicle. Cookers shall not be used as heaters

GAS SAFETY ADVICE

WARNING: A BBQ point inlet valve, if tted,

must only be used for the connection of portable LPG appliances.

WARNING: If in doubt, Ask!

Always read individual appliance instructions

Connection

Ensure that the gas regulator hose is correctly

CONNECTING SERVICES

connected to the gas cylinder in gas bottle compartment and that the hose connection is tight.

Gas cylinders must be fully located, seated at the base of the bottles and restrained by the straps provided in the dedicated compartment position. Straps are positioned to suit 6kg, 7kg and 13kg bottles.

WARNING: : If using cylinders other than those recommended, the user must ensure these are adequately supported, ventilation openings must not be obstructed and the cylinders must not cause damage to other

xtures

Open ended gas hoses must always be protected from dirt and insects.

Before turning on the gas supply at the regulator, ensure that all gas operated

equipment in the motorhome is turned o.

All gas equipment is supplied through a Gas Manifold System which has individual isolation

Fig. A

taps for each appliance (Fig A), as follows:

RED - Water Heater / Combination boiler

WHITE - Heater / Heating system

BLUE - Fridge

GREEN - Hob / Grill / Oven

YELLOW - Grill

Note: If the motorhome is in storage or not being used for a period of time, we

recommend turning o the gas supply at the

gas bottles.

Flue installations

All ue installations should be inspected once a

year throughout their length for corrosion. Flues should be replaced if any sign of perforation

is found. Ensure that the replacement is of an

approved type.

Thermal insulation heating

Your motorhome has been designed to achieve a thermal insulation and heating level

for specic climatic conditions when tested according to the procedure in EN1646-1.

See the motorhome technical book for the

classication of your motorhome. All Swift

Group motorhomes achieve a Grade 3

classication.

The classications are as follows:

Grade 1

A motorhome with an average thermal transmittance (u) that does not exceed 1.7w/ (m2k).

Grade 2

A motorhome with an average thermal transmittance (u) that does not exceed 1.7w/ (m2k) and which can achieve an average

temperature dierence of at least 20°C

between inside and outside temperatures when the outside temperature is 0°C.

Grade 3

A motorhome with an average thermal transmittance (u) that does not exceed 1.2w/ (m2k) and which can achieve an average

temperature dierence of at least 35°C

between inside and outside temperatures when the outside temperature is -15°C.

Gas

Fault Cause Remedy

Hob does not light No gas

Check level of gas in cylinder Check gas cylinder valve is on Check gas taps are on

GAS FAULT FINDING

CONNECTING SERVICES

Air in pipe

Oven does not light No gas

Air in pipe

BBQ does not light No gas

Over gassed Air in pipe

Fridge does not light No gas

Air in pipe

Combination Heater does not light

No gas

Air in pipe

Purge system Refer to hob manufacturers instructions

Check level of gas in cylinder Check gas cylinder valve is on Check gas taps are on

Purge system Refer to oven manufacturers instructions

Check level of gas in cylinder Check gas cylinder valve is on Check gas taps are on

Turn o appliance, wait 2 minutes and try

again Purge system

Check level of gas in cylinder Check gas cylinder valve is on Check gas taps are on

Purge system Refer to fridge manufacturers instructions

Check level of gas in cylinder Check gas cylinder valve is on Check gas taps are on

Purge system Refer to water heater manufacturers instructions

ELECTRICAL SYSTEM

The electrical system

General Information

It is strongly advised that the mains installation is inspected periodically to ensure safe use. The

IET (BS7671) wiring regulations recommend

that mains installations in motorhomes are reinspected every 3 years or annually if the van is used frequently. The National Caravan Council

lists the qualications necessary to perform

CONNECTING SERVICES

this inspection, but an NICEIC approved contractor is probably the rst choice.

On arrival at the campsite

• Check the suitability of the supply, is it AC or DC, is the voltage and frequency correct.

• Ensure that there is a proper earth (3 pin socket outlet).

• If in doubt consult site sta.

• Make sure that the supply from the site is

switched o.

• Make sure that the charger switch on the

PSU is switched o.

• Lift the cover on the electricity inlet on the motorhome, and insert the connector on the

exible supply cable.

• At the site supply point, connect the other end of the supply cable to this using the socket provided.

• Switch on the main switch at the site supply point.

On departure from the campsite

• Switch o supply from the site, disconnect the cable at both ends.

• Switch o RCD.

Note: Never use a mains supply lead whilst coiled. Always uncoil the full length before connecting to the supply and remember to

protect the cable from trac.

WARNING: Current consumption in the motorhome must not exceed 16 amps or the pitch permitted maximum if this is less than 16 amps.

Overseas connection

• Connection to a mains voltage overseas requires particular attention.

• Overseas supplies can be of reverse polarity.

• Reverse polarity results in equipment not

necessarily being isolated when turned o,

reverse polarity indicator on the PSU will light in the event of reverse polarity.

• The only sure way to make equipment safe is to unplug it.

• It is useful to have a means of checking polarity when overseas.

• If it can be achieved then connect live to live, and neutral to neutral to achieve full electrical protection.

Note: It is good practice to test the RCD (Residual Current Device) in the PSU before switching on. There is a test button on the RCD to test the lever, put the lever in the up position (on) before testing.

Note: As with the RCD it is good practice to check the Miniture Circuit Breaker (MCB) in the PSU. Switch all to the on position (lever up). If any do not stay up then there is a fault.

WARNING: Never allow modications

or repairs of electrical or LPG systems and

appliances except by qualied persons.

230V mains electrical equipment power consumption

Please note:

It is possible that the 230V mains electrical equipment may not all operate simultaneously. A typical UK motorhome site mains hook up point provides a maximum output of 10 amps and on some continental sites the available output may be as low as 5 amps.

If your loading exceeds the site supply it may trip the site circuit breaker. Please check the available mains output with your site operator.

Similarly loadings on each circuit breaker within the vehicle should be observed.

A label positioned close to the MCB’s will identify which appliances within the vehicle are fed from which MCB. Consulting the table (Typical Appliance Consumption Figures) in conjunction with this label, will give an indication of which appliances can, and cannot, (site supply allowing), be operated simultaneously.

230V ELECTRICAL EQUIPMENT

CONNECTING SERVICES

CONNECTING CABLE WIRING

Wiring of connecting cable and motorhome mains inlet

BLUE

VIEW OF

TERMINALS

PINS

VIEW OF

LIVE

NEUTRAL

BROWN

EARTH

LIVE

YELLOW & GREEN

MOTORHOME MAINS INLET

CONNECTING SERVICES

FLEXIBLE 3 CORE CABLE 2.5mm

NEUTRAL NEUTRAL

EARTH EARTH

VIEW OF

SOCKET TUBES

LIVE

VIEW OF

TERMINALS

PINS

VIEW OF

LIVE

BLUE

NEUTRAL

BROWN

LIVE

EARTH

YELLOW & GREEN

VIEW OF

TERMINALS

BROWN

BLUE

EARTH

GREEN &YELLOW

NEUTRAL

CABLE COUPLER

NEUTRAL BLACK

LIVE RED

NEUTRAL BLUE

LIVE BROWN

FLEXIBLE WIRING FIXED WIRING

EARTH GREEN & YELLOW

NEUTRAL NEUTRAL

EARTHEARTH

VIEW OF

SOCKET TUBES

LIVE

RED

LIVE

VIEW OF

PITCH SUPPLY

OUTLET

TERMINALS

EARTH

GREEN &YELLOW

BLACK

NEUTRAL

The legal length of the mains inlet cable is 25 ± 2 metres. When in use it must be fully uncoiled and protected from trafﬁc.

TYPICAL APPLIANCE CONSUMPTION

CONNECTING SERVICES

Typical appliance consumption gures

230V 12V LP GAS

Watts Amperes Watts Amperes gram/hour

Appliances

Dometic Refrigerator 135W 0.6 amp 60W 5.0 amp Not applicable

Not Applicable 0.4 W-6.1W 0.05 amp-0.5 amp Not Applicable

900/1800W 3.9/7.8 amp 13W 1.1 amp (avg) 320 g/h

Truma Combi 4kW Gas/ Electric Heating

System

Dometic hob & bowl Not Applicable Not Applicable 73 - 160g/h

Minigrill hob Not Applicable Not Applicable 70 - 161g/h

Triplex oven hotplate 800W 3.5 amp Not Applicable Not Applicable

Triplex oven hob burners Not Applicable Not Applicable 70 - 161g/h

Triplex oven grill Not Applicable Not Applicable 117 g/h

Triplex oven Not Applicable Not Applicable 125-146 g/h

Battery Charger 690W 3.0 amp Not Applicable Not Applicable

12v LED lights

Note: These are approximate gures for guidance only, and are subject to changes in specication. The gures show energy consumption when an item or

appliance is operating – i.e. a light is illuminated, or a heating system is providing space heating or water heating. Appliances which feature LCD or illuminated control

panels can have a low current consumption when in stand by mode, or have a constant low current draw in the background to run their displays and electronic

systems - these gures are typically 0.4 amps or less, for each applicable item. These electronic items can in most cases be switched o individually, or, use of the

(each, depending on size of light)

Water tank frost element (Winter pack) Not Applicable 2 x 30W 2 x 2.5amp Not Applicable

System Shutdown button on the power supply unit isolates all of these items.

ELECTRICAL SYSTEMS

Motorhome battery 66

Swift Command Power control system 69

Control Panel System Operation 71

Swift Command Truma Combi CP+ controls 76

Swift Command system warnings 79

Swift Command technical information 81

Swift Command remote access 88

Cab radio 91

Radio aerial 91

Solar Panels 92

ELECTRICAL SYSTEMS

MOTORHOME BATTERY

ELECTRICAL SYSTEMS

Motorhome battery

Your motorhome has been tted with a sealed,

Absorbed Glass Matt leisure battery which is specially designed for installing on its side and without ventilation. The battery should only be positioned in the compartment under the driver’s seat, and be properly secured before travelling.

It is recommended that a good quality leisure battery is always connected when the motorhome electrical system is in use.

Leisure batteries are a deep cycling rechargeable heavy duty 12v battery designed to provide power for lights and other electrical appliances. Replacement batteries should be a proprietary brand leisure battery with a 85amp 110 amp capacity.

WARNING: When renewing a leisure battery care should be taken ensuring that a fully sealed Absorbed Glass Matt battery,

which can be tted on its side is used. IF UNSURE SEEK ADVICE Other types of leisure

batteries contain a liquid and electrolyte which will leak out if laid on its side. CONTACT

WITH THE LIQUID ACID CAN CAUSE SEVERE INJURIES AND DAMAGE TO THE VEHICLE.

Note: Replacement batteries should be checked dimensionally before purchasing,

to ensure tment within the battery

compartment, as brands vary in size.

It should be remembered that batteries suitable for the electrical demands of a motorhome

dier in design from those for use with a car,

and whilst the system may operate with a car battery it is strongly recommended that only a rechargeable leisure type battery, maintained in good condition is used.

WARNING: When connecting the battery, ensure that the correct polarity is observed (black is negative and red/brown is positive) and that the terminals are securely fastened.

Under normal circumstances it should not be necessary to remove the battery other than for routine inspection of terminals.

Your motorhome has been tted with an in-line

40 amp fuse between the battery terminal and the power supply unit. Do not use a higher rated fuse as this may cause damage to your motorhome.

WARNING: Switch o all appliances and

lamps before connecting or disconnecting

the battery. Open ames and smoking are

prohibited around the battery compartment.

To preserve the life of your leisure battery and charger please observe the following:

1. Do not leave all 12v lights powered at the same time as this will drain your leisure battery more rapidly.

2. If all 12v lights must be powered together, ensure the battery is ‘in-circuit’ and that the battery charger is turned on.

3. For optimum performance use the transformer/charger unit with a leisure battery attached.

Please note the auxiliary battery or batteries supplied with your motorhome may not be fully charged and should be charged for a minimum of 24 hours before use.

Battery performance may be aected by a

number of things such as ambient temperature, age, state of charge etc.

WARNING: It is imperitive that the battery is correctly secured as any movement could cause wear to the casing and cause electrolyte to leak.

WARNING: For your own safety do not store anything other than the leisure battery in the battery compartment under the driver’s seat.

MOTORHOME BATTERY

ELECTRICAL SYSTEMS

Battery removal

Step one

Remove the lower front seat fascia by pulling on the clip feature located centrally on the upper edge of the fascia. Using a small amount of the force the fascia can be pulled in upwards direction to fully detach it from the two lower clip positions.

Step two

Release the battery harness by carefully cutting the zip ties which are securing it to the lower seat frame. Then disconnect the battery

harness connector by pulling rmly on each of

the large black connector plugs.

Step four

Pull the battery forward out from under the seat frame.

Step ve

Carefully cut through the zip ties which are securing the battery terminal covers in place and remove the covers. Demount the battery terminals using a 10mm spanner taking care not to short the terminals.

Step three

Remove the two fabric straps by loosening the straps through the buckles.

MOTORHOME BATTERY

ELECTRICAL SYSTEMS

Battery replacement

Step one

Place the new battery on the cab oor and

remount the battery terminals using a 10mm spanner, taking care to observe the positive

and negative terminals. Ret the terminal

covers and secure in place using new zip ties.

Step two

Ensuring that the buckle are face down. Feed

the two fabric straps under the lower front and back bars. Hook the rear of the strap over the front top bar – this will prevent the strap being dragged backwards when sliding the battery into place.

Step three

Lie the battery on its side with the terminals

closest to the oor. Slide the battery into

position taking care not to drag the straps backward.

Step four

Reach up above the battery and up through the centre of the seat base to draw the strap back from the top bar. Now the strap is located on top of the battery re-secure the straps through the buckles.

Step ve

Tighten the strap as far as possible then slide the seat forward and passing the tails through the hole in the seat base. Then fully tighten the straps and place the tail straps under the seat

when fully tightened. Ensure that the straps

are located next to the battery terminals to limit movement of the battery.

Step six

Reattached the battery harness by rmly

pushing the electrical connector back together, stow cable and secure using zip ties across the front the seat frame.

Step seven

Reattach the lower front seat fascia by pushing

into lower clip positions rst then rotating the

fascia until the upper central clip engages.

Note: Any replacement auxiliary battery shall

be of the same type and specication as the original tted or specied by Swift.

SWIFT COMMAND

POWER CONTROL SYSTEM

ELECTRICAL SYSTEMS

Swift Command Power Control System

1. Introduction

This section of the handbook will guide you through the operation of the electrical system. All details are correct at the time of going to press. Please also see the online version which will include any later updates or amendments.

Further technical details are contained in section 3 or in the supporting technical manual available from www.sargentltd.co.uk

For the safe operation of all electrical equipment within your Leisure Vehicle it is important that you read and fully understand these instructions. If you are unsure of any point please contact your dealer / distributor for advice before use.

The system has a number of key components that you will need to be familiar with before attempting to use the system, these are:

• The EC652 or EC653 Power Supply Unit (PSU) a combined mains consumer unit and 12V controller usually located in a storage area (lower bed box, wardrobe or similar).

• The EC800 Control Panel (CP) - a remotely located user control panel used to turn

circuits on and o and to display battery,

water tank and other system information. This panel uses graphical touchscreen with straightforward controls and reliable data communication to the PSU.

• The PX300 Intelligent Battery charger 300W.

SWIFT COMMAND

POWER CONTROL SYSTEM

ELECTRICAL SYSTEMS

2. Using the System

2.1 Power Supply Unit - Component Layout

(see image above)

The PSU is located in the lower bed box, wardrobe or similar area.

2.2 Activating the System

The system has a shutdown feature that can be used when the vehicle is in storage. This

allows the leisure electronics to be turned o

when not required to save battery power. When

in the o state the alarm and tracking system

supplies are still active, all other supplies are

turned o.

Before using the system please ensure the system shutdown switch is in the on position (button in) the system is now active.

Note: if you plan to use the Swift Command remote features the system needs to be active.

2.3 Connecting to the Mains 230V supply and Safety checks

For your safety it is IMPORTANT that you follow these connections instructions each time your Leisure Vehicle is connected to a mains supply. This section assumes that the system is complete and that a Leisure battery has been installed (see 3.4).

A) Ensure suitability of the Mains Supply.

Your Leisure Vehicle should only be connected to an approved supply that meets the requirements of BS7671 or relevant harmonised standards. In most cases the site warden will hold information regarding suitability of supply. If using a generator you also need to comply with the requirements / instructions supplied with the generator. Please note that some electronic generators may not be compatible with your leisure system. Further generator operational information is contained in section 3.2.

B) Switch the PSU Battery Charger / Power

Converter OFF.

Locate the green ‘Charger’ power switch on the

PSU and ensure the switch is in the o position

(button out) before connection to the mains supply.

C) Connect the Hook-up Lead.

Firstly connect the supplied hook-up lead (orange cable with blue connectors) to the

Leisure Vehicle and then connect to the mains supply.

D) Check Residual Current Device operation.

Locate the RCD within the PSU and ensure the RCD is switched on (lever in up position). Press

the ‘Test’ button and conrm that the RCD turns o (lever in down position). Switch the RCD

back to the on position (lever in up position). If the test button failed to operate the RCD see section 3.1.

E) Check Miniature Circuit Breakers

Locate the MCB’s within the PSU (adjacent to the RCD) and ensure they are all in the on (up) position. If any MCB’s fail to ‘latch’ in the on position see section 3.1

F) Turn the PSU ON.

Locate the black ‘Shutdown’ button and ensure it is in the on position (press button in). Locate the green ‘Charger’ switch on the PSU and turn to the on position (press button in). The charger switch will illuminate when turned on.

G) Check correct Polarity.

Locate the ‘Reverse polarity’ indicator on the PSU and ensure that the indicator is NOT illuminated. If the indicator is illuminated see section 3.2.

H) Check operation of equipment. It is now safe to operate the 12V and 230V equipment.

2.4 Operation while driving

The power control system is designed to shutdown parts of the system while the engine

is running. This is to meet Electro Magnetic Compatibility (EMC) regulations and to ensure

the safe operation of the motorhome. With the engine running the screen will show a warning

‘ENGINE RUNNING’.

Please ensure the system shutdown switch on the PSU is in the on (button in) position before driving (see 2.2). This will ensure the electronic system is active and will therefore be able to control the charging process, supply the refrigerator and monitor other system circuits.

If / when tted, designated 12V sockets,

enroute reading lights and en-route heating will remain operational while the engine is running.

2.5 Control Panel - Component Layout (see

image below)

Your control panel will have an appearance as

below, but depending on your specication of

the vehicle the control panel features will vary. Not all features are present in all vehicles.

2.6 Control Panel - Key Features

‘Swift’ Power Button. Press the ‘Swift’ power button to turn the leisure power

on, the panel will beep twice and show the Swift start-up logo. The control panel screen will illuminate when the power is on, but the screen will go to sleep after a pre-determined time. Pressing the power button or touching the screen while

the screen is asleep will wake the screen without turning the power on or o. To turn the power o press and hold the power button to turn the power o, the

panel will beep once.

Pump Button. Press the pump button to turn the water pump on. Press the

button again to turn the pump o. The button border will illuminate when the

pump is on. To view the water tank levels and other controls press the water button.

SWIFT COMMAND

POWER CONTROL SYSTEM

ELECTRICAL SYSTEMS

Awning Light Button. Press the awning light button to turn the awning light on

or o. The border of the button will illuminate when the awning light is on. Note

the awning light may also be controlled by the motorhome locking system.

Lighting Button. Press the lighting button to show the lighting control screen.

Here you can turn on / o or adjust the dimmable lighting levels. Press the home

button to return to the main screen.

ELECTRICAL SYSTEMS

SWIFT COMMAND

POWER CONTROL SYSTEM

Power Button. Press the power button to show the power information and control screen. Here you can view battery levels, view charger and solar current and press the more button (right arrow) to view 230V current. Press the home button to return to the main screen.

Water Button. Press the water button to show the water tank information and control screen. Here you can view tank levels and control related features. Press the home button to return to the main screen.

Heating Button. Press the heating button to show the heating control screen. Here you can control the heating system, select energy and temperature and by pressing the more button (right arrow) you can set related timers. Press the home button to return to the main screen.

Air-Conditioning Button. Press the Aircon button to show the aircon control screen. Here you can select the operating mode, set the target temperature and adjust the fan speed. Press the home button to return to the main screen. Note: this button will only be visible if a CI-Bus equipped air conditioner is installed, connected and enabled within the system.

Fridge Button. Press the dge button to show the fridge control screen.

Here you can select the operating mode, set the cooling setting and view the temperature status. Press the home button to return to the main screen.

Settings Button. Press the settings button to show the general settings

screen. Here you can set the date & time, screen brightness and screen

on time. There are also buttons on this screen to pair a Bluetooth

device, delete Bluetooth devices, or turn the key beep on / o. Press the

home button to return to the main screen.

2.7 Control Panel ‘Header’ Information

At the top of the control panel screen there is a header or information bar which remains visible on all screens. This is designed to provide quick reference information available at all times

Internal and external temperature in degrees Celsius

The internal temperature is shown inside the vehicle symbol.

* When a battery is not being charged a % remaining gure will be displayed. This gure is calculated from the battery voltage and

therefore should be used for guidance only.

Relative humidity

range 1 to 100%

Current date Current time *Leisure battery

status

Green = good, Orange = fair, Red = poor. Lightning symbol indicates charging from the 230V battery charger. *Vehicle

*Vehicle battery status

Green = good, Orange = fair, Red = poor. Sun symbol indicates charging from the solar panel.

SWIFT COMMAND

POWER CONTROL SYSTEM

ELECTRICAL SYSTEMS

2.8 Temperature Readings

The EC800 system uses two sensors to

measure internal temperature and humidity, and external temperature. The internal temperature and humidity sensor is furniture mounted within the motorhome, and the external sensor

is mounted below the motorhome oor. The gures displayed are for information only,

and it is hoped the information will be useful, for example when checking temperatures remotely during cold weather.

For vehicles tted with Alde or Truma heating

systems, this sensor is not used to control the heating temperature as it is measured above the door by the Alde or Truma room sensor. The readings on the heating system may vary

relative to the one shown on the EC800 control

panel.

2.9 Water System Operation

The EC800 control panel pump button

operates the internal water pump drawing water from an on-board.

The water tanks (fresh & waste) incorporate

a level warning feature to warn the user when the fresh water level drops below 25% or when the waste water level reaches 100%. These warnings can be enabled / disabled on the control panel water screen.

If the water pump power is turned on and the fresh water level drops to below 25% a warning beep will be heard and a message will be displayed on the control panel. To cancel the

warning, press the conrm button.

If the water pump power is turned on and the waste water level rises to full (100%) a warning beep will be heard and a message will be displayed on the control panel. To cancel the

warning, press the conrm button.

These warnings will not be repeated unless the

water pump power switch is turned o and on

again. This is to ensure the warning does not become a nuisance.

SWIFT COMMAND

POWER CONTROL SYSTEM

ELECTRICAL SYSTEMS

2.10 Water Tank Heaters (frost protection)

Operation

The EC652/653 features the ability to switch on

water tank heater to provide frost protection for the fresh and waste tanks. The tank heaters will only operate if there is over 25% in the relevant water tank and the external temperature sensor detects that the temperature falls below 2 degrees C. If the temperature rises above this

level the heaters will be switched o but the

feature will remain on.

If the tank heaters are turned on before starting a journey, when the engine is started the tank heaters will remain on for the duration of the journey. When the engine is stopped the tank heaters will remain on for a further 15 minutes. If the engine is restarted within this 15 minute period the tank heaters will remain on, again for the duration of the journey.

When the engine is stopped the tank heaters

will turn o after a 15 minute period. To turn

them back on you will need to turn the control panel on and then use the tank heaters button on the water screen.

Water Tank Screen

Here you can view the on-board water tank levels and control water tank related features.

Tank Heaters

Press the tank heaters button to turn on / o the water tank

heaters.

Level Alerts

Press the level alerts button turn on / o the water tank

empty / full warnings.

Frost Alerts

Press the frost alerts button turn on / o the frost warnings.

Empty Fresh

Press this button to empty the fresh water tank (the press is

followed by a conrm button to avoid accidental operation)

Empty Waste

Press this button to empty the waste water tank (the press is

followed by a conrm button to avoid accidental operation)

Note: Tank valves are normally closed and will automatically close if the power is switched

o or if they have been open for more than 10

minutes.

Note: When either tank is emptying the level

gauge and the related button will ash. Press the empty button again and conrm if you

wish to cancel the emptying process.

SWIFT COMMAND

POWER CONTROL SYSTEM

ELECTRICAL SYSTEMS

2.11 Lighting & Dimming Operation

The system contains up to two dimming channels for groups of lights which can be

dimmed, turned on and turned o by this screen, and can also be turned on and o by

furniture mounted switches.

The awning light on a motorhome can again be controlled by a number of items, the control panel awning light button, the App and the lock and unlock system (dependant on system

setting being set to do so). Each item can toggle the light on or o.

The Swift Command App can be used to both

congure and adjust the lighting and dimming.

Lighting Screen

Here you can turn on / o or adjust the

dimmable lighting levels.

On / O

Press the centre of either dial to turn the dimmer channel on

or o. In the o state the centre of the dial shows the word

OFF. In the on state the level value is shown.

Up/ Down

Press the (+) or (-) buttons to increase ordecrease the dimming level.

2.12 Solar Charge Management

The EC652/653 PSU incorporates a built-in

solar charge management feature, which will monitor the input from a separate solar panel and regulator. The Solar Active symbol will be displayed on the control panel when there is an amount of energy available to charge the battery.

The voltage and current produced from the regulator can be viewed on the control panel display by selecting the Power menu item. Depending on the charge state of the batteries, the solar power will be directed to the required

battery and continuously monitored to ensure optimum operation.

Power Screen (12V)

Here you can view battery levels, view charger and solar current and press the more button (right arrow) to view 230V current.

Selected Battery

Use the selected battery button to select which battery you wish to use or charge with the 230V charger.

230V Charging

If a battery is being charged by the 230V charger a ‘lightning’ symbol will be shown below the dial and adjacent to the relevant battery in the header area.

Solar Charging

If a battery is being charged by the solar panel a ‘sun’ symbol will be shown below the dial and adjacent to the relevant battery in the header area.

Leisure Dial

The leisure dial shows the voltage of the leisure battery. Press the centre of the dial to change to showing the leisure battery current (+ positive value is charging and - negative value is discharging)

Vehicle Dial

Solar Dial

The solar dial shows the current being supplied to the

system from the solar panel (if tted).

2.13 Smart Charging

The EC653/653 PSU incorporates a smart

charge feature, which monitors both leisure and vehicle batteries and automatically adjusts and directs the charger power (and solar power if a solar panel is installed) to maintain the leisure and vehicle batteries at an optimal level.

SWIFT COMMAND

POWER CONTROL SYSTEM

ELECTRICAL SYSTEMS

Note: If the vehicle battery is isolated using the Fiat ignition key isolator or similar, some smart charging functionality will be lost, and the available charge will be directed to the leisure battery.

2.14 AC Current Limiter Operation

The power control system features a 230V current monitoring system which allows the mains hook up current to be displayed on the control panel. The resolution of this reading is 0.5A. A current limit setting can be

activated which if reached will switch o the

electric elements in the heating system (and

airconditioning if tted and enabled), until such

time as the current drops and the elements will be switched back on.

An example of this is if a kettle was to be operated whilst the heating was on and the current limit was reached then the heater electric

element would be temporarily switched o, when

the kettle had boiled then the heater element would be switched back on automatically.

This feature is particularly useful when abroad on a low current supply. Setting the value to OFF will disable this feature.

Power screen (230V)

Here you can view the 230V current and set the 230V current limiter. Note: For this feature to work correctly

AC Current

The dial on the left shows the 230V AC current being used by the vehicle (from the site hook-up).

Set Limit

Press the centre of the dial to turn the AC current limiter on

or o. Press the (+) or (-) buttons to increase or decrease the

limit level. When on, the system will monitor the incoming AC current and if the set limit is reached the 230V heating element within the heating system will be temporarily turned

o until the current falls below the set limit.

Note: For this feature to work correctly the Heating mode must be set to Timer so that the system can control the heating appliance.

2.15 Heating Controls

There are a number of heating systems that can be controlled by the power control system.

The system will be precongured by the

manufacturer or supplying dealer. The related control panel screens are shown below.

Heating screen

Here you can control the heating system, select energy and temperature and by pressing the more button (right arrow) you can set related timers.

Mode

Set the mode to Manual to use the controls supplied by the heating appliance manufacturer. Set the mode to Timer to

control the appliance by the EC800 control panel.

Note: The mode will automatically change to App when you control the appliance by the Swift Command app.

Status Temp Water

The status box shows you which timer is currently active, and the temp and water boxes show the target room temperature and water heater setting for the active timer.

Override

When operating in timer mode you can temporarily ‘override’ the timer room temperature by using the override feature.

Press the centre of the dial to turn the override on / o.

Press the (+) or (-) buttons to increase or decrease the required emperature.

Note: You can also override the room temperature by making a change using

the appliance control panel (Alde & Truma

only). If you make a change the override will automatically activate. The override temperature will continue until the next timer event time.

SWIFT COMMAND

POWER CONTROL SYSTEM

ELECTRICAL SYSTEMS

Truma CP+ Energy

The energy, gas or electric setting will vary depending on the appliance type.

For Truma Combi+ heating press the energy button to step through the available settings. Gas is indicated by the

ame symbol and electric indicated by the lightning symbol. Possible combinations are GAS, MIX1, MIX2, EL1 or EL2.

One electric symbol=1KW and two=2KW.

Note: Changes made on the EC800 control

panel may not be accepted on the heating controller immediately if the controller has been recently used and still has its backlight on. Please try to use one controller at a time.

Heating timer screen

On the heating screen press the more button (right arrow) to set or view the daily heating timers.

Water

Press the water values to change the setting. Each press will

step through the available setting, which vary by appliance type.

For Truma CP+ available settings are O, Eco or Hot.

For Alde 3020 available settings are O, Normal or Boost.

For Whale available settings are O or On

2.16 Air-conditioning

If your vehicle has been tted with a compatible

air-conditioning unit then the settings can be

set / controlled by the EC800 control panel, the

air-conditioner infrared remote control or the Swift Command app.

The unit must be turned on with its power switch before it can be controlled. The related control panel screens are shown below. For information in using the airconditioning from the Swift Command app, please see the Swift Command User Guide.

Air-conditioning screen

Here you can select the operating mode, set the target temperature and adjust the fan speed.

Timer

Press on the hour or minute value to change the setting. Timers should be set in order during the day (Timer 1 the earliest and Timer 4 the latest) and use the 24 hour clock.

Temperature

Press the temperature values to change the setting. Each press will increment the value from O, then 5 degrees

through to 30 degrees Celsius.

Lights

Press the lights button to control the LED light built into the air-conditioning unit. Select on or o to turn the light on or o, or select dimmed to allow the light to be controlled with

other dimmable lighting in the vehicle.

Mode

Press mode button to select the required operating mode.

Select o to turn the airconditioner o. Note that available modes vary according to the model of air-conditioner tted.

Temperature

Use the temperature setting (+) or (-) buttons to increase or decrease the temperature setting. Available settings range from 5 degrees to 30 degrees Celsius.

Fan Speed

Use the fan speed setting (+) or (-) buttons to increase or decrease the fan setting.

Note that available settings vary according to the model of

air-conditioner tted.

ELECTRICAL SYSTEMS

SWIFT COMMAND

POWER CONTROL SYSTEM

2.17 EC800 Refrigerator Controls

The main refrigerator settings can be set / controlled by the EC800 control panel or the Swift

Command app. These controls work in parallel with the ones on the fridge control panel, so the settings cab be changed by either method.

The related control anel sceens are shown below.

For information in using the fridge from the Swift Command app, please see the Swift Command User Guide.

Fridge Screen. Here you can select the operating mode, set the cooling setting and view the temperature status.

Mode Press mode button to select the required operating

Setting Use the setting (+) or (-) buttond to increase or decrease

Temperature The temperature status display shows the temperature

Note that the fridge will take time to react to a seting change so please allow sucient time for

the status to update after changing a setting or adding food.

2.18 Bluetooth Pairing & Other Controls

The EC800 control panel can display the

software version number of the Control Panel, the PSU and the communicator / tracking unit. Press the settings button to view the setting screen which contains the related information.

The Bluetooth pairing process is covered below. Further help with Bluetooth pairing is available in the form of a help video which can be viewed on the Sargent website in the Support Information section.

General settings screen

Here you can set the date & time, screen

brightness and screen on time.

mode. select o to turn the fridge o.

the cooling setting. 1 is low and 5 is maximum

state of the fridge, with the optimal (central) position being the ideal. If the fridge is too warm, incease the cooling setting to reduce the temperature. If the fridge is too cold, reduce the cooling setting accordingly.

Time, Date & Day

Press the (+) or (-) buttons above or below each item to adjust the value. Note that the system uses the 24 hour clock.

Screen settings

Press on the screen brightness button to adjust the screen backlight level. Press on the screen timeout button to select the time that the screen will stay illuminated for after a press or touch.

Bluetooth Pair

Press the pair button to start pairing with your compatible Bluetooth device. The pair button border will illuminate when pairing is active. You can now pair your device to the system following the devices instructions. Pairing remains active for

1 minute and is then turned o automatically.

Bluetooth Delete

Press the delete button to delete any Bluetooth pairings from the system.

Key Beep

Use the key beep button to turn on / o the beep sound

when a button is pressed.

Note: Setting changes are saved when you press the home button to return to the main screen.

SWIFT COMMAND

POWER CONTROL SYSTEM

2.19 Electric Step Operation

On vehicles tted with an electric step, this is

operated by a button near the entry door. Press and release the button to move the step in or out. One press of the button will move the step out; a further press will move the step in again.

If the engine is started the step will move in automatically, after a short warning buzzer. If this operation fails due to an obstacle a buzzer will sound continuously to warn that the step is still out, and therefore requires your attention.

2.20 System Warnings

The system incorporates a number of warnings that are active at specic times. These are

summarised below, and also covered by relevant sections of this manual.

When a warning is active a warning box will appear on the control panel screen containing a description of the warning along with an audible beeping sound.

Warning When Typ e

ELECTRICAL SYSTEMS

Fresh water level low

Waste water level full

Leisure battery voltage low

Leisure battery voltage high

With pump turned on and fresh water level low (less than 25% full) Only available when an on-board

tank is tted.

With pump turned on and waste water level full. Only available when

an on-board tank is tted

With control panel power on and

leisure battery selected (as active battery) and the voltage level falls below 10V

With control panel power on and leisure battery selected (as active battery) and the voltage level is below 9

Note: This is an emergency cut o level to protect the battery from severe damage. You should not rely on this cut o level during normal operation, but

manage your power consumption to a discharge level of 11.5V or above. This

cut o only applies to power drawn from the battery by the leisure equipment

that is controlled by the control panel power switch; it will not protect the battery from discharge by permanently connected equipment.

With control panel power on or

o and leisure battery is selected

(as active battery) and the voltage level rises above 15V

Message on screen and 60 second audible beep

Message on screen and 60 second audible beep. If no action taken after 30 seconds then the system will switch the

power o to prevent severe discharge of

the battery

Message on screen and repeated beeps from the control panel. The power is

automatically turned o. The beeping will

not stop until the fault is cleared.

SWIFT COMMAND

POWER CONTROL SYSTEM

Warning When Typ e

ELECTRICAL SYSTEMS

Vehicle battery warnings

Engine running When the engine is started the

Step extended

Heating system When set to control the heating

Refrigerator / Fridge Freezer

If the vehicle battery is selected instead of the leisure battery, then similar warnings to those described above are applied to the vehicle battery. The vehicle battery low warning level is 10.9V

system power will be turned o

Step extended and engine started

Step jammed or obstructed

Step extended and engine started

Step jammed or obstructed

system, the EC800 control panel

will show related heating system warnings, which will include the error number and error description

When set to control the

refrigerator, the EC800 control

panel will show related warnings which will include the error number and error description

Message on screen stating ‘engine running’.

Message on screen and warning buzzer

Message on screen and 60 second audible beep. Additional descriptive information is available when using the Swift Command App.

SWIFT COMMAND

POWER CONTROL SYSTEM

ELECTRICAL SYSTEMS

3. System Technical Information

The following section provides further technical information relating to the electrical system. You can also access the supporting technical manual from www.sargentltd.co.uk

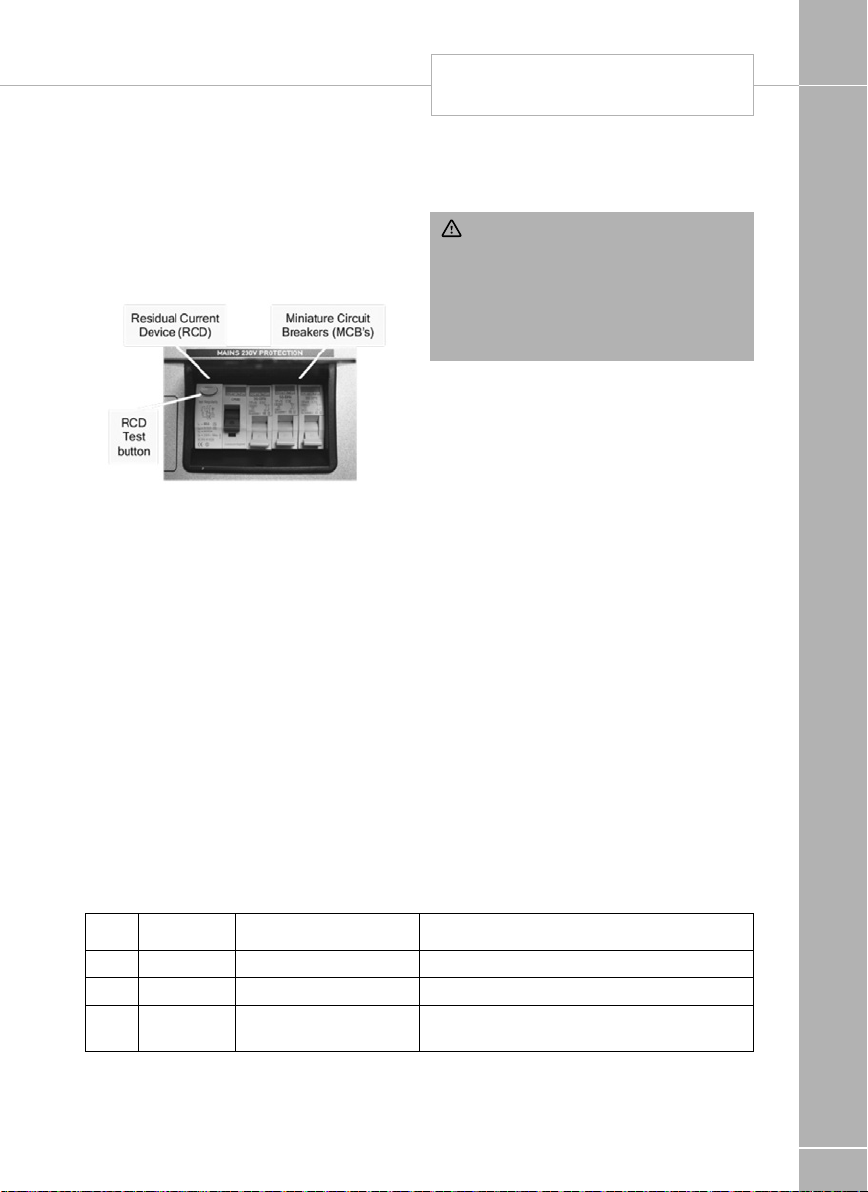

3.1 Residual Current Device & Miniature Circuit Breakers

The Residual Current Device (RCD) is basically provided to protect the user from lethal electric

shock. The RCD will turn o (trip) if the current owing in the live conductor does not fully

return down the neutral conductor, i.e. some current is passing through a person down to earth or through a faulty appliance.

To ensure the RCD is working correctly, the test button should be operated each time the vehicle is connected to the mains supply (see section 2.3)

The Miniature Circuit Breakers (MCB’s) operate in a similar way to traditional fuses and are provided to protect the wiring installation from overload or short circuit. If an overload occurs

the MCB will switch o the supply. If this occurs

you should investigate the cause of the fault before switching the MCB back on.

The following table shows the rating and circuit allocation for the three MCB’s

3.2 Battery Charger

Caution should be used before connecting a generator to your motorhome.

WARNING: Never start or stop the generator while electrical loads are connected and switched on. Start the engine, let it stabilise and then connect the electrical load. When stopping the generator, disconnect the electrical load and let engine

stabilise before switching o.

Whilst some generators use electronic inverter technology, others use a more basic principle to generate the 230V supply. Preference should be to choose a generator which produces a consistent sinusoidal wave form with accurate voltage control.

The Reverse Polarity warning light on the PSU may illuminate when using a Generator. This is

a normal side eect when using some types

of generator. Instead of connecting the neutral conductor to earth, some generators centre tap the earth connection making both neutral and live conductors 110V above earth. This

110V dierence causes the neon polarity

indicator to illuminate.

In most cases it is safe to use a generator, but please consult the generator handbook for further information.

MCB Rating Output Wire Colour Description

1 10 Amps White 230V Sockets

2 16 Amps White (Yellow for heater) Extra 230V Sockets / Heating System

3 10 Amps Black (Blue for Whale

water heater)

Fridge / Charger / Auxiliary devices / Whale Water Heater

SWIFT COMMAND

POWER CONTROL SYSTEM

3.3 Battery Charger

The system incorporates an intelligent threestage battery charger.

ELECTRICS

During stage 1 the battery voltage is increased gradually while the current is limited to start the charging process and protect the battery. At stage 2 the voltage rises to 14.4V to deliver the bulk charge to the battery. When the battery is charged, the voltage is decreased at stage

3 to 13.6V to deliver a oat charge to maintain

the battery in the fully charged state. The charger can be left switched on continuously as required.

The battery charger / power converter also provides power to the leisure equipment when the mains supply is connected. This module supplies DC to the leisure equipment up to a maximum of 25 Amps (300 Watts), therefore the available power is distributed between the leisure load and the battery, with the leisure

Leisure Load

10A 15A

15A 10A

20A 5A

Available power for battery charging

5A 20A

3.4 Leisure Battery

A) Type / Selection

For optimum performance and safety it is

essential that only a proprietary brand LEISURE

battery is used and it is suggested to select a

battery from the NCC Veried Battery Scheme

with a typical capacity of 75 to 120 Ah (Ampere/ hours). Depending on the prospective use of the vehicle the correct type should be selected (A, B or C). A normal car battery is NOT suitable. This battery should always be connected when the system is in use.

The PSU is congured to work with standard

lead acid leisure batteries, and in most cases is also compatible with the latest range of Absorbed Glass Matt (AGM) batteries. The system is also suitable for Lithium batteries with built-in Battery Management Systems BMS).

Before tting non-standard batteries please check that the charging prole described in 3.3

is suitable for the type of battery by referring to the battery documentation or battery manufacturer.

Some vehicle installations can cater for two leisure batteries connected in parallel. In these cases it is recommended that two identical batteries are used.

The battery feed is tted with an inline fuse

between the battery and the electrical harness, and is usually located immediately outside the battery compartment or within 500mm of the battery. The maximum rating of this fuse is

20A per battery. If a single battery is tted to

a motorhome, this fuse could be up to 40A,

however if two batteries are tted each battery

should be fused at a maximum of 20A.

WARNING: Under heavy loads the Battery

Charger case may become hot. ALWAYS

ensure the ventilation slots have a clear ow

of air. Do not place combustible materials against / adjacent to the charger.

SWIFT COMMAND

POWER CONTROL SYSTEM

ELECTRICAL SYSTEMS

B) Installation & Removal

Always disconnect the 230V mains supply and turn the PSU green charger switch to the

o position (button out) before removing or

installing the battery.

When connecting the battery, ensure that the correct polarity is observed (black is negative [-] and red is positive [+]) and that the terminals are securely fastened. Crocodile clips must not be used.

WARNING: Explosive gases may be

present at the battery. Take care to prevent

ames and sparks in the vicinity of the battery

and do not smoke.

Battery Voltage

cut o

Vehicle 10.9V Battery selection is

Leisure 9V Power is turned o This is an emergency cut o level to

Action after

cut o

changed from Vehicle battery to Leisure battery. If the leisure battery is below 9V then a further warning will occur (see below).

C) Operation / Servicing

Under normal circumstances it should not be necessary to remove the battery other than for routine inspection of the terminals and “topping

up” of the battery uid where applicable. Please

see instructions supplied with the battery.

Note: Do not over discharge the battery. One of the most common causes of battery failure is when the battery is discharged below the recommended level of approximately 10V.

Discharging a battery below this gure can

cause permanent damage to one or more of the cells within the battery.

To prevent over discharge, the power control system incorporates a battery protect circuit that warns the users and then disconnects the batteries when they fall below set values.

If a warning is active a beep will be emitted by the control panel and information will be shown on the screen. To cancel the warning, press the select button. These warnings will not be repeated unless the power switch is turned

o and on again. This is to ensure the warning

does not become a nuisance.

Notes

This cut o level is designed to protect the

vehicle battery from over discharge. The

10.9V level ensures there is sucient power

in the battery to run the vehicle electronics

and start the vehicle. This cut o only

applies to power drawn from the battery by theleisure equipment; it will not protect thebattery if you leave vehicle circuits switched on, such as the road lights.

protect the battery from severe damage.

You should not rely on this cut o level

during normal operation, but manage your power consumption to a discharge level

of about 11.5V. This cut o only applies to

power drawn from the battery by the leisure equipment that is controlled by the control panel power switch; it will not protect the battery from discharge by permanently connected equipment.

ELECTRICAL SYSTEMS

SWIFT COMMAND

POWER CONTROL SYSTEM

3.5 12 Volt DC Fuses

WARNING: When replacing fuses

always replace a fuse with the correct value.

NEVER replace with a higher value / rating

as this could damage the wiring harness. If a replacement fuse ‘blows’ do not keep replacing the fuse as you could damage the wiring harness. Please investigate the fault and contact your dealer.

The following table shows the fuse allocation for the 13 fuses tted to the PSU. Please note that

fuses are dependant on PSU versions, so not all fuses may be present.

Fuse Rating Fuse

Colour

1 25 Amps White Charger

2 7.5 Amps Brown Permanent 12V / Alarm / Fridge Electronics

3 10 Amps Red 12V Sockets / TV Amplier

4 10 Amps Red Extractor Fans

5 5 Amps Tan Appliances / Hob Ignition / Toilet

6 10 Amps Red Water Pumps / Tank Heaters

7 7.5 Amps Brown Lighting, Main Lights & Dim Channel 1

8 7.5 Amps Brown Lighting, Entry Light & Dim Channel 2

9 10 Amps Red Truma Heating / Marker Lights / En-Route Sockets & Lights

10 10 Amps Red Auxiliary / Awning Light / Electric Step

11 20 Amps Yellow Fridge 12V

12 15 Amps Blue Towing 12V

13 15 Amps Blue Fridge D+

Description

Note: Fuses (2-13) have a Red LED below

them which provides indication that the fuse

has blown. The charger fuse has a green LED

which Indicates that the charger is working.

Fuse Rating Fuse

Colour

Battery 1 40 Amps Orange Fuse remotely located near battery

Battery 2 40 Amps Orange Fuse remotely located near battery 2 (where tted)

Description

SWIFT COMMAND

POWER CONTROL SYSTEM

3.6 Common Fault Table

Fault Possible Cause Proposed Fix

ELECTRICAL SYSTEMS

No 230 volt output from PSU

Reverse Polarity light is illuminated on PSU

Connecting lead between the site and Leisure Vehicle not connected

RCD switched o Reset RCD as per 2.3D

RCD not operating correctly Check supply polarity; if the RCD

MCB switched o Reset MCB by switching OFF (down

No or decient supply from site Contact site Warden for assistance.

Other fault Contact your Dealer

Mains Supply reversed? The reverse polarity light is designed

Generator being used ‘The Reverse Polarity warning light is on

Check and connect lead as per 2.3C

continues to fail contact your Dealer as there is probably an equipment or wiring fault.

position) then back ON (up position), if the MCB continues to fail contact your Dealer as there is probably an equipment or wiringfault.

to illuminate when the Live and Neutral supply has been reversed / crossed over. If the light illuminates there is a problem with the site supply or the cable connecting the supply to your vehicle. The light is designed to work on UK electrical supplies (where the neutral conductor is connected to earth at the sub station). If you are using your vehicle outside the UK this light may illuminate when no fault exists. In these cases consult the site warden for advice.

when using my Generator’.

This is a normal side eect when using

some types of generator. Instead of connecting the neutral conductor to earth, some generators centre tap the earth connection making both neutral and live conductors 110V above earth.

This 110V dierence causes the neon

polarity indicator to illuminate. In most cases it is still safe to use the generator, but please consult the generator handbook for further information.

SWIFT COMMAND

POWER CONTROL SYSTEM

Fault Possible Cause Proposed Fix

ELECTRICAL SYSTEMS

Control Panel Problems

No 12 volt output from PSU

Control Panel has no display Check batteries and fuses, turn PSU

12V Power turns o Battery protect feature has operated to

Control Panel locked / erratic function

No 230V supply Check all above

Charger not switched on Turn charger switch on, switch will

Battery not connected and / or charged

Power button on control panel not switched to on

Battery at / Battery fuse blown Recharge battery, check fuses, check

Fuse blown Check all fuses are intact and the correct

Equipment switched o /

unplugged

Other fault Contact your Dealer

isolate switch and charger switch on and ensure mains supply is connected.

Check control panel connecting lead at PSU and behind Control Panel.

Contact your Dealer.

protect the Vehicle battery and or the Leisure battery. See 3.4C

Over voltage protection has been activated, the control panel will display a warning. A number of things can cause this but the most common is the solar panel, it is worth checking the regulator is connected correctly and operating within the correct parameters.

Engine has been started, all equipment has been disconnected to meet EMC

requirements. See 2.4

Observe control panel handling instructions. Control panel software may have crashed. Reboot control panel by

turning o the PSU isolate switch. Wait

30 seconds then turn the switch back on. Check with your dealer that your system has the latest software installed, as an update may be available.

illuminate

Install charged battery as per 3.4

Turn power on at control panel

charging voltage is present at battery.

value fuse is installed as per fuse table.

Check equipment is switched on and connected to the 12V supply

SWIFT COMMAND

POWER CONTROL SYSTEM

Fault Possible Cause Proposed Fix

ELECTRICAL SYSTEMS

Fuse blown Replace fuse with correct value as per

Pump not working

Comms not working

3.7 Contact details

Sargent Electrical Services Limited provide a technical help line during oce hours. Please

contact 01482 678981 if you require technical help.

For out of hour support please refer to the support section of the Sargent web site www.sargentltd.co.uk

Pump turned o Turn pump on by pressing the pump

Fuse/s blown Replace fuse with correct value as per

Lights turned o Turn Lights on by pressing the lights

Bluetooth not paired Using System Settings menu, select

Bluetooth not active on Device Ensure that the handheld device

Bluetooth out of range Ensure the handheld device is within 7M

fuse table

button at the control panel

fuse table.

button, use dimmer at the control panel.

Bluetooth Pair option

has Bluetooth switched on and that the device supports the Bluetooth 4

standard (BLE)

of the middle of the motorhome

SWIFT COMMAND

POWER CONTROL SYSTEM

ELECTRICAL SYSTEMS

4 Remote Access & Control

4.1 Swift Command App

The Swift Command app can be down loaded from the Apple App Store or the Android Play store.

A separate Swift Command User Guide is available which covers the operation of the app.

Before you can use the App with your motorhome you will need to create an account and sign up to the free communication service.

This is a simple process and will be explained further by your dealer at the vehicle handover. Additional information is available at www.swiftcommand.co.uk

4.2 Swift Command Web usage & Description

In addition to the mobile App, you can also use the same account and login details to access the Swift Command web site.

Here you can update and amend your details, look at location information and history, review system information and historical data as well as changing some system options and settings.

4.2 Swift Command Web usage & Description

In addition to the mobile App, you can also use the same account and login details to access the Swift Command web site.

Here you can update and amend your details, look at location information and history, review system information and historical data as well as changing some system options and settings.

4.3 Swift Command SIM Coverage & Usage information

The EC600 system contains Mobile SIM with

36 month contract, which commences upon activation at the Dealership when your vehicle is linked to your account.

Below is a list of the countries covered by the SIM under a fair usage policy, a complete list is available at request.

Austria, Belgium, Bulgaria, Cyprus, Czech

Republic, Denmark, Estonia, Finland, France,

Germany, Greece, Hungary, Iceland, Ireland, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Netherlands, Malta, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, United Kingdom.

For vehicles shipping direct to Australia or New

Zealand a special world-wide SIM is tted at the

Swift factory.

Please note that if a UK specication vehicle is

shipped to these countries the remote features will not operate.

4.4 Replacement parts

The Control panel contains a small lithium battery to maintain the clock when no other energy supplies are available this will last in excess of 5 years under normal conditions. The battery is a CR2032 3.0V

The EC630 Communication module contains a

special backup battery pack which should last in excess of 3 years under normal conditions. The pack part number is 16308 available from Sargent.

4.5 Updates

From time to time there may be updates to the

system rmware; these updates will be done at

service intervals by your dealership.

SWIFT COMMAND

POWER CONTROL SYSTEM

5 Technical Data & Approvals

5.1 Equipment – EC652, EC653, EC800,

EC635 & PX300

Outline Specication

INPUT 230V 230 Volts / 0 to 16 Amps + / - 10%

RCD protected, 2 x MCB outputs of 10A & 1 x MCB

OUTPUT 230V

INPUT 12V 2 x 20A battery inputs via 2 x 4 way connectors

SOLAR INPUT

OUTPUT 12V

Integrated

CHARGER

Signal INPUT

Data IN / OUT

IP rating IP31

Operating temperature

Dimensions

EC601, EC602, EC652 & EC653 PSU

EC800 Control

Panel

EC635 Comms

Module

EC840 Sensor Overall size (HxWxD) 20 x 35 x 38mm Weight 10g

output of 16A

Separate switched channels for heating system and charger

1 X Dedicated solar panel input capable of

supporting 10A of solar power input (typically 180 to 200W) via a 2 way connector

25A total output via multiple switched channels protected by 13 fused outputs

Input 220-240 Volts AC +/- 10%, Frequency 50 Hz +/- 6%, Current 3A max.

DC Output 13.6 to 14.4 Volts nominal, Current 25 Amps max (300 Watts).

4 x Fresh water level, 4 x Waste water level, 1 x

Engine running, plus multiple vehicle connections, sensor inputs for temperature & humidity

CANBUS Data communication and power to Control Panel via 6 way connector CI-Bus Data communication to CI-Bus enabled devices via

RJ11/12 connector

Ambient 0 to 35° Celsius Charger case temperature with full load 65° C Max

Overall size (HxWxD) 180 x 305 x 135mm

Clearances 75mm above, 50mm left & right

Overall size (HxWxD) 125 x 279 x 25mm Cut-out size (HxW) 108 x 173mm + switch area

Overall size (HxWxD) 55 x 116 x 85mm Weight 550g

Turn pump on by pressing the pump button at the control panel

Check the solar panel rating plate to ensure the maximum current is <= 10A

Fresh water negative sensed Waste water negative sensed

Automatic shutdown and restart if overheated / overloaded

Weight 3.8 Kg

Fixing centres 250mm

X 74mm Weight 380g

ELECTRICAL SYSTEMS

SWIFT COMMAND

POWER CONTROL SYSTEM

5.2 Approvals

System: BSEN 1648-1, BSEN1648-2

compliant, BS7671: 2008 compliant

Residual Current Device: RCD 40A 30mA trip

to BS EN 61008

Miniature Circuit Breakers: MCB’s type C

6000A breaking capacity to BSEN 60898

Electro Magnetic Compatibility (EMC)

directive: 2004/108/EC Certicate CE20071224-1

Integrated Charger: BS EN 60335-1/2.29, 2006/95EC, IEC61000-3.2/3:1995, 1.

Low Voltage Directive: 2006/95EC TUV014900-A1, EN55022, Class B, EN55024/

Level 2

5.3 Declaration of Conformity

Equipment: Leisure Power Control System

Model name: EC652, EC653, EC800, EC635

& PX300

I hereby declare that the equipment named above has been designed to comply with the relevant sections of the above referenced approvals. The unit complies with all essential requirements of the Directives.

Signed Name Position Manufacturer

I L Sargent Technical Director Sargent Electrical Services Ltd

Unit 35, Tokenspire Business

Park Woodmansey, Beverley East

Yorkshire, United Kingdom

Whilst every eort has been made to ensure

the accuracy and completeness of this document, no guarantee is given against errors or omissions. This document may be updated / improved orver time therefore please check with your dealer / supplier for update information or visit www.sargentltd.co.uk

MOTORHOME BATTERY

ELECTRICAL SYSTEMS

Cab Radio - Timer Settings

On all vehicles tted with a Fiat entertainment

system, the amount of time the entertainment system will stay ON, after the ignition is switched OFF, can be adjusted. To adjust the setting please follow the relevant method below:

Fiat U-Connect Radio 3.0 (without satellite navigation)

• Switch on Radio

• Press MENU to access the menu

• Turn Right hand dial and select SYSTEM

SETTINGS

• Turn right hand dial to select POWER OFF

180MIN DELAY

• Press right hand dial to select (tick box lls)

• Press BACK to exit menu system

Fiat U-Connect Radio Nav 5.0 (With satellite navigation)

• Press SETTINGS which is the top right button (symbol of two gear wheels)

• Using the dial to the right of the display, scroll

to VEHICLE OFF OPTIONS

• Select RADIO OFF DELAY using either the touch screen or the right hand dial

• Choose the 180 MIN setting (alternative is 0 MIN) using the touch screen

• Press DONE on the touch screen, and exit the menu system

For further details of the features within the Fiat entertainment systems, please follow the links below, or see the paper copy supplied with the vehicle.

Fiat U-Connect Radio 3.0 (without satellite navigation)

http://aftersales.at.com/eLumData/ EN/77/290_DUCATO/77_290_ DUCATO_530.07.530_EN_01_03.14_SI_ UCR5/77_290_DUCATO_530.07.530_ EN_01_03.14_SI_UCR5.pdf

Fiat U-Connect Radio Nav 5.0 (with satellite navigation)

http://aftersales.at.com/eLumData/ EN/77/290_DUCATO/77_290_ DUCATO_530.08.170_EN_01_07.14_SI_ UCRN5/77_290_DUCATO_530.08.170_ EN_01_07.14_SI_UCRN5.pdf

If you are unable to view the documents on line, please contact the supplier, your dealer or Swift for an electronic or paper copy.

Motorhome Radio Aerials

Your Motorhome is tted with a base vehicle

aerial located in the passenger wing mirror. Any issues with radio reception should be referred back to your Fiat dealer.

Note: Some customers may wish to t an

aftermarket radio unit to the base vehicle. While this is possible customers should note

this may aect steering wheel-mounted

controls and increase power consumption.

SOLAR PANEL

ELECTRICAL SYSTEMS

Factory tted Solar Energy System

Depending on specication, your motorhome may be tted with a solar panel and regulator.

This solar panel and regulator may provide additional 12V power whenever sunlight is available to the panel, and this will be directed to the Power Supply unit (PSU), whether the control panel above the entrance door is ON or OFF. Conditions allowing, the system then keeps the battery/batteries ‘topped up’ during storage, and can provide a daily boost to the leisure battery when camping without a mains 230V supply.

If the system shutdown button on the PSU is ON, then via the Smart Charging facility in the PSU, charge may be directed to either the leisure battery or vehicle battery, as required and dependent on whether the vehicle battery is isolated.

If the system shutdown button is OFF, charge will be directed to the vehicle battery only.

Battery power

As a guide, a 40w panel is capable of supplying up to 2.3 amps, +/-1.5%, while an 80w panel is capable of supplying up 4.68 amps +/- 1.5%. Depending on the state of the charge of the battery it may take a few hours to several days to recover a discharged battery. For obvious reasons the solar panel will only work during daylight hours.

Regulator operation

There are two LED indicators located on the solar regulator. The rst is the ‘power’ LED and this ashes when the solar panel produces energy, the ash rate increasing with the

amount of sun light on the solar panel, until the

LED is on solidly. The second LED

is bicoloured, and it will indicated the charge

condition when sucient energy is being received by the solar panel. If the second LED

is illuminated red, then the regulator is in bulk

charge mode supplying 14v plus, if the LED is illuminated green then the regulator is in oat

charge mode supplying 13.6v.

Maintenance and cleaning

The solar panel will require cleaning periodically in order to maintain the performance of the panel, a caravan, car shampoo or simple soap can be used; no abrasive cleaners should be used.

Note: If additional solar panels are tted and linked to the factory tted panel, the

maximum combined wattage must not exceed 150W.

EQUIPMENT DETAILS

Truma Combination Boiler 94

Dometic Absorption refrigerator 100

Dometic minigrill 101

Dometic hob & bowl 102

Thetford oven 105

Thetford toilet 109

Window / Rollerblind advice 109

Roof lights 110

Seat swivel 111

Omnistep slide out step 112

Omnistor awning 108

Status 570 direction television and FM radio antenna 114

Care of laminate tops, tables, furniture and doors 115

Furniture doors 115

Table storage 115

Shower 115

Trigger Shower head 115

Colour reference 116

Door Flyscreen 116

FITTED EQUIPMENT

TRUMA COMBINATION BOILER

Note: The instructions covering tted

equipment to your motorhome were correct at the time of going to print, and where possible, hyperlinks and QR codes have been used, which provide links to online versions of user instructions. Owners handbooks are updated annually and we take great care to try and ensure

FITTED EQUIPMENT

their accuracy. However, the Swift Group Limited cannot accept responsibility for any

changes that may be made in specication

or operating instructions to the equipment described in this section after the time of going to press.

Every care is taken to ensure that the

information provided in this handbook is correct and easy to understand.

Separate manufacturers’ leaets on many of

the components are also included in the Owner’s Pack provided with this motorhome and we recommend that you compare the instructions provided via the handbook with the component manufacturers literature, to ensure the information provided is as accurate as possible.

If you are in any doubt as to how to operate the equipment in your caravan, please contact the component manufacturer’s service department on the telephone number

shown on their component leaet. If you

remain in any doubt, please contact your supplying dealer.

Notice: In the interest of safety, replacement parts for an appliance shall conform to the

appliance manufacturer’s specications and should be tted by them or their authorised

agents.

Equipment Specication

For details on type of equipment tted in your

vehicle, please refer to the Sales Brochure or Dealer.

WARNING: To maximise the use and

life of all tted equipment in your vehicle

it is essential that any accompanying manufacturers’ literature is read fully. All recommended maintenance and preparation procedures should be followed. The information provided in this handbook is only intended as a guide. If in any doubt consult your manufacturer appointed dealer, particularly before attempting to install

EXTRA EQUIPMENT.

Truma Combination Boiler

The Truma Combination Boiler can be used in the following ways:

To provide combined room heating and water heating.

• Simultaneous heating of the room, and water contained within the appliance. Often referred to as Winter Mode.

To provide water heating only.

• Heating of the water within the appliance, without room heating. Often referred to as Summer Mode.

To provide room heating only, without water heating.

• If the water system has not been primed, meaning that there is no water within the appliance, it is still possible to use the Combination Boiler to heat the room.

ALDE HEAT EXCHANGER

FITTED EQUIPMENT

Dual Fuel operation

The Truma Combination boiler has been designed to run on gas or electric power, and the optimum performance is obtained when used in dual fuel mode, that is running on gas and electric at the same time.

Running in dual mode has the following

benets:

• The fastest possible heat up time, as the gas burner combines with an electric element to provide energy to heat your hot water and warm your caravan.

• The intelligent heat management system automatically senses when the water and room are nearing the required temperature

and then automatically turns o your gas

burner and operates solely on electric power, conserving your gas.

• As hot water is used or the room cools the Truma combination heater will continue to operate on electric only, until a point where the demands necessitate that additional gas power is also required. An example for such a demand could be for instance if the exterior door was left open and the room temperature dropped by 10 degrees in the space of a few minutes, in this case the intelligent heat management system would decide the best way to get the room back to the required temperature, would be to use both gas and electric at the same time.

Operating the Truma Combination system on electric or gas only will result in longer heat up times for hot water, and room temperature, in comparison to operating on dual fuel.

Operating on electric only may not in all cases maintain a comfortable room temperature especially in colder conditions.

Whilst taking energy consumption and the environment into account, consider using the Combi in Summer mode (water heating only) when room or space heating is not required, but may be needed in the near future. This ensures the appliance is held at the same temperature as the hot water setting chosen, and this can reduce the time taken to provide warm air into the living area, when room or space heating is then selected.

Truma Heating System and Air Flow

The Swift Group undertakes considerable testing of our products in cold chambers

to ensure they meet the BS EN 1646

Grade 3 standard and are usable in cold temperatures

TRUMA COMBINATION BOILER

Buttery outlets

The majority of air ducting outlets on models equipped with Truma Combi heating systems,

are of the buttery type. These may be opened or closed by moving the ap within the tting,

to adjust the balance of the heating output

throughout the caravan. This can help oset

FITTED EQUIPMENT

dierences in blown air output, between

outlets close to the heating appliance, and those greater distance away from the heating appliance. This can also help adjust the temperature of the bathroom, relative to the temperature of the main living area and/or bedroom.

When these butteries are closed in

conjunction with a high heating system output, and therefore a high fan speed, a slight whistling sound can occur. In this case, opening the outlet slightly will reduce or remove the noise.

Closing too many outlets when the heating system is producing a high output, can cause the appliance to reach high operating temperatures. This does not in general terms

eect the appliance, but can cause the

appliance to automatically shut down. This can cause an interruption of the heating of the motorhome, however heating will resume when the appliance temperatures have reduced to a lower level.

The output of the appliance, and therefore the output of the blown air outlets, will generally be higher when using Gas or Duel Fuel operation.

Electric only operation of the heating is rated

at up to 1.8kW , whereas Gas (or Dual Fuel) operation is rated up to 4kW (3.8kW) or 6kW (5.8kW), depending which model or Combi is

tted.

The blown air ttings can also be rotated to

adjust the direction of air leaving the outlet, as shown in the photo.

DOMETIC OVEN

FITTED EQUIPMENT

Truma Combination Boiler Control Panel and appliance instructions

Please read the user instructions before using the heating system. The instructions include warnings regarding the safe use of the system, and no liability whatsoever can be accepted for damage or injury resulting from failure to observe the instructions.

The heating system can be controlled by a Truma CP+ controller, or the Swift Command control panel, App., or remote control system.

For Swift Command functions please see the Swift Command literature and details within this handbook.

For use of the CP Plus controller, and general user instructions for the heating system appliance, please read the Truma information available at the following locations:

CP Plus Controller

https://www.truma.com/downloadcenter/ cp_ plus_installation_operating_de_gb_fr_ it.pdf

Combi 4 Gas/Electric and Combi 6 Gas/ Electric appliances

https://www.truma.com/downloadcenter/

combi_e_cp_plus_ready_operating_de_gb_ fr_it_nl_dk_se.pdf

If you are unable to view the documents on line, please contact the supplier, your dealer or Swift for an electronic or paper copy.

Electrical Operation of Truma Combination Boiler

Before the heating system is used for heating using electrical (230v) energy, the 230v isolation button on the Sargent Power Supply Unit must be switched ON, as shown in the

image below. To conrm a supply is available,

the button will be illuminated when a power supply (mains hook up) is connected and the button is ON.

Troubleshooting instructions (Combi heater)

In the event of a problem occurring, a warning or error code will be displayed on the Truma CP Plus control panel, along with a warning triangle. Further warning information will also be displayed on the Swift Command control panel.

The Truma combi boiler (heater and water) has two styles of error code warnings which are shown on the CP+ display panel. Depending on the nature of the fault, the boiler will

require resetting in a slightly dierent manner,

depending on the fault.

• Solid error warning code

• Flashing error warning code

Before trying to reset any faults please check

that the 12v supply is on, and depending on

which energy source is going to be used for

heating, either mains electricity is available and switched on, and/or that the gas bottle is

open and ready to dispense gas.

The following table on the next page describes causes and remedies to the various fault codes that may be displayed on the Truma control panel.

Once the fault has been rectied the fault can

be reset via the control panel

TROUBLE SHOOTING GUIDE

(COMBI GAS HEATER)

SOLID CODE

Using the control dial on the cp+ panel scroll down to the bottom line where the triangle appears.

• Press this button to acknowledge the error

• The error code and triangle should disappear

if the fault has been rectied

FITTED EQUIPEMNT

FLASHING CODE

• Scroll round (as above) to acknowledge the error on the panel

• Leave the panel UNTOUCHED for 15 minutes – This allows the user to check that fuel sources are available, and is a regulatory time frame

Error code

#17 Summer mode with empty

#18 Warm air temperature exceeded:

#21 Room temperature sensor

#24 Risk of low voltage. Battery

#29 Frost Control heating

#42 Open window above cowl

#43 Overvoltage > 16.4V Check battery voltage / voltage sources such as

#44 Low voltage. Battery voltage

Cause Remedy

water container

Not all warm air ducts are connected

Circulated air intake blocked Remove the circulated air intake blockage

or cable faulty

voltage is too low < 10.4V

element has a short circuit

(window switch)

is too low <10.0V

• After 15 minutes the triangle will become solid

• The panel can be reset as per the above process for SOLID

If the CP+ panel is reset 5 times, without the

fault being rectied the fault will become a ‘FLASHING’ CODE and will be locked for 15

minutes. If the control panel (cp+) is touched within 15 minutes, the 15 minute ‘count’ will restart. It is imperative that the panel is left untouched during this time.

Truma Customer Service can be contacted on

01283 587960 or technical@trumauk.com if

you require further assistance

Switch heater o and allow to cool. Fill boiler with

water

Check whether the 4 warm air ducts are connected

Inspect the room temperature sensor cable, replace if faulty

Check the resisitance of the room temperature sensor.

15°C - 16.2 kOhm / 20°C - 12,6 kOhm / 25°C

- 10.0 kOhm Replace room temperature sensor if faulty

Charge battery

Disconnect heating element plug from electronic control unit. Replace heating element

Clode window

the charger

Charge battery. If necessary replace old battery

TROUBLE SHOOTING GUIDE

(COMBI GAS HEATER)

FITTED EQUIPEMNT

Error code

#45 No 230 V operating voltage Restore 230 V operating voltage

#112 #121 #122 #202 #211 #212

# 255 Heater has no 12 V power

# 301 # 417

# 401 Summer mode with empty

# 412 Open window above cowl

# 419 Overheating protection has

# 507 Gas cylinder empty Replacing a gas cylinder

# 514 The 12V supply has been

Cause Remedy

230 V fuse defective Replace 230 V fuse (see Combi operating

Overheating protection has been triggered

Gas cylinder empty Replacing a gas cylinder

Gas cylinder or quick-acting valve in the gas supply line closed

Gas pressure regulation system iced up

Butane content in the gas cylinder too high

Combustion air infeed or exhaust outlet is sealed

Gas pressure regulation system faulty

supply

No connection between heater and control panel

Risk of low voltage. Battery voltage is too low < 10.4 V

water container

(window switch)

been triggered

interupted

instructions)

Reset overheating protection (see Combi operating instructions)

Check gas supply and open valves

Use regulator heater (EisEx)

Use propane. Butane is unsuitable for heating, particularly at temperatures lower than 10 °C.

Inspect openings for obstructions (slush, ice, leaves, etc.) and remove any obstructions

Inspect / replace gas pressure regulation system

Ensure 12 V power supply

Make connection between heater and control panel

Charge battery

Switch heater o and allow to cool. Fill boiler with

water

Close windows

Reset overheating protection (see Combi operating instructions)

(gas heating continues in Mix mode)

Ensure the control panel of caravan / motorhome is switched on. Ensure charger is switched on and / or

battery is connected

Swift Group Select 122 2020, Select 164 2020, Select 174 2020, Select 144 2020, Select 184 2020 Owner's Handbook Manual
