Fan
Push-pin
Retention Frame
MCX603 heatsink
Spring clip
Packing list
Parts Qty Parts Qty
Heat Sink 1 Push-pin rivets (standard) 4
80mm fan brackets 4 6-32 x 1” Philips screws (80x25mm fans) 4
Thermal grease – Arctic Alumina 1 6-32 x 1.75” Philips screws (80x 38mm fans) 4
#6 nylon nuts 4
Fan bracket
Copyright Swiftech 2003 – All rights reserved – Last revision date: July 2, 2003
Rouchon Industries, Inc., dba Swiftech – 1703 E. 28th Street, Signal Hill, CA 90755 – Tel. 562-595-8009 – Fax 562-595-8769
E Mail: Swiftech @swiftnets.com – URL: http://www.swiftnets.com
Information subject to change without notice
Page 1

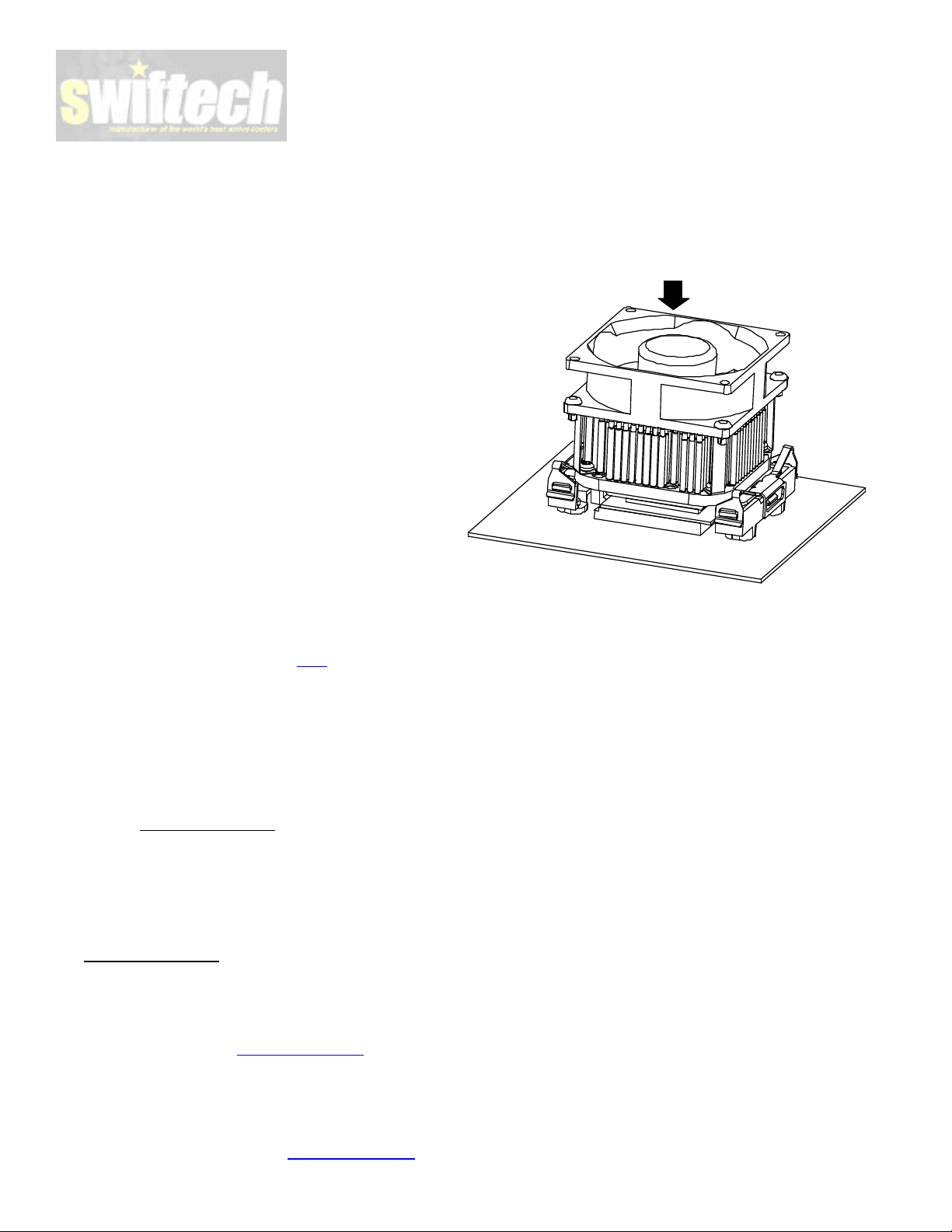

MCX603 Installed
AIRFLOW DIRECTION
1. Processor Preparation
Lightly coat the processor core with the provided Arctic Alumina thermal compound. Only a paper thin
coat is necessary. It should be applied using preferably a razor blade, or a credit card, held between
thumb and index at a 45° angle. It is critical to ascertain that the entire core is covered with a uniform coat
of thermal compound. Thermal performance will dramatically decrease if any portion of the core is not
covered by thermal compound.
2. Heatsink installation
The MCX603 uses Intel’s validated retention
clips, which are provided with your
motherboard. It does not necessitate
removal of the motherboard. Please consult
your motherboard installation guide for
installation of the retention frame and clips.
Simply place the heatsink onto the CPU, and
push down on the spring clips to secure the
assembly.
TIP: press down on the opposite side of the
heatsink while installing the first clip, to
prevent the assembly from tilting.
3. Alternate retention
Swiftech’s optional proprietary retention
mechanism (spring loaded screws &
standoffs) is also available online. Information
is available on our site here.
4. Fan compatibility and installation (fan is not provided).
Use the provided push-pin rivets to secure the fan to the bracket thru the lower lip of the fan as shown in
the schematic page 1. Fans that do not feature a lip cannot be installed with the provided push-pin rivets
and require a screw and nut to be secured to the brackets. Two sets of screws are provided: 6-32 x 1” for
use with 25mm fans, and 6-32 x 1.75” for use with 33 to 38mm fans.
5. Recommended fans
Suggested fan airflow rating for normal use (non-overclocked processor), and operating conditions: 30 to
45CFM.
Suggested fan airflow rating for extreme operating conditions, such as overclocked processors or unusually
high ambient temperatures: 45CFM and above
III. Final inspection
Now that the heat sink is installed, startup your computer, go into the BIOS and observe the CPU temperature.
Under normal ambient temperature conditions, the processor temperature should never exceed 65° C. If it
does, shut down the computer immediately, and review your entire installation. Troubleshooting help is available
on our web site at www.swiftnets.com, or by calling customer support at 562-595-8009.
DISCLAIMER: Swiftech assumes no liability whatsoever, expressed or implied, for the use of these products.
Copyright Swiftech 2003 – All rights reserved – Last revision date: July 2, 2003
Rouchon Industries, Inc., dba Swiftech – 1703 E. 28th Street, Signal Hill, CA 90755 – Tel. 562-595-8009 – Fax 562-595-8769
E Mail: Swiftech @swiftnets.com – URL: http://www.swiftnets.com
Information subject to change without notice
Page 2
