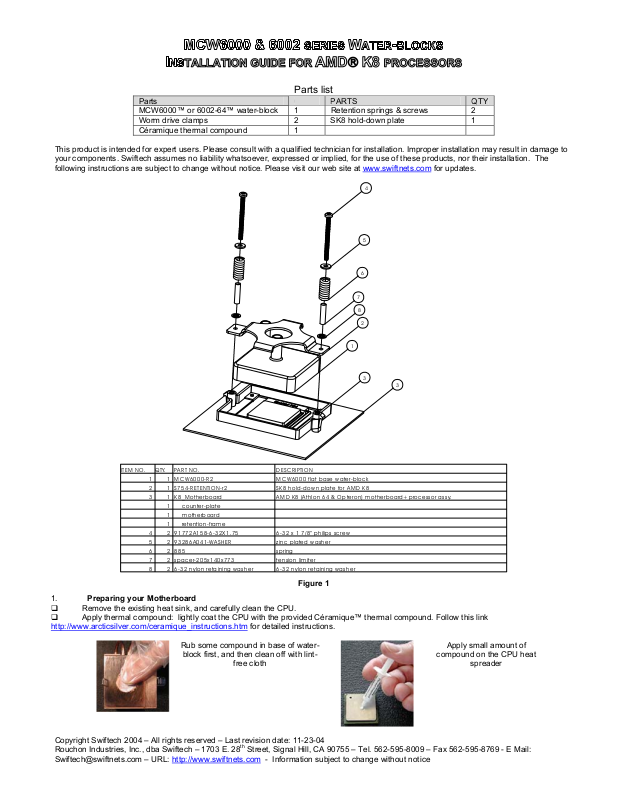

Swiftech MCW6000 2 64 User Manual

Parts list

A

Parts QTY PARTS QTY
MCW6000™ or 6002-64™ water-block 1 Retention springs & screws 2
Worm drive clamps 2 SK8 hold-down plate 1

This product is intended for expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to
your components. Swiftech assumes no liability whatsoever, expressed or implied, for the use of these products, nor their installation. The
following instructions are subject to change without notice. Please visit our web site at www.swiftnets.com

Céramique thermal compound 1

for updates.

4

5

6

7

8

2

1

ITE M N O. Q TY. PAR T N O. DE SC R IPTI ON

1 1 MCW6000-R2 MCW6000 flat base water-block

2 1 S754-RETENTION-r2 SK8 hold-down plate for AMD K8

3 1 K8_Motherboard

1 counter-plate

1 motherboard

1 retention-frame

4 2 91772A 158-6-32X1.75 6-32 x 1 7/8“ philips screw

5 2 93286A041-WASHER zinc plated washer

62885 spring

7 2 spacer-205x140x773 tension limiter

8 2 6-32 nylon retaining washer 6-32 nylon retaining washer

MD K8 (Ath lon 6 4 & Op te ron) mo the rb oar d+ pro ce sso r as sy.

3

3

Figure 1

1. Preparing your Motherboard

 Remove the existing heat sink, and carefully clean the CPU.
 Apply thermal compound: lightly coat the CPU with the provided Céramique™ thermal compound. Follow this link

http://www.arcticsilver.com/ceramique_instructions.htm

for detailed instructions.

Rub some compound in base of water-

block first, and then clean off with lint-

free cloth

Apply small amount of

compound on the CPU heat

spreader

Copyright Swiftech 2004 – All rights reserved – Last revision date: 11-23-04
Rouchon Industries, Inc., dba Swiftech – 1703 E. 28

th

Street, Signal Hill, CA 90755 – Tel. [phone] – Fax [phone] - E Mail:

[e-mail] – URL: http://www.swiftnets.com - Information subject to change without notice

2. Water-block orientation

For ease of operations during bleeding, the outlet should always be at the highest point (while system is standing upright)

3. Water-block installation

The MCW6000™ series water-block simply bolt onto AMD retention frame as shown in figure 1, using the enclosed spring loaded screws. The
tension limiter is designed to provide appropriate tension to the springs. Do not over-tighten the springs.

4. Retention frame issues

Most K8 compatible motherboards are shipped with AMD’s validated plastic retention frame and metallic
back-plate. In an effort to spare unnecessary costs to the majority of users, Swiftech does not include these
items with the MCW6000 series water-blocks.
Some motherboards however use non-standard retention systems, and plastic back-plates instead of the
recommended metallic plates described in AMD’s Athlon™ 64 Processor Thermal Design Guide. For this

reason, Swiftech offers an optional retention frame and back plate made to AMD standards, under Part
# AJ00172 shown to the right.

5. Connecting the water-block(s) to the cooling circuit:

Carefully identify the direction of the flow in your circuit. For the MCW6000 to operate properly, the fitting
located at the center of the water-block MUST BE USED AS THE INLET.

6. Attaching the tubes:
The MCW6000™ series ship with worm-drive type hose clamps. Secure the tubes as shown in the picture to
the right (shown below with an AMD bracket), and tighten firmly

.

7. Type of Coolant:
Being entirely made of copper, the MCW6000™ series may be used with pure water, and do not necessitate
the use of anti-corrosion agents. The use of an algaecide is nonetheless recommended in any liquid cooling
system, and our HydrX™ additive also performs such function.

8. Final inspection:

Once the installation is completed, it is always a good idea to test the circuit for leaks, prior to powering up the
computer. Do not test the water-block using city water pressure. This will bow the top of the housing and

Tubes attached with the included
worm-drive clamps

render the block unusable (and will void your warranty). Maximum pressure allowable for testing is 25 psi

(1.7 bar)

Troubleshooting help is available on our web site at www.swiftnets.com

, or by calling customer support at

562-595-8009.

IMPORTANT DISCLOSURES

While all efforts have been made to provide the most comprehensive tutorial possible, Swiftech assumes no liability expressed or implied for
any damage(s) occurring to your components as a result of using Swiftech cooling products, either due to mistake or omission on our part in
the above instructions, or due to failure or defect in the Swiftech cooling products. WARRANTY Our products are guaranteed for 12 months
from the date of delivery to the final user against defects in materials or workmanship. During this period, they will be repaired or have parts
replaced provided that: (I) the product is returned to the agent from which it was purchased; (II) the product has been purchased by the end
user and not used for hire purposes; (III) the product has not been misused, handled carelessly, or other than in accordance with any
instructions provided with respect to its use. This guarantee does not confer rights other than those expressly set out above and does not
cover any claims for consequential loss or damage. This guarantee is offered as an extra benefit and does not affect your statutory rights as
a consumer.
