MCW5002-AT assy with TEC and gaskets 1 Arctic Alumina thermal compound 1
3/8” NPT to ½” barb fittings 2 Euro-style connector 1
This product is intended for expert users only. Please consult with a qualified technician for installation. Improper installation may result in damage to
your components.
installation.
Swiftech assumes no liability whatsoever, expressed or implied, for the use of these products, nor their
The following instructions are subject to change without notice. Please visit our web site at www.swiftnets.com for updates.
Part Qty Part Qty

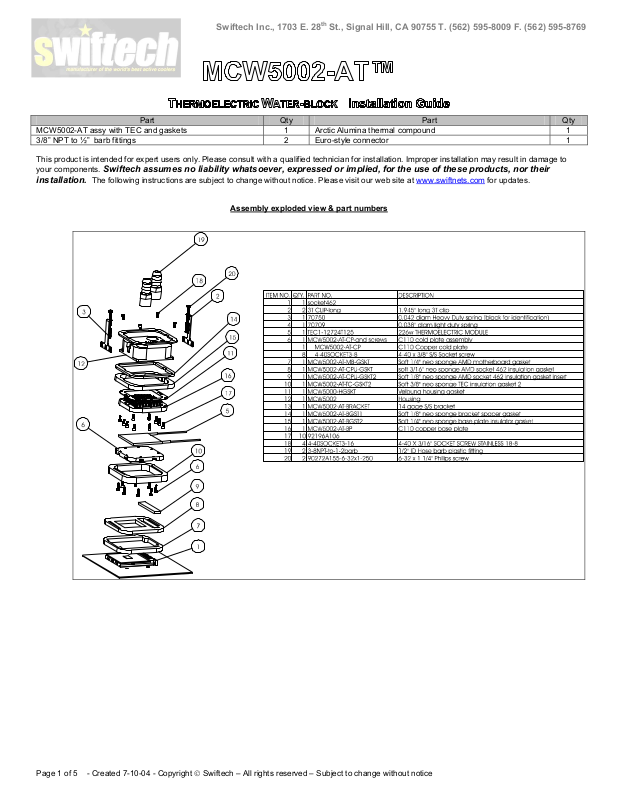

Assembly exploded view & part numbers
Page 1 of 5 - Created 7-10-04 - Copyright Swiftech – All rights reserved – Subject to change without notice
1. Condensation control measures
The following instructions are crucial to long lasting & reliable operations. Do not skip these steps, and do not take shortcuts. Permanent damage to
your components is likely to occur otherwise.
a. Motherboard preparation
i. Conformal coating application: This step will positively ensure that any micro condensation occurring on small surface
mount components will not corrode or short-circuit the motherboard.
Procure a spray can of silicone conformal coating. We use M.G. chemicals Acrylic Conformal Coating, part # 419B-340g – A
list of retail distributors carrying this item can be found here (US): http://www.mgchemicals.com/distributors/us/index.html
Canada: http://www.mgchemicals.com/distributors/canada/index.html
recommended for their ease of use. The product can also be purchase at our online store here (effective 7/15/04):
. Equivalent products can also be used. Sprays are
,

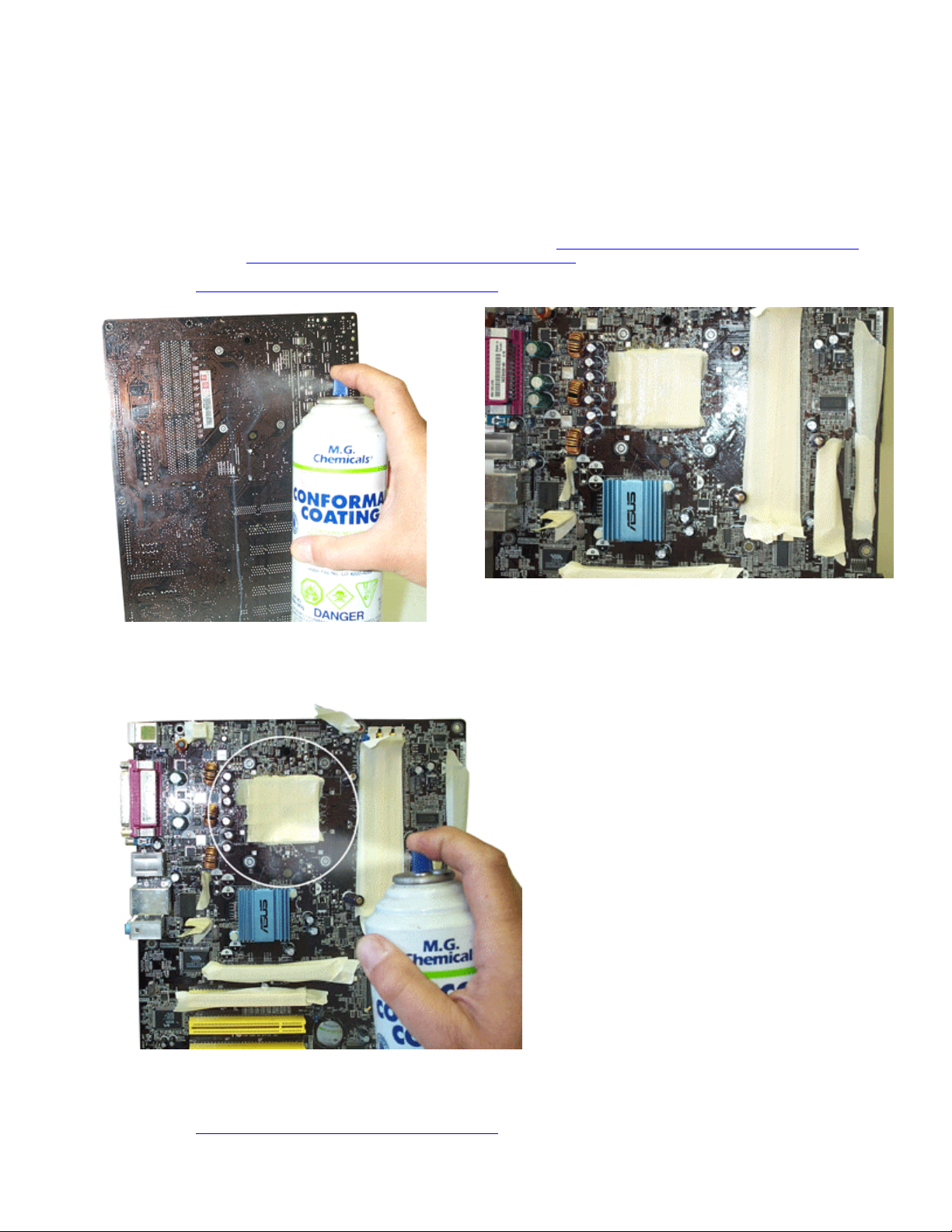

Figure 1
Spray the back of the motherboard, concentrating on the area immediately
behind the CPU. Allow time to dry, per manufacturer specs.
Figure 2
Use masking tape to protect the CPU socket, and any connector sockets
in the immediate vicinity of the socket. A double layer of tape is
recommended for the CPU socket.
Spray the area immediately surrounding the
socket. It is not recommended to spray further
than the area circled in the above picture. Allow
time to dry per manufacturer specs.
Figure 3
ii. Dielectric grease application: This step will ensure that condensation does not form inside of the CPU socket.
Procure a tube of dielectric grease. We use Luberex grease, available on our web site here:
Page 2 of 5 - Created 7-10-04 - Copyright Swiftech – All rights reserved – Subject to change without notice

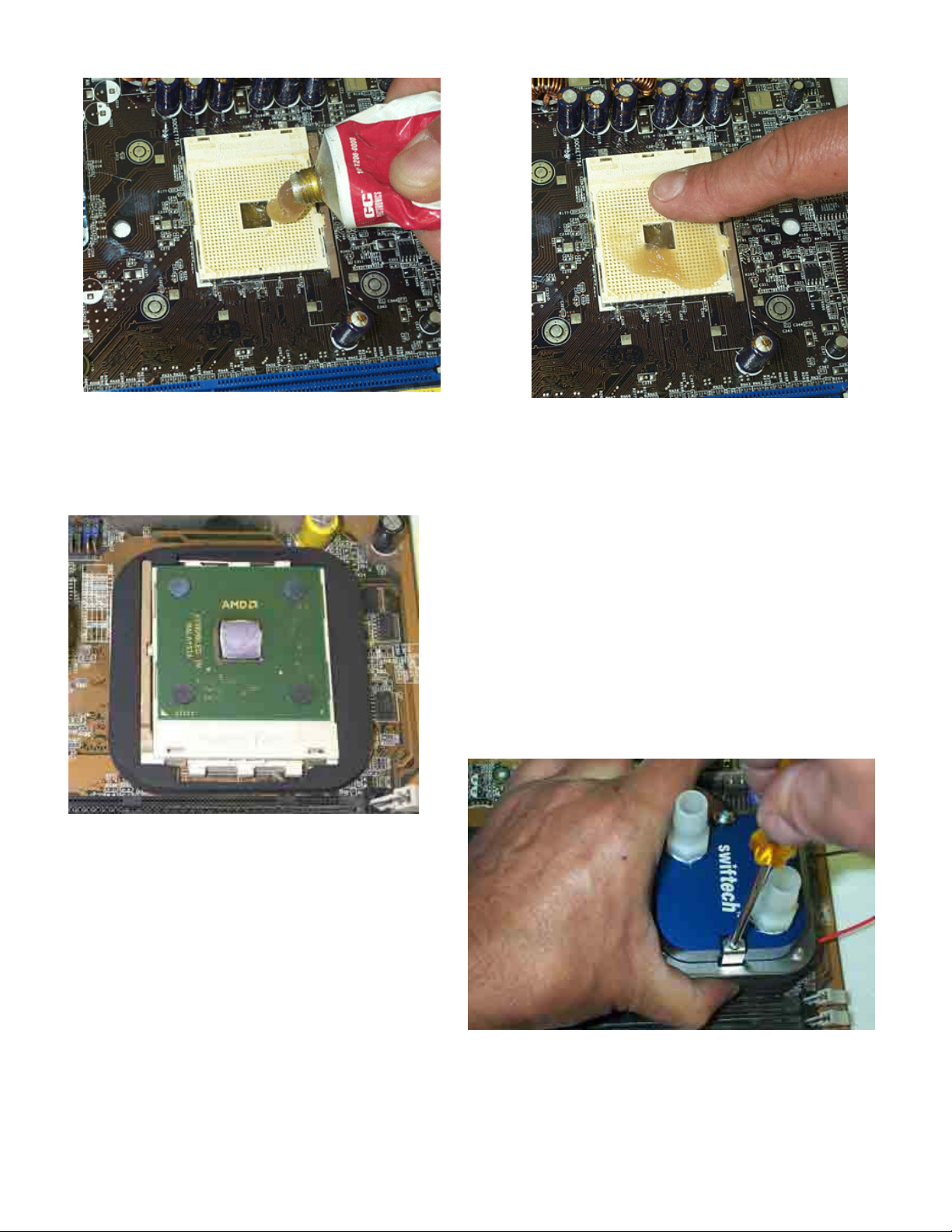

Figure 4
Squirt a generous amount of grease onto the socket. Force the grease inside of the pin-holes with your finger. Make sure that
Remove the peel-off paper back from the motherboard gasket,
Insert the processor into the socket. Since you have grease
Then, drop a small amount of high quality thermal compound
b. CPU and cooler installation:
Figure 6
and install it as shown above. The sticky side should be
towards the motherboard.
inside the socket, some hydraulic pressure lift may occur: for
this reason, make sure that the processor sits perfectly flat,
and is inserted all the way into the socket.
into the center of the processor core.
Figure 5
the central area of the socket is completely filled with grease.
Securing the MCW5002-AT cooler to the motherboard:
Initial check: make sure that the retention clips are at their lowest position by
tightening the 2 spring loaded Philips screws until the springs are fully
compressed (do not over-tighten)
Engage one side of the clip under the CPU socket retention lugs
Gently pull the water-block in the opposite direction and push it down to
catch the opposite set of socket lugs. The clip will snap underneath the
socket lugs.
Firmly press the base of the clips (through the gaskets) between middle
finger and thumb as shown in Figure 7 to compress them against the socket
(this will prevent the clips for disengaging themselves from underneath the
tabs at start-up) then gradually and alternatively loosen the two spring
loaded Philips screws to secure the water-block.
Continue backing off the screws until the head of each screw completely
clears the top of the bracket, as shown figure 8.

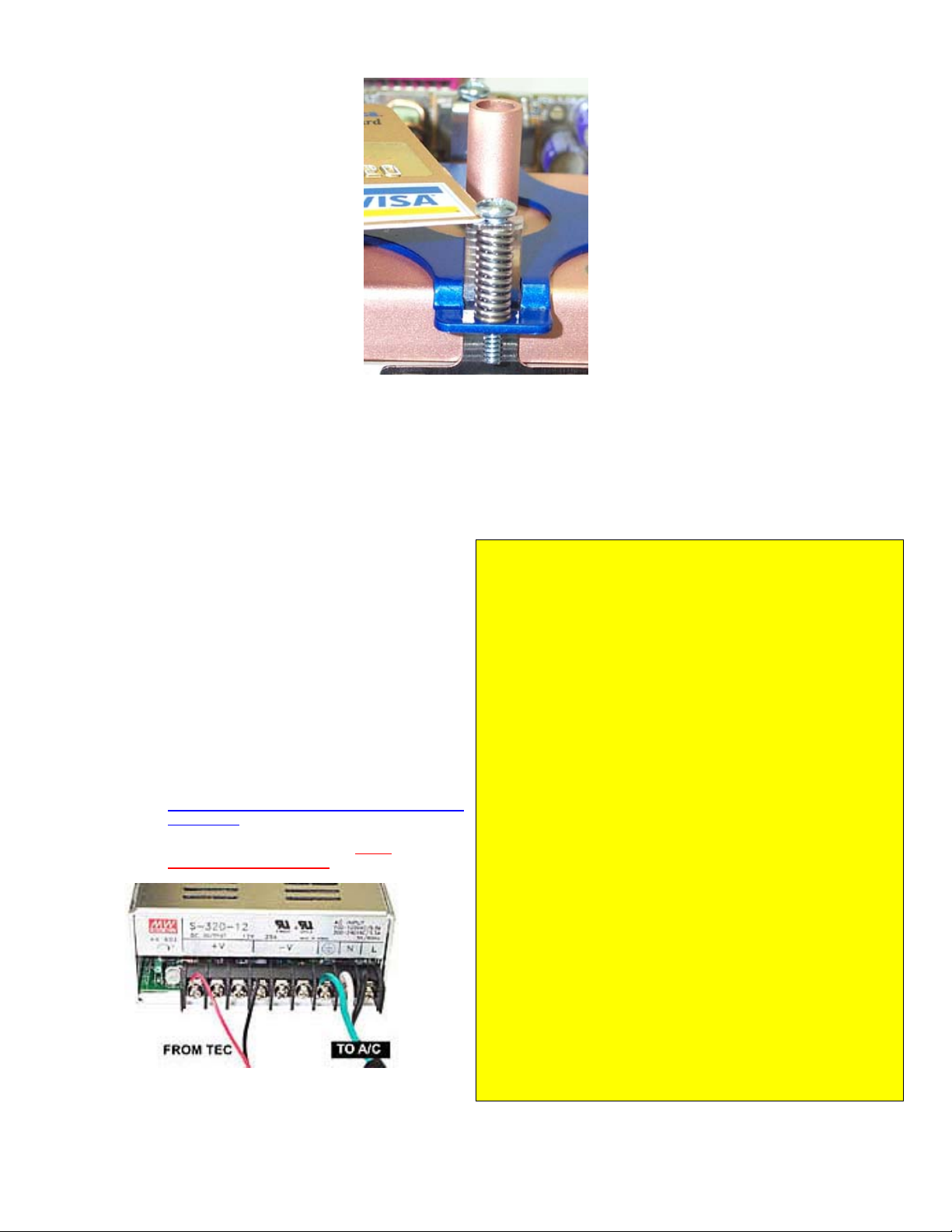

Figure 7
Page 3 of 5 - Created 7-10-04 - Copyright Swiftech – All rights reserved – Subject to change without notice
Figure 8
2. Electrical Installation
IMPORTANT WARNING: Solder joints of the wires to the thermoelectric module are extremely fragile. Bending the wires at their root will break the
solder joint, with no possible repair. Swiftech will not honor the warranty for broken wires.
a. Recommended installation: Connecting to a dedicated
auxiliary power supply
Minimum requirements for a dedicated power supply
are 25A @ +12V.
Your TEC module has been measured to draw 18
amps at 12 volts. For this reason, we recommend
using the “Meanwell S320-12” auxiliary power supply,
available on our website in the Thermoelectric
accessories section.
The TEC module is provided with “bare wires” to
facilitate installation with screw type terminals such as
featured in the S320-12 power supply
Connect red wire from TEC module to the +V
terminal, and black wire to the –V terminal as shown
in figure 9.
A complete installation guide for the S320-12 power
supply kit is available here:
http://www.swiftnets.com/products/installationguide_S
320-12kit.pdf - This kit includes a wiring harness and
a relay switch to synchronize the power to the S32012 with your computer, which is a highly
Never run a thermoelectric module without coolant flowing in the
circuit. This will result in catastrophic failure of the cooling element, and
may cause any/all of the following:
Tubing to burst open due to coolant overheating
Permanent failure of the Peltier module
Permanent damage to the CPU and/or motherboard due to
excess heat
It is highly recommended to dedicate the auxiliary power supply for
the thermoelectric module to the computer power-supply, so that the
Peltier module will never run by itself without cooling fluid.
For this purpose, we recommend using the following accessory, available
in our online shopping cart: PRS Kit II. Includes: Relay Switch Circuit
board AC socket, S/S socket cover, power cord. This relay switch is rated
for 110 to 220~240 volts and up to 50A inrush current. It is suitable for use
with the S-320-12 Meanwell power supply recommended above.
If you run your computer unattended for extended periods of time, it
is also a good practice to setup an alarm temperature, which will shut
down the computer in case the CPU overheats. Such alarm/shut down
process should be tested as functional.
WARNING! Wires from the thermoelectric module do get
hot (this is normal). Make sure that the wires do not touch
devices that are heat sensitive, such as vinyl tubes for
example. Heat from the wires may cause the vinyl to
deform, and/or burst.
Installation of the cooler to the motherboard is now complete!
Figure 9
Page 4 of 5 - Created 7-10-04 - Copyright Swiftech – All rights reserved – Subject to change without notice
b. Connecting to your computer power supply:
Important Warning: to connect the MCW5002-ATcooler to an
ATX computer power supply, you must carefully consider the
existing requirements of other devices connected on the +12V line.
Connecting to an underpowered unit will definitely damage the
power supply.
c. Connecting TEC wires to the power supply:
Use the provided euro-style wire connector as shown in fig 11 below,
or a similar device with a current rating of at least 25 amps. Connect
red wire from TEC module to +12V of P/S (Yellow wire), and black wire
to black wire:
Minimum requirements for an ATX computer power supply: 36A at
+12V in a typical computer setup.
When you connect the MCW5002-AT to an ATX power supply,
you need to cut the wiring to one of the power supply Molex
connectors, and use a different connector between power supply,
and thermoelectric. This is because Molex connectors are not rated
If you need wiring extensions: use 16 gage stranded wire. Connect
the extension to the existing wires with terminal splices, or solder the
butts, and insulate with shrink tubing.
Figure 10
for 18Amps current, and may overheat.
3. Hydraulic Installation
The MCW5002-AT is shipped with ½” barb to 3/8” NPT nylon fittings. These fittings should be installed using Teflon tape or
plumbers “goop”. If fittings need to be replaced for a difference tubing size, do not use brass fittings, because of the galvanic
corrosion that will take place between copper or brass and the MCW5002-AT aluminum housing. Always use nylon fittings.
Inlet and outlet are interchangeable.
Type of Coolant:
For best performance, use 95% distilled water, and 5% Swiftech brand “HydrX” corrosion inhibitor (available here:
In all cases, you must use Distilled water and a corrosion inhibitor with the MCW5002 water-block. Regular automotive
anti-freeze is acceptable. Automotive manufacturers recommend that not less than 25% is used.
NEVER use tap water, even for a short-term test.
Not following the above instructions constitutes misuse (*) of the product, and will void your warranty.
4. Final inspection
Once the installation is completed, it is always a good idea to test the circuit for leaks, prior to powering up the computer. Troubleshooting help is
available on our web site at www.swiftnets.com
, or by calling customer support at 562-595-8009.
IMPORTANT DISCLOSURES
While all efforts have been made to provide the most comprehensive tutorial possible, Swiftech assumes no liability expressed or implied for any
damage(s) occurring to your components as a result of using Swiftech cooling products, either due to mistake or omission on our part in the above
instructions, or due to failure or defect in the Swiftech cooling products.
WARRANTY
Our products are guaranteed for 12 months from the date of delivery to the final user against defects in materials or workmanship. During this period,
they will be repaired or have parts replaced provided that: (I) the product is returned to the agent from which it was purchased; (II) the product has
been purchased by the end user and not used for hire purposes; (III) the product has not been misused (*), handled carelessly, or other than in
accordance with any instructions provided with respect to its use. This guarantee does not confer rights other than those expressly set out above and
does not cover any claims for consequential loss or damage. This guarantee is offered as an extra benefit and does not affect your statutory rights as a
consumer.
