Splash Drone Pro

SWELLPRO SPLASH DRONE PRO User Manual

Download

Page 1

SPLASH DRONE PRO VERSION User Manual V2.3

Australian Version - Mode 1

PRO

www.swellpro.com

www.uavwholesale.com.au

Page 2

User Manual

V2.3 2015.10

This product is NOT SUITABLE FOR PEOPLE UNDER THE AGE OF 18

Obligatorily, please read the user Manual carefully before flight. For sake of safety, please DO

comply with regulations of ICAO, Local space territory Legacy and UAV Management Discipline

to enjoy flights with Splash Drone in the open air & keep away from residences. Uninstalling

Propellers is strongly advised during radio calibrations & parameters setting.

SWELLPRO is exempt liabilities from damage(s) & injuries incurred directly / indirectly

from the use of this product in the following conditions:

1. Damage(s) or Injuries incurred when users are under the influence of alcohol, drugs or

impaired in any way through sickness, both physically and mentally;

2. Damage(s) or injuries caused by subjective intentional operations as well as any mental

damage compensation caused by accident;

3. Any malfunction caused by human failure to follow the guidance of the manual to assemble or

operate;

4. Damage(s) or injuries occurred in mechanical and electronic parts by a green hand operator

without training;

5. Damage(s) or injuries caused by forgetting/failing to calibrate aircraft before flight;

6. Damage(s) or injuries incurred from using the unauthorized third party accessories or

counterfeit parts against SWELLPRO’s relative policy;

7. Damage(s) or injuries caused by operation faults, bad judgments and modifications imposed

on Splash Drone;

Thanks for purchasing your new SWELLPRO product. Please thoroughly read the entire

contents of this manual to fully use and understand the product.

It is advised to check the Splash Drone’s product page at WWW.SWELLPRO.COM which is

updated on a regular basis. This will provide services such as product information, technical

updates and manual corrections.

Due to any unforeseen changes or product upgrades, the information contained within this

manual is subject to change without notice. If you have any questions or concerns regarding

your product, please contact your dealer or SWELLPRO Customer Service.

SPLASH DRONE PRO

Preface

Page 3

1. Product Introduction

2. Function Abstract

3. What’s in the Box?

4. Splash Drone PRO version

4.1 Configuration

4.1.1 Aircraft Configuration

4.1.2 Radio Controller Configuration

Fundamental Awareness

8. Damage(s) or injuries caused by using malfunction & aging parts;

9. Damage(s) or injuries occurred by persistent flight after the low-battery warning;

10. Damage(s) or injuries occurred by salty corrosion without (thoroughly) washing & drying the

parts that engaged in sea water;

11. Damage(s) or injuries caused by losing control on aircraft due to change the location of flight

controller;

12. Damage(s) or injuries caused by using other third party appliances, such as

Transmitter/Receiver/Remote control device;

13. Damage(s) or injuries occurred in circumstances with possible interference, including the

magnetic filed, radio signal and other subjective operation troubles caused by bad judgments,

obscure vision & poor-eyesight;

14. Damage(s) or injuries occurred when the aircraft is in the following situations: collision, fire,

explosion, floods, tsunamis, ice, snow, avalanche, flooding, landslide, earthquake, etc. ;

15. Damage(s) or injuries caused by abusing & modifying the protective circuit inside of Battery;

16. Any legal liability incurred by illegal activities. Please use products within limits permitted by

local laws and regulations;

SWELLPRO reserves all the rights for final interpretation. Forbidden (Important)

Please QUIT using the aircraft if any exceptional abnormality occurs.

Please DO make sure the Throttle joystick is staying at neutral position before switching on

radio controller. Damage(s) or injuries may occur in tuning Splash Drone, so please DO ensure

all engines are turned off before any calibrations.

Forbidden (Important) Caution (Important)

Index

Symbols Highlighting

Page 4

4.2 Flight Guidance

4.2.1 Radio Controller Operation Guidance

4.2.2 Flight Mode

4.2.3 OSD data on Radio Controller

4.2.4 Self-tightening Propeller

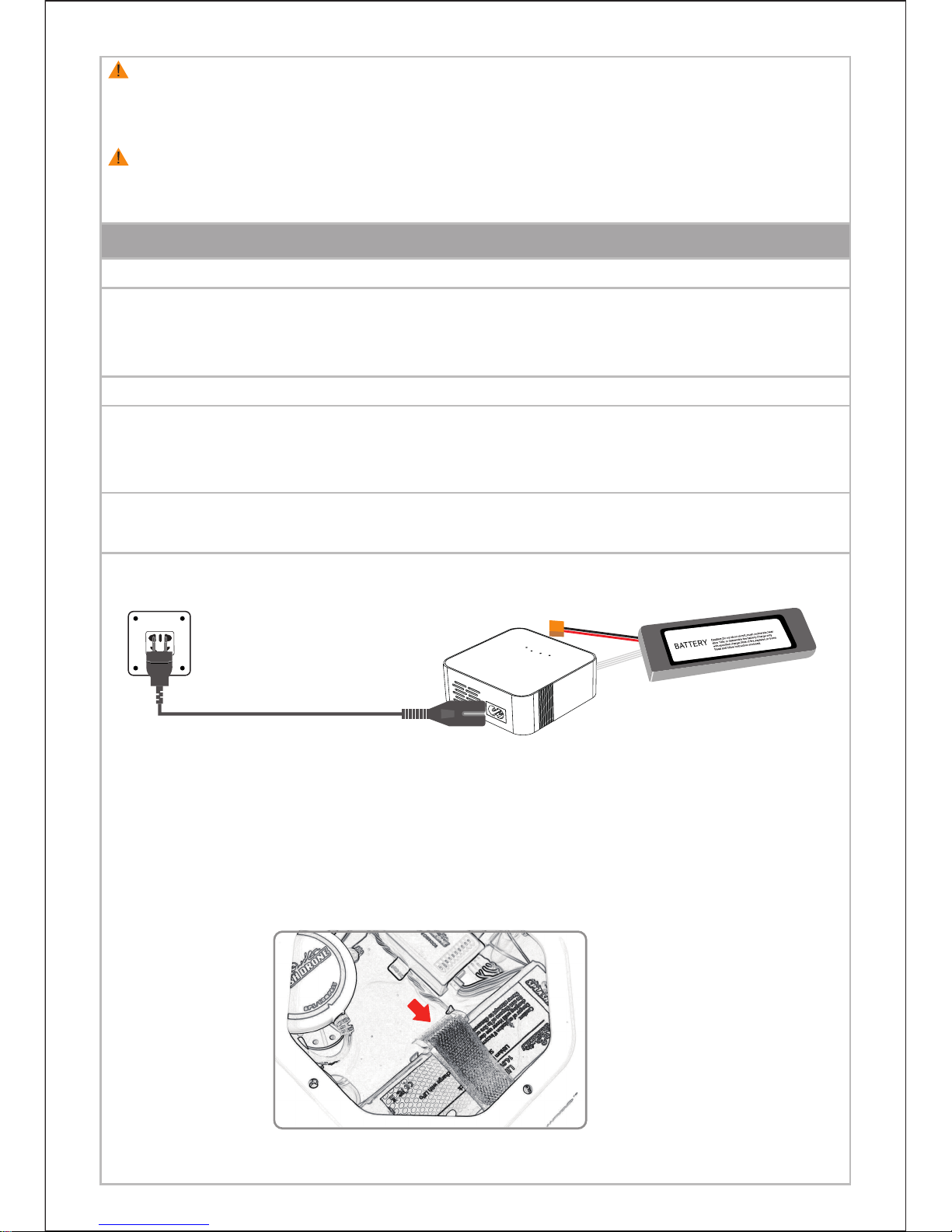

4.2.5 Battery

4.3 Calibrations

4.3.1 Joystick Calibration

4.3.2 Accelerometer Calibration

4.3.3 Compass Calibration

4.4 Flight Instruction

4.4.1 Announce Before Flight

4.4.2 Start flying the Splash Drone

4.4.3 Landing

4.4.4 Auto Return-To-Home (RTH)

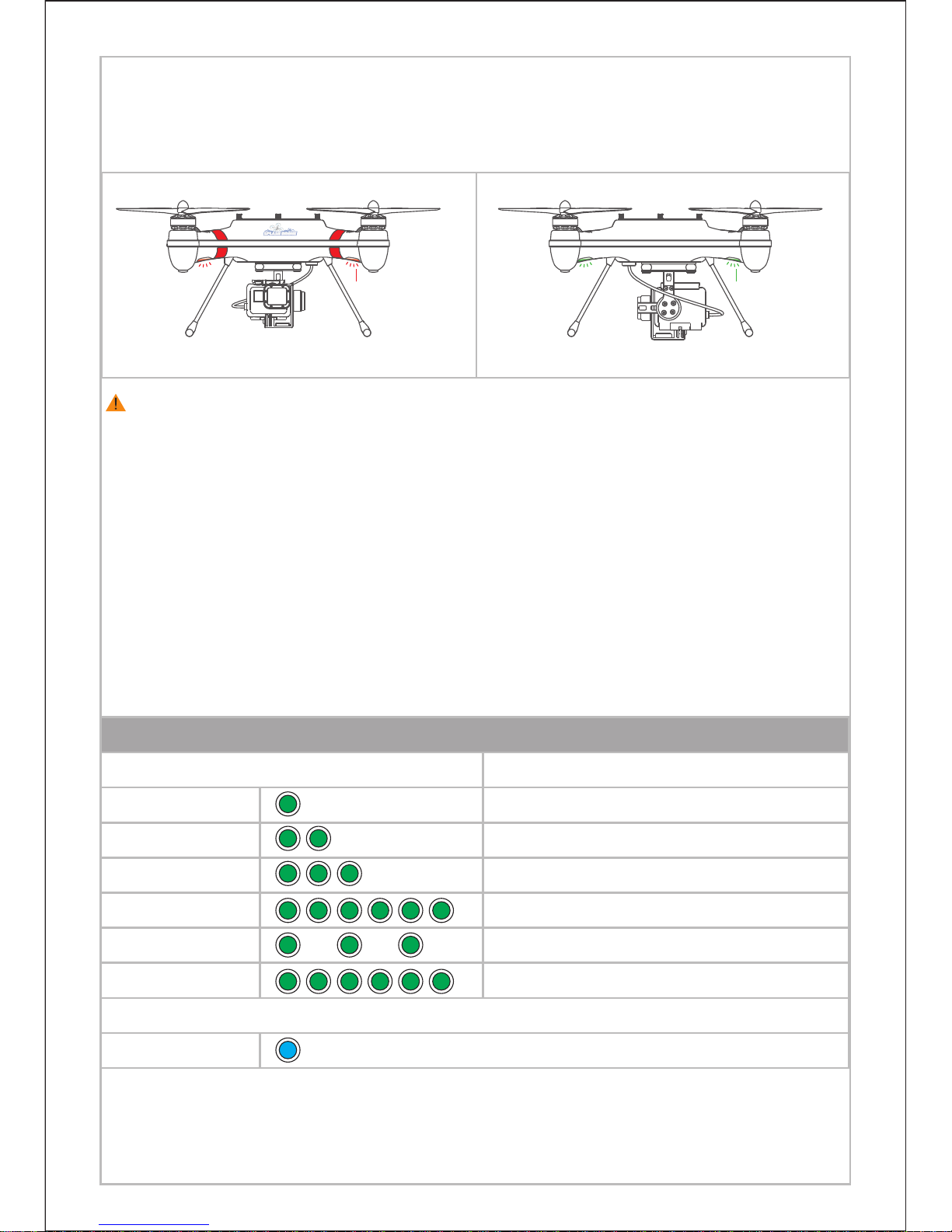

4.4.5 Navigation Indication

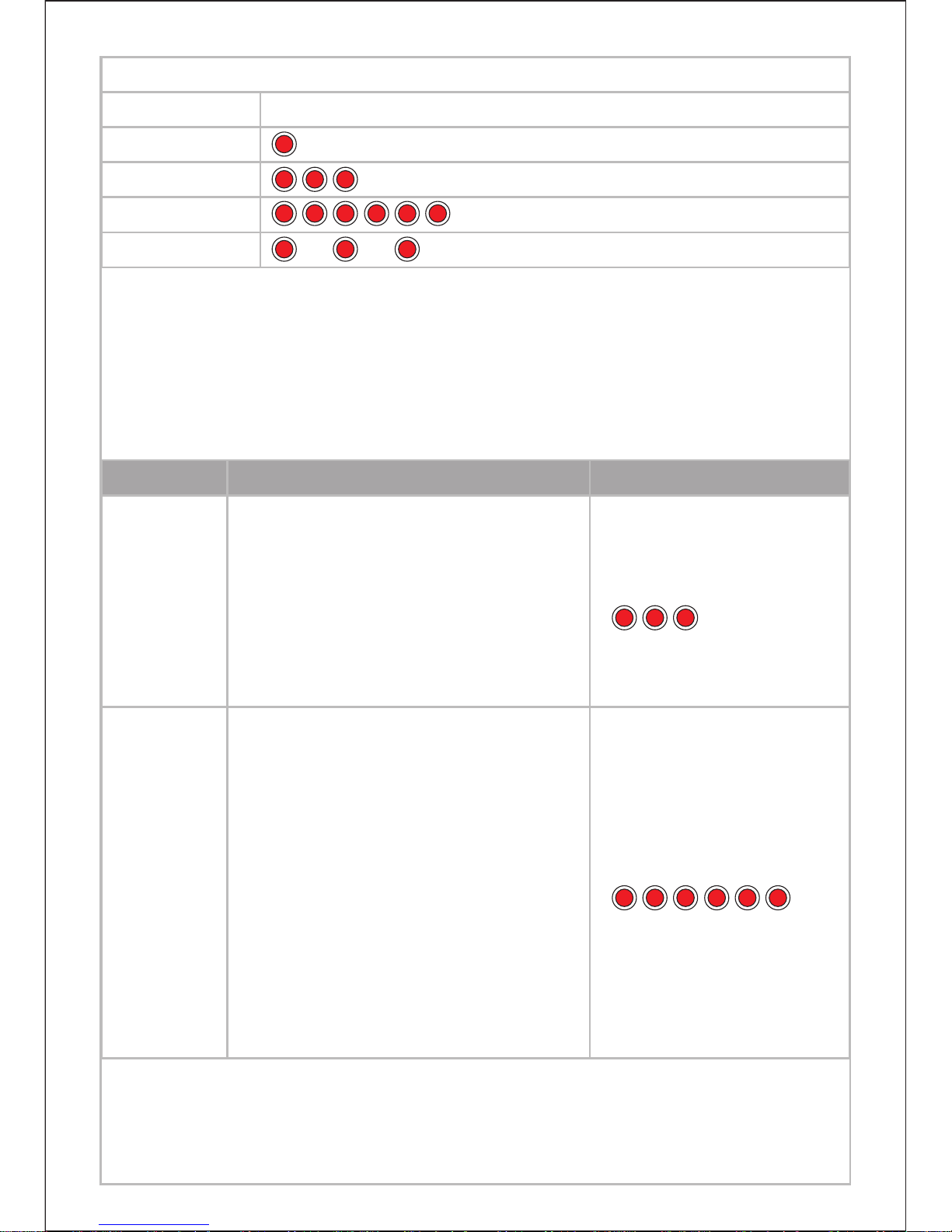

4.4.6 Indication LED for Flight Control

4.4.7 Low Battery Warning

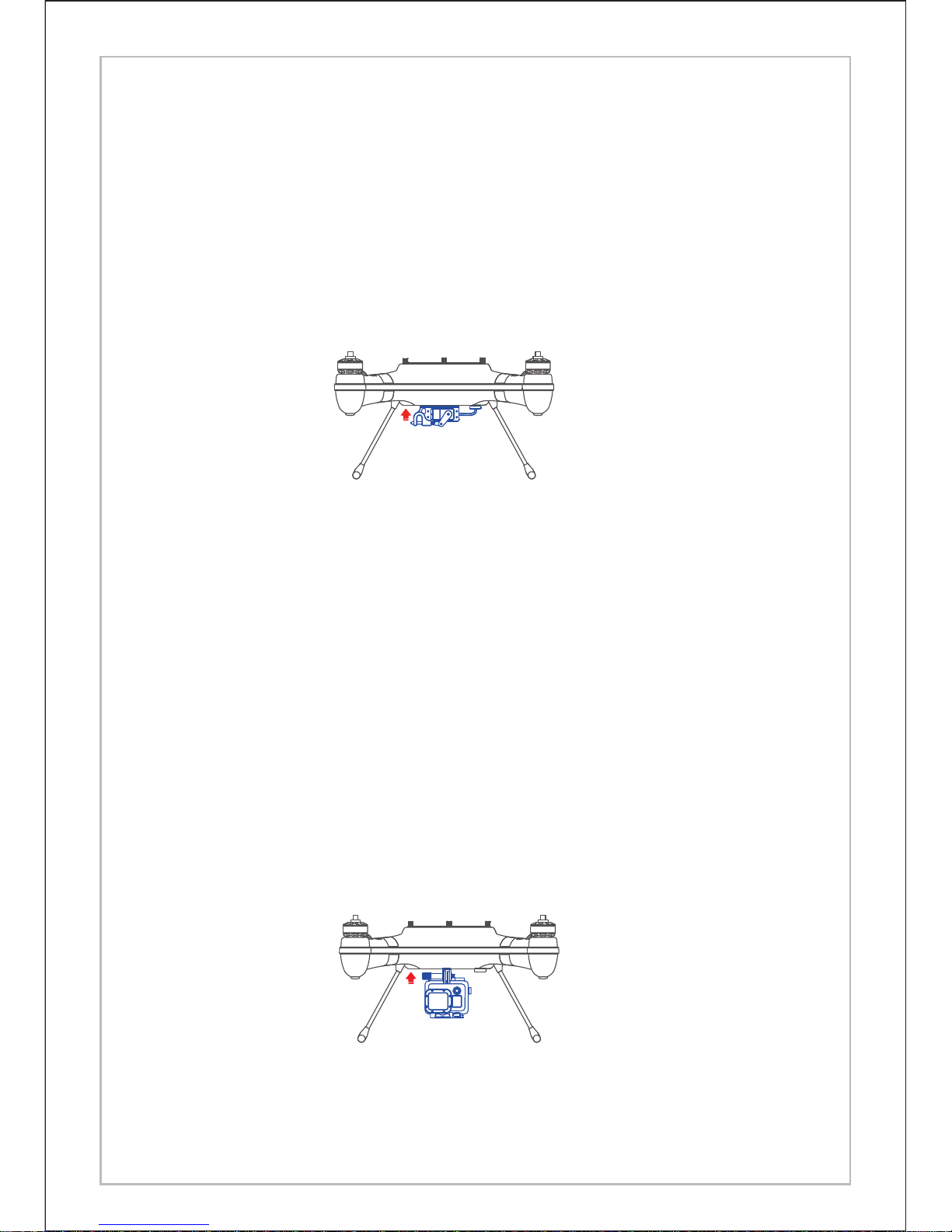

4.5 Using different kind of Accessories

5. Specifications of Splash Drone

6. FAQ

Developed by SwellPRO, Splash Drone is the world’s 1st amphibious & waterproof drone. 71% of

the earth covered by water, 60% of the people live by ocean or lake. There isn’t a drone that can

survive from landing on water. The Splash Drone fills this gap on the drone market.

Similar to regular drone on the market, Splash Drone come with video transmission for live-video

streaming, gimbal for aerial filming, auto return home for safety. The special thing is that Splash

Drone is a multifunctional drone. You can start your aerial filming from water and land the whole

drone on water without fearing of lost the drone. You can take off the gimbal to make extreme fly

1. Product Introduction

Page 5

1. Payload release: Able to load object up to 1kg to fly and throw at specified place. Suitable for

water rescue with lifesaving ring; deliver fish food for fisherman; fishing etc.

2. Waterproof gimbal: The world’s first waterproof gimbal for the drone. It’s GoPro type FPV

waterproof case fits GoPro Hero3/3+/4 camera.

3. Built-in one of the most compact designed 5.8G video transmitter, with a transmission range

upto 1km.

4. Auto Return to Home function: Prevent losing the drone because of mis-operation, which give

confidence to people to operate the drone.

5. Real time OSD data on the controller: Most of the important flight data will be showed on the

controller LCD screen, which help you to master the drone status during flying.

6. Cruise Control: Idea come from fixed wing plane, the drone keep flying straight forward

automatically, which make sure filming super stable aerial video.

7. Circle Flight: Fly the drone surround the specified target to make 360° aerial filming.

8. Self-tighten Carbon Fiber Propeller: Strong and durable, and no more wrench need to fix the

propeller.

9. Smart Charger: All-In-One design, no more complicated setting, support 2-4S Li-Polymer

battery.

10. Aluminum suitcase: Compact and strong design for easy to carry and protect the drone,

plenty of space fits the drone and its accessories.

above water to make a lot of fun. You can also mount a waterproof camera to make extreme fly

while filming above water. You can mount a payload release to deliver object to selected location

which is used on life rescue, fishing, enforcement etc.

The Splash Drone is an idle tool for sailor, lake and ocean scientist, boat owner, professional

fisherman, water sport, and of course normal people all around the world.

2. Function Abstract

Splash Drone Versatility Introduction

Page 6

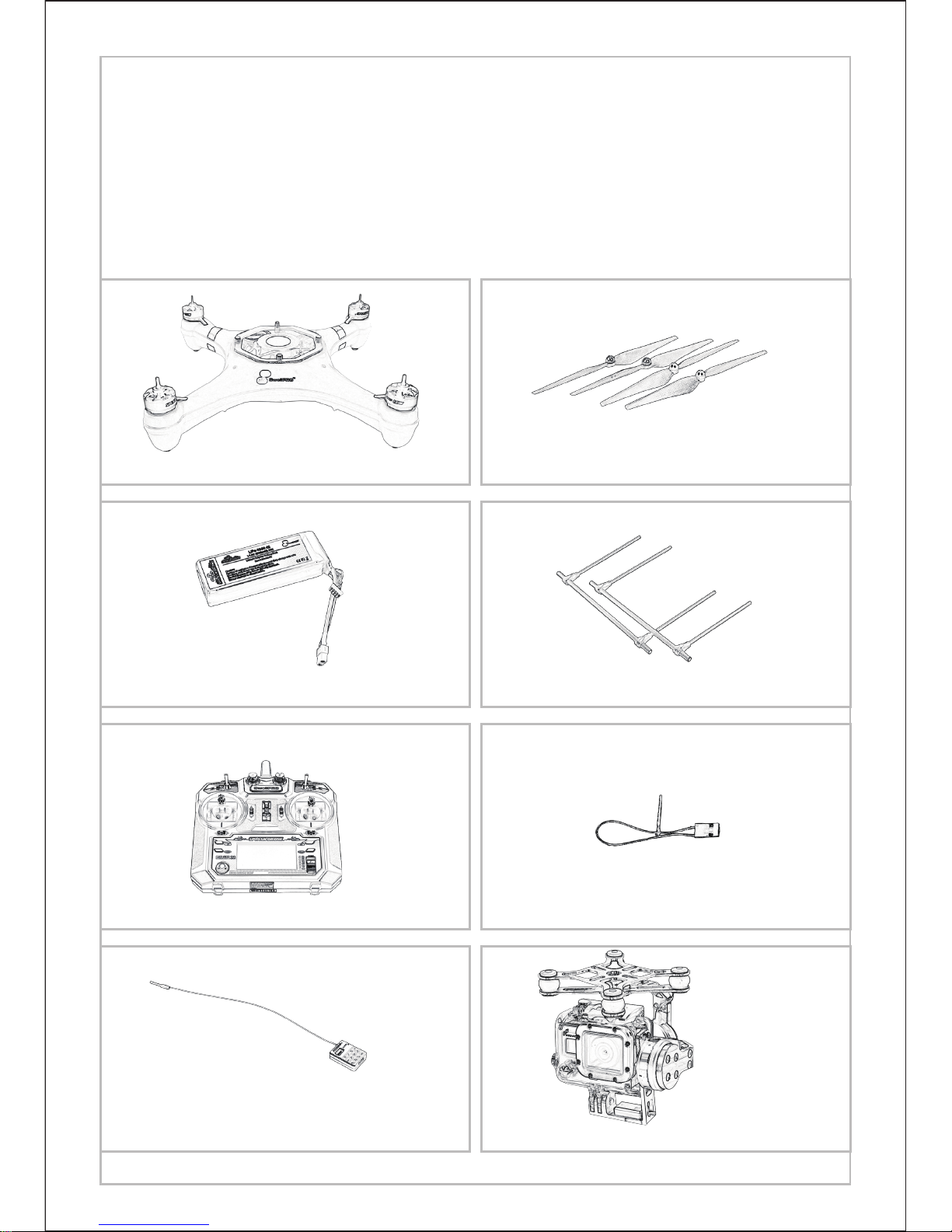

Self-tightening Propeller x2 pairsSplash Dronex1 set

Mini 5.8G video transmitter x1pc

Lipo Battery x1pc

2.4G Radio controller x1 set Short terminal of Receiver x1pc

Quick-release Landing gear x1 set

Waterproof 2-Axis Gimbal x1 set

3. What’s in the Box?

Attention: please check & confirm the parts inside the package comply with

the part list as below:

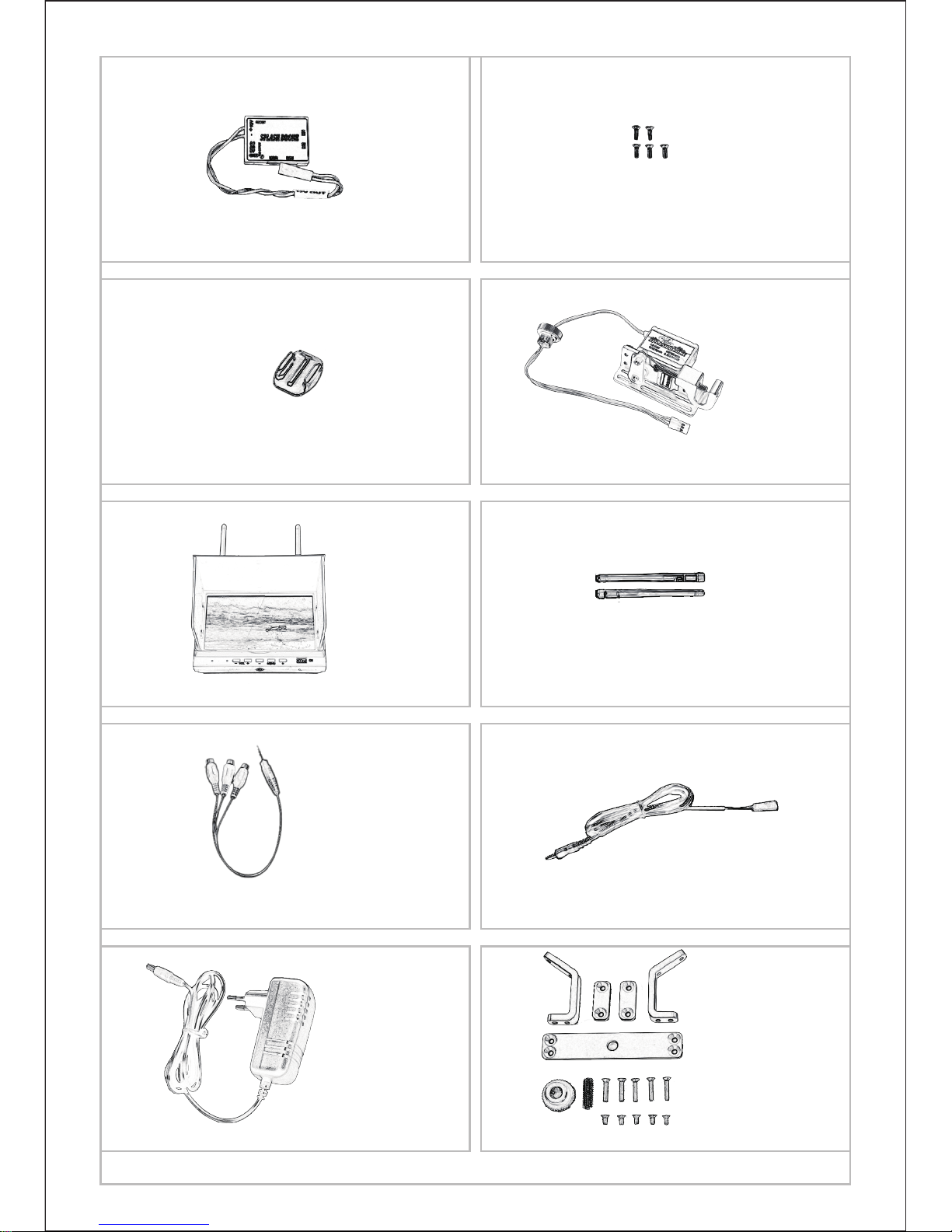

Page 7

Gimbal controller Board x1 set M3 Screws x5pcs

Quick-release mounting plate for Dive Case Waterproof Pay-load releaser x1 set

7 Inch diversity LCD FPV Monitor x1 set Receiver Antenna of FPV Monitor x1 set

Mounting bracket of FPV Monitor x1 set

AV Out cable of FPV Monitor x1 set

Smart Charger of FPV Monitor x1

Charger cable of FPV Monitor x1 set

Page 8

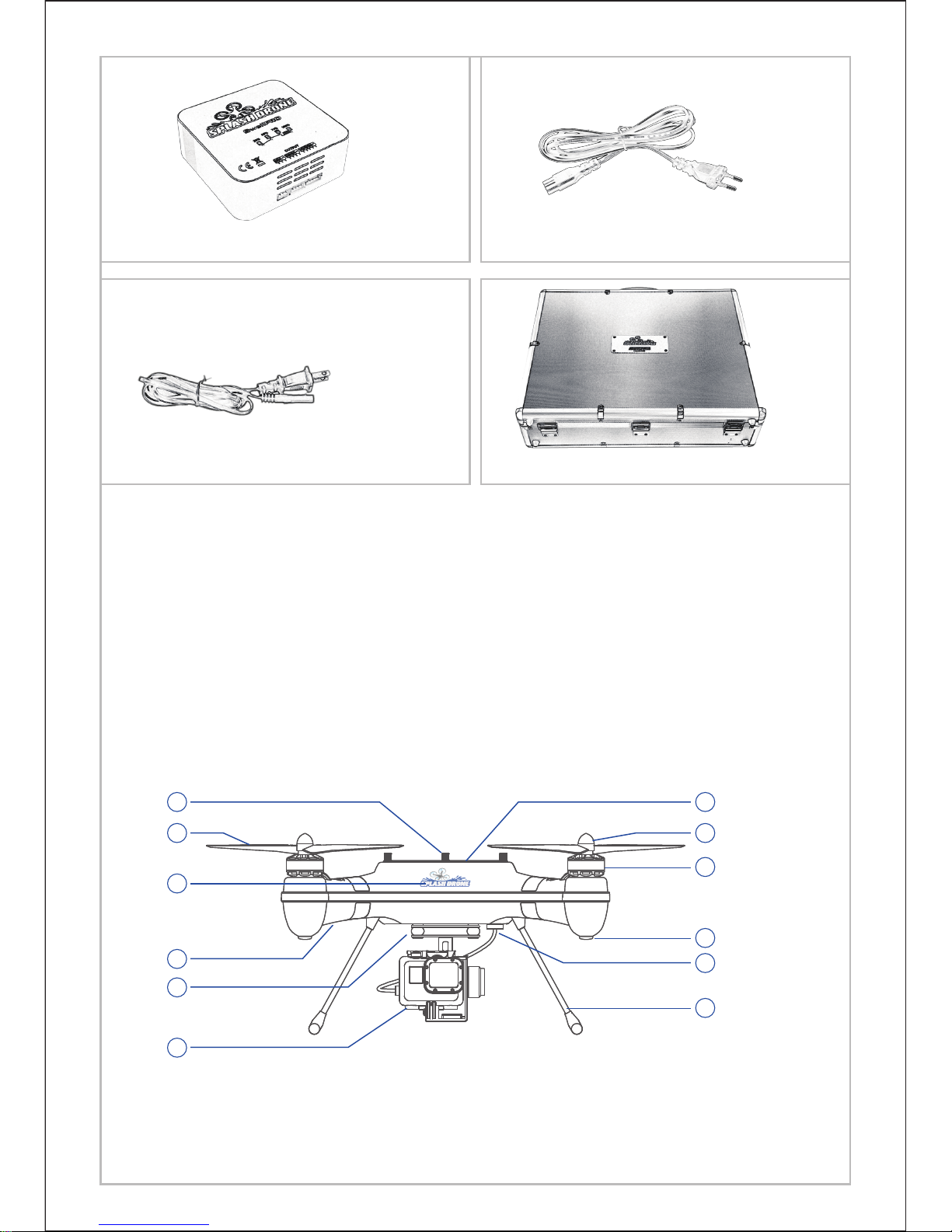

Smart Charger x1 set Charger cable in EU Specification x1 set

Charger cable in U.S. Specification x1 set Aluminum-alloy Suitcase x1 set

Splash Drone PRO version is full Ready-To-Fly package. It includes the drone, controller,

waterproof gimbal, battery, self-tighten carbon fiber propeller, 5.8G VTX, FPV screen etc. All the

parts are fits into an aluminum suitcase.

4. Splash Drone PRO version

4.1 Configuration

4.1.1 Aircraft Configuration

Page 9

01 1902

10 11 12

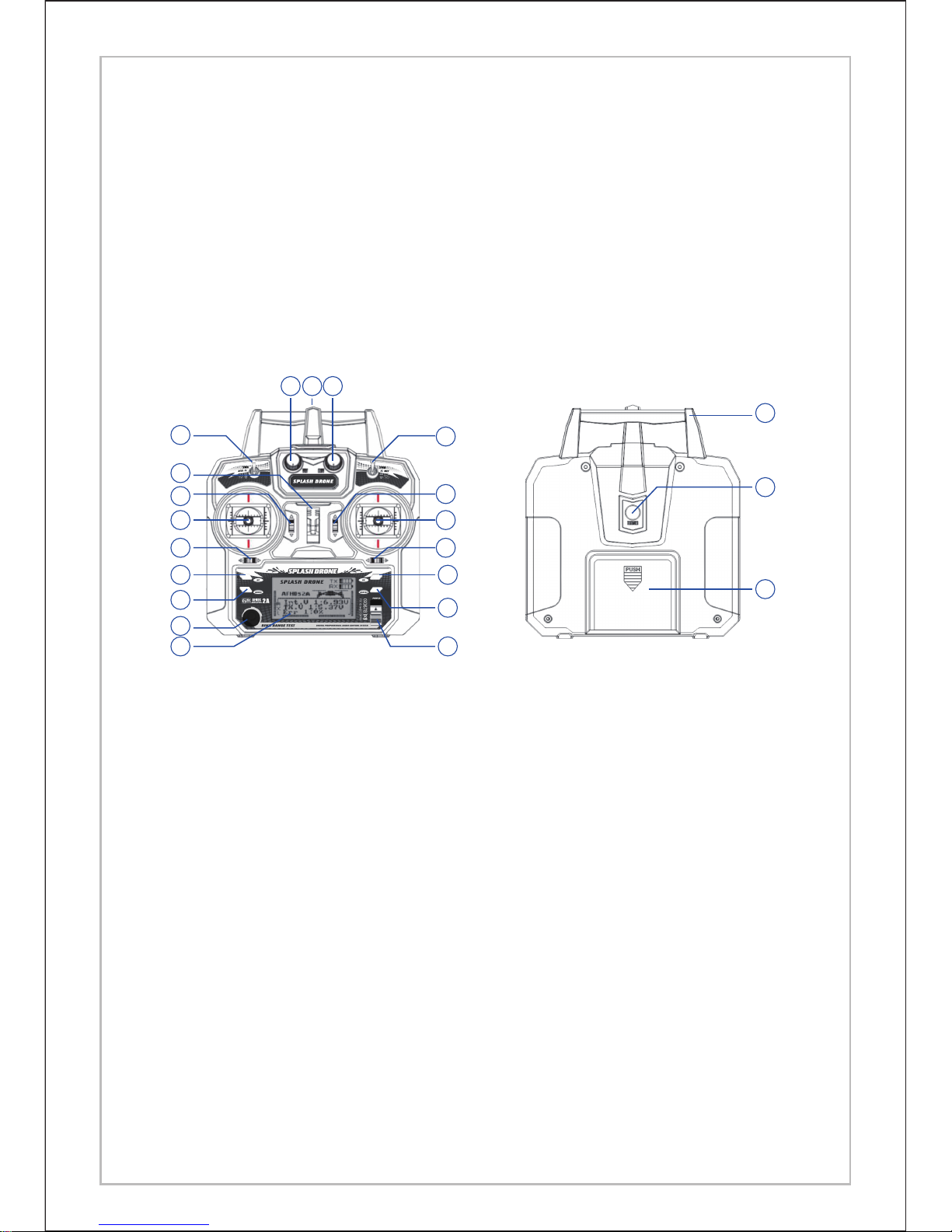

4.1.2 Radio Controller Configuration

1) Hatch Screws

3) Aircraft Nose

5) Shake-proof rubber ball

7) Landing Gear

9) Rubber cushion foot

11) Nut of Propeller

2) Self-tightening Propeller

4) Navigation Indicator

6) Waterproof 2-Axis Gimbal

8) Watertight seal screw

10) Watertight Motor

12) NANO Vent cover

1) Antenna

3) Three-way switch SWA

5) Throttle Sub-trim

7) Yaw Sub-trim

9) DOWN

11) LCD Display

13) Cancel

15) Roll Sub-trim

17) Pitch Sub-trim

19) Knob switch VRB

21) Trainer access

2) Knob switch VRA

4) Tie Hanger

6) Left Joystick

8) UP

10) Coding button

12) Power switch

14) OK

16) Right Joystick

18) Three-way switch SWB

20) Handle shaft

22) Battery cover

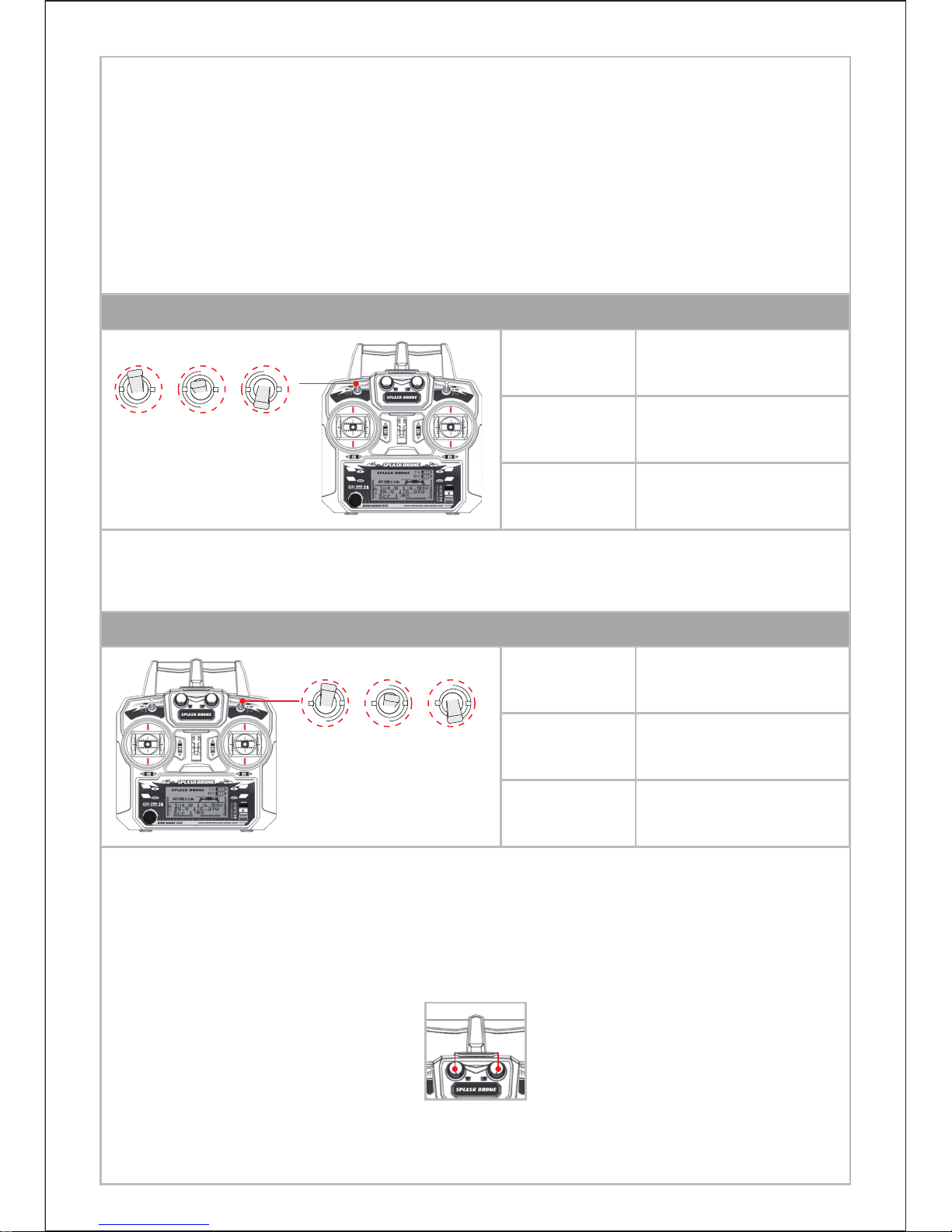

Page 10

SWA1

SWA2

SWA3

GPS Mode

ATTI Mode

Cruise Control

SWA2 SWA3

SWA is Flight Mode switch (SWA1, SWA2, SWA3)

SWB1

SWB2

SWB3

Normal

Circle Flight

Return-To-Home

SWB is Intelligence Flight Control switch (SWB1, SWB2, SWB3)

SWB1 SWB2 SWB3

VRA, VRB are knob switch to adjust the PAN/TILT of the gimbal. Which will help you to choose

the best angle for filming.

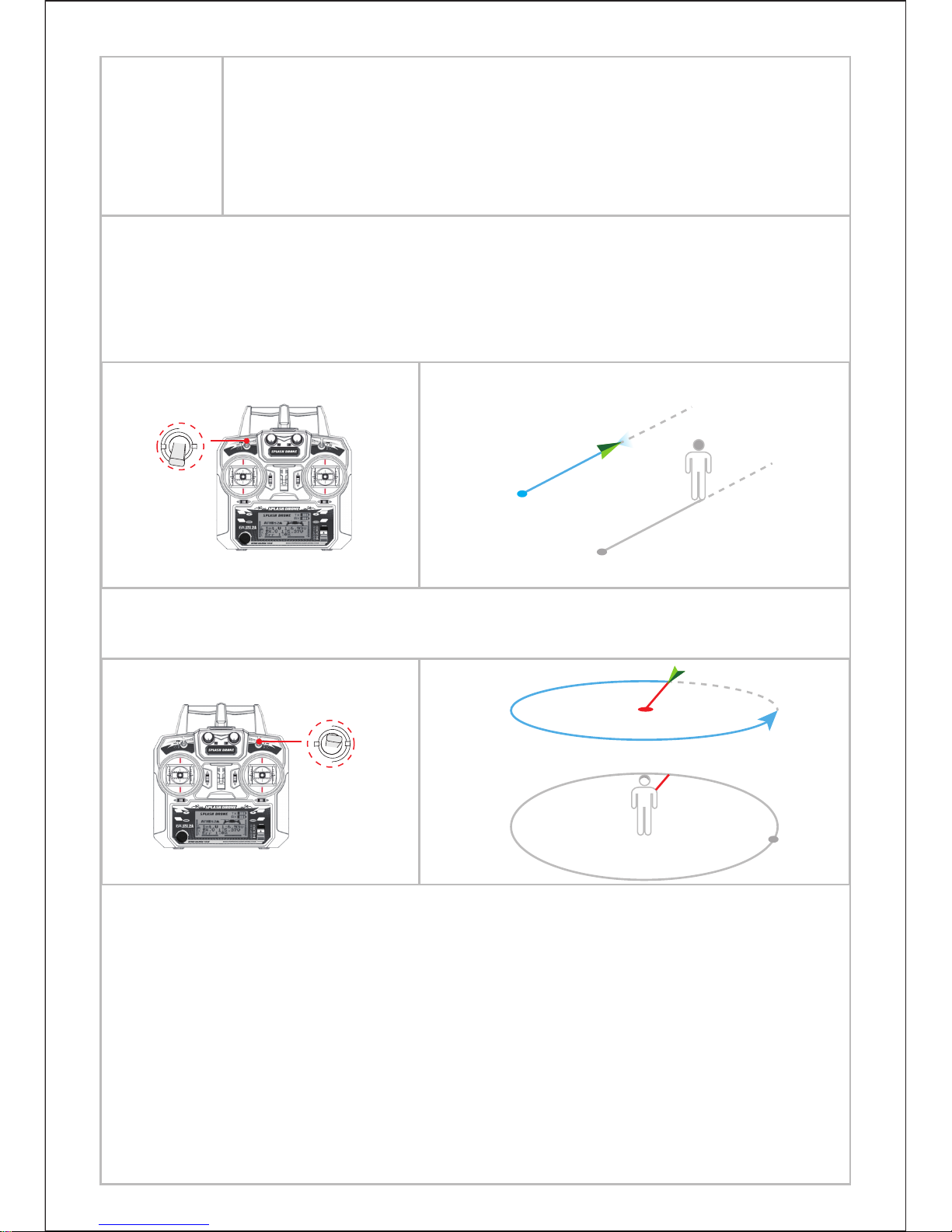

4.2.1.2 Intelligence Flight Control

4.2.1.3 Gimbal controll

VRA

VRB

4.2 Flight Guidance

4.2.1 Radio Controller Operation Guidance

4.2.1.1 Flight Mode Introduction

Attention: left-hand throttle is the default setting for the Radio controller, right-hand

throttle is possible based on request

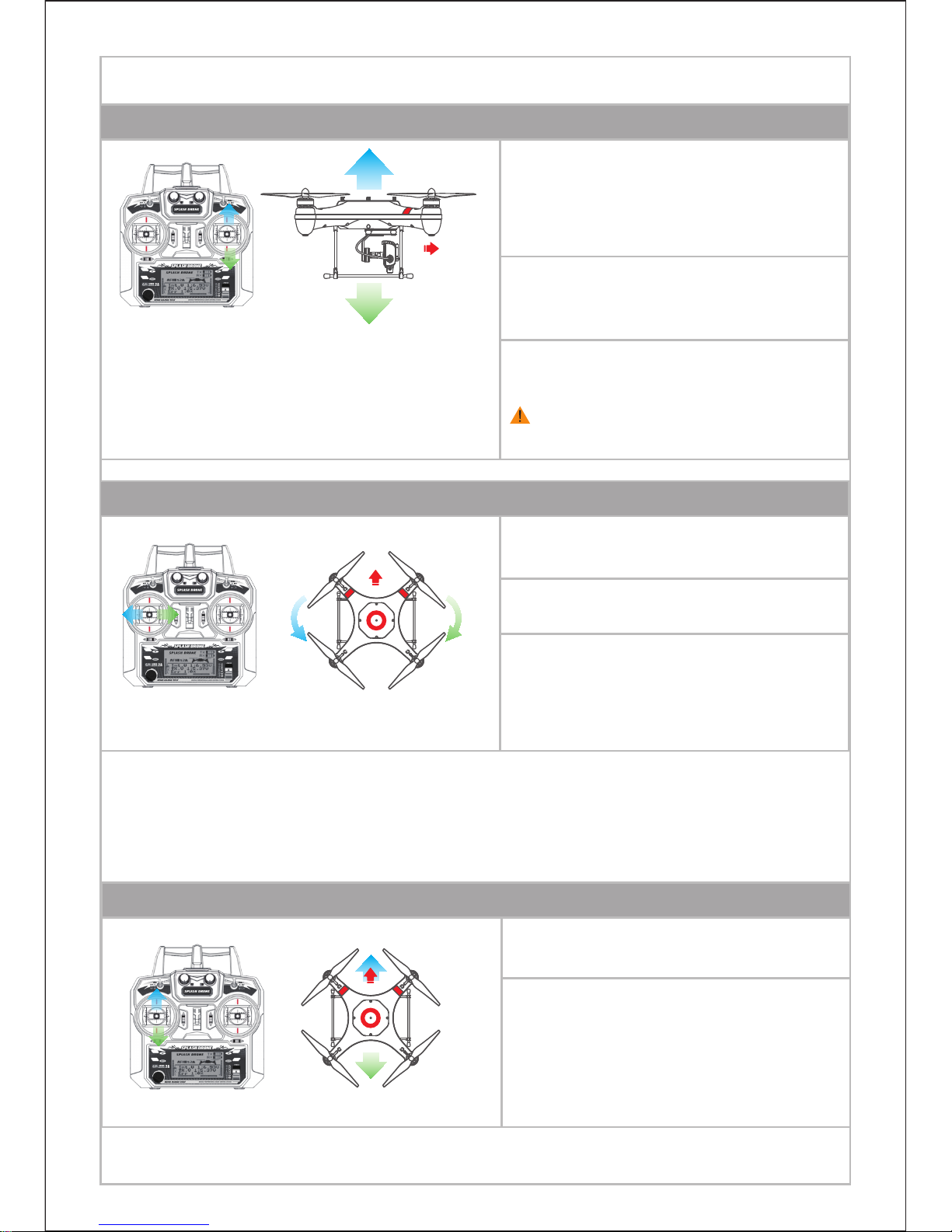

Page 11

Throttle joystick (from Down to Up) controls the flying height

Push up Throttle joystick to accelerate

elevating

Pull down Throttle joystick to bring down

the drone

Under GPS mode, hovering is available

when throttle joystick stays at neutral

position.

Taking-off by slightly pushing throttle

joystick excess the neutral position.

Attention: Slight operations on throttle

joystick is always suggestible during flight.

Left joystick (from Left to Right) controls the Yaw direction

Pull joystick to Right to execute clockwise

flight.

Pull joystick to Left for counter-clockwise

flight.

Aircraft keeps its current location when

joystick stays in the neutral position. Larger

variances imposed, the higher rotating

speed would be performed.

Left joystick (from Up to Down) controls forward & backward in the horizontal plane

Push up joystick to fly forward.

Pull down joystick to fly backward.

Aircraft flies in a specific horizontal plane

when joystick stays in the neutral position.

Larger variances imposed at up/down

motion, larger tilting angle as well as higher

speed would be performed.

4.2.1.4 Throttle joystick is for elevating upward/ downward

4.2.1.5 Left joystick is for horizontal direction during flight, such as forward/ backward/ left/

right.

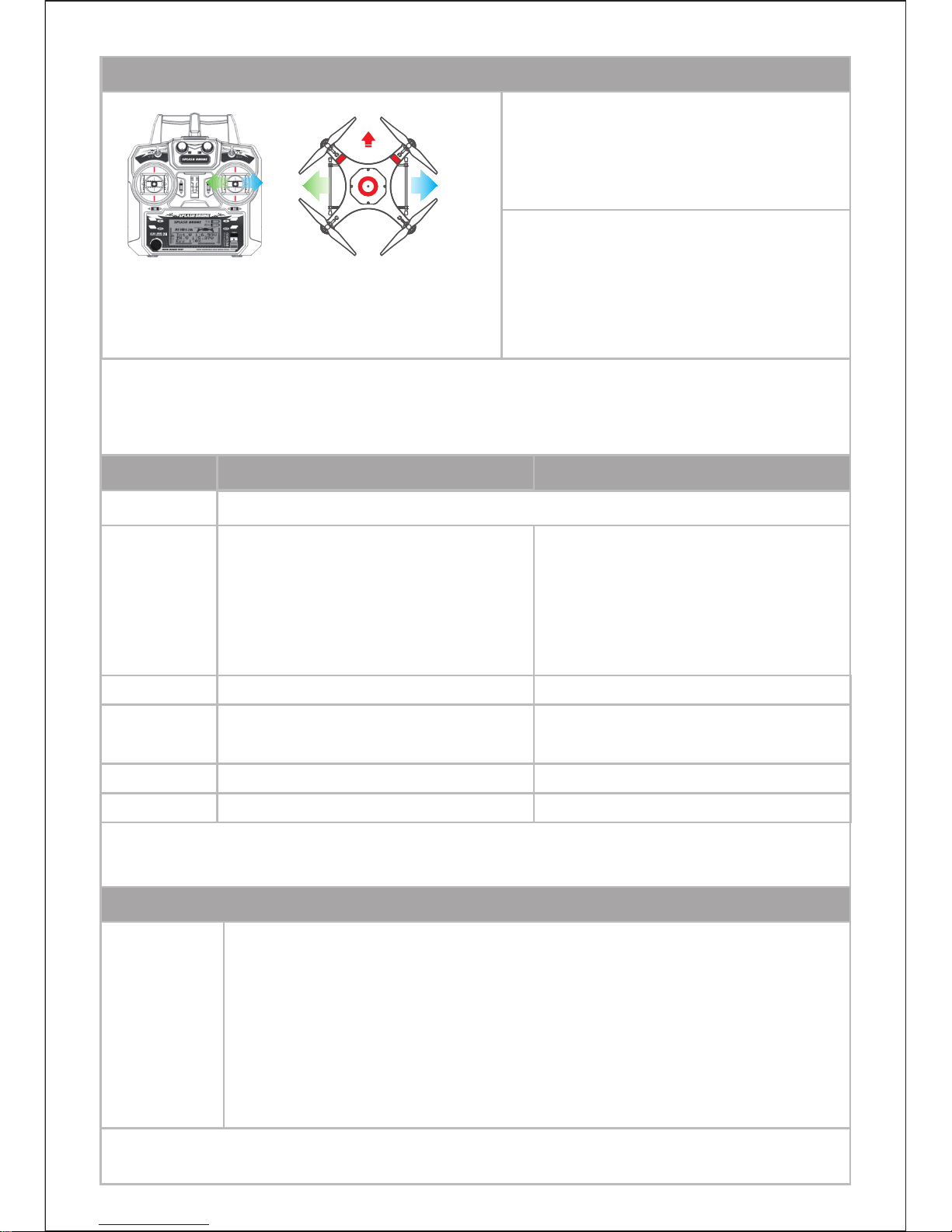

Page 12

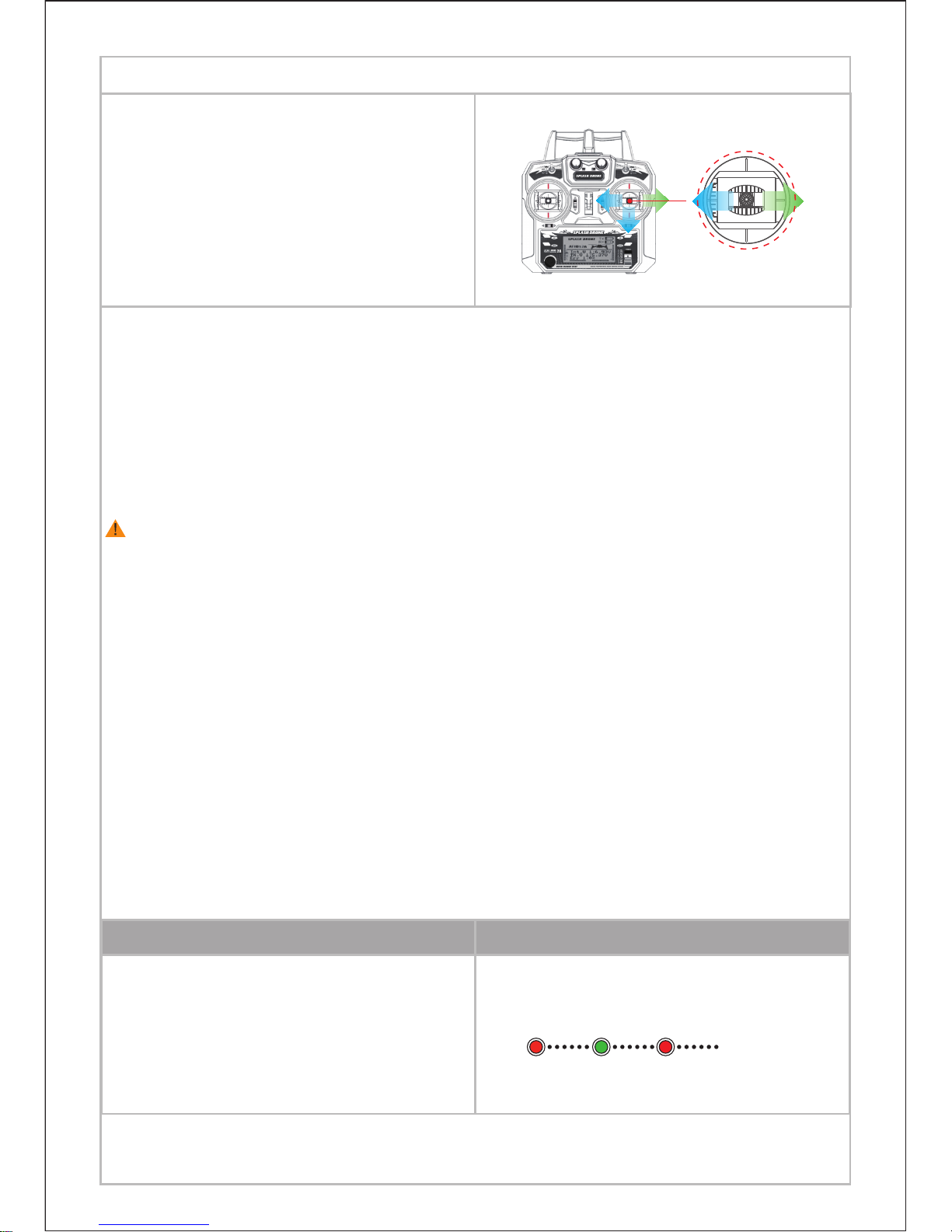

Aileron joystick (from Left to Right) controls left & right flight in the horizontal plane

Aircraft flies to right when pulling joystick to

Right

Aircraft flies to left when pulling joystick to

left

Aircraft flies in a specific horizontal plane

when joystick stays in the neutral position.

Larger variances imposed on left/right

motion, the larger tilting angle as well as

higher speed would be performed.

4.2.2 Flight Mode

4.2.2.1 Introduction spreadsheet

GPS mode: The most commonly used mode. In this mode, the compass and

GPS will be activated to make the drone recognize the current location precisely,

that make sure you can fly the drone in good gesture and hover anytime easy.

Different from the ATTI mode that suitable for senior pilot. GPS mode is suitable

for new pilot and aerial filming. The week point is that the GPS & compass

module is the quite sensitive with magnetic interference. Make sure you fly in a

place without strong magnetic interference place and good GPS signal.

Locating

Max rise

speed

AUTO RTH

Flight speed

Keep the drone horizontal and staying in

same height when both joysticks stay at

neutral positon, the Max tilting flight

angle is 25degree.

Keep the drone horizontal and staying in

same height when both joysticks stay at

neutral positon, the Max tilting flight

angle is 25degree.

Flight Mode

GPS Mode

ATTI Mode GPS Mode

Linear ControlRadio Input

Operation

Not support

4m/s

Support

Unlimited

Support

4m/s

Support

Unlimited

Page 13

ATTI mode: In ATTI mode, the compass and GPS module will not work. The

drone can maintain the height, but not able to lock the position automatically.

This mode is good for senior pilot and necessory for every drone. Because of the

senstive of the compass and week GPS signal will make the drone not good at

flying on the indoor, crowd and strong megnetic environment.

(Important note: when your drone is out of control suddently in GPS mode, the

best way to get it back is switching to ATTI mode, bring it back manually).

Curise Control: Curise control mode idea comes from fixed-wing plane, it is a

perfect for aerial filming. Switch SWA gear to SWA3 (Curise Control) position to

activate the cruise control mode. The drone will fly forward at current height and

speed (1.5meter/second is the minimum cruise speed) automatically. In this

mode, the function of the aileron joystick will be changed into direction control.

Keep pushing the aileron joystick forward, the drone will speed up; keep pulling

down the aileron joystick, the drone will slow down; Keep pushing the aileron

joystick left, the drone will keep flying left; Keep pushing the aileron joystick right,

the drone will keep flying right. Control the flying height by the throttle stick, but

the yaw function is blocked.

Circle Flight: Circle flight mode is designed for shooting 360degree video of a

specified object. Fly the drone to the top of a specified object, switch SWB to

center position to activate the Circle Flight mode. The drone will automatically fly

away from the object at a radius of 10meters with the nose pointing to the object,

hovering. In this mode, the function of aileron joystick is changed. Up & down for

radius control, left & right for anti-clockwise and clockwise control. Keep pulling

the aileron joystick right, the drone will start flying anti clockwise faster and faster

(max speed is 8m/ second); Keep pulling the aileron joystick left, the drone will

slow down till become flying clockwise. Keep pushing the aileron joystick up, the

drone will keep enlarge the radius, and down to reduce the radius. Control the

flying height by the throttle stick, but the yaw function is blocked.

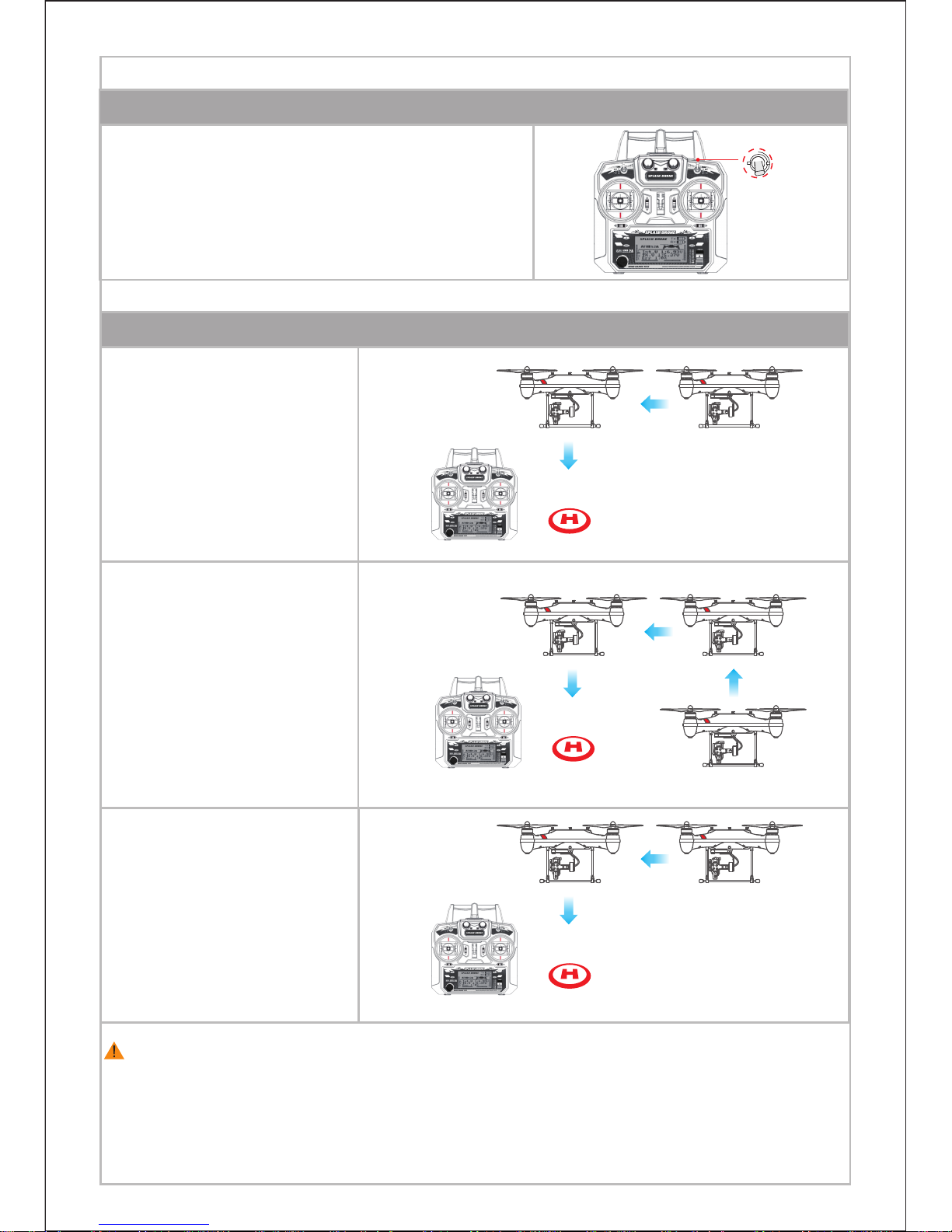

RTH mode: Switch SWB to lowest SWB3 position to activate the

Return-To-Home mode. The drone will return to the original take-off location

(Note: the drone will recognize the location that it start getting good GPS signal

to be home). For detail introduction of RTH mode, please refer to

4.4.4 Return To Home.

ATTI Mode

Cruise

Control

Circle Flight

RTH Mode

Page 14

SWA3

SWB2

4.2.3 OSD data on Radio Controller

The Splash Drone PRO intergrated with telemetry system. All flight data will be send back and

display on the remote controller screen in time. They are height, distance, speed, GPS

coordinate, battery voltage etc.

Fail Safe Return: The Fail Safe mode is an extension mode of RTH. When the

drone is fly our of range by accident or lost control signal, the Fail Safe function

will be activated. The drone will start flying back until it regain the remote control

signal. If the remote control signal keep lost, the drone will return to home point

and land.

4.2.2.2 Graphic Illustration

a. Cruise Control

b. Circle Flight

Fail

Safe

Return

Page 15

Altitud

0.0m

Voltage

0.0m

Distanc

0.0m

Speed

0.0m

Satelli 0

Course 0

HDOP 0

HCourse 0

VSpeed

0.0

Yaw

0.0

Picth

0.0

Roll

0.0

Lon 0

Lat 0

Press "Up" or "Down" to enter into OSD screen.

All the flight data will be display on the screen.

Attention: Home location can only be

recordedwhen the satellite quantity is up to 6.

So pleasedo check the satellite quantity is up to

6 before flying.

The relative height between current point and the take-off point

The current voltage of the drone battery

The ground distance from current point to the take-off point

Flying Speed( m/s )

GPS signal level

The relative direction of the drone and its take-off location, “0” means North

The horizontal Dilution of Precision on GPS

The moving direction of the drone

Ascending(+) /Descending(-) speed ( m/s),

Flight (Rotating) angle of aircraft Nose

Flying angle of moving forward(+)/ Backward(-)

Flying angle of moving to Right(+)/ Left(-)

Longitude

Latitude

OSD data on Radio Controller

Remarks: With the GPS coordinate, you can locate your drone in case it is lost.

Menu Introduction

Altitud

Voltage

Distanc

Speed

Satelli

Course

HDOP

HCourse

VSpeed

Yaw

Pitch

Roll

Lon

Lat

Page 16

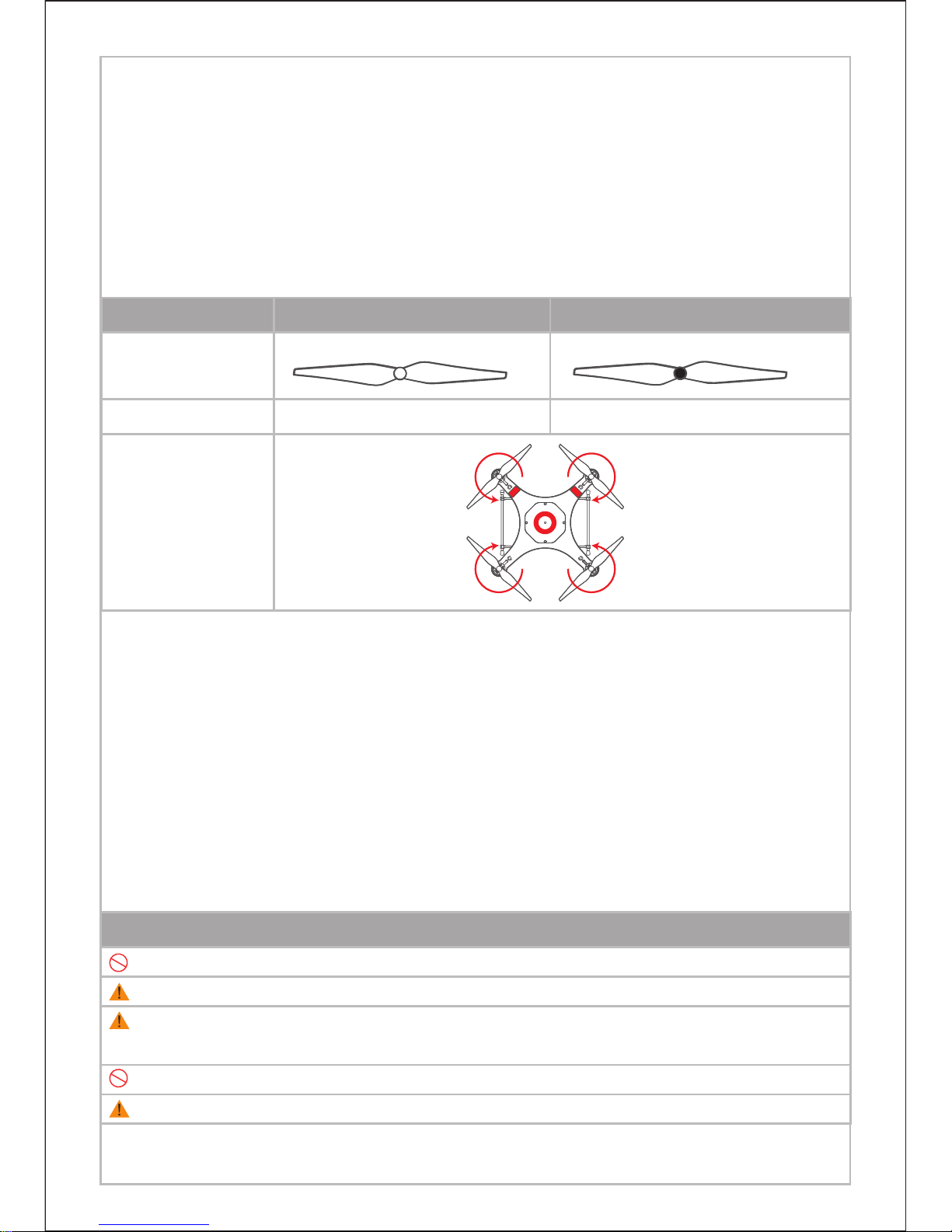

Propeller Propeller with silver spinner Propeller with black spinner

Graphic

Propeller

Assembly

Indication

Assembly Location Motor with silkprinting ‘CCW’ Motor with silkprinting ‘CW’

Take out the 4pcs original 12inch self-tighten carbon fiber propellers. Install the 2pcs propellers

with silver spinner onto CCW motors; Install the 2pcs propeller with black spinner onto CW

motors. Tighten them.

Props are self-tighten design without extra spinner & screw to fix.

The special propeller design make it not able to install the wrong propeller.

Please check to ensure every Props are in good shape before every flight. Aging & destroyed

Props are FORBIDDEN to use on Splash Drone.

DON’T touch the rotating propellers.

Please ALWAYS use the original 12inch propellers to guarantee good fly experience.

4.2.4 Self-tightening Propeller

4.2.4.1 Install propeller

Notice :

4.2.4.2 Uninstall Propeller

NEVER try to uninstall the propellers before the drone is not locked properly and motor

stop spinning.

Page 17

Forbid putting the battery into water, fire or heat place; please keep the battery away from

source of water and fire;

Battery should store in a cool and dry environment.

Battery temperature is high temporarily after use. Don’t start charging until the battery cools

down to room temperature;

Do not leave the battery charged unattended. If abnormal charging situation occurs, please

stop charging the battery at once; if you cannot attend the battery, remove the battery from

the charger in case of unpredictable danger;

Forbid imposing external force on the battery; do not drop the battery from high places and

disassemble or modify the battery;

Please replace the battery with new one if it bulges;

If a child accidentally swallows the battery you should immediately seek medical assistance.

Battery should be charged with proper standard charger.

Forbid connecting the battery reversed in positive and negative terminals in the charger or

equipment.

Forbid letting the battery terminals (+and-) touch together to cause short-circuit.

Forbid transport or store the battery together with metal objects.

Forbid driving a nail in, hit with a hammer, or stomp on the battery.

Do not disassemble or alter the battery.

Do not use the battery in strong electrostatic areas; otherwise the electronic protection may

be damaged which may cause a hazard.

If you get the battery electrolyte leakage into your eyes, don't rub, first wash your eyes with

clean water then seek medical assistance immediately. If not handled in a timely manner,

eyes could be damaged.

Do not use the battery when it emits an odor, high temperature, deformation, change in color

or other abnormal phenomena; if the battery is in use or charging, you should stop charging

or using immediately.

If the battery terminal gets dirty, please clean it with a dry cloth before using. Otherwise it will

cause a poor contact, thus causing energy loss or inability to charge.

Discarded battery could lead to a fire; you should completely discharge the battery and wrap

the output terminal with insulating tape before discarding.

4.2.5 Battery

4.2.5.1 Usage & Cautions

The battery is specially designed for Splash Drone, with 4S 4500mAh capacity, 14.8V

voltage and charge-discharge management functionality.

Page 18

DO NOT drain the battery of Splash Drone or leave the battery plugged into the Splash

Drone when unused. When there is low voltage alert please landing timely to avoid damages

to the battery or others.

Unplug the battery if not occupying with aircraft.

4.2.5.3 Install Battery

Fit the battery into the specified location as picture below. Put the battery power cord as

far away as possible from the GPS module. Make sure no cable is placed under the

battery!!!!

Charging Process

4.2.5.2 Charging Battery

Image I

1. Insert the AC power cord into charger (Image I)

2. Insert the AC power cord into 100-240V AC socket, all LED will light for 1 second, then your

charger is ready for using ( Caution: Always power ON the charger before connecting a battery,

or damage to the hanger and the battery can result.

3. Connecting the battery pack to the charger with the XH balance plug (Image I)

4. When it start charging, the 4 indication LEDs will show you the charging status: one LED blink

means 25%, two LED blink means 50%, three LED blink means 75%, and four LED blink means

the battery is fully charged.

5. During the charging process, if all 4LEDs keep blinking, that’s mean ERROR occur. Check

your connection or battery status.

Page 19

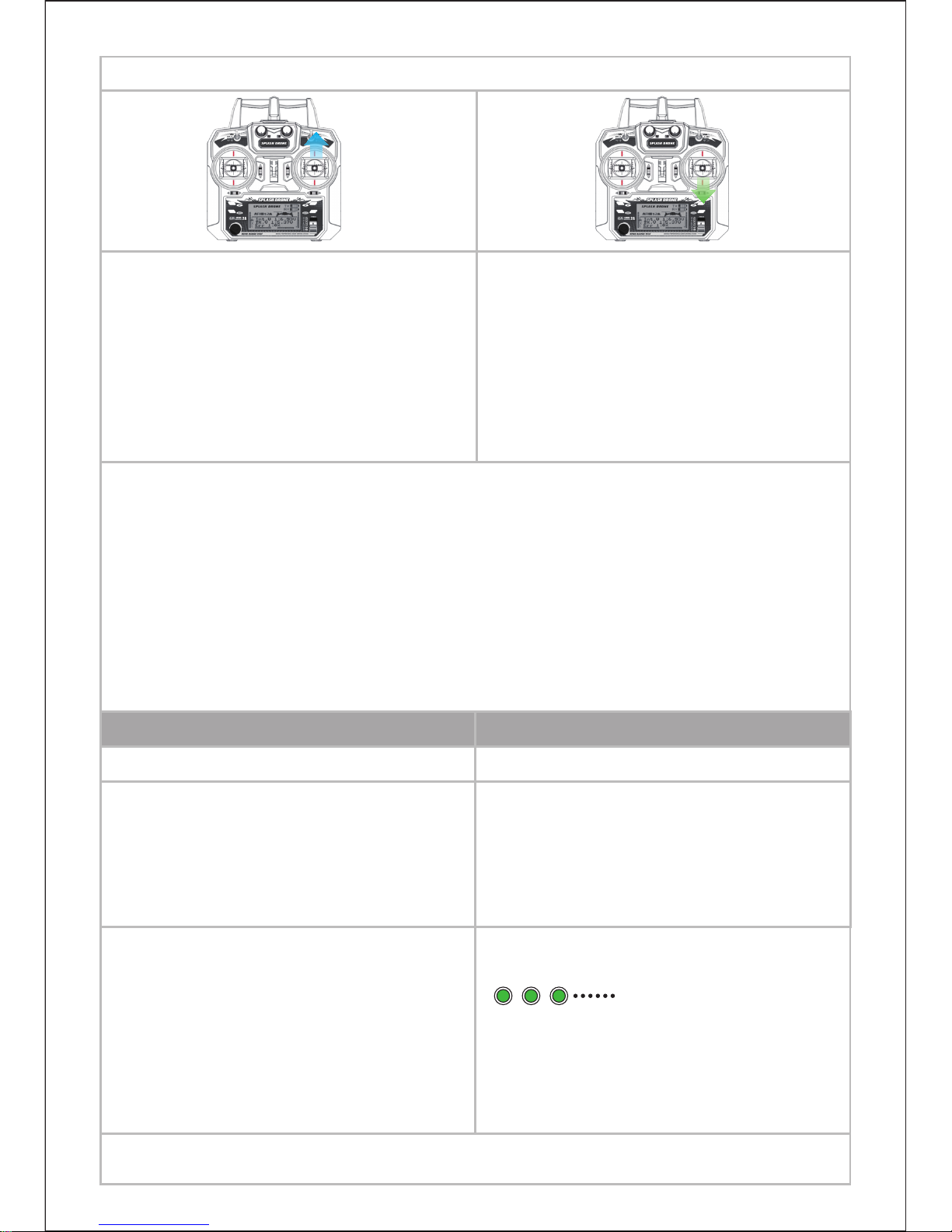

1. Switch on remote control, then power on the

drone, push the Throttle stick up Max within

10seconds (during the self-checking of flight

control). Wait till the blue LED start fast

blinking.

2. Pull the throttle stick to lowest neutral

position, the fast blue blink will become slow

blue blink, then release the throttle stick to

finish the Calibration. The slow blue blink will

stop and system enter into normal standby

status with regular blinking of two green ->

one blue -> two green…

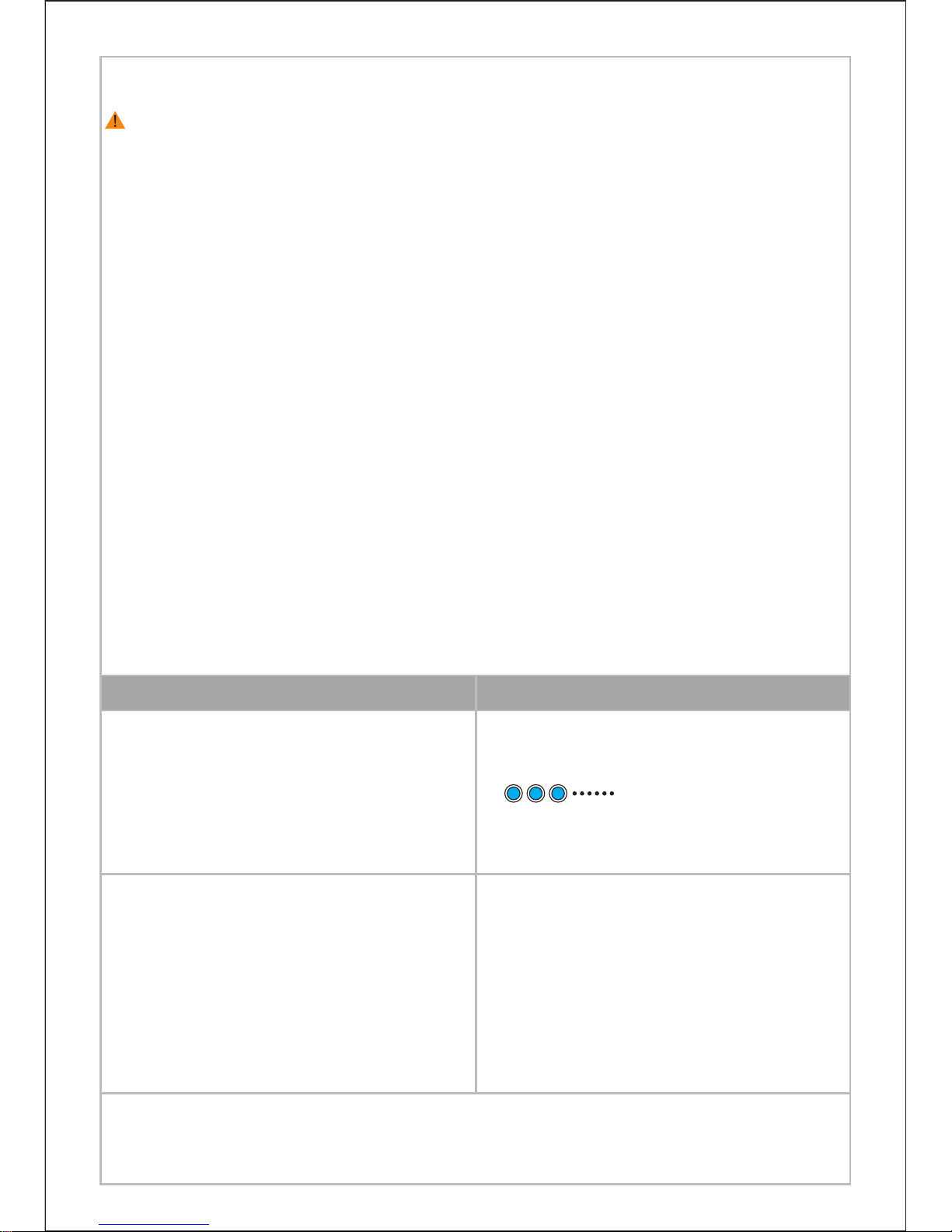

4.3 Calibrations

Attention:

1. For safety reason, all calibration shall be done based on LOCKING status WITHOUT

propellers;

2. Recommend calibration procedure: Joystick Calibration -> Accelerometer Calibration

->Compass Calibration;

3. All 3 calibrations are needed for the first flight. You can choose not to calibrate

or just calibrate one or two of them according to your need for the normally flight;

4. Recommend to switch SWA & SWB to UP position.

Operation Description LED Indication

4.3.1 Joystick Calibration

Joystick calibration is required in below cases:

1. The first time to use the drone and the controller;

2. Side flight occurs when both joysticks are in neutral position;

3. The remote controller drop off to the ground by accident.

Page 20

Pull the throttle stick to lowest neutral position,

the fast blue blink will become slow blue blink,

then release the throttle stick to finish the

Calibration. The slow blue blink will stop and

system enter into normal standby status with

regular blinking of two green -> one blue ->

two green…

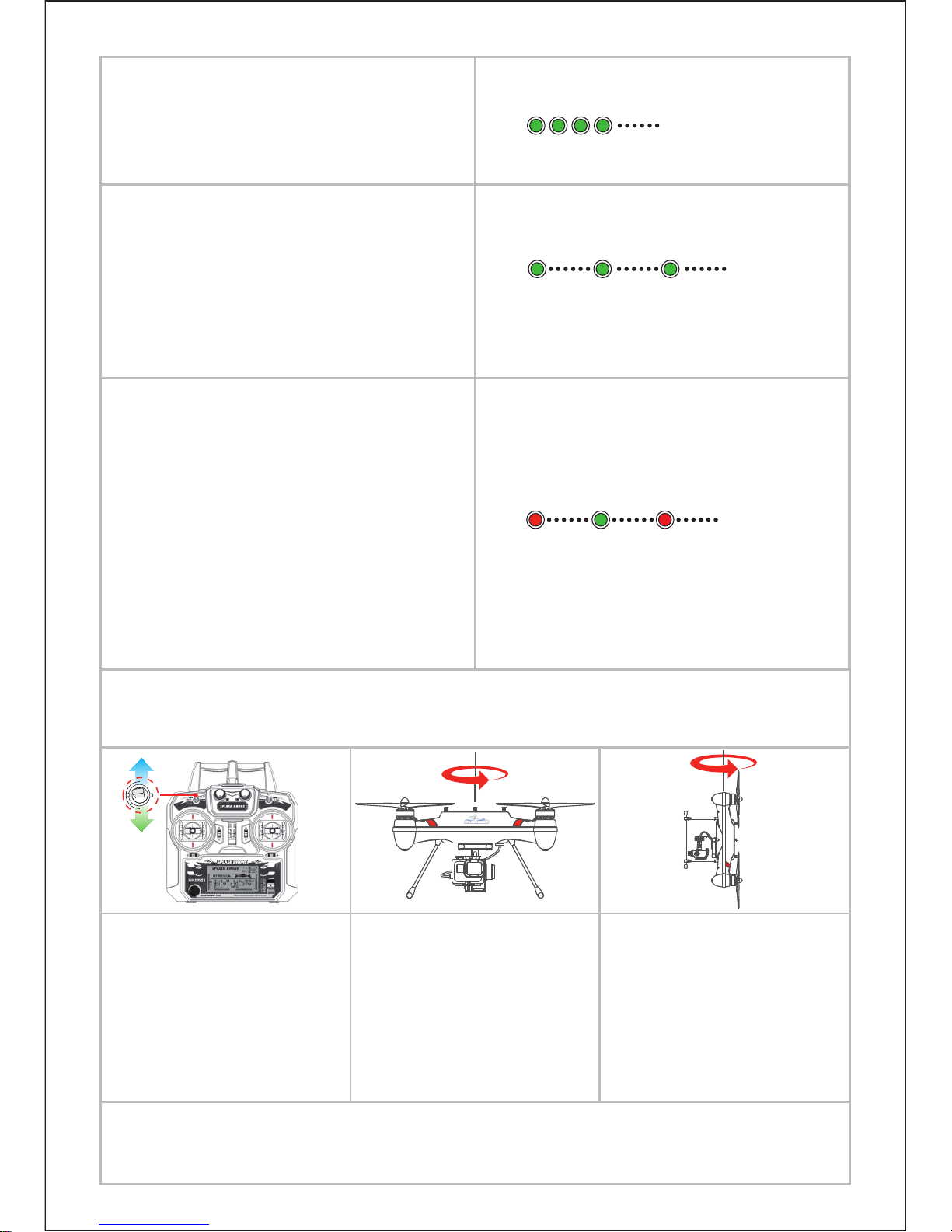

1. Place the drone on flat horizontal surface.

2. Switch on the remote control and drone.

Wait until the self-checking is finished. (during

the self checking, the motor will have Di…

Di… sound, after a long Di… the sound will be

gone, means the self checking is finished)

3. Pull the throttle joystick to lowest neutral

position, fast move aileron joystick from max

left to max right, until the green light start fast

blinking. Release the joystick to finish the

Calibration. Then the drone into normal

standby status with red and green light blink

alternately.

Operation Description LED Indication

Calibrate Accelerometer in below cases:

1. The first time to use the drone and the controller;

2. Side flight occurs when both joysticks are in neutral position;

3. The drone occurs crash;

4. The indication LED of the drone become slow red blink;

5. The hovering is not stable when the throttle joystick is in neutral position.

4.3.2 Accelerometer Calibration

Switch on remote control, then power on the

drone, push the throttle stick to up max.

Operation Diagram

Page 21

1. Switch on the remote control and drone.

Wait until the self-checking is finished. (during

the self checking, the motor will have Di…

Di… sound, after a long Di… the sound will be

gone, means the self checking is finished)

Calibration step LED Indication

Pull the throttle joystick to lowest neutral

position, while holding down move the joystick

quickly from max left to max right, until the

green light start fast blinking. Release the

joystick to finish the Calibration. Then the

drone into normal standby status with red and

green light blink alternately.

The GPS module combines magnetic field sensor, we call it Compass. If we didn’t do a proper

compass calibration, the flight will be not good, even not able to unlock the drone.

Compass calibration is required in below cases:

1. The first time to use the drone and the controller;

2. Move to new fly location up to 100km away from the last location;

3. The drone occurs crash;

4. Heavy shake during transportation.

4.3.3 Compass Calibration

Operation diagram

Note:

1. Recommend to place SWA and SWB switch to UP position before calibrating.

2. Be careful when you trying to do Compass calibration indoor. Some rooms might

has too much magnetic interference indoor. Recommend to do Compass calibration

outdoor.

Page 22

2. Flip SWA quickly from SWA1 to SWA3 to

SWA1…, until the indication LED start fast

flashing GREEN. (The last position of the

SWA switch should be SWA1)

3. Horizontally pick up the drone, rotate two

circles (720°), indication LED become slow

GREEN blinking. (During this, if you see the

LED become permanent RED, means the

drone is not in horizontal status, please hold

it horizontal and try to rotate again)

4. Hold the drone with nose point to the

ground vertically, make two clock-wise circles.

The indication LED become RED, GREEN

blink alternately. Then place the drone

stationary and power OFF to finished the

calibration. (During this, if you see the LED

become permanent RED, means the drone is

not in horizontal status, please adjust and

continue)

Flip SWA quickly from SWA1

to SWA3 to SWA1…, until the

indication LED start fast

flashing GREEN. (The last

position of the SWA switch

should be SWA1)

Horizontally pick up the drone,

rotate two circles (720°),

indication LED become slow

GREEN blinking.

Hold the drone with nose point

to the ground vertically, make

two clock-wise circles. The

indication LED become RED,

GREEN blink alternately.

Operation diagram

Image 1 Image 2 Image 3

Page 23

DO NOT operate in following situations:

1. Please comply with local policy to eradicate any flights in the No-Fly Zone;

2. Flight nearby strong interference on radio signal is prohibited;

3. Flight among/ near to the crowed/ residences is prohibited;

4. Operations in heavy rain & storm pouring & poor flight vision are prohibited;

5. Operations nearby High-Voltage transmission line & Broadcast signal interference

is prohibited;

6. In case of losing control, please DO NOT operate near to strong magnetic filed;

7. DO NOT operate when you are tired, not feeling well or under the influence of

alcohol or drugs.

8. DO NOT operate aircraft when the radio controller is malfunction.

Check and ensure every parts are completely in good shape before every flight.

Check Motors & Propellers to make sure correct installation with high reliability before flight.

Please DO NOT be near to the running motors & propellers to avoid unexpected

Injuries(Damages).

Please keep the Compass module away from magnetic filed, otherwise it will ruin the

compass module and leads to malfunction on aircraft.

Please keep flight distance above 3M away from pilot & the crowed & power supplying

cables.

DO NOT overloading any objects that is heavier than 1KG;

Please make sure the main battery and radio are fully changed before flight;

Avoid operating radio controller and other wireless appliances simultaneously. Vehicle

equipment & power resource may influence the 2.4G telemetry system.

Suggestion: “Practice makes perfect” is always correct to fly any aircraft. Therefore, please

practice flight with empty-loading when fly the Splash Drone for the first time. After getting familiar

with the whole flying process, just help yourself to attached any accessories to enjoy great and

professional flight with your Splash Drone.

4.4 Flight Instruction

4.4.1 Announce Before Flight

Page 24

Firstly switch-on radio, then power-on aircraft before Taking-off, Firstly power-off aircraft and

then switch-off radio after Landing-on.

Please ALWAYS use the original 12 Inch self-tighten carbon-fiber Propeller.

Please place aircraft away from the speaker devices in vehicle.

Please turn off WIFI function before loading sport camera onto aircraft, any obedience will

influence the transmitter and leads to malfunction in aircraft.

Please operate in the open air under GPS & ATTI Mode. Notice: Please pay attention to the

GPS Indicator during flight, aircraft will enter into ATTI mode automatically in 3s after losing

GPS signal (Indicator blinks RED 2 or 3 times).

Please land off aircraft ASAP when the low-battery warning is alarming. Switching flight

mode into ATTI is advisable to get all under control.

Failsafe Return-To-Home: It will be activated once aircraft loses signal control from radio

transmitter under stable GPS circumstances, aircraft will return to take-off location

automatically.

Please note: 4 Navigation LEDs are blinking RED is indicating low battery balance.

Please check & ensure the 4pcs navigation indicators that enclosed inside of each axis are

working well before flight.

Important Notice before flight

1. Put the drone 3meter away minimum from your or people around.

2. Put SWA to GPS or ATTI, SWB to OFF position.

3. Make sure the drone have good status, propellers are good and well tighten.

4. When you power on the drone, it will enter self-checking. To make sure all sensor has

good start, please don’t move the drone during this time.

Note: Recommend to check the OSD data on the controller screen. When Pitch and Roll

show close to “0”, and VSpeed show “0” after unlock, means the drone is in good status.

If those data are too much. Please redo the calibration.

4.4.2 Start flying the Splash Drone

Page 25

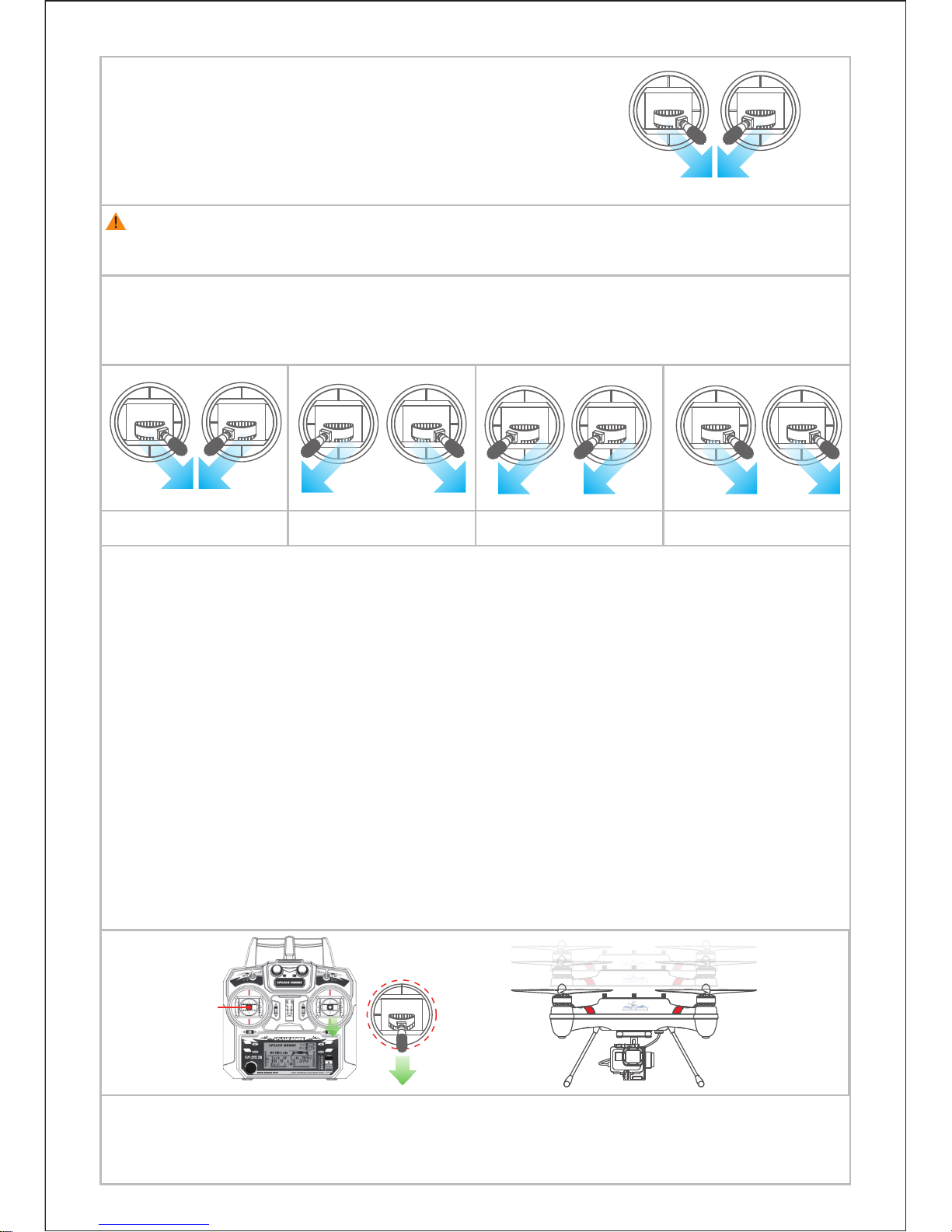

unlock motors 1 unlock motors 2 unlock motors 3 unlock motors 4

Unlock Motors

Aircraft is ready for flight when the LED indicator woks normally(refer to details for LED

indications)

Slowly pull throttle joystick down, to reduce the height of the drone. When it is almost touch the

ground, pull the throttle joystick to lowest neutral position, the drone will land firmly. Hold the

throttle joystick up to 5second, the motors will be locked. Then power off the drone, and switch

off the remote controller.

Pull both joysticks to their corner to unlock the

motors. As picture on the right side and below:

Operation diagram

4.4.3 Landing

Page 26

SWB3

Notice: During proceeding RTH, If you want to change the landing location, please

switch SWB to SWB1 to close the RTH first, then choose the location you like, then land

it manually.

4.4.4 Auto Return-To-Home (RTH)

Switch SWB to lowest position (SWB3), the RTH

function is activated, and the drone will start flying back

to Home point. (Make sure the drone has good GPS

signal)

Automatic Return-To-Home

When the flying height >

20meter, and ground distance

from Home location > 25meter,

the drone will keep the original

height to fly back and land

slowly.

When the flying height <

20meter, and ground distance

from Home location > 25meter,

the drone will climb up to

20meter first, then fly back with

this height and land slowly.

When the flying height <

10meter, and ground distance

from Home location < 25meter,

the drone will keep the original

height, fly back to top of home

point first, then land slowly.

Principles in Automatic Return-To-Home

Page 27

Front Back

There are 4 strong LED on the four ARMs of the drone. Two RED led on the Nose side (Front

direction), Two GREEN led on the rear side (Back direction).

Notice: The Navigation Lights are also low-battery warning lights. When the battery

voltage is lower than 14.4V, all the 4 Navigation LED will start blinking at the same time.

Seeing this, please try to land.

4.4.5 Navigation Indication

4.4.6 Indication LED for Flight Control

GREEN light for working mode;

BLUE light for Joystick status;

RED light for strength of GPS signal and low battery warning.

Indication LED for Flight Control

System Status

LED Indication Working Status

Blinking once

Blinking twice

Blinking thrice

Flashing

Blinking slowly

Flashing

ATTI Mode

GPS Mode

Circle Flight

Return-To-Home

Vertical Compass Calibrating

Horizontal Compass Calibrating

Joystick isn’t at neutral position

Blinking once

Page 28

There are two low battery level setting in the

Assistant Software. When the first level

warning start, please prepare to land.

When the second level low battery warning is

activated, the drone will execute auto landing

at the current point. If the current landing

location is not good, you can switch to ATTI

mode to change the landing location

manually. (This might make the battery over-

discharge, be careful to use it)

4.4.7 Low Battery Warning

First Level

Second Level

Good GPS signal

No GPS signal

1st low-batter warning

2nd low-battery warning

Please do horizontal calibration

None blinking

Blinking once

Thrice slowly

Flashing

Blinking slowly

Low-battery warning LED Indication

GPS signal & lower-battery warning

Page 29

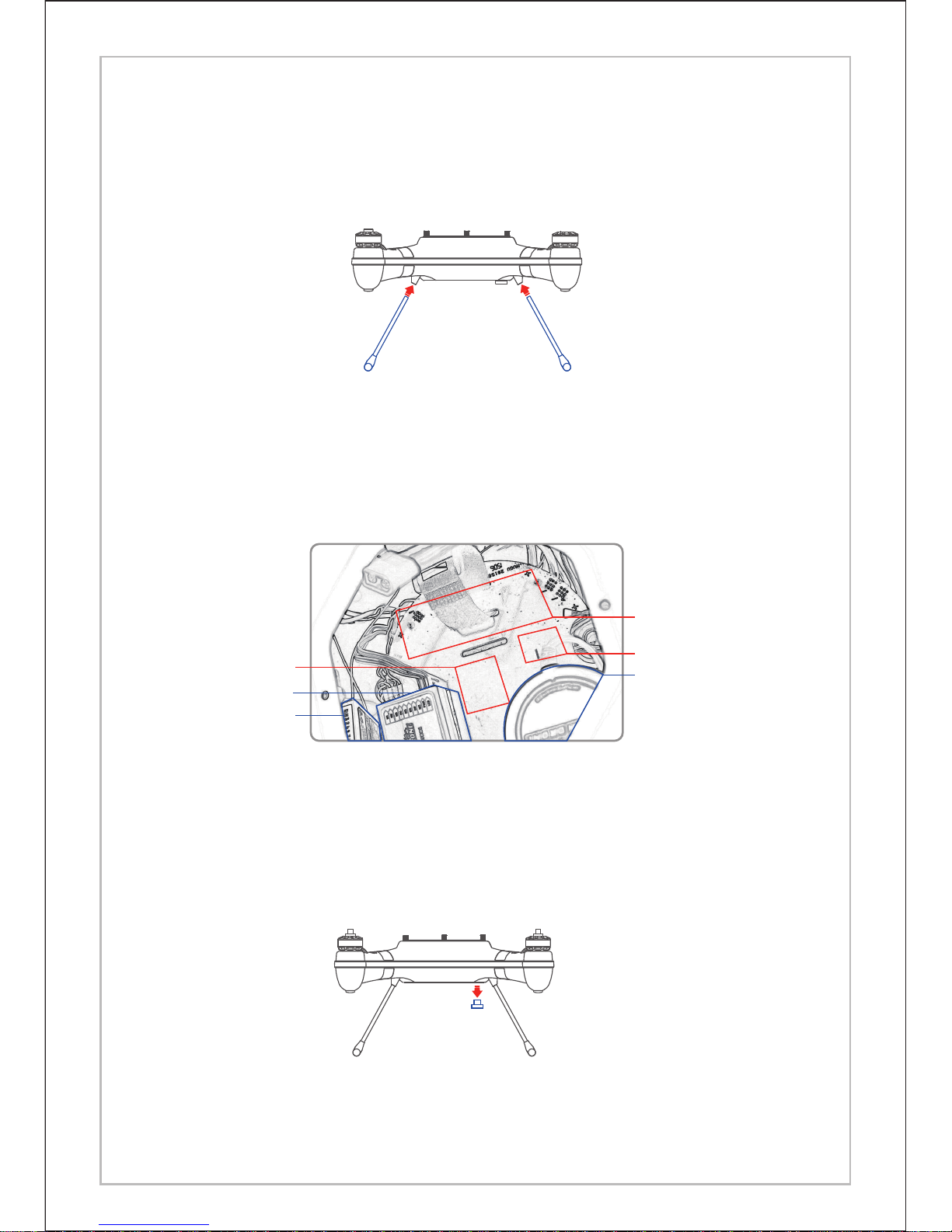

Take out the carbon fiber landing gears from the suitcase, insert them into the aluminum joint

part under the arms. Try to slide the rubber joint a little bit to tighten the landing gear.

4.5 Using different kind of Accessories

4.5.1 Detachable Landing Gear

Try to install the parts according to the proved locations. But some senior pilots can change the

location, like putting the GPS outside etc.

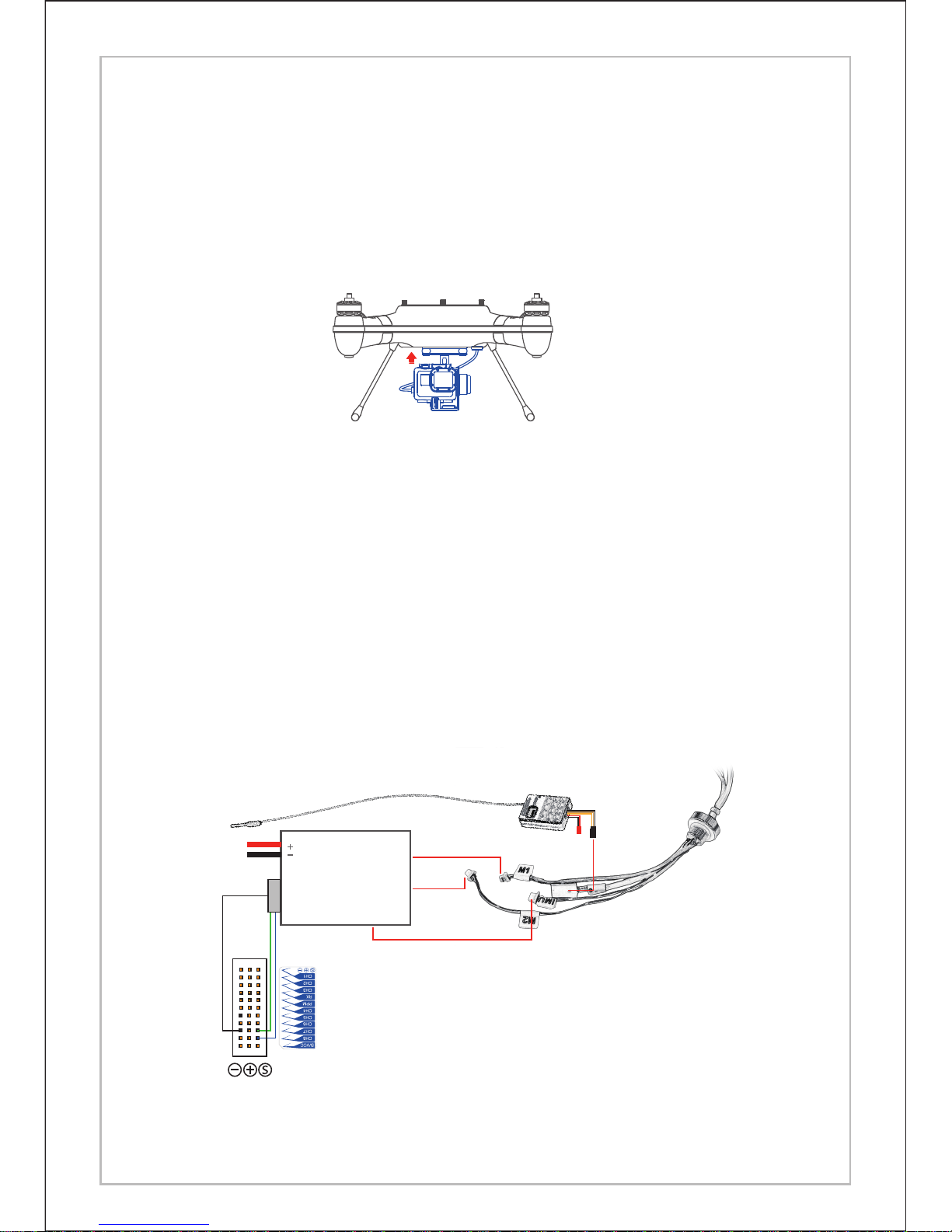

There are two parts for the waterproof gimbal: controller box and gimbal bracket

4.5.2 Suggestion Parts Installation Location

4.5.3 Waterproof Gimbal Installation

GPS

Gimbal controller board

Flight controller

Receiver

Battery

Video transmitter

Page 30

USB

12V

A0 5V GND

IMU

Gimbal

Gimbal controller board

Receiver

Video transmitter

1. Screw out the seal nut from the bottom shell of the drone. You will see there is a screw hole.

2. Put all the gimbal cables through the screw hole, and screw in, make sure it is well seal the

hole. Tidy up the cables and the gimbal.

3. Fix the gimbal in the proper position by screw attached.

4. Insert the different groups of cable into the corresponding ports, then tidy up the cables.

(Move the power cable as far as possible from the GPS module)

5. Insert the gimbal control cable into the correspondent port: Blue wire for PITCH control to

CH8 channel, Green wire for ROLL control to CH7 channel. Ground cable to any ground (see

above illustration diagram.

6. Open the waterproof case, insert the AV USB cable into the camera, place the cable to proper

location, then insert the camera inside the waterproof case, close it.

Page 31

4.5.4 Payload Release Installation

1. Screw out the seal nut from the bottom shell of the drone. You will see there is a screw hole.

2. Insert the Payload Release cable into the screw hole and screw in, make sure it well seal the

hole.

3. Find the proper location and fix the Payload Release under the 4 screw hole with screws

attached.

4. Insert the Payload Release cable into CH7 (VRA) or CH8 (VRB) of the receiver box.

4.5.5 Installation of FPV Waterproof Case

1. Screw out the seal nut from the bottom shell of the drone. You will see there is a screw hole.

2. Insert the Payload Release cable into the screw hole and screw in, make sure it well seal the

hole.

3. Take out the specified plastic shoe, fix it to the screw holes on the bottom of the drone with

the attached screws.

4. Fit the FPV waterproof case in the plastic shoe, tighten it with the screw bar.

5. Insert the USB AV cable into the camera, and insert the camera into the case, close it.

6. Adjust a proper angle for the camera, and insert the video cable into your VTX inside the

drone.

Page 32

1 2

4 3

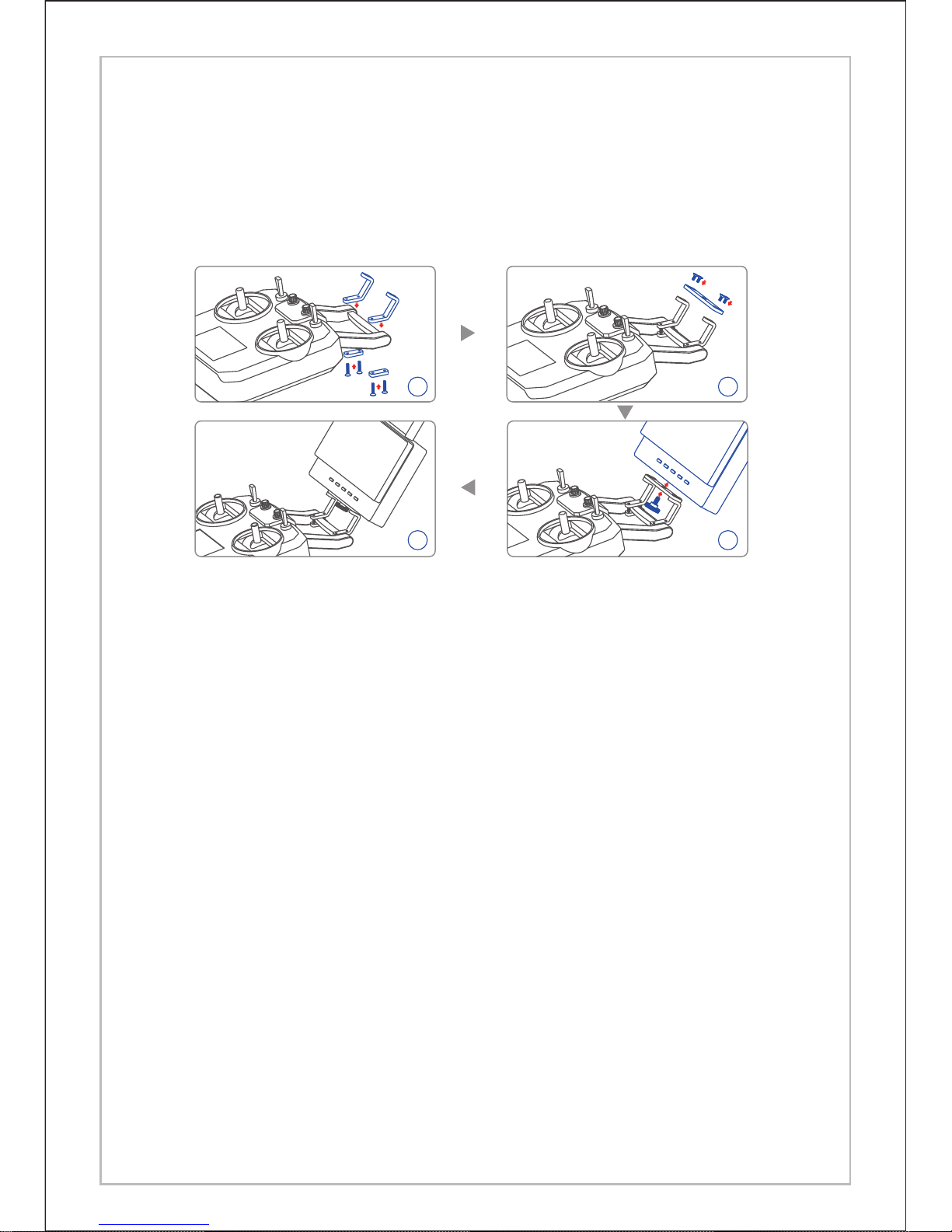

4.2.6 Mounting FPV screen

Find out the mounting bracket bag from the suitcase, assemble the mount and fix the FPV

screen to the controller handle bar according to below chart.

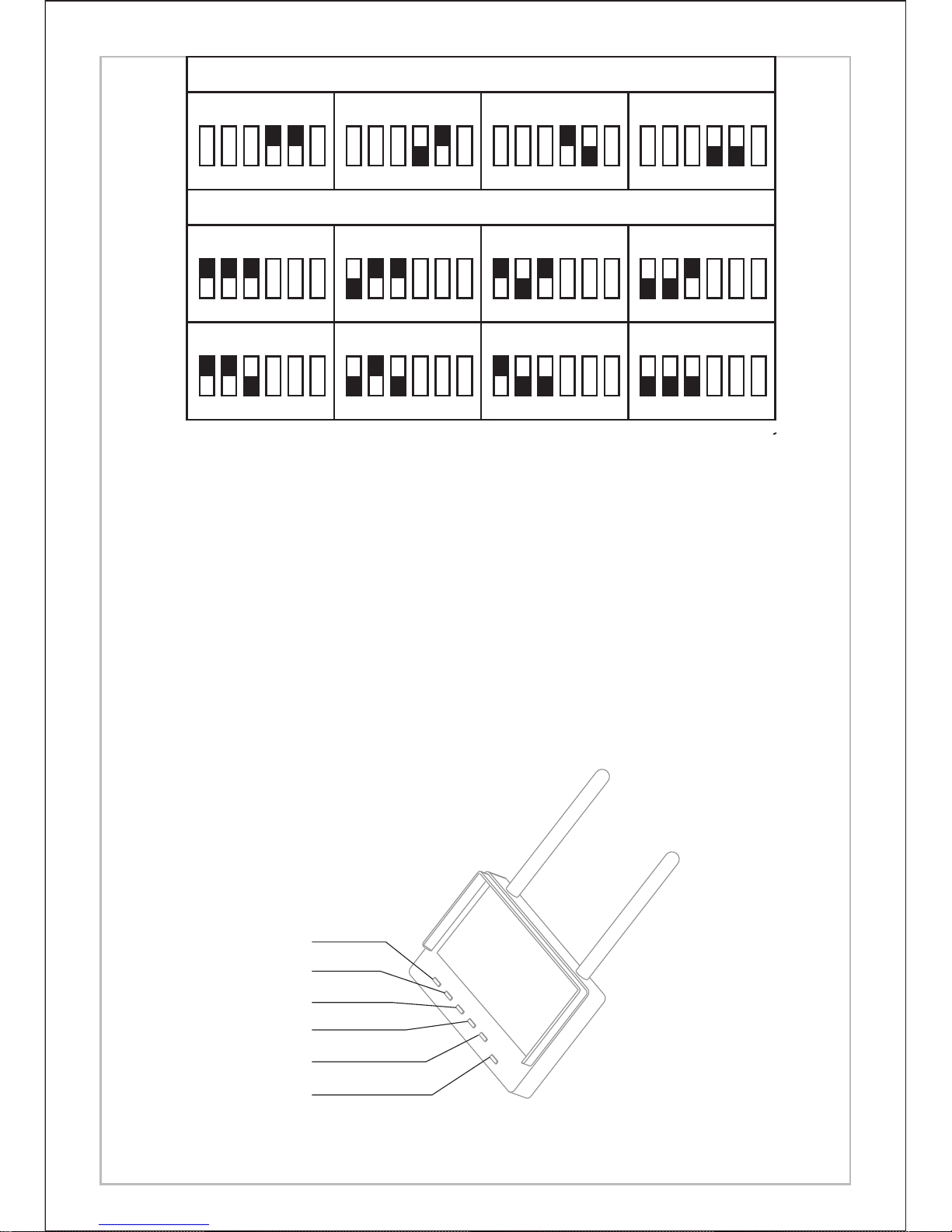

4.5.7 Select channel for your VTX (video transmitter)

1. Plug the VTX power cord into a 12V Out socket inside the drone.

2. Power on the drone and switch on the FPV screen.

3. Choose a channel by flipping switches on VTX, there are totally 32channel available for the

VTX.

4. See below channel selection sketch map, “4, 5” represent Frequency Range, “1,2,3”

represent

Page 33

FR1

( A )

1 2 3 4 5 6

FR1

( B )

1 2 3 4 5 6

FR1

( C )

1 2 3 4 5 6

FR1

( D )

1 2 3 4 5 6

CH1

1 2 3 4 5 6

CH2

1 2 3 4 5 6

CH3

1 2 3 4 5 6

CH4

1 2 3 4 5 6

CH5

1 2 3 4 5 6

CH6

1 2 3 4 5 6

CH7

1 2 3 4 5 6

CH8

1 2 3 4 5 6

SEARCH/+

SOURCE/-

GROUP

CHANNEL

POWER

4.5.8 Pair a right channel for FPV screen

1. Power on the FPV screen, press SEARCH/+ button to search a best channel automatically.

2. The screen also support manual choose channel. Press GROUP button, choose the right

“Channel Range” from A,B,E, F. (Note: the “C” on VTX correspond to “E” on FPV screen, “D” on

VTX correspond to “F”, A -> A, B -> B).

3. Press CHANNEL to choose channel from 1 - 8.

4. Press MENU button to adjust the screen parameter.

5. Press SOURCE button to select video source.

Page 34

Splash Drone

Battery

2.4GHz Radio

controller

Aircraft & Battery & Radio Controller

5. Specifications of Splash Drone

Fullset Weight

Hovering precision

Max Yaw Angular Velocity

Max pitch Tilting Angle

Max Ascending/descending Velocity

Max flying speed

Axis Diameter

Flight Time(without payload)

Flight Time(Full Set)

Max Take-off Weight

Working Temperature

Type and Capacity

Charging Temperature

Net Weight

Operation Frequency

Radio Range

Receiver sensitivity (1%PER)

Working current

Battery

Channel

2300g

0.2 m

20°

4 m/s

10m/s

450mm

18 mins ( 4500 mAh)

12 mins ( 4500 mAh)

2.8Kg

-10C°~ 40C°

4S 14.8V 4500mAh Lipo battery

-10C°~ 40C°

390g

2405 ~ 2475HMZ

1.0 KM

-105dbm

120 mA

1.5V AA*4

8 channels

Important Notice:

1. For waterproof design reason, the antenna of VTX was placed inside the drone.

According to our test, the default effective range for the VTX is around 600meter to

1000meters.

2. Can upgrade the antennas of FPV screen to reach better quality and distance if

necessary.

3. Can do modification to put the VTX antenna outside under the drone to reach longer

range.

Page 35

6.1 How about the Radio range performance with Splash Drone customized remoter?

A: Practical test indicates the Max controlling range is up to 1.2KM, the effective distance of

signal transmission is depending on actual flight environment.

6.2 Is there any way to handle when Splash Drone is out of visible area?

A: Yes, the One-key Return-To-Home function is available to bring your Splash Drone back to

take-off location automatically. (Please ensure no obstacles & haunts during returning, regain

control on the aircraft once coming into visible sight.)

6.3 Is it truly full waterproof Drone with the naked motors?

A: A deep trust is here with us! The motors are specially treated with watertight structure design,

particularly for its wiring enrollment and perfect waterproof shell. Whatever, how amazing when

flying your Splash Drone on the sea to photograph the whale & dolphins! After enjoying

sailing(salty waters), please DO remember to wash Splash Motors with freshwater to avoid

corrosion/damages by the salts/sands.

6.4 You wanna a longer flight with the Splash Drone?

A: Usually, the flight time depends on different loading & flying circumstances,

Splash Drone is available for a long flight up to 19mins with empty loading and fully-charged

4500mAH Battery.

6.5 What if prefer to get the Right Throttle mode?

A: Pls don’t worry, although the radio controller is defaulted as Left Throttle when ex-factory,

customized modification of Right Throttle is also available based on special request. Splash

Drone is here to satisfy your different operation habits.

6. FAQ

Page 36

6.6 How can i have the Follow-me function with Splash Drone?

A: Splash Drone is born to be a smart waterproof drone to accommodate with diversity needs for

different people, so it’s divided into 3 package versions: RTF, PRO and AUTO. Only the AUTO

version supports the Follow-me mode, however the RTF & PRO is also very hot for those drone

enthusiasts, professional Aerial photography and extreme sports surfing, skating, etc.

6.7 Is it normal when pulling throttle down to the lowest position, but the motors don’t

stop immediately after landing off?

A: Taking the unexpected damages into consideration, the motor will stop and lock automatically

in 5s after landing off. This protective method Not only decreases the spoilage possibility on the

motor, but also ensure a evenly landing off to avoid other in-necessity damages to shell,

Propellers, landing gear, etc.

6.8 Is it possible to switch WIFI while aerial photography with Splash Drone?

A: No, it’s advised to keep the WIFI off to avoid signal interference.

6.9 What’s happening when push Throttle joystick but without any response?

A: In case of extra danger occurs before flight, the radio controller need to be unlocked manually

to have control access, then motors can be activated by pushing up throttle.

6.10 Any counteractions to deal with difficulties in taking-off & tilting troubles?

A: 1. Improper installation with Propeller, please check whether the rotating direction of Propeller

is in accordance with motors;

2. Gyro variance error leads malfunction with Splash Drone. Please connect with software

assistant to calibrate the Gyro.

3. Please do the Horizontal calibration once again before flight.

Page 37

6.11 What’s wrong with wandering/red LED blinking slowly during flight?

A: Compass variance error, need to do Compass calibration at the flat ground, and try to get rid

of power cable, magnetic filed interference.

6.12 Why the drone is out of control by accident during flight?

A: The compass magnetization issue or forget calibration before taking-off, pls re-calibrate the

Compass or replace a new compass module.

6.13 What need to be done if the drone is dropping height suddenly and flashing red?

A: The low-battery warning is activated, please descend and land off aircraft properly and

quickly to have another battery replacement.

6.14 What’s the specified channel assigned for the waterproof Pay-load releaser?

A: The defaulted channel for pay-load releasing mechanism is CH7/CH8 in Receiver, this utility

can be realized by knob switch VRA/VRB to carry & release lifesaver, swim ring, mini radio

appliances to support emergency or even a bottle of water.

6.15 How to adjust the Waterproof Gimbal when it’s not in horizontal location?

A: Need to calibrate the Gimbal, detailed procedure please refer to <Operational Instruction

of Waterproof Gimbal>

6.16 Why the drone is trembling or not hovering under GPS mode?

A: Aircraft keeps trembling, the system reminds to do the compass calibration;

Throttle range calibration is needed when aircraft isn’t hovering in GPS mode.

6.17 What should be done after getting a new Splash Controller replacement?

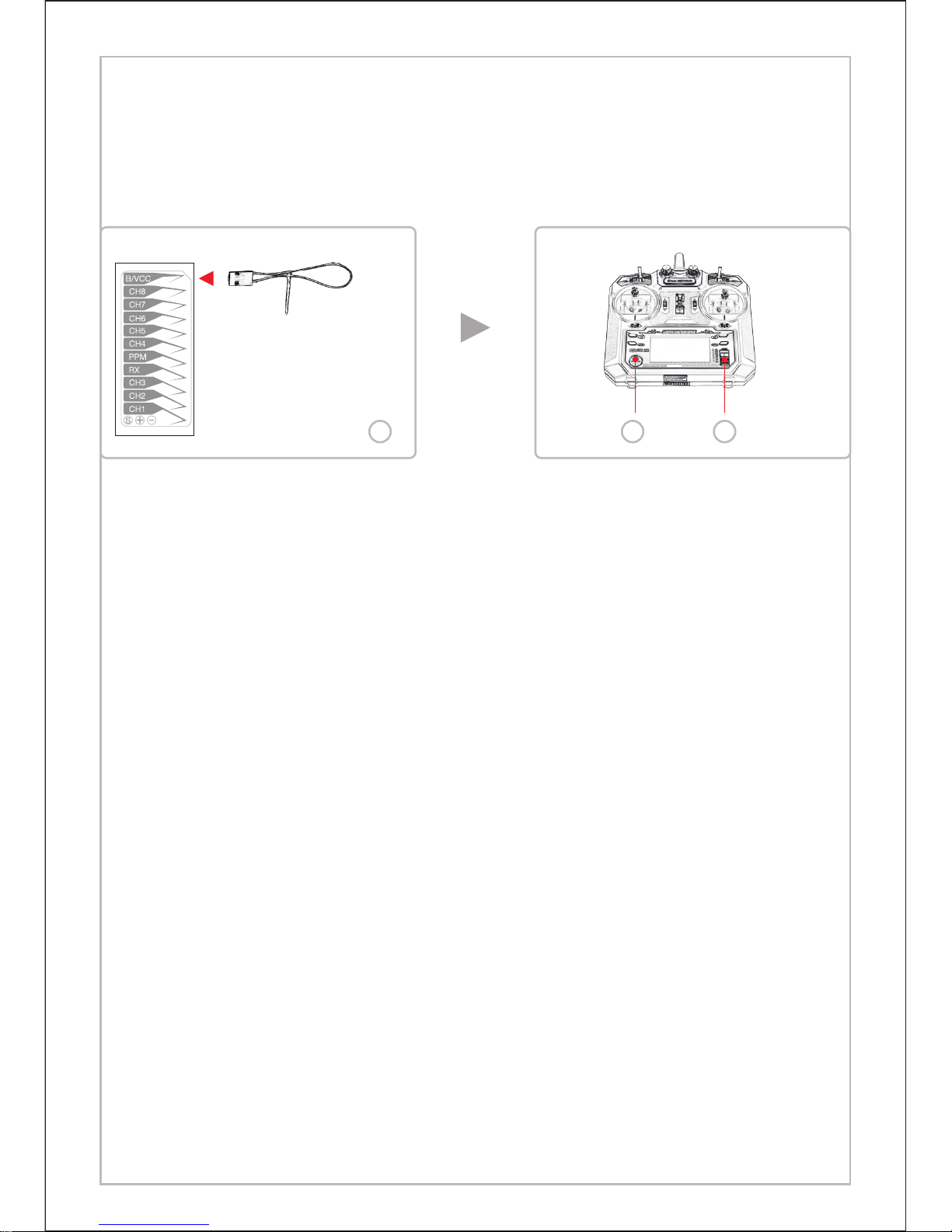

A: Yes, there is a binding procedure to code the new Controller with Receiver:

1. Insert the Short-circuit terminal into the ‘B/VCC’ channel in the Receiver;

2. Power on the drone, then Indicator in the receiver is flashing quickly;

Page 38

1 2 3

3. Long press the black coding button on the left-lower corner of controller, at the same time

switch on the controller, then there will be a solid Red indicator in the Receiver to witness the

successful binding;

4. Power off the drone, and plug out the Short-circuit terminal to unlock the radio.

6.18 Any emergency methods to avoid burnt & damage when drone was hunted by the

tree, thread or crash unexpectedly?

A: Please immediately lock the Radio controller, then the motor stops working,that can protect

the motor/ESC/Props from burnt damage.

6.19 How to regain control once losing contact in the air under GPS mode?

A: Please immediately turn off the Radio controller, and flip all the switches back to original

status: 'SWA' stays at 'SWA1', 'SWB' stays at 'OFF', don't touch joysticks. Turn on the Radio

controller once again, then the controll signal can be taken over once again. After that, please

manually get the drone clam & control it to return safely.

Page 39

Page 40
