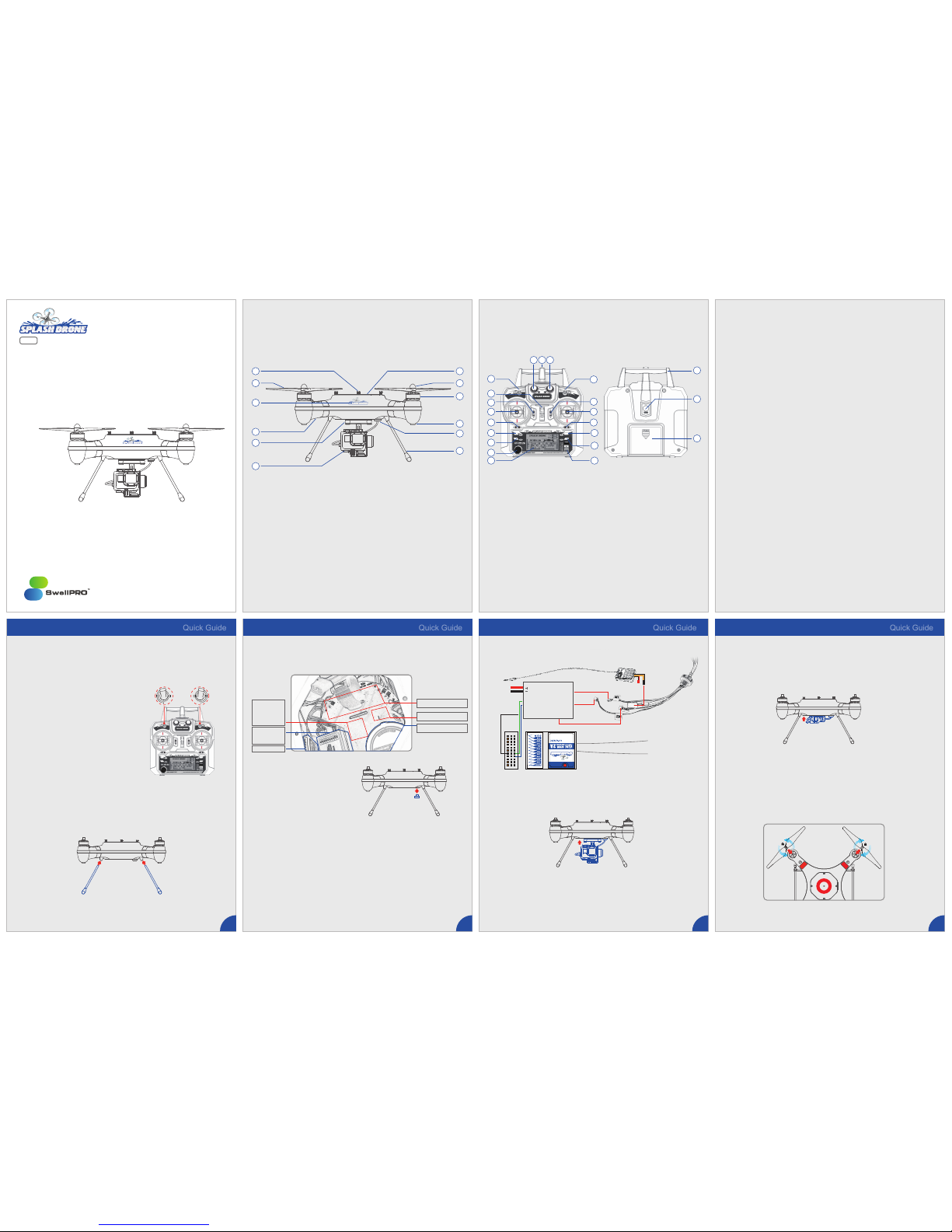

Splash Drone PRO

TURNING REMOTE ON Splash Drone PRO Splash Drone PRO Splash Drone PRO

Remote Controller Safety Guide

V1. 0

PRO

01 1902

10 11 12

USB

12V

A0 5V GND

IMU

GPS

POWER LED

IO CHANNELS

2. 4GHz RECEIVER

01 02 03 04

www. swellpro. com

Distribuited by: UrbanDrones.com

a. Check that all parts are in good condition and installed properly. b. Ensure that remote control batteries are full c. Calibrate Splash Drone and remote control (only during initial set-up)

a. Place SWA and SWB swith to the UP position. b. Power up remote control c. A safety beeping sound will start. Move throttle joystick down once. This will stop the beeping sound. The remote is now ready. NOTE: Ignore the warning sign on the control LED.

Insert land gear to the bottom of the Splash Drone PRO aluminum brackets and ensure installation is firm.

1. Put aircraft on a flat level surface

2. Install the sliver nut propellers with motor marked “CCW“ . and Black nut propellers with “ CW ” motor. ensure all propellers tighten firmly .

1. First Start:

2. Powering on remote control

3. Splash Drone PRO set up.

1. Uninstall the seal screw that comes installed.

2. Push VTX cable(3PIN), IMU cable(4PIN), Gimbal Roll direction control cable M1 (3PIN) and Gimbal Pitch direction control board M2(3PIN) through the hole and tighten seal screw fix firmly.

3. VTX. IMU. M1. M2 cable connect to the VTX module and gimbal control board corresponding ports as labelled.

4. Gimbal board power cable connects with main board “12V Out JST”, pitch control (green cable) connects to receiver CH5. Roll control (blue cable) connects to receiver CH6. Ground (black cable) connects to CH5 or CH6 ground port

1. Obey relevant regulations of the International Civil Aviation Organization and local airspace control law and UAV management rules. Forbid flying in any no-fly zones.

2. When flying the Splash Drone always keep it in an open area without buildings, trees and obstacles.

3. Keep 3-5 meters away from you and others. Do not operate close to crowds.

4. Before flight need calibrate the aircraft and Remote Controller

5. If detect abnormal operation while using the Splash Drone and/or remote controller please stop using immediately

6. Before flight, ensure the propllers are installed in correct direction and firmly on motor

7. Do not attempt to touch the motor until motors stop rotating .

8. If use WiFi Sport camera with aircraft. please disable WiFi function before flight. Wifi should not be used in the area of flying.

9. If aircraft has low battery, land immediately to avoid damage.

10. Do not move aircraft for 6-10 seconds after powering on aircraft.

11.If loss of radio signal occours, aircraft will enter into Auto Return Home mode automatically ; If signal is received again, please switch to GPS mode control aircraft.

Forbidden flight conditions:

a. Forbid flying nearby strong radio interference activity areas. b. Forbid flying nearby any crowds. c. Forbid flying in extreme weather, like heavy rain, thunderstorms or conditions causing poor visual range d. Forbid flying around strong magnetic fields e. Forbid flying when you are tired or affected by alcohol. f. Forbid flying when remote controllor can not control aircraft due to any other reasons

5. Install gimbal control board between fight controller and GPS antenna corresponding location (Back of board installed 3M glue)

6. Install gimbal mount to the bottom of aircraft . Adjust to the correct position and use screw to lock firmly.

7. Open dive case and connect your camera AV output port to the AV cable from within the dive case

Suggestion Installation

3. Use screw through fixed sheave, and choose a correct position lock firmly

4. Payload release control cable connects with the receiver at CH5 or CH6. (CH5 controlled by remote controller VRA. CH6 by VRB)

1. Uninstall the seal screw

2. Push the payload release control cable through the hole and fix firmly with seal screw. Use screws to fix the mechanism to the body firmly.

c. OPTIONAL: Payload Release Mechanism

a. Land Gear

d. Propellers

b. Gimbal

Gimbal

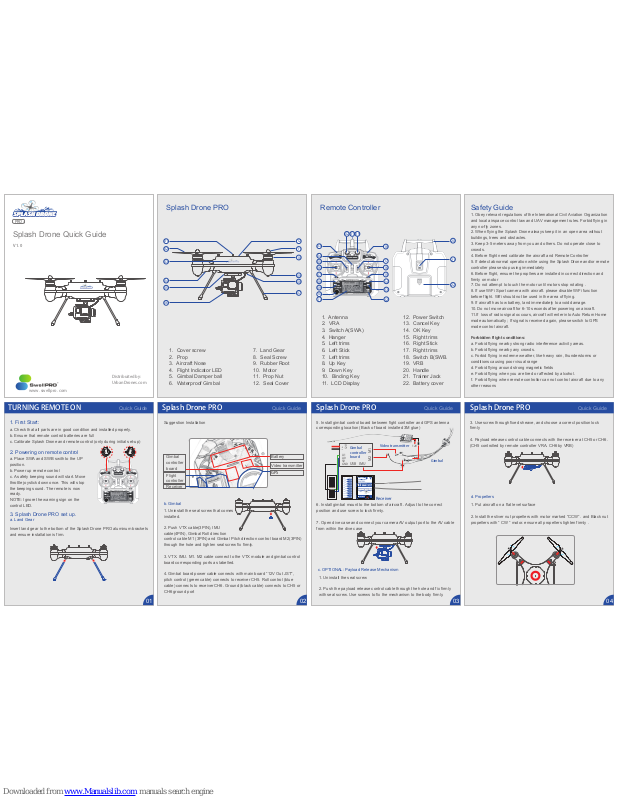

Splash Drone Quick Guide

1. Antenna

2. VRA

3. Switch A(SWA)

4. Hanger

5. Left trims

6. Left Stick

7. Left trims

8. Up Key

9. Down Key

10. Binding Key

11. LCD Display

12. Power Switch

13. Cancel Key

14. OK Key

15. Right trims

16. Right Stick

17. Right trims

18. Switch B(SWB.

19. VRB

20. Handle

21. Trainer Jack

22. Battery cover

1. Cover screw

2. Prop

3. Aircraft Nose

4. Flight Indicator LED

5. Gimbal Damper ball

6. Waterproof Gimbal

7. Land Gear

8. Seal Screw

9. Rubber Root

10. Motor

11. Prop Nut

12. Seal Cover

Gimbal controller board

Flight controller Receiver

Receiver

Battery

Video transmitter

Quick Guide

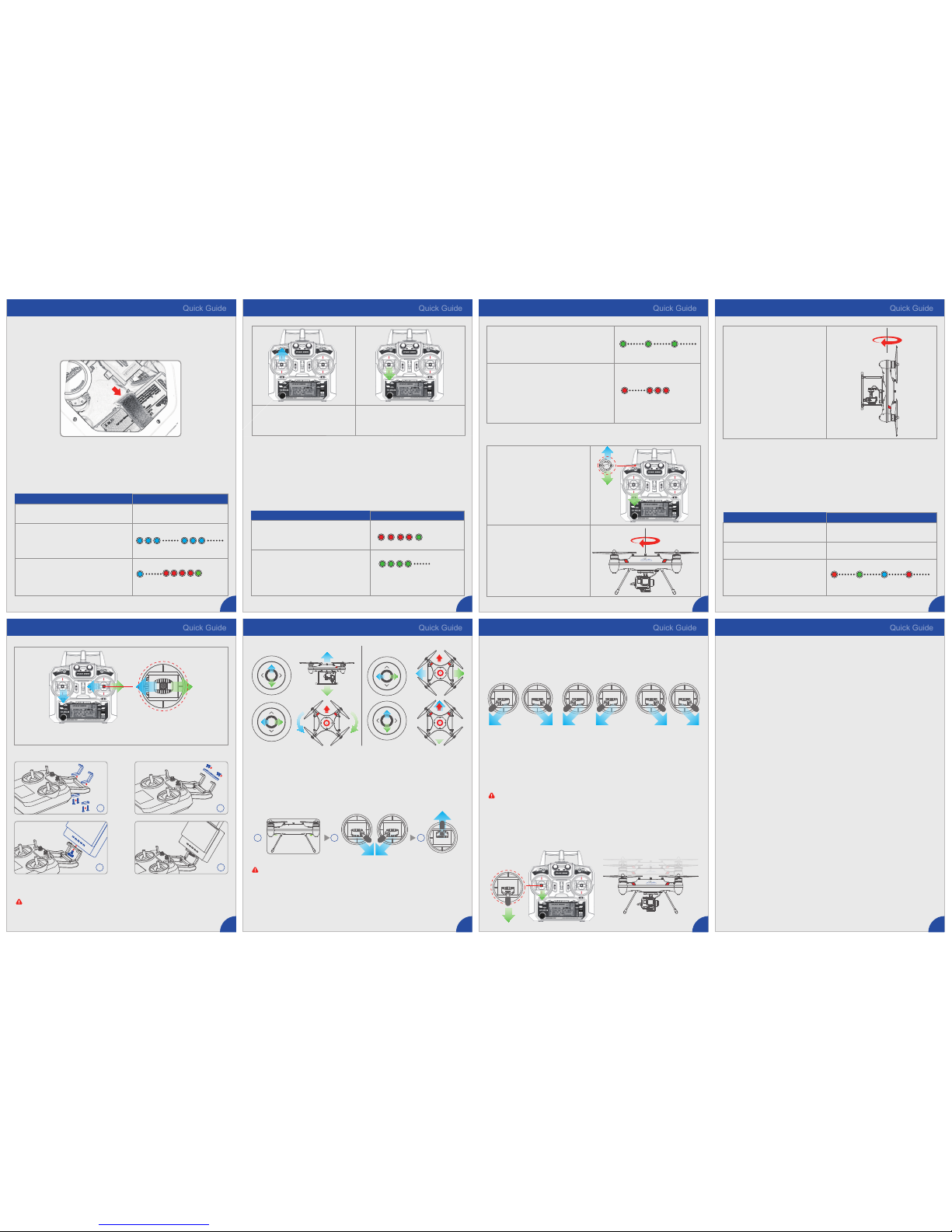

THROTTLE CALIBRATION COMPASS CALIBRATION Splash Drone PRO Splash Drone PRO

INSTALLING THE MONITOR HOW TO FLY HOW TO LAND Splash Drone PRO

Specification

Splash Drone & Battery & Transmitter Specification

Start motor

(Lock/Unlock I)

Lock/Unlock motor

Left stick/rise(Slow)aircraft Tail

Right Stick Left Stick

1 2 3

Power off aircraft. Push throttle stick to the top position.

05 06 07 08

09 10 11 12

4. Remote Control throttle Joystick Calibration

5. Compass Calibration

Put the battery inside the aircraft and install in the correct position. Ensure it is tightend firmly before starting the aircraft

1. First time using the remote control.

2. When the joystick is in middle position. but aircraft drifts to one side.

3. Remote control crash occurs.

1. First time using the aircraft

2. More than 100 km from the last calibration.

3. Crash occurs

4. If aircraft parameters have been changed.

5. When aircraft shakes or has twitching motions

1. Turn on remote control.

2. Push throttle stick up.

3. While holding the stick up, power on drone and wait till the blue LED flash intermittent on the drone.

3. Pull throttle stick to the lowest position till you see the red LED flash intermittent. NOTE: DO NOT move the trottle stick left or right, only up and down while doing this calibration.

3. Put aircraft in a horizontal position and continuous rotate it in a clockwise motion for 2 full circles till the green LED starts flashing.

4. Turn aircraft face down; keep the drone vertical and continuous rotate it clockwise 2 circles till red LED starts flashing.

Quickly move SWA fully up and down while holding the throttle down till the Green LED starts fast flashing

Put aircraft in horizontal position; rotate in clockwise 2 circles till green LED slow flashing

Turn aircraft head down. rotation in clockwise 2 circles till green LED stops flashing

1. Put aircraft on a stable level surface and power on.

2. Pull Throttle stick in lowest position. DO NOT move to sides

3. Quickly move the right stick left and right till LED flashes Red. Release the remote control.

1. First time using the aircraft

2. Drone is not flying stable

3. Aircraft sides lips

4. Aircraft Crash Occurs

1. Turn on remote control and drone till you see the red led flashing normal, then move throttle to lowest position. NOTE: DO NOT move stick left and right.

2. Quickly move SWA fully up and down 6-10 times till the green LED fast flashes continuously. Let go of the throttle stick.

1. Place aircraft in an open area without buildings or trees, and keep 3-5 meters away from you and others

2. Power on the Control, then power on the Splash Drone and wait for GPS signal. (wating for GPS is optional but highly recommended)

3. Pull both sticks to their lowest corners to start up the drone

4. Slowly raise throttle stick to start flying

1. Slowly pull down throttle stick until the aircraft lands on the ground

2. Please keep throttle stick in the lowest position for over 5 seconds to allow motors to lock after landing

3. After motor stop rotating, shut down aircraft power

4. Power off Remote controller

1. Please land aircaft in an open area

2. If aircraft lands on tree or any other abnormal place, lock motors immediately to avoid motor and ESC burnout.

3. After aircarft lands on the ground keep remote controller throttle stick in lowest neutral position until motors stop rotating

1. Power on aircraft, it will enter a self-check test. Please make sure there is no movement on the aircraft in this period(6-10 Seconds).

2. Aircraft satellite indications: 6 satellites - 2 red LED flashing. 7 satellite - 1 red LED flashing and over 8 satellite no red LED flashing.

We strongly recommend aircraft search over 6 satellites before starting to fly.

3. In flying process do not stop motors for any reason.

While holding the throttle up, power on the drone. Pull throttle joystick to the lowest neutral position till bule LED

Throttle Calibration Process LED Flashing

Compass Calibration Process LED Flashing

Horizontal Position Calibration LED Flashing

Pull left joystick to the lowest neutral position, quickly left and right move the pitch joystick. till LED become Red. Blue and Green flashing.

e. Install Battery

6. Aircarft Horizontal Position Calibration

9. Launch(Outdoor)

Lock/Unlock II

Lock/Unlock III

Lock/Unlock IV

10. Landing(Outdoor)


Calibration is needed if:

When to Calibrate

8. Prepare

7. FPV monitor

Notice:

Quick Guide

Splash Drone Weight (Battery & Propellers Included) Hover Accuracy Max Yaw Angular Velocity Max Tilt Angle Max Ascent / Descent Speed Max Flight Speed WheelBase Flight Time Max Take-Off Weight Operating Temperature

Battery Battery Type Capacity Charging Environment Range Charging Time

Remote Controller Weight Operating Frequency Communication Distance (Open Area) Receiver Sensitivity (1%PER) Working Current/Voltage Battery Channels

1750Kg

0. 2 m 30° 30° 4 m/s 6m/s (GPS Mode) 450mm 19 Mins ( 4500mah)

2. 5Kg

-10C°to 60C°

Lipo Battery

14. 8V 4500mah 0C°to 40C° 60minutes

390g 2405 to 2475HMZ

1. 0 KM

-105dbm 120 mA

1. 5V AA*4 8 channels

Notice:

Defult remote controller is Mode 2. if need mode 1. (Check user manual)
