User manual
About CONDUCTOR
CONDUCTOR is a regulation system for controlling the
room temperature and air quality. You can create a comfortable indoor climate by keying heating, cooling and
airfl ow settings in the room unit. When you leave the
room, the system automatically regulates the climate until
you enter a new temperature or airfl ow setting.
In the automatic mode, the CONDUCTOR will regulate
heating and cooling dependent on the circumstances in
the room: is anyone in the room, is a window open, is
the room air humid?
This instruction describes how you as day-to-day user of
the CONDUCTOR, offi ce worker or hotel guest, using the
room unit can manually regulate the heat, coolness and
air quality in the room.

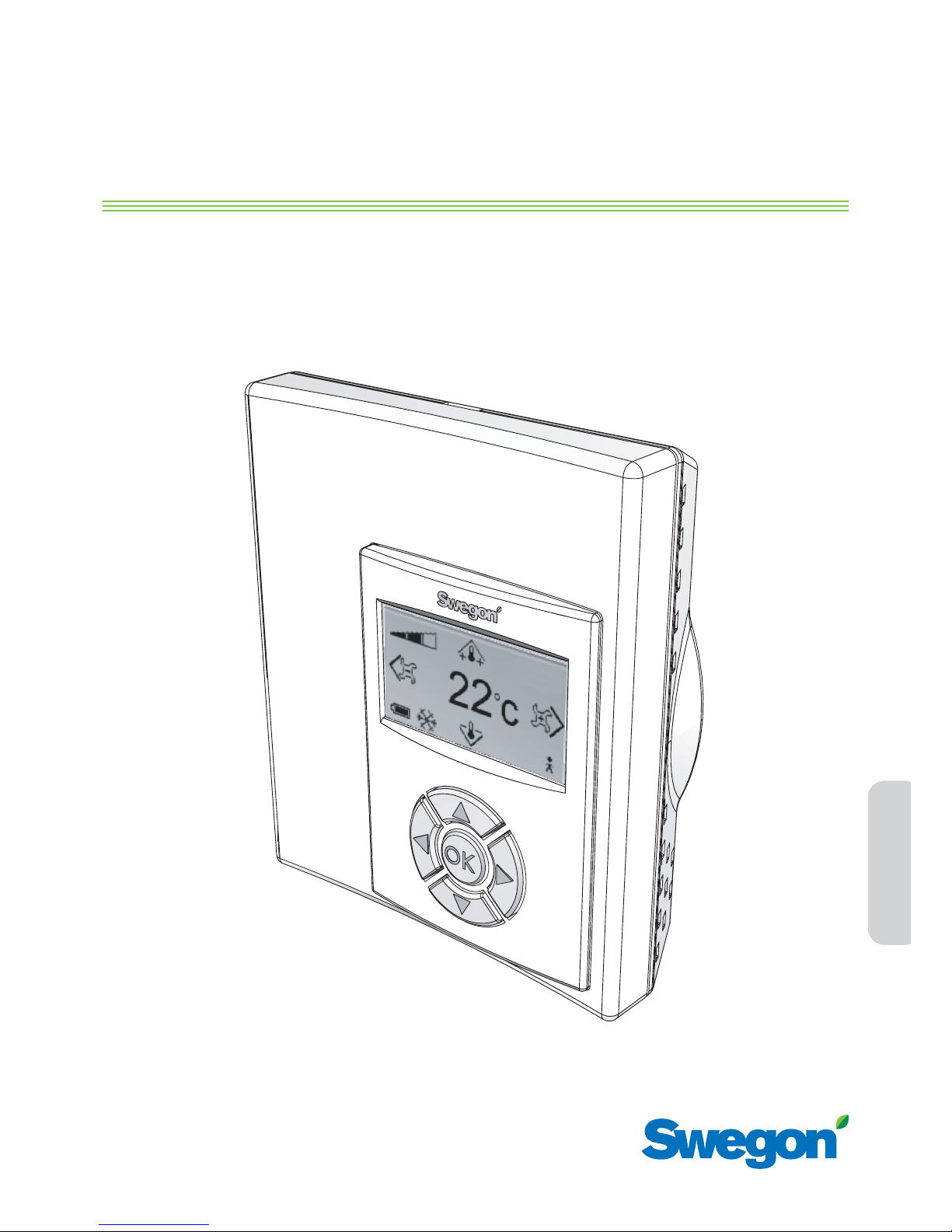

The parts of the room unit

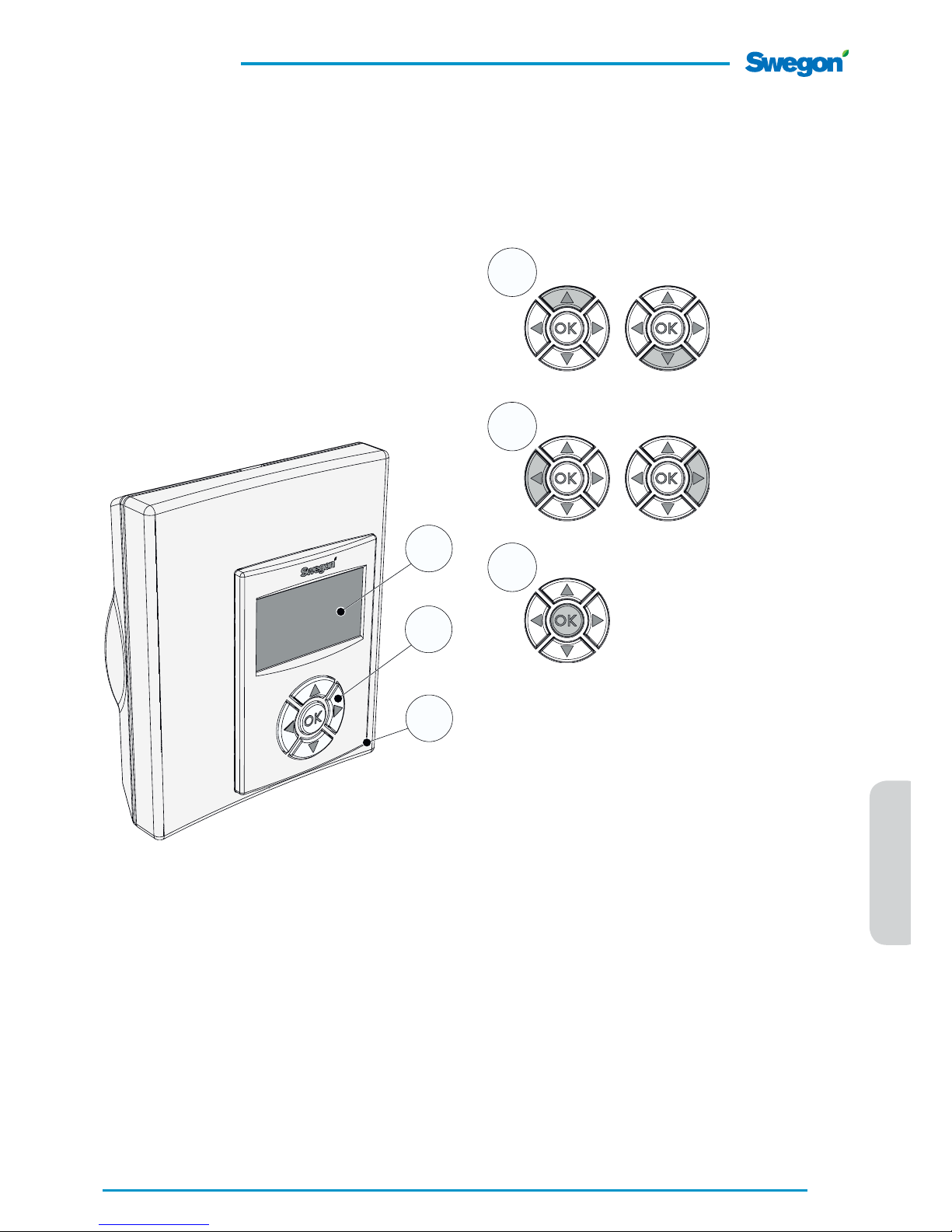

Figure 1. The room unit.
1Display
Shows the current status of the climate system and
information about the room temperature and airfl ow.
It also shows the settings you enter with the key set.
2Key set
You use it for changing room temperature and air
volume settings.
3 Temperature sensor
Placed inside the enclosure.
N.B.! In that the measurement of the temperature is infl uenced by the surroundings, the measurement of the
room temperature, dependent on where the room unit
is located, is not necessarily representative of the actual
heating or cooling requirements of the room.
To use the CONDUCTOR
The following section describes how you use the room
unit to adjust the room temperature and airfl ow.
The key set
You use the key set to raise and lower desired room temperature and increase and decrease desired airfl ow.
Figure 2. The key set.
1 The keys for adjusting the temperature
▲ UP To increase the temperature.
▼ DOWN To decrease the temperature.
2 Keys for adjusting the airfl ow
◄ LEFT To decrease the airfl ow.
► RIGHT To increase the airfl ow.
3
Accept key for temperature and airfl ow
OK CONFIRM Confi rm the setting.
Page 4
4
CONDUCTOR
Swegon reserves the right to alter specifi cations 20090310 www.swegon.com
The Main image
The main image shows the current status of the climate
system and the temperature and airfl ow settings.
1
2
3
45
6

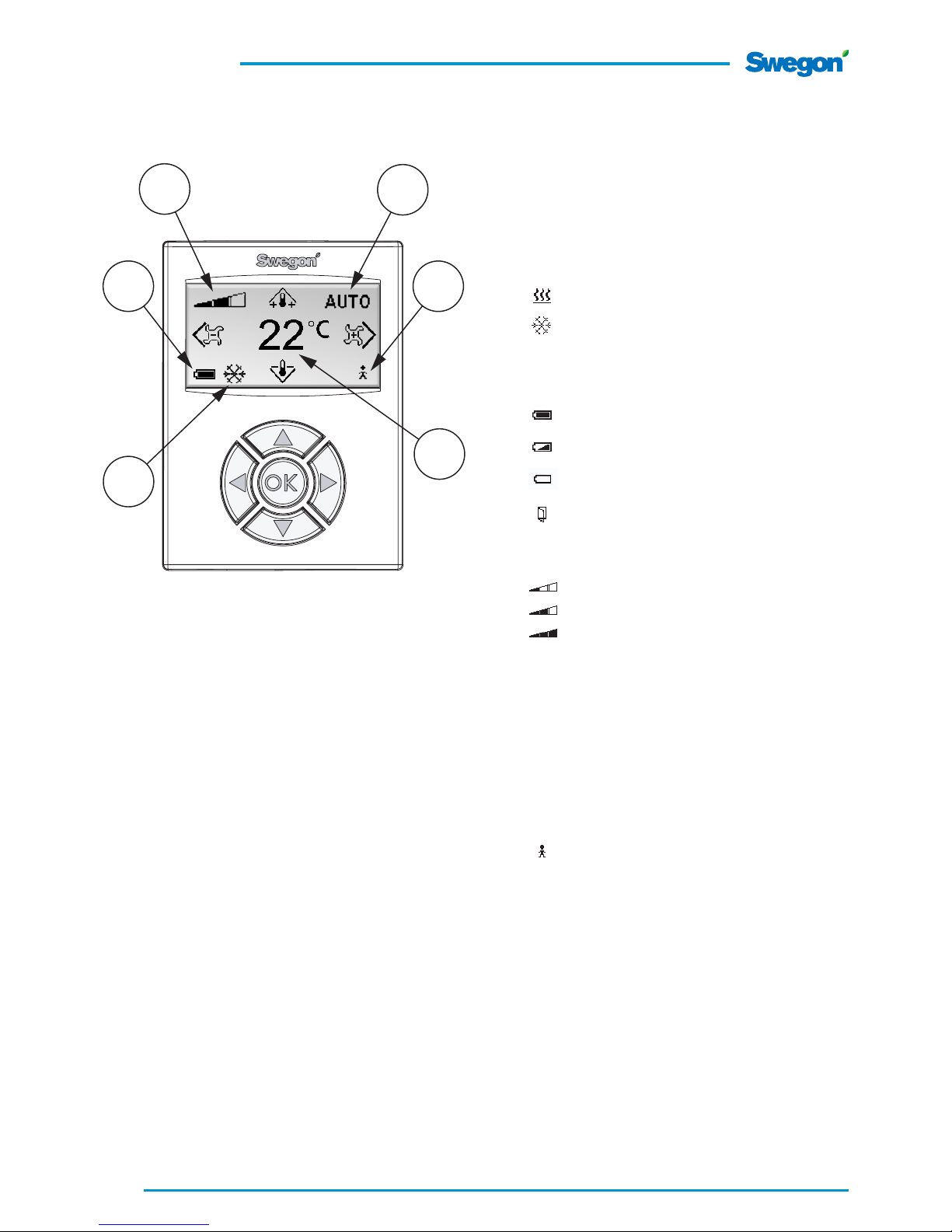

Figure 3. The Main image.
1 Current temperature
The fi eld shows present temperature setting. Specifi ed
in ˚C.
2 Heating/cooling
The fi eld shows whether the climate system is set to
heating or cooling.
Heating
Cooling
3 Battery level/window status
The fi eld shows the battery level. If a window is open
in the room this will be visible on the screen.
Good battery status.
Medium good battery status.
Change battery! See Service and sup-
port.
Open window.
4Current airfl ow
The indicator shows the present airfl ow setting.
Low airfl ow
Normal airfl ow
High airfl ow
5Operating mode
The fi eld shows current operating mode of the climate
system.
N.B.! The fi eld is empty in manual mode.
AUTO Automatic
ECON Economy
STOP Stop
EMERG Emergency
6 Presence status
Someone is in the room.
Page 5
5
CONDUCTOR
Swegon reserves the right to alter specifi cations 20090310 www.swegon.com
User manual
To set the desired room temperature
You set the desired room temperature in the main image
by pressing any of the following keys: ▲ UP or ▼ DOWN.
The fi rst press of the key ( ▲ UP or ▼ DOWN) will take
you to the temperature setting menu, without affecting
the temperature setting. You can now set your desired
room temperature.

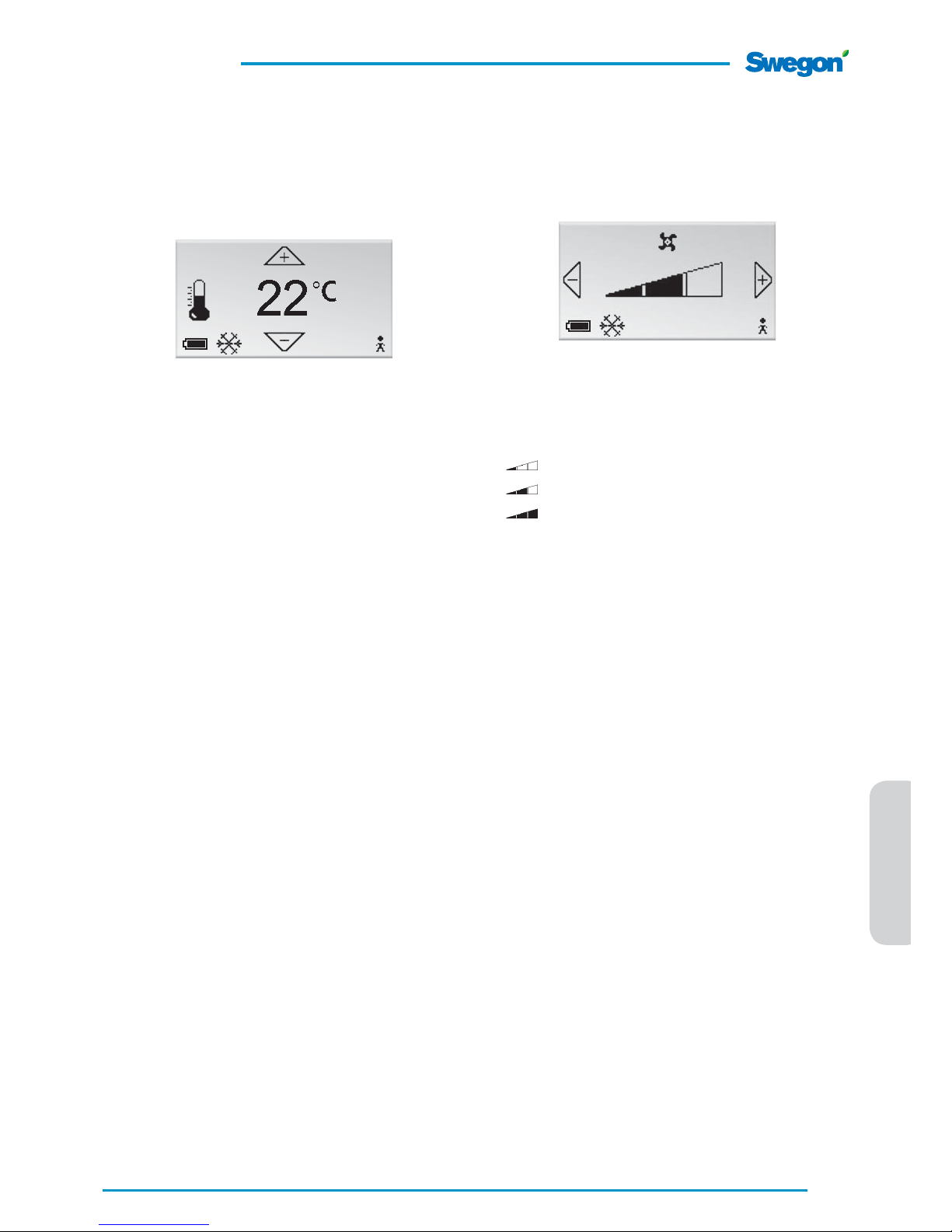

Figure 4. The temperature setting image.
As in the main image, the desired room temperature can
be read in ˚C in the centre of the display.
To increase the temperature
Press ▲ UP until the desired room temperature can be
read in the display.
Then press OK CONFIRM to confi rm your setting. You
then return to the main image.
To decrease the temperature
Press ▼ DOWN until desired room temperature can be
read in the display. Then press OK CONFIRM to confi rm
your setting and return to the main image.
To set the desired airfl ow
You set the desired airfl ow in the main menu, by pressing
any of the keys ► RIGHT or ◄ LEFT.
The fi rst press of the key (► RIGHT or ◄ LEFT) will take
you to the airfl ow adjusting image, without affecting the
airfl ow setting.
Figure 5. The airfl ow adjusting image.
The airfl ow rate can be read on the triangular indicator
in the centre of the image. Depending on the comfort
needs, one of three different levels can be selected: low,
normal or high.
Low airfl ow
Normal airfl ow
High airfl ow
To increase the airfl ow.
Press ► RIGHT until the desired airfl ow can be read in the
display.
Then press OK CONFIRM to confi rm your setting. You
then return to the main image.
To decrease the airfl ow
Press ◄ LEFT until desired airfl ow can be read in the
display.
Then press OK CONFIRM to confi rm your setting and
return to the main image.
Service and support
If the room unit does not operate in a satisfactory
manner, please contact the person(s) responsible for
maintaining the premises (caretaker or receptionist).
Page 6
6
CONDUCTOR
Swegon reserves the right to alter specifi cations 20090310 www.swegon.com
Page 7
7
CONDUCTOR
Swegon reserves the right to alter specifi cations 20090310 www.swegon.com
User manual

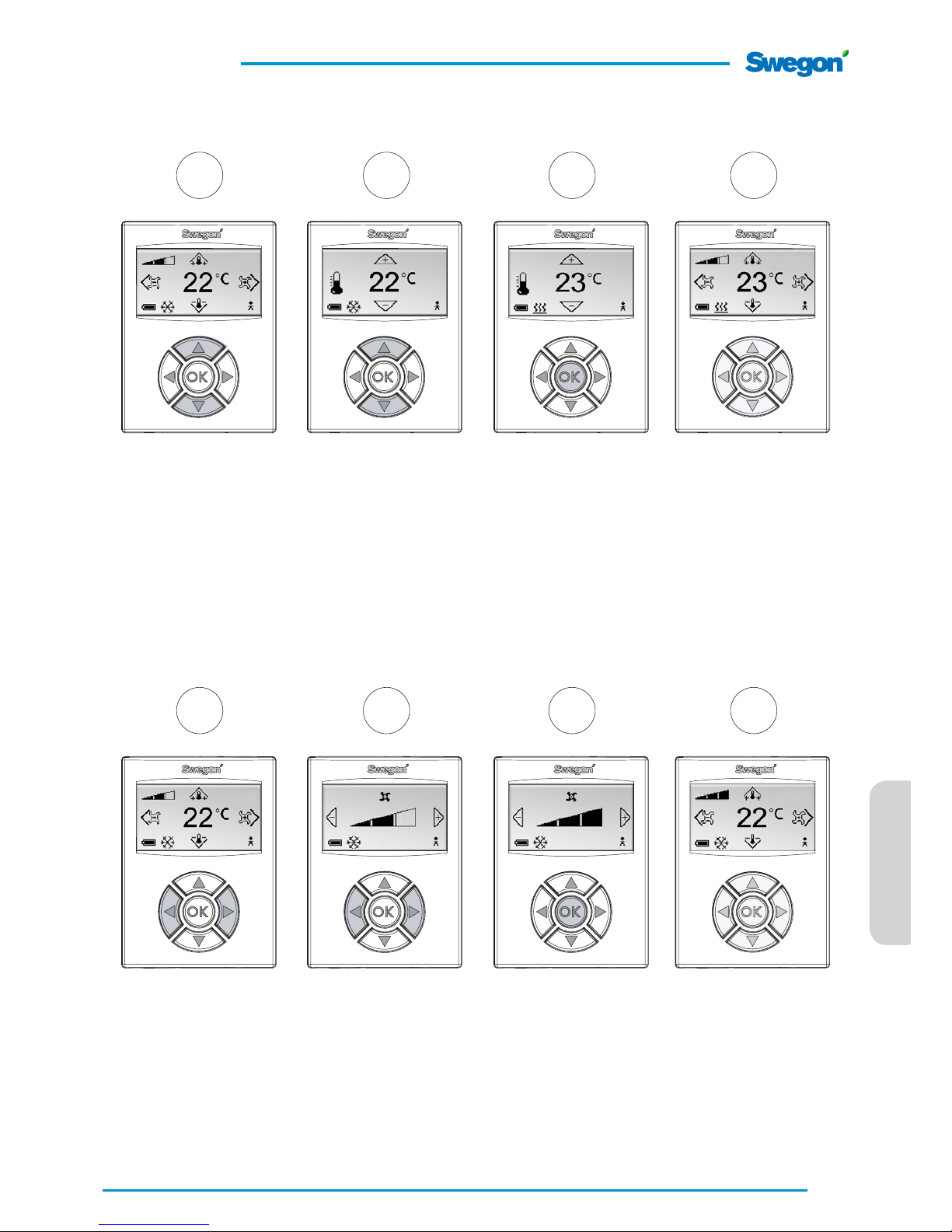

To increase and decrease the room temperature
1 2 3 4
To increase or decrease the airfl ow
1 2 3 4
QUICK GUIDE
Press the ▲ or ▼
key.
Press the ▲ key to
increase the temperature.
Press the ▼ key to
decrease the temperature.
Press one time for
each degree if you
wish to change the
temperature.
Press the OK key
to confi rm your
setting.
You have now
fi nished setting
the room temperature.
You have now fi nished setting the
airfl ow.
Press the OK key
to confi rm your
setting.
Press the ► key to
increase the airfl ow.
Press the ◄ key to
decrease the airfl ow.
Press one time for
each step if you desire
to change the airfl ow.
Press the ► or ◄
key.
