English version

4

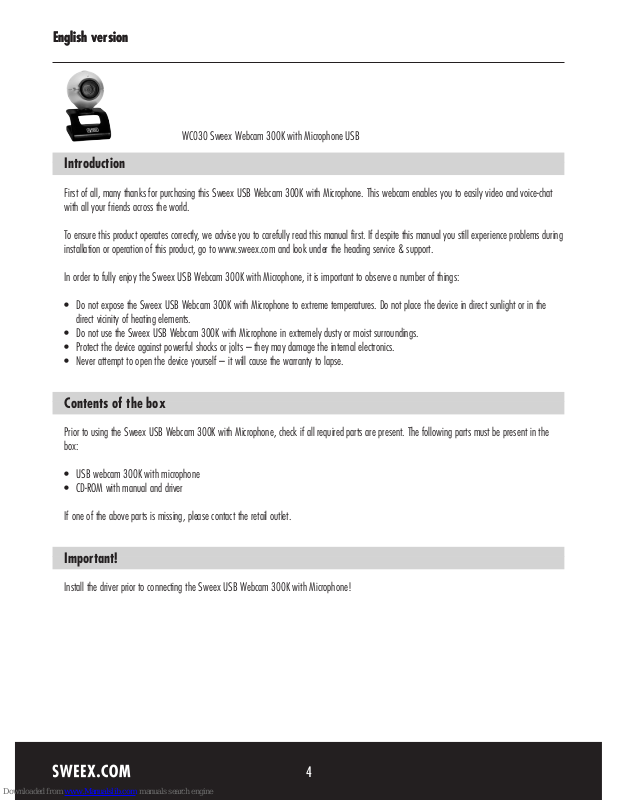

English version

WC030 Sweex Webcam 300K with Microphone USB

Introduction

First of all, many thanks for purchasing this Sweex USB Webcam 300K with Microphone. This webcam enables you to easily video and voice-chat
with all your friends across the world.

To ensure this product operates correctly, we advise you to carefully read this manual first. If despite this manual you still experience problems during
installation or operation of this product, go to www.sweex.com and look under the heading service & support.

In order to fully enjoy the Sweex USB Webcam 300K with Microphone, it is important to observe a number of things:

• Do not expose the Sweex USB Webcam 300K with Microphone to extreme temperatures. Do not place the device in direct sunlight or in the
direct vicinity of heating elements.

• Do not use the Sweex USB Webcam 300K with Microphone in extremely dusty or moist surroundings.

• Protect the device against powerful shocks or jolts – they may damage the internal electronics.

• Never attempt to open the device yourself – it will cause the warranty to lapse.

Contents of the box

Prior to using the Sweex USB Webcam 300K with Microphone, check if all required parts are present. The following parts must be present in the
box:

• USB webcam 300K with microphone

• CD-ROM with manual and driver

If one of the above parts is missing, please contact the retail outlet.

Important!

Install the driver prior to connecting the Sweex USB Webcam 300K with Microphone!

English version

5

English version

Specifications

• Interface: USB 1.1

• Sensor: 300K CMOS

• Built-in microphone

• Frame frequency: 30 frames per second

• Focus: 30 mm to infinite

• Lens format: 1/4”

• Colour filter: RGB 24 and I420

• Resolutions: 160 x 120, 176 x 144, 320 x 240, 352 x 288 and 640 x 480

• Supports: Windows 98SE/2000/XP

Software installation under Windows 98SE, 2000 and XP

We advise you to ensure the operating system is up-to-date before starting the installation. This is easy to check by starting up Internet Explorer and
selecting the option “Windows Update” in the “Extra” menu.

Insert the Sweex CD-ROM in the CD-ROM player. The autorun menu will start automatically.

In this menu, select “Drivers Windows 98SE, 2000 and XP”

In the event that the autorun menu does not appear, the driver installation process can also be started manually. In order to do this, open “My
computer” and go to X:\driver\ (X being the letter of your CD-ROM drive). Here you will find the ‘USBPCCamSN9C103_v4.6.6.0_whql.exe’ file,
double-click this file and follow the instructions.

The following screen appears:

Click “Next”.

English version

6

Select the first option “Complete” and click “Next”.

Here select the option “Install” and finally click “Finish”.

Now connect the Sweex USB Webcam 300K with Microphone to the PC or laptop.
Windows 2000 and XP will automatically install the Sweex USB Webcam 300K with Microphone. Following installation, the webcam can be used.

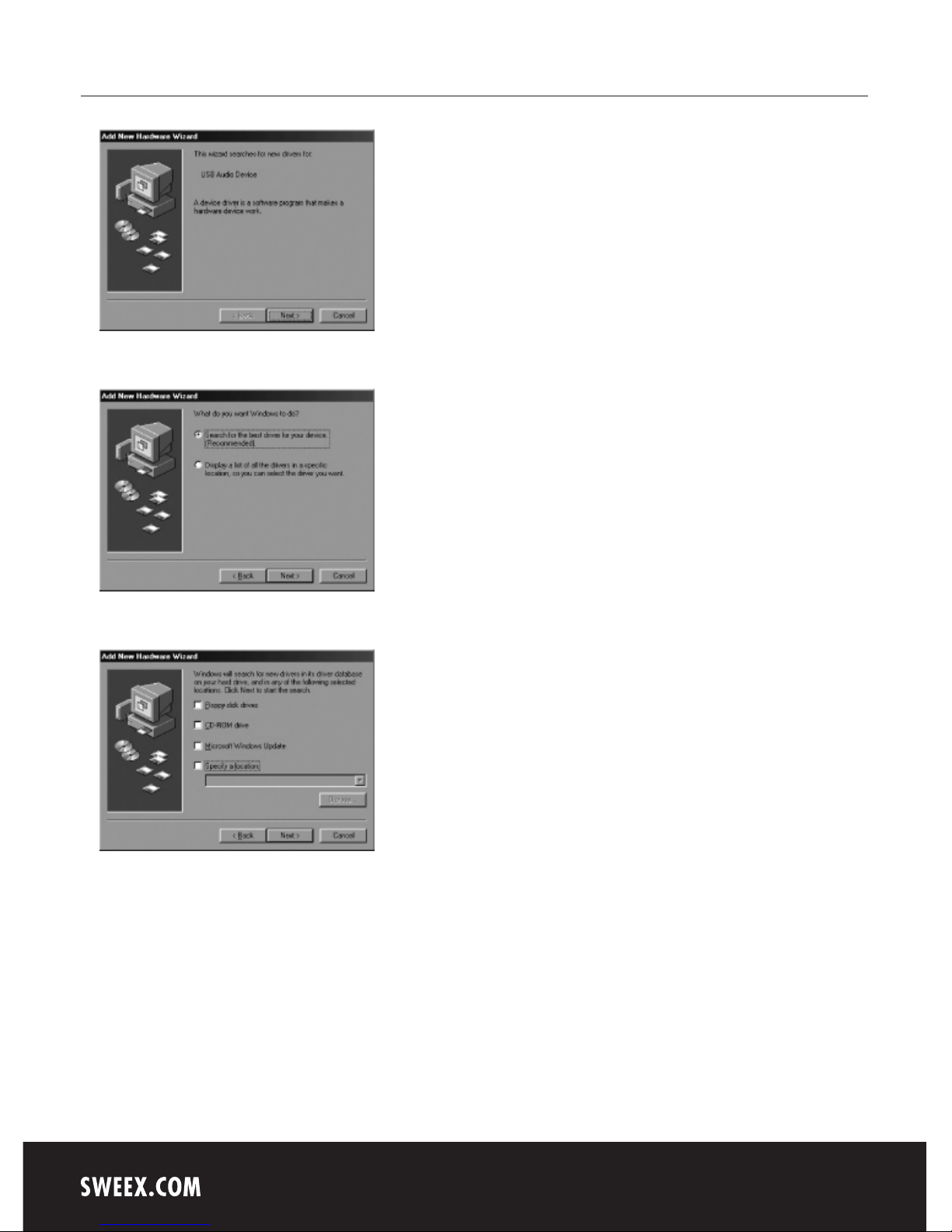

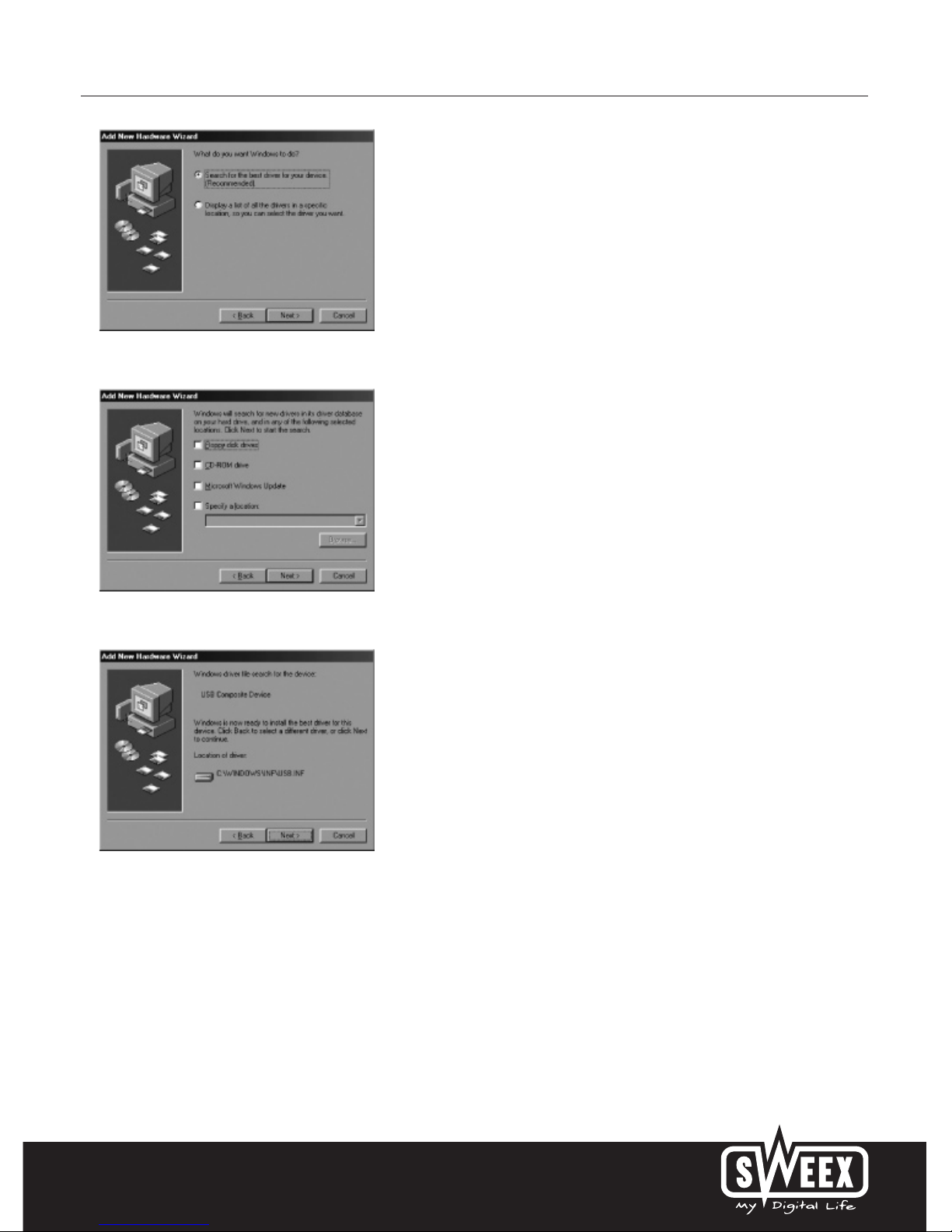

If Windows 98SE is used, the following screen appears:

Click “Next”.
