English version

TV019 Sweex 19" LCD TV with built-in DVD-player

Dear Customers

Thanks for purchasing this TFT-LCD TV/Monitor. We strongly recommend that you carefully read the safety and operation instructions before operating your TV/Monitor. FOLLOW INSTRUCTIONS AND HEED ALL WARNINGS on your TFT-LCD TV/Monitor and in this manual.

Safety information

Note:

Before connecting the AC power cord to the DC adapter outlet, make sure that the voltage designation of the DC adapter corresponds to the local electrical supply. If you are unsure about your power supply, please ask the local power company.

Caution:

To avoid electric shock, never touch the inside of the LCD TV/Monitor. Only qualified technicians should open the case of the LCD TV/Monitor.

Warning:

Do not ignore the safety purpose of grounding-type. A grounding type plug has two blades and a third grounding pin. The third pin is provided for your safety. If the plug does not fit, ask the electrician to replace the obsolete outlet. Do not modify the plug!

To reduce the risk of fire or electric shock, and annoying interference, use the recommended accessories only.

English version

Precautions

Please read the below precautions carefully before operating the unit.

Power cord protection:

1. Never use your LCD TV/Monitor if the power cord has been damaged. Do not put anything on the power cord, and keep the power cord away from where people can easily trip over it.

2. Be sure to hold the plug , do not pull the cord when disconnecting the LCD TV/Monitor from an electric socket.

3. Locate your LCD TV/Monitor near an easy accessible AC outlet.

Placement:

1. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the device.

2. Never placing the LCD TV/Monitor in areas under direct sun-light, with high temperature or with high humidity or high level of dust which may cause damages on the internal parts of the LCD TV/Monitor.

3. Place the LCD TV/Monitor on a solid surface and treat it carefully. The screen is made of thin glass with a plastic front surface and can be damaged by dropping, hitting or scratching.

Non-use periods:

Unplug the LCD TV/Monitor when it will no be used for a long period.

Foreign objects:

Never insert anything metallic into the cabinet openings of the TV/Monitor. Doing so may cause the danger of electric shock.

Keep away from water/magnetic fields:

1. Do not expose the LCD TV/Monitor to rain or use it near water source. If the LCD TV/Monitor got wet, unplug it and contact an authorized dealer immediately.

2. Do not clean the front panel with Ketone-type materials, ethyl alcohol, toluene, acid, methyl, or chloride since they may cause damage on panel.

3. Do not place magnetic objects close to the LCD TV/Monitor.

Stacking:

Opening in the LCD TV/monitor cabinet are provided for ventilation. To prevent overheating, these openings should not be blocked or covered. Never use the unit on a bed, sofa, rug, or other uneven surfaces. Doing so may block the ventilation openings in the bottom of the unit. If you place the LCD TV/Monitor in a bookcase or some other enclosed place, please make sure to provide adequate space for ventilation.

Servicing:

1. If the LCD TV/Monitor does not operate normally – In particular, if there are any unusual sounds or smells coming from the unit - just unplug it immediately and contact an authorized dealer or service center.

2. Unplug the LCD TV/Monitor from the AC outlet before any service.

3. Make sure the service technician uses authorized replacement parts or their equivalents. Unauthorized parts any cause fire, electrical shock, or other hazard.

4. Following any service or repair, be sure the service technician performs safety checks to certify that the TFT LCD TV/Monitor is in safe operating order.

English version

Unpacking

Please make sure that the following items are included with your LCD TV/Monitor. If any item is missing, please contact your dealer.

TFT LCD TV/ Monitor

Remote control Operation manual DC adapter

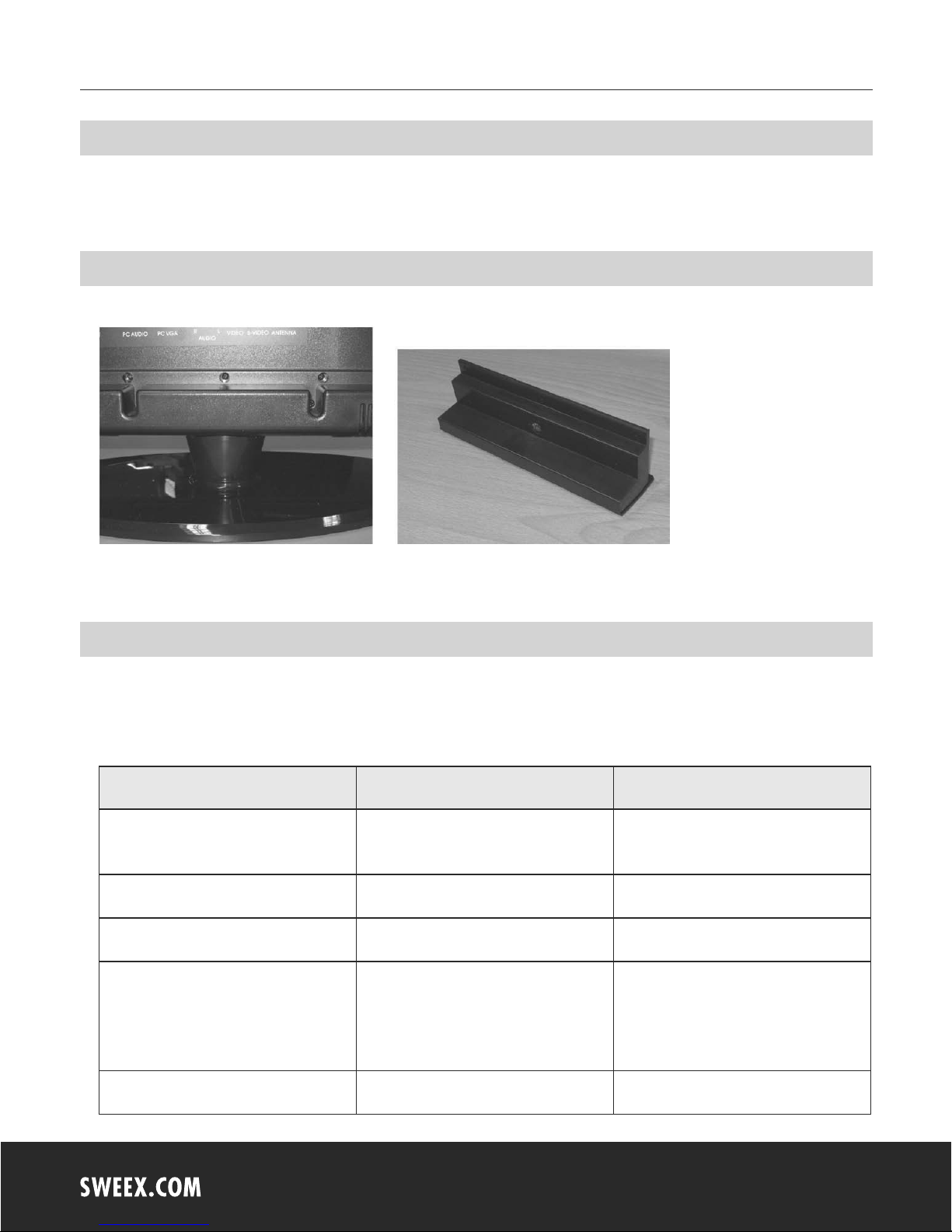

Power cord RCA cable Base replacement for wall mounting

I. View of the TV/Monitor

English version

Front view Back view

1. Remote sensor 12. DVD disc slot in

2. Power button & indication light 13. DC input jack/Car cord input jack

3. DVD play/pause button 14. VGA jack

4. DVD stop playing button 15. SCART jack

5. DVD open/close button 16. S-video jack

6. CH+/Up direction button 17. Video jack

7. CH-/Down direction button 18. Audio in (Left) jack

8. VOL+/Right direction button 19. Audio in (Right) jack

9. VOL-/Left direction button 20. PC audio in jack

10. Menu button 21. Earphone

11. TV /AV function switch button 22. TVRF antenna jack

English version

II. Remote control reference guide

Remote control function

1. Unit STANDBY button

2. 0-9 Numerical button

3. Volume up button

4. Display DVD title menu.

5. Volume down button

6. Display the source and channel’s information

7. navigation button

8. navigation button

9. ENTER button

10. navigation button

11. Display LCD OSD Menu

12. Display INPUT source

13. Display video picture modes

14. Play/Pause DVD playing

15. Stop DVD playing

16. Enter into teletext mode or DVD fast rewind playing

17. View a page of text in teletext mode or DVD fast forward playing.

18. Display the index page in teletext mode or replay the current program from the previous chapter or DVD skip backward playing

19. Change the display size in teletext mode or advance forward to the next chapter or DVD skip forward playing.

20. To select DVD program playback or display red subject in teletext mode.

21. Intro/Scan/9 picture display or display green subject of teletext.

22. Repeat playback or display yellow subject of teletext.

23. Repeat A-B playback or display blue subject of teletext.

24. To reveal or hidden the hidden words in teletext mode or select zoom of DVD playback.

25. Sub coded page access in teletext mode or select DVD different playback angle

26. Go to function in DVD mode or keep page display in teletext mode.

27. Exit teletext program in teletext mode or switch the dialogue at the bottom of the screen in DVD mode

28. Slow/Step the speed of DVD playing

29. Select the NICAM or DVD audio channels

30. Select different sound settings

31. MUTE button

32. Display the setup menu of DVD

33. navigation button

34. Select previous channel

35. Display DVD-disc menu

36. Select next channel

37. -/-- button

38. Cycle between previous and present channel viewed

39. Eject the DVD in DVD mode or execute position auto adjust function in PC mode.

English version

Remote control battery installation and cautions

Replace battery by following the below steps: Requires one pair of AAA batteries.

1. Open the battery cover as shown below:

2. Install the battery into the battery tray.

3. Close the battery cover

Caution:

1. Keep the battery out of children’s reach.

2. Don’t attempt to recharge, short-circuit, disassemble, heat or throw the batteries into the fire.

3. Always replace both batteries at the same time. Never mix new and old batteries or batteries of a different type.

4. If you don’t intend to use the remote control for an extended period, remove the batteries to prevent possible leakage and corrosion.

Notes:

1. Do not drop, apply shock or step on the remote control.

2. Do not spill water on the remote control.

3. Do not use the remote control for other equipments at the same time

4. If the TV does not operate even when operating the remote control from a close range, you need to replace the batteries. Refer to the label on the back of the remote control for directions for replacing batteries.

III. Installation and connection

Connect the LCD TV/monitor

English version

1. Connect the TVRF source with the antenna port. TVRF signal including: Receiving antenna /satellite TV/CATV net. You can use 75 connect the outdoor antenna.

Outdoor Antenna Connection:

Use 75

coaxial cable plug or 300-75 impedance converter to plug in antenna input terminal on the rear of the cabinet.

VHF ANTENNA UHF ANTENNA

75 CO-AXIS CABLE

MIXER

INPUT TERMINAL OF ANTENNA

coaxial cable to

ANTENNA IN JACK

CO-AXIS ANTENNA PLUG

75 CO-AXIS CABLE

English version

2. Connect the audio sources (Including DVD, VCDR, CAMCORDER and PC) to the proper AUDIO input jacks ‘L’ and ‘R’.

3. Connect the video source to the VIDEO jack by RCA cable.

4. If the video source has a SCART output jack, you can connect the signal to the monitor by the SCART cable.

5. Connect the video source to the S-VIDEO input jack of the monitor by the S-video cable (Pretending that the video source has S-video output jack).

6. Insert the AC power to the DC adapter, then connect it’s DC output jack to the12V input jack of the monitor.

7. When using the LCD as a computer screen, connect the PC to the VGA jack from the monitor by the relevant cable.

IV. TV/Monitor screen operation

(1) Basic operation

1. Press the

Press the POWER or STANDBY button again to switch off the power, and the light will be in red color.

2. The Picture setup, Sound setup, Previous channel can be memorized before you switch off the TV/Monitor. The TV/Monitor will re-start under the previous

state when you switch on it again.

3. Press the VOL - or VOL + button to adjust the volume output. Press the VOL - button repeatedly to decrease the volume; press the VOL + button repeatedly

to increase the volume from 0 to 100.

POWER button on the unit or the STANDBY button on the remote control to switch on the power, the indication light will be in blue color .

(2) View the TV plays.

1. Press the INPUT button on the remote control to select the TV function mode. Channel ‘1’ will appear on the top left hand corner after channel searching

is completed . Press the CH- or CH+ button to select the previous or next channels; or press the 0-9 buttons to enter a channel number directly, or press the -/-- button until the screen display ‘-’ or ‘--’, then use the 0-9 numerical buttons to enter a channel number from 1 to 199.

2. Press the

3. Press the PMODE button repeatedly to cycle through the available video picture modes from the below 4 types

4. Press the SMODE button to repeatedly to cycle through the available sound modes from the below 4 types

5. Press the MUTE button to cut off the sound output, press this button again to resume sound output.

6. Press the DISPLAY button to display the preset channel information

button on the remote control to select from the present channel and the previous channel.

STANDARD MILD FRESH PERSONAL

MUSIC THEATRE PERSONAL VOICE
