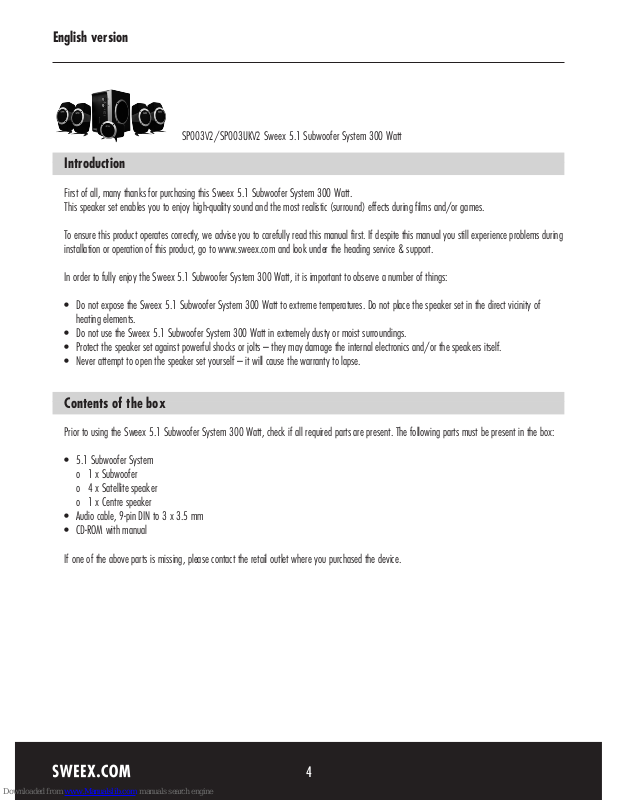

SP003V2/SP003UKV2 Sweex 5.1 Subwoofer System 300 Watt
Introduction
First of all, many thanks for purchasing this Sweex 5.1 Subwoofer System 300 Watt.
This speaker set enables you to enjoy high-quality sound and the most realistic (surround) effects during films and/or games.
To ensure this product operates correctly, we advise you to carefully read this manual first. If despite this manual you still experience problems during
installation or operation of this product, go to www.sweex.com and look under the heading service & support.
In order to fully enjoy the Sweex 5.1 Subwoofer System 300 Watt, it is important to observe a number of things:
• Do not expose the Sweex 5.1 Subwoofer System 300 Watt to extreme temperatures. Do not place the speaker set in the direct vicinity of
heating elements.
• Do not use the Sweex 5.1 Subwoofer System 300 Watt in extremely dusty or moist surroundings.
• Protect the speaker set against powerful shocks or jolts – they may damage the internal electronics and/or the speakers itself.
• Never attempt to open the speaker set yourself – it will cause the warranty to lapse.
Contents of the box
Prior to using the Sweex 5.1 Subwoofer System 300 Watt, check if all required parts are present. The following parts must be present in the box:
• 5.1 Subwoofer System
o 1 x Subwoofer
o 4 x Satellite speaker
o 1 x Centre speaker
• Audio cable, 9-pin DIN to 3 x 3.5 mm
• CD-ROM with manual
If one of the above parts is missing, please contact the retail outlet where you purchased the device.
Page 2
English version
5
Specifications
• Maximum power satellite speakers: 1.5 Watt RMS
• Maximum power woofer: 10 Watt RMS
• Maximum power centre: 2 Watt RMS
• Magnetically shielded
• Built-in stereo amplifier
• 4 x 2.5” satellite speaker
• 1 x 3” woofer speaker
• 1 x 2.5” centre speaker
• Volume and bass controls
• Plug and Play
• Built-in power supply
• Input: 9-pin DIN 5.1 audio
• Output: Plug (RCA)
• Frequency range satellite: 120 Hz – 20 KHz
• Frequency range woofer: 50 Hz – 140 Hz
• Frequency range centre: 120 Hz – 20 KHz
• Supports: Windows 98SE, 2000 and XP
Installation of hardware

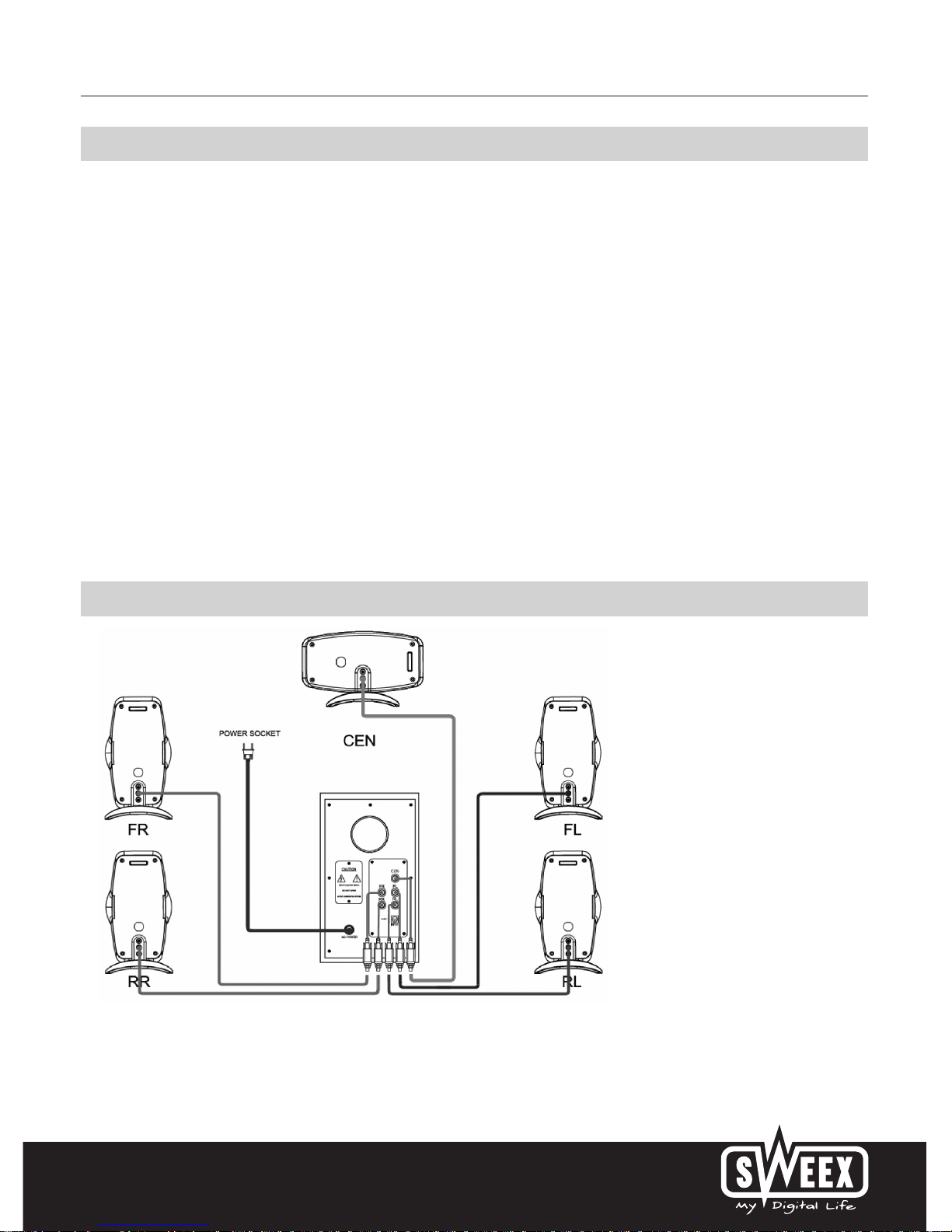

First connect the centre and satellite speakers to the woofer. The two upright speakers with the red connection are FR: “front right” (short wire) and
RR: “right surround” (long wire). The two upright speakers with the white connection are FL: “front left” (short wire) and RL: “left surround” (long
wire). The flat “centre" speaker also has a white connection and must be connected to CEN.
Page 3
English version
6

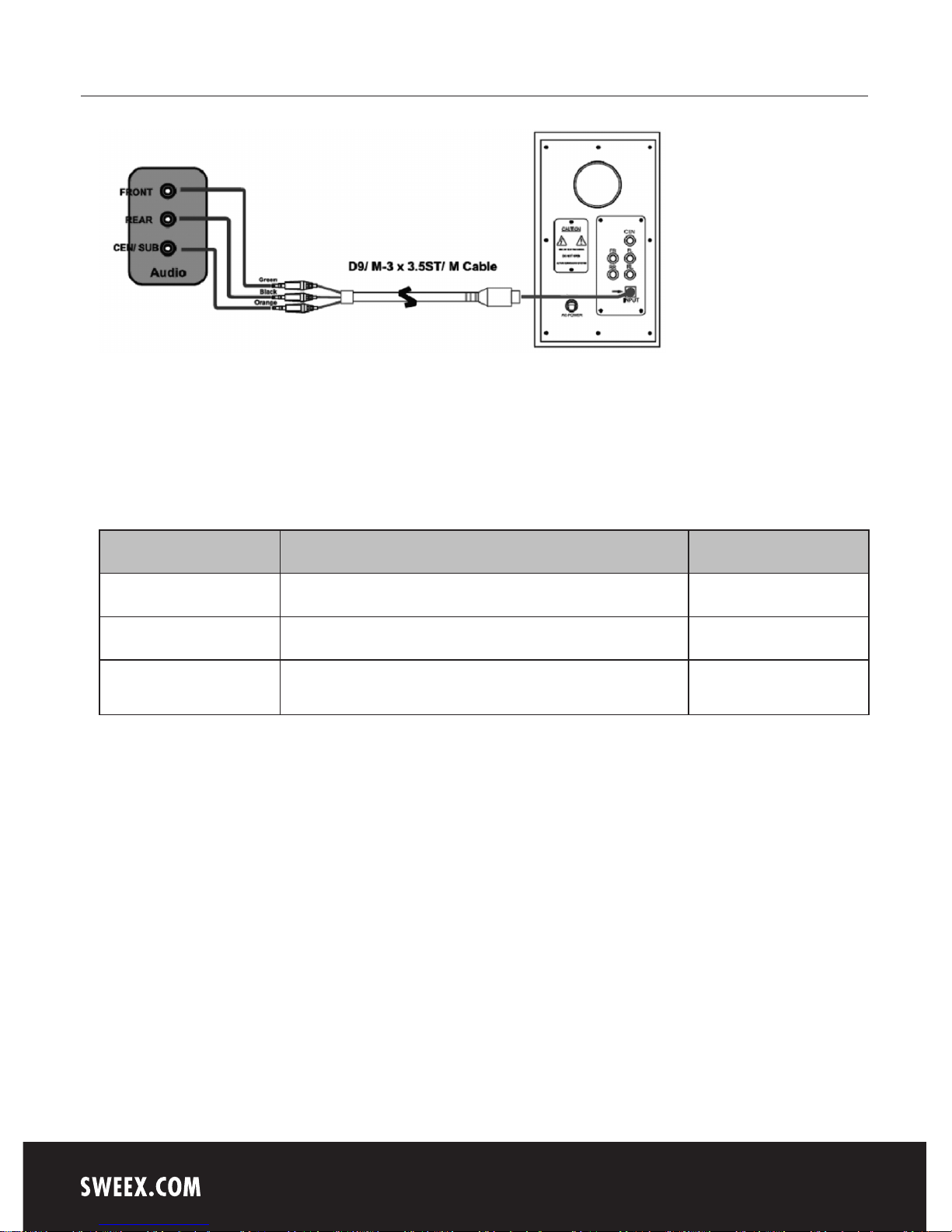

Subsequently, the woofer must be connected to the sound source. Note the connection in the woofer: this is a so-called 9-pin DIN connection, which
can be fitted in only one way (check the notch in the plug). Connect it to ‘INPUT’.
When connecting to the (5.1) sound source, note the colour codes of the audio cable. The 3.5mm green/orange/black audio plug must be
connected to the corresponding colours of the outputs at the sound source. In the event that the sound source does not show any colours, or e.g.,
when you use a 7.1 sound source, you can use the diagram below in order to find the right connection:
3.5 mm audio colour Type of sound Colour of sound source
Green FR “front right” and FL “front left” Green
Orange CEN “centre” and the woofer Orange
Black RR “right surround” and RL “left surround” Black
Plug into the mains and switch on the woofer by pressing the ‘POWER’ button at the front. The woofer lights up in blue.
Page 4
English version
7
Operation
The front of the Sweex 5.1 Subwoofer System 300 Watt features 3 buttons:
Button LED Colour Function
POWER Blue Switching the Sweex 5.1 Subwoofer System 300 Watt on and off
VOLUME Blue Volume control
BASS Blue Controls the intensity of the low tones (bass)
LED indicators
The Sweex 5.1 Subwoofer System 300 Watt contains a blue LED. This is lit continuously, indicating that the speaker set is switched on.
Warranty
All products under the Sweex brand are warranted for a period of three years. We do not grant support or warranties for any software and/or
(rechargeable) batteries included. If one of the above parts is missing, please contact the retail outlet where you purchased the device.
The rightful owner has and retains title to all brand names and related rights mentioned in this manual.
