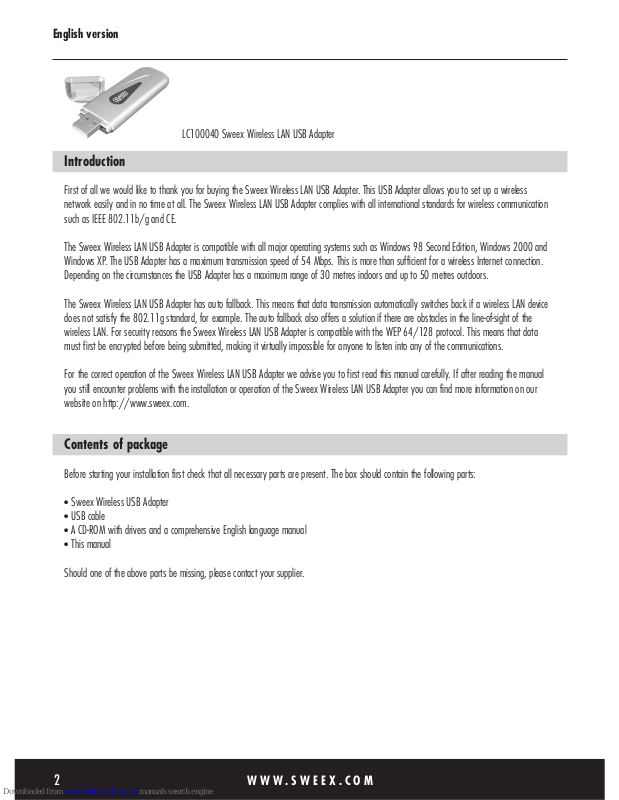

LC100040 Sweex Wireless LAN USB Adapter

Introduction

First of all we would like to thank you for buying the Sweex Wireless LAN USB Adapter. This USB Adapter allows you to set up a wireless
network easily and in no time at all. The Sweex Wireless LAN USB Adapter complies with all international standards for wireless communication
such as IEEE 802.11b/g and CE.

The Sweex Wireless LAN USB Adapter is compatible with all major operating systems such as Windows 98 Second Edition, Windows 2000 and
Windows XP. The USB Adapter has a maximum transmission speed of 54 Mbps. This is more than sufficient for a wireless Internet connection.
Depending on the circumstances the USB Adapter has a maximum range of 30 metres indoors and up to 50 metres outdoors.

The Sweex Wireless LAN USB Adapter has auto fallback. This means that data transmission automatically switches back if a wireless LAN device
does not satisfy the 802.11g standard, for example. The auto fallback also offers a solution if there are obstacles in the line-of-sight of the
wireless LAN. For security reasons the Sweex Wireless LAN USB Adapter is compatible with the WEP 64/128 protocol. This means that data
must first be encrypted before being submitted, making it virtually impossible for anyone to listen into any of the communications.

For the correct operation of the Sweex Wireless LAN USB Adapter we advise you to first read this manual carefully. If after reading the manual
you still encounter problems with the installation or operation of the Sweex Wireless LAN USB Adapter you can find more information on our
website on http://www.sweex.com.

Contents of package

Before starting your installation first check that all necessary parts are present. The box should contain the following parts:

• Sweex Wireless USB Adapter

• USB cable

• A CD-ROM with drivers and a comprehensive English language manual

• This manual

Should one of the above parts be missing, please contact your supplier.

English version

3

Specifications

• Compatible with IEEE 802.11b and IEEE 802.11g

• Data transfer up to a maximum of 54 Mbps

• Windows 98SE, 2000 and XP compatible

• Supports USB 2.0

• Standard: IEEE 802.11b/g

• Bit error rate: 1E-5 @ -83 dBm

• North America: 11 channels, Europe: 13 channels

• Frequency: 2.4000 - 2.4835 GHz (Industrial Scientific Medical Band)

• Modulation: OFDM with BPSK, QPSK, 16QAM, 64QAM (11g), BPSK, QPSK, CCK (11b)

• Transmission speed: 54/48/36/24/18/12/11/9/6/5.5/2/1Mbps auto fallback

• Security: 64/128-bit WEP data encryption, WPA, AES and IEEE 802.1x

• Aerial: Built-in aerial for sending and receiving

• LEDs: TX/RX and Link

• Transmission power: 16 dBm - 18 dBm

• Power consumption: Tx: 350 mA, Rx: 250 mA

• Sensitivity of receiver: 54 Mbps OFDM, 10% PER, -70dBm, 11 Mbps CCK, 8% PER, -86dBm, 1 Mbps BPSK, 8% PER, -92 dBm

• Operating temperature: 0 - 55°C

• Air humidity: Up to 95%

• Certification: FCC, CE

Software installation

Insert the supplied CD-ROM in the CD-ROM drive of your computer system. Go to the start button on your computer run type the
command x:\setup.exe and click “OK” whereby X is the letter of your CD-ROM drive.
