English version
FW011 Sweex 3 Port FireWire 800 PCI Card
Introduction
First of all, many thanks for purchasing this Sweex 3 Port FireWire 800 PCI Card. This PCI card enables you to easily expand the connection
possibilities of your PC.
To ensure this product operates correctly, we advise you to carefully read this manual first. If despite this manual you still experience problems
during installation or operation of this product, go to www.sweex.com and look under the heading service & support.
Contents of the box
Prior to installation, check if all required parts are present. The following parts must be present in the box:
• 3 Port FireWire 800 PCI card
• CD-ROM with manual
If one of the above parts is missing, please contact the supplier.
Specifications
• 3 ports: 2 x IEEE 1394b and 1 x IEEE 1394a
• Compatible with both 32 bits and 64 bits PCI slots
• Maximum data speed: 800 Mbps
• Plug and Play
• Supports: ‘Hot swappable’ devices
• Supports: Windows 98SE, 2000 and XP
4
S W E E X . C O M

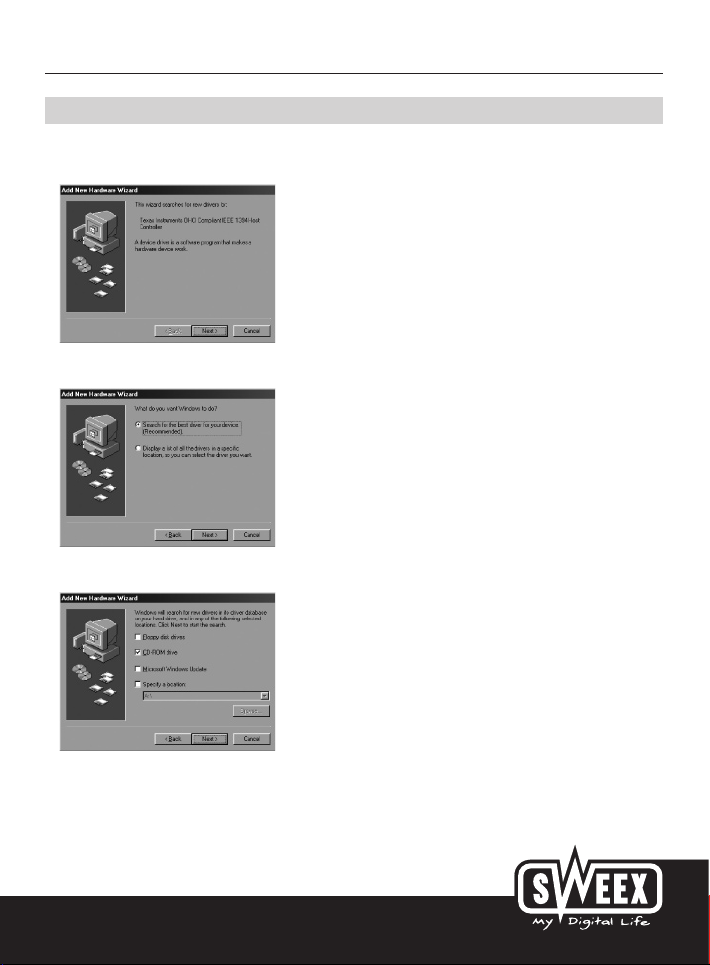

Installation Windows 98SE
The installation of the 3-port FireWire 800 PCI card is very straightforward, once inserted the PCI card is detected automatically.
The following screen appears:
Now click “next”.
Here select the option “Search for the best driver for your device”. Then click “Next”.
English version
Now Insert the Windows 98SE CD-ROM in the CD-ROM player. Click the option “CD-ROM drive” and then click “Next”.
5
