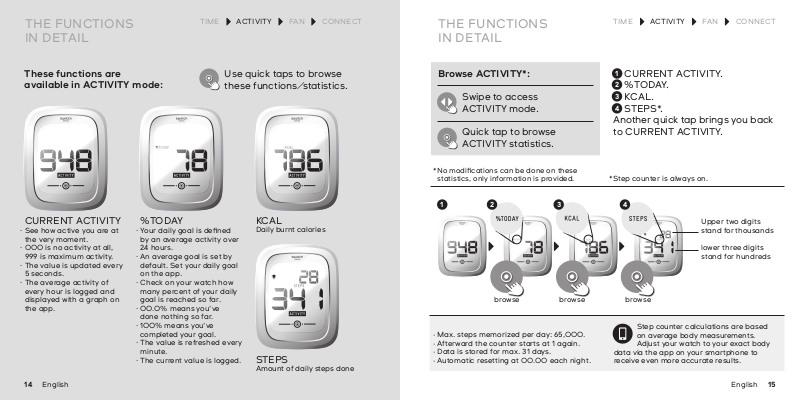

THE FUNCTIONS
IN DETAIL
These functions are
available in ACTIVITY mode:
CURRENT ACTIVITY
See how active you are at
the very moment.
000 is no activity at all,
999 is maximum activity.
The value is updated every
5 seconds.
The average activity of
every hour is logged and
displayed with a graph on
the app.
14
English
%TODAY
Your daily goal is dened
by an average activity over
24 hours.
An average goal is set by
default. Set your daily goal
on the app.
Check on your watch how
many percent of your daily
goal is reached so far.
00.0% means you‘ve
done nothing so far.
100% means you‘ve
completed your goal.
The value is refreshed every
minute.
The current value is logged.
TIME
Use quick taps to browse
these functions/statistics.
KCAL
Daily burnt calories
STEPS
Amount of daily steps done
CONNECT
THE FUNCTIONS
IN DETAIL
Browse ACTIVITY*:
Swipe to access
ACTIVITY mode.
Quick tap to browse
ACTIVITY statistics.
*No modications can be done on these
statistics, only information is provided.
1 2 3 4
browse browse browse
· Max. steps memorized per day: 65,000.
· Afterward the counter starts at 1 again.
· Data is stored for max. 31 days.
· Automatic resetting at 00.00 each night.
TIME
1
CURRENT ACTIVITY.
2
%TODAY.
3
KC
AL.
4
STEPS*
.
Another quick tap brings you back
to
CURRENT ACTIVITY.
*Step counter is always on.
Step counter calculations are based
on average body measurements.
Adjust your watch to your exact body
data via the app on your smartphone to
receive even more accurate results.
CONNECTFANACTIVITY
FANACTIVITY
Upper two digits
stand for thousands
lower three digits
stand for hundreds
English
15
THE FUNCTIONS
IN DETAIL
TIME
FANACTIVITY
CONNECT FANACTIVITY
THE FUNCTIONS
IN DETAIL
TIME
CONNECT
These functions/statistics are
available in FAN mode:
FAN HEAT FAN RANK
The FAN HEAT displays
your all over action from:
1. activity,
2. the number of claps, and
3. the number of La-Olas
The value is only tracked
and displayed when you‘ve
turned on the FAN HEAT.
000 is no action at all,
999 is maximum action.
· The value is refreshed every
5 seconds.
The average fan-heat of
·
every 5 minutes is logged
and displayed with a graph
on your app.
16
English
Information is sent to you
from the app
Use quick taps to browse
these functions/statistics.
Turn FAN HEAT ON or OFF. Browse FAN RANK statistics.
Swipe to access
FAN mode.
Quick tap to browse FAN
functions. Go to HEAT.
1
Long press to turn
HEAT function ON or OFF*.
1
* After 3 hours,
FAN HEAT
function swit
turn ON/OFF
Max. 10x 3 hours FAN HEAT sessions
can be stored on the watch. Sessions
beyond that will continuously overwrite
the earliest sessions. Therefore make sure to
regularly synchronize your watch (uploading
data on the smartphone) to prevent any loss
of data.
automatically o.
ches
Swipe to access
FAN mode.
Quick tap to browse FAN
functions. Go to RANK.
2
See RANK statistics*
2
browse
RANK information can be updated
via app on your smartphone only.
Therefore make sure to regularly
synchronize your watch (uploading data on
the smartphone) in order to have the most
accurate RANK.
*.
** No modications
can be done on
FAN RANK.
English
17
THE FUNCTIONS
TIME
IN DETAIL
1
Start synchronizing: More fun with the app
Long press on the left
section to turn Bluetooth
function ON.
Blinking Bluetooth icon indicates BACKUP can now be started
f
om the app.
r
2
Rotating gure indicates data is
getting upladed.
3
Figure stops rotating when data
transfer has been successfully
completed.
21 3
FANACTIVITY
CONNECT FANACTIVITY
THE FUNCTIONS
IN DETAIL
The Swatch Touch Zero Two watch
is compatible with most iOS®
and AndroidTM devices running the
latest software versions.
TIME
QR code
appicon
CONNECT
turn ON
Activate Bluetooth on your smartphone before turning Bluetooth
ON on your watch. After both
items have successfully been connected,
choose SETTINGS
on y
our smartphone and select BACKUP to
start the backup process.
18
/ MY PROFILE in the app
English
When synchronizing the data, keep the
watch and smartphone as close as possible.
Do not interupt. As long as Bluetooth is ON,
no other watch function can be accessed.
To avoid any loss of data, back up the data
regularly.
Download app on:
· App Store
· Google Play
TM
Alternatively go to www.swatch.com and
download the app directly from the website.
Note: Software updates for your watch
might be automatically installed via Bluetooth; the transfer can last up to 15 minutes.
Do not interrupt the connection.
Supported Android devices have the
following specications:
Bluetooth-Version 4.0LE, Android 4.4 or higher
Most iOS devices are supported. Swatch
Touch Zero Two currently supports the
following devices:
®
4S or higher
iPhone
Your device needs to be running the latest
iOS version.
English
19
ADDITIONAL
INFORMATION
Taking care and troubleshooting Taking care and troubleshooting
ADDITIONAL
INFORMATION
Battery
When the battery s
1
appears on the watch, your bat
tery is low. Make sure the battery
is replaced soon.
2
Use correct batt
1
When the battery is almost depleted, the
step counting and activity is no longer
recorded, the FAN function is no longer
accessible, and the Bluetooth connection
cannot be activated.
20
English
ymbol
ery type.
-
2
CR2032
20.00X3.20/3.00V
When replacing the battery, be careful not
to damage the (+) terminal, which is on the
side. The (–) terminal is at the bottom.
Troubles shooting
1
If a screen with bar
gures appears, please remove
battery and reinsert it after 30 seconds to restart the watch. If the
problem persists, please contact
your nearest Swatch retailer.
1
s instead of
Cleaning
2
Caref
ully rinse watch strap
with cold water only. Do not use
any soap or detergents.
2
English
21
ADDITIONAL
INFORMATION
Restore to default user settings
1
How to restore
Remove battery. Wait 30 seconds.
Put battery back in again and wait
for the following process to be
completed:
Wat
·
ch starts to beep for 2 second.
·
em reloads, then beep stops.
Syst
Display turns on for 5 second.
·
1
long press on all three sections simultaneously
2 3 4
22
English
Wait another second. Then
touch all 3 touchscreen sections
at the same time until display says
“test.”
2
Swipe to choose “
process with quick tap.
3
long press (YES) to conrm the
data restoration.
long press t
4
conrm re-startstartadjust
InIt 06.” Start
o re-start watch.
23
English
REGULATORY COMPLIANCE
INFORMATION
REGULATORY COMPLIANCE
INFORMATION
R&T
Regulatory compliance information
26
TE DoC from SUV2
USA Federal Communications Commission
Interference Statement
FCC ID:2AD9FSUV2
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment o and on, the user is
encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
Caution:
Any change or modications not expressly approved
by the grantee of this device could avoid the user’s
authority to operate the equipment.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following conditions: (1)
this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
RF exposure warning
The equipment complies with FCC RF exposure
limits set forth for an uncontrolled environment. The
equipment must not be co-located or operating in
conjunction with any other antenna or transmitter.
Canada, Innovation, Science and Economic
Development Canada (ISED) Notices
IC: 1957A-SUV2
This device complies with ISED Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions: (1)
this device may not cause interference, and (2) this
device must accept any interference received,
including interference that may cause undesired
operation of the device.
This device complies with ISED Canada applicable to
devices license-exempt RSS standard(s).
CAN ICES-3(B)/NMB-3(B)
Canada, nnovation, Science and Economic
Development Canada (ISED)
Cet appareil est conforme avec ISED Canada exemptes
de licence RSS standard(s).
Son fonctionnement est soumis aux deux conditions
suivantes : (1) cet appareil ne doit pas causer
d’interférences et (2) cet appareil doit accepter toute
interférence, notamment les interférences qui peuvent
affecter son fonctionnement.
Le présent appareil est conforme aux CNR d’Industrie
Canada applicables aux appareils exempts de licence.
Regulatory compliance information
27
Manufacturer:
SWATCH LTD.
Jakob-Stämpistzrasse 94
CH-2502 BIEL-BIENNE
SWITZERLAND
