Page 1

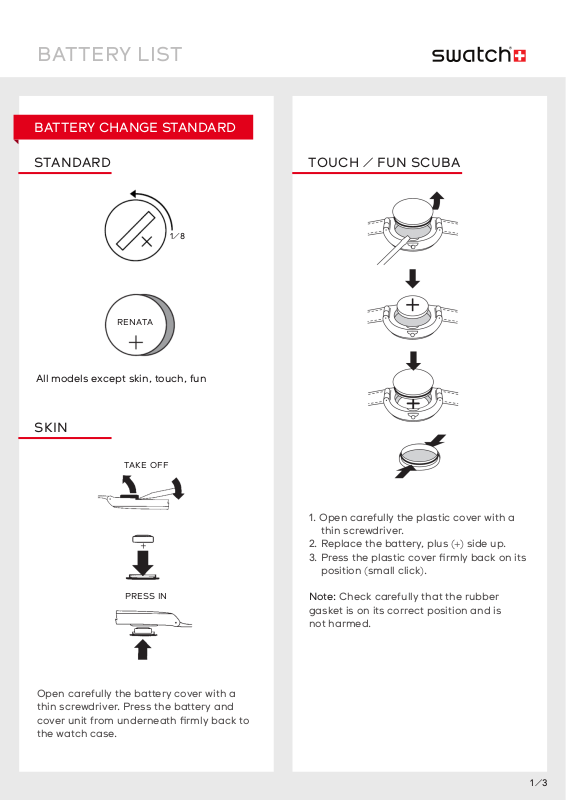

BATTERY LIST
BATTERY CHANGE STANDARD
STANDARD
1/8
RENATA
All models except skin, touch, fun
SKIN
TOUCH / FUN SCUBA
TAKE OFF
PRESS IN
Open carefully the battery cover with a
thin screwdriver. Press the battery and
cover unit from underneath rmly back to
the watch case.
1. Open carefully the plastic cover with a
thin screwdriver.
2. Replace the battery, plus (+) side up.
3. Press the plastic cover rmly back on its
position (small click).
Note: Check carefully that the rubber
gasket is on its correct position and is
not harmed.
1 /3
Page 2
BATTERY LIST
BATTERY LIST
Collection
Autoquartz
Beat Alu
Beat Alu Medium
Beat Alumini
Beat Plastic +
Beat Plastic
Access
Flik Flak
Flik Flak Scuba
Fun Scuba/
Boarder
Gent
Gent Access /
Gent Snowpass
Gent Loomi/
Gent Loomi
Touch
Gent X-Large
Irony Big Inox/
Alu (1)
Irony Big Loomi
(Alu)
Irony Lady Lady
(Inox/Alu)
Irony Medium
Inox/Alu (2)
Irony Nabab (3)
Irony Petite
Seconde
Irony Scuba 200
Inox/Alu
Irony Scuba
Inox/Alu
Irony Scuba
Loomi (Alu)
Irony Sqare Lady
Jelly in Jelly +
J in J Access +
Puzzle Motion
Lady
Musicall
New Gent
Pop Access
Pop/Pop Midi
Pop-Up
Renata
Designation
MT 920
CR1632
CR1632
350
CR1632
377
377
CR2025
390
390
389
390
394
397
377
380
377
329
397
377
397
377
394
397
394
380
377
377
329
390
390
329
329
390
Ø t x Ht
(mm)
9.50 x 2.10
16.0 x 3.20
16.0 x 3.20
11.60 x 3.60
16.0 x 3.20
6.80 x 2.60
6.80 x 2.60
20.0 x 2.50
11.60 x 3.10
11.60 x 3.10
11.60 x 3.10
11.60 x 3.10
9.50 x 3.60
7.90 x 2.60
6.80 x 2.60
9.50 x 3.60
6.80 x 2.60
7.90 x 3.10
7.90 x 2.60
6.80 x 2.60
7.90 x 2.60
6.80 x 2.60
9.50 x 3.60
7.90 x 2.60
9.50 x 3.60
9.50 x 3.60
6.80 x 2.60
6.80 x 2.60
7.90 x 3.10
11.60 x 3.10
11.60 x 3.10
7.90 x 3.10
7.90 x 3.10
11.60 x 3.10
Battery voltage
(V)
Accu
3.00
3.00
1.55
3.00
1.55
1.55
3.00
1.55
1.55
1.55
1.55
1.55
1.55
1.55
1.55
1.55
1.55
1.55
1.55
1.55
1.55
1.55
1.55
1.55
1.55
1.55
1.55
1.55
1.55
1.55
1.55
1.55
1.55
BATTERY LIST
Collection
Scuba + Scuba
Access + Scuba
Snowpass
Scuba Loomi
Skin
Skin Beat
Solar
Square 3/5 cm
Stop
Touch Alarm/
Game/Bi-Timer
Turnover
Renata
Designation
390
389
317
373
GC 1120
2
377
390
CR2025
377
IMPORTANT: The manufacturer’s
warranty does not cover the
SWATCH watch handled by
non-authorized persons.
Ø t x Ht
(mm)
11.60 x 3.10
11.60 x 3.10
5.80 x 1.60
9.50 x 1.60
11.0 x 2.0
6.80 x 2.60
11.60 x 3.10
20.0 x 2.50
6.80 x 2.60
Battery voltage
(V)
1.55
1.55
1.55
1.55
Gold Cap
1.55
1.55
3.00
1.55
2 /3
Page 3
BATTERY LIST
LOREM IPSUM
BATTERY CHANGE CHRONO
ALL MODELS
LOREM IPSUM
1/8
RENATA
When replacing the battery, becareful not
to damage the (+) terminal which is on the
side. The (-) terminal is at the bottom.
LOREM IPSUM
LOREM IPSUM
BATTERY LIST
Collection
Aquachrono
Chrono
Chrono Alarme
Chrono Plastic
Irony Chrono
Inox/Alu
Irony Diaphane
Chrono/Chrono
Navigator
Irony Medium
Chrono Inox/Alu
Irony Retrograde
Irony Scuba 200
Chrono Loomi
(Alu)
Irony THE
Chrono
Skin Chrono
Square Chrono
Renata
Designation
394
394
394
394
394
394
394
394
380
394
377
394
Ø t x Ht
(mm)
9.50 x 3.60
9.50 x 3.60
9.50 x 3.60
9.50 x 3.60
9.50 x 3.60
9.50 x 3.60
9.50 x 3.60
9.50 x 3.60
9.50 x 3.60
9.50 x 3.60
6.80 x 2.60
9.50 x 3.60
Battery voltage
(V)
1.55
1.55
1.55
1.55
1.55
1.55
1.55
1.55
1.55
1.55
1.55
1.55
IMPORTANT: The manufacturer’s
warranty does not cover the
SWATCH watch handled by
non-authorized persons.
3 /3
