Swanstone WW-6000 Installation

 Product Warnings  Safety Guidelines  Required Tools  Kit Contents  Preparation Tips  Installation Procedure  Cleaning & Maintenance  Warranty Information

Read and Understand

Before Installing

High Gloss

Bathtub and Shower Wall Kits

Form # 195-01-12

TW-32 Bathtub Wall Kit

WW-6000 Bathtub Wall Kit

RM-58 Bathtub Wall Kit

HA-58 Bathtub Wall Kit

SW-NEO-DTF Corner Shower Wall Kit

SW-7032 Shower Wall Kit

SW-7036 Shower Wall Kit

SW-7060 Shower Wall Kit

SW-07038AD Shower Wall Kit

SW-NEO-DTF

HA-58

SW-7032

RM-58

SW-7036

TW-32

SW-7060

WW-6000

SW-07038AD

800-325-7008 3 The Swan Corporation

The Swan Corporation Assurance — if our product is

properly installed and maintained, as stated in these

instructions, it will not leak.

RRRReeeemmmmeeeemmmmbbbbeeeerrrr –––– SSSSaaaaffffeeeettttyyyy FFFFiiiirrrrsssstt

The Swan Corporation, the makers of the Swan Corporation Wall Systems and Panels, cannot anticipate every possible circumstance that might involve a potential hazard during the installation of our product(s). The warnings and instructions in this installation guide are, therefore, not all-inclusive. If a tool, installation procedure, or work method that is not specifically recommended by The Swan Corporation is used, you must satisfy yourself that it is safe. You should also make sure that the Swan Corporation product(s) will not be damaged by the methods you choose. The Swan Corporation will not be held responsible for water damage of any kind in connection with the installation of one of our Swan Corporation bath/shower/panel kits.

To avoid product damage, personal injury, or even possible death, carefully read, understand, and follow all the instructions in this installation guide before installing this product(s). Do not use cleaning fluids or operate power tools unless you read and understand the instructions and warnings in this and all other applicable labels or manuals. Proper use of tools and the products described in this guide is your responsibility.

WARRANTY

This product is covered by a Limited Lifetime Warranty. Refer to the Warranty section in this manual for complete details.

SSaavvee tthhiiss mmaannuuaall ffoorr ffuuttuurree rreeffeerreennccee..

This manual is to be left with the warranty holder and owner.

Important information on cleaning, maintenance, and repair is contained within.

WARNING

IMPORTANT NOTICE

IMPORTANT NOTICE: Indicates that equipment or property damage can result if instructions are not followed.

Read and Understand the Manual

It is the responsibility of any individual who installs or maintains this product to fully

understand and follow proper installation and maintenance procedures. Be aware of the inherent dangers in the use of power tools when installing this product. Read and understand all Warnings, Cautions, and Important Notices in this manual.

Work Safely

DO NOT proceed if any doubt arises about the

correct or safe method of performing anything

found in this or other Swan Corporation manuals. The installation of this product can require using power tools. Do not use power tools without adequate training. If necessary, hire or consult a trained professional for expert assistance before continuing.

Use Proper Tools

Always use proper tools which are in good,

working condition during the installation of the

Swan Corporation products. Using tools other than those listed could adversely affect the integrity of floors, pipes, walls, or this product and could result in water damage or other damage to floors, pipes, walls, or other portions of your building or home.

Do Not Use Nails

The panels mount to walls with clear silicone

only. Only use the supplied or recommended

clear silicone to mount this product. Never use hammers, nails, or screws. Hammers, nails, and screws could adversely affect the integrity of this product. Nails and screws could puncture the Swan Corporation Wall Systems and Panels, resulting in water or other damage to floors, pipes, walls, or other portions of your building or home.

Inspect Before Cutting

Make sure no electrical wiring or plumbing is

present before cutting into a wall to install any accessories.

Wall Conditions

Inspect the walls before installing the Swan

Corporation panels. Never install panels over damp walls or an existing mold condition.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in injury. It may also be used to alert against unsafe practices.

Use Proper Installation Methods

Follow all instructions related to wall surface preparation. Failure to follow such instructions

could cause the panels to detach from the wall surface after installation, resulting in personal injury. Failure to follow these instructions could result in water damage.

Lifting Hazard

According to the National Institute for Occupational Safety and Health, the

recommended maximum safe lifting weight is 51 pounds, with all lifting conditions perfect—minimal forward reach, steady load close to the body, straight back, load between knees and shoulders, and good grips. To avoid personal injury, always use these proper lifting techniques and use two people to move cartons weighing more than 51 lbs. The boxes containing the

Swan Corporation kits can weigh in excess of 80 pounds. Use the appropriate lifting devices to move the

load. Always use two people when lifting heavy or bulky cartons. DO NOT attempt to lift objects that are too heavy.

WHEN CARRYING A HEAVY LOAD—GET HELP!

Slipping Hazard

Do not install this product in the presence of water. Installing this product without drying all

surfaces, or in the presence of water, could cause you to slip and fall due to wet floors or spilled fluids. Personal injury can result from slips or falls. Before installation, dry all surfaces, including the floor, with a cloth or paper towel. Clean up all water or spilled fluids immediately.

Tripping Hazard

Personal injury can result from tripping over power cords, tools, or other items. DO NOT leave items laying around the work area.

Personal Protection

Be sure to use all personal protective equipment, such as sturdy work

boots, preferably with steel toes, gloves, and hard hat, if necessary, to ensure your own safety. To prevent possible damage to your hearing, always wear ear protection, such as earmuffs or earplugs, when working around power tools.

CAUTION

IMPORTANT NOTICE

The Swan Corporation 4 800-325-7008

Safety Guidelines

Cutting Hazard

The installation of the Swan Corporation product may require using power tools. Keep

hands away from the cutting edge of any tool used in the installation of our product. Placing fingers in or around the cutting blades could result in serious personal injury.

Sharp Edge Hazard

After cutting the edge of a Swan Corporation

panel, it can be sharp. Wear protective gloves

to prevent personal injury.

Room Temperature

Allow the Swan Corporation panels and silicone sealants to adjust to room

temperature for at least six hours before installation. The panels should be installed at temperatures not less than 65°F. Panels should not be installed in areas where the temperature may drop below freezing (32°F). Failure to follow this recommendation could adversely affect the silicone sealants, which holds the panels to the wall. If the panels are not correctly adhered to the walls, they may fall off, causing possible injury to someone in or around the shower or bathtub enclosure.

Grab Bars

We recommend that shower compartments be

equipped with support grab bars that comply with the most recent edition of ANSI-A117.1 requirements. Grab bars must be anchored to structural support (wall studs) behind the panels. Do not rely on the panels only for grab bar support!

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in serious injury or death.

Eye Protection

Be sure to use all personal protective equipment to ensure your own safety. To avoid

eye injury, always wear protective glasses with side shields when using power tools. Also, make sure no one else can be injured by flying particles when using power tools.

Fire Hazard

Personal injury or death can result from a fire caused by

flammable liquids or silicone sealants. Cleaners or solvents can be highly explosive, resulting in personal injury or even death, when not used properly. Clean up any flammable substance immediately. Sparks or open flames can cause flammable substances to ignite. DO NOT smoke while working on or near any flammable substance.

Solvents Hazard

Follow all manufacturer’s safety instructions for silicone sealants and denatured alcohol.

Alcohol vapors are both flammable and hazardous to breathe. Silicone vapors may irritate eyes and nose. Personal injury can result from improperly handling or use of products, such as denatured alcohol. Always follow the manufacturer’s recommendations for the safe use of these products. Ventilate any work area before beginning to apply silicone sealants, cleaning agents, or solvents.

Fumes Hazard

The fumes from the silicone and solvents used by the installer can be

harmful if used in an unventilated room. Always work in a well-ventilated area. To keep the area well-ventilated, open windows and use exhaust fans. If adequate ventilation is not achievable or practical, use respiratory protective equipment.

Dust Hazard

When cutting or drilling the Swan

Corporation product, use a dust

collection method which prevents dust particles from going into the air. Always work in a wellventilated area. Always use an OSHA approved dust mask when cutting, drilling, or sanding Swan Corporation products.

WARNING

800-325-7008 5 The Swan Corporation

Safety Guidelines

WARNING: Continued

Power Tool Hazard

To prevent personal injury or possible death, always follow the electrical safety

recommendations of the power tool’s manufacturer. Do not use power tools in an unsafe manner. Power tools should only be connected to a circuit protected by a ground-fault circuit interrupter (GFI).

Shock Hazard

Never use electric power tools around

water, condensation, or other liquids.

Electric shock can cause severe burns, significant injuries, and even death. If an extension cord is required, always use an OSHA approved extension cord. Power cords should only be connected to a circuit protected by a ground-fault circuit interrupter (GFI).

Electrical Shock Hazard

Contacting l

ive electrical wiring with power tools or hand tools can cause serious injury or death. Make sure all

related circuit breakers are turned OFF. Test for live circuits or wiring inside any wall where installation of the Swan Corporation product requires cutting into a wall.

Electrocution Hazard

Water and other liquids conduct electric current and can create a short circuit,

resulting in injury or death. Keep all liquids away from electrical cords and power tools. DO NOT create a short circuit between a source of electricity and a liquid by being in contact with both simultaneously.

General Information

Required Tools

 Saber saw (straight up and down travel) with

bi-metal blade (14 teeth per inch)

 Drill with 3/8 inch drill bit

 Hole saw for faucet(s), bathtub spout, and/or shower

head

 Tape measure

 Masking tape (2 inch wide works best)

 Level

 Caulking gun

 Medium grit sandpaper

 Course file

 Clean paper towels or shop towels

 Lumber as required for bracing (see Bracing

Instructions)

 Denatured alcohol

High Gloss Wall Kit Contents

Confirm that all parts of the kit have been included before beginning installation.

WW-6000 Bathtub Wall Kit

One back panel with soap dish One left corner panel One right corner panel One left side panel One right side panel Three tubes of silicone adhesive One tube of color coordinated caulk

Designed for bathtub enclosures 58 to 72 inches wide and 29 to 48 inches deep. Wall panels are 58 inches high.

TW-32 Bathtub Wall Kit

One back panel with soap dish One left corner panel with shampoo shelf One right corner panel with shampoo shelf One left side panel One right side panel One left side apron strip One right side apron strip Three tubes of silicone adhesive One tube of color coordinated caulk

Designed for bathtub enclosures 57 to 62 inches wide and 29 to 32 inches deep. Wall panels are 58 inches high.

WARNING

The Swan Corporation 6 800-325-7008

Safety Guidelines General Information

SW-7036 Shower Wall Kit

One back panel Two corner panels Two side panels Three tubes of silicone adhesive One tube of color coordinated caulk

Designed for shower enclosures 36 inches wide or less and 36 inches deep or less. Wall panels are 70 inches high.

SW-7060 Shower Wall Kit

One back panel One extension panel One left corner panel One right corner panel One left side panel One right side panel Three tubes of silicone adhesive One tube of color coordinated caulk

Designed for shower enclosures up to 60 inches wide and 30 to 36 inches deep. Wall panels are 70 inches high.

HA-58 Bathtub Wall Kit

One back panel One left corner side panel One right corner side panel Three tubes of silicone adhesive One tube of color coordinated caulk

Designed for bathtub enclosures up to 62 inches wide and 29 to 30 inches deep. Wall panels are 58 inches high.

RM-58 Bathtub Wall Kit

One back panel One left corner side panel One right corner side panel Three tubes of silicone adhesive One tube of color coordinated caulk

Designed for shower enclosures up to 60 inches wide and 29 to 30 inches deep. Wall panels are 58 inches high.

SW-7032 Shower Wall Kit

One back panel with soap dish One left corner side panel One right corner side panel Three tubes of silicone adhesive One tube of color coordinated caulk

Designed for shower enclosures 32 inches wide and 32 inches deep or less. Wall panels are 70 inches high.

SW-NEO-DTF Corner Shower Wall Kit

One corner panel One left side panel One right side panel Three tubes of silicone adhesive One tube of color coordinated caulk

Designed for corner shower enclosures with 36 to 38 inch deep side walls. Wall panels are 70 inches high.

WTK-1 Window Trim Kit

One sill panel One left vertical jam panel One right vertical jam panel One tube of silicone adhesive One tube of color coordinated caulk

Designed for trimming out window openings to 36 inches wide and 8 inches deep or less. Vertical jam panels are 30 inches high.

SW-07038AD Shower Wall Kit

One back panel One left corner panel One right corner panel One left side panel One right side panel Three tubes of silicone adhesive One tube of color coordinated caulk

Designed for shower enclosures 38 inches wide and 36 inches deep. Wall panels are 70 inches high.

General Information

800-325-7008 7 The Swan Corporation

Unpack Carton

 Use care when opening the box so that you do not

damage the panels.

 This product is shipped to you or your retail center

after careful inspection. After purchasing the kit, carefully unpack and inspect the product for any shipping damage that may have occurred. If damage is found, report it immediately to the store of purchase. After inspection and during installation, protect the products from construction damage by moving them to another room or area until ready to install.

 Store panels in a flat area to avoid warpage until the

time of installation. Do not store the panels outside of the original packaging in a vertical position.

 Please use the model number located on the side of

the box, or the front of this manual, when contacting us with questions concerning the installation of this unit.

 Make sure the walls are the correct size and are in

good condition. Installation of damaged product will void the warranty.

Helpful Hints

 Read these instructions carefully and familiarize

yourself with the various parts of the kit.

 The variety of installations possible for this kit may

require procedures other than those shown. Ensure construction is correctly sized, plumb, and square.

 Save the large cardboard box for protection of the

shower floor or bathtub during the installation process and to use as a template for cutting the wall panels.

 Allow sufficient time for the parts in this kit to adjust to

room temperature. We do not recommend installation of this product at temperatures below 65 degrees.

 Sawhorses with 2 x 4 cross-members or a worktable

are helpful during the installation process.

 Always transport the panels vertically. Use care

when laying the panels flat to prevent flexing, especially when panels have a cutout in them.

 Store unused materials away from the work area to

prevent accidental damage.

 If the shower or bathtub is placed over a garage or

on an outside wall, care must be taken to ensure that the shower or bathtub is properly insulated from cold temperatures.

Preparation Tips

 Measure the width of the back wall (with green board)

installed. This measurement cannot exceed the width of the Swan Corporation back panel(s). If the wall opening is too small or too large, other methods will be required to cover the wall.

 Measure the height above the bathtub or shower

base. If this measurement is less than the height of the Swan Corporation back and side panels, then the panels must be cut to fit.

 Turn off the hot and cold water supply.

 Remove faucet handles, escutcheons, filler spouts,

and/or anything mounted to the wall (i.e. towel bars, soap dishes, etc.).

 Always measure the location of the plumbing cutouts,

as stated in the instructions for each specific Swan Corporation tub wall kit. Make a cardboard template to trial fit all plumbing cutouts before cutting panels.

 Ensure all plumbing or electrical work inside the walls

is finished prior to installation of the wall panels.

 Prepare the area with 1/2 inch (13 mm) moisture-

resistant drywall, marine grade plywood, or concrete board. Never install our products directly on any structure that is, or may become, wet or damp.

 Trial fit the side panels before you begin. Swan

Corporation panels have a finished side and a unfinished backer side. The unfinished backer side should be placed against the sub-wall.

 Walls must be solid, plumb, and square within 1/8

inch of true. Shim or trim the opening, as required. This kit has been designed with some adjustability for minor alignment problems.

 The mounting surface must be free of dirt, film,

waxes, or any other residues.

 If you are installing a recessed accessory, cut the

hole after the panel is installed and fully supported by the wall. Remember to position the accessory between the wall studs.

Caulking Tips

 Follow the instructions on the caulking tube.

 When job is complete, inspect all caulked areas for

gaps and fill as needed.

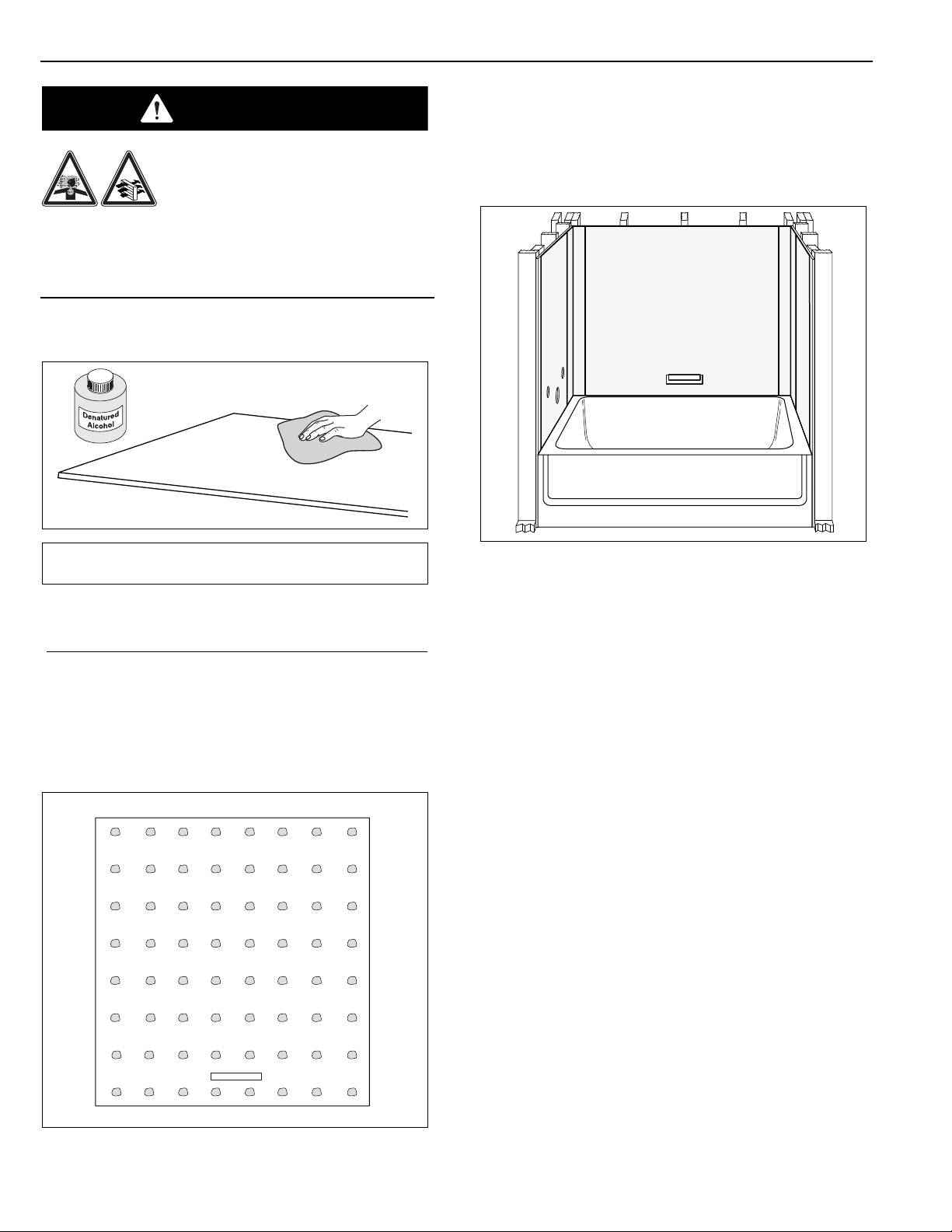

 Clean up any excess silicone using denatured alcohol

and a clean cloth.

 Be very careful not to disturb caulk joints.

The Swan Corporation 8 800-325-7008

General Information

Swan Corporation panels can be installed over a variety of products. If you intend to apply the panels to any surface other than those described, consult with a professional contractor. Use the following sections when installing this product over:

 SHEETROCK/GREENBOARD/CEMENT BOARD/

WOOD

 PLASTER

 CEMENT/CONCRETE

 OLD TILE

 WALLPAPER

 MASONITE

Sheetrock, Greenboard, CEMENT BOARD, or Wood

 Surface must be dry, smooth, and free of any dust,

soap scum, or any other contaminants.

 To ensure proper adhesion of the Swan Corporation

product, the wall surface must be sealed with a water or oil-based primer/sealer.

 After the primer/sealer is completely dry, complete the

installation following the instructions in this manual.

Plaster

Depending on the condition of the existing wall surface, additional silicone may be required to ensure contact between the substrate and the wall panel.

 Sand textured or swirled finishes smooth.

 Clean the wall surface with a damp cloth to remove

any dust, soap scum, or any other contaminants. The wall surface must be dry and smooth.

 To ensure proper adhesion of the Swan Corporation

product, the wall surface must be sealed with a water or oil-based primer/sealer.

 After the primer/sealer is completely dry, complete the

installation following the instructions in this manual.

Cement/Concrete

Depending on the condition (flatness) of the existing wall surface, additional silicone may be required to ensure contact between the substrate and the wall panel.

 To ensure proper adhesion of the Swan Corporation

product, the complete area must be sealed with two coats of water or oil-based primer/sealer.

 After the primer/sealer is completely dry, complete the

installation following the instructions in this manual.

Old Tile

Depending on the condition of the existing wall surface, additional silicone may be required to ensure contact between the substrate and the wall panel.

Old ceramic tiles, if solidly adhered, do not need to be removed. All plastic tiles must be removed.

 Remove or reattach any loose ceramic tiles. Old tiles

and front edge ceramic tiles should be reset for appearance only

 Remove any tile accessories attached to the walls.

 Remove the bottom row of tile and cut a ventilation

gap in the substrate.

 Surface must be dry, smooth, and free of any dust,

soap scum, or any other contaminants.

 Complete the installation following the instructions in

this manual.

Note: If using a trim kit, old tiles may need to be removed to allow a proper fit.

Wallpaper

 All wallpaper must be removed from the area being

covered. Clean the wall surface to remove any dust, soap scum, or any other contaminants. The wall surface must be dry and smooth.

 To ensure proper adhesion of the Swan Corporation

product, the complete wall surface must be sealed with two coats of water or oil-based primer/sealer.

 After the primer/sealer is completely dry, complete the

installation following the instructions in this manual.

Masonite

 Clean the wall surface to remove any dust, soap

scum, or any other contaminants. The wall surface must be dry and smooth.

 To ensure proper adhesion of the Swan Corporation

product, the wall surface must be sealed with a water or oil-based primer/sealer.

 After the primer/sealer is completely dry, complete the

installation following the instructions in this manual.

IMPORTANT NOTICE

800-325-7008 9 The Swan Corporation

General Information

Followed carefully, these installation instructions will result in an easy, trouble-free installation of your Swan Corporation product. Any deviations, additions, and/or deletions from the prescribed installation, without prior written approval, will void the warranty covering this product. Not following the directions could also result in personal injuries, water damage, and other damage to floors, pipes, walls, and other portions of your building or home.

Disclaimer

 The information contained in this Installation Manual

is given free of charge. It is based upon technical data which we believe to be reliable and is intended for use, by persons having knowledge of this technical area, at their own discretion and risk. Swan Corporation assumes no responsibility for results obtained or damage incurred from the use of this material either in whole or in part by the buyer.

 This manual will give you basic instructions for the

installation of the product in a step-by-step sequence that will work in most types of installations. If you have an installation application that is not covered in this manual, please call your local Swan Corporation distributor or contact The Swan Corporation directly for additional information about your application.

 Follow all installation instructions. Failure to follow

these instructions could result in personal injuries, water damage, or other damage to floors, pipes, walls, or other portions of your building or home.

Filler Boards

If an existing wall covering (i.e. tile) does not extend to a height equal to the height of the panel, it will be necessary to install a filler board to that height. The filler board must equal the thickness of the existing wall covering (tile). Usually 1/4 inch masonite, or similar material, is adequate. If desired, the filler board can extend from the top edge of the tile to the ceiling.

Failure to use a filler board to properly install the panels could result in water damage or other damage to floors, walls, or other portions of your building or home.

The Swan Corporation 10 800-325-7008

Installation Procedure

New Construction Wallboard Installation

Note: If the high gloss wall panel kit is to be installed

over an existing wall surface, proceed to the next section.

1. Measure and cut out openings for the faucet(s), bathtub spout, and/or shower head. Install 1/2 inch moisture-resistant CEMENT BOARD or greenboard over back (1), front (2), and rear (3) wall surfaces of the rough opening.

To prevent possible water (wicking affect) damage to the wall, install the wall board with a 1/2 inch gap above the bathtub or shower floor side lip, the front edge of the bathtub or shower floor, and the room floor.

2. Apply a coat of water or oil-based primer/sealer to all the surfaces of the CEMENT BOARD or greenboard (follow the manufacturer’s instructions). Allow the primer to dry thoroughly before applying any silicone adhesive.

1/2"

IMPORTANT NOTICE

800-325-7008 11 The Swan Corporation

Installation Procedure

High Gloss Wall Kits

Before beginning, refer to the General Information section for important information on how to prepare the existing bathtub or shower walls for installation.

Swan Corporation high gloss wall kits feature several distinct designs, depending on kit style and the size of the bathtub or shower enclosure.

The wall kits are divided into different styles: those with separate corner panels and those with combined corner side panels. The different installation procedures are covered in the following sections. Refer to the Installation section that matches the Swan Corporation product being installed.

Installation

Before starting the installation, refer to the Kit Contents section to verify the contents of the carton are correct. Also, read, understand, and follow any NOTES listed for your model Swan Corporation wall kit.

DO NOT nail wall panels to sub-walls. This will damage the wall panels, could result in water damage or other damage to floors, walls, or other portions of your building or home, and will void the warranty.

Wall panels with a bullnose (curved) edge should be installed with the bullnose edge toward the front edge of the bathtub or shower floor.

For a professional looking installation, align the top edges of the adjacent panels and line up any grout lines. If the bathtub or shower floor has settled or is out of plumb, it may be necessary to file or sand the bottom edge of the panels to achieve a good fit across the top. Trial fit all panels before final installation.

If the existing bathtub or shower enclosure has a window, the optional WTK-1 Window Trim Kit can be used to finish out the installation and help protect the window from moisture damage.

Gaps between the bathtub or shower floor ledge and the bottom edge of the wall panels must be caulked after the temporary bracing is removed.

Wall Kits With Separate Corner Panels - TW-32, WW-6000, SW-7036, and SW-7060

Corner Panels

Many corner panels are oriented to be installed a certain way. Check for identification tags on the back of panels. Molded in shelves must be installed with the flat surface facing up. Corner panels without tags or molded in features may be interchangeable.

1. Select either a left or right corner panel. Trial fit the corner panel, and make any necessary adjustments.

Note: Corner shower wall kits only have one corner panel. Install it with the flat surface of the molded shelf facing up.

SW-7036 SW-7060

TW-32

WW-6000

SW-07038AD

IMPORTANT NOTICE

The Swan Corporation 12 800-325-7008

Installation Procedure

Model SW-7036 and SW-7060 Shower Wall Kits. The sides of the corner panels are different widths. One side is 6 inches wide and the other is 8 inches wide. The orientation of the corner panel will affect the allowable width of the wall dimensions. Refer to the illustration for proper orientation.

Fumes Hazard

The fumes from the silicone adhesive and solvents used by the installer can

be harmful if used in an unventilated room. Always work in a well-ventilated area. To keep the area well-ventilated, open windows and use exhaust fans. If adequate ventilation is not achievable or practical, use respiratory protective equipment.

2. Clean the back of the panel with denatured alcohol.

Do not use oil-based cleaners, such as mineral spirits, to clean the panels. The oil in the cleaner will prevent the panel from properly adhering to the wall.

3. Apply the silicone in 1-1/4 inch diameter dots every 8 to 10 inches over the back surface of the panel. Follow the silicone manufacturer’s instructions and note all ventilation and installation precautions.

IMPORTANT NOTICE

WARNING

IMPORTANT NOTICE

800-325-7008 13 The Swan Corporation

Installation Procedure

BACK WALL

8”

6”

SIDE WALL

34”

or less

BACK WALL

6”

8”

Over 34”

SIDE WALL

4. Carefully position the corner panel and firmly press the surface of the corner panel against the walls. Apply hand pressure up and down and side-to-side, making sure all areas are in firm contact with the wall. It is important to apply hand pressure to the entire surface of the panel to bond it to the wall surface.

5. Except for corner shower wall kits, repeat Step 1 through Step 4 to install the remaining corner panel.

Note: Make sure the top edge of both corner panels are at the same height, measured from the top of the bathtub or shower floor ledge.

Side Panels

Most side panels are designed to fit a certain way. Check for identification tags on the back of panels and/or bullnose edges, which align with the front edge of the bathtub, shower floor, or apron strips, if installed.

1. Measure the openings for faucet(s), bathtub spout, and/or shower head. Measure the height up from the ledge of the bathtub or shower floor ledge. Measure in from a straight line drawn up from the front edge of the bathtub, shower floor, or apron strip (trial fit apron strips when taking measurements).

2. Use the measurements to make a cardboard template in order to check for proper fit around plumbing outlets. Trial fit the cardboard template, and adjust as necessary.

3. Transfer the template measurements to the side panel to be installed over the plumbing outlets.

Dust Hazard

When cutting or drilling the Swan Corporation product, use a dust

collection method which prevents dust particles from going into the air. Always work in a wellventilated area. To keep the area well-ventilated, open windows and use exhaust fans. Always use an OSHA approved dust mask when cutting, drilling, or sanding Swan Corporation products.

WARNING

The Swan Corporation 14 800-325-7008

Installation Procedure

Any cutout should have rounded corners (sharp corners can promote stress cracks).

4. Cut clearance holes using a router, saber saw, or hole saw. Drill or cut holes 1/2 inch larger than the diameter of the plumbing outlets from the finished side of the panel. For best results, place a scrap of wood beneath the hole to ensure a clean cut.

5. Trial fit the panel, and make any necessary adjustments.

Fumes Hazard

The fumes from the silicone and solvents used by the installer can be

6. Clean the back of the panel with denatured alcohol.

Do not use oil-based cleaners, such as mineral spirits, to clean the panels. The oil in the cleaner will prevent the panel from properly adhering to the wall.

7. Apply the silicone in 1-1/4 inch diameter dots every

8 to 10 inches over the back surface of the panel. Follow the silicone manufacturer’s instructions and note all ventilation and installation precautions.

IMPORTANT NOTICE

WARNING

IMPORTANT NOTICE

800-325-7008 15 The Swan Corporation

Installation Procedure

8. Install the side panel. Carefully position the overlapping panel and press firmly to the wall. Keep the top edge of the panels aligned when installing adjacent panels. Use even hand pressure from top to bottom and side-to-side to ensure solid wall contact.

9. Repeat Step 5 through Step 8 to install the remaining side panel.

Apron Strips

Apron strips are included in some wall kits to give a finished appearance to side panels that project beyond the front edge of the bathtub or shower floor. Trial fit apron strips with side panels before final installation.

TW-32 Bathtub Wall Kit. If the distance from the back wall to the front edge of an apron strip is more than 31-1/2 inches, the apron strips will not line up with the front edge of the side wall panels. In this case, the apron strips can be discarded.

1. If the wall kit includes apron strips, trial fit strips to the wall, with the pointed tip towards the bathtub or shower floor, as shown. Apron strips should be trimmed to fit tightly against the side of the bathtub/shower floor, even with the top edge.

Fumes Hazard

The fumes from the silicone and solvents used by the installer can be

2. Clean the back of the apron strip with denatured

alcohol.

WARNING

IMPORTANT NOTICE

The Swan Corporation 16 800-325-7008

Installation Procedure

Do not use oil-based cleaners, such as mineral spirits, to clean the panels. The oil in the cleaner will prevent the panel from properly adhering to the wall.

3. Apply several dots of silicone over the back surface of the apron strip. Follow the silicone manufacturer’s instructions, and note all ventilation and installation precautions.

4. Carefully position the apron strip and firmly press the surface against the wall. Apply hand pressure up and down and side-to-side, making sure all areas are in firm contact with the wall.

5. Repeat Step 1 through Step 4 to install the remaining apron strip.

Note: Make sure the top edge of both apron strips are at the same height as the top of the bathtub/shower floor.

Back Panel

Note: Corner wall units do not have back panels. If

installing a corner shower wall unit, skip to the Temporary Bracing section.

Model SW-7060 Wall Kits. This kit has an extension panel to fit back wall measurements from 36 to 60 inches wide. If the back wall measurement is over 36 inches, refer to the Extension Panel section BEFORE installing the back panel.

1. Trial fit the back panel(s) and make any necessary adjustments. If the existing bathtub or shower enclosure back wall has a window, the back panel must be cut to fit around the jam opening.

Note: The optional WTK-1 Window Trim Kit can be used to finish out the installation and help protect the window from moisture damage.

IMPORTANT NOTICE

800-325-7008 17 The Swan Corporation

Installation Procedure

Fumes Hazard

The fumes from the silicone and solvents used by the installer can be

2. Clean the back of the panel with denatured alcohol.

Do not use oil-based cleaners, such as mineral spirits, to clean the panels. The oil in the cleaner will prevent the panel from properly adhering to the wall.

3. Apply the silicone in 1-1/4 inch diameter dots every

8 to 10 inches over the back surface of the panel. Follow the silicone manufacturer’s instructions and note all ventilation and installation precautions.

4. Install the back panel. Carefully center the overlapping panel and press firmly to the wall. Keep the top edge of the panels aligned when installing adjacent panels. Use even hand pressure from top to bottom and side-to-side to ensure solid wall contact.

Note: Any gaps between the bottom of the panels and the tub ledge will be filled in with caulking in a later step.

IMPORTANT NOTICE

WARNING

The Swan Corporation 18 800-325-7008

Installation Procedure

Extension Panel (Model SW-7060)

This kit has an extension panel to fit back wall measurements from 36 to 60 inches wide. The extension panel is the same size as the side panels, but it has two overlapping edges and is clearly marked on the back.

Note: For the SW-7060 Wall Kit, measure the distance between the back wall edges of the two installed corner panels. If the back wall measurement is 29 to 47 inches, refer to Step 1. If the back wall measurement is 47 to 51 inches, refer to Step 3.

1. Measure the distance between the back wall edges of the two installed corner panels. Subtract 23 inches from this measurement to determine the minimum required width of the extension panel.

Example :

36 in = width between back wall corner panels

-23

in = minimum coverage width (with 1 inch overlaps)

13 in = width of cut extension panel (minimum)

Note: If the back wall measurement is 29 inches or

less, cut the extension panel to a 6 inch width. DO NOT CUT THE EXTENSION PANEL TO A WIDTH LESS THAN 6 inches wide.

2. Extension panel (A) should be installed at the opposite end of the shower, away from showerhead (C). This allows installation of back panel (B) with the soap dish and shampoo shelf closer to the showerhead.

IMPORTANT NOTICE

800-325-7008 19 The Swan Corporation

Installation Procedure

3. If the back wall measurement is 47 to 51 inches, cut the extension panel in half and install one half of the panel overlapping each corner panel. The back panel will be installed between the two panel halves.

4. Trial fit the cut extension panels and back panel. Make sure there is at least 1 inch of panel overlap at each edge.

5. Refer back to Step 1 through Step 4 of the Back Panel section for instructions on applying silicone adhesive and installing extension panels and back panel.

Refer to the Temporary Bracing section for information on bracing to hold the panels in place until the silicone adhesive is completely set (usually 24 hours). This will allow proper curing of the silicone adhesive.

6. Install temporary bracing to hold the wall panels in place until the silicone adhesive cures.

7. After the temporary bracing is removed, refer to the Caulking section for information on applying color coordinated caulk to joints and seams.

Wall Kits With Corner Side Panels RM-58, HA-58, SW-7032, and SW-NEO-DTF

Corner-Side Panels

Many corner side panels are designed to fit a certain way. Check for identification tags on the back of the panels. Molded in shelves must be installed with the flat surface facing up. Corner-side panels without tags or molded in features may be interchangeable.

1. Select the corner side panel that will be cut for the plumbing fixture outlets.

2. Measure the openings for faucet(s), bathtub spout, and/or shower head. Measure the height up from the ledge of the bathtub or shower floor ledge. Measure out from the back wall

IMPORTANT NOTICE

The Swan Corporation 20 800-325-7008

Installation Procedure

HA-58 RM-58

SW-NEO-DTF

SW-7032

3. Use the measurements to make a cardboard template in order to check for proper fit around the plumbing outlets. Trial fit the cardboard template, and adjust as necessary.

4. Transfer the template measurements to the corner side panel.

Dust Hazard

When cutting or drilling the Swan Corporation product, use a dust

Any cutout should have rounded corners (sharp corners can promote stress cracks).

5. Cut clearance holes using a router, saber saw, or

hole saw. Drill or cut holes 1/2 inch larger than the diameter of the plumbing outlets from the finished side of the panel. For best results, when drilling, place a scrap of wood beneath the hole to ensure a clean cut.

6. Trial fit the panel, and make any necessary adjustments.

Note: The corner side panel should not extend all the way to the front edge of the bathtub.

Fumes Hazard

The fumes from the silicone and solvents used by the installer can be

WARNING

IMPORTANT NOTICE

WARNING

800-325-7008 21 The Swan Corporation

Installation Procedure

7. Clean the back of the panel with denatured alcohol.

Do not use oil-based cleaners, such as mineral spirits, to clean the panels. The oil in the cleaner will prevent the panel from properly adhering to the wall.

8. Apply the silicone in 1-1/4 inch diameter dots every 8 to 10 inches over the back surface of the panel. Follow the silicone manufacturer’s instructions and note all ventilation and installation precautions.

9. Carefully position the corner side panel tight against the corner and firmly press the surface of the panel against the walls. The corner side panel should not extend all the way to the front edge of the bathtub.

10. Apply hand pressure up and down and side-to-side, making sure all areas are in firm contact with the wall. It is important to apply hand pressure to the entire surface of the panel to bond it to the wall surface.

11. Repeat Step 6 through Step 9 to install the remaining corner side panel.

Note: Make sure the top edge of both the corner side panels are at the same height, measured from the tub ledge.

IMPORTANT NOTICE

The Swan Corporation 22 800-325-7008

Installation Procedure

Back Panel

1. Trial fit the back panel(s), and make any necessary adjustments. If the existing bathtub or shower enclosure back wall has a window, the back panel must be cut to fit around the jam opening.

Note: The optional WTK-1 Window Trim Kit can be used to finish out the installation and help protect the window from moisture damage.

Fumes Hazard

The fumes from the silicone and solvents used by the installer can be

2. Clean the back of the panel with denatured alcohol.

Do not use oil-based cleaners, such as mineral spirits, to clean the panels. The oil in the cleaner will prevent the panel from properly adhering to the wall.

IMPORTANT NOTICE

WARNING

800-325-7008 23 The Swan Corporation

Installation Procedure

The Swan Corporation 24 800-325-7008

4. Install the back panel. Carefully center the overlapping panel and press firmly to the wall. Keep the top edge of the panels aligned when installing the adjacent panels. Use even hand pressure from top to bottom and side-to-side to ensure solid wall contact.

Note: Any gaps between the bottom of the panels and the tub ledge will be filled in with caulking in a later step.

5. Install temporary bracing to hold the wall panels in place until the silicone adhesive cures.

6. After the temporary bracing is removed, refer to the Caulking section for information on applying color coordinated caulk to joints and seams.

Window Trim Kit WTK-1

1. Measure width (A) and depth (B) of the window opening. Cut the sill panel 1-1/2 inches less than the width of the window opening (cut off the end with the factory holes, they are not used).

IMPORTANT NOTICE

Installation Procedure

A – 1½”

2. Measure, mark, and cut the sill panel to window sill depth measurement (B). Trial fit the sill panel. Sand the cut edge with medium grit sandpaper.

3. Measure, mark, and cut the left and right vertical panels to window jam depth measurement (B). Trial fit all three panels. If necessary, trim height (C) of the vertical panels to line up with the top edge of the tub or shower wall panels. Sand the cut edges with medium grit sandpaper.

4. Apply silicone adhesive to the underside of the sill panel, as shown. Install the sill panel, centered in the window opening, 3/4 inches from each side wall.

Note: Press the front lip of the sill panel tightly against the existing tub or shower wall panel.

5. Apply silicone adhesive (A) to a vertical panel as shown. Apply a bead of color coordinated caulk (B) to the edge that fits against the sill panel, as shown. Install the vertical panel and press into place so the silicone adhesive makes good contact.

800-325-7008 25 The Swan Corporation

Installation Procedure

6. Repeat Step 5 to install the remaining vertical panel.

7. After the temporary bracing is removed, refer to the Caulking section for information on applying color coordinated caulk to joints and seams.

Temporary Bracing

Install the temporary bracing to hold the wall panels in place until the silicone adhesive is completely set (usually 24 hours). This will allow proper curing of the silicone.

To ensure contact between the panels and walls until the silicone adhesive sets, install the temporary bracing after completing installation. The bracing should be constructed from 1 x 2 inch, 1 x 3 inch, and 2 x 2 inch lumber. Cut the boards to length so that the braces wedge against the wall panels and/or each other when installed. Failure to brace in the manner described could keep the panels from properly adhering, resulting in personal injury, as well as water damage or other damage to floors, walls, or other portions of your building or home.

1. Place two or more braces against the back wall. Place two braces on the panels that are 48 inches or less and three or four braces on the panels used on back walls greater than 48 inches wide.

Note: If a WTK-1 Window Trim Kit was installed, follow the temporary bracing guidelines to position the bracing inside the window opening to secure the sill and vertical panels in place until the silicone adhesive cures.

IMPORTANT NOTICE

The Swan Corporation 26 800-325-7008

Installation Procedure

To prevent scratches or other damage, make sure there are no nails or other foreign objects in the surface of the bracing that is placed against the panel. Also, to prevent possible damage to the walls, do not apply excessive pressure to the braces. Do not hammer (pound) braces in place or nail the braces together.

2. Place two braces against each left and right wall.

3. Install (wedge) horizontal braces against the left and right wall braces.

4. Insert (wedge) blocks or cross braces between the front to rear panel braces and the back panel braces. These blocks or braces must apply pressure to the back panel to hold it in place.

5. Remove the braces after 24 hours.

IMPORTANT NOTICE

800-325-7008 27 The Swan Corporation

Installation Procedure

Caulking

Note: Install any optional accessories and/or optional

window trim kit before caulking edges and seams.

1. Apply a bead of color coordinated silicone caulk to the joint where the bottom of the wall panels meet the shower or bathtub ledge.

2. Apply a bead of color coordinated silicone caulk to the top edge of the entire unit.

3. Apply a continuous bead of color coordinated silicone caulk along all vertical and horizontal seams at side, back, and optional accessories and/or window trim kit joints (if installed).

Follow the manufacturer’s instructions on the tube for proper application. Allow at least 24 hours for caulk to set before using the bathtub enclosure.

The installation is now complete. DO NOT discard these installation instructions. PLEASE LEAVE THEM WITH THE HOMEOWNER.

Care and Cleaning

Swan Corporation high gloss products are stain and abrasion resistant; however, the finish requires reasonable care.

Because cleaning products change over time, always check the manufacturer’s instructions to make sure it is compatible with fiberglass reinforced polyester. DO NOT use a cleaner if the label indicates it should not be used on fiberglass reinforced polyester. DO NOT use spray-on cleaners that require daily use without immediately rinsing with water to stop the chemical cleaning reaction because damage will result and void the warranty.

Day-To-Day Cleanup

Wash regularly with warm water. Use a soft cloth with a mild detergent such as Handy Andy, Mr. Clean, or Lestoil. Always rinse off cleaners within five minutes of application. Scratch-free pads made of nylon, saran, or polyethylene may be used.

Protect the finish with any fiberglass wax or automotive paste wax labeled as safe for clear-coat finishes.

NEVER use abrasive scouring powders, cleansers, or scouring pads to clean the shower or bathtub enclosure. They will scratch and dull the finish. Dry cleaning agents and solvents will damage the surface. Burning cigarettes will damage and discolor the finish.

Caulking Joints

Inspect caulking joints monthly for damage or any signs of separation from the mating surface. Cracks in the caulking will allow water to leak into the surrounding surfaces. Reapply silicone caulking to any joint showing signs of wear or cracking. Failure to inspect and repair caulking joints will void the warranty.

IMPORTANT NOTICE

Installation Procedure Cleaning and Maintenance

800-325-7008 28 The Swan Corporation

LIMITED WARRANTY

FOR RESIDENTIAL APPLICATIONS

If a Swan Corporation product covered by this warranty is found to be defective in materials or workmanship after inspection by an authorized Swan Corporation representative, we will repair, or at our option, exchange the product for a similar model. This warranty extends for a designated period of time, so long as it remains in use in its original place of installation.

This warranty covers products installed in accordance with the Swan Corporation’s installation instructions, used as recommended, and not damaged due to misuse, abuse, or improper installation. It does not apply to any seams or changes made to the product by professional tradesmen or fabricators.

The warranty applies only to the original purchaser and installation of these products in residential applications. It does not apply to commercial applications.

The Swan Corporation’s option to repair or exchange the products under this warranty does not cover any labor or other costs of removal or installation, nor shall The Swan Corporation be responsible for any other incidental or consequential damages attributable to a product defect or to the repair or exchange of a defective product.

Limited Lifetime Warranty

Swan Corporation High Gloss Wall Panels

LIMITED WARRANTY

FOR COMMERCIAL APPLICATIONS

This warranty covers only products installed in accordance with the Swan Corporation’s installation instructions, used as recommended, and not damaged due to misuse, abuse, or improper installation. It does not apply to any seams or changes made to the product by professional tradesmen or fabricators.

The warranty applies only to the original purchaser and installation of these products in commercial applications.

5-Year Limited Warranty

Swan Corporation High Gloss Wall Panels

800-325-7008 29 The Swan Corporation

Warranty
