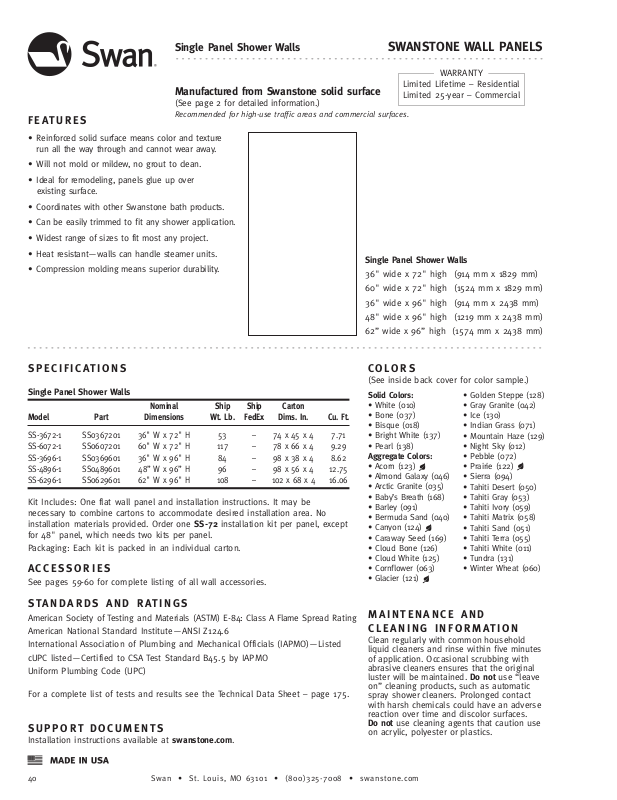

Swanstone SS-6296-1 Specification

Single Panel Shower Walls
Manufactured from Swanstone solid surface  
(See page 2 for detailed information.)
FEATURES
• Reinforced solid surface means color and texture run all the way through and cannot wear away.
• Will not mold or mildew, no grout to clean.
• Ideal for remodeling, panels glue up over existing surface.
• Coordinates with other Swanstone bath products.
• Can be easily trimmed to fit any shower application.
• Widest range of sizes to fit most any project.
• Heat resistant—walls can handle steamer units.
• Compression molding means superior durability.
Recommended for high-use traffic areas and commercial surfaces.
SWANSTONE WALL PANELS
WARRANTY Limited Lifetime – Residential Limited 25-year – Commercial
Single Panel Shower Walls
36" wide x 72" high (914 mm x 1829 mm)
60" wide x 72" high (1524 mm x 1829 mm)
36" wide x 96" high (914 mm x 2438 mm)
48" wide x 96" high (1219 mm x 2438 mm)
62” wide x 96” high (1574 mm x 2438 mm)
Single Panel Shower Walls Nominal  Ship  Ship  Carton 
Model  Part  Dimensions  Wt. Lb.  FedEx  Dims. In.  Cu. Ft.
SS-3672-1 SS0367201 36" W x 72" H 53 74 x 45 x 4 7.71 SS-6072-1 SS0607201 60" W x 72" H 117 78 x 66 x 4 9.29 SS-3696-1 SS0369601 36" W x 96" H 84 98 x 38 x 4 8.62 SS-4896-1 SS0489601 48” W x 96” H 96 98 x 56 x 4 12.75 SS-6296-1 SS0629601 62" W x 96" H 108 102 x 68 x 4 16.06
Kit Includes: One flat wall panel and installation instructions. It may be necessary to combine cartons to accommodate desired installation area. No installation materials provided. Order one SS-72 installation kit per panel, except for 48" panel, which needs two kits per panel.
Packaging: Each kit is packed in an individual carton.
ACCESSORIES
See pages 59-60 for complete listing of all wall accessories.
STANDARDS AND RATINGS
American Society of Testing and Materials (ASTM) E-84: Class A Flame Spread Rating American National Standard Institute—ANSI Z124.6 International Association of Plumbing and Mechanical Officials (IAPMO)—Listed cUPC listed—Certified to CSA Test Standard B45.5 by IAPMO Uniform Plumbing Code (UPC)
For a complete list of tests and results see the Technical Data Sheet – page 175.
SUPPORT DOCUMENTS
Installation instructions available at swanstone.com.
COLORS 
(See inside back cover for color sample.)
Solid Colors:
• White (010)
• Bone (037)
• Bisque (018)
• Bright White (137)
• Pearl (138)
Aggregate Colors:
• Acorn (123)
• Almond Galaxy (046)
• Arctic Granite (035)
• Baby’s Breath (168)
• Barley (091)
• Bermuda Sand (040)
• Canyon (124)
• Caraway Seed (169)
• Cloud Bone (126)
• Cloud White (125)
• Cornflower (063)
• Glacier (121)
• Golden Steppe (128)
• Gray Granite (042)
• Ice (130)
• Indian Grass (071)
• Mountain Haze (129)
• Night Sky (012)
• Pebble (072)
• Prairie (122)
• Sierra (094)
• Tahiti Desert (050)
• Tahiti Gray (053)
• Tahiti Ivory (059)
• Tahiti Matrix (058)
• Tahiti Sand (051)
• Tahiti Terra (055)
• Tahiti White (011)
• Tundra (131)
• Winter Wheat (060)
MAINTENANCE AND  CLEANING INFORMATION
Clean regularly with common household liquid cleaners and rinse within five minutes of application. Occasional scrubbing with abrasive cleaners ensures that the original luster will be maintained. Do not use “leave on” cleaning products, such as automatic spray shower cleaners. Prolonged contact with harsh chemicals could have an adverse reaction over time and discolor surfaces. Do not use cleaning agents that caution use on acr ylic, polyester or plastics.
Swan • St. Louis, MO 63101 • (800)325-7008 • swanstone.com40
SS-6060-1 Single Panel Bath Wall 
Manufactured from Swanstone solid surface  
(See page 2 for detailed information.)
FEATURES
• Reinforced solid surface means color and texture run all the way through and cannot wear away.
• Will not mold or mildew, no grout to clean.
• Ideal for remodeling, panels glue up over existing surface.
• Coordinates with other Swanstone bath products.
• Can be easily trimmed to fit any shower application.
• Heat resistant—walls can handle steamer units.
• Compression molding means superior durability.
Recommended for high-use traffic areas and commercial surfaces.
60"
SWANSTONE WALL PANELS
WARRANTY Limited Lifetime – Residential Limited 25-year – Commercial
60"
SS-6060-1
60" wide x 60" high (1524 mm x 1524 mm)
TUB AND SHOWER
SS-6060-1 Single Panel Bath Wall Nominal  Ship  Ship  Carton 
Model  Part  Dimensions  Wt. Lb.  FedEx  Dims. In.  Cu. Ft.
SS-6060-1 SS0606001 60" W x 60" H 106 66 x 66 x 4 7.79 (1524 mm x 1524 mm)
Kit Includes: One flat wall panel and installation instructions. It may be necessary to combine cartons to accommodate desired installation area. No installation materials provided. Order two SS-72 installation kits per panel.
Packaging: Each kit is packed in an individual carton.
ACCESSORIES
See pages 59-60 for complete listing of all wall accessories.
STANDARDS AND RATINGS
American Society of Testing and Materials (ASTM) E-84: Class A Flame Spread Rating American National Standard Institute—ANSI Z124.6 International Association of Plumbing and Mechanical Officials (IAPMO)—Listed cUPC listed—Certified to CSA Test Standard B45.5 by IAPMO Uniform Plumbing Code (UPC)
For a complete list of tests and results see the Technical Data Sheet – page 175.
SUPPORT DOCUMENTS
Installation instructions available at swanstone.com.
COLORS 
(See inside back cover for color sample.)
Solid Colors:
• White (010)
• Bone (037)
• Bisque (018)
• Bright White (137)
• Pearl (138)
Aggregate Colors:
• Acorn (123)
• Almond Galaxy (046)
• Arctic Granite (035)
• Baby’s Breath (168)
• Barley (091)
• Bermuda Sand (040)
• Canyon (124)
• Caraway Seed (169)
• Cloud Bone (126)
• Cloud White (125)
• Cornflower (063)
• Glacier (121)
• Golden Steppe (128)
• Gray Granite (042)
• Ice (130)
• Indian Grass (071)
• Mountain Haze (129)
• Night Sky (012)
• Pebble (072)
• Prairie (122)
• Sierra (094)
• Tahiti Desert (050)
• Tahiti Gray (053)
• Tahiti Ivory (059)
• Tahiti Matrix (058)
• Tahiti Sand (051)
• Tahiti Terra (055)
• Tahiti White (011)
• Tundra (131)
• Winter Wheat (060)
MAINTENANCE AND  CLEANING INFORMATION
Clean regularly with common household liquid cleaners and rinse within five minutes of application. Occasional scrubbing with abrasive cleaners ensures that the original luster will be maintained. Do not use “leave on” cleaning products, such as automatic spray shower cleaners. Prolonged contact with harsh chemicals could have an adverse reaction over time and discolor surfaces. Do not use cleaning agents that caution use on acr ylic, polyester or plastics.
Swan • St. Louis, MO 63101 • (800)325-7008 • swanstone.com 39
