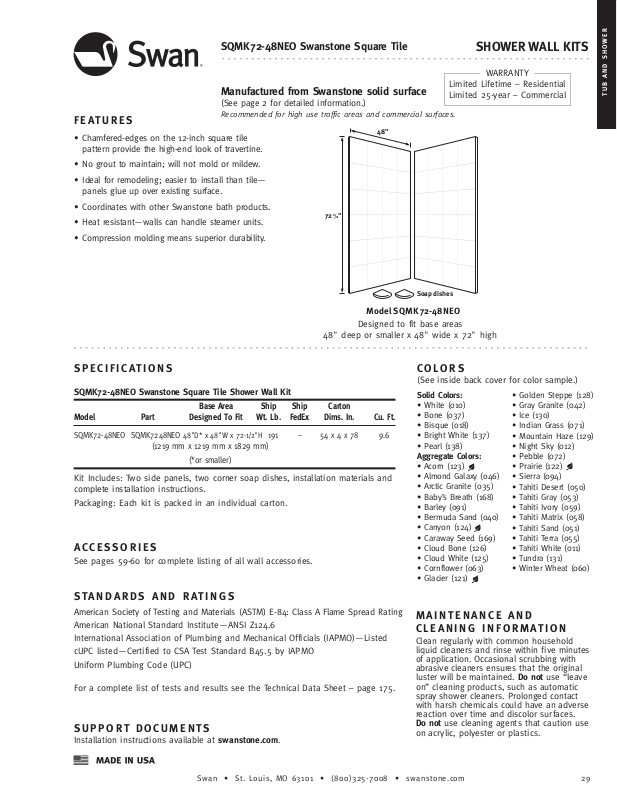

Swanstone SQMK(xx)-48NEO Specification

SQMK72-48NEO Swanstone Square Tile

48”

Model SQMK 72-48NEO

Manufactured from Swanstone solid surface

(See page 2 for detailed information.)

FEATURES

• Chamfered-edges on the 12-inch square tile pattern provide the high-end look of travertine.

• No grout to maintain; will not mold or mildew.

• Ideal for remodeling; easier to install than tile— panels glue up over existing surface.

• Coordinates with other Swanstone bath products.

• Heat resistant—walls can handle steamer units.

• Compression molding means superior durability.

Recommended for high use traffic areas and commercial surfaces.

SHOWER WALL KITS

WARRANTY Limited Lifetime – Residential Limited 25-year – Commercial

/2”

Soap dishes

Designed to fit base areas

48" deep or smaller x 48" wide x 72" high

TUB AND SHOWER

SPECIFICATIONS

COLORS

(See inside back cover for color sample.)

SQMK72-48NEO Swanstone Square Tile Shower Wall Kit Base Area Ship Ship Carton

Model Part Designed To Fit Wt. Lb. FedEx Dims. In. Cu. Ft.

SQMK72-48NEO SQMK7248NEO

48"D* x 48"W x 72-1/2"H

191 – 54 x 4 x 78 9.6

(1219 mm x 1219 mm x 1829 mm) (*or smaller)

Kit Includes: Two side panels, two corner soap dishes, installation materials and complete installation instructions.

Packaging: Each kit is packed in an individual carton.

ACCESSORIES

See pages 59-60 for complete listing of all wall accessories.

Solid Colors:

• White (010)

• Bone (037)

• Bisque (018)

• Bright White (137)

• Pearl (138)

Aggregate Colors:

• Acorn (123)

• Almond Galaxy (046)

• Arctic Granite (035)

• Baby’s Breath (168)

• Barley (091)

• Bermuda Sand (040)

• Canyon (124)

• Caraway Seed (169)

• Cloud Bone (126)

• Cloud White (125)

• Cornflower (063)

• Glacier (121)

• Golden Steppe (128)

• Gray Granite (042)

• Ice (130)

• Indian Grass (071)

• Mountain Haze (129)

• Night Sky (012)

• Pebble (072)

• Prairie (122)

• Sierra (094)

• Tahiti Desert (050)

• Tahiti Gray (053)

• Tahiti Ivory (059)

• Tahiti Matrix (058)

• Tahiti Sand (051)

• Tahiti Terra (055)

• Tahiti White (011)

• Tundra (131)

• Winter Wheat (060)

STANDARDS AND RATINGS

American Society of Testing and Materials (ASTM) E-84: Class A Flame Spread Rating American National Standard Institute—ANSI Z124.6 International Association of Plumbing and Mechanical Officials (IAPMO)—Listed cUPC listed—Certified to CSA Test Standard B45.5 by IAPMO Uniform Plumbing Code (UPC)

For a complete list of tests and results see the Technical Data Sheet – page 175.

SUPPORT DOCUMENTS

Installation instructions available at swanstone.com.

MAINTENANCE AND CLEANING INFORMATION

Clean regularly with common household liquid cleaners and rinse within five minutes of application. Occasional scrubbing with abrasive cleaners ensures that the original luster will be maintained. Do not use “leave on” cleaning products, such as automatic spray shower cleaners. Prolonged contact with harsh chemicals could have an adverse reaction over time and discolor surfaces. Do not use cleaning agents that caution use on acr ylic, polyester or plastics.

Swan • St. Louis, MO 63101 • (800)325-7008 • swanstone.com 29

SQMK96-48NEO Swanstone Square Tile

96”

Model SQMK 96-48NEO
