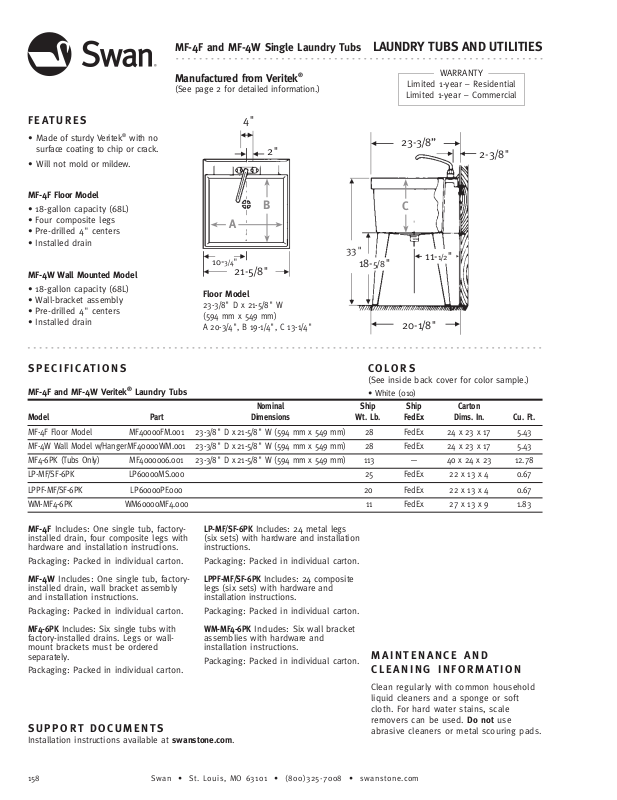

Swanstone MF-4W Specification

MF-4F and MF-4W Single Laundry Tubs

LAUNDRY TUBS AND UTILITIES

FEATURES

• Made of sturdy Veritek® with no surface coating to chip or crack.

• Will not mold or mildew.

MF-4F Floor Model

• 18-gallon capacity (68L)

• Four composite legs

• Pre-drilled 4" centers

• Installed drain

Manufactured from Veritek®

(See page 2 for detailed information.)

Limited 1-year – Residential

Limited 1-year – Commercial

23-3/8”

33"

3/4

MF-4W Wall Mounted Model

• 18-gallon capacity (68L)

• Wall-bracket assembly

• Pre-drilled 4" centers

• Installed drain

Floor Model

23-3/8" D x 21-5/8" W (594 mm x 549 mm) A 20-3/4", B 19-1/4", C 13-1/4"

21-5/8"

SPECIFICATIONS

MF-4F and MF-4W Veritek® Laundry Tubs Nominal Ship Ship Carton

Model Part Dimensions Wt. Lb. FedEx Dims. In. Cu. Ft.

MF-4F Floor Model MF40000FM.001 23-3/8" D x 21-5/8" W (594 mm x 549 mm) 28 FedEx 24 x 23 x 17 5.43

MF-4W Wall Model w/Hanger MF40000WM.001 23-3/8" D x 21-5/8" W (594 mm x 549 mm) 28 FedEx 24 x 23 x 17 5.43

MF4-6PK (Tubs Only) MF4000006.001 23-3/8" D x 21-5/8" W (594 mm x 549 mm) 113 — 40 x 24 x 23 12.78

LP-MF/SF-6PK LP60000MS.000 25 FedEx 22 x 13 x 4 0.67

LPPF-MF/SF-6PK LP60000PF.000 20 FedEx 22 x 13 x 4 0.67

WM-MF4-6PK WM60000MF4.000 11 FedEx 27 x 13 x 9 1.83

18-

5/8

20-1/8"

COLORS

(See inside back cover for color sample.)

• White (010)

WARRANTY

11-

1/2

2-3/8"

MF-4F Includes: One single tub, factoryinstalled drain, four composite legs with hardware and installation instructions.
