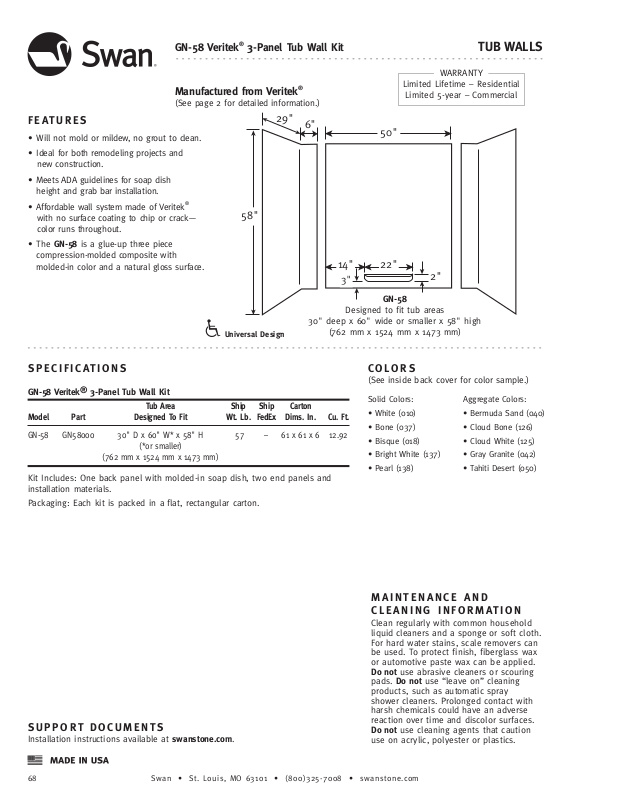

Swanstone GN-58 Specification

GN-58 Veritek® 3-Panel Tub Wall Kit
Manufactured from Veritek®  
(See page 2 for detailed information.)
FEATURES
• Will not mold or mildew, no grout to clean.
• Ideal for both remodeling projects and new construction.
• Meets ADA guidelines for soap dish height and grab bar installation.
• Affordable wall system made of Veritek® with no surface coating to chip or crack— color runs throughout.
• The GN-58 is a glue-up three piece compression-molded composite with molded-in color and a natural gloss surface.
29"
58"
Universal Design
 TUB WALLS
WARRANTY
Limited Lifetime – Residential
Limited 5-year – Commercial
6"
14"
3"
Designed to fit tub areas
30" deep x 60" wide or smaller x 58" high
(762 mm x 1524 mm x 1473 mm)
50"
22"
2"
GN-58
SPECIFICATIONS
GN-58 Veritek® 3-Panel Tub Wall Kit   Tub Area   Ship  Ship  Carton 
Model  Part  Designed To Fit  Wt. Lb.  FedEx  Dims. In.  Cu. Ft.
GN-58 GN58000 30" D x 60" W* x 58" H 57 61 x 61 x 6 12.92 (*or smaller) (762 mm x 1524 mm x 1473 mm)
Kit Includes: One back panel with molded-in soap dish, two end panels and installation materials.
Packaging: Each kit is packed in a flat, rectangular carton.
SUPPORT DOCUMENTS
Installation instructions available at swanstone.com.
COLORS 
(See inside back cover for color sample.)
Solid Colors:
• White (010)
• Bone (037)
• Bisque (018)
• Bright White (137)
• Pearl (138)
Aggregate Colors:
• Bermuda Sand (040)
• Cloud Bone (126)
• Cloud White (125)
• Gray Granite (042)
• Tahiti Desert (050)
MAINTENANCE AND  CLEANING INFORMATION
Clean regularly with common household liquid cleaners and a sponge or soft cloth. For hard water stains, scale removers can be used. To protect finish, f iberglass wax or automotive paste wax can be applied. Do not use abrasive cleaners or scouring pads. Do not use “leave on” cleaning products, such as automatic spray shower cleaners. Prolonged contact with harsh chemicals could have an adverse reaction over time and discolor surfaces. Do not use cleaning agents that caution use on acrylic, polyester or plastics.
Swan • St. Louis, MO 63101 • (800)325-7008 • swanstone.com68
