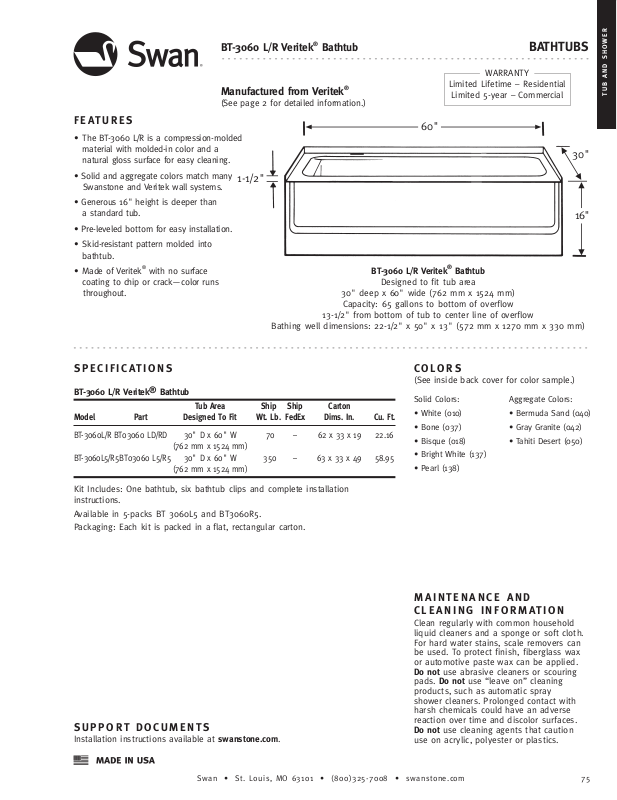

Swanstone BT-3060L-R Specification

BT-3060 L/R Veritek® Bathtub 
Manufactured from Veritek®  
(See page 2 for detailed information.)
BATHTUBS
WARRANTY
Limited Lifetime – Residential
TUB AND SHOWER
FEATURES
• The BT-3060 L/R is a compression-molded material with molded-in color and a natural gloss surface for easy cleaning.
• Solid and aggregate colors match many Swanstone and Veritek wall systems.
• Generous 16" height is deeper than a standard tub.
• Pre-leveled bottom for easy installation.
• Skid-resistant pattern molded into bathtub.
• Made of Veritek® with no surface coating to chip or crack —color runs throughout.
1-1/2"
58"
BT-3060 L/R Veritek® Bathtub
Designed to fit tub area
30" deep x 60" wide (762 mm x 1524 mm)
Capacity: 65 gallons to bottom of overflow
13-1/2" from bottom of tub to center line of overflow
Bathing well dimensions: 22-1/2" x 50" x 13" (572 mm x 1270 mm x 330 mm)
SPECIFICATIONS
BT-3060 L/R Veritek® Bathtub Tub Area  Ship  Ship  Carton 
Model  Part  Designed To Fit  Wt. Lb.  FedEx  Dims. In.  Cu. Ft.
BT-3060L/R BT03060 LD/RD 30" D x 60" W 70 – 62 x 33 x 19 22.16 (762 mm x 1524 mm) BT-3060L5/R5 BT03060 L5/R5 30" D x 60" W 350 – 63 x 33 x 49 58.95 (762 mm x 1524 mm)
60"
COLORS 
(See inside back cover for color sample.)
Solid Colors:
• White (010)
• Bone (037)
• Bisque (018)
• Bright White (137)
• Pearl (138)
Aggregate Colors:
• Bermuda Sand (040)
• Gray Granite (042)
• Tahiti Desert (050)
30"
16"
Kit Includes: One bathtub, six bathtub clips and complete installation instructions.
Available in 5-packs BT 3060L5 and BT3060R5. Packaging: Each kit is packed in a flat, rectangular carton.
SUPPORT DOCUMENTS
Installation instructions available at swanstone.com.
Swan • St. Louis, MO 63101 • (800)325-7008 • swanstone.com 75
MAINTENANCE AND  CLEANING INFORMATION
Clean regularly with common household liquid cleaners and a sponge or soft cloth. For hard water stains, scale removers can be used. To protect finish, f iberglass wax or automotive paste wax can be applied. Do not use abrasive cleaners or scouring pads. Do not use “leave on” cleaning products, such as automatic spray shower cleaners. Prolonged contact with harsh chemicals could have an adverse reaction over time and discolor surfaces. Do not use cleaning agents that caution use on acrylic, polyester or plastics.
