Swann SWADS450IPC User Manual
English
ADS-450
SwannSmart Video Security
M450IPC050411E
1
Before You Begin
NOTE: This equipment has been tested and found to comply with the limits for Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio or television reception, which can be determined by turning the equipment o and
on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment into an outlet on a circuit dierent from that to which
the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
These devices comply with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. These devices may not cause harmful interference, and
2. These devices must accept any interference received, including interference
that may cause undesired operation.
All jurisdictions have specic laws and regulations relating to the use of cameras. Before using any
camera for any purpose, it is the buyer’s responsibility to be aware of all applicable laws and regulations
that prohibit or limit the use of cameras and to comply with the applicable laws and regulations.
FCC Regulation (for USA): Prohibition against eavesdropping
Except for the operations of law enforcement ocers conducted under lawful authority, no person shall
use, either directly or indirectly, a device operated pursuant to the provisions of this Part for the purpose
of overhearing or recording the private conversations of others unless such use is authorized by all of the
parties engaging in the conversation.
Modications not approved by the party responsible for compliance could void user’s authority to
IMPORTANT SAFETY INSTRUCTIONS
• Make sure product is xed correctly and stable if fastened in place
• Do not operate if wires and terminals are exposed
• Do not cover vents on the side or back of the camera and allow adequate space for ventilation
FCC Verication
IMPORTANT NOTE:
WARNING
operate the equipment.
2
Contents
Before You Begin 2
Contents 3
Package Contents 3
Mounting Diagram 4
Introduction 5
Layout 6
Local WIFI Conguration: Access 7
Local WIFI Conguration: Details 8
Local WIFI Conguration: Connecting to Internet 9
IMPORTANT: Turning o Local WIFI Conguration 9

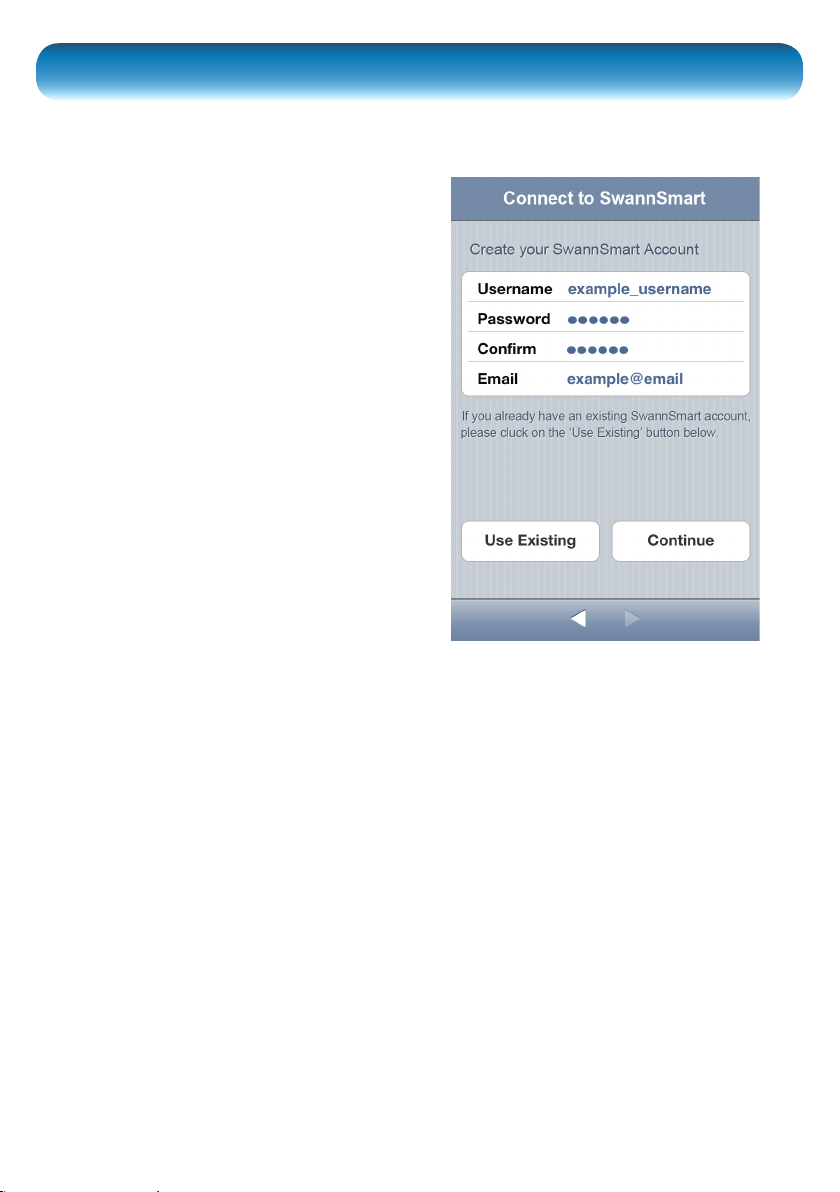

Registering Your Account with SwannSmart 10
Package Contents
Interface: Login & Camera List 11

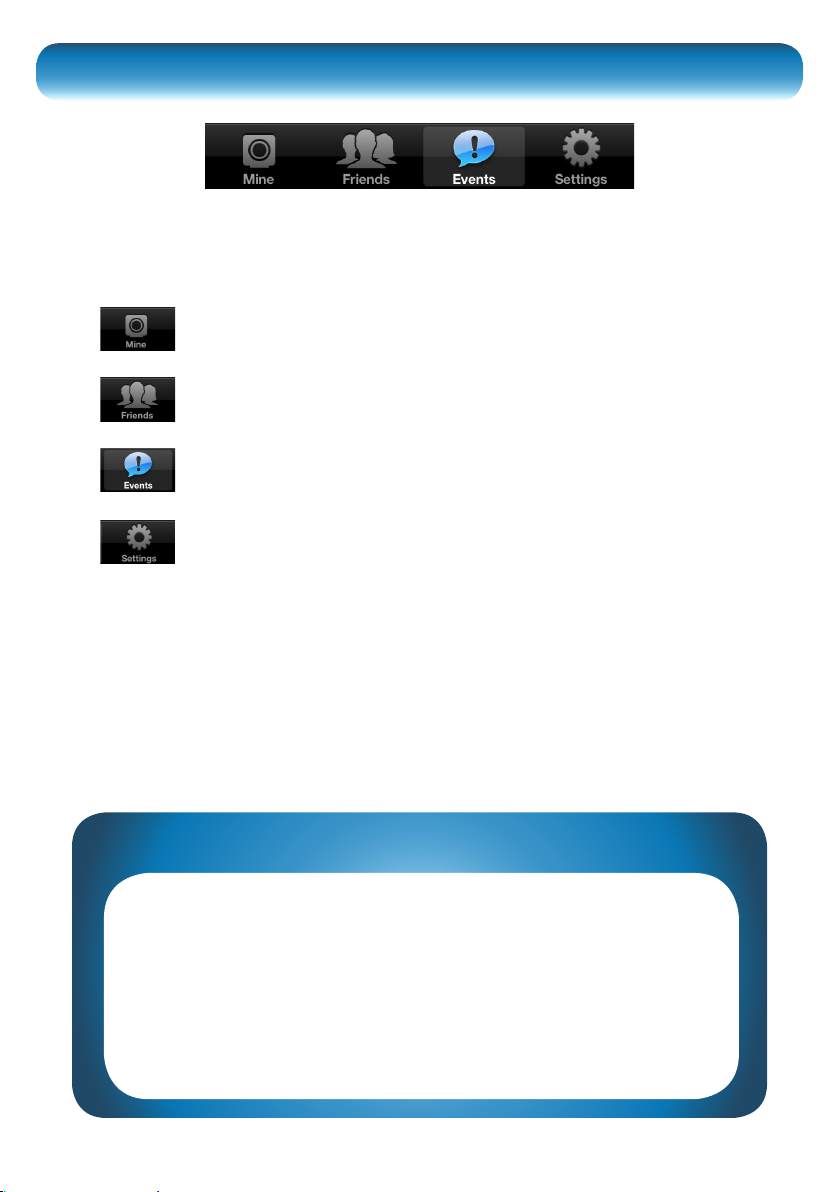

Navigating the Mobile Interface 12
Access via the SwannSmart Website 12
Interface: Live View 13
Interface: Events 14
Interface: Camera Settings 15
SwannSmart App Settings 17
Expanding Your Service 18
Technical Specications 18
Warranty Information 19
Helpdesk / Technical Support Details 20
ADS-450 Camera
Operating Instructions
Ethernet Cable 5V 1.5A Power Adapter
3
Mounting Diagram
To permanently mount the camera:
• Remove the circular mounting
plate from the base of the stand by
unscrewing the stand. See the image
(right).
• Remove the metal ring. Keep it
somewhere safe if you think you might
need it.
• Take the plastic mounting plate and
apply it to a wall. Mark the two main
screw points.
• Insert two screws into the wall. If mounting to masonry/brickwork, use wall
plugs. Leave approximately 2.5mm (about 1/10 of an inch) of screw protruding.
• Apply the plastic mounting plate to the wall. Twist to lock in place.
• Attach the stand and camera to the mounting plate.
Unscrewing the stand. The plastic screw
thread has a tight grip, so it may take a
little force to unscrew.
Note: There’s no requirement to mount the camera. The metal ring in the base
provides weight so the camera can simply be placed on a at, horizontal surface and
be stable.
4
Introduction
Congratulations on your purchase of this ADS-450 camera, the central component
of your SwannSmart Video Security system. This camera is versatile, powerful, easy to
install and congure and looks pretty stylish, too.
Best of all, it can be totally wireless - if there’s a WIFI network your camera can connect
to the Internet through, then just connect the camera to power and you’re good to
go.
You’ll be able to view images from your camera(s) from just about anywhere you can
nd a mobile Internet signal.
The Network LED will be constantly illuminated green when the camera is
connected to a network and is working correctly.
It will ash orange when the camera is connecting to a network - if the
ashing persists, it indicates communication diculties.
If the Network LED is red, this indicates that it cannot connect to the
network you chose, and probably needs to be re-congured.
The Power LED will be constantly illuminated green when the camera is
connected to power and switched on.
If this turns either orange or red, this indicates a problem with your power
supply - the camera is not receiving enough power. Ensure you’re using the
correct power supply, that the cables are undamaged and all connections
are rmly made.
The Local WIFI Conguration LED will be illuminated green while the
camera is set to Local WIFI Conguration mode (set by the switch of the
same name).
If this is either orange or red, this indicates a problem with the camera’s
built-in WIFI access point.
The Local WIFI Conguration Switch is located directly above the LED of
the same name. Local WIFI Cong will be turned on when the switch is in
the up position, and will be turned o when in the down position.
Reset: Located immediately above the Local WIFI Cong switch is the Reset
Button. Pressing this button while the camera is powered and operating will
clear all settings, and reset the camera to its factory default settings.
The button itself is located behind the small hole for protection against
accidental bumps or knocks. You’ll need a thin (but not sharp) object, such
as a bent paper clip or similar, to push the reset button.
5
Layout
Light Sensor
Infrared LEDs
Microphone
LAN Port
Lens
DC Input
Reset Button
Local WIFI
Conguration
Stand
Cong LED
Network LED
Power LED
6
