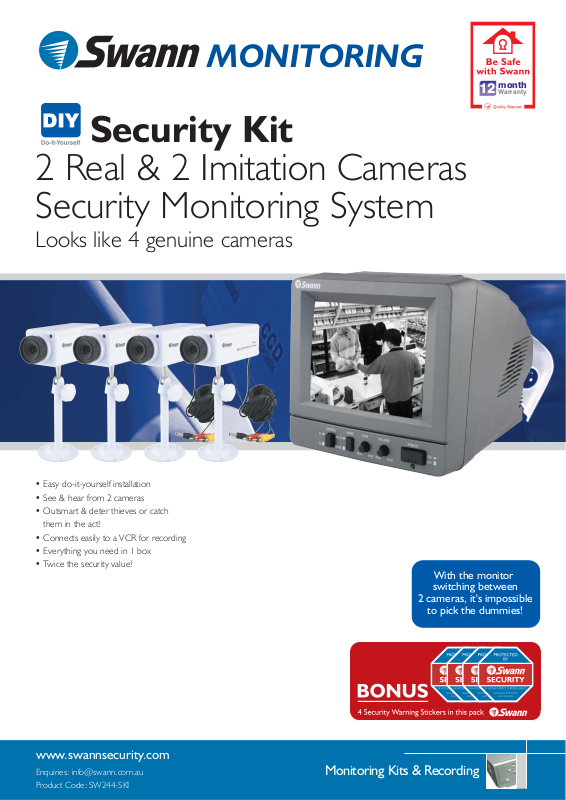

Swann SW244-SKI Technical Specifications

MONITORING

• Easy do-it-yourself installation

• See & hear from 2 cameras

• Outsmart & deter thieves or catch
them in the act!

• Connects easily to a VCR for recording

• Everything you need in 1 box

• Twice the security value!

www.swannsecurity.com

Enquiries: [e-mail]
Product Code: SW244-SKI

Security Kit

2 Real & 2 Imitation Cameras
Security Monitoring System

Looks like 4 genuine cameras

Monitoring Kits & Recording

12

month

Warranty

With the monitor

switching between

2 cameras, it's impossible

to pick the dummies!

The 5.5" black & white monitor features an auto-switch function so you
can view the two operating security cameras from the same monitor with
pre-set timing. The two real cameras are designed with a superior
black & white lens and a built-in sensitive microphone allowing you to
SEE & HEAR clearly.

All four cameras are indentical, which gives thieves the impression that your
premises are protected by a higher level of surveillance.

MONITORING

Technical Specifications

Camera

Camera: 8.5mm/ 1/3" CMOS

Picture Sensor
System: PAL (CCIR), NTSC (EIA)*
Resolution: 320 TV Lines
Automatic Shutter: 1/60th -1/15,000th Second
Minimum Illumination: 3 Lux
Lens Focus / View Angle: 3.6mm/72°
Power Supply: 8-12v 90mW
Size: 125mm x 50mm x 45mm

5" x 2" x 1 3/4”
Weight: 100g

* TV system dependent on country of origin

SecuraView Monitor

High Resolution 14cm (5.5") Screen Display
AC/DC Power Supply

2 channel A/V Input
Single Channel A/V Synchronous Output
Automatically Switch Views Between Cameras (with
Configurable Delay)
Supplies DC Power for Cameras (9.6V DC 300mA)
Suits Many Types of Cameras
Comes with Approved Power Supply

Package Contents

SecuraView™ Monitor
4 B&W Security Cameras with 18m (59ft) cable attached
5x Power Adapters
Instruction Manual
4x Security Stickers
Yard Stake

www.swannsecurity.com

Please note that the information

contained within this document is

subject to change without notification.

Security Kit

2 Real & 2 Imitation Cameras
Security Monitoring System

Looks like 4 genuine cameras
