Swann SW244-DUM, SW242-DU2, SW244-DUX User Manual

plug&playsecurity
Advanced security made easy
DVR4-1000™
4 Channel Digital Video Recorder
Operating Instructions
SW242-DU2 / SW244-DUX / SW244-DUM
www.swannsecurity.com
1
Before You Begin
FCC Verifi cation: NOTE: This equipment has been tested and found to comply with the limits for
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are de­signed to provide reasonable protection against harmful interference in a residen­tial installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be deter­mined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
· Reorient or relocate the receiving antenna
· Increase the separation between the equipment and the receiver
· Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
· Consult the dealer or an experienced radio/TV technician for help
These devices comply with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) These devices may not cause harmful interference, and (2) These devices must accept any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE: Prohibition against eavesdropping
Except for the operations of law enforcement offi cers conducted under lawful authority, no person shall use, either directly or indirectly, a device operated pursu­ant to the provisions of this Part for the purpose of overhearing or recording the private conversations of others unless such use is authorized by all of the parties engaging in the conversation.
WARNING: Modifi cations not approved by the party responsible for compliance could void user’s authority to operate the equipment.
IMPORTANT SAFETY INSTRUCTIONS:
· Make sure product is fi xed correctly and stable if fastened in place
· Do not operate if wires and terminals are exposed
· Do not cover vents on the side or back of the DVR and allow adequate space for ventilation
22
Contents
Before You Begin 2
Contents 3 Package Contents 4 DVR Layout 5 Front Panel 5 Rear Panel 5 Remote Control Layout 6
Connections & Installation
Connecting Cameras and Power Adapter 7 Connecting the DVR to a TV Monitor 8 Turning the DVR On/Off and Auto Recovery 8 Image Display 9 Single Camera View 9 Multi Camera View 9 Installing or Changing a Hard Drive 10 Starting the DVR With a New Hard Drive 11
Menu Operation 12
Accessing and Navigating the Menu System 12 Camera Menu 12 Record Menu 13 Motion Detection Menu 14 Screen Menu 15 Audio Menu 15 System Menu 16 Time Search 17 Exit Menu 17
Backing Up Footage to PC
Backup Footage 18 Viewing Backup Footage on a PC 19 Using the VVFPlayer software 19 VVFPlayer Interface 19 Extract footage from a larger video clip 20 Exporting an AVI fi le 20
Troubleshooting Guide 21 Technical Specifi cations 22 Warranty Information 23 Technical Support Details 24
3
Package Contents
DVR4-1000™ Unit
Remote Control
Operating Instructions
Easy Setup Guide
Power Adapter with Cable
Software CD
BNC to RCA Video Cable
Operating Instructions
Security Stickers
If you are missing any of the components above, contact Swann Communications for assistance.
44
DVR Layout
Front Panel
1
23456 789
1. USB Connection
Download backup footage to Flash Drive (not included)
2. Up Arrow
Move cursor up in menus or Camera 1 fullscreen view
3. Down Arrow
Move cursor down in menus or Camera 2 fullscreen view
4. Right Arrow
Move cursor right in menus or camera 3 fullscreen mode
Rear Panel
10 11 12 13
5. Left Arrow
Move cursor left in menus or camera 4 fullscreen view
6. Menu Button
Press to enter main menu / previous menu / exit menu
7. Remote Control Sensor
8. Power Indicator
Lights on when DVR powered
9. Hard Drive Indicator
Lights when hard drive is active (recording, searching etc.)
10. Play/Pause Button
Push to begin last recording or pause playback
11. Rewind Button
Push to rewind playback / con­fi rms selection in menus
12. Fast Forward/Auto Switching Button
Push to fast forward playback / confi rms selection in menus
13. Record/Stop Button
Push to begin or stop recording
3
1. Video Output
Output to TV monitor
2. Video Input
Inputs for cameras x 4 BNC
3. Audio Input
Input for microphone 1 x RCA
1
2
4. Audio Output
Output to speaker 1 x RCA
5. DC 12V Power Input
Power Adapter connection for DC 12V adapter only
4
5
5
Remote Control Layout
Using the Remote Control for the First Time
1-4. Camera Select Buttons
Changes to corresponding camera when pressed
5. Record / Stop Button
Start or stop recording
6–7. Up & Down Buttons
Moves up / down in menus
8-9. Rewind & Fast Forward
Moves left / right in menus
10. Enter/Exit Menu Button
11. Enter Button
Confi rm selection in menus
12. Play / Pause Button
Start or pause playback
The remote control contains a battery that must be activated before use. Find and remove the clear plastic tab at the bottom of the remote. The remote will now be ready for use.
66
Connecting Cameras and Power Adapter
1
Cameras and
accessories optional
2
1. Connect the Power and BNC ends of the Security Camera to an
Extension Cable.
3
4
5
2. Connect the BNC end of the Extension Cable to the back of the DVR.
3. Connect the power end of the Extension Cable to the Power Splitters.
4. Connect the Power Splitter to the Camera Power Adapter.
5. Plug in the Camera Power Adapter and the DVR Power Adapter to mains
power outlets.
7
Connecting the DVR to a TV Monitor
1
INPUT
2
Back of DVR
Back of TV
1. Connect the RCA end of the Video Cable to the Yellow Video
INPUT on the back of the TV Monitor.
2. Connect the BNC end of the Video Cable to the Video OUTPUT connection on the back of the DVR.
3. Tune your TV to the correct input channel to view the DVR. Using your TV’s Remote Control press the Input button until the DVR appears on screen. Most TVs will label this button as Input, Video, Source, A/V, TV/AV, Line, Channel 0, etc. If you are unable to view your DVR on your TV contact your TV’s manufac­turer for assistance.
Turning the DVR On/Off and Auto Recovery
Powering the DVR On/Off
To turn on your DVR connect the Power Adapter to the DC 12V input on the back of the unit. To turn the DVR off unplug the DVR from the wall outlet or power point.
If the DVR will not be in use for extended periods of time Swann recommends unplugging the unit.
Auto-Recovery Feature
The DVR4-1000™ is equipped with an Auto-Recovery feature. Should a power outage occur while you are recording the DVR will automatically resume record­ing once power is restored.
88

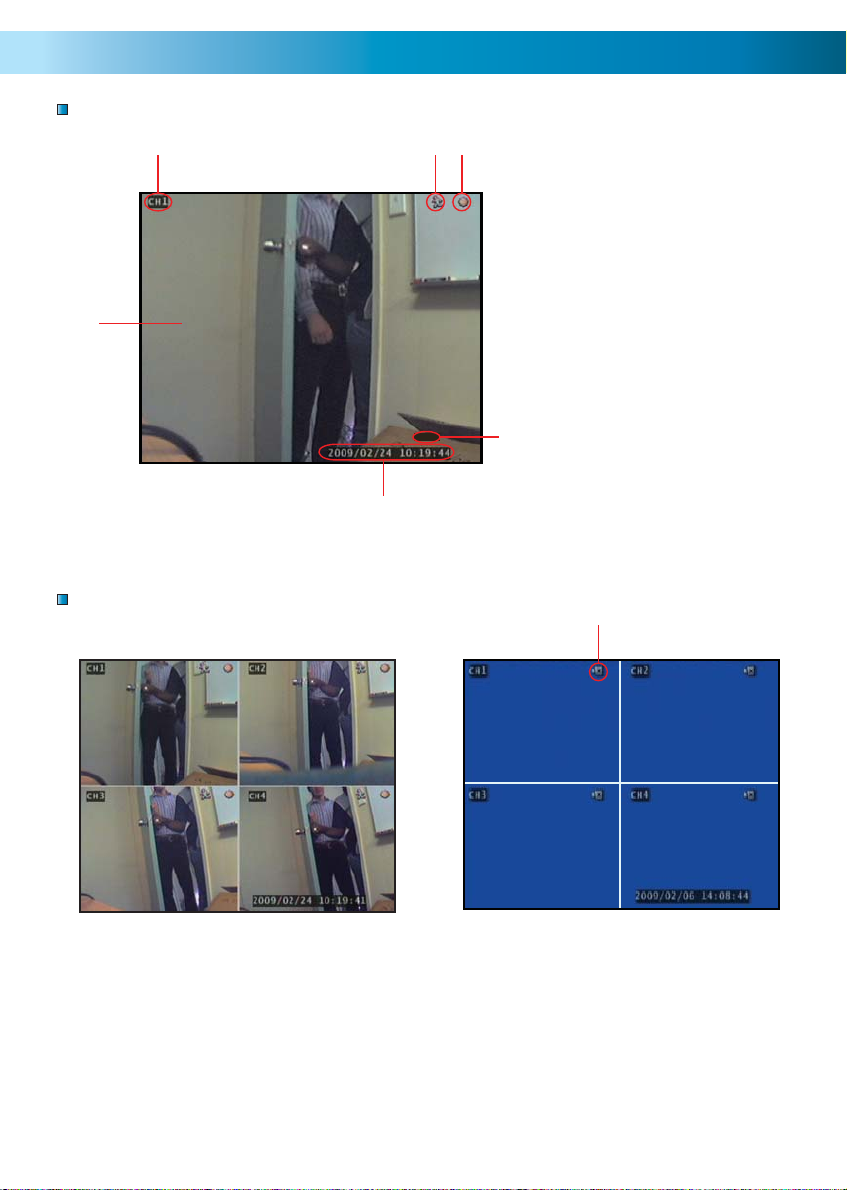

Image Display
Single Camera View
1
4
Multi Camera View
2
3
1. Current Camera Channel
2. Motion Detection Icon
3. Recording Icon
4. Main Display
5. Current Date & Time
6. Mute Audio
MUTE
5
6
7. No Camera Signal Icon
7
Multi Camera View with 4 Cameras Multi Camera View with No Cameras
9
Installing or Changing a Hard Drive
IMPORTANT NOTE: The following instructions are for installing or changing the hard drive. If your DVR4-1000™ already has a hard drive pre-installed disregard these steps.
Installing / Changing a Hard Drive in the DVR4-1000™
1. Ensure the DVR4-1000™ is unplugged and removed from mains power.
Remove
2. Locate and remove the screws indicated in the diagram. There are 7 screws in total.
Remove
4. Locate and remove the screws holding the hard drive in place shown in the diagram. There are 4 screws in total. Secure the hard drive before unscrewing from the DVR to avoid dropping / damage.
6. Replace the current Hard Drive and plug in SATA and power cables as shown in step 5.
7. Screw in the hard drive to the bottom of the case.
8. Replace the top of the case.
9. Screw in the remaining 7 screws to the sides and top of the DVR.
3. Pull up the top half of the DVR case from the back and remove.
5. Remove the SATA and power cable from the back of the Hard Drive.
1010
Starting the DVR With a New Hard Drive
When starting the DVR4-1000™ for the fi rst time or starting the DVR after changing to a new hard drive, the DVR will confi gure the har low the on screen prompts to confi gure the hard drive.
1. After the DVR recognizes the new hard drive press PLAY to confi gure for use.
d drive for use. Fol-
2. When the hard drive is confi gured you will be asked to format or cancel. Press PLAY to confi rm the format.
IMPORTANT NOTE: If format is chosen all existing data on the hard drive will be deleted and unrecoverable.
11
Menu Operation
Accessing and Navigating the Menu System
The main Setup Menu can be accessed by pressing the Menu Button
To navigate the menus press the directional arrow keys
To select the highlighted option press or or
To return to the previous menu press
Note: The menu cannot be accessed while in playback or backup mode. Return to the main camera view before entering the menu.
Main Setup Menu
Camera Menu
The Camera menu allows you to change visual attributes on each of the camera channels.
Channel: Display the attributes of currently selected camera 1-4.
Display: Turn the selected camera On or Off in the main display.
Brightness, Contrast, Hue, Saturation: Move the sliders to fi ne tune the
display of the currently selected camera.
1212
Record Menu
The Record Menu adjusts recording
, timers and schedules.
quality
Record Speed: Set the recording frame rate per camera. Note: higher frame rates provide smoother recordings but use more hard drive space.
You may individually set the Record Speed of each camera. The total number of frames used can not exceed 60 for NTSC systems or 50 for PAL systems.
Record Quality: Set the image quality of the recordings from Normal, High or Highest. Note: higher image quality settings use more hard drive space.
Event Rec Duration: When Motion Detection is active, Event Rec Duration is the length of time in seconds the DVR will record after motion stops, from 5, 10, 15, 20, 25 or 30 seconds. Default is set to 10 seconds.
Record Schedule: Set different recording modes depending on the time of day.
The Record Schedule allows you to set the recording mode for each hour of the day based on a 24 hour clock. Use the left / right keys to move and up / down keys to change the current selection.
No Record: will not record Time Record: will record for the entire
hour Motion Record: will only record when motion is detected
Important: To enable Motion Recording you must set the hour to Motion Record (green) AND set the Sensitivity and Motion Area in the Motion Detection menu.
13
Motion Detection Menu
The Motion Detection menu allows you to set motion options for each camera.
Note: The DVR detects motion based on the level of change in the picture.
Channel: Select which camera attributes to change from camera 1-4.
Sensitivity: Set the amount of movement necessary before motion detection
triggers recording. Set from 1 (most sensitive) to 4 (least sensitive), default Off. Note: this feature must be set from 1-4 to enable motion recording.
Alarm Duration: Set the length of time the alarm will sound when motion is detected. Set to Off, 5, 10, 15, 20, 25, 30 seconds or Continuous. Note: If the Alarm Duration is set to Continuous the alarm will continue to sound until this setting is changed.
Motion Area: Select the area of the Camera to detect motion. Motion occurring outside this designated area will not trigger a recording.
Use the arrow buttons to move around the screen. Press the / Mute but­ton one time to select the position on screen then press the arrow but­tons up/down and left/right to draw out a detection box and press the Mute button again to close the box.
In the example to the left, the blue mo­tion box is drawn over the door. Only motion occurring in this area will trig­ger recording i.e. the door opening.
This feature is helpful in high traffi c areas where only a small portion of the screen needs to be monitored for example, looking down a driveway with a busy road next to it.
Important: To enable Motion Recording you must set the Sensitivity, Motion Area for each camera AND set Motion Record in the Record Schedule menu.
1414
Screen Menu
The Screen menu adjusts the display of cameras in the main camera view.
Border: Applies a border between the cameras in multi camera view.
Video Adjustment: Adjust the display to fi t on your TV monitor.
Auto Switching: When active, in live view mode, the DVR will automatically
switch between camera channels in full screen mode. Set the delay from 1-10 seconds between changes or Off. To activate Auto Switching, press the button marked when viewing your cameras. Press the button again to stop Auto Switching.
Audio Menu
The Audio menu sets the audio recording and volume options.
Note: You must have a camera with audio or a microphone to record or monitor audio.
Record: Set to on to record audio from the Audio Input on the back of the DVR.
Mute: Turns Audio on or off when viewing or recording cameras. Alternatively,
press the Mute button to turn Audio on or off while viewing your cameras.
Input Volume: Move the slider to change the volume of the audio recorded.
Output Volume: Move the slider to change the volume of audio playback.
15
System Menu
The System menu provides general setup options such as hard disk information, time, date and fi rmware settings.
Hard Disk Setup: Display information about the installed hard disk including total size and memory usage.
Overwrite Enable: If activated, when the hard disk is full the DVR will overwrite the oldest footage automatically. Default: Yes.
Format HDD: This option will permanently delete all data on the hard disk. The password must be correctly entered to format the hard disk.
Password Change: This option will change the current password. You will be prompted to enter the current password, the new password and then confi rm the new password before the change is complete. Note: The default password is “111111”. If you have lost or forgotten your password contact Swann Communications Technical Support for assistance.
Time Set: Set the DVR date and time. The date is in YYYY-MM-DD format. Confi rm the changes by pressing Apply.
Event List: Displays a list of the last 127 recorded events from the most recent recording to the oldest. Use the Time Search feature for older events not in list.
Start / Stop
Recording
Number
Date & Time
Recording
Type
Event
Use the arrow buttons to select and playback the highlighted Event. Press Stop to exit playback mode.
Hint: You can also access the Event List by pressing the Play button while viewing your cameras.
Loss Alarm: When enabled an audible alarm will sound indicating the DVR has lost the camera signal or a camera has been unplugged.
F/W Upgrade: Displays the current fi rmware version and allows future up­grades via a USB Flash Drive. Do not remove the Flash Drive while the fi rmware is updating as it may damage the DVR. Only use updates authorized by Swann. When complete, remove the Flash Drive and restart the DVR.
1616
Time Search
Time Search allows you to quickly jump to a specifi c time and date to view a recording.
Start time: This is the date and time of the oldest recording on the DVR.
Stop time: This is the date and time of the fi nal recording on the DVR.
Enter a time between the Start and End time and press the Play button to view a recording.
Press the Fast Forward and Rewind buttons to quickly scan through recordings. Press Fast Forward or Rewind multiple times to speed up playback.
Press the Stop button to exit playback mode.
Exit Menu
Save, Exit or Load Setup Defaults from the Exit menu.
Save & Exit: Use this option to save all settings that have been changed in the DVR menus. All changes made will be lost if you do not choose this option.
Exit Without Saving: Select to disregard any changes that have been made and return to camera view.
Load Setup Default: Reset all settings on the DVR to factory defaults.
17
Backup Footage
The DVR4-1000™ has a backup feature via the USB port on the front of the DVR. The DVR accepts fl ash drives or thumbdrives up to 2GB in size. Follow the steps below to backup footage:
1. Insert a USB fl ash drive / thumbdrive (not included) to the USB port.
2. Press Play to enter playback mode or use the Time Search feature to fi nd a recording.
3. Pause playback at the start of the footage you would like to backup.
4. Press the Menu / File button to display the USB Backup Mode.
5. Press the CH1 button to designate the start of a backup recording.
6. Play and fi nd the end of the footage you want to backup and press Pause.
7. Press the CH2 button to indicate the end of a backup recording.
8. When you are happy with the Start and End time of the recording press the CH4 button to continue.
9. The Backup to USB screen will appear with details of the USB device inserted, size requirements and fi le name. Press CH4 to begin copying.
10. When the backup is complete press the Stop button and remove the USB device.
WARNING: Do not connect the DVR directly to a computer. Do not remove the USB Flash Drive while the DVR is copying footage. Damage may occur to attached devices if used improperly.
1818
Viewing Backup Footage on a PC
Using the VVFPlayer software
View backed up footage from the DVR4-1000™ with the included VVFPlayer software located on the CD.
1. Copy the VVFPlayer software from the CD to your computer.
2. Double click to open the VVFPlayer software.
3. Click the File Folder (4) to bring up the open screen. Navigate to the video you want to view and press Open. The backup fi le will have a .VVF extension.
4. Use the controls to view the video footage.

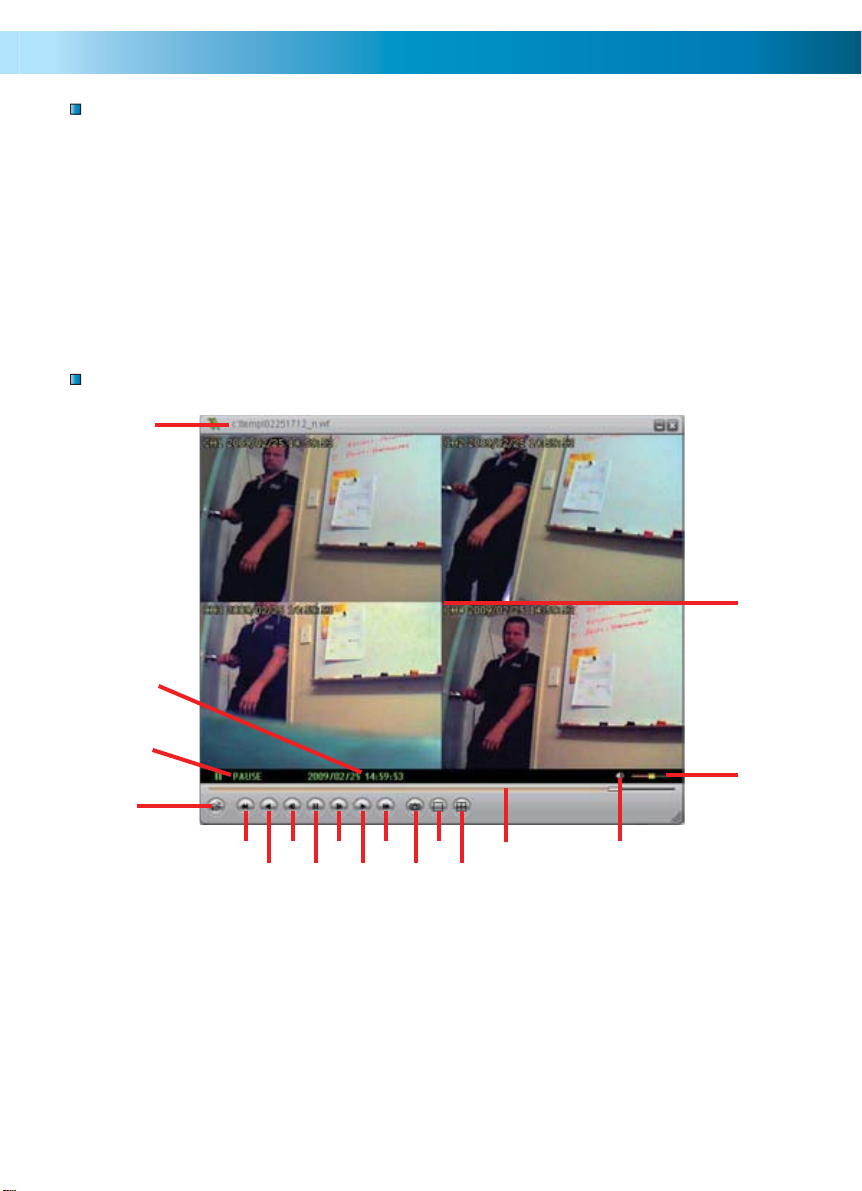

VVFPlayer Interface
1
18
2
3
4
5
1. File name
2. Date & time of recording
3. Current play state
4. Open File
5. Fast Reverse (16x, 32x, 64x)
6. Reverse (1x)
7. Previous frame
8. Pause
9. Next frame
9137
8126
11 15 16
10
14
10. Play
11. Fast Forward (16x, 32x, 64x)
12. Photo snapshot
13. Single Camera View
14. Split screen view
15. Timeline slider
16. Sound / Mute
17. Volume
18. Camera view
17
19
Viewing Backup Footage on a PC (cont)
Extract footage from a larger video clip
When dealing with larger backup fi les it may be necessary to extract smaller clips. The following describes how to extract footage and export to a new .VVF fi le.
1. Open and play the clip to extract from.
2. Pause the clip where you want to start the extraction.
3. Right-click the camera view and select Capture > Mark In
4. Find and Pause the clip at the end of the extraction.
5. Right-click the camera view and select Capture > Mark Out
6. Right-click the camera view and select Capture > Export and save the fi le name and location. Note this export is in .VVF format.

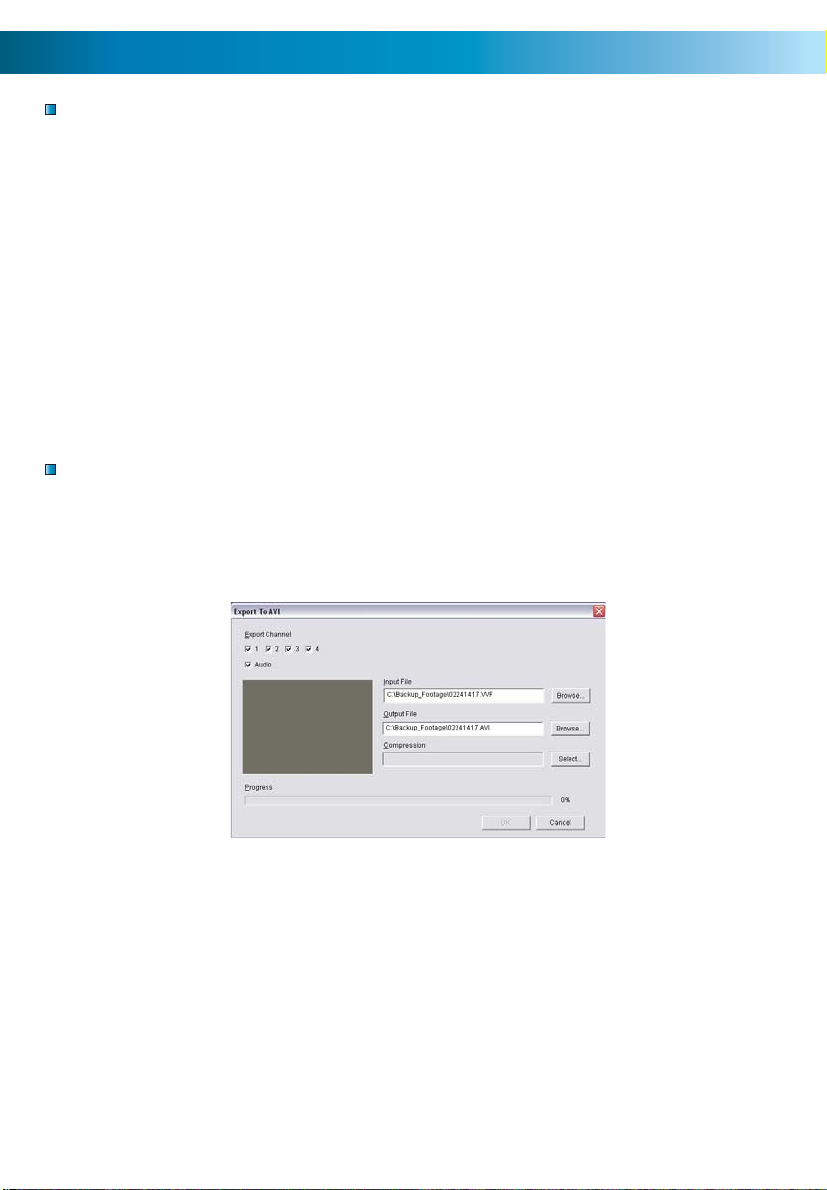

Exporting an AVI fi le
To view video footage on another computer create an AVI fi le using the built in export ability.
1. Right-click the main Camera view and click Export > AVI
2. Click “Browse...” next to Input File and select the video you want to convert.
3. Click “Browse...” next to Output File to select a location to export.
4. Choose your preferred compression method by clicking Select... If you are unsure which method to use, select the default uncompressed mode.
5. Click OK to export the fi le.
6. Playback the fi le in your preferred media player.
2020
Troubleshooting Guide
Problem: The Power light keeps blinking red. Solution:
If you have purchased the DVR as part of a kit, make sure the cameras are oper­ating on a separate Power Adapter. The larger power adapter with higher amps is designed specifi cally for the DVR.
Problem: The hard drive is not working. Solution: Ensure the DVR is using the correct Power Adapter supplied. Open
the DVR and ensure the SATA cable is connected to the DVR and Hard Drive.
Problem: The hard drive usage is at 100% and will not record. Solution: Format the hard drive or set the hard drive to overwrite mode.
Problem: I can only see a blue screen where my camera should be. Solution: If only 1 camera view is blue, the DVR is not receiving that camera’s
signal. Check that the camera connections on the back of the DVR are secure. Ensure the camera is plugged in and has power.
Problem: The DVR will not turn on. Solution: Make sure you are using the correct Power Adapter for the DVR. Try
a second power outlet. Check the connections on the back of the DVR.
Problem: My DVR does not save footage more than a few days old. Solution: Change the quality settings to Normal, lower the camera frame rates
or enable motion recording to conserve hard drive space.
Ensure you are using the correct Power Adapter provided for the DVR.
Problem: I want to format my Hard Drive but I don’t remember the password. Solution: The default password is “111111”. Swann recommends changing
the default password to prevent tampering or unauthorized use.
Problem: I am using wireless cameras and the DVR keeps beeping and motion records all the time. Solution: Analog wireless cameras suffer from interference. The DVR interprets the change of image as motion and records. Swann recommends the use of wired cameras or digital wireless cameras such as the ADW-300 for DVR recording.
21
Technical Specifications
Video/Audio
Video Format: NTSC / PAL depending on region Operating System: Embedded RTOS Video Input: BNC x 4 Audio Input: RCA x 1, Line-In Video Output: BNC x 1 Audio Output: RCA x 1, Line-Out
Display and Recording
Display Frame: NTSC: 120 fps (4 × 30 fps) PAL: 100 fps (4 × 25 fps) Global Recording Frame Rate: NTSC: Max. 60 fps PAL: Max. 50 fps Video Operation Duplex : Record, Playback Display Resolution: NTSC: 640 x 448 PAL: 640 x 544 Recording Resolution: NTSC: 640x224 PAL: 640x272 Compression Format: Modifi ed MJPEG Size per frame: Normal: 12K Bytes High: 15K Bytes Highest: 20K Bytes
General
HDD Interface: SATA HDD x 1 Backup Method: USB Flash Drive, Thumbdrive (up to 2GB max) Search Mode: Time/Date, Event Full Screen: Yes Motion Detect: Yes Loss Detect: Yes Auto Switching: Yes Buzzer Output: Yes Brightness Adjust: Yes Contrast Adjust: Yes Recovery Mode: Auto Restore Record on power failure DC Input: DC 12V Dimensions: 8.6” x 11.3” x 2” 220mm x 288mm x 50mm Weight: 3.3lbs
1.5kg
2222
Warranty Information
Swann Communications USA Inc.
12636 Clark Street
Santa Fe Springs CA 90670
USA
Limited Warranty Terms & Conditions
Swann Communications warrants this product against defects in workmanship
and material for a period of one (1) year from it’s original purchase date. You must
present your receipt as proof of date of purchase for warranty validation. Any unit
which proves defective during the stated period will be repaired without charge
for parts or labour or replaced at the sole discretion of Swann. The end user is
responsible for all freight charges incurred to send the product to Swann’s repair
centres. The end user is responsible for all shipping costs incurred when shipping
from and to any country other than the country of origin.
The warranty does not cover any incidental, accidental or consequential damages
arising from the use of or the inability to use this product. Any costs associated with
the fi tting or removal of this product by a tradesman or other person or any other
costs associated with its use are the responsibility of the end user. This warranty
applies to the original purchaser of the product only and is not transferable to any
third party. Unauthorized end user or third party modifi cations to any component
or evidence of misuse or abuse of the device will render all warranties void.
Swann Communications PTY. LTD.
Building 4, 650 Church Street,
Richmond, Victoria 3121
Australia
By law some countries do not allow limitations on certain exclusions in this warranty.
Where applicable by local laws, regulations and legal rights will take precedence.
23
Swann Technical Support
SR242-DU2-10005-040309
All Countries E-mail: tech@swannsecurity.com
Telephone Helpdesk
USA toll free
(Su, 2pm-10pm US PT)
(M-Th, 6am-10pm US PT)
(F 6am-2pm US PT)
USA Exchange & Repairs
562-777-2551
(M-F, 9am-5pm US PT)
1300 138 324
(M 9am-5pm AUS ET)
(Tu-F 1am-5pm AUS ET)
(Sa 1am-9am AUS ET)
NEW ZEALAND toll free
0800 479 266
INTERNATIONAL
+61 3 8412 4610
AUSTRALIA toll free
See http://www.worldtimeserver.com for information on time zones and the
current time in Melbourne, Australia compared to your local time.
2424
© Swann Communications 2008
Loading...
