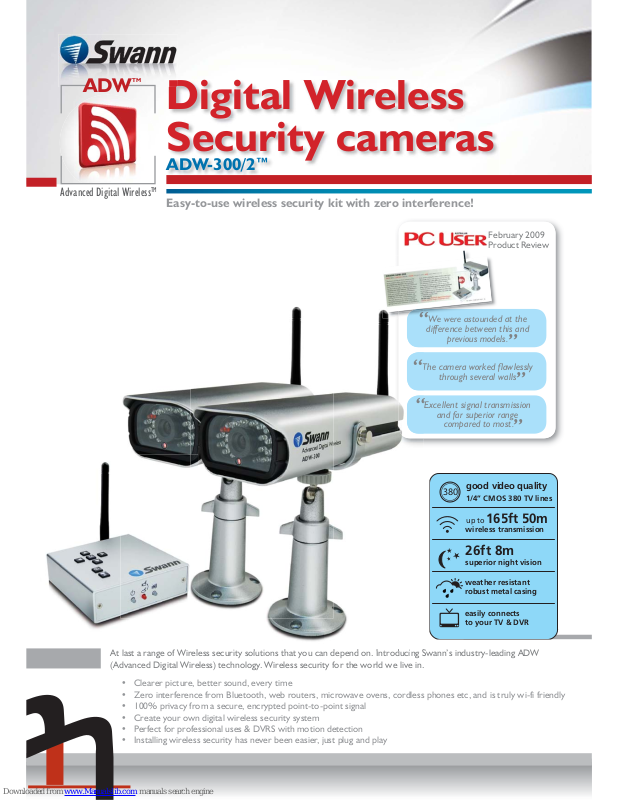

Swann ADW-300, SW233-AD2 Specification Sheet

For more information visit www.swannsecurity.com

Digital Wireless Security cameras

ADW-300/2™

Easy-to-use wireless security kit with zero interference!

At last a range of Wireless security solutions that you can depend on. Introducing Swann’s industry-leading ADW (Advanced Digital Wireless) technology. Wireless security for the world we live in.

Clearer picture, better sound, every time Zero interference from Bluetooth, web routers, microwave ovens, cordless phones etc, and is truly wi-fi friendly 100% privacy from a secure, encrypted point-to-point signal Create your own digital wireless security system Perfect for professional uses & DVRS with motion detection Installing wireless security has never been easier, just plug and play

•

26ft 8m

superior night vision

easily connects to your TV & DVR

weather resistant robust metal casing

up to

165ft 50m

wireless transmission

good video quality

1/4” CMOS 380 TV lines

380

February 2009 Product Review

The camera worked flawlessly

through several walls

We were astounded at the

difference between this and

previous models.

Excellent signal transmission

and far superior range

compared to most.

”

“

”

“

”

“

Advanced Digital Wireless

ADW

For more information visit www.swannsecurity.com

Advanced Digital Wireless

ADW

Digital Wireless

Security Cameras

ADW-300/2™

Product Code: SW233-AD2

easy to install

Connect & view through

computer with select DVRs

optional extras

• ADW-300/X Extra Camera – SW233-XAD

television Swann LCD monitor

digital video recorder

Monitor & record through

home or business

At last wireless security for today’s world!

Safeguard Loved Ones

Proteger las

Personas Queridas

Catch & Deter Shoplifters

Atrapar e Impedir

Ladrones de Tiendas

Monitor Kids & Nanny Cam

Monitorear Niños y

Cámara Niñera

Screen Visitors

Filtrar Visitantes

Pack Contents:

ADW-300™ Wireless Cameras x 2 Digital Receiver Antennas x 3 RCA TV Connection Cable 3ft (1m) Power Adapters x 3 Mounting Screws & Plugs Operating Instructions Theft Deterrent Stickers x 4

•

System specifications:

Video

Image Sensor 1/4” CMOS Video Quality 380 TV Lines Number of Effective Pixels VGA: 640 x 480 / QVGA: 320 x 240 Minimum Illumination 0 Lux (IR on) Day/Night Mode Color during day / switches to B&W at night White Balance Automatic Signal / Noise Ratio > 48dB Electronic Shutter 1/60 - 1/15,000 NTSC / 1/50 - 1/15,000 PAL Gain Control Automatic Backlight Compensation Yes Wide Dynamic Range No Lens 6mm Viewing Angle 54 degrees

Audio

Microphone Yes Audio Range 9ft / 3m

Night Vision

Night Vision Distance Up to 26ft / 8m IR Cut Filter No Number of Infra-Red LEDs 24 Infra-Red Wavelength 850nm Infra-Red LED Life 10,000 hours

General

Operating Power DC 5V Operating Temperature -10°C ~ 50°C / -14°F ~ 122°F Body Construction Aluminum Dimensions - Camera & Stand 6.3” x 2.5” x 6.3”/ 160mm x 63mm x 161mm Weight – Camera & Stand 11.6oz / 330g Dimensions - Receiver 1.1” x 3.5” x 3.2” / 28mm x 88mm x 82mm Weight - Receiver 4.8oz / 137g Remote Control No

Wireless

Digital or Analog Digital Max. Transmission Range Up to 165ft / 50m Typical Range 65ft / 20m Frequency 2.4 GHz Transmission Channels 4 Batttery Power Option No
