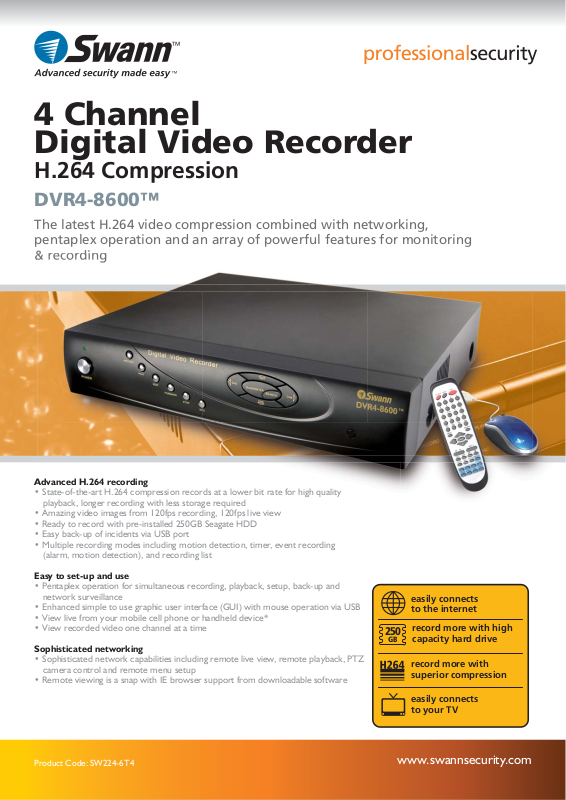

Swann SW224-6T4 Specification
4 Channel
Digital Video Recorder
H.264 Compression
DVR4-8600™
The latest H.264 video compression combined with networking,
pentaplex operation and an array of powerful features for monitoring
& recording
Advanced H.264 recording
• State-of-the-art H.264 compression records at a lower bit rate for high quality
playback, longer recording with less storage required
• Amazing video images from 120fps recording, 120fps live view
• Ready to record with pre-installed 250GB Seagate HDD
• Easy back-up of incidents via USB port
• Multiple recording modes including motion detection, timer, event recording
(alarm, motion detection), and recording list
Easy to set-up and use
• Pentaplex operation for simultaneous recording, playback, setup, back-up and
network surveillance
• Enhanced simple to use graphic user interface (GUI) with mouse operation via USB
• View live from your mobile cell phone or handheld device*
• View recorded video one channel at a time
Sophisticated networking
• Sophisticated network capabilities including remote live view, remote playback, PTZ
camera control and remote menu setup
• Remote viewing is a snap with IE browser support from downloadable software
easily connects
to the internet
record more with high
250
capacity hard drive
GB
record more with
superior compression
easily connects
to your TV
Product Code: SW224-6T4
www.swannsecurity.com
4 Channel
Digital Video Recorder
H.264 Compression
DVR4-8600™
The latest H.264 video compression combined with networking,
pentaplex operation and an array of powerful features for monitoring & recording
System Specifications
Digital Video Recorder
Compression format Standard H.264
Video Input Composite 1.0V p-p/75 Ohms, BNC×4
Video Output Composite 1.0V p-p/75 Ohms, BNC×2
Display Resolution 704 x 576 (PAL), 720 x 480 (NTSC)
Record Resolution 352 x 288 (PAL), 320 x 240 (NTSC)
Display Frame rate 100fps (PAL), 120fps (NTSC)
Record Frame rate 100fps (PAL); 120fps (NTSC)
Audio Input -8dB~22k, RCA x 2
Audio Output -8dB~92dB, RCA x 1
Record mode Manual / Sensor / Timer
/ Motion detection
Operation Pentaplex
Network Interface RJ45 (LAN, INTERNET)
PTZ Control YES
Communication Port RS485
Hard Disk Support 1 HDD
Remote Control YES
Backup USB flash memory ,
or external CDRW/DVDRW
via USB1.1 port (not included)
Power Supply DC 12V
Package Contents
all installation hardware included
• DVR4-8600™ 4 Channel Digital Video Recorder
• 250GB Seagate Hard Drive (5 Year Warranty)
• BNC to RCA Adapters x 5
• BNC to RCA Video Cable 3ft (1m)
• Power Adapter
• Mouse
• Remote Control
• User Manual
*Must use Windows Mobile 5, 6, Symbian OS.
Does not support i-Phone & Blackberry.
12
warranty
MONTHS
x4
SECURITY
B
STICKERS
S
U
N
O
www.swannsecurity.com
Please note that the information contained within this document is subject to change without notification.
All trademarks remain properties of their respective owners.
