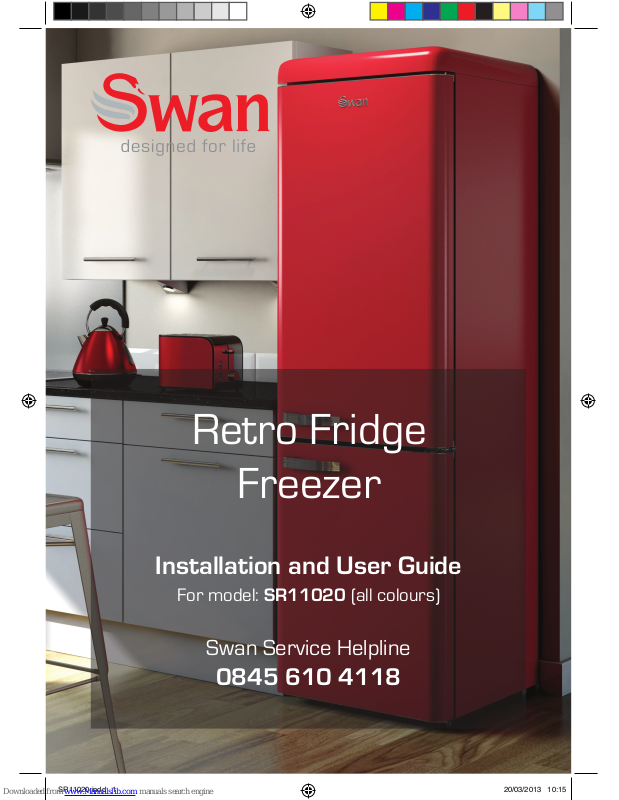

Installation and User Guide

For model: SR11020 (all colours)

Swan Service Helpline

0845 610 4118

Retro Fridge

Freezer

SR11020.indd 1 20/03/2013 10:15

22

Table of Contents

3. Your Refrigerator

4. Important Safeguards

5 - 6. Installation Notes

6. First Time Use

7. Food Storage Tips

8. Cleaning & Maintenance

9. Troubleshooting

10. Service & Spares, Specification, BS Plug Wiring

11. WEEE Directive, Warranty

SR11020.indd 2 20/03/2013 10:15

3

Your Refrigerator

Freezer section

Refrigerator shelf

Freezer drawers

Wire wine rack

Thermostat & bulb

Vegetable drawer
Salad crisper

Dairy &
multipurpose
guards

Dairy &
multipurpose
guards

CHANGING THE BULB

Service label

Refrigerator shelf

Dairy &
multipurpose
guards

Drain hole

1. Turn off the refrigerator and disconnect the plug
from the outlet.

2. Using a Phillips screwdriver to remove the bulb lens

3. Remove the old bulb by turning it counterclockwise.

4. Replace a new bulb (10W) clockwise making sure
you have correctly positioned the bulb.

5. Replace the light cover in original location and click
to put in place.

6. Reconnect the refrigerator to the electrical outlet
and switch on.

SR11020.indd 3 20/03/2013 10:15

4

Important Safeguards

• Do not connect your appliance to the electricity

supply until all packing and transit protectors have
been removed.

• Leave to stand upright for at least 4 hours before

switching on to allow compressor oil to settle

• This fridge/freezer must only be used for its

intended purpose i.e the storing and freezing of
edible foodstuff.

• Do not dispose of the appliance on a fire. Your ap­pliance contains non CFC/HFC natural substances

in the cooling system and in the insulation, which
are potentially flammable if exposed to fire. There­fore, take care not to damage, the cooling circuit or
pipes of the appliance in transportation and in use.
In case of damage do not expose the appliance to
fire or potential ignition source and immediately
ventilate the room where the appliance is situated.

• We suggest you contact your local authority for

disposal information and facilities available.

• See installation section for information on suitable

location.

• On delivery, check to make sure that the product

is not damaged and that all the parts and acces­sories are in perfect condition.

• Ensure that the plug remains readily accessible.

Do not use multiple adaptor or extension cables.

• Failure to observe these instructions may invali­date your right to free service during the guaran­tee period.

• Keep ventilation openings, in the appliance enclo­sure or in the built-in structure, clear of obstruc­tion.

WARNING: Keep ventilation openings, in the appli-
ance enclosure or in the built-in structure, clear of
obstruction.

WARNING: Do not use mechanical devices or
other means to accelerate the defrosting
process, other than those recommended by the
manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside

the food storage compartments of the appliance,
unless they are of the type recommended by the
manufacturer.

• We suggest you keep these instructions in a safe

place for easy reference.

• This appliance is not intended for use by persons

(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.

• If the supply cord is damaged, it must be

replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a
hazard.

• The plug must be accessible after the installation.

• Children should be supervised to ensure that they

do not play with the appliance.

CAUTION: In order to avoid a hazard due to

inadvertent resetting of the thermal cutout, this
appliance must not be supplied through an external
switching device, such as a timer, or connected to
a circuit that is regularly switched on and off by the
utility company

This appliance should only be connected to an
earthed, switched mains socket. Do not use an
extension cord with this appliance
