VACUUM CLEANER
SC11041
USER INSTRUCTIONS
GUARANTEE
This product is guaranteed for 2 years from the date of original purchase.
If any defect arises due to faulty materials or workmanship, the unit will, either
be repaired, replaced or refunded at our discretion.
The following conditions apply:
The product must be returned to the retailer with original proof of
purchase.
The product must be installed and used in accordance with the
instructions contained in this user instruction guide.
It must be used only for domestic purposes.
It does not cover wear and tear, damage, misuse or consumable parts.
The supplier has no responsibility for incidental or consequential loss
or damage.
Valid in the UK & Eire only.
Valid only if purchased from the SDHS Group
Technical Specification:
Power supply: 220V-240V AC. 50Hz
Power Consumption: 1800 W Max
Model number: SC11041
Protection: Class II
SDHS Group
L70 1AB
Box MPRC8
Swan Vacuum Helpline. Please Call 01733 404703
Swan Vacuum Spare Parts. Please Call 01733 404709
Calling from outside the UK Please Call - 00 44 1733 404703
1
2
IMPORTANT SAFETY INSTRUCTIONS
READ THIS SECTION TO BE AWARE OF THE RISK OF PERSONAL
INJURY, DAMAGE TO PROPERTY, ELECTRIC SHOCK & FIRE.
1. This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliances by a
person responsible for their safety.
2. Children should be supervised to ensure they do not play with the appliance.
3. Never vacuum wet surfaces, pick up wet objects or use in wet conditions.
4. Always disconnect the vacuum from the electrical supply before attempting any
servicing or maintenance. Never leave the vacuum unattended when plugged in.
5. Do not vacuum any t hi ng that is burning or smoking, such as ci garettes matches, or hot
ashes.
6. Do not use the vacuum cleaner to pick-up large objects that could damage or cause a
blockage.
7. Do not use the vacuum to pick up builders rubble, sand, plaster dust etc.
8. This vacuum cleaner is for dom esti c use only. Industrial or c omm ercia l use inval idate s
the warranty.
9. Do not use without a dust bag/bin and filter in place.
10. Use extra care when cleaning on stairs.
11. Keep hair, loose clothing, fingers and all parts of the body away from openings and
moving parts.
Safety Alerts:
1. To reduce the risk of electric shock, do not use outdoors or on wet surfaces.
2. Use only as described in this manual.
3. Do not use with a damaged cord or plug.
4. Do not run the vacuum cleaner over the cord. Keep the cord away from heated
surfaces.
5. Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.
6. Do not handle the plug or the vacuum cleaner with wet hands.
7. Turn off all controls before unplugging.
This vacuum cleaner is equipped with a plug and a cable, which rolls up automa tically. If
either becomes damaged, a qualified service agent must
repair both the plug and cable.
Electrical Safety
Before switching on, make sure that the voltage of your electricity supply is the same as
that indicated on the rating plate. This product is designed to operate on 220 – 240V AC,
50Hz. Connection to any other power source may damage the unit.
This product may be fitted with a non – rewireable plug. If it is necessary to change the
fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or damaged,
the plug must not be used until a suitable replacement obtained.
If the plug has to be changed because it is not suitable for your socket, or becomes
damaged in any way, it should be cut off and an appropriate plug fitted following the
wiring instructions below. This should be carried out by a qualified electrician. The plug
removed must be disposed of safely, as insertion into a 13 Amp socket is likely to cause an
electrical hazard.
IMPORTANT – THIS IS A CLASS II APPLIANCE AND DOES NOT REQUIRE AN
EARTH CONNECTION.
Wiring Instructions
The wires in this mains lead are colored in accordance with the following code:
Blue = Neutral Brown = Live
As the colours of the wires in the mains lead of this appliance may not correspond with the
coloured markings identifying the terminals in your plug, proceed as follows (refer to the
plug wiring diagram).
y The wire which is coloured BLUE must be connected to the terminal which is marked
with the letter N or coloured Black.
y The wire which is coloured BROWN must be connected to the terminal which is
marked with the letter L or coloured Red.
If a 13Amp (BS1363) plug is used, a 13Amp (BS1362) fuse must be fitted, or if any o ther
type of plug is used, a 13Amp fuse must be fitted, eith er in the plug or adaptor, or on the
Distribution Board.
3
Description:
4
Swan Vacuum Helpline. Please Call 01733 404703
Swan Vacuum Spare Parts. Please Call 01733 404709
ASSEMBLY INSTRUCTION:
Always remove the plug from the power socket before fitting or removing
accessories!

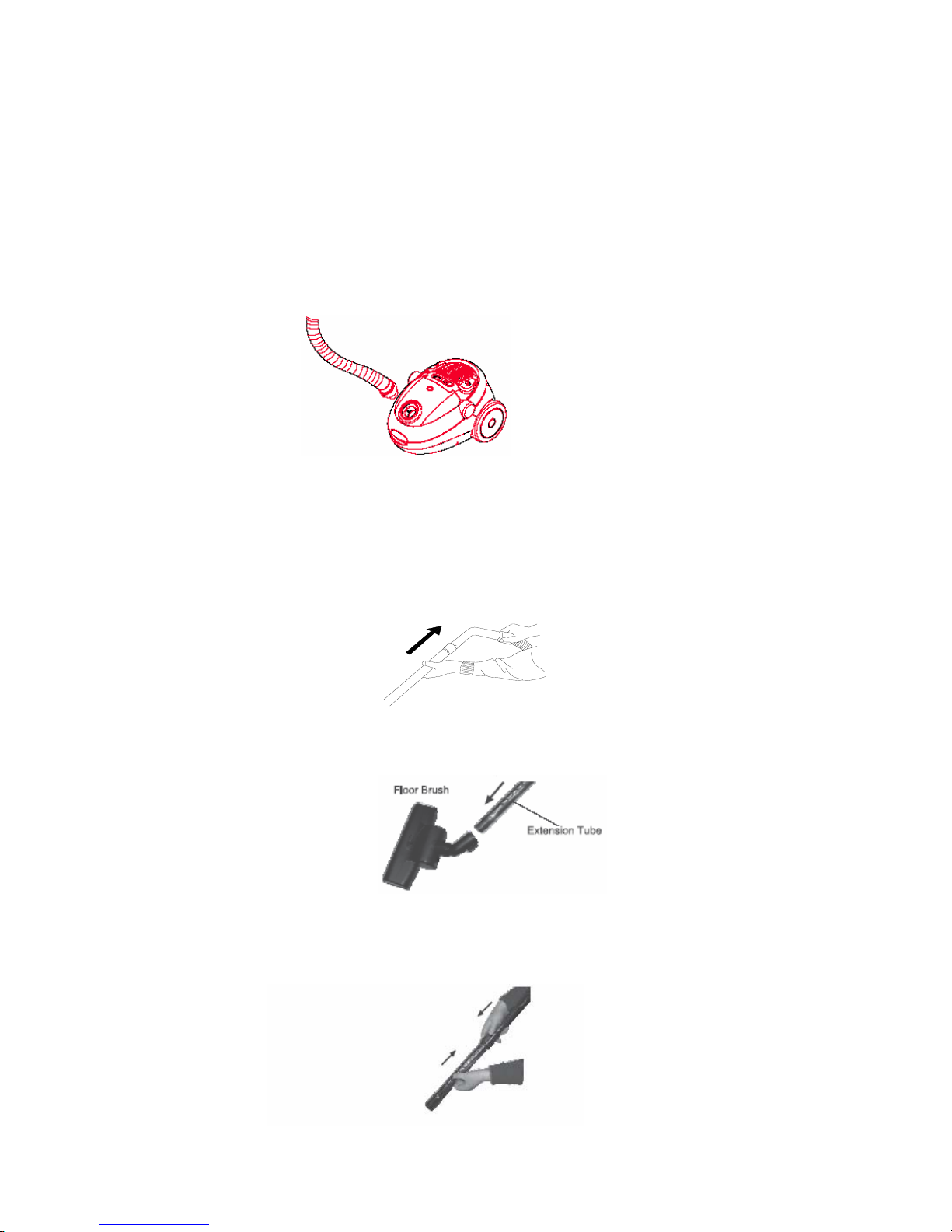

1. Fitting and removing the flexible hose.
Fitting:
Insert the flexible hose into the suction hole. Push until it clicks and locks into
position.
Removing:
Press the button to release and pull the hose from the suction inlet.
2. Fitting the extension tubes, floor head and accessories.
a.
Fit the extension tube to the hose nozzle.
b. Fit the floor brush or turbo brush to the chrome telescopic tube.
c.
The chrome telescopic tube can be extended by pushing the release
button and pulling the tube.
5
d.

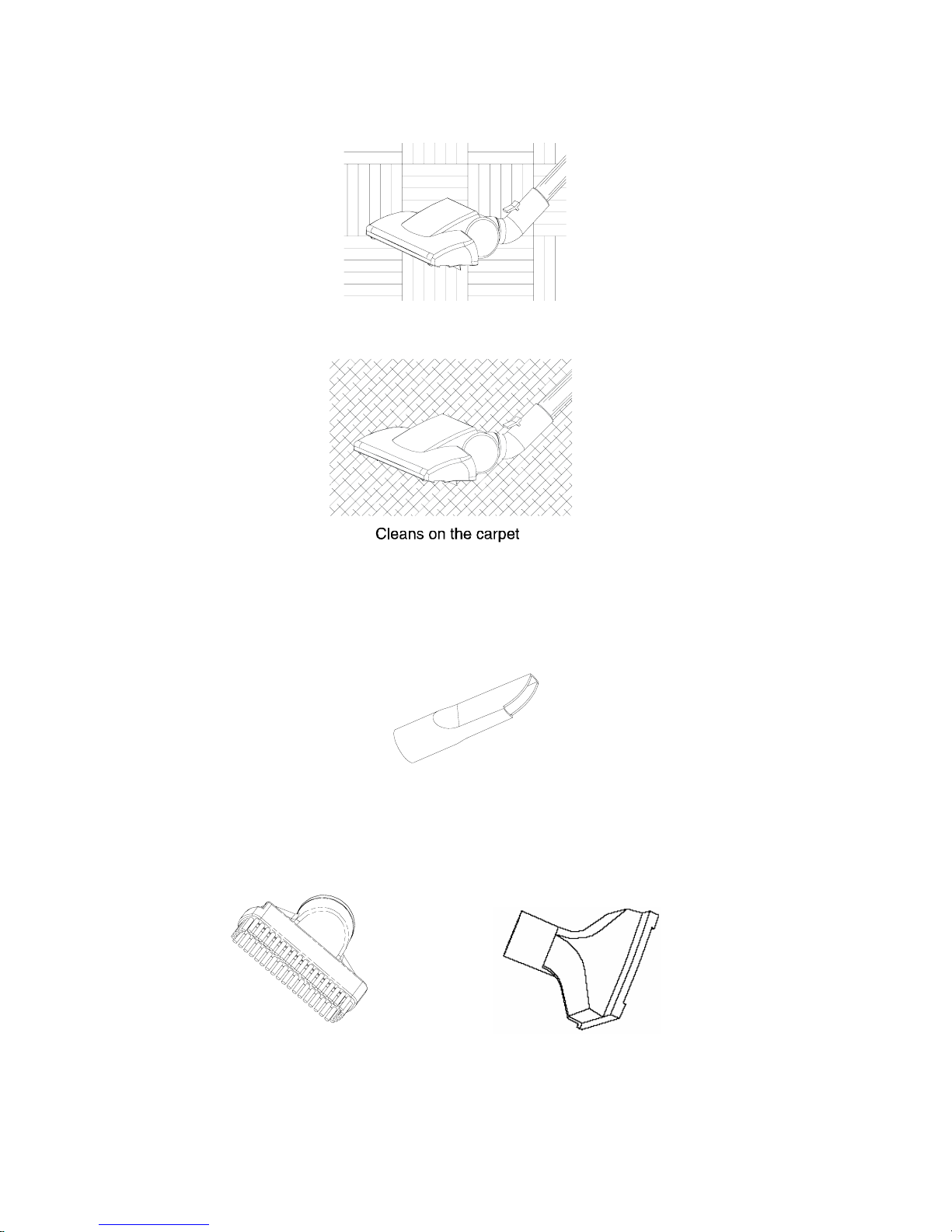

Floor head - ideal for the daily cleaning on carpets and hard floors.
For use on hard floors ensure the floor head bristles are extended.
e.
Crevice tool - for radiators, corners, baseboards and between
cushions.
6
f.
Soft brush and upholstery attachment – ideal for fabrics, picture
frames and
cleaning the sofa.
To use the upholstery tool slide the brush head off the attachment.
Brush head fitted Brush head removed
Note:
The crevice and soft brush attachments are stored at the rear of the vacuum.
INSTRUCTIONS FOR USE

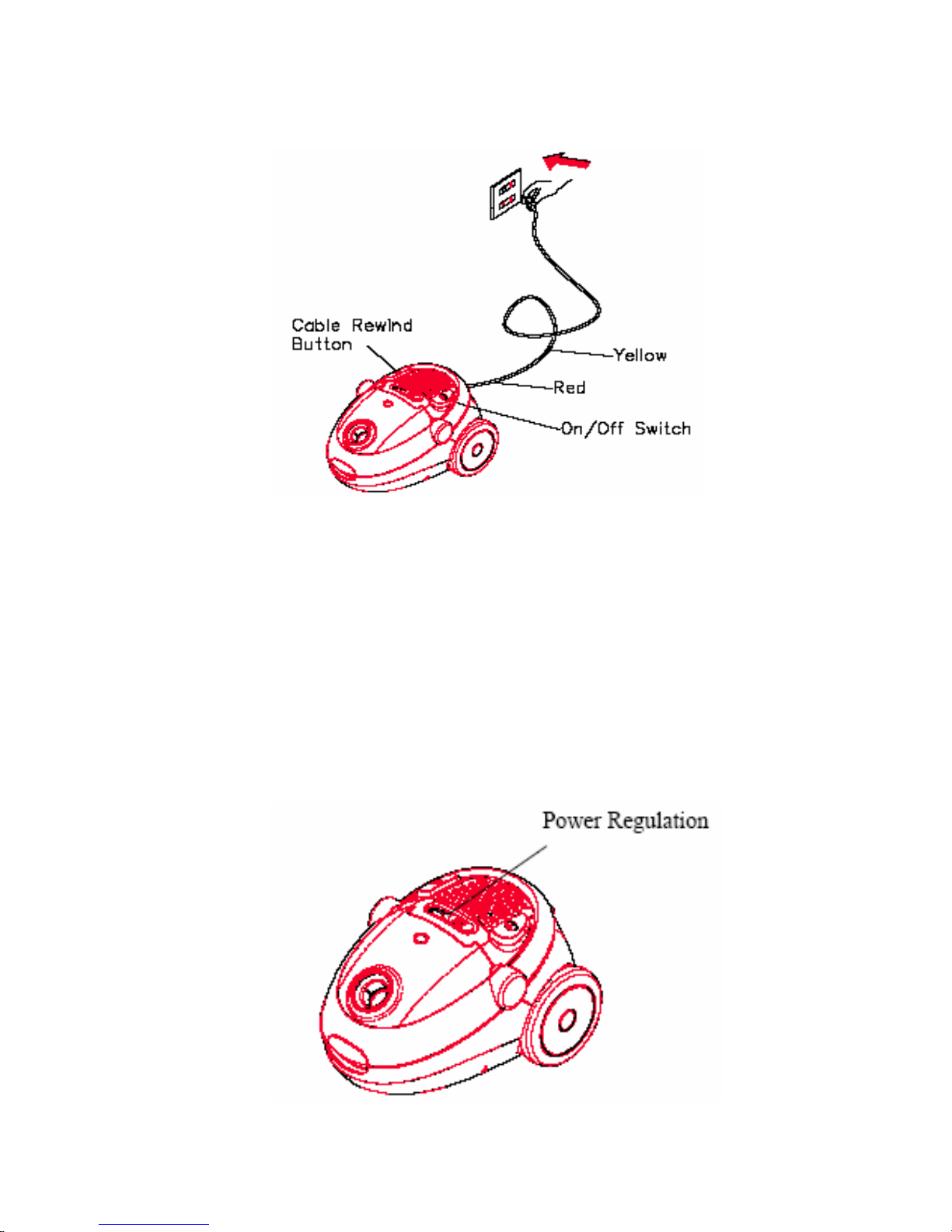

1.
Unwind a sufficient length of cable. A yellow mark on the power cable shows
the ideal cable length. Do not extend the cable beyond the red mark.
2.
You should plug the appliance into a 220V-240V SUPPLY ONLY.
**Before connecting to the power source, make sure the paper bag; filter and
accessories are fitted correctly. Do not operate without dust-bag or filters in place.
3.
Press the ON/OFF power switch to start vacuuming.
4. The SC11041 vacuum has a sliding power regulator which allows easier
suction control when vacuuming.
7
8
5.
Thermal cut out:
This vacuum is fitted with a thermal cut out device, which protects the
vacuum if the motor should overheat. If the cleaner suddenly stops, please
check the following:
a. Switch off the cleaner and unplug from the power supply.
b. Check the cause of overheating; blocked hose, clogged filter, full
dust-bag etc.
c. Clear the blockage, clean / replace the filter or empty the dust-bag as
necessary.
d. Wait 30 – 60 minutes, the thermal device will reset automatically
Cord Rewind: to rewind the power cord, press the rewind button with one hand
and guide the cord with the other hand to ensure that it doesn’t whip causing
damage.
Swan Vacuum Help-line Call 01733 404703
Swan Vacuum Spare Parts Call 01733 404709
Calling from outside the UK Please Call - 00 44 1733 404703
MAINTENANCE

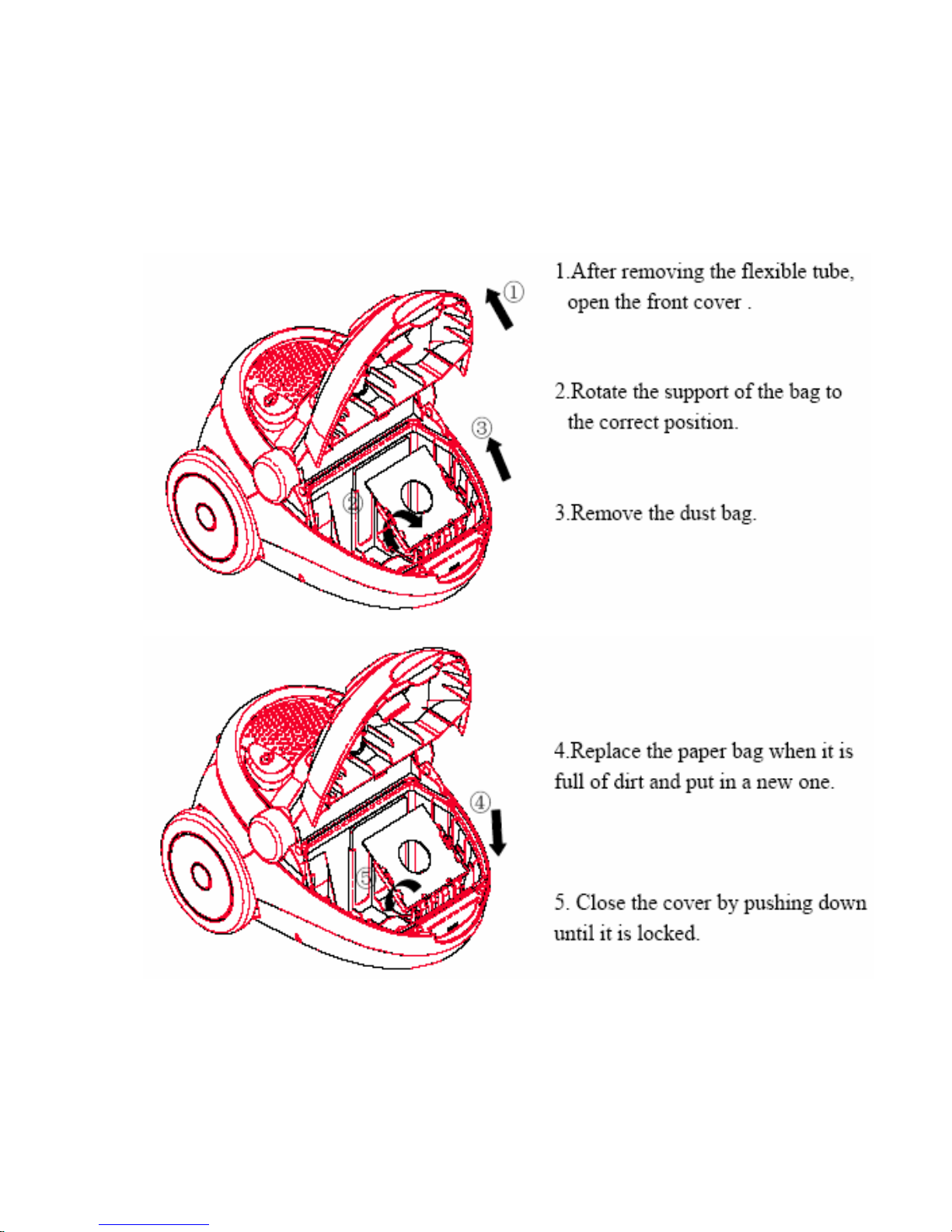

1.Changing the dust bag
z Always operate the cleaner with dust bag installed.
z If you forget to attach the dust bag or attach it in the wrong manner, the
dust cover may not close completely.
9

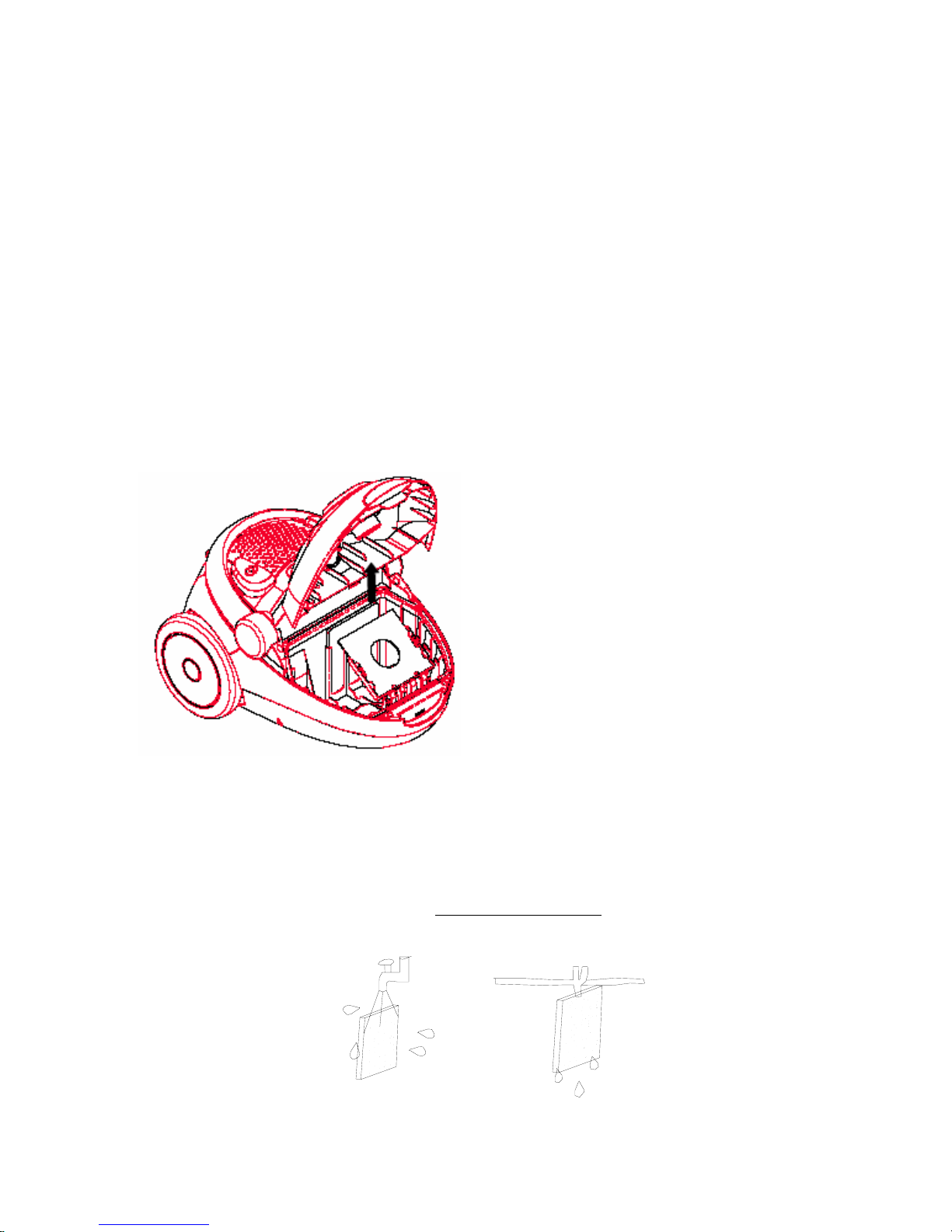

2. Cleaning / Changing the Carbon inlet filter:
z The filter should be cleaned at least twice a year or when it becomes
visibly solid. This filter can be washed clean in warm water.
z Always operate the cleaner with the filter installed, otherwise reduced suction
or motor damage may occur.
z
Disconnect from the electrical outlet before cleaning the filter.
z
Do not use a washing machine to wash / rinse the filter.
z Do not use a hair drier to dry it.
z Allow 24 hrs to air dry before refitting the filter.
1. Remove the dust bag as described in the previous section.
2. The filter is located behind the dust bag. Lift out the filter.
3. Either rinse or replace the filter. If you decide to rinse, wash in warm
water and allow the filter to
air dry completely before refitting.
10
4. Refit the filter and bag ensuring the bag is correctly located.

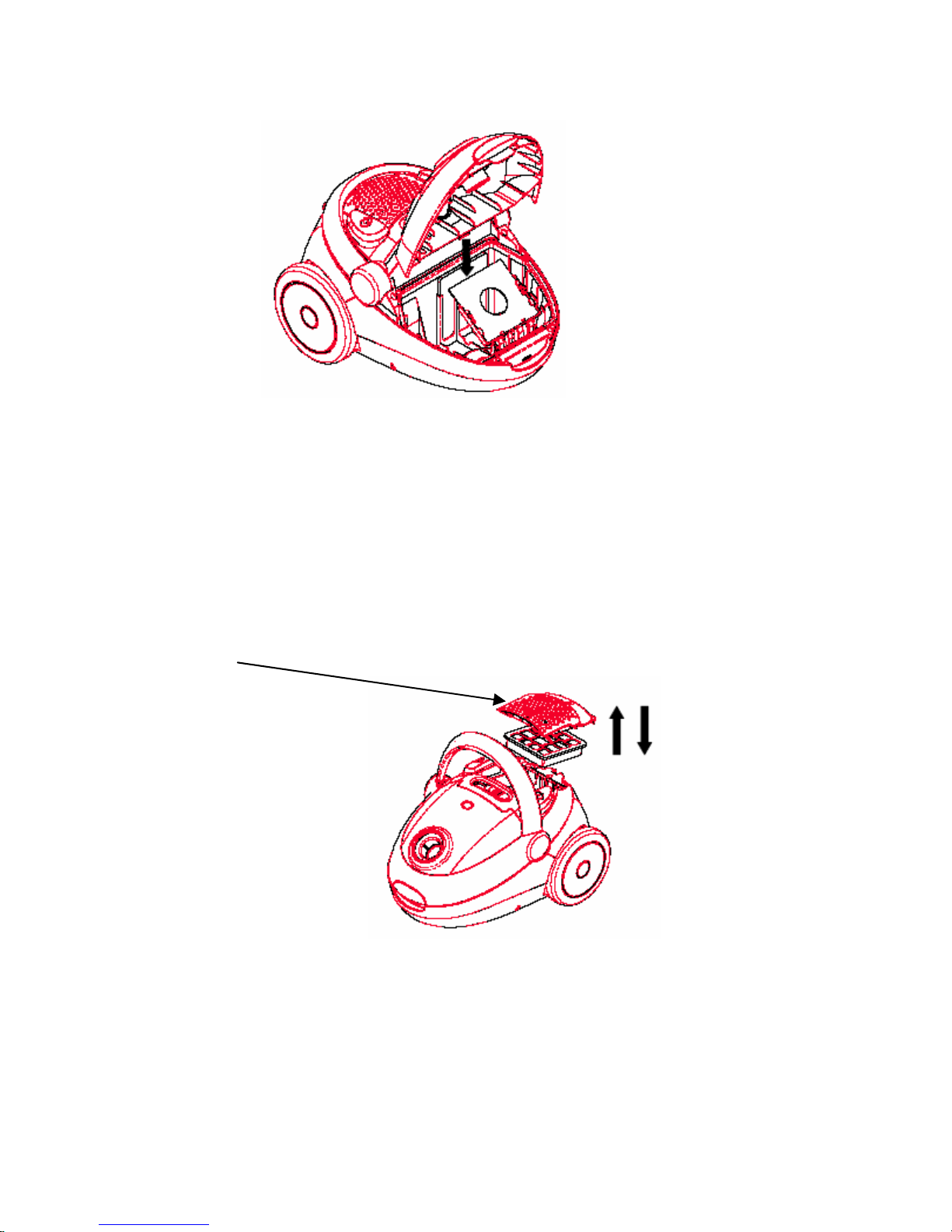

3. Cleaning / Changing the Hepa exhaust filter:
z Disconnect from the electrical outlet, before cleaning the filter.
z Always operate the cleaner with the filter installed.
z Lightly brush the filter clean when it becomes it visibly solid. For
optimum performance this filter should be replaced at least once a year.
z Do not wash / rinse this filter.
1. Unclip the exhaust filter cover and lift out the filter.
2.
Lightly brush the filter clean or replace the filter. For optimum
performance, it is advised the Hepa filter is replaced once a year
.
3. Refit the exhaust filter and clip on the cover.
11
12
If your appliance should fail, please check the following:
* Make sure the mains plug is correctly fitted in the socket.
* Check the fuse in the plug.
* Try another socket.
* In case the thermal cut out has tripped, allow 30 – 60 minutes for the cutout
device to reset. Please check for blockages in the hose, filters and dust-bag.
Service
● If the vacuum power cord has been damaged in any way, do not use the
vacuum cleaner. The vacuum cleaner must be repaired by a qualified
service agent.
● If you have any technical problems with your vacuum cleaner, please call
the Swan helpline: 01733 404703.
SPARE PARTS LIST
SC11040 /01 Hose & Nozzle
SC11040 /02 Floor Head
SC11040 /03 Chrome telescopic tube
SC11040 /04 Crevice tool
SC11040 /05 Small Brush / Upholstery tool
SC11041 /06 Turbo brush
SC11041 /51 Filter Kit
SC11040 /52 10 Paper dust-bags
SWAN VACUUM HELP-LINE: PLEASE CALL 01733 404703
SWAN VACUUM SPARE PARTS: PLEASE CALL 01733 404709
Calling from outside the UK Please Call - 00 44 1733 404703
WASTE ELECTRICAL RECYCLING
This symbol indicates that this pr oduct is classe d as Electrical or E lectronic Equipment
and should not be disposed of with other household waste.
The Waste Electrical and Electrical Equipment (WEEE) Directive has been introduced
across the European Union:
• to recycle waste electrical products using the best available recovery and
recycling techniques in order to minimise the impact on the environment
• to treat any hazardous substances and
• to avoid increasing landfill.
WEEE product should be disposed of by handing it over at a designated collection
point.
For more information about where you can drop off your waste product for
recycling please contact your local authority.
