About the Camera
Congratulations on your purchase of this PRO-655 from Swann! You’ve chosen well: we think this is
one of the finest CCTV video cameras available. The PRO-655 is great for monitoring a specific area and
is able to provide a high level of detail, even at night - it can see up to 20m/65ft in the dark.
Placement Guide
The PRO-655 has a 6mm, 50° lens built-in which allows it to focus its attention onto one specific area.
What does this mean for you when placing it?
• The camera will focus on the one particular area in front of the
lens, but won’t see much happening to the sides of it. You’ll
need to aim the camera specifically at what you want to see.
• Objects and people will look like they are slightly closer to the
camera than they really are. You’ll be able to monitor a space
which is as long (or longer) than it is wide.
The PRO-655 is great for monitoring long, narrow spaces such as hallways or corridors. It’s also great
for monitoring a specific space, such as a doorway, smaller room or staircase.
It’s best mounted high-up in a corner looking down into the space being monitored, so that it can look
over intervening obstacles. Also, the higher the camera is mounted, the harder it’ll be for an intruder
to access the camera or interfere with it.
Installing the Camera
The camera mounts onto a flat, vertical surface using screws. The surface must have sufficient strength
to hold the camera. Materials such as hardwood, brick or masonry are good options, and we’ve included
all the gear you’ll need to mount it there (except the tools - sorry, you’ll still need your own drill). You
can mount the camera onto a metal surface, but you’ll need to supply your own mounting hardware.
To mount the camera:
• Using the holes on the camera stand as a guide, mark the locations on your wall to drill. Make
sure the wall is thick and strong enough that you won’t drill through it.
• If the wall is masonry, brickwork or similar, use the provided wall plugs. If the wall is made of
wood, then the camera can be screwed directly onto the wall.
• Ensure that the cable is protected from the weather. The camera is weatherproof, but the cable
(particularly the power and video-out plugs) is not.
• Once the camera has been mounted, ensure that it is securely fixed in place. The camera is vandal
resistant, but that won’t help if an intruder can remove the whole camera!
Troubleshooting
Problem: At night, all I see is white.
Solution: The camera is most likely looking through a window. At night, the infrared light the camera
uses to see in the dark can ‘bounce back’ off a reflective surface (such as glass, water, spider webs,
some ceramics and so on) and effectively blind the camera. If you want to see outside, mount the
camera outside - we made it weatherproof for a reason!
Problem: I see only a blank screen where my image should be.
Solution: Check the wiring to the camera, and ensure the camera is being supplied power from
the included power adapter. Try using a different video lead, or connecting the camera to a different
television or monitor. Be sure there are no devices interrupting your signal, such as a DVR or VCR that
isn’t outputting the signal correctly.
Problem: I can’t see anything at night.
Solution: The maximum range of the night vision is just that, the maximum range. If there’s nothing
in this range, you won’t see anything. Also, some dark objects (like the proverbial black cat) may not
reflect enough light to be seen except as a silhouette if the background is brighter. Some objects which
can easily be seen in visible light don’t reflect much infrared light.
50°
10m
33ft
9.3m
28ft
Page 3
3
Technical Specifications
Video
Image Sensor 1/3” CCD
Video Quality 540 TV Lines
Effective Pixels NTSC: 568 x 494
PAL: 752 x 582
Min. Illumination 0 Lux (IR on)
White Balance Automatic
Electronic Shutter NTSC: 1/60 ~ 1/100 000
PAL: 1/50 ~ 1/100 000
Gain Control Automatic
Backlight Comp. Yes
Wide Dynamic Range Yes
Lens 6mm
Viewing Angle 50°
Night Vision
Range Up to 20m (65ft)
IR Cut Filter No
Number of IR LEDs 24
Infrared Wavelength 850nm
IR LED Life (Average) 10, 000 hours
General
Operating Power DC 12V @ 300mA
Operating Temp. -20°C ~ 45°C (-4°F ~ 113°F)
Casing Aluminium
Dimensions 165mm x 115mm x 67mm
(6.5” x 4.5” x 3.15”)
Weight 465g / 17.5oz (approx)
Tips & Tricks
• Try to aim the camera at an area which is evenly lit. Objects or people in shadows near brightly lit
objects are very hard to see.
• It’s better to have the camera in the shade looking into the light than vice-versa.
• When running your cable, try to avoid bending it at sharp angles. This can interrupt the signal
flow and degrade the quality of your images. If the cable must be bent, try to make the bend as
gradual as possible.
• Don’t put your cable near live electrical wiring. AC electricity generates radio “noise” which can
interfere with the signal from your camera.
INPUT

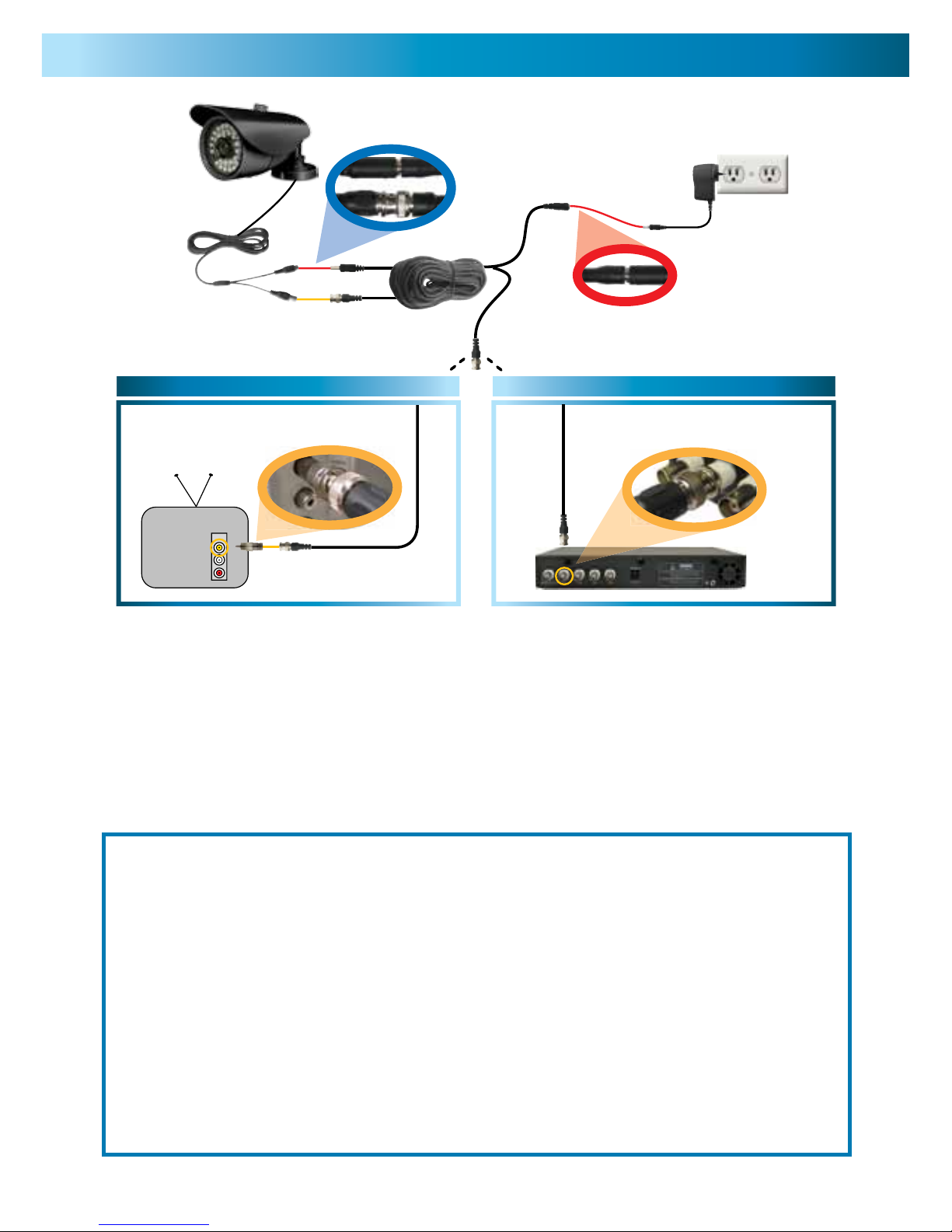

2A. Connecting Directly to TV 2B. Connecting to Your Existing DVR
Connect a BNC to RCA
adapter and connect to video
input on your TV or VCR
2
Connect the BNC extension
cable to an open channel on
the back of the DVR
2
Plug in the camera
power adapter into
a wall socket
4
Connect the camera’s DC
and BNC socket cable to the
extension cable’s DC and BNC plugs
1
Connect the extension cables
DC socket to the DC plug on
the power adapter
3
Connection Guide and Specifications
Page 4
444
© Swann Communications 2011
Warranty Information
Helpdesk / Technical Support Details
Swann Technical Support
All Countries E-mail: [email protected]
Telephone Helpdesk
See http://www.worldtimeserver.com for information on time zones and the current time in
Melbourne, Australia compared to your local time.
USA toll free
1-800-627-2799
(Su, 2pm-10pm US PT)
(M-Th, 6am-10pm US PT)
(F 6am-2pm US PT)
USA Exchange & Repairs
1-800-627-2799 (Option 1)
(M-F, 9am-5pm US PT)
AUSTRALIA toll free
1300 138 324
(M 9am-5pm AUS ET)
(Tu-F 1am-5pm AUS ET)
(Sa 1am-9am AUS ET)
NEW ZEALAND toll free
0800 479 266
UK
0203 027 0979
Swann Communications warrants this product against defects in workmanship and material for a period of
one (1) year from it’s original purchase date. You must present your receipt as proof of date of purchase for
warranty validation. Any unit which proves defective during the stated period will be repaired without charge
for parts or labour or replaced at the sole discretion of Swann. The end user is responsible for all freight
charges incurred to send the product to Swann’s repair centres. The end user is responsible for all shipping
costs incurred when shipping from and to any country other than the country of origin.
The warranty does not cover any incidental, accidental or consequential damages arising from the use of
or the inability to use this product. Any costs associated with the fitting or removal of this product by a
tradesman or other person or any other costs associated with its use are the responsibility of the end user.
This warranty applies to the original purchaser of the product only and is not transferable to any third party.
Unauthorized end user or third party modifications to any component or evidence of misuse or abuse of the
device will render all warranties void.
By law some countries do not allow limitations on certain exclusions in this warranty. Where applicable by
local laws, regulations and legal rights will take precedence.
Swann Communications USA Inc.
12636 Clark Street
Santa Fe Springs CA 90670
USA
Swann Communications
Unit 13, 331 Ingles Street,
Port Melbourne Vic 3207
Swann Communications LTD.
Stag Gates House
63/64 The Avenue
SO171XS
United Kingdom
FCC Verification
This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and the receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
WARNING: Modifications not approved by the party responsible for compliance could void user’s authority to
operate the equipment.
