Swann Hidden Still Camera & Recorder Specifications

DIY Home / Office Cameras

• Motion activated covert camera with SD memory

• Catch suspicious behavior in the act with easy plug & play installation

• Automatically record images onto SD Memory card (not included) upon motion

• A new generation time-lapse recorder with motion trigger

• Can use a rechargeable (recommended) or standard 9V battery or mains power

www.swannsecurity.com

Enquiries: info@swann.com.au Product Code: S211-DPE

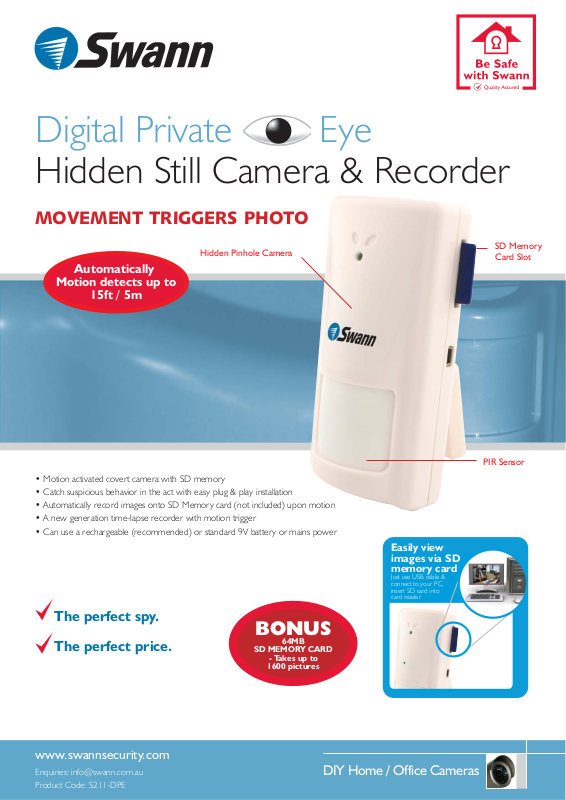

Digital Private Eye

Hidden Still Camera & Recorder

MOVEMENT TRIGGERS PHOTO

The perfect spy.

The perfect price.

SD Memory Card Slot

Hidden Pinhole Camera

PIR Sensor

Easily view images via SD memory card

Just use USB cable & connect to your PC, insert SD card into card reader

BONUS

64MB

SD MEMORY CARD

- Takes up to

1600 pictures

Automatically

Motion detects up to

15ft / 5m

Being a “fly on the wall” no longer requires multiple components or tricky wiring. With the new Digital Private Eye video camera and recorder from Swann Security, you can install greater peace of mind for a fraction of the cost. Whether it’s for the office, your home, the baby’s nursery, the warehouse –whatever you want to monitor, the Digital Private Eye records multiple images for added security and ultimate control. Position the camera at your front door or hallway, then simply plug in your SD Memory Card (sold separately), power cable or included 9V battery then watch the camera go to work!It can use up to a 1GB SD memory card to take 30,000 images.

The webcam is supported on Windows 2000/XP

Technical Specifications

Imaging Sensor: 1/4” Color CMOS sensor Lens: F2.0/f3.6(4G+IR), pinhole Resolution: 640H x 480V (4:3) Responsively: 1.9V/lux-sec(550nm) Dynamic Range: 60dB S/N Ratio: 45dB White Balance: Automatic Exposure: Automatic Frames Per-Second: 30 frames per-second USB: USB 1.1 @ PC camera mode Power Supply: 8~14VDC Current Consumption: Standby@12V~50mA

Max.(Alarm)@12V~50mA Operating Temperature: 14°F ~140°F / -10°C ~ 60°C Fire Protection: ABS plastic housing

Package Contents

- Digital Private Eye

- Instruction Manual

- Driver CD (required if connecting PIR direct to PC)

- Power Supply

- USB Cable

- 9 Volt battery snap

Modes:

- Set & forget alarm mode

(Connect to power & place Digital Private Eye in slot & watch it take pictures)

- Webcam mode

(Use as a web camera or use through PC to capture video)

- Card reader mode

(Plug USB cable into your PC & it will show content of the memory card)

Please note that the information

contained within this document is

subject to change without notification.
