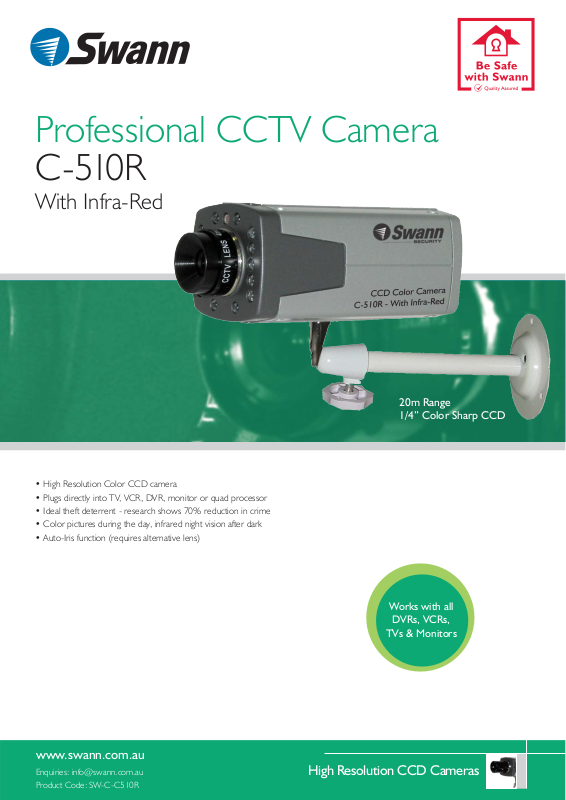

Page 1
• High Resolution Color CCD camera
• Plugs directly into TV, VCR, DVR, monitor or quad processor
• Ideal theft deterrent - research shows 70% reduction in crime
• Color pictures during the day, infrared night vision after dark
• Auto-Iris function (requires alternative lens)
www.swann.com.au
Enquiries: info@swann.com.au
Product Code: SW-C-C510R
Professional CCTV Camera
C -510R
With Infra-Red
High Resolution CCD Cameras
Works with all
DVRs, VCRs,
TVs & Monitors
20m Range
1/4” Color Sharp CCD
Page 2
Swann CCD Camera is the CCD all round solution
The Swann Professional CCD Camera provides you with crisp clear images when connected
to your TV, VCR, or Swann Security solution. With a C/CS inter-changeable lens system which
allows for the addition of optional lenses#, the Swann Professional CCD Camera is ideal for
Domestic to Commercial applications to suit your surveillance needs or location.
Professional CCTV Camera
C -510R
With Infra-Red
Technical Specifications
Sensor: 1/4" Sharp CCD
Pickup device: 1/4” Sharp CCD
image sensor
Number of pixels: PAL: 512(H) x 582 (V)
NTSC: 512 (H) x 492 (V)
System of signal: NTSC/PAL
Horizontal resolution: 400 TV lines
Lens Mount: C/CS
Backlight compensation: Auto
Electronic shutter: 1/50 (1/60)~1/100,000 sec
Iris control: Video/DC
White balance: Auto
S/N ratio: >48dB
Minimum Illumination: 0 Lux/F1.2
Gamma correction: >0.45
Operation temperature: 0C ~50C
32F - 122F
Sync. System: Internal
Video Output: <1.2Vp-p/75
Dimensions (mm): 119 (L) x 59 (W) x 52(H)
Weight: 236
Package Contents
Professional CCD Camera
Instruction Manual
Camera Stand
12V DC Power Adaptor
10m/33ft Cable
Fixed 4mm Lens
#Extra lenses sold separately
Please note that the information contained
within this document is subject to change
without notification.
Ideal for:
Retail Stores
Offices HomeWarehouses
