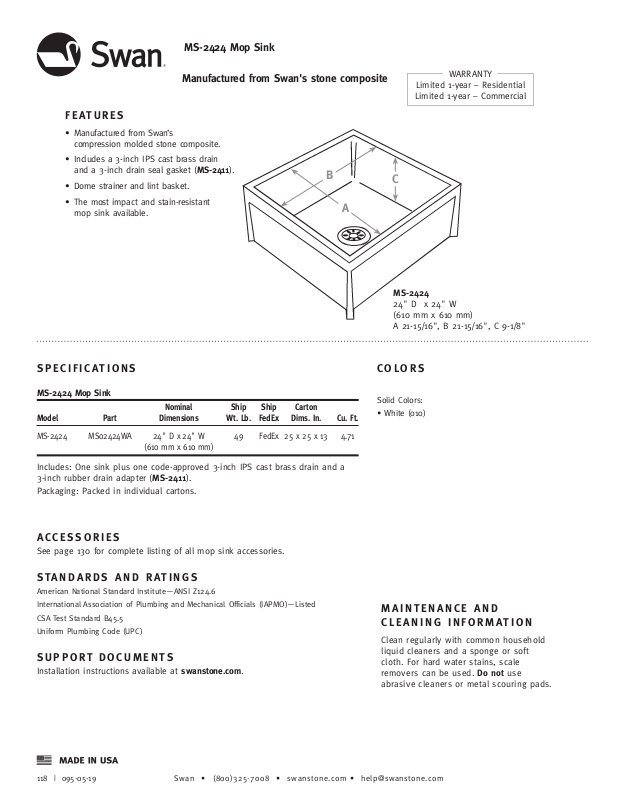

MS-2424 Mop Sink
Manufactured from Swan's stone composite
FEATURES
• Manufactured from Swan’s
compression molded stone composite.
• Includes a 3-inch IPS cast brass drain
and a 3-inch drain seal gasket (MS-2411).
• Dome strainer and lint basket.
• The most impact and stain-resistant
mop sink available.
WARRANTY
Limited 1-year – Residential
Limited 1-year – Commercial
B
C
A
MS-2424
24" D x 24" W
(610 mm x 610 mm)
A 21-15/16", B 21-15/16", C 9-1/8"
SPECIFICATIONS
MS-2424 Mop Sink
Nominal Ship Ship Carton
Model Part Dimensions Wt. Lb. FedEx Dims. In. Cu. Ft.
MS-2424 MS02424WA 24" D x 24" W 49 FedEx 25 x 25 x 13 4.71
(610 mm x 610 mm)
Includes: One sink plus one code-approved 3-inch IPS cast brass drain and a
3-inch rubber drain adapter (MS-2411).
Packaging: Packed in individual cartons.
ACCESSORIES
See page 130 for complete listing of all mop sink accessories.
STANDARDS AND RATINGS
American National Standard Institute—ANSI Z124.6
International Association of Plumbing and Mechanical Officials (IAPMO)—Listed
CSA Test Standard B45.5
Uniform Plumbing Code (UPC)
SUPPORT DOCUMENTS
Installation instructions available at swanstone.com.
COLORS
Solid Colors:
• White (010)
MAINTENANCE AND
CLEANING INFORMATION
Clean regularly with common household
liquid cleaners and a sponge or soft
cloth. For hard water stains, scale
removers can be used.
abrasive cleaners or metal scouring pads.
Do not use
095-05-19
Swan • (800)325-7008 • swanstone.com • [email protected]118 |
