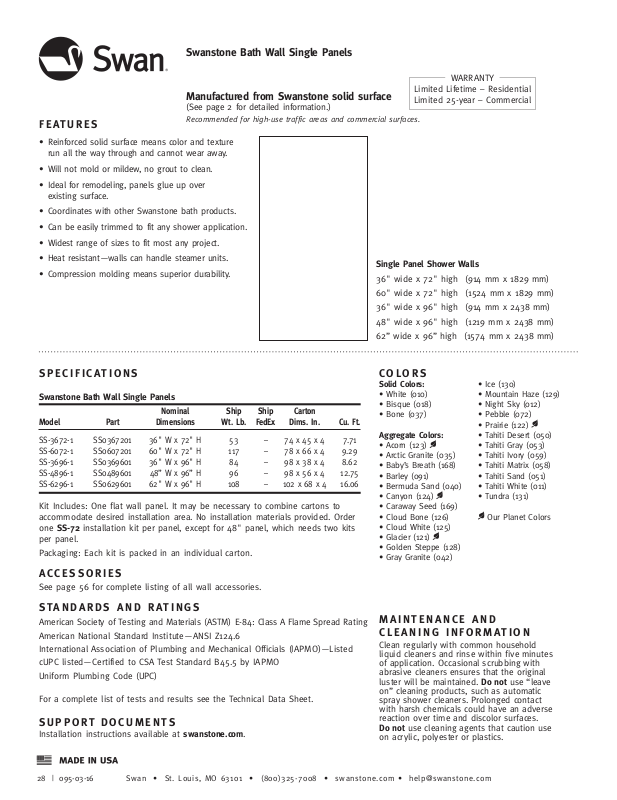

Swanstone Bath Wall Single Panels
Manufactured from Swanstone solid surface
(See page 2 for detailed information.)
FEATURES
• Reinforced solid surface means color and texture
run all the way through and cannot wear away.
• Will not mold or mildew, no grout to clean.
• Ideal for remodeling, panels glue up over
existing surface.
• Coordinates with other Swanstone bath products.
• Can be easily trimmed to fit any shower application.
• Widest range of sizes to fit most any project.
• Heat resistant—walls can handle steamer units.
• Compression molding means superior durability.
Recommended for high-use traffic areas and commercial surfaces.
WARRANTY
Limited Lifetime – Residential
Limited 25-year – Commercial
Single Panel Shower Walls
36" wide x 72" high (914 mm x 1829 mm)
60" wide x 72" high (1524 mm x 1829 mm)
36" wide x 96" high (914 mm x 2438 mm)
48" wide x 96" high (1219 mm x 2438 mm)
62” wide x 96” high (1574 mm x 2438 mm)
SPECIFICATIONS
Swanstone Bath Wall Single Panels
Nominal Ship Ship Carton
Model Part Dimensions Wt. Lb. FedEx Dims. In. Cu. Ft.
SS-3672-1 SS0367201 36" W x 72" H 53 – 74 x 45 x 4 7.71
SS-6072-1 SS0607201 60" W x 72" H 117 – 78 x 66 x 4 9.29
SS-3696-1 SS0369601 36" W x 96" H 84 – 98 x 38 x 4 8.62
SS-4896-1 SS0489601 48” W x 96” H 96 – 98 x 56 x 4 12.75
SS-6296-1 SS0629601 62" W x 96" H 108 – 102 x 68 x 4 16.06
Kit Includes: One flat wall panel. It may be necessary to combine cartons to
accommodate desired installation area. No installation materials provided. Order
one SS-72 installation kit per panel, except for 48" panel, which needs two kits
per panel.
Packaging: Each kit is packed in an individual carton.
ACCESSORIES
See page 56 for complete listing of all wall accessories.
STANDARDS AND RATINGS
American Society of Testing and Materials (ASTM) E-84: Class A Flame Spread Rating
American National Standard Institute—ANSI Z124.6
International Association of Plumbing and Mechanical Officials (IAPMO)—Listed
cUPC listed—Certified to CSA Test Standard B45.5 by IAPMO
Uniform Plumbing Code (UPC)
For a complete list of tests and results see the Technical Data Sheet.
SUPPORT DOCUMENTS
Installation instructions available at swanstone.com.
COLORS
Solid Colors:
• White (010)
• Bisque (018)
• Bone (037)
Aggregate Colors:
• Acorn (123)
• Arctic Granite (035)
• Baby’s Breath (168)
• Barley (091)
• Bermuda Sand (040)
• Canyon (124)
• Caraway Seed (169)
• Cloud Bone (126)
• Cloud White (125)
• Glacier (121)
• Golden Steppe (128)
• Gray Granite (042)
• Ice (130)
• Mountain Haze (129)
• Night Sky (012)
• Pebble (072)
• Prairie (122)
• Tahiti Desert (050)
• Tahiti Gray (053)
• Tahiti Ivory (059)
• Tahiti Matrix (058)
• Tahiti Sand (051)
• Tahiti White (011)
• Tundra (131)
Our Planet Colors
MAINTENANCE AND
CLEANING INFORMATION
Clean regularly with common household
liquid cleaners and rinse within five minutes
of application. Occasional scrubbing with
abrasive cleaners ensures that the original
luster will be maintained. Do not use “leave
on” cleaning products, such as automatic
spray shower cleaners. Prolonged contact
with harsh chemicals could have an adverse
reaction over time and discolor surfaces.
Do not use cleaning agents that caution use
on acr ylic, polyester or plastics.
095-03-16
