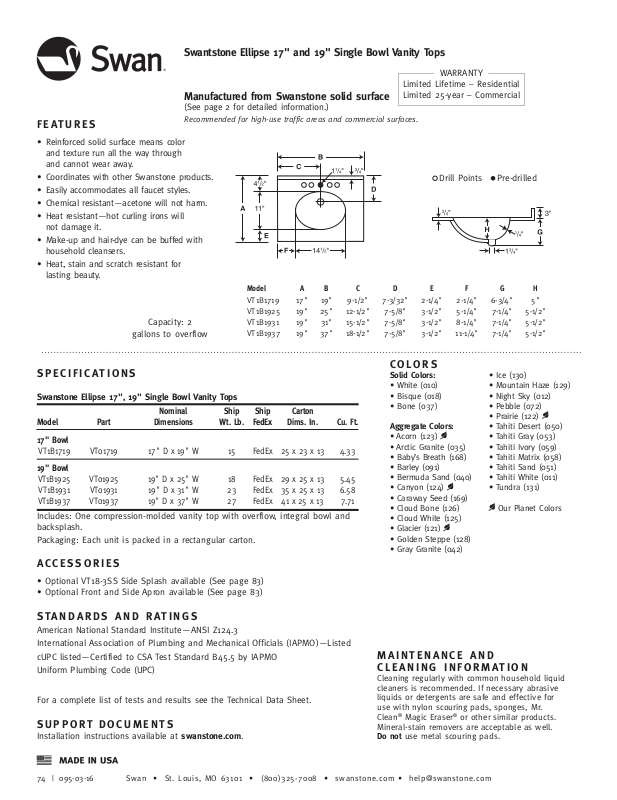

Swantstone Ellipse 17" and 19" Single Bowl Vanity Tops
Manufactured from Swanstone solid surface
(See page 2 for detailed information.)
FEATURES
• Reinforced solid surface means color
and texture run all the way through
and cannot wear away.
• Coordinates with other Swanstone products.
• Easily accommodates all faucet styles.
• Chemical resistant—acetone will not harm.
• Heat resistant—hot curling irons will
not damage it.
• Make-up and hair-dye can be buffed with
household cleansers.
• Heat, stain and scratch resistant for
lasting beauty.
Capacity: 2
gallons to overflow
Recommended for high-use traffic areas and commercial surfaces.
WARRANTY
Limited Lifetime – Residential
Limited 25-year – Commercial
Drill Points Pre-drilled
Model A B C D E F G H
VT1B1719 17" 19" 9-1/2" 7-3/32" 2-1/4" 2-1/4" 6-3/4" 5"
VT1B1925 19" 25" 12-1/2" 7-5/8" 3-1/2" 5-1/4" 7-1/4" 5-1/2"
VT1B1931 19" 31" 15-1/2" 7-5/8" 3-1/2" 8-1/4" 7-1/4" 5-1/2"
VT1B1937 19" 37" 18-1/2" 7-5/8" 3-1/2" 11-1/4" 7-1/4" 5-1/2"
SPECIFICATIONS
Swanstone Ellipse 17", 19" Single Bowl Vanity Tops
Nominal Ship Ship Carton
Model Part Dimensions Wt. Lb. FedEx Dims. In. Cu. Ft.
17" Bowl
VT1B1719 VT01719 17" D x 19" W 15 FedEx 25 x 23 x 13 4.33
19" Bowl
VT1B1925 VT01925 19" D x 25" W 18 FedEx 29 x 25 x 13 5.45
VT1B1931 VT01931 19" D x 31" W 23 FedEx 35 x 25 x 13 6.58
VT1B1937 VT01937 19" D x 37" W 27 FedEx 41 x 25 x 13 7.71
Includes: One compression-molded vanity top with overflow, integral bowl and
backsplash.
Packaging: Each unit is packed in a rectangular carton.
ACCESSORIES
• Optional VT18-3SS Side Splash available (See page 83)
• Optional Front and Side Apron available (See page 83)
STANDARDS AND RATINGS
American National Standard Institute—ANSI Z124.3
International Association of Plumbing and Mechanical Officials (IAPMO)—Listed
cUPC listed—Certified to CSA Test Standard B45.5 by IAPMO
Uniform Plumbing Code (UPC)
For a complete list of tests and results see the Technical Data Sheet.
SUPPORT DOCUMENTS
Installation instructions available at swanstone.com.
COLORS
Solid Colors:
• White (010)
• Bisque (018)
• Bone (037)
Aggregate Colors:
• Acorn (123)
• Arctic Granite (035)
• Baby’s Breath (168)
• Barley (091)
• Bermuda Sand (040)
• Canyon (124)
• Caraway Seed (169)
• Cloud Bone (126)
• Cloud White (125)
• Glacier (121)
• Golden Steppe (128)
• Gray Granite (042)
• Ice (130)
• Mountain Haze (129)
• Night Sky (012)
• Pebble (072)
• Prairie (122)
• Tahiti Desert (050)
• Tahiti Gray (053)
• Tahiti Ivory (059)
• Tahiti Matrix (058)
• Tahiti Sand (051)
• Tahiti White (011)
• Tundra (131)
Our Planet Colors
MAINTENANCE AND
CLEANING INFORMATION
Cleaning regularly with common household liquid
cleaners is recommended. If necessary abrasive
liquids or detergents are safe and effec tive for
use with nylon scouring pads, sponges, Mr.
Clean® Magic Eraser® or other similar products.
Mineral-stain removers are acceptable as well.
Do not use metal scouring pads.
095-03-16
Swan • St. Louis, MO 63101 • (800)325-7008 • swanstone.com • help@swanstone.com74 |
