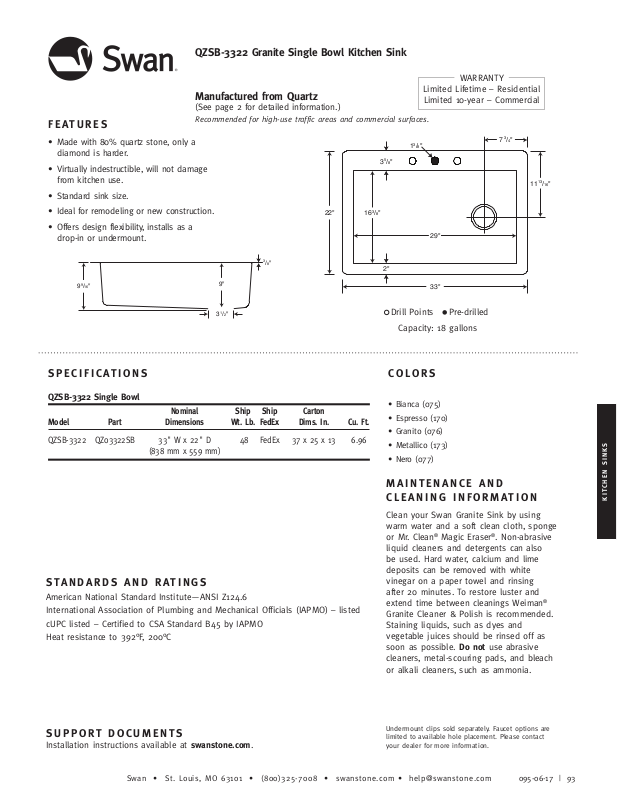

QZSB-3322 Granite Single Bowl Kitchen Sink
7
3
/4''
QZSB-3322
35/8''
22''
33''
163/8''
2''
29''
7
3
/4''
1113/16''
QZSB-3322
13/8''
Manufactured from Quartz
(See page 2 for detailed information.)
FEATURES
• Made with 80% quartz stone, only a
diamond is harder.
• Virtually indestructible, will not damage
from kitchen use.
• Standard sink size.
• Ideal for remodeling or new construction.
• Offers design flexibility, installs as a
drop-in or undermount.
99/16''
Recommended for high-use traffic areas and commercial surfaces.
WARRANTY
Limited Lifetime – Residential
Limited 10-year – Commercial
13/8''
35/8''
1113/16''
22''
3
/8''
9''
163/8''
29''
2''
33''
1
3
/2''
SPECIFICATIONS
QZSB-3322 Single Bowl
Nominal Ship Ship Carton
Model Part Dimensions Wt. Lb. FedEx Dims. In. Cu. Ft.
QZSB-3322 QZ03322SB 33" W x 22" D 48 FedEx 37 x 25 x 13 6.96
(838 mm x 559 mm)
STANDARDS AND RATINGS
American National Standard Institute—ANSI Z124.6
International Association of Plumbing and Mechanical Officials (IAPMO) – listed
cUPC listed – Certified to CSA Standard B45 by IAPMO
Heat resistance to 392°F, 200°C
Drill Points Pre-drilled
Capacity: 18 gallons
COLORS
• Bianca (075)
• Espresso (170)
• Granito (076)
• Metallico (173)
• Nero (077)
MAINTENANCE AND
CLEANING INFORMATION
Clean your Swan Granite Sink by using
warm water and a soft clean cloth, sponge
or Mr. Clean® Magic Eraser®. Non-abrasive
liquid cleaners and detergents can also
be used. Hard water, calcium and lime
deposits can be removed with white
vinegar on a paper towel and rinsing
after 20 minutes. To restore luster and
extend time between cleanings Weiman®
Granite Cleaner & Polish is recommended.
Staining liquids, such as dyes and
vegetable juices should be rinsed off as
soon as possible. Do not use abrasive
cleaners, metal-scouring pads, and bleach
or alkali cleaners, such as ammonia.
KITCHEN SINKS
SUPPORT DOCUMENTS
Installation instructions available at swanstone.com.
Swan • St. Louis, MO 63101 • (800)325-7008 • swanstone.com • [email protected]
Undermount clips sold separately. Faucet options are
limited to available hole placement. Please contact
your dealer for more information.
095-06-17
