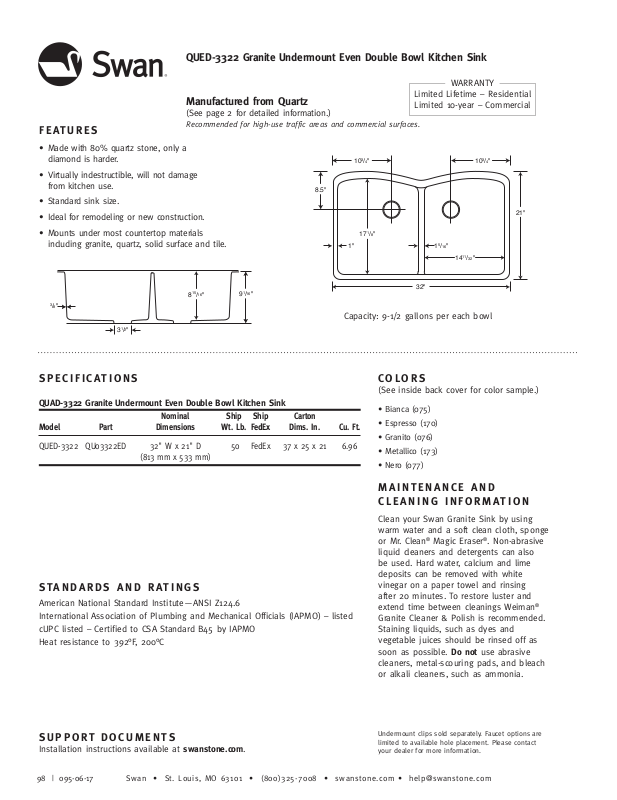

Swan NWAS1049 Specifications

QUED-3322 Granite Undermount Even Double Bowl Kitchen Sink

QUED-3322

1411/32"

103/4"103/4"

8.5"

32"

21"

171/8"

1" 1

5

/16"

QUED-3322

3

/8"

91/16"

3

1

/2"

815/16"

1411/32"

103/4"103/4"

8.5"

32"

21"

171/8"

1" 1

5

/16"

Manufactured from Quartz

(See page 2 for detailed information.)

FEATURES

• Made with 80% quartz stone, only a
diamond is harder.

• Virtually indestructible, will not damage
from kitchen use.

• Standard sink size.

• Ideal for remodeling or new construction.

• Mounts under most countertop materials
including granite, quartz, solid surface and tile.

Recommended for high-use traffic areas and commercial surfaces.

WARRANTY
Limited Lifetime – Residential
Limited 10-year – Commercial

Capacity: 9-1/2 gallons per each bowl

SPECIFICATIONS

QUAD-3322 Granite Undermount Even Double Bowl Kitchen Sink

Nominal Ship Ship Carton
Model Part Dimensions Wt. Lb. FedEx Dims. In. Cu. Ft.

QUED-3322 QU03322ED 32" W x 21" D 50 FedEx 37 x 25 x 21 6.96
(813 mm x 533 mm)

STANDARDS AND RATINGS

American National Standard Institute—ANSI Z124.6
International Association of Plumbing and Mechanical Officials (IAPMO) – listed
cUPC listed – Certified to CSA Standard B45 by IAPMO
Heat resistance to 392°F, 200°C

COLORS

(See inside back cover for color sample.)

• Bianca (075)

• Espresso (170)

• Granito (076)

• Metallico (173)

• Nero (077)

MAINTENANCE AND
CLEANING INFORMATION

Clean your Swan Granite Sink by using
warm water and a soft clean cloth, sponge
or Mr. Clean® Magic Eraser®. Non-abrasive
liquid cleaners and detergents can also
be used. Hard water, calcium and lime
deposits can be removed with white
vinegar on a paper towel and rinsing
after 20 minutes. To restore luster and
extend time between cleanings Weiman®
Granite Cleaner & Polish is recommended.
Staining liquids, such as dyes and
vegetable juices should be rinsed off as
soon as possible. Do not use abrasive
cleaners, metal-scouring pads, and bleach
or alkali cleaners, such as ammonia.

SUPPORT DOCUMENTS

Installation instructions available at swanstone.com.

095-06-17

Swan • St. Louis, MO 63101 • [phone] • swanstone.com • [e-mail]98 |

Undermount clips sold separately. Faucet options are
limited to available hole placement. Please contact
your dealer for more information.
