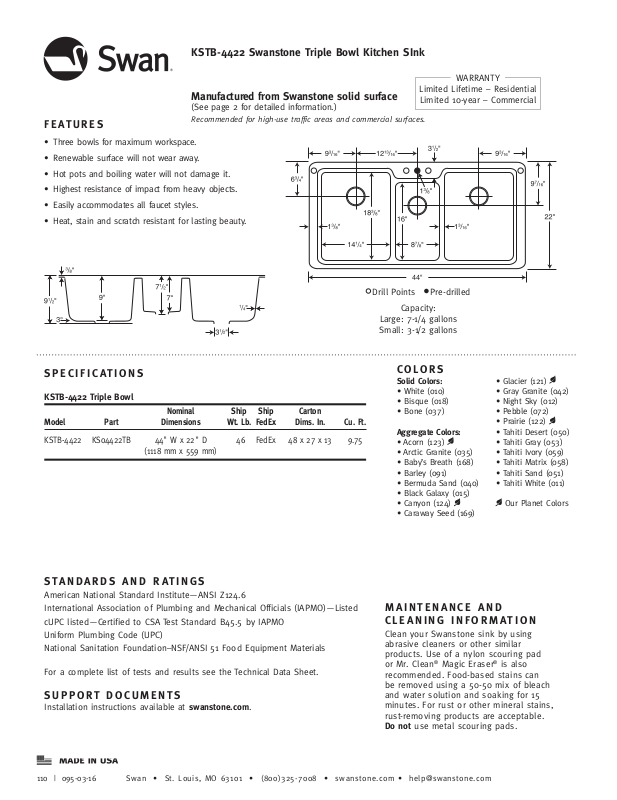

Swan NWAS1045 Specifications

KSTB-4422 Swanstone Triple Bowl Kitchen SInk

Manufactured from Swanstone solid surface  

(See page 2 for detailed information.)

FEATURES

• Three bowls for maximum workspace.

• Renewable surface will not wear away.

• Hot pots and boiling water will not damage it.

• Highest resistance of impact from heavy objects.

• Easily accommodates all faucet styles.

• Heat, stain and scratch resistant for lasting beauty.

Recommended for high-use traffic areas and commercial surfaces.

WARRANTY
Limited Lifetime – Residential
Limited 10-year – Commercial

Drill Points Pre-drilled

Capacity:
Large: 7-1/4 gallons
Small: 3-1/2 gallons

SPECIFICATIONS

KSTB-4422 Triple Bowl 
      Nominal  Ship  Ship  Carton

Model  Part  Dimensions  Wt. Lb.  FedEx  Dims. In.  Cu. Ft.

KSTB-4422 KS04422TB 44" W x 22" D 46 FedEx 48 x 27 x 13 9.75
(1118 mm x 559 mm)

STANDARDS AND RATINGS

American National Standard Institute—ANSI Z124.6
International Association of Plumbing and Mechanical Officials (IAPMO)—Listed
cUPC listed—Certified to CSA Test Standard B45.5 by IAPMO
Uniform Plumbing Code (UPC)
National Sanitation Foundation–NSF/ANSI 51 Food Equipment Materials

For a complete list of tests and results see the Technical Data Sheet.

SUPPORT DOCUMENTS

Installation instructions available at swanstone.com.

COLORS

Solid Colors:

• White (010)

• Bisque (018)

• Bone (037)

Aggregate Colors:

• Acorn (123)

• Arctic Granite (035)

• Baby’s Breath (168)

• Barley (091)

• Bermuda Sand (040)

• Black Galaxy (015)

• Canyon (124)

• Caraway Seed (169)

• Glacier (121)

• Gray Granite (042)

• Night Sky (012)

• Pebble (072)

• Prairie (122)

• Tahiti Desert (050)

• Tahiti Gray (053)

• Tahiti Ivory (059)

• Tahiti Matrix (058)

• Tahiti Sand (051)

• Tahiti White (011)

Our Planet Colors

MAINTENANCE AND 
CLEANING INFORMATION

Clean your Swanstone sink by using
abrasive cleaners or other similar
products. Use of a nylon scouring pad
or Mr. Clean® Magic Eraser® is also
recommended. Food-based stains can
be removed using a 50-50 mix of bleach
and water solution and soaking for 15
minutes. For rust or other mineral stains,
rust-removing products are acceptable.
Do not use metal scouring pads.

095-03-16

Swan • St. Louis, MO 63101 • [phone] • swanstone.com • [e-mail]110 |
