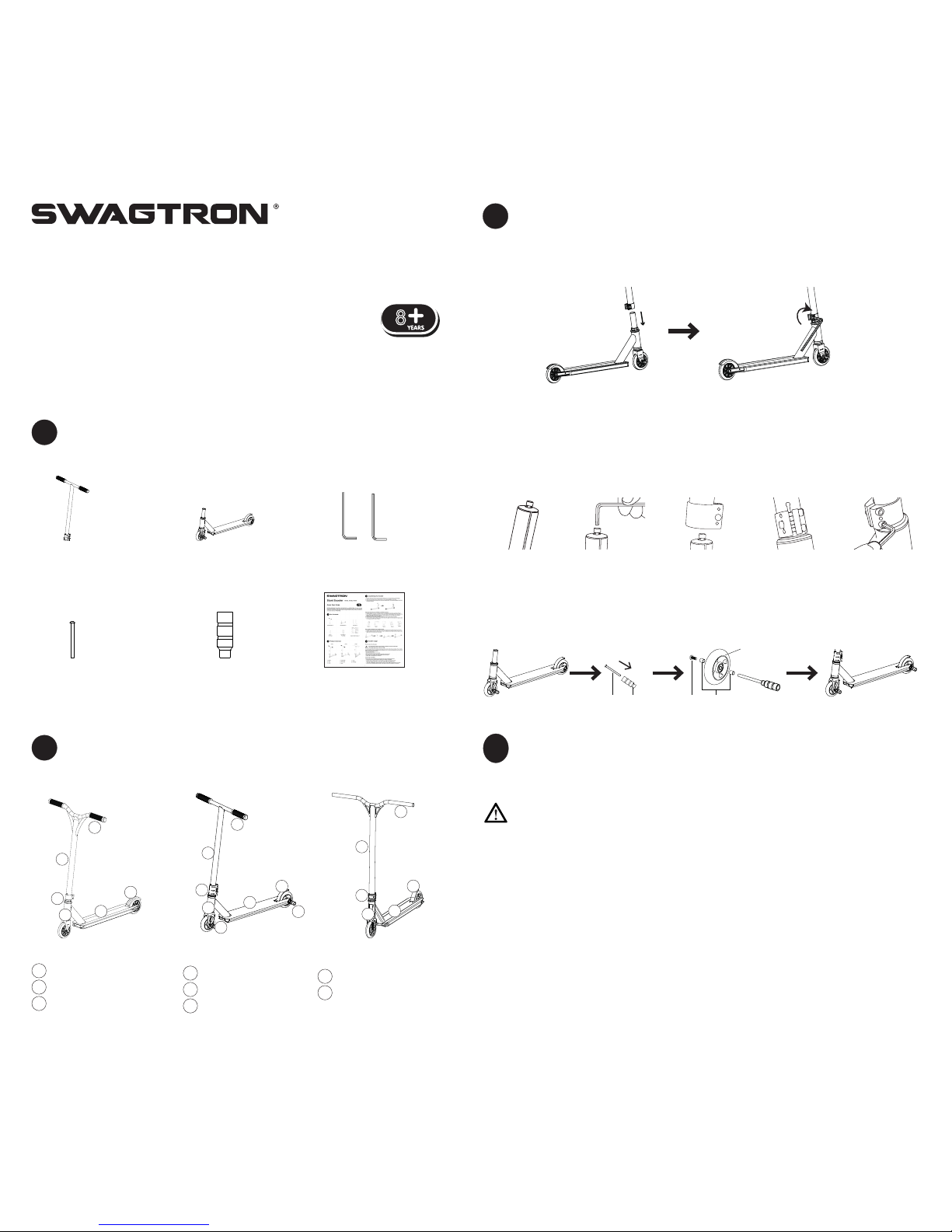

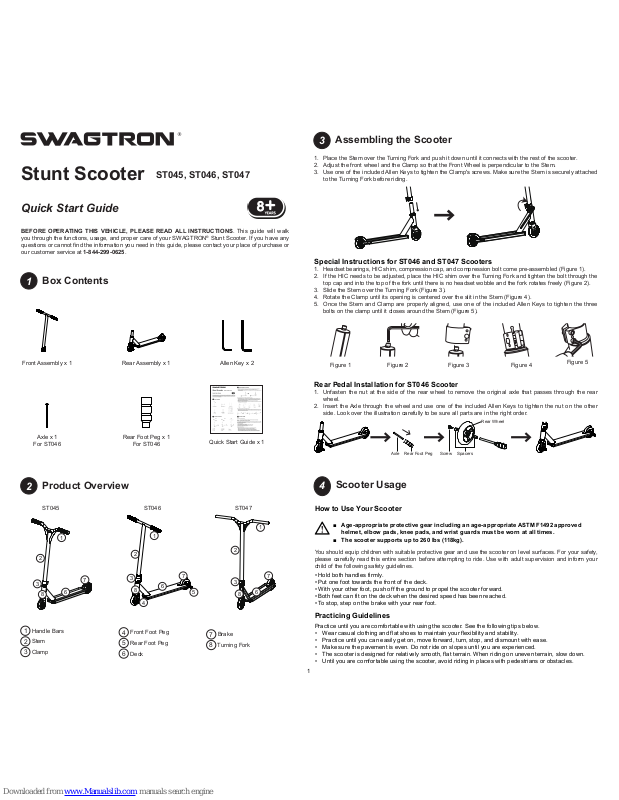

Stunt Scooter

Quick Start Guide

ST045, ST046, ST047

Box Contents

Product Overview

Assembling the Scooter

Scooter Usage

Allen Key x 2Rear Assembly x 1

Axle x 1

For ST046

Rear Foot Peg x 1

For ST046

Front Assembly x 1

Quick Start Guide x 1

Handle Bars

Stem

Clamp

Front Foot Peg

Rear Foot Peg

Deck

How to Use Your Scooter

■ Age -appro priate p rotect ive gear inc luding an ag e-ap propria te ASTM F1492 approve d

helmet , elbow pad s, knee pad s, and wris t guards mu st be worn at a ll times.

■ The sc ooter supp orts u p to 260 lbs (118kg).

You should equip children with suitable protective gear and use the scooter on level surfaces. For your safety, please carefully read this entire section before attempting to ride. Use with adult supervision and inform your child of the following safety guidelines.

• Hold both hand les firmly.

• Put one foot towards t he front of the de ck.

• With your other foot, push off t he ground to prop el the scoote r forward.

• Both feet can f it on the deck wh en the desired s peed has been reached.

• To stop, step on the brake with your rea r foot.

Practicing Guidelines

Practice unt il you are comfo rtable wi th using the sc ooter. See the followin g tips below.

• Wear casual clothing and flat s hoes to maintain yo ur flexibilit y and stabili ty.

• Practice unt il you can easily g et on, move forwa rd, turn, stop, and dis mount with ease.

• Make sure the pavement i s even. Do not ride on slopes until you ar e experience d.

• The scooter is d esigned for re latively smoot h, flat terrai n. When riding o n uneven terrain, sl ow down.

• Until you are com fortabl e using the sco oter, avoid riding in plac es with pedestrians or obst acles.

BEFORE OPERATING THIS VEHICLE, PLEASE READ ALL INSTRUCTIONS

. This guide will walk

you through the functions, usage, and proper care of your SWAGTRON® Stunt Scooter. If you have any

questions or cannot nd the information you need in this guide, please contact your place of purchase or

our customer service at

1-844-299-0625

Brake

Turning Fork

ST045 ST046 ST047

1. Place the Stem over the Turning Fork and push it down until it connects with the rest of the scooter.

2. Adjust the front wheel and the Clamp so that the Front Wheel is perpendicular to the Stem.

3. Use one of the included Allen Keys to tighten the Clamp's screws. Make sure the Stem is securely attached to the Turning Fork before riding.

Special Instructions for ST046 and ST047 Scooters

1. Headset bearings, HIC shim, compression cap, and compression bolt come pre-assembled (Figure 1).

2. If the HIC needs to be adjusted, place the HIC shim over the Turning Fork and tighten the bolt through the top cap and into the top of the fork until there is no headset wobble and the fork rotates freely (Figure 2).

3. Slide the Stem over the Turning Fork (Figure 3).

4. Rotate the Clamp until its opening is centered over the slit in the Stem (Figure 4).

5. Once the Stem and Clamp are properly aligned, use one of the included Allen Keys to tighten the three bolts on the clamp until it closes around the Stem (Figure 5).

Rear Pedal Installation for ST046 Scooter

1. Unfasten the nut at the side of the rear wheel to remove the original axle that passes through the rear wheel.

2. Insert the Axle through the wheel and use one of the included Allen Keys to tighten the nut on the other side. Look over the illustration carefully to be sure all parts are in the right order.

Figure 1

Figure 2 Figure 3 Figure 4

Figure 5

ScrewAxle Rear Foot Peg Spacers

Rear Wheel

Page 2

Specications

Model Item Parameters

ST045

Stem Steel Tube Compression System N/A Turning Fork Steel Brake Steel Clamp Double Wheels 3.9 in (10cm) PU Wheel + Polycarbonate Core Bearings ABEC-7 Grip Material TPE Maximum Load 260 lbs (118kg) Certications ASTM F2264 Ages 8+ Scooter Dimensions 27.4 x 18 x 31.3 in (69.5 x 46 x 79.5 cm) Deck Dimensions 19.5 x 4 in (49.6 x 10.2 cm) Deck Material Aluminum Alloy Weight 7.4 lbs (3.3 kg)

ST046

Stem Steel Tube Compression System HIC System Turning Fork Forged aluminum alloy Brake Flexible Steel Clamp Triangle Wheels 3.9 in (10cm) PU Wheel + Aluminum Core & Pegs Bearings ABEC-9 Grip Material TPE Maximum Load 260 lbs (118kg) Certications ASTM F2264 Ages 8+ Scooter Dimensions 27.4 x 17.8 x 31.5 in (69.5 x 45.2 x 80 cm) Deck Dimensions 19.7 x 4 in (50 x 10.2 cm) Deck Material Aluminum Alloy Weight 8.2 lbs (3.7 kg)

ST047

Stem Chrome Steel Tube Compression System HIC System Turning Fork Forged + CNC aluminum alloy Brake Flexible Steel Clamp CNC Double Wheels 4.3 in (11cm) PU Wheel + Aluminum Core Bearings ABEC-9 NSK 608ZZ Grip Material TPE Maximum Load 260 lbs (118kg) Certications ASTM F2264 Ages 8+ Scooter Dimensions 28.2 x 23 x 35.4 in (71.5 x 58.5 x 90 cm Deck Dimensions 20.5 x 4.3 in (52 x 11 cm) Deck Material Aluminum Alloy Weight 8.6 lbs (3.9 kg)

Safety Warnings

The SWAGTRON® Stunt Scooters are self-propelled, personal scooters designed for children ages 8 and up. They not intended or equipped for road use, off-road use, or use with any motorized device. By operating the scooter, the user acknowledges and accepts responsibility of all risks associated with the use of the SWAGTRON® Stunt Scooters which may include, but are not limited to, muscle injuries, broken bones, lacerations, serious injury, and possible death.

· To better ensure your safety, ALWAYS USE APPROPRIATE PROTECTIVE GEAR and read and follow all instructions and warnings in this guide.

· Appropriate protective gear should include an age-appropriate ASTM F1492 approved helmet, elbow pads, knee pads, and wrist guards. Always wear a helmet when riding your scooter and keep the chinstrap securely buckled. Always wear shoes.

· Use with adult supervision.

· Adults must assist children in any initial adjustment procedures.

· Keep ngers away from moving parts to avoid pinching and entrapment.

· Do not modify the scooter or change the scooter in any way not outlined in these instructions.

· The scooter should be used with caution. It requires skill and practice to avoid falls or collisions that may cause injury to the user or other parties.

· Users must be at least 8 years old and weigh no more than 260 lbs.

· Use on at, clean, and dry surfaces, and keep away from other road users.

· Avoid sharp bumps, drainage grates, and sudden surface changes. Scooter may suddenly stop.

· Avoid streets and surfaces with water, sand, gravel, dirt, leaves, and other debris. Wet weather impairs traction, braking, and visibility.

· Avoid excessive speed associated with downhill rides.

· Never allow more than one person at a time on the scooter.

· Never ride at night, obey all local trafc and scooter riding laws and regulations, and give right of

way to pedestrians.

· Brake will get hot from continuous use. Do not touch after braking.

· Never leave your scooter unlocked and unattended.

· Regular maintenance enhances the safety of the equipment.

· Use a few drops of oil to lubricate wheel bearings periodically or as needed.

· Clean bearings after use and replace them when worn.

· Please ensure all screws and ttings are secure before giving the scooter to a child.

· Check and secure all fasteners before every ride. Screws and xtures may loosen over time.

· Replace any worn or broken parts immediately.

· Use at your own risk. We are not responsible for accidents due to product misuse.
