Swagelok 60 Series Quick Reference Manual

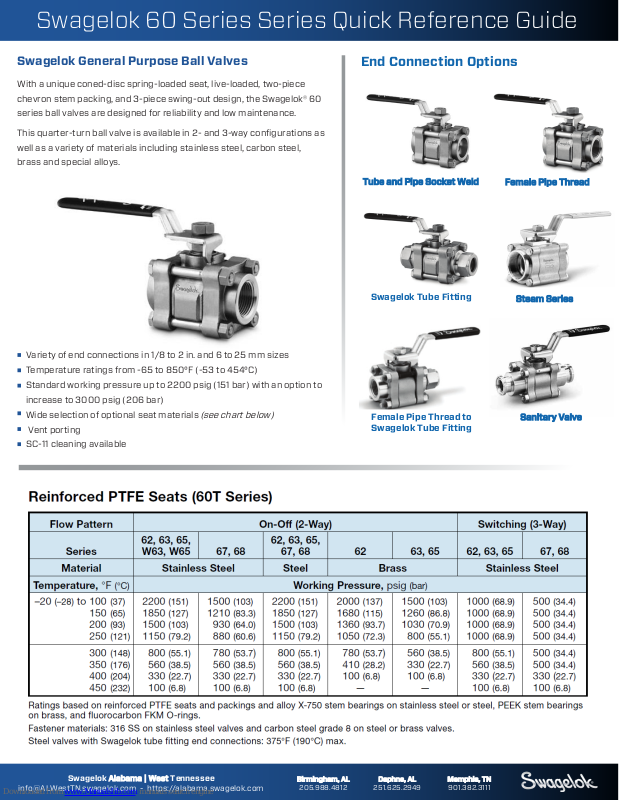

Swagelok 60 Series Series Quick Reference Guide
Swagelok General Purpose Ball Valves
With a unique coned-disc spring-loaded seat, live-loaded, two-piece
chevron stem packing, and 3-piece swing-out design, the Swagelok® 60
series ball valves are designed for reliability and low maintenance.
This quarter-turn ball valve is available in 2- and 3-way configurations as
well as a variety of materials including stainless steel, carbon steel,
brass and special alloys.
End Connection Options
Tube and Pipe Socket Weld
Swagelok Tube Fitting
Female Pipe Thread
Steam Series
Variety of end connections in 1/8 to 2 in. and 6 to 25 mm sizes
Temperature ratings from -65 to 850°F (-53 to 454°C)
Standard working pressure up to 2200 psig (151 bar) with an option to
increase to 3000 psig (206 bar)
Wide selection of optional seat materials (
Vent porting
SC-11 cleaning available
see chart below
)
Female Pipe Thread to
Swagelok Tube Fitting
Sanitary Valve
info@ALWestTN.swagelok.com - https://alabama.swagelok.com
Swagelok Alabama | West Tennessee
Birmingham, AL
205.988.4812
Daphne, AL
251.625.2949
Memphis, TN
901.382.3111
Stem springs
Grounding spring
Live-loaded,
2-piece chevron
stem packing
High-strength
stem bearings
Bottom-loaded stem
Flexing seat design ensures
leak-tight seal in both low- and
high-pressure systems
Under low pressure
Under high pressure
Flow
Flow
Directional stem flats
Stem springs
Grounding spring
Live-loaded,
2-piece chevron
stem packing
High-strength
stem bearings
Bottom-loaded stem
On-O (2-Way) Valve
Flexing seat design ensures
leak-tight seal in both low- and
high-pressure systems
Under low pressure
Under high pressure
Flow
Pneumatic, ISO-5211 Compliant and Electric Actuator Options
Pneumatic Actuators
Swagelok rack and pinion pneumatic actuators are designed to actuate Swagelok® ball valves. The actuators
are compact, lightweight, easily mountable and can be operated with standard shop air. They are available in
spring-return and double-acting modes.
For more information, see Swagelok Ball Valve Actuation Options catalog, MS-02-343.
ISO-5211 Compliant Pneumatic Actuators
The Swagelok rack and pinion pneumatic actuators are ISO-5211 compliant and are suitable for general
applications. They are available in spring-return and double-acting modes.
For more information, see Swagelok Ball Valve Actuation Options catalog, MS-02-343.
Electric Actuators
Swagelok electric actuators are rugged and lightweight. They connect alternating- or direct-current power
sources.
For more information, see Swagelok Electric Actuators - 141 and 142 Series catalog, MS-01-35.
Options and Accessories Available
Valve Handle Options
Lever handles are standard. Also available are:
info@alabama.swagelok.com - https:/
Birmingham, AL
205.988.4812
Swagelok Alabama | West Tennessee
Daphne, AL
251.625.2949
Oval Handles
/alabama.swagelok.com
Memphis, TN
901.382.3111
Locking Brackets
Oval Latch-Lock
